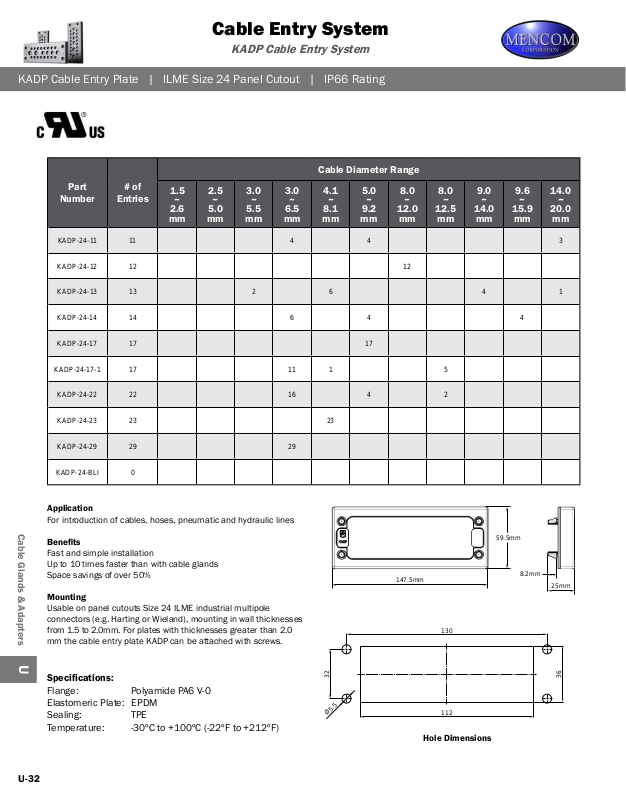

Mencom Cable Entry System Catalog Page
Cable Entry System
KADP Cable Entry System
KADP Cable Entry Plate | ILME Size 24 Panel Cutout | IP66 Rating
Cable Diameter Range
Part
Number
KADP-24-11 11 4 4 3
KADP-24-12 12 12
KADP-24-13 13 2 6 4 1
KADP-24-14 14 6 4 4
# of
Entries
1.5
~
2.6
mm
2.5
~
5.0
mm
3.0
~
5.5
mm
3.0
~
6.5
mm
4.1
~
8.1
mm
5.0
~
9.2
mm
8.0
~
12.0
mm
8.0
~
12.5
mm
9.0
~
14.0
mm
9.6
~
15.9
mm
14.0
~
20.0
mm
KADP-24-17 17 17
KADP-24-17-1 17 11 1 5
KADP-24-22 22 16 4 2
KADP-24-23 23 23
KADP-24-29 29 29
KADP-24-BLI 0
Application
For introduction of cables, hoses, pneumatic and hydraulic lines
Cable Glands & Adapters
Benets
Fast and simple installation
Up to 10 times faster than with cable glands
Space savings of over 50%
Mounting
Usable on panel cutouts Size 24 ILME industrial multipole
connectors (e.g. Harting or Wieland), mounting in wall thicknesses
from 1.5 to 2.0mm. For plates with thicknesses greater than 2.0
mm the cable entry plate KADP can be attached with screws.
147.5mm
59.5mm
8.2mm
25mm
130
U
Specications:
Flange: Polyamide PA6 V-0
Elastomeric Plate: EPDM
Sealing: TPE
Temperature: -30ºC to +100ºC (-22ºF to +212ºF)
U-32
32
Ø5.5
36
112
Hole Dimensions
