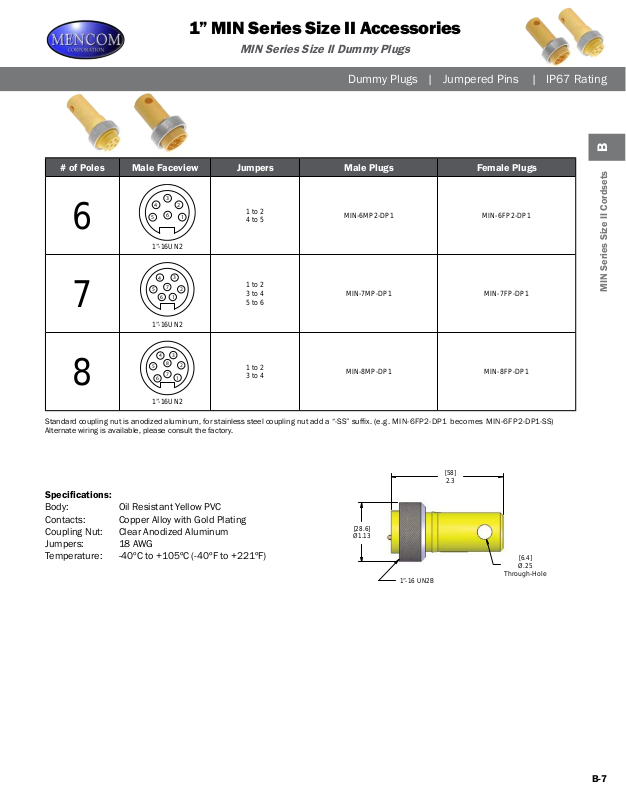

1” MIN Series Size II Accessories
MIN Series Size II Dummy Plugs
Dummy Plugs | Jumpered Pins | IP67 Rating
# of Poles Male Faceview Jumpers Male Plugs Female Plugs
3
2
6
7
4
6
5
1”-16UN2
4
7
5
1
6
1”-16UN2
1
3
2
1 to 2
4 to 5
1 to 2
3 to 4
5 to 6
MIN-6MP2-DP1 MIN-6FP2-DP1
MIN-7MP-DP1 MIN-7FP-DP1
B
MIN Series Size II Cordsets
3
4
8
2
5
7
1
8
Standard coupling nut is anodized aluminum, for stainless steel coupling nut add a “-SS” sufx. (e.g. MIN-6FP2-DP1 becomes MIN-6FP2-DP1-SS)
Alternate wiring is available, please consult the factory.
6
1”-16UN2
1 to 2
3 to 4
MIN-8MP-DP1 MIN-8FP-DP1
[58]
2.3
Specications:
Body: Oil Resistant Yellow PVC
Contacts: Copper Alloy with Gold Plating
Coupling Nut: Clear Anodized Aluminum
[28.6]
Ø1.13
Jumpers: 18 AWG
Temperature: -40ºC to +105ºC (-40ºF to +221ºF)
1”-16 UN2B
[6.4]
Ø.25
Through-Hole
B-7
1” MIN Series Size II Accessories
MIN Series Size II Accessories
Closure Caps & Plugs | Adapter Coupling | IP67 Rating
Metal/Plastic Closure Caps
Closure Style Part Number Material Threads Mounting Hole Size
MIN Series Size II CordsetsB
[152]
6”
[28.6]
Ø1.125
[28.6]
Ø1.125
[28.9]
Ø1.14
[28.6]
Ø1.125
1”-16 UN2B
[203]
1”-16 UN2B
[114]
4.5”
1”-16UN2B
THREADS
[152]
6”
1”-16 UN2A
THREADS
[203]
8”
[33]
Ø.130
8”
[33]
Ø1.3
[19.3]
Ø.76
MIN-2-CAP Nickel Plated Brass Female 0.13”
MIN-2-CAP-CBLY Nickel Plated Brass Female 1.3”
MIN-2-CAP-PASW
Polyamide NBR
with T ether***
Female 0.76”
Metal Closure Plugs
[33]
Ø.130
MIN-2-PLUG Nickel Plated Brass Male 0.13”
[33]
[28.6]
Ø1.125
1”-16 UN2A
THREADS
Ø1.3
MIN-2-PLUG-CBLY Nickel Plated Brass Male 1.3”
NBR tether and stainless steel lanyard are available for all MIN-2-CAP and MIN-2-PLUG. Please consult the factory for part number and availability.
***Tether mounts under receptacles with ½” NPT, M20 or M25 mounting threads and also serves as a gasket.
Adapter Coupling Part Number Material Threads
B-8
1.27
12.75
0
1.78
1"-16 UN2A
MIN-XMP2-AD Nickel Plated Brass
MIN-XMP2-AD-SS
Stainless Steel
Male
