Mencom 1” MIN Power Series Cordsets Catalog Page

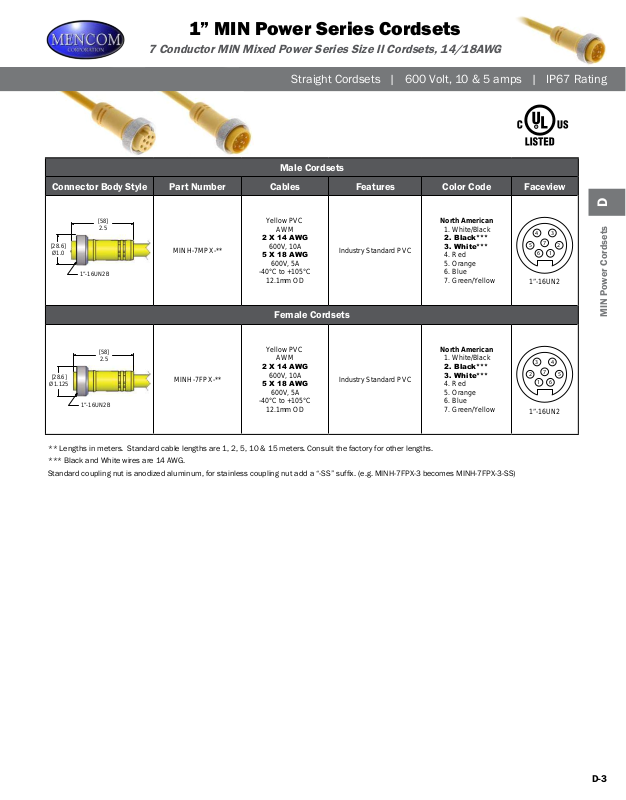

1” MIN Power Series Cordsets
7 Conductor MIN Mixed Power Series Size II Cordsets, 14/18AWG
Straight Cordsets | 600 Volt, 10 & 5 amps | IP67 Rating
Male Cordsets
Connector Body Style Part Number Cables Features Color Code Faceview
[28.6]
Ø1.0
[58]
2.5
1”-16UN2B
MINH-7MPX-**
Yellow PVC
AWM
2 X 14 AWG
600V, 10A
5 X 18 AWG
600V, 5A
-40°C to +105°C
12.1mm OD
Industry Standard PVC
North American
1. White/Black
2. Black***
3. White***
4. Red
5. Orange
6. Blue
7. Green/Yellow
3
4
7
5
1
6
1”-16UN2
D
2
Female Cordsets
Yellow PVC
AWM
2 X 14 AWG
600V, 10A
5 X 18 AWG
600V, 5A
-40°C to +105°C
12.1mm OD
Industry Standard PVC
[28.6]
Ø1.125
[58]
2.5
1”-16UN2B
MINH-7FPX-**
** Lengths in meters. Standard cable lengths are 1, 2, 5, 10 & 15 meters. Consult the factory for other lengths.
*** Black and White wires are 14 AWG.
Standard coupling nut is anodized aluminum, for stainless coupling nut add a “-SS” sufx. (e.g. MINH-7FPX-3 becomes MINH-7FPX-3-SS)
North American
1. White/Black
2. Black***
3. White***
4. Red
5. Orange
6. Blue
7. Green/Yellow
3
4
7
2
1
6
1”-16UN2
MIN Power Cordsets
5
D-3
