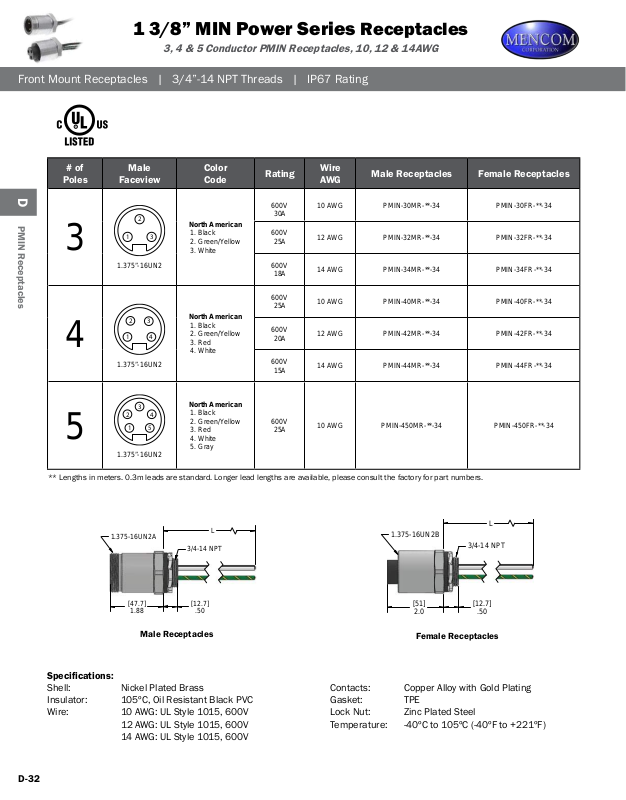

Mencom 1 3/8” MIN Power Series Receptacles Catalog Page
[51]
2.0
[12.7]
.50
L
3/4-14 NPT
[51]
2.0
[13]
.5
L
1/2-14 NPT
1.375-16UN2B
1 3/8” MIN Power Series Receptacles
3, 4 & 5 Conductor PMIN Receptacles, 10, 12 & 14AWG
Front Mount Receptacles | 3/4”-14 NPT Threads | IP67 Rating
PMIN ReceptaclesD
# of
Poles
3
4
5
Male
Faceview
2
1
3
1.375”-16UN2
213
4
1.375”-16UN2
3
2
4
1
5
1.375”-16UN2
Color
Code
North American
1. Black
2. Green/Yellow
3. White
North American
1. Black
2. Green/Yellow
3. Red
4. White
North American
1. Black
2. Green/Yellow
3. Red
4. White
5. Gray
Rating
600V
30A
600V
25A
600V
18A
600V
25A
600V
20A
600V
15A
600V
25A
Wire
AWG
10 AWG PMIN-30MR-**-34 PMIN-30FR-**-34
12 AWG PMIN-32MR-**-34 PMIN-32FR-**-34
14 AWG PMIN-34MR-**-34 PMIN-34FR-**-34
10 AWG PMIN-40MR-**-34 PMIN-40FR-**-34
12 AWG PMIN-42MR-**-34 PMIN-42FR-**-34
14 AWG PMIN-44MR-**-34 PMIN-44FR-**-34
10 AWG
Male Receptacles Female Receptacles
PMIN-450MR-**-34 PMIN-450FR-**-34
** Lengths in meters. 0.3m leads are standard. Longer lead lengths are available, please consult the factory for part numbers.
Specications:
Shell: Nickel Plated Brass
Insulator: 105ºC, Oil Resistant Black PVC
Wire: 10 AWG: UL Style 1015, 600V
12 AWG: UL Style 1015, 600V
14 AWG: UL Style 1015, 600V
1.375-16UN2A
[47.7]
1.88
Male Receptacles
L
3/4-14 NPT
[12.7]
.50
L
1.375-16UN2B
3/4-14 NPT
[51]
2.0
[12.7]
.50
Female Receptacles
Contacts: Copper Alloy with Gold Plating
Gasket: TPE
Lock Nut: Zinc Plated Steel
Temperature: -40ºC to 105ºC (-40ºF to +221ºF)
D-32
