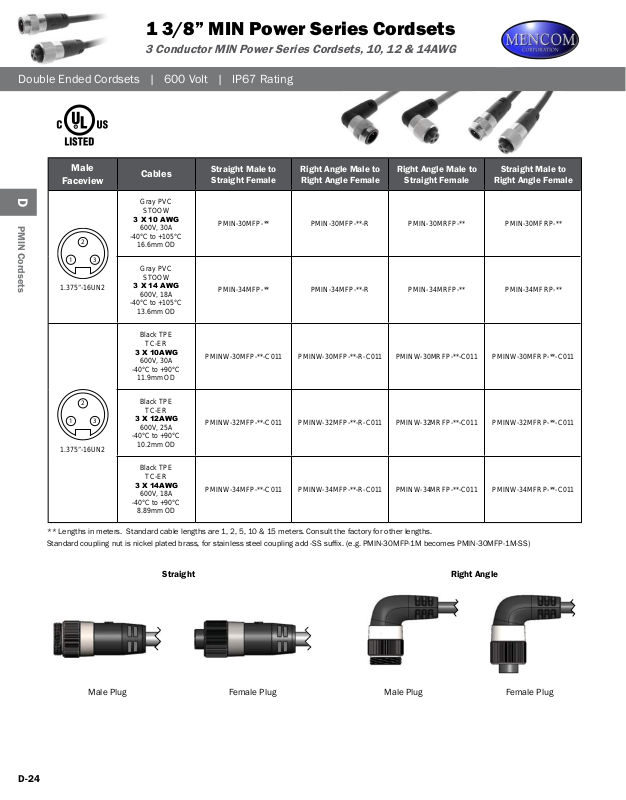

Mencom 1 3/8” MIN Power Series Cordsets Catalog Page

1 3/8” MIN Power Series Cordsets

3 Conductor MIN Power Series Cordsets, 10, 12 & 14AWG

Double Ended Cordsets | 600 Volt | IP67 Rating

PMIN CordsetsD

Male

Faceview

2

1

3

1.375”-16UN2

2

1

3

1.375”-16UN2

Cables

Gray PVC

STOOW

3 X 10 AWG

600V, 30A

-40°C to +105°C

16.6mm OD

Gray PVC

STOOW

3 X 14 AWG

600V, 18A

-40°C to +105°C

13.6mm OD

Black TPE

TC-ER

3 X 10AWG

600V, 30A

-40°C to +90°C

11.9mm OD

Black TPE

TC-ER

3 X 12AWG

600V, 25A

-40°C to +90°C

10.2mm OD

Straight Male to
Straight Female

PMIN-30MFP-** PMIN-30MFP-**-R PMIN-30MRFP-** PMIN-30MFRP-**

PMIN-34MFP-** PMIN-34MFP-**-R PMIN-34MRFP-** PMIN-34MFRP-**

PMINW-30MFP-**-C011 PMINW-30MFP-**-R-C011 PMINW-30MRFP-**-C011 PMINW-30MFRP-**-C011

PMINW-32MFP-**-C011 PMINW-32MFP-**-R-C011 PMINW-32MRFP-**-C011 PMINW-32MFRP-**-C011

Right Angle Male to
Right Angle Female

Right Angle Male to

Straight Female

Straight Male to

Right Angle Female

Black TPE

TC-ER

3 X 14AWG

600V, 18A

-40°C to +90°C

8.89mm OD

PMINW-34MFP-**-C011 PMINW-34MFP-**-R-C011 PMINW-34MRFP-**-C011 PMINW-34MFRP-**-C011

** Lengths in meters. Standard cable lengths are 1, 2, 5, 10 & 15 meters. Consult the factory for other lengths.

Standard coupling nut is nickel plated brass, for stainless steel coupling add -SS sufx. (e.g. PMIN-30MFP-1M becomes PMIN-30MFP-1M-SS)

Straight

Right Angle

Male Plug Male PlugFemale Plug Female Plug

D-24
