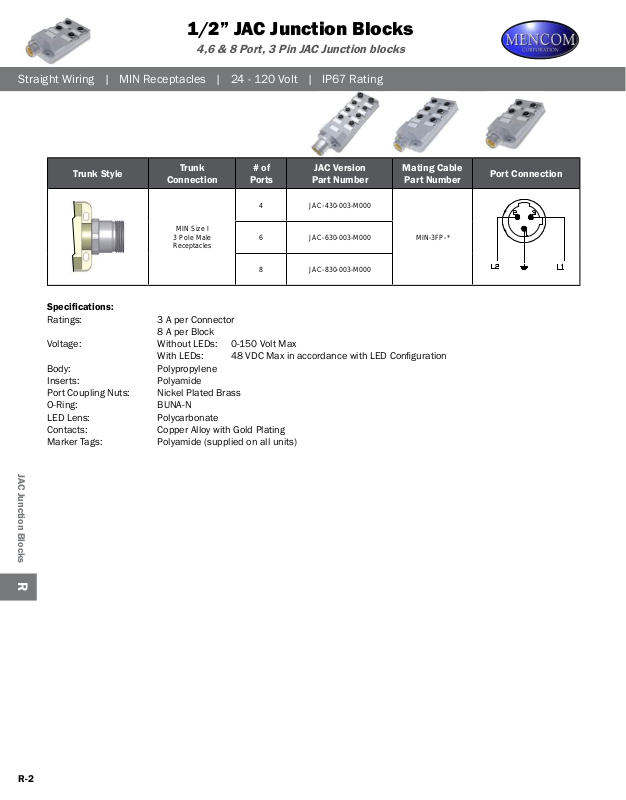

Mencom 1/2” JAC Junction Blocks Catalog Page
1/2” JAC Junction Blocks
4,6 & 8 Port, 3 Pin JAC Junction blocks
Straight Wiring | MIN Receptacles | 24 - 120 Volt | IP67 Rating
Trunk Style
Trunk
Connection
MIN Size I
3 Pole Male
Receptacles
# of
Ports
4 JAC-430-003-M000
8 JAC-830-003-M000
JAC Version
Part Number
Mating Cable
Part Number
MIN-3FP-*6 JAC-630-003-M000
Specications:
Ratings: 3 A per Connector
8 A per Block
Voltage: Without LEDs: 0-150 Volt Max
WithLEDs: 48VDCMaxinaccordancewithLEDConguration
Body: Polypropylene
Inserts: Polyamide
Port Coupling Nuts: Nickel Plated Brass
O-Ring: BUNA-N
LED Lens: Polycarbonate
Contacts: Copper Alloy with Gold Plating
Marker Tags: Polyamide (supplied on all units)
Port Connection
JAC Junction Blocks R
R-2
1/2” JAC Junction Blocks
[73]
2.9
[104]
4.1
[36]
1.4
[4.8]
Ø.19
[62]
2.5
[32]
1.3
7/8-16UN2B
[73]
2.9
[104]
4.1
[36]
1.4
[4.8]
Ø.19
[62]
2.5
[32]
1.3
[74]
2.9
[33]
1.3
[62]
2.5
[129]
5.1
[4.8]
Ø.19
[36]
1.4
[32]
1.3
7/8-16UN2B
7/8-16UN2B
4,6 & 8 Port, 3 Pin JAC Junction blocks
Straight Wiring | MIN Receptacles | 24 - 120 Volt | IP67 Rating
PIN Connection
MIN Pin # All Ports PIN # Male Faceview
1 1 (Ground)
2
3
2 2 (L2)
1
3 3 (L1)
# of Port Housing Style
[104]
4.1
[73]
2.9
[74]
2.9
[129]
5.1
4
6
[62]
2.5
[4.8]
Ø.19
[62]
2.5
[4.8]
Ø.19
[33]
1.3
7/8-16UN2B
[36]
1.4
7/8-16UN2B
[36]
1.4
7/8”-16UN2
[32]
1.3
[32]
1.3
JAC Junction Blocks
R
8
[62]
2.5
[4.8]
Ø.19
[34]
1.3
[154]
6.1
[73]
2.9
[32]
1.3
7/8-16UN2B
[36]
1.4
R-3
