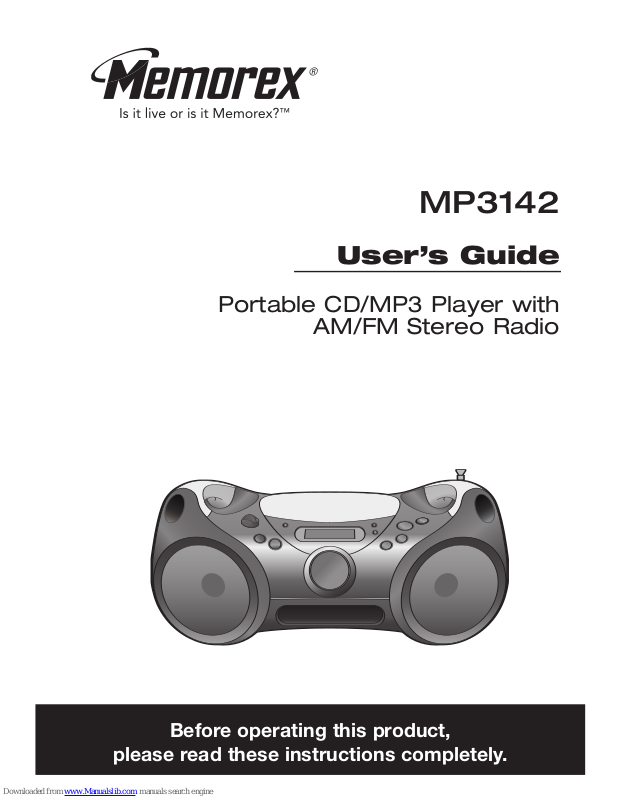

User’s Guide
Portable CD/MP3 Player with
AM/FM Stereo Radio
MP3142
Before operating this product,
please read these instructions completely.
Page 2
Dear Customer,
Please read this manual thoroughly before operating the unit to become more familiar with it
and obtain the performance that will bring you continued enjoyment for many years. Keep
these instructions handy for future reference.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU
NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.
For future reference, record the serial number of the unit printed on the rear of the cabinet.
Serial Number _______________________________________
1
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This Caution Marking is located at the bottom enclosure of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
DANGER:
This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player
is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible and hazardous laser radiation when open and interlock
failed or defeated. Avoid direct exposure to beam. Please do not attempt to defeat or bypass
the safety switches.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
SAFETY PRECAUTIONS
Page 3
2
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
LASER SAFETY: This unit employs a laser. Only qualified service personnel
should attempt to service this device due to possible eye injury.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
INFORMATION:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection. Lightning and
power surges ARE NOT covered under warranty for this product.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES
ET POUSSER JUSQU’AU FOND.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
SAFETY PRECAUTIONS
Page 4
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear
without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes
of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Decibel
Level
Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
3
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
Page 5
Before using the unit, be sure to read all operating instructions carefully. Please note that these are
g
eneral precautions and may not pertain to your unit. For example, this unit may not have the capabili-
ty to be connected to an outdoor antenna.
1. READ INSTRUCTIONS
A
ll the safety and operating instructions should be read before the product is operated.
2
. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a dry cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the product's manufacturer as they may cause hazards.
7. WATER AND MOISTURE
Do not use this product near water–for example: near a bathtub, washbowl, kitchen sink or laundry tub; in
a wet basement; or near a swimming pool.
8. ACCESSORIES
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing
serious injury and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product
should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8A. An appliance and cart combination should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back or bottom are provided for ventilation,
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near
or over a radiator or heat source. This product should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
10. POWER SOURCES
This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
12. POWER-CORD PROTECTION Power-supply cords should be
routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where they exit from the
appliance.
13. LIGHTNING
To protect your product from a lightning storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage
to the product due to lightning and power-line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
SAFETY INSTRUCTIONS
4
Page 6
15. OVERLOADING
D
o not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product through openings as they may touch dangerous voltage points
o
r short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.
1
7. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National
Electric Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for
grounding electrodes.
18. SERVICING
Do not attempt to service this
product yourself as opening or
removing covers may expose you
to dangerous voltage or other
hazards. Refer all servicing to
qualified service personnel.
19. REPLACEMENT PARTS
When replacement parts are
required, be sure the service technician uses replacement parts
specified by the manufacturer or
those that have the same characteristics as the original part.
Unauthorized substitutions may
result in fire, electric shock or
other hazards.
20. SAFETY CHECK
Upon completion of any service
or repairs to this product, ask the service technician to perform safety checks to determine that the product
is in proper operating condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, as an adjustment of other controls may result
in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance–this
indicates a need for service.
23. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves or other
products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular
, specifies that the cable ground shall be con-
nected to the grounding system of the building, as close to the point of cable entry as practical.
SAFETY INSTRUCTIONS (CONTINUED)
5
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
Page 7
1. Left Carrying Handle
2. Disc Compartment
3. Function Control (OFF/CD/FM
ST/AM)
4. CLK (Clock) SET
Button
5. Display
6. BASS BOOST Button
7. ALBUM UP Button
8. Left Speaker
9. Battery Compartment
(Bottom of Unit)
(BATTERY COVER PART NO.
GMT181-10000001*)
10. FM Antenna
11. Right Carrying Handle
12. OPEN/CLOSE Area
13. AC Jack (Rear of Unit)
(DETACHABLE POWER CORD
PART NO. 16-29000000401*)
14. STOP (■) Button
15. PROG (Program) Button
16.
PLA
Y/PAUSE (
®/p) Button
17. P-MODE (Play Mode) Button
18. Skip/Search (
)/M (Minute)
Button
19. Skip/Search ( )/H (Hour)
Button
20. TUNING Control (Side of Unit)
21. VOLUME Control
22. AUX IN Jack (Side of Unit)
23. PHONES (Headphones) Jack
(Side of Unit)
24. Right Speaker
*Consumer Replaceable Part
(See page 20 to order
.)
LOCATION OF CONTROLS
6
Page 8
This unit is designed to operate on AC household current or DC (batteries).
AC
Use the AC polarized line cord included with the unit for operation on AC power. Insert
one end of the AC line cord into the AC jack on the rear of the unit and the other end
(with the 2 blades) into a conveniently located AC
outlet having 120V, 60Hz. When the AC cord is
plugged in, the batteries will be disconnected.
NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of electric shock.
If the AC plug does not fit into a nonpolarized AC outlet, do not file or cut the wide blade. It is the user’s
responsibility to have an electrician replace the obsolete outlet.
BATTERY INSTALLATION
To use this unit with battery power, remove the
Battery Compartment door on the bottom of the unit
by sliding it off. Insert eight (8) ‘C’ size batteries
following the diagram in the compartment.
NOTE: The AC power cord must be disconnected
from the AC jack on the rear of the unit in order for
the unit to operate on battery power.
POWER SOURCES
7
AC Plug
AC Outlet
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries
with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from
possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery
manufacturer’s directions.)
HEADPHONES JACK
For private listening, connect low impedance 3.5mm (32 ohm) stereo headphones
(not included) to this jack.
The speakers are automatically disconnected when the
headphones plug is inserted in the jack.
Page 9
8
OPERATION
Make sure the Function control is set
to OFF or CD.
1
Press and hold the CLK SET button
1. Set the correct hour (and AM/PM)
using the Skip/Search ( )/H (Hour)
button
2.
2
1
2
Continue holding the CLK SET button
1. Set the correct minute using the
Skip/Search ( )/M (Minute) button
2.
Release the CLK SET button
1 and
the time will be set.
2
1
3
SETTING THE CLOCK
NOTE:
If there is a power failure and if there is
no power supply to the unit (for several
minutes), then the clock will be reset.
Page 10
OPERATION (CONTINUED)
9
Rotate the Function control to the AM
or FM ST position to turn the unit on
and select AM or FM ST (Stereo); the
band and the frequency will appear in
the display.
1
Tune a desired station by turning the
TUNING control.
2
Adjust the VOLUME control 1 and
BASS BOOST button 2 as desired.
Press the BASS BOOST button
2 to
the “in” position to enhance the bass
sound.
2
1
3
To turn the radio off, rotate the
Function control to the OFF position.
4
LISTENING TO THE RADIO
ANTENNAS
AM
–This unit has a built-in ferrite rod antenna, which provides adequate reception in most
areas. If reception is weak, turn the unit to improve reception.
FM–The FM Antenna is for FM reception only. If reception is weak, adjust the length and the
angle of the antenna.
Page 11
OPERATION (CONTINUED)
10
To start from a specific track on a
CD, while in the Stop mode, locate
the track using the Skip/Search o 1
or n 2 button, then press the
PLAY/PAUSE (
®/p) button 3 to start
playback from the track selected. “
®”
and the track number will appear in
the display.
1
2
3
4a
To play a disc from the beginning,
press the PLAY/PAUSE (®/p) button;
“®” and the track/file number (and
“MP3” if an MP3 disc is inserted) will
appear in the display.
Press the PLAY/PAUSE (
®/p) button
again to pause playback; “
®” will blink
in the display. Press the PLAY/
PAUSE (
®/p) button once again to
continue playback; “®” will stop blinking in the display.
3
TO PLAY A DISC
This unit is designed to play all kinds of audio discs and MP3 discs, such as CD
recordables and rewritables. Do not try to play CDI, CDV, DVD or computer
CDs in this unit.
CONTINUED ON THE NEXT PAGE
Rotate the Function control to the CD
position to turn the unit on and select
CD mode.
1
Open the Disc Compartment door by
pressing the OPEN/CLOSE area.
Place a disc on the center spindle,
with the printed label side facing up.
Close the Disc Compartment door;
the total tracks/files on the disc will
appear in the display.
2
Page 12
11
OPERATION (CONTINUED)
When the disc is through playing, it will
stop rotating. Press the STOP (
■) but-
ton to stop the disc before it is finished.
8
To turn the unit off, rotate the Function
control to the OFF position.
9
TO PLAY A DISC (CONTINUED)
To skip forward or backward through
the tracks/files on the disc, press the
Skip/Search o 1 or n 2 button.
1
2
6
To start from a specific album/file on
a MP3 disc,
while in the Stop mode,
select the desired album (folder) by
repeatedly pressing the ALBUM UP button
1. While “ALBUM” and the album
number are blinking in the display, press
the PLAY/PAUSE (
®/p) button 2 to
start playback. Then use the
Skip/Search
o 3 or n 4 button to skip to
the desired file.
3
4
2
1
4b
Adjust the VOLUME control 1 and
BASS BOOST button 2 as desired.
Press the BASS BOOST button 2 to
the “in” position to enhance the bass
sound.
2
1
5
To search forward or backward
through the playing track/file, press
and hold the Skip/Search o 1 or n 2
button; a chattering noise will be
heard. Stop pressing the button to
return to normal playback.
1
2
7
SEE NOTES ON THE NEXT PAGE
Page 13
OPERATION (CONTINUED)
12
NOTES:
• If there is no disc or a disc is inserted incorrectly, dirty or damaged, "no" will appear
in the display.
• As each track/file is played, the track/file number is shown in the display.
• To prevent damage to the disc, never open the Disc Compartment door while the disc
is rotating. Wait for the disc to stop before opening the Disc Compartment door. Never
touch the lens when the Disc Compartment door is open.
• DO NOT use the carrying handles when playing a disc. The unit should only be
used on a steady surface.
MP3 FAQs–Frequently Asked Questions
Please read before playing an MP3 disc.
Does the unit support packet write CD-RW?
Yes, it can. You can add or delete MP3 files without reformatting. It appears like a
PC hard drive.
Can the unit read regular music CDs?
Yes, it can. However, you can not mix MP3 and WAV files on the same disc. If you
do, this unit will play only the MP3 files.
Can I use the MP3 extension for non-audio data files?
No, this may result in serious malfunction and harmful noise interference.
Can I mix MP3 files with other file types on the CDR?
Yes, but this unit will ignore those files and read only the MP3 files on the CDR.
Does the unit support multi-session CDRs?
If the MP3 disc is not finalized, you can burn a new group of MP3 files until the disc
is full.
Does the unit support subdirectories (subfolders)?
Yes, the unit can read MP3 files from subfolders.
Page 14
OPERATION (CONTINUED)
13
To repeat a single track/file, press the
P-MODE button
1 once while in the Stop
mode; “REP” will appear in the display.
Press the Skip/Search
o 2 or n 3 button
to select the specific track/file that you
wish to repeat. When the desired
track/file number appears in the display
,
press the PLAY/PAUSE (
®/p) button 4
to begin playback. “®” and the track/file
number (and “MP3” if an MP3 disc is
inserted) will appear in the display and
the specific track/file you selected will be
repeated continuously.
2
3
1
4
1
To repeat all of the tracks/files on a
disc continuously,
press the P-MODE
button
1 twice (three times for an MP3
disc) while in the Stop mode; “REP ALL”
will appear in the display. Press the
PLAY/PAUSE (
®/p) button 2 to begin
playback. “
®” and the track/file number
(and “MP3” if an MP3 disc is inserted) will
appear in the display and all tracks/files
will be repeated continuously.
1
2
2
To randomly play all of the tracks/files
on a disc,
press the P-MODE button 1
three times (four times for an MP3 disc)
while in the Stop mode; “RAND” will appear
in the display. Press the PLAY/PAUSE
(
®/p) button 2 to begin playback. “®” and
the track/file number (and “MP3” if an MP3
disc is inserted) will appear in the display
and all tracks/files will be played randomly.
1
2
1
TO REPEATEDLY PLAY BACK ONE/ALL TRACKS/FILES
TO RANDOMLY PLAY BACK ALL TRACKS/FILES
NOTES ON REPEAT MODES:
• When playing an MP3 disc, you will also have the option to repeat an album (folder).
Press the P-MODE button twice. Then, while “ALBUM” is blinking in the display, select
an album using the ALBUM UP button. Press the PLAY/PAUSE (
®/p) button to begin
playback.
• To cancel Repeat playback, press the STOP (
■) button.
NOTES ON RANDOM MODE:
• The unit will play all of the tracks/files on
the disc randomly, and then stop.
• To cancel Random playback, press the
STOP (
■) button.
Page 15
OPERATION (CONTINUED)
14
Rotate the Function control to the CD
position to turn the unit on and select
CD mode. Insert a disc as described
on page 10.
1
Press the PROG button; “PROG” and
“P01” will blink in the display.
2
For CD, use the Skip/Search o 1 or n
2
button to select the first track to be
programmed.
For MP3 disc, use the ALBUM UP button
3 to select the desired album,
then use the Skip/Search
o 1 or n 2
button to select the first track/file to be
programmed.
1
2
3
3
Press the PROG button again; the
selected track/file has now been programmed and counted as program 1.
4
Repeat steps 3 and 4 to program the other
desired tracks/files in sequence.
When the program memory is full, “- - -” will
blink in the display.
1
2
5
Press the PLAY/PAUSE (®/p) button to
begin Programmed playback; “PROG”,
“®” and the track/file number (and “MP3”
if an MP3 disc is inserted)
will appear in
the display
and the tracks/files will play in
the order programmed.
6
TO PROGRAM THE MEMORY (UP TO 20 CD TRACKS/10 MP3 FILES)
SEE NEXT PAGE FOR NOTES ON PROGRAMMED PLAY
Page 16
OPERATION (CONTINUED)
15
NOTES ON PROGRAMMED PLAY:
• Programming is the ability to preselect the order in which a series of tracks
/files will be played.
• Each track/file may be stored in the program memory as many times as
desired.
• As each track/file is played, its track/file number will be displayed. You can
move forward or backward through the programmed tracks/files with the
Skip/Search
o or n button.
• The unit will stop after all programmed tracks/files have been played or the
STOP (
■) button is pressed.
• To clear the Program memory, while in the Stop mode, press the STOP (
■)
button.
It is also possible to use the Program
and Repeat functions together to
repeat a specific program indefinitely.
First, program the tracks/files you
wish to hear in the order you wish to
hear them, as described on page 14.
Then, press the P-MODE button
twice.
1
Press the PLAY/PAUSE (®/p) button to
begin Programmed Repeat playback;
“PROG”, “REP ALL”, “
®” and the
track/file number (and “MP3” if an MP3
disc is inserted) will appear in the display.
The player will play the tracks/files you
selected in the order in which you
programmed them. When the last
track/file in the program has been played,
the entire program will begin again.
2
PROGRAMMED REPEAT
NOTE:
Program Repeat playback will continue indefinitely until you press the STOP (■)
button.
Page 17
OPERATION (CONTINUED)
16
SINGLE SESSION
The chart below is an example of a Windows Explorer display that will appear
on your computer monitor for a single session MP3 disc with directories/albums.
Check the added notes to help you understand the MP3 disc unit display and
the playback sequence of directories/albums and files on a single session MP3
disc.
MULTI SESSION
The computer user does not need to finalize the CDR disc as music is burned
on the disc. Because of this, the music can be downloaded at different times
until the whole disc is full.
NOTES:
•
The arrow pathway shows the sequence of MP3 directory and file playback.
• This example has a total of seven MP3 directories.
• Based on this layout, the first file will be “Blur01.mp3” and the last file will be
“Twain15.mp3”.
• “Skipped” denotes a directory which contains non-audio files only, e.g. jpg,
wav, etc. These cannot be detected nor played on this player. When an album
contains mixed format files, the non-MP3 files will be skipped.
Page 18
OPERATION (CONTINUED)
17
LINE IN Jack
By using a home audio connection cable (not included), you can listen to an
external audio unit through this unit’s speakers. Before making any connections,
turn off the power to all equipment.
Rotate the Function control to CD, FM ST or AM to turn the unit on and select
CD or Radio mode. Plug a connection cable (not included) between the AUX or
LINE OUT jack on the external audio unit and this unit's AUX IN jack (side of the
unit). (Do not connect it to this unit's PHONES jack.) Then the unit will automatically turn to the AUX mode. Turn on the external audio unit and start playback;
the external unit's output sound will be heard through this unit's speakers. Rotate
the VOLUME control to adjust the volume level as desired.
To turn the unit off, remove the plug from the AUX IN jack, then rotate the
Function control to OFF.
NOTE: If you are in Radio/CD mode, when you connect an external unit to the
AUX IN jack, this unit will automatically switch to AUX mode. If you remove the
plug from the AUX IN jack, the unit will resume to the mode it was in before the
external unit was connected.
Page 19
Caring for Compact Discs
• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your
fingers to come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to
the disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the compact disc, it is probably
dirty or damaged (scratched).
• When cleaning the compact disc,
wipe in straight lines from the center
of the compact disc to the outer edge
of the compact disc. Never wipe in
circular motions.
• This unit is designed to play only compact discs bearing the identification logo as shown here. Other discs may not conform to the CD standard and may not play properly.
• Compact discs should be stored in their cases after each use to avoid damage.
• Do not expose compact discs to direct sunlight, high humidity, high temperatures or
dust, etc. Prolonged exposure or extreme temperatures can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing
instruments, or the ink, may damage the surface.
Cleaning the Unit
• To prevent fire or shock hazard, disconnect your unit from the AC power source
when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.
CARE AND MAINTENANCE
18
Page 20
TROUBLESHOOTING GUIDE
19
SYMPTOM CAUSE SOLUTION
Unit will not AC cord not Check AC cord
turn on. connected. connection.
Disc will not play. Disc Compartment Close Disc Compartment
door not closed. door.
Disc inserted Reinsert disc correctly.
incorrectly.
Dirty or defective CD. Try another disc.
Moisture Wipe disc with soft cloth.
condensation on disc.
No sound. VOLUME control Increase volume.
set to minimum.
Defective disc. Try another disc.
Erratic playback. Dirty or defective Clean or replace disc.
disc.
AM or FM, no sound. Power is not on. Rotate the FUNCTION
control to AM or FM ST.
Volume set too low. Increase volume.
AM/FM, poor sound. Station is not tuned Retune the AM or FM
properly. broadcast station.
FM: Antenna is not Reorient FM
properly adjusted. antenna.
AM: Unit is not pos- Rotate unit until best
itioned correctly. reception is obtained.
If you experience a problem with this unit, check the chart below before calling for
service.
Page 21
GENERAL:
Power Source ..............................................................................120V, 60Hz AC
Battery...........................................................DC 12V, 8 x 1.5V ‘C’ size batteries
Alkaline is recommended for longer life
Speaker. ....................................................................................................2 x 3W
Output Power ............................................................................................2 x 2W
Dimensions ...................................................13.8 (W) x 8.7 (D) x 5.5 (H) Inches
Weight.......................................................................................................4.2 Lbs
RADIO SECTION:
Frequency Range (FM)....................................................................88–108 MHz
Frequency Range (AM) ................................................................530–1710 kHz
DISC SECTION:
Disc Diameter ...............................................................................4.72" (120mm)
3.15" (80mm) Single CD
Optical Source....................................................................Semiconductor Laser
MPEG Rate.......................................................................................32-384Kbps
Sampling Frequency.............................................8/11.025/12KHz for MPEG2.5
16/22.05/24KHz for MPEG2
32/44.1/48KHz for MPEG1
MP3 Playback...........................................................ISO9660 format compatible
Check the CD burner/recorder’s documentation to see if it complies with these
specifications.
Specifications are subject to change without notice.
SPECIFICATIONS
20
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM OR CONTACT CUSTOMER SERVICE AT (954) 660-7100.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S) ON
PAGE 6 AND THEN CONTACT FOX INTERNATIONAL AT 1-800-321-6993.
Page 22
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
GMT181-10000002
Loading...
