Memorex MMP8640 User's Guide

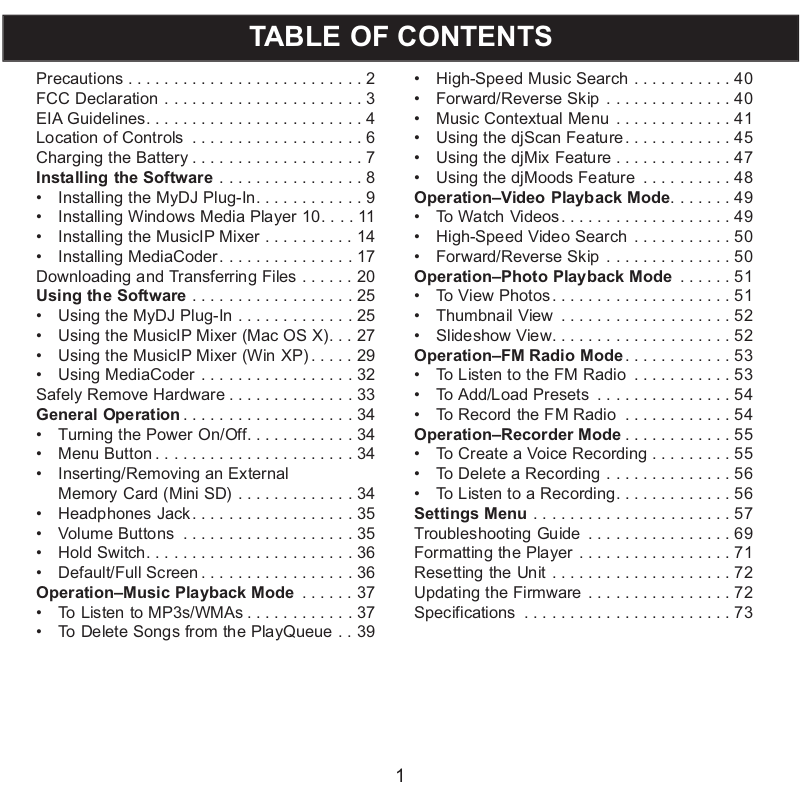

TABLE OF CONTENTS

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FCC Declaration . . . . . . . . . . . . . . . . . . . . . . 3

EIA Guidelines. . . . . . . . . . . . . . . . . . . . . . . . 4

Location of Controls . . . . . . . . . . . . . . . . . . . 6

Charging the Battery . . . . . . . . . . . . . . . . . . . 7

Installing the Software . . . . . . . . . . . . . . . . 8

• Installing the MyDJ Plug-In. . . . . . . . . . . . 9

• Installing Windows Media Player 10. . . . 11

• Installing the MusicIP Mixer . . . . . . . . . . 14

• Installing MediaCoder. . . . . . . . . . . . . . . 17

Downloading and Transferring Files . . . . . . 20

Using the Software . . . . . . . . . . . . . . . . . . 25

• Using the MyDJ Plug-In . . . . . . . . . . . . . 25

• Using the MusicIP Mixer (Mac OS X). . . 27

• Using the MusicIP Mixer (Win XP). . . . . 29

• Using MediaCoder . . . . . . . . . . . . . . . . . 32

Safely Remove Hardware . . . . . . . . . . . . . . 33

General Operation. . . . . . . . . . . . . . . . . . . 34

• Turning the Power On/Off. . . . . . . . . . . . 34

• Menu Button . . . . . . . . . . . . . . . . . . . . . . 34

• Inserting/Removing an External

Memory Card (Mini SD) . . . . . . . . . . . . . 34

• Headphones Jack. . . . . . . . . . . . . . . . . . 35

• Volume Buttons . . . . . . . . . . . . . . . . . . . 35

• Hold Switch. . . . . . . . . . . . . . . . . . . . . . . 36

• Default/Full Screen . . . . . . . . . . . . . . . . . 36

Operation–Music Playback Mode . . . . . . 37

• To Listen to MP3s/WMAs . . . . . . . . . . . . 37

• To Delete Songs from the PlayQueue . . 39

• High-Speed Music Search . . . . . . . . . . . 40

• Forward/Reverse Skip . . . . . . . . . . . . . . 40

• Music Contextual Menu . . . . . . . . . . . . . 41

• Using the djScan Feature . . . . . . . . . . . . 45

• Using the djMix Feature . . . . . . . . . . . . . 47

• Using the djMoods Feature . . . . . . . . . . 48

Operation–Video Playback Mode. . . . . . . 49

• To Watch Videos. . . . . . . . . . . . . . . . . . . 49

• High-Speed Video Search . . . . . . . . . . . 50

• Forward/Reverse Skip . . . . . . . . . . . . . . 50

Operation–Photo Playback Mode . . . . . . 51

• To View Photos. . . . . . . . . . . . . . . . . . . . 51

• Thumbnail View . . . . . . . . . . . . . . . . . . . 52

• Slideshow View. . . . . . . . . . . . . . . . . . . . 52

Operation–FM Radio Mode. . . . . . . . . . . . 53

• To Listen to the FM Radio . . . . . . . . . . . 53

• To Add/Load Presets . . . . . . . . . . . . . . . 54

• To Record the FM Radio . . . . . . . . . . . . 54

Operation–Recorder Mode . . . . . . . . . . . . 55

• To Create a Voice Recording . . . . . . . . . 55

• To Delete a Recording . . . . . . . . . . . . . . 56

• To Listen to a Recording. . . . . . . . . . . . . 56

Settings Menu . . . . . . . . . . . . . . . . . . . . . . 57

Troubleshooting Guide . . . . . . . . . . . . . . . . 69

Formatting the Player . . . . . . . . . . . . . . . . . 71

Resetting the Unit . . . . . . . . . . . . . . . . . . . . 72

Updating the Firmware . . . . . . . . . . . . . . . . 72

Specifications . . . . . . . . . . . . . . . . . . . . . . . 73

PRECAUTIONS

• Distributing copies of MP3, WMA, WMA with DRM tracks and/or WMV files without

permission is a violation of international copyright laws.

SAFETY:

• Vibration experienced during walking or exercising will not affect the player.

However, dropping the player or dropping a heavy object on the player may result in damage or sound distortion.

• Avoid spilling any liquid onto or into the player.

• Do not leave the player in a location near heat sources; in a location subject to direct

sunlight, excessive dust, sand, moisture, rain or mechanical shock; on an unlevel surface; or in a car with the windows closed during periods of excessive heat.

ROAD SAFETY:

• Do not use headphones while driving, cycling or operating any motorized vehicle. It

may create a traffic hazard and it is illegal in some areas. It can be potentially dangerous to play your headset at a high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

FCC WARNING:

• This equipment may generate or use radio frequency energy. Changes or

modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC DECLARATION

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Shield cable must be used with this unit to ensure compliance with class B FCC limits.

Dear Customer:

Selecting fine audio and video equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

EST. 1924

EIA

LISTENING

For A Lifetime

Want You

Level Example

30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet engine 180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

LOCATION OF CONTROLS

1. MyDJ Button

2. Hold Switch

3. Display

4. Record Button

5. Menu Button

6. Navigation Up Button

7. Enter/Play/Pause ®p Button

8. Navigation Left/Skip–Search o Button

9. Navigation Down Button

10. Headphones Jack, MIC (Microphone) and USB Jack (Bottom of Unit)

(HEADPHONES PART NO. EPEAREP70600000-0-00*, USB CABLE PART NO. CTPCLUSBLCN6000-0-00*)

11. Volume Up/Down Buttons

12. Reset Button (Under Cover)

13. Navigation Right/Skip–Search n Button

14. Mini SD Memory Card Slot (Under Cover)

*Consumer Replaceable Part (See page 74 to order.)

CHARGING THE BATTERY

This unit has a built-in Lithium Polymer rechargeable battery. When the bars in the battery indicator (in the display) become low (see Figure 1) and especially when the bars turn red, recharge the battery as follows.

Figure 1

1. Connect the USB cable to the USB jack on the bottom of this unit (as shown) and to the USB port on your computer; “✓ OK to Remove” will appear on the screen. When charging, the battery indicator will flash between empty and the current charge. Once the battery is fully charged, the indicator will stop flashing.

NOTES:

• To disconnect this unit from your computer, make sure to follow the “Safely Remove Hardware” instructions on page 33.

• It takes approx. 3 hours to charge the battery from empty to full. When fully charged, the unit can playback for approx. 20 hours in Music Playback mode. (Actual playback times may vary.)

• For data transfer, please use the USB cable (included) to connect the unit to your computer.

• “Low Battery Voltages” will appear in the display when the battery is empty.

• When the battery is empty and connected to the computer for charging, it may take a few minutes for the “✓ OK to Remove” screen to be displayed.

INSTALLING THE SOFTWARE

Software Installation CD (PART NO. CTPCDMMP8121000-0-00*) General Information

The MyDJ Plug-In is compatible with Microsoft Windows XP (Home or Professional Edition with Service Pack 2 or higher) or Vista. The MusicIP Mixer and MediaCoder are compatible with Microsoft Windows ME, 2000 and XP.

For Microsoft Windows XP:

Use the CD to install the MyDJ Plug-In, Windows Media Player 10 and/or the MusicIP Mixer for Windows.

System requirements for MyDJ Plug-in:

• Intel Pentium (700MHz or better recommended)

• 128MB RAM (recommended minimum)

• An active Internet connection

Windows will automatically detect the audio player without installing the CD software when the USB cable is connected.

For Mac OS X:

Mac OS X will automatically detect the audio player without installing the CD software when the USB cable is connected. Use the CD to install the MusicIP Mixer (for Mac OS X 10.3 or higher).

IMPORTANT NOTES:

• When you insert the Software Installation CD, you will first have to select to “Install PC Software” or “Install Mac OS X Software” (depending on your computer). Please note that the screens shown in the manual are for a PC.

• For PC users, please only install Windows Media Player 10 OR MusicIP Mixer. Installing both may cause the unit to not be detected by your computer.

*Consumer Replaceable Part (See page 74 to order.)

INSTALLING THE MyDJ PLUG-IN

Procedure to Install the MyDJ Plug-In: (for Windows Media Player 10; see requirements on the previous page):

1. Insert the installation CD-Rom into the CD Drive, then the installation screen will appear. If the installation screen doesn't automatically appear, double-click My Computer then double-click on the CD drive, then the installation screen will appear. After selecting “Install PC Software”, click “Download & Install MyDJ Plug-in for Windows Media Player”.

2. At the first pop-up screen, click “Save” to save “wmp_plugin.msi” onto your computer. Save in a convenient location, such as on your Desktop.

3. Double-click on the “wmp_plugin” icon on your Desktop (if saved there) and the Setup Wizard will appear. Click “Next”.

INSTALLING THE MyDJ PLUG-IN

4. The “Select Installation Folder” screen will appear. It is recommended to keep the folder as is. Then click “Next”.

5. At the “Confirm Installation” screen, click “Next” to start the installation.

6. When successfully completed, the “Installation Complete” screen will appear. Click “Close” to exit the Setup Wizard. Please see page 25 for how to use the MyDJ Plug-In.

WINDOWS MEDIA PLAYER 10 INSTALLATION

Windows Media Player 10 is for use with Windows XP only. For Windows ME and Windows 2000, please visit www.Microsoft.com to download the corresponding Windows Media Player for your computer.

Once you have installed Windows Media Player 10, you can transfer MP3 files, WMA files, WMA files with DRM 9 or 10 and photos to your player using the “Sync” function.

2. You will be directed to the Windows Media Download Center. Select Download (Windows Media Player), Version (Player 10 [for Windows XP] is recommended) and Language. Then, click “Download Now”. At the pop-up window, click “Run” to run “MP10Setup.exe”. Click “Run” again. Installation will begin. NOTE: Please install WMP up to WMP10, otherwise the unit may not be detected by your computer.

3. Read the License Agreement, then click I ACCEPT.

WINDOWS MEDIA PLAYER 10 INSTALLATION

4. Installation will continue.

5. At the Welcome screen, click NEXT.

6. Select the desired privacy options.

WINDOWS MEDIA PLAYER 10 INSTALLATION

7. Click on Privacy Statement to view the Statement, if desired. When finished, click “Next”.

8. Read the instructions and tick the check boxes as desired. Then click on More Options and tick the check boxes as desired.

9. Click “Finish” to finish the installation of Windows Media Player 10.

INSTALLING THE MUSICIP MIXER

Procedure to Install the MusicIP Mixer:

1. Insert the installation CD-Rom into the CD Drive, then the installation screen will appear. If the installation screen doesn't automatically appear, double-click My Computer then double-click on the CD drive, then the installation screen will appear. After selecting “Install PC Software” or “Install Mac OS X Software”, click “Download & Install MusicIP Mixer” (for Windows or for Mac OS X 10.3 or higher, depending on your computer).

2. For Windows, at the first pop-up screen, click “Save” to save “mixerwin32.exe” onto your computer. Save in a convenient location, such as on your Desktop.

3. Double-click on the “MusicIP Mixer” icon on your Desktop (if saved there) and the Setup Wizard will appear. Click “Next”.

INSTALLING THE MUSICIP MIXER

4. The “License Agreement” screen will appear. Select “I accept the agreement” and then click “Next”.

5. The “Select Destination Location” screen will appear. It is recommended to keep the folder as is. Then click “Next”.

6. The “Select Start Menu Folder” screen will appear. It is recommended to keep the folder as is. Then click “Next”.

INSTALLING THE MUSICIP MIXER

7. The “Select Additional Tasks” screen will appear. Select (check) “Create a desktop icon” and/or “Create a Quick Launch icon”, as desired, and then click “Next”.

8. The “Ready to Install” screen will appear. To continue, click “Install”.

9. The “Completing the MusiclP Mixer Setup Wizard” screen will appear. If the “Install Bonjour Service (to enable TiVo support)” is listed as an option, you do NOT need to select it. It is highly recommended that you select “View help file”, so that after installation, you will immediately be directed to further instructions regarding the MusicIP Mixer. Click “Finish” to exit the Setup Wizard.

Please see page 29 for how to use the MusicIP Mixer.

You can also refer to the document located in: "C:\Program Files\MusicIP\MusicIP Mixer\help\index.htm" (if you did not change the folder in Step 5).

You can also visit: http://www.musicip.com/mixer/help.jsp for the MusicIP Mixer Help page.

INSTALLING MEDIACODER

Procedure to Install MediaCoder (for Windows ME, 2000, XP ONLY):

2. The “Welcome” screen will appear. Click “Next”.

3. The “License Agreement” screen will appear. Select “I agree...” and then click “Next”.

INSTALLING MEDIACODER

4. The “User Information” screen will appear. Enter your user information and click “Next”.

5. The “Installation Folder” screen will appear. It is recommended to keep the folder as is. Then click “Next”.

6. The “Shortcut Folder” screen will appear. Select the desired Shortcut folder and Shortcut options. Then click “Next”.

INSTALLING MEDIACODER

7. The “Ready to Install” screen will appear. Click “Next”.

8. After the program is done installing, the “Installation Successful” screen will appear. Click “Finish” to end installation. See page 32 for how to use MediaCoder.

DOWNLOADING AND TRANSFERRING FILES

TRANSFERRING FILES

You can download digital music files from the Internet or use encoding software to convert music that you have on an audio CD into MP3 or WMA format. Once these files are stored on your computer you can easily copy them to your player.

For Windows XP, if you have already installed WMP (Windows Media Player) 10, you can transfer music files

(MP3, WMA and/or WMA files with DRM 9 or 10) and photos to the player through the "Sync" function of WMP 10. Connect your player to the USB port on your computer as shown on page 7. Then, follow the procedure on page 23 to transfer files to the player. NOTE: Video files cannot be transferred using WMP 10. The video files must be “dragged and dropped” directly. Please see the note on the bottom of page 23 for additional information. For Windows ME, Windows 2000 or Windows XP (without WMP 10), transfer video, photo and/or music files as follows:

1. Connect your player to the USB port on your computer as shown on page 7.

2. A "Removable Disk" window will automatically pop-up on your computer screen.

3. To add more files and songs to your player, simply drag and drop MP3 or WMA files from anywhere on your computer into the "Removable Disk" window.

IMPORTANT: A WMA file with DRM 9 or 10 will not play back if you directly drag and drop it into the "Removable Disk" window. You must use WMP 10 to transfer copy-protected audio files as described on page 23. During the file transfer, do not unplug the device from the computer until the display shows "Ok to remove". DO NOT operate the unit until "Loading" disappears from the screen after disconnecting from the computer.

DOWNLOADING AND TRANSFERRING FILES (CONT.)

MEDIA FILES SUPPORTED FORMATS Audio Formats: MP3, MPEG 1/2/2.5 Layer 3 with a bit rate of 32-320 kbps, WMA

files with DRM 9 or 10 with a bit rate of 48-192 kbps Video Formats: WMV–WMV 9 (simple profile, 220 x 176 resolution, 30 fps, 384 kbps max) + WMA 9 (sample rate of 8-48 kHz), MPEG-4–AVI (220 x 176 resolution, 30fps, 768 kbps max) + MP3

Photo Format: baseline JPEGs.

IMPORTANT NOTE FOR MP3s:

Windows Media Player Sync may remove MyDJ ready information from MP3 files if the "Convert files as required by this device" option is active. To disable this option go to "Tools” Devices tab. Please be sure you have this unit plugged in to your PC at this time. Select your player from the list, click the “Properties” button and then select the “Quality” tab. Ensure that “Convert files as required by this device (recommended)” is not checked. Once you have made any changes, click the “OK” button.

c “Options..." menu within Windows Media Player and then click the

DOWNLOADING AND TRANSFERRING FILES (CONT.)

For Windows XP, you can also utilize the previously installed Windows Media Player 10 software to convert music on an audio CD into MP3 or WMA format as follows:

1. Open the Windows Media Player 10 Browser,

then click on the “Rip” icon on the top tool bar. Insert a Music CD into the CD-Rom drive of your computer.

NOTE: For Windows ME and Windows 2000, please use the corresponding Windows Media Player for your computer to convert music on an audio CD into MP3 or WMA format.

2. Click on the “Tools” menu option at the top menu bar,

then click on “Options”; the Option setting menu will appear. Click on Rip Music and set the Rip Music to the desired location on your computer. Then, set the desired format for the newly ripped music (MP3 format or Windows Media Audio format). Adjust the audio quality as desired. When finished, click “OK” to confirm the settings.

3. Click on the “Rip Music” icon to start ripping the music to

your computer.

4. When the music tracks are ripped; connect the player to

your computer. Open the “MTP Player” or “MMP8640” window and open the ripped music location window.

5. To add the transferred/ripped music files/songs to your player simply drag and drop the MP3

and/or WMA files into the “MTP Player” or “MMP8640” window.

6. When the files are finished loading into the player, you can follow the “Safely Remove

Hardware” procedure as shown on page 33.

DOWNLOADING AND TRANSFERRING FILES (CONT.)

TRANSFERRING MP3/WMA/PHOTO FILES AND WMA FILES WITH DRM 9 OR DRM 10 USING WINDOWS MEDIA PLAYER 10 (FOR WINDOWS XP ONLY)

To transfer MP3/WMA/PHOTO/WMA files with DRM 9 or 10 to the player, follow the procedure described below using the previously installed WMP (Windows Media Player) 10. Before beginning the procedure, please connect the unit to the computer as previously described.

1. Open the “Windows Media Player Browser 10” and click on

“Sync”.

2. Click on the “Sync List” pull-down menu to locate the music files

you wish to download. Then make sure to tick the box next to the files.

3. Select the Portable Device (“Removable Disk”) that you want to

copy to from the right side drop-down menu. Click “Start Sync” to start transferring music files to the player.

4. After finished transferring all the desired files to your unit, follow

the “Safely Remove Hardware” procedure on page 33.

NOTES:

• For WMA files with DRM 10, you can only use WMP 10 to

transfer files to your player.

• For WMA files with DRM 10, the files will not be played if you

transfer the files into the mini SD card’s memory. You must transfer the WMA files with DRM 10 to the player’s internal memory for playback.

• For Windows ME and Windows 2000, please visit

www.Microsoft.com to download the corresponding Windows Media Player to transfer music files to the player.

• If the external card is inserted, the memory card indicator “ ” will appear at the bottom of the display.

• If a song with the MyDJ feature is transferred to the unit, the MyDJ logo “”will appear in front of the

file name on the unit. VIDEO FILE TRANSFER: Open My Computer and then “MTP Player, “Aptitude” or “MMP8640”. There

•

will be two directories present: Media and Data. “Drag and drop” the video file(s) into the Data directory; the transfer time will depend on the file size. After disconnecting and then connecting your player to the computer again, the video file(s) will be moved to the Media/Data directory.

+ 51 hidden pages
