Memmert Incubator IN-/INplus/IF-/IFplus series INplus models with natural air movement (convection), 32 l, INplus 30 User guide

Download

PLUS

OPERATING

INSTRUCTIONS

UNIVERSAL OVEN U

INCUBATOR

STERILISER

100% ATMOSAFE. MADE IN GERMANY.

www.memmert.com | www.atmosafe.net

Manufacturer and customer service

MEMMERT GmbH + Co. KG Postfach 17 20 91107 Schwabach, Germany

Äußere Rittersbacherstr. 38 91126 Schwabach Germany

Phone: +49 (0)9122 925-0 Fax: +49 (0)9122 14585 E-mail: sales@memmert.com Internet: www.memmert.com

Customer service: Service hotline: +49 (0)9171 9792 911 Service fax: +49 (0)9171 9792 979 E-mail: service@memmert.com

When contacting customer service, always quote the product serial number on the nameplate (see page 13

Shipping address for repairs: Memmert GmbH + Co. KG

Kundenservice Willi-Memmert-Str. 90-96 DE-91186 Büchenbach Germany

Please contact our customer service before sending appliances for repair or before returning equipment, otherwise, we have to refuse acceptance of the shipment.

About this manual

Purpose and target group

This manual describes the setup, function, transport, operation and maintenance of universal ovens UN by trained personnel of the owner, who have the task of operating and/or maintaining the respective appliance.

If you are asked to work on the appliance, read this manual carefully before starting. Familiarise yourself with the safety regulations. Only perform work that is described in this manual. If there is something you do not understand, or certain information is missing, ask your superior or contact the manufacturer. Do not do anything without authorisation.

PLUS

Versions

The appliances are available in different configurations and sizes. If specific equipment features or functions are available only for certain configurations, this is indicated at the relevant points in this manual.

Due to individual configurations and sizes, illustrations in this manual may be slightly different from the actual appearance. Function and operation are identical.

/UF

PLUS

, sterilisers SN

PLUS

/SF

PLUS

and incubators IN

PLUS

/IF

. It is intended for use

Other documents that have to be observed:

► For operation of the appliance with MEMMERT AtmoCONTROL, observe the respective

software manual

► For service and repair (see page 53), please refer to the separate service manual

Storage and forwarding

This instruction manual belongs with the appliance and should always be stored where persons working on the appliance have access to it. It is the responsibility of the owner to ensure that persons who are working or will work on the appliance are informed as to the whereabouts of this instruction manual. We recommend that it is always stored in a protected location close to the appliance. Make sure that the instruction manual is not damaged by heat or humidity. If the appliance is sold on or transported and then set up again at a different location, the operating instructions must go with it.

Contents

1. Safety regulations 6

1.1 Terms and signs used........................................................................................................... 6

1.1.1 Terms used .................................................................................................................... 6

1.1.2 Signs used ...................................................................................................................... 6

1.2 Product safety and dangers ................................................................................................ 7

1.3 Requirements of the operating personnel .......................................................................... 7

1.4 Responsibility of the owner ................................................................................................. 8

1.5 Intended use ........................................................................................................................ 8

1.6 Changes and alterations ...................................................................................................... 9

1.7 Behaviour in case of malfunctions and irregularities .......................................................... 9

1.8 Switching off the appliance in an emergency ....................................................................9

2. Construction and description 10

2.1 Construction ...................................................................................................................... 10

2.2 Function .............................................................................................................................11

2.3 Material.............................................................................................................................. 11

2.4 Electrical equipment .......................................................................................................... 11

2.5 Connections and interfaces ............................................................................................... 12

2.5.1 Electrical connection ....................................................................................................12

2.5.2 Communication interfaces ..........................................................................................12

2.6 Designation (nameplate) ................................................................................................... 13

2.7 Technical data ....................................................................................................................14

2.8 Ambient conditions ........................................................................................................... 15

2.9 Scope of delivery ...............................................................................................................16

2.10 Optional accessories .......................................................................................................... 16

3. Delivery, transport and setting up 17

3.1 Safety regulations .............................................................................................................. 17

3.2 Delivery ..............................................................................................................................17

3.3 Transport ............................................................................................................................17

3.4 Unpacking ......................................................................................................................... 17

3.4.1 Checking for completeness and transport damage....................................................17

3.4.2 Disposing of packaging material.................................................................................17

3.5 Storage after delivery ........................................................................................................18

3.6 Setting up ..........................................................................................................................18

3.6.1 Installation options ...................................................................................................... 19

4. Putting into operation 20

4.1 Connecting the appliance .................................................................................................20

4.2 Switching on ...................................................................................................................... 20

5. Operation and control 21

5.1 Operating personnel..........................................................................................................21

5.2 Opening the door .............................................................................................................. 21

5.3 Loading the appliance ....................................................................................................... 22

5.4 Operating the appliance .................................................................................................... 22

5.4.1 ControlCOCKPIT ...........................................................................................................22

5.4.2 Basic operation ............................................................................................................24

5.4.3 Operating modes......................................................................................................... 24

5.4.4 Manual mode ..............................................................................................................25

5.4.5 Timer operation ...........................................................................................................26

5.4.6 Programme mode ...................................................................................................... 27

Contents

5.5 Temperature monitoring ..................................................................................................28

5.5.1 Electronic temperature monitoring (TWW) ................................................................29

5.5.2 Electronic temperature limiter (TWB) protection class 2 acc. to DIN 12 880 ............. 30

5.5.3 Automatic temperature monitor (ASF) ...................................................................... 31

5.5.4 Mechanical temperature monitoring: Temperature limiter (TB) ................................. 31

5.5.5 Adjusting temperature monitoring ............................................................................. 31

5.6 Graph ................................................................................................................................. 33

5.7 Ending operation ............................................................................................................... 33

6. Malfunctions, warning and error messages 34

6.1 Warning messages of the monitoring function ................................................................ 34

6.1.1 Temperature monitoring .............................................................................................34

6.2 Malfunctions, operating problems and appliance errors ................................................ 35

6.3 Power failure ...................................................................................................................... 36

7. Menu mode 37

7.1 Overview ............................................................................................................................37

7.2 Basic operation in menu mode using the example of language selection ....................... 38

7.3 Setup.................................................................................................................................. 39

7.3.1 Overview ...................................................................................................................... 39

7.3.2 IP address and subnet mask ........................................................................................39

7.3.3 Unit 40

7.3.4 Temperature monitoring .............................................................................................41

7.3.5 Timer mode .................................................................................................................42

7.3.6 Balance ........................................................................................................................43

7.4 Date and time .................................................................................................................... 44

7.5 Adjustment ........................................................................................................................45

7.6 Programme ........................................................................................................................ 48

7.7 Sound ................................................................................................................................ 49

7.8 Protocol ............................................................................................................................. 50

7.9 User ID ............................................................................................................................... 51

7.9.1 Description ...................................................................................................................51

7.9.2 User ID activation and deactivation ............................................................................ 51

8. Sterilisers SF

PLUS

/SN

PLUS

8.1 Intended use ...................................................................................................................... 52

8.2 Note in accordance with Medical Devices Directive ........................................................52

8.3 Guidelines for sterilisation ................................................................................................. 52

9. Maintenance and service 53

9.1 Cleaning ............................................................................................................................. 53

9.1.1 Working chamber and metal surfaces ........................................................................ 53

9.1.2 Plastic parts .................................................................................................................. 53

9.1.3 Glass surfaces ..............................................................................................................53

9.2 Regular maintenance.........................................................................................................53

9.3 Repairs and service ............................................................................................................ 53

10. Storage and disposal 54

10.1 Storage ..............................................................................................................................54

10.2 Disposal ............................................................................................................................. 54

Index 55

Safety regulations

1. Safety regulations

1.1 Terms and signs used

In this manual, certain common terms and signs are used to warn you of danger or to give you hints that are important in avoiding injury or damage. Observe and follow these hints and regulations to avoid accidents and damage. These terms and signs are explained below.

1.1.1 Terms used

"Warning"

"Caution"

is used whenever you or somebody else could be injured if you do not observe the accompanying safety regulation.

is used for information that is important for avoiding damage.

1.1.2 Signs used

Warning signs (warning of a danger)

Danger of

electrocution

Danger of

explosion

gases / vapours

Prohibition signs (forbidding an action)

Dangerous

Danger of burns Danger of

toppling over

Do not lift Do not tilt Do not enter

Regulation signs (stipulating an action)

Disconnect the

mains plug

Wear gloves Wear safety

boots

Other icons

Important or useful additional information

Observe

information

in separate

manual

Safety regulations

1.2 Product safety and dangers

The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They contain the latest technology and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Only electrical technicians may work on the electrical equipment of the appliances.

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials/test objects which do not form any toxic or explosive vapours when heated up (see also chapter "Intended use" on page 8).

Warning! Depending on operation, the surfaces in the working chamber and the chamber load may still be very hot after the appliance is switched off. Touching these surfaces can cause burns. Wear heatresistant protective gloves or wait until the appliance cools down. To do so, pull the handle bar until the door springs open into its ventilating position (see page 21).

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

1.3 Requirements of the operating personnel

The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

Repairs may only be performed by qualified electricians. The regulations in the separate service manual must be observed.

Safety regulations

1.4 Responsibility of the owner

The owner of the appliance

► is responsible for the flawless condition of the appliance and for its proper operation in

accordance with its intended use (see page 8);

► is responsible for ensuring that persons who are to operate or service the appliance are

qualified to do this, have been instructed accordingly and are familiar with the operating instructions at hand;

► must know about the applicable guidelines, requirements and operational safety

regulations, and train staff accordingly;

► is responsible for ensuring that unauthorised persons have no access to the appliance; ► is responsible for ensuring that the maintenance plan is adhered to and that maintenance

work is carried out properly (see page 53);

► has to ensure that the appliance and its surroundings are kept clean and tidy, for example

through corresponding instructions and inspections;

► is responsible for ensuring that personal protective clothing is worn by operating

personnel, e.g. work clothes, safety shoes and protective gloves.

1.5 Intended use

This appliance is exclusively intended for heating up non-explosive substances and objects. Any other use is improper, and may result in hazards and damage.

The appliance is not explosion-proof (does not comply with the German workplace health & safety regulation VBG 24). The appliance may only be loaded with materials and substances which cannot form any toxic or explosive vapours at the set temperature and which cannot explode, burst or ignite.

The appliance may not be used for drying, vaporising and branding paints or similar materials the solvents of which could form an explosive mixture when combined with air. If there is any doubt as to the composition of materials, they must not be loaded into the appliance. Potentially explosive gas-air mixtures must not form, neither in the working chamber nor in the direct vicinity of the appliance.

Intended use as a medical device

For appliances subject to the 93/42/EEC guideline (Council Directive on the approximation of the laws of the Member States relating to medical devices), the intended use is defined as follows:

► For appliances of the UF

and covers.

► For appliances of the IF

and covers, as well as for temperature control of rinsing and infusion solutions.

► For appliances of the IN

rinsing and infusion solutions.

► For appliances of the SF

through dry heated air at atmospheric pressure (also see page 52).

PLUS

type series: The appliance serves for heating non-sterile cloths

PLUS

type series: The appliance serves for heating non-sterile cloths

PLUS

type series: The appliance serves for temperature control of

PLUS

type series: The appliance serves for sterilising medical material

Safety regulations

ONN

1.6 Changes and alterations

No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer.

Unauthorised modifications or changes result in the CE declaration of conformity losing its validity and the appliance must no longer be operated.

The manufacturer is not liable for any damage, danger or injuries that result from unauthorised changes or alterations, or from non-observance of the regulations in this manual.

1.7 Behaviour in case of malfunctions and irregularities

The appliance may only be used in a flawless condition. If you as the operator notice irregularities, malfunctions or damage, immediately take the appliance out of service and inform your superior.

You can find information on correcting malfunctions from page 34.

1.8 Switching off the appliance in an emergency

Push the On/Off switch on the control panel ( Fig. 1 ). This disconnects the appliance from the power supply at all poles.

Warning! Depending on operation, the surfaces in the working chamber and the chamber load may still be very hot after the appliance is switched off. Touching these surfaces can cause burns. Wear heat-resistant protective gloves or wait until the appliance cools down. To do so, pull the handle bar until the door springs open into its ventilating position (see page 21).

Fig. 1 Switch off the appliance by pressing the On/ Off switch

Construction and description

2. Construction and description

2.1 Construction

9 8

4 5 6

Fig. 2 Construction 1 ControlCOCKPIT with capacitive function

keys (see page 23) 2 On/Off switch (see page 20) 3 Working chamber fan (for

UF/IF/SF appliances only) 4 Steel grid

5 Working chamber 6 Nameplate (covered, see page 13) 7 Door handle (see page 21) 8 Turn control with confirmation key 9 USB interface (see page 12)

2.2 Function

Appliances of the

PLUS

UN type series feature natural circulation (convection). For the UF type series, air is circulated by a fan at the working chamber rear panel (Fig. 3 , No. 1). It increases the air flow and provides stronger horizontal forced air circulation than natural convection.

In both the convection and fan ventilated appliances, supply air (2) is preheated in a pre-heating chamber (3). Through the ventilation slits in the side panel of the working chamber, the preheated air is introduced into the interior of the chamber. The supply and exhaust air (5) volume (air change) is controlled by the air flap (4) on the rear panel of the appliance.

, SN

PLUS

, SF

and IN

PLUS

and IF

PLUS

2.3 Material

Construction and description

Fig. 3 Function 1 Fan 2 Fresh air 3 Pre-heating chamber 4 Air flap 5 Exhaust air

For the outer housing, MEMMERT deploys stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion-resistance towards many (but not all!) chemical compounds (caution for example with chlorine compounds).

The chamber load for the appliance must be carefully checked for chemical compatibility with the materials mentioned. A material resistance table can be requested from the manufacturer.

2.4 Electrical equipment

► Operating voltage and current consumption: See nameplate ► Protection class 1, i.e. operating insulation with PE conductor in accordance with EN

61010

► Protection type IP 20 acc. to EN 60 529 ► Interference suppression acc. to EN 55011 class B ► Appliance fuse: Fusible link 250 V/15 A quick-blow ► The temperature controller is protected with a miniature fuse 100 mA (200 mA at 115 V)

Construction and description

2.5 Connections and interfaces

2.5.1 Electrical connection

This appliance is intended for operation on an electrical power system with a system impedance Z operator must ensure that the appliance is operated only on an electrical power system that meets these requirements. If necessary, you can ask your local energy supply company what the system impedance is.

Observe the country-specific regulations when connecting (e.g. in Germany DIN VDE 0100 with residual current circuit breaker).

2.5.2 Communication interfaces

USB interface

The appliance is fitted by default with a USB interface in accordance with the USB specification. This way, you can

► transfer software stored on a USB storage

medium to the appliance (see page 48).

of a maximum of 0.292 ohm at the point of transfer (service line). The

max

► export protocol logs from the appliance

to a USB storage medium (see page 50).

► transfer user ID data stored on a USB

storage medium to the appliance (see

page 51). The USB interface is located on the lower right of the ControlCOCKPIT (Fig. 4 ).

Ethernet interface

Via Ethernet interface, the appliance can be connected to a network, so that you can transfer programmes created with AtmoCONTROL software to the appliance and read out protocol logs. The Ethernet interface is located on the rear of the appliance (Fig. 5 ).

For identification purposes, each appliance connected must have its own unique IP address. Setting the IP address is described on page 39.

Fig. 4 USB interface

Fig. 5 Ethernet interface

You will find a description of how to transfer programmes via Ethernet in the enclosed AtmoCONTROL manual.

With an optional USB to Ethernet converter, the appliance can be directly connected to a computer / laptop (see Scope of delivery on page 16).

Construction and description

2.6 Designation ( nameplate)

The nameplate (Fig. 6) provides information about the appliance model, manufacturer and technical data. It is attached to the front of the appliance, on the right side behind the door (see page 10).

1 2

3 4

Fig. 6 Nameplate (example) 1 Type designation

2 Operating voltage 3 Applied standard 4 Protection type 5 CE conformity

Typ: UN 260 plus F.-Nr.: 0109.0088 230 V

DIN12880-Kl.3.1 Nenntemp.: 300 °C

14.8 A 50/60 Hz 3400 W

6 Address of manufacturer 7 Disposal note 8 Temperature range 9 Connection / power ratings 10 Appliance number

Construction and description

2.7 Technical data

7000

3 x 10.2

up to 100 °C: 0.1 K

above 100 °C: 0.5 K

[mm] 707 787 947 867 1107 1186 1247 1726

[mm] 585 585 585 745 745 824 1224 1224

Appliance size 30 55 75 110 160 260 450 750

Appliance width D

(footprint) [mm] 434 514 514 584 584 684 784 784

Appliance height E

Appliance depth G

Depth of door lock [mm] 56

[mm] 320 400 560 480 720 800 720 1200

[mm] 400 400 400 560 560 640 1040 1040

(including door handle) [mm] 490 570 570 640 640 740 840 840

Working chamber width A

Appliance depth F

[mm] 250 330 330 400 400 500 600 600

Chamber volume [litres] 32 53 74 108 161 256 449 749

Working chamber height B

Working chamber depth C

Weight [kg] 37 45 51 68 72 91 125 163

230 V 1600 2000 2500 2800 3200 3400 – –

IN/IF 230/115 V 800 1000 1250 1400 1600 1700 1700 1700

400 V – 5800 7000

115 V 1100 1400 1700 2000 2200 2200 5800

230 V 3.5 4.3 5.4 6.1 7.0 7.4 7.4 7.4

UN/UF/SN/SF

Power [W]

115 V 7.0 8.7 10.9 12.2 13.9 14.8 14.8 14.8

IN/IF

230 V 7.0 8.7 10.9 12.2 13.9 14.8 – –

115 V 9.6 12.2 14.8 17.4 19.1 19.1 3 x 8.4

400 V – 3 x 8.4 3 x 10.2

UN/UF/SN/SF

Current

consumption [A]

max. number of sliding shelves 346589 8 14

max. load per sliding shelve [kg] 30

IN/IF +20 to +80 °C

UN/UF +20 to +300 °C

max. load per appliance [kg] 60 80 120 175 210 300 300 300

Setting temperature

range

3 x 230 V without zero

SN/SF +20 to +250 °C

IN/IF 0.1 K

UN/UF/SN/SF

See Fig. 7 on page 15

Adjustment precision

Construction and description

Fig. 7 Dimensions (see table on page 14)

2.8 Ambient conditions

► The appliance may only be used in enclosed rooms and under the following ambient

conditions:

Ambient temperature Humidity rh max. 80 %, non-condensing Overvoltage category II Pollution degree 2 Altitude of installation max. 2,000 m above sea level

► The appliance may not be used in areas where there is a risk of explosion. The ambient air

must not contain any explosive dusts, gases, vapours or gas-air mixtures. The appliance is

not explosion-proof.

+5 ºC to +40 ºC

► Heavy dust production or aggressive vapours in the vicinity of the appliance could lead

to sedimentation in the interior and, as a consequence, could result in short circuits or

damage to electrical parts. For this reason, sufficient measures to prevent large clouds of

dust or aggressive vapours from developing should be taken.

Construction and description

2.9 Scope of delivery

► Power cable ► One or two sliding steel grids (load capacity 30 kg each) ► USB storage medium with software and AtmoCONTROL manual ► The operating instructions at hand ► Calibration certificate ► For certain appliance configurations and sizes, the scope of delivery also includes

separately packaged fastening material for wall mounting to protect the appliance from

tipping over (see page 18 )

2.10 Optional accessories

► USB to Ethernet converter (Fig. 8 ). Makes it

possible to connect the appliance's

network interface (see page 12) to the USB

port of a computer / laptop.

► Reinforced, sliding steel grids with a load

capacity of 60 kg each (for appliance size

110 and larger)

Fig. 8 Converter USB to Ethernet

3. Delivery, transport and setting up

3.1 Safety regulations

Warning! You may get your hands or feet squashed when transporting and installing the appliance. Wear protective gloves and safety boots.

Warning! Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. To carry appliances of the sizes 30 and 55, at least two persons, for appliances of the sizes 75 and 110, four people are needed. Appliances larger than that may not be carried but must be transported with a manual pallet jack or forklift truck.

30 55 75 110 160 260 450 750

Delivery, transport and setting up

Warning! The appliance could fall over and seriously injure you. Never tilt the appliance and transport it in upright position only.

3.2 Delivery

The appliance is packed in cardboard and is delivered on a wooden palette.

3.3 Transport

The appliance can be transported in three ways:

► With a forklift truck; move the forks of the truck entirely under the pallet ► On a manual pallet jack ► On its own castors, in case of the corresponding configuration, for which the catch on the

(front) castors must be released

3.4 Unpacking

To avoid damage, do not unpack the appliance until you reach the installation site.

Remove the cardboard packaging by pulling it upwards or carefully cutting along an edge.

3.4.1 Checking for completeness and transport damage

► Check the delivery note to ensure that the delivery is complete. ► Check the appliance for damage.

If you notice deviations from the delivery note, damage or irregularities, do not put the appliance into operation but inform the haulage company and the manufacturer.

3.4.2 Disposing of packaging material

Dispose of the packaging material (cardboard, wood, foil) in accordance with the applicable disposal regulations for the respective material in your country.

Delivery, transport and setting up

3.5 Storage after delivery

If the appliance is first to be stored after delivery: Read the storage conditions from page 54.

3.6 Setting up

Warning! Due to their centre of gravity, appliances of certain sizes can fall over to the front and injure you or other people. Separately packaged fastening material is included in the scope of delivery of the appliances concerned. After setting up the appliance, use this fastening material for mounting the appliance's rear side to a wall. Observe the assembly instructions provided.

The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see "Technical data" on page 14). Do not place the appliance on a flammable surface.

Depending on the model (see nameplate), a 230 V, 115 V or 400 V power connection must be available at the installation site.

The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm (Fig. 9). Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times.

FP

FP FP FP

Fig. 9 Minimum clearance from walls and ceiling

3.6.1 Installation options

Delivery, transport and setting up

Setting up Comments

Floor

Table

Check the load capacity first

Stacked

two appliances maximum; mounting material (feet) provided

Wall

mounting

Separately packaged fastening material is included in the scope of delivery. Observe the assembly instructions provided.

Suitable for appliance size ...

30 55 75 110 160 260 450 750

 









Base

Castor

frame

Height

adjustable

feet

with/without

castors









 

Putting into operation

ONN

4. Putting into operation

Caution:

The first time the appliance is operated, it must not be left unattended until it has reached

the steady state.

4.1 Connecting the appliance

Caution:

Observe the country-specific regulations when

making connections (e.g. in Germany DIN VDE 0100

with residual current circuit breaker). Observe the

connection and power ratings (see nameplate and

"Technical data" on page 14). Plug the provided power cable into the rear of the

appliance and connect it to the power supply ( Fig. 10 ).

4.2 Switching on

Switch on the appliance by pressing the On/Off switch on the front of the appliance ( Fig. 11 ).

If the appliance has never been operated before, you

will be prompted to set the operating language, date

and time when you first switch it on. A description of

how to do this is given from page 38. However, to get a

basic overview of operating the appliance, you should

read the following chapter first.

Fig. 10 Connect the power cable to the rear of the appliance

Fig. 11 Switch on appliance

Operation and control

5. Operation and control

Caution:

When loading and operating sterilisers of the SN

special notes provided in chapter “Sterilisers SFPLUS/SNPLUS” from page 52.

PLUS

5.1 Operating personnel

The appliance may only be operated by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

5.2 Opening the door

► To open the door, pull the handle bar to the side (to the left or to the right, depending on

the door variation, see Fig. 12, A). The door opens slightly, so that the heat can be vented

with the door ajar in case of high temperature inside the chamber. The door can then be

opened completely (B).

► To close the door, push the handle bar back (C).

/SF

PLUS

type, make sure to observe the

Fig. 12 Opening and closing the door

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

Operation and control

5.3 Loading the appliance

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and persons could be severely injured or poisoned. The appliance may only be loaded with materials which do not form any toxic or explosive vapours when heated up and cannot ignite (see also “Intended use” on page 8). If there is any doubt as to the composition of materials, they must not be loaded into the appliance.

Caution:

Check the chamber load for chemical compatibility with the materials of the appliance (see page 11).

Insert the sliding steel grids or sliding shelves. The maximum number or grids / shelves and the load capacity are specified in the technical data overview from page 14.

The chamber must not be loaded too tightly, so that proper air circulation in the working chamber is guaranteed. Do not place any chamber load on the floor, touching the side walls or right below the ceiling of the working chamber (Fig. 13 , see also the "correct loading" sticker on the appliance).

In case of improper loading (chamber loaded too tightly), reaching the set temperature may take longer than normal.

Fig. 13 Correct placement of the chamber load

5.4 Operating the appliance

5.4.1 ControlCOCKPIT

In manual operation, the desired parameters are entered at the ControlCOCKPIT on the front of the appliance (Fig. 14 and Fig. 15 ). You can also make basic settings here (menu). Additionally, warning messages are displayed, e.g. if the temperature is exceeded. In programme mode, the parameters defined, the programme description, the programme segment currently active and programme duration remaining are displayed (for a more detailed description, see page 27).

Operation and control

ONN

53 41314151612

TEMP

180.4°C

44h:44m

Ende

TIMER

23.Nov 13:30

End 14: 45

Set 180

30m04h

.4°C

FAN

FLAP

40%

20%

Fig. 14 ControlCOCKPIT for UF

PLUS

/IF

PLUS

/SF

PLUS

appliances in operating mode (width may

LIGH

LIGHT

min

160.0°C

min

auto

000°C

LIGHT

100

ALARM

differ depending on appliance size)

12 513

TEMP

180.0 °C

TIMER

30m04h

44h:44m

Ende

23.Nov 13:30

End 14: 45

Set 180.9°C

FLAP

40%

LIGHT

min

160.0°C

min

auto

000°C

LIGHT

ALARM

of °C

max

190.0°C

max

190.0°C

000°C

auto off

max

000°C

auto off +

5.0K

99K

%100

5.0K

99K

Fr 20.10.2010 20:31

12.Sept.2012

Fr 20.10.2010 20:31

12.Sept.2012

Manual Mode

Holz trocknen aufheizen 09:12h

GRAPH

012

19 2011 12 17 1867 8 910

Manual Mode

Holz trocknen aufheizen 09:12h

GRAPH

012

13:44

off

%rh°C

15 1614

13:44

off

%rh°C

67 8 9

Fig. 15 ControlCOCKPIT for UN

10 11 12 19 2017 18

PLUS

/IN

PLUS

differ depending on appliance size)

1 Activation key for temperature setpoint

adjustment 2 Setpoint and actual temperature display 3 Fan speed display 4 Activation key for fan speed setting 5 Switch to menu mode (see page 37) 6 Activation key for timer setting 7 On/Off switch 8 Timer display 9 Air flap position display 10 Activation key for air flap position adjust-

ment 11 Turn control for setpoint adjustment

PLUS

/SN

appliances in operating mode (width may

12 Confirmation key (accepts setting made

with the turn control)

13 Activation key for interior lighting (ad-

ditional option) 14 Interior lighting display (additional option) 15 Appliance state and programme display 16 Activation key for the appliance state 17 Activation key for temperature monitoring 18 Temperature monitoring display 19 Graphic representation 20 Activation key for graphic representation

Operation and control

TIMER

5.4.2 Basic operation

In general, all settings are made according to the following pattern:

1. Activate the desired parameter (e.g. temperature). To do so, press the corresponding activation key on the left or right or the respective display. The activated display is lined in colour, the other displays are dimmed. The set value is highlighted in colour.

2. By turning the turn control to the left or right, adjust the set value (e.g. to

180.0 ºC).

3. Save the set value by pressing the confirmation key. The display returns to normal and the appliance begins adjusting to the defined set value.

Additional parameters (air flap position etc.) can be set accordingly.

TEMP

22.4 °C

TEMP

22.4 °C

180.0 °CSet

TEMP

23.2 °C

Set 180

37.0°CSet

.5°C100

.0 °C

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically returns to the main menu and restores the former values.

If you want to cancel the setting procedure, press the activation key on the left or right of the display that you want to exit. The appliance restores the former values. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

5.4.3 Operating modes

The appliance can be operated in three modes:

► Manual mode: The appliance runs in permanent operation at the values set on the

ControlCOCKPIT. Operation in this mode is described in chapter 5.4.4.

► Timer operation: The appliance runs at the values set until the timer has elapsed. Opera-

tion in this mode is described in chapter 5.4.5 .

► Programme mode: The appliance automatically runs programme sequences which have

been defined using AtmoCONTROL software at a computer / laptop and then transferred to the appliance from a USB stick or via Ethernet. Operation in this mode is described in chapter 5.4.6.

Operation and control

The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display:

 Appliance is in programme mode

■ Programme is stopped

Appliance is in manual operating mode

The example on the right shows the appliance in manual mode, identified by the coloured hand symbol.

5.4.4 Manual mode

In this operating mode, the appliance runs in permanent operation at the values set on the ControlCOCKPIT.

Adjustment options

As described in chapter 5.4.2 , you can set the following parameters after pressing the corresponding activation key (in any sequence):

12.Sept.2012

Manual Mode

13:44

Temperature Adjustment range: model dependent (see nameplate and technical date on page 14)

Heating operation is indicated by the You can select °C or °F as the temperature unit displayed (see

page 40).

Air flap position Adjustment range: 0 % (closed, recirculating operation) to 100 %

(completely opened, fresh air operation) in steps of 10 %

Fan speed (only for UF/IF/SF

Adjustment range: 0 to 100 % in steps of 10%

Interior lighting (additional option) Adjustment range: 0 %, 100 %

PLUS

appliances)

symbol.

TEMP

24.4 °C

180.4 °CSet

FLAP

FAN

LIGHT

%40

100

Operation and control

5.4.5 Timer operation

In timer operation, you can adjust the time the appliance runs at the set value:

1. Press the activation key to the left of the timer display. The timer display is activated.

2. Turn the turn control until the desired duration is displayed – in this example 4 hours 30 minutes. The approximate end time is shown beneath, in a smaller font.

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes) format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum duration adjustable is 99 days 23 hours.

3. Press the confirmation key to confirm. The display now shows the remaining time in a large font and the approximate end time in a smaller font beneath.

TIMER

00h0 m

23.11. 09:00

Ende

TIMER

04 mh 3

End

23.Nov 13:30

TIMER

23.Nov 13:30

30m04h

4. Now, as described under 5.4.2 , set the individual values for temperature, air flap position etc. which you want the appliance to operate at. For universal ovens UN

PLUS

incubators IN are effective immediately. For sterilisers SN the timer elapses.

For universal ovens UN should run setpoint-dependent or not in the not start until a tolerance band around the set temperature is reached or if it should start right after activation (see page 42). If the timer runs setpoint-dependent, this is indicated by the

When the timer has elapsed, the display shows 00:00. All functions (heating etc.) are switched off. If a fan had been active, it will keep on running for a short safety period.

symbol in the timer display.

/IF

PLUS

, the set values can be changed while the timer elapses. The changes

PLUS

/UF

PLUS

and incubators IN

/SF

PLUS

, parameters cannot be changed while

PLUS

/IF

, you can choose if the timer

Setup – this determines if the timer should

PLUS

/UF

TIMER

PLUS

and

00m00h

End

To deactivate the timer, open the timer display by pressing the activation key again and then turning the turn control to reduce the timer setting until --:-- is displayed. Confirm with the confirmation key.

End

23.Nov 13:30

TIMER

--m--h

23.Nov 13:30

Operation and control

5.4.6 Programme mode

In this operating mode, programmes saved in the appliance can be started with different combinations of individual parameters (temperature, air flap position, fan speed, working chamber lighting) at staggered intervals, which the appliance then automatically processes in sequence. These programmes are not created directly at the appliance but externally at a computer / laptop and using AtmoCONTROL software. Transfer to the appliance is possible using the provided USB storage medium or via Ethernet.

A description of how to create and save programmes can be found in the separate AtmoCONTROL software manual.

Starting a programme

1. Press the activation key to the right of the status display. The current operating mode is highlighted automatically, in this example

Manual Mode ( ).

°C

off

Fr 20.10.2010 20:31

17:4413.Sept.2012

Manual mode

manueller Betrieb

GRAPH

2. Turn the turn control until the  start symbol is highlighted. The current programme is displayed, in this example

Test 012.

Test 012

ready

Only the programme currently selected in the menu and shown in the display can be used. If you want to process another programme, you need to activate it in the menu first (description from page 48 ).

3. To start the programme, press the confirmation key. The programme starts. The display shows:

Test 012

Ramp 1

► the programme description (in this exam-

Test 012)

ple

► the programme segment description, in

this example

Ramp 1

10:4412.Sept.2012

► the current run (in case of loops)

You cannot change any parameters (e.g. the temperature) at the appliance while a programme is running. However, the displays

Cancelling a programme

You can cancel an active programme at any time.

1. Press the activation key to the right of the status display. The status display is automatically highlighted.

ALARM and GRAPH can still be used.

Fr 20.10.2010 20:31

Test 012

manueller Betrieb

Ramp 3

GRAPH

10:4412.Sept.2012

Operation and control

2. Turn the turn control until the stop symbol

is highlighted.

■

Cancel program

Test 012

3. Press the confirmation key to confirm. The programme is cancelled.

Program cancelled

Test 012

A cancelled programme cannot be resumed at the point it was cancelled. It must be restarted from the beginning.

End of programme

The Program end display shows when the programme should end.

Program end

Test 012

10:4912.Sept.2012

10:4812.Sept.2012

10:4912.Sept.2012

You can now

► restart the programme as described ► select another programme for processing in menu mode (see page 48) and run it as de-

scribed.

► return to manual mode. To do so,

reactivate it by pressing the activation key next to the status display, then turn the turn control until the hand symbol is highlighted in colour and press the confirmation key.

12.Sept.2012

Manual Mode

13:44

5.5 Temperature monitoring

The appliance is equipped with a double overtemperature protection (mechanical/electronic) in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction:

► electronic temperature monitoring (TWW) ► automatic temperature monitor ( ASF) ► mechanical temperature limiter (TB)

The monitoring temperature of the electronic temperature monitoring is measured via a separate Pt100 temperature sensor in the working chamber. Temperature monitoring settings are made via the

ALARM display. The settings made

apply to all operating modes.

min

160.0 °C

auto

ALARM

max

190.0 °C

5.0 K

Operation and control

180.4°C

TEMP

Set 185

.0°C

23.2°C

TEMP

Set 180

.0°C

TEMP

TWW Set 190.0 °C

195.4°C

If temperature monitoring has been triggered, this is indicated by the temperature display: the actual temperature is highlighted in red and a warning symbol

is shown ( Fig. 16 ). The type of temperature monitoring triggered (TWW in this example) is shown beneath the temperature. If the acoustic alarm

TEMP

195.4°C

TWW Set 190.0

TIMER

30m04h

44h:44m

Ende

23.11. 13:30

End 14: 45

LÜFTER

FLAP

LUFTKLAPPE

40%

20%

°C

0°C

°C

0°C

has been activated in the Signals menu (see page 45 ), which is indicated by the speaker symbol

in the alarm display,

Fig. 16 Temperature monitoring triggered

the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do in this case are provided in the chapter “Malfunctions, warning and error messages” from page 34.

Before reading how to adjust temperature monitoring (from page 31), please read the description of the individual monitoring functions here.

5.5.1 Electronic temperature monitoring ( TWW)

The manually set monitoring temperature min and max of the electronic overtemperature control is monitored by an adjustable over/undertemperature controller (TWW) protection class 3.3 acc. to DIN 12 880 (or over/undertemperature controller (TWW) protection class 3.1 for UIS appliances). If the manually set monitoring temperature takes over temperature control and begins to regulate the monitoring temperature (Fig 17 ).

max is exceeded, the TWW

°C

Emergency operation

Setting MAX

Set temperature

Controller error

Fig. 17 Schematic diagram of how the TWW temperature monitoring works

Operation and control

5.5.2 Electronic temperature limiter ( TWB) protection class 2 acc. to DIN 12 880

If the manually set monitoring temperature max is exceeded, the TWB switches off heating permanently (Fig. 18 ) and can be reset by pressing the confirmation key.

In programme mode, the current programme is resumed for TWB alarms of up to 15 minutes. If the alarm is active for more than 15 minutes, the programme is cancelled.

°C

Setting MAX Set

temperature

Controller error

Fig. 18 Schematic diagram of how the TWB temperature monitoring works

heating switched off by TWB

Operation and control

5.5.3 Automatic temperature monitor ( ASF)

ASF is a monitoring device that automatically follows the set temperature setpoint within an adjustable tolerance band (Fig. 19 ).

The ASF – if switched on – is automatically activated as soon as the actual temperature value reaches 50 % of the set tolerance band of the setpoint (in the example: 180 °C – 1.5 K) for the first time (section A).

When the temperature violates the set tolerance band around the setpoint (in the example in Fig. 19: 180 °C ± 3 K) – e.g. if the door is opened during operation (section B of illustration) – the alarm is set off. The ASF alarm is automatically triggered as soon as 50 % of the set tolerance band of the setpoint (in the example: 180 °C ± 1.5 K) are reached again (section C).

If the temperature setpoint is altered, the ASF is automatically disabled temporarily (in this example: The setpoint is changed from 180 °C to 173 °C, section D) until the tolerance range of the new temperature setpoint is reached again (section E).

ABCDE

183 °C

180 °C

177 °C

176 °C

170 °C

ASF active

AUTO AUTO AUTO

ASF alarm

ASF active ASF active

Fig. 19 Schematic diagram of how the ASF temperature monitoring works

5.5.4 Mechanical temperature monitoring: Temperature limiter ( TB)

The appliance is equipped with a mechanical temperature limiter (TB) of protection class 1 in accordance with DIN 12 880.

If the electronic monitoring unit should fail during operation and the factory-set maximum temperature is exceeded by approx. 20 °C, the temperature limiter, as the final protective measure, switches off the heating permanently.

5.5.5 Adjusting temperature monitoring

1. Press the activation key to the left of the

ALARM display. The min setting (under-

temperature protection) is automatically activated.

min

auto

000°C

ALARM

°C

max

120.0°C60 0.

000°C

auto off

0.0 K

99K

Operation and control

2. By turning the turn control, adjust the

desired lower alarm limit value, in the example on the right 160 °C.

If no undertemperature protection limit is required, set the lowest temperature.

3. Press the confirmation key to confirm.

The

max display (overtemperature pro-

tection) is activated.

4. By turning the turn control, adjust the

desired upper alarm limit value, in the example on the right 190 °C.

The monitoring temperature must be set sufficiently high above the maximum set temperature. We recommend 5 to 10 K.

5. Accept the upper alarm limit value by

pressing the confirmation key. The setting of the automatic temperature monitor (ASF) is automatically activated (

auto).

min

°C

160 0.

auto

min

°C

160 0.

auto

min

°C

auto

min

160.0 °C

auto

ALARM

max

120.0 °C

0.0 K

max

120 0.

max

°C

0.0 K

°C160 0. 190 0.

0.0 K

190.0 °C

0.0 K

6. With the turn control, select ON () or

OFF ().

7. Press the confirmation key to confirm.

The ASF tolerance band setting is activated.

8. With the turn control, adjust the desired

tolerance band, e.g. 5.0 K. We recommend a tolerance band of 5 to

10 K (1 to 3 K for incubators IN/IF).

9. Press the confirmation key to confirm.

Temperature monitoring is now active.

min

160.0 °C

auto

min

°C

auto

min

°C

auto

min

160.0 °C

auto

ALARM

max

190.0 °C

0.0 K

max

190.0°C160 0.

0.0

max

190.0°C160 0.

5.0

max

190.0 °C

5.0 K

Operation and control

ONN

In the menu, you can set:

► which type of protection (TWW or TWB) should be active (see page 41) ► if an acoustic signal should be triggered on alarm (see page 49)

5.6 Graph

The GRAPH display provides an overview of the chronological sequence of the actual values as a curve.

12.Sept.2012 12:33

1. Press the activation key to the

right of the

GRAPH display.

The display is enlarged and the temperature profile shown.

► To change the time frame to

be displayed: Press the activation key next to the  arrow symbols. The time frame to be displayed can now be changed by turning the turn control.

C 00

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 20:34

12.Sept.2012 12

°C 100

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 20

► To extend or reduce the time

012 12:33

frame to be displayed: Press

.2010 20:34

the activation key next to the magnifying glass symbol. With the turn control, select if you want to zoom in or out (+/–) and confirm your selection by pressing the confirmation key.

To close the graphical representation, again press the activation key which you have used to activate it.

5.7 Ending operation

Warning!

Depending on the operation performed, the surfaces in the working

chamber and the chamber load may still be very hot after the appli-

ance is switched off. Touching these surfaces can cause burns. Wear

heat-resistant protective gloves or wait until the appliance cools

down. To do so, pull the handle bar until the door springs open into

its ventilating position (see page 21).

1. Switch off active appliance functions

(turn down the heating, deactivate the fan etc.).

2. Remove the chamber load.

3. Switch off the appliance (Fig. 20 ).

Fig. 20 Switch off appliance

Malfunctions, warning and error messages

6. Malfunctions, warning and error messages

Warning!

After removing covers, live parts may be exposed. You may receive

an electric shock if you touch these parts. Malfunctions requiring

work inside the appliance may only be rectiﬁ ed by electricians.

Observe the separate service manual for this.

Do not try to rectify appliance errors yourself but contact the MEMMERT customer service department (see page 2) or an authorised service point.

In case of enquiries, please always specify the model and appliance number from the nameplate (see page 13).

6.1 Warning messages of the monitoring function

If the acoustic alarm has been activated in the Signals menu (see page 49), which is indicated by the speaker symbol alarm display, the alarm is additionally signalled by an intermittent acoustic signal. If the confirmation key is pressed, the acoustic alarm can be temporarily switched off until the next alarm event occurs.

in the

6.1.1 Temperature monitoring

Description Cause Action See

Temperature alarm and "ASF" are displayed

TEMP

Automatic temperature monitor (ASF) triggered

Check if the door is closed. Close the door.

Extend the ASF tolerance band If the alarm continues: Contact

customer service

page 32 page 2

185.4 °C

ASF Set 190.0 °C

Temperature alarm and "TWW" are displayed

TEMP

195.4 °C

TWW Set 190.0 °C

The adjustable undertemperature / overtemperature controller (TWW) has assumed heating control.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring or decreasing the setpoint temperature.

If the alarm continues: Contact customer service

page 31

page 2

Malfunctions, warning and error messages

Description Cause Action See

Temperature alarm and "TWB" are displayed

TEMP

195.4 °C

TWB Set 190.0 °C

Temperature alarm and "TB" are displayed

TEMP

230.4 °C

The electronic temperature limiter (TWB) permanently switched off heating.

The mechanical temperature limiter (TB) permanently switched off heating.

Deactivate the alarm by pressing the confirmation key.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring or decreasing the setpoint temperature.

If the alarm continues: Contact customer service

Switch off the appliance and leave to cool down. Contact customer service and have the error rectified (e.g. by replacing the temperature sensor).

page 31

page 2

6.2 Malfunctions, operating problems and appliance errors

Error description Cause of error Rectifying errors See

Displays are dark External power supply

was interrupted Miniature fuse, appliance

fuse or power module faulty

Displays cannot be activated

Displays suddenly look different

Error message in timer display

Appliance locked by user ID Unlock with user ID page 51

Appliance is in programme or timer mode

Appliance is in "wrong" mode

Appliance error Contact customer

Check the power supply

Contact customer service

Wait for end of programme or timer

Change to operating or menu mode by pressing the

MENU key

service

page 20

page 2

Error 23 Pt100 Error Contact Service

Malfunctions, warning and error messages

6.3 Power failure

Warning!

Depending on the operation performed, the surfaces in the interior

and the chamber load may still be very hot after power loss.

Additionally, depending on the duration of the power loss, the

appliance might heat up again after power supply has been restored

(see below). Touching these surfaces can cause burns. Wear heat-

resistant protective gloves or wait until the appliance cools down

ﬁ rst.

In case of a power failure, the appliance operates as follows:

In manual mode

After power supply has been restored, operation is continued with the parameters set. The time and duration of the power failure are documented in the log memory.

In timer or programme mode

In case of an interruption of the power supply of less than 60 minutes, the current programme is continued from the point at which it was interrupted. For interruptions of the power supply longer than this, all appliance functions (heating, fan etc.) are switched off and the air flap is opened.

In timer or programme mode of sterilisers

After power supply has been restored, the timer or programme always starts again from the beginning.

Menu functions

ONN

7. Menu mode

In menu mode, you can make basic settings, load programmes and export protocols, as well as adjust appliance parameters.

Caution:

Before changing menu settings, read the description of the respective functions on the following pages to avoid possible damage to the appliance and/or chamber load.

To enter menu mode, press the MENU key.

To exit the menu mode at any time, press the MENU key again. The appliance then returns to manual mode. Only changes accepted by pressing the confirmation key are saved.

7.1 Overview

Press the MENU key to change between the displays in menu mode:

12 34 512141513

DATE AND TIME

LANGUAGE

SETUP

SIGNALTÖNE

ADJUST

67 18 1989 1011 16 17

Fig. 21 ControlCOCKPIT in menu mode

1 Language selection activation key 2 Language selection display 3 Date and time display 4 Date and time setting activation key 5 Exit menu mode and return to manual

mode

6 Setup activation key (basic appliance set-

tings) 7 Setup display (basic appliance settings) 8 Adjustment display 9 Adjustment activation key 10 Turn control for adjustment

11 Confirmation key (accepts setting made

with the turn control) 12 Programme setup activation key 13 Programme setup display 14 Protocol display 15 Protocol activation key 16 Acoustic signal adjustment activation key 17 Acoustic signal adjustment display 18 User ID display 19 User ID activation key

PROGRAM

ZEIT UND DATUM

SOUND

PROTOCOL

USER ID

Menu functions

ONN

7.2 Basic operation in menu mode using the example of language selection

In general, all settings in menu mode are done just like in manual mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change. A more detailed description is provided in the following, using the example of language selection.

1. Activate the desired parameter (in this

example the language). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is enlarged. The setting currently active – in the example to the right

Deutsch (German) – is highlighted

in colour and indicated by a check mark.

English

Deutsch

Français

Español

If you want to exit or cancel your settings, again press the activation key which you have used to activate the display. The appliance returns to the menu overview. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

2. With the turn control, select the desired

new setting, e.g. Español (Spanish).

3. Save the setting by pressing the

confirmation key.

English

Deutsch

English

Français

Deutsch

Español

Français

Español

LANGUAGE

SETUP

DATE AND TIME

SIGNALTÖNE

ADJUST

4. To return to the menu overview, press the

LANGUAGE

DATE AND TI

SIGNALTÖ

activation key again.

SETUP

ADJU

You can now

IP address

► activate another menu function by

pressing the corresponding activation key or

Balance

Subnetmask

IP Adresse

Unit

Einheit

Alarm temp

Alarm Temp

Timer mode

Timer Mode

Balance

► return to manual mode by pressing the

MENU key.

Menu functions

All other settings can be made accordingly. The settings possible are described in the following sections.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically returns to the main menu and restores the former values.

7.3 Setup

7.3.1 Overview

In the SETUP display, you can set the following parameters:

► the IP address and Subnet mask of the appliance's Ethernet interface (for connection to

a network)

► the Unit of the temperature display (°C or °F, see page 40) ► Alarm temp: the temperature protection class according to DIN 12 880:2007-5 (TWW or

TWB, see pages 41 and 28)

► the Timer mode (see page 42) ► the heat output distribution (Balance, see 43)

7.3.2 IP address and subnet mask

If you want to operate one ore more appliances in a network, each appliance must have its own unique IP address for identification. By default, each appliance is delivered with the IP address 192.168.100.100.

Programm negnulletsniEllokotorPtäreG efliHnekcurD

AtmoCONTROL

INP 250 Test 01

180

.0°C

HPP 250 Labor

.0°C

.4%rh

+-+

Programmname

Editor

Simulation Protokoll

STAND BY

151

192.168.1.216

192.168.

LAN 1: 192.168.1.233

LAN 2: 192.168.1.215

LAN 3: 192.168.1.241

Fig. 22 Operation of several appliances in a network (schematic example)

Menu functions

1. Activate the SETUP display. The entry IP

address

is automatically highlighted.

2. Accept the selection by pressing the

confirmation key. The first three digits of the IP address are automatically selected.

3. With the turn control, set the new

number, e.g. 255.

IP address

Balance

Subnetmask 255. 255.0 .0

IP Adresse

Unit

Einheit

Alarm temp

Alarm Temp

Timer mode

Timer Mode

Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

192.168.1 00 .100

+30%

192.168.1 00 .100 °C F

°C F TWW TWB

TWW TWB

-20 %

192.168.10 0. 100

°C F

TWW TWB

-20 %

255.168.100.100

°C F

TWW TWB

-20 %

SETUP

4. Accept the selection by pressing the confirmation key. The next three digits of the IP address are automatically selected. Setting these is done according to the description above.

5. After setting the last three digits, accept the new IP address by pressing the confirmation key. The selection returns to the overview.

The subnet mask is set accordingly.

7.3.3 Unit

Here, you can choose whether the temperature is displayed in °C or °F.

1. Activate the

SETUP display and select

Unit with the turn control.

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

255.168.100.100

°C F

TWW TWB

-20 %

255.145.136.225

°C F

TWW TWB

-20 %

255.145.136.225

°C °F

TWW TWB

-20 %

2. Accept the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

255.145.136.225

°C °F

TWW TWB

-20 %

Menu functions

3. With the turn control, select the desired unit – in this example °C.

4. Save the setting by pressing the confirmation key.

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255. 255.0 .0

Unit

Alarm temp

Timer Mode Balance

7.3.4 Temperature monitoring

Here, you can choose which temperature protection class in accordance with DIN 12 880:2007-5 should be used (TWW or TWB, description from page 28).

1. Activate the

Alarm temp with the turn control.

SETUP display and select

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode Balance

255.145.136.225

°C °F

TWW TWB

-20 %

255.145.136.225

°C °F

TWW TWB

-20 %

255.145.136.225

°C F

TWW TWB

-20 %

2. Accept the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

3. With the turn control, select the desired unit – in this example TWB.

4. Save the setting by pressing the confirmation key.

The temperature monitoring settings are made in manual mode (see page 31).

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode Balance

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode Balance

255.145.136.225

-20 %

255.145.136.225

-20 %

255.145.136.225

-20 %

°C F

TWW TWB

°C F

TWW TWB

°C F

TWW TWB

Menu functions

7.3.5 Timer mode

For universal ovens UN

PLUS

page 26) should run setpoint-dependent or not – this determines if the timer should not start until a tolerance band of ±3 K around the set temperature is reached ( Fig. 23 , B) or if it should start right after activation (A).

/UF

PLUS

and incubators IN

PLUS

/IF

, you can choose if the timer (see

°C/°F

Timer

6 K

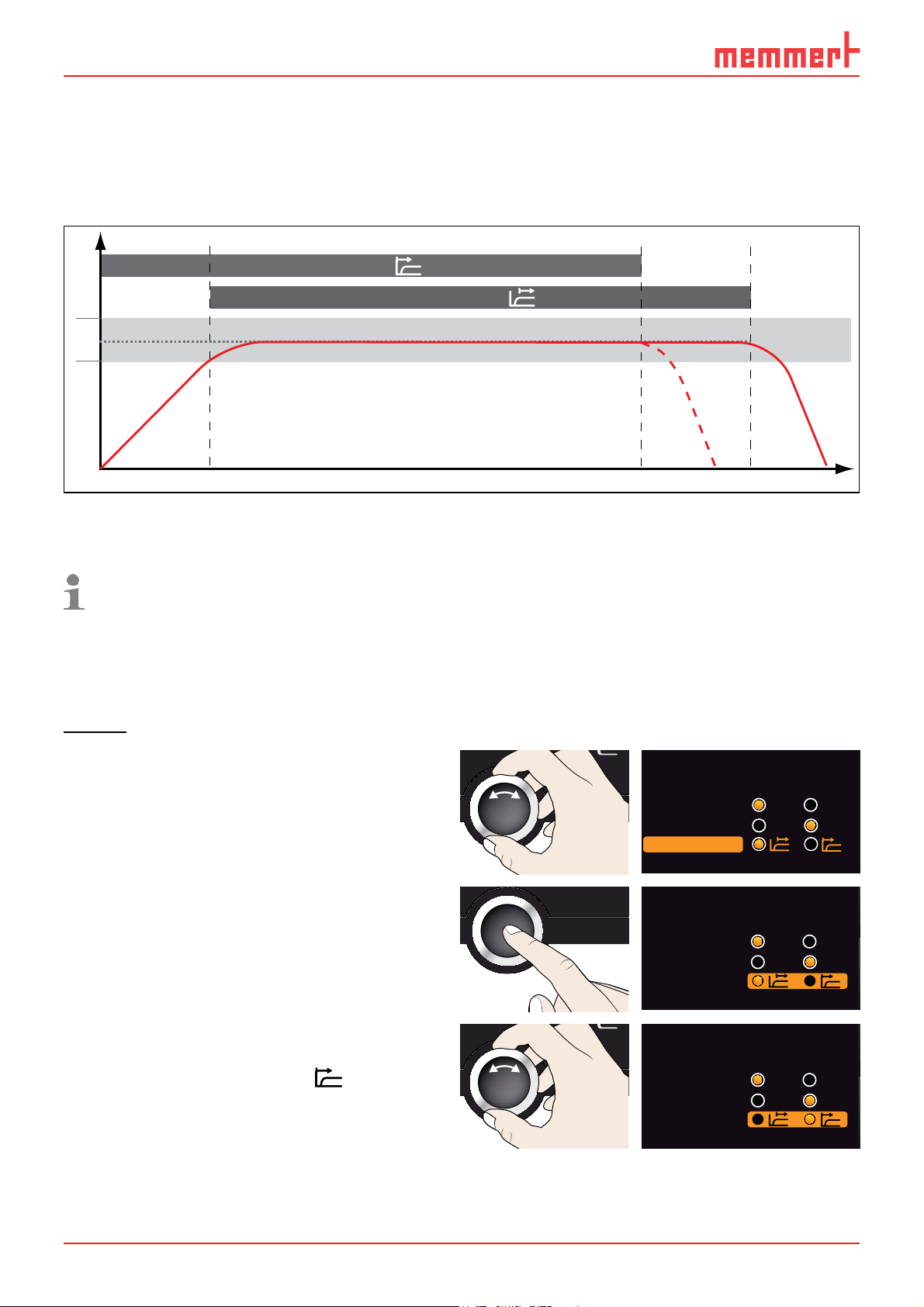

Fig. 23 Timer mode A Timer independent of setpoint: Timer starts right after activation B Timer setpoint-dependent: Timer does not start until tolerance band is reached

For sterilisers SN

PLUS

/SF

PLUS

, the timer is by default setpoint-dependent. To ensure that the required temperature is maintained for a sufficient period of time, this setting cannot be changed. If the temperature is no longer within the tolerance band, the sterilisation time is, for reasons of safety, restarted as soon as the required temperature is reached again. For universal ovens UN

PLUS

/UF

PLUS

and incubators IN

PLUS

/IF

, the timer is in this case

interrupted and resumed as soon as the required temperature is reached again.

Setting

1. Activate the SETUP display and select

Timer mode with the turn control.

2. Accept the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

3. With the turn control, select the desired setting – in this example Timer independent of setpoint (

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode

Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode

Balance

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode

Balance

255.145.136.225

°C F

TWW TWB

-20 %

255.145.136.225

°C F

TWW TWB

-20 %

255.145.136.225

°C F

TWW TWB

-20 %

Menu functions

4. Save the setting by pressing the confirmation key.

IP address

Subnetmask 255.255. 0. 0

Unit

Alarm temp

Timer Mode

Balance

255.145.136.225

°C F

TWW TWB

-20 %

7.3.6 Balance

Description

For appliances of the size 55 and above, application-specific correction of the heat output distribution (balance) between the upper and lower heating groups is possible. The adjustment range is from –50 % to +50 %.

upper heat output

lower heat output

-20%

IP address

Subnetmask 255. 255.0.0

Unit

Alarm temp

Timer Mode

Balance

192.168.10 0. 100

°C F

TWW TWB

-20 %

SETUP

lower heat output

+30%

IP address

Subnetmask 255. 255.0.0

Unit

Alarm temp

Timer Mode

Balance

192.168.100.100

°C F

TWW TWB

+30%

SETUP

Fig. 24 Heat output distribution (example): The –20 % (left) setting causes the lower heating groups to emit 20 % less heat than the upper ones. The +30 % (right) setting causes the lower heating groups to emit 30 % more heat than the upper ones. The 0 % setting restores the default heat output distribution.

Setting

1. Activate the SETUP display and select

Balance with the turn control.

IP address

Subnetmask 255. 255. 0 .0

Unit

Alarm temp

Timer Mode

Balance

192.168.100.100

°C F

TWW TWB

+30%

Menu functions

2. Save the selection by pressing the confirmation key. The current selection – in this example +30 % – is automatically highlighted.

3. With the turn control, select the desired new setting, e.g. +50 %.

4. Save the setting by pressing the confirmation key. The selection returns to the overview.

7.4 Date and time

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode

Balance

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode

Balance

IP address

Subnetmask 255. 255. 0.0

Unit

Alarm temp

Timer Mode

Balance

192.168.10 0. 100

°C F

TWW TWB

+30%

192.168.10 0. 100

°C F

TWW TWB

+50%

192.168.10 0. 100

°C F

TWW TWB

+50%

In the DATE AND TIME display, you can set the date and time, time zone and daylight savings.

1. Activate the time setting To do so, press the activation key on the right side of the

DATE AND TIME display. The display is

enlarged and the first adjustment option (

Date) automatically highlighted. On the

right, the current settings are shown.

Date

Time

Time zone

Daylight savings

DATE AND TIME

12.05. 2012

12:00

GMT +01

If you want to change another setting – e.g. the time zone: Turn the turn control until the corresponding entry is highlighted.

Date

Time

Time zone

Daylight savings

12.05.2012

12:00

GMT +01

2. Accept the selection by pressing the confirmation key. The first value – in this case the day – is automatically highlighted in orange.

Date 12

Time

Time zone

Daylight savings

.05.2012

12:00

GMT +01

3. With the turn control, set the current day, e.g. 27.

Date 27

Time

Time zone

Daylight savings

.05.2012

12:00

GMT +01

Menu functions

4. Save the setting by pressing the confirmation key. The month is automatically highlighted. You can change it with the turn control.

Date 27 05

Time

Time zone

Daylight savings

..2012

12:00

GMT +01

Accordingly, you can also set:

► Year ► Hour and minute ► Time zone GMT (e.g. +1 in Germany, see Fig. 25 ) ► Daylight savings

-11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11

+12 -12-11

Fig. 25 Time zones

7.5 Adjustment

The appliances are temperature calibrated and adjusted at the factory. In case readjustment should be necessary later on – for example due to influence of the chamber load – the appliance can be calibrated customer-specifically using three calibration temperatures of your choice:

► CAL1 Temperature calibration at low temperature ► CAL2 Temperature calibration at medium temperature ► CAL3 Temperature calibration at high temperature

For temperature adjustment, you will need a calibrated reference measuring device.

Menu functions

CAL 3

-0,8 K

CAL 2

+2,6 K

CAL 1

+0,5 K

factory calibration

40°C

120°C

0°C

Fig. 26 Schematic example of temperature adjustment

Example: Temperature deviation at 120 °C should be corrected.

1. Activate the adjustment setting. To do so, press the activation key on the right side of the

ADJUST display. The display

is enlarged and the first calibration

Temperatur

Temperature

Cal1

40.0

Cal1

40.0

Cal2 100.0 °C +0,1K

Cal2

100.0

Cal3 180.0 °C -0,2K

180.0

Cal3

temperature – in this case 40 °C – automatically highlighted.

Last adjustment 12.10.2012 12:00

letzte Justierung 12.10.2012 12:00

2. Press the confirmation key repeatedly, until the calibration temperature CAL2 is selected.

3. With the turn control, set the calibration temperature CAL2 to 120 °C.

180°C

JUSTIEREN

ADJUST

°C -0,2

CK0,2- CK0,1+

CK0,2-

Temperature Cal1

Cal2

Cal3

Temperature

Cal1

Cal2

Cal3

40.0

100.0

180.0

40.0

120.0

180.0

CK0,2-

CK0,1+

CK0,2-

CK0,1+

CK0,2-

4. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

Temperature Cal1

40.0

120.0 0,1+

Cal2

180.0

Cal3

CK0,2-

0,2-

Menu functions

5. Set the calibration value to 0.0 K and accept the setting by pressing the confirmation key.

6. Position the sensor of a calibrated reference instrument centrally in the appliance's working chamber.

7. Close the door and, in manual mode, adjust the set temperature to 120 °C.

8. Wait until the appliance reaches the set temperature and displays 120 °C. The reference instrument should display

122.6 °C.

Temperature

TEMP

120.0°C

Set 120

.0 °C

Cal1

Cal2

Cal3

122.6 °C

JUSTIEREN

CK0,2-

40.0

120.0 0,0

180.0

TEMP

21.4 °C

120.0 °CSet

0,2-

9. In the SETUP, adjust the calibration value CAL2 to +2.6 K (actual value measured minus setpoint temperature) and save the setting by pressing the confirmation key.

Temperature

Cal1

Cal2

Cal3

CK0,2-

40.0

120.0 2,6+

180.0

0,2-

10. After the calibration procedure, the temperature measured by the reference

TEMP

instrument should now also be 120 °C.

120.0°C

Set 120

.0 °C

120.0 °C

With CAL1, a calibration temperature below CAL2 can be programmed accordingly, and with CAL3, a temperature above. The minimum difference between the CAL values is 20 K for universal ovens UN

PLUS

/UF

PLUS

as well as sterilisers SN/SF and 10 K for incubators IN/IF.

If all calibration values are set to 0.0 K, the factory calibration settings are restored.

Menu functions

7.6 Programme

In the PROGRAM display, you can transfer programmes created using AtmoCONTROL software and saved on a USB storage medium to the appliance. Here, you can also select the programme to be used in manual mode (see page 27) and delete programmes.

To load a programme from a USB storage medium : Connect the USB storage medium with the saved programme(s) to the interface on the right side of the control panel.

1. Activate the programme display. To do so, press the activation key on the left side of the The display is enlarged and the entry

Activate

automatically highlighted. The

PROGRAM display.

programmes available for activation are shown on the right. The programme currently available for use – in this example

Test 012 – is highlighted in

orange.

2. Call the Activate function by pressing the confirmation key. All programmes available are displayed, including the ones saved on the USB storage medium (identified by the USB symbol). The programme currently available for use is highlighted in orange.

3. With the turn control, select the programme you want to make available for use.

Activate

Delete

Activate

Delete

Activate

Delete

PROGRAM

Test 012

Test 013

Test 014

Test 015

Test 016

Test 017

Test 012

Test 022

Test 013

Test 014

Test 022

Test 012

Test 022

Test 013

Test 014

Test 023

4. Accept the selection by pressing the confirmation key. The programme is now loaded, which is indicated by the transfer symbol.

5. As soon as the programme is ready, the selection returns to

Activate. To start

the programme: Return to manual mode by pressing the MENU key and start programme as described on page 27.

Activate

Delete

Test 012

Test 022

Test 013

Test 014

Test 023

Test 015

You can now remove the USB storage medium. To delete a programme, select

Delete with the turn control and select the programme to be

deleted the same way you can select a programme for activation.

Activate

Delete

Test 012

Test 022

Test 013

Test 014

Test 023

Menu functions

SIGNALTÖNE

7.7 Sound

In the SOUND display, you can define whether or not the appliance should emit acoustic signals and, if yes, define on which events it should do so:

► on the press of a key ► at the end of a programme ► on alarm ► if the door is open

1. Activate the acoustic signal adjustment. To do so, press the activation key on the left side of the

SOUND display. The

display is enlarged. The first category (in this case

Key sound) is automatically

highlighted. On the right, the current settings are shown on.

If you want to edit another list entry: Turn the turn control until the respective entry – e.g.

If door open – is highlighted

in colour.

2. Save the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

SOUND

Key sound

At the end

On alarm

If door open

Key sound At the end On alarm

If door open

Key sound

At the end

On alarm

If door open

3. With the turn control, select the desired setting – in this example OFF () .

4. Save the setting by pressing the confirmation key.

Key sound

At the end

On alarm

If door open

Key sound

At the end

On alarm

If door open

Menu functions

7.8 Protocol

The appliance continually logs all relevant measured values, settings and error messages at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation. If the power supply is interrupted, the time of the power failure and voltage recovery are stored in the appliance.

You can export the protocol data for different periods to a USB storage medium via the USB interface or, via Ethernet, import them to the AtmoCONTROL software for graphical representation, print-out or storage.

The log memory of the appliance is not modified or deleted by reading it out.

1. Connect the USB storage medium to the interface on the right side of the control panel.

2. Activate the protocol. To do so, press the activation key on the right side of the

PROTOCOL display. The display

is enlarged and the period

1 week

automatically highlighted. To select another logging period, use the turn control.

3. Save your selection by pressing the confirmation key. The transfer starts and a status symbol indicates the progress.

If no USB storage medium has been connected or the medium connected is full, a warning will be issued.

4. As soon as the transfer is complete, a check mark appears in front of the period selected. You can now remove the USB storage medium.

For a description of how to import and process protocol data in AtmoCONTROL or read them out via Ethernet, please observe the separate AtmoCONTROL manual.

PROTOCOL

ontrol range

12.10.2012 12:00

1 week

1 month

Complete control range

1 week

1 month

Complete control range

Menu functions

7.9 User ID

7.9.1 Description

With the User-ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unauthorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.

If adjustment options are locked, this is indicated by the lock symbol in the respective display (Fig. 27 ).

User ID data are entered in the AtmoCONTROL software and saved on the USB storage medium. The USB storage medium is thus acting as a key: Parameters can only be locked or unlocked if it is connected.

A description of how to create a user ID in AtmoCONTROL is provided in the separate AtmoCONTROL manual.

Fig. 27 Temperature adjustment at appliance locked (example)

TEMP

22.4

°C

7.9.2 User ID activation and deactivation

1. Connect the USB storage medium with the user ID data to the interface on the right side of the control panel.

2. Activate the user ID. To do so, press the activation key on the right side of the

USER-ID display. The display is enlarged

and the entry highlighted.

3. Confirm the activation by pressing the confirmation key. The new user ID data are transferred from the USB storage medium and activated. As soon as activation is complete, a check mark appears in front of the corresponding entry.

4. Remove the USB storage medium. Locked parameters are indicated by the lock symbol in the respective display (Fig. 27 ).

Activate automatically

Activate

Deactivate

USER-ID

Activate

Deactivate

To unlock the appliance, connect the USB storage medium, activate the select

Deactivate.

USER-ID entry and

Sterilisers SFplus/SNplus

8. Sterilisers SF

PLUS

/SN

PLUS

8.1 Intended use

The SF

PLUS

atmospheric pressure.

/SN

PLUS

appliance serves for sterilising medical material through dry heated air at

8.2 Note in accordance with Medical Devices Directive

The product lifetime as intended by the manufacturer is eight years.

8.3 Guidelines for sterilisation

For hot air sterilisation, there are different guidelines on the temperature and sterilisation time to choose, as well as on packaging the sterilisation load. The values to be chosen depend on the type and characteristics of the load to be sterilised and on the type of germs to be neutralised. Before beginning sterilisation, make yourself familiar with the sterilisation method laid down for your application.

Process parameters for hot air sterilisers are temperature and minimum hold time. The following process parameters have been defined in recognised standards:

► According to WHO: 180 °C with a minimum hold time of 30 min ► According to the European Pharmacopoeia: 160 °C with a minimum hold time of 120 min

For the inactivation of endotoxin (pyrogenes), dry heat of at least 180 °C can be applied. For the depletion of pyrogenic substances, you have to keep a combination of temperature and time going beyond the requirements of sterilisation.

Inactivation of endotoxin is possible using the following process parameters (data in accordance with ISO 20857:2010):

► 180 °C with a minimum effective time of 180 min ► 250 °C with a minimum effective time of 30 min

Caution:

The temperature and time requirements normal for hot air sterilisation do not destroy endotoxins.

Especially when the appliance is heavily loaded, using these parameters without checking them will not be sufficient. For safe sterilisation, validation of the individual sterilisation process is required. The requirements for the validation of sterilisation by dry heat are e.g. defined in standard ISO 20857:2010. Also valuable is the "guideline on validation and routine monitoring of sterilisation processes using dry heat for medical products" issued by the German Society for Hospital Hygiene (DGKH).

Sterilisers SF

PLUS

default sterilisation programmes saved in the appliance, which cannot be changed or deleted. A description of how to activate them is provided from page 48, their use is described from page 27. We recommend to always use these programmes for sterilisation.

If the process parameters are set manually, setpoint-dependent operation is automatically selected.

/SN

PLUS

feature

Activate

Delete

PROGRAM

Test 012

Test 022

Test 013

Test 014

Steri 180 °C

Test 015

Maintenance and service

9. Maintenance and service

9.1 Cleaning

Warning! Danger of injury by electric shock. Before any cleaning work, pull out the mains plug.

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

9.1.1 Working chamber and metal surfaces

Regular cleaning of the easy-to-clean working chamber prevents build up of material remains that could impair the appearance and functionality of the stainless steel working chamber over time.

The metal surfaces of the appliance can be cleaned with normal stainless steel cleaning agents. Make sure that no rusty objects come into contact with the working chamber or with the stainless steel housing. Rust deposits can lead to an infection of the stainless steel. If rust spots should appear on the surface of the working chamber due to impurities, the affected area must be immediately cleaned and polished.

9.1.2 Plastic parts

Do not clean the ControlCOCKPIT and other plastic parts of the appliance with caustic or solvent-based cleaning agents.

9.1.3 Glass surfaces

Glass surfaces can be cleaned with a commercially available glass cleaner.

9.2 Regular maintenance

Once a year, grease the moving parts of the doors (hinges and lock) with thin silicone grease and check that the hinge screws are not loose.

9.3 Repairs and service

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Any work inside the appliance may only be performed by qualiﬁ ed electricians.

Repairs and service work are described in a separate service manual.

Storage and disposal

10. Storage and disposal

10.1 Storage

The appliance may only be stored under the following conditions:

► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply

10.2 Disposal

This product is subject to the Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council. This appliance has been brought to market after August 13 directive into their national laws. It may not be disposed of in normal household waste. For disposal, please contact your dealer or the manufacturer. Any appliances that are infected, infectious or contaminated with materials hazardous to health are excluded from return. Please also observe all other regulations applicable in this context.

, 2005 in countries which have already integrated this

Note for Germany: The appliance may not be left at public or communal recycling or

collection points.

Index

Accessories 16 Acoustic signals 45 Activation key 24 Adjustment 45 Air flap position 25 Air supply 11 Alarm 29, 31, 34 Alarm temperature 41 Ambient conditions 15 Ambient temperature 15 Appliance error 35 ASF 28, 31 AtmoCONTROL 3, 12, 16, 24,

27, 48, 50, 51

Automatic temperature

monitor 30

Balance 43 Basic device settings 37 Basic settings 37

Carrying 17 Cause of errors 35 Chamber load 22 Changes 9 Cleaning 53 Communication interfaces

Compensation correction

value 47

Connections 12 ControlCOCKPIT 10, 23 Convection 11 Customer service 2

Date 44 Daylight savings 45 Decommissioning 54 Delete programme 48 Delivery 17, 20, 52 Dimensions 15 Disposal 54 Door 21

Electrical connection 12 Electronic temperature moni-

toring 29 Emergency 9 Ending operation 33 End of programme 28 Error description 35 Error message 35 Error messages 34 Ethernet 12 Explosion protection 8

factory calibration settings

47 Fan speed 25 Forklift truck 17 Function 11

GMT 45 Graph 33

Hazards 7 Heat output distribution 43

Installation site 18 Intended use 8 Interfaces 12 Interior lighting 25 IP address 39

Language selection 38 Lighting 25 Loading the appliance 22 Log memory 36, 50

Maintenance 53 Malfunctions 9, 34 Manufacturer 2 Material 11 Mechanical temperature

monitoring 31 Medical device 8

Medical Devices Directive 52 Menu 37 Minimum clearances 18 Monitoring temperature 28

Nameplate 13 Network 12, 39 Normal mode 24, 25

Operating 21 Operating modes 24 Operating personnel 7, 21 Operating problems 35 Operation 21

Packaging material 17 Power failure 36 Power supply 50 Press of a key 49 Product safety 7 Programme 48 Programme mode 24, 27 Pt100 temperature sensor

Putting into operation 20,

Rectifying errors 35 Regular maintenance 53

Safety regulations 6 Service 53 Servicing 53 Setting parameters 24, 38 Setting up 17, 18 Setting up options 19 Setup 39 Speaker symbol 29, 34 Sterilisation programme 52 Sterilisers 3, 21, 26, 42, 52 Storage after delivery 18 Switching off 33 Switching on 20

Index

TB 31 Technical data 14 Temperature 25 Temperature comparison 45 Temperature deviation 46 Temperature limiter 31 Temperature monitor 28, 31 Temperature monitoring 28,

41 Temperature sensor 28 Time 44 Timer mode 42 Timer operation 26 Time zone 45 Transport 17 Transport damage 17 Turn control 24 TWB 30 TWW 29 TWW temperature monitor-

ing 29, 30

Unit 40 Unpacking 17 USB interface 12, 50 User ID 51

Warning messages 12, 34 Weight 14

Universal ovens plus

Incubators plus

Sterilisers plus

07.09.2012

D24026 // englisch

Memmert GmbH + Co. KG Postfach 1720 | D-91107 Schwabach Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com facebook.com/memmert.family Die Experten-Plattform: www.atmosafe.net

Memmert Incubator IN-/INplus/IF-/IFplus series INplus models with natural air movement (convection), 32 l, INplus 30 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
