Memmert Incubator IN-/INplus/IF-/IFplus series IF models with forced air circulation (fan), 32 l, IF 30 User guide

Download

UNxx | UFxx

INxx | IFxx

UNxxm | UFxxm

INxxm | IFxxm

OPERATING

INSTRUCTIONS

UNIVERSAL OVEN U

INCUBATOR I

MADE IN GERMANY.

www.memmert.com

Manufacturer and customer service

Memmert GmbH + Co. KG Willi-Memmert-Straße 90–96 D-91186 Büchenbach Deutschland

Phone: +49 (0)9122 925-0 Fax: +49 (0)9122 14585 E-mail: sales@memmert.com Internet: www.memmert.com

Customer service: Service hotline: +49 (0)9171 9792 911 Service fax: +49 (0)9171 9792 979 E-mail: service@memmert.com

When contacting customer service, always quote the product serial number on the nameplate (see page 13

Shipping address for repairs: Memmert GmbH + Co. KG

Kundenservice Willi-Memmert-Str. 90-96 DE-91186 Büchenbach Germany

Please contact our customer service before sending appliances for repair or before returning equipment, otherwise, we have to refuse acceptance of the shipment.

About this manual

Purpose and target group

This manual describes the construction, function, transport and operation of the universal ovens UN by trained personnel of the owner who have the task of operating and/or maintaining the respective appliance.

If you are asked to work on the appliance, read this manual carefully before starting. Familiarise yourself with the safety regulations. Only perform work that is described in this manual. If there is something you do not understand, or certain information is missing, ask your superior or contact the manufacturer. Do not do anything without authorisation.

Versions

The appliances are available in different configurations and sizes. If specific equipment features or functions are available only for certain configurations, this is indicated at the relevant points in this manual.

The functions described in this manual refer to the latest firmware version. Due to individual configurations and sizes, illustrations in this manual may be slightly different

from the actual appearance. Function and operation are identical.

Other documents that have to be observed:

xx/UFxx/UNxxm/UFxxm and the incubators INxx/IFxx/INxxm/IFxxm. It is intended for use

► For operation of the appliance with MEMMERT AtmoCONTROL, observe the separate

software manual

► For service and repair (see page 46), please refer to the separate service manual

Storage and forwarding

This instruction manual belongs with the appliance and should always be stored where persons working on the appliance have access to it. It is the responsibility of the owner to ensure that persons who are working or will work on the appliance are informed as to the whereabouts of this instruction manual. We recommend that it is always stored in a protected location close to the appliance. Make sure that the instruction manual is not damaged by heat or humidity. If the appliance is sold on or transported and then set up again at a different location, the operating instructions must go with it.

You will find the current version of our operating manual as pdf file if you go to www.memmert.com/de/service/downloads/bedienungsanleitung/.

D33363 | Date 01/2020 3

Contents

1. For your Safety 6

1.1 Terms and signs used........................................................................................................... 6

1.2 Product safety and dangers ................................................................................................ 7

1.3 Requirements of the operating personnel .......................................................................... 8

1.4 Responsibility of the owner ................................................................................................. 8

1.5 Changes and alterations ...................................................................................................... 8

1.6 Behaviour in case of malfunctions and irregularities ..........................................................8

1.7 Switching off the appliance in an emergency ....................................................................9

2. Construction and description 10

2.1 Construction ...................................................................................................................... 10

2.2 Function .............................................................................................................................12

2.3 Material.............................................................................................................................. 12

2.4 Electrical equipment ..........................................................................................................12

2.5 Connections and interfaces ...............................................................................................13

2.6 Designation (nameplate) ...................................................................................................13

2.7 Technical data .................................................................................................................... 14

2.8 Declaration of conformity ................................................................................................. 15

2.9 Ambient conditions ...........................................................................................................15

2.10 Scope of delivery ............................................................................................................... 16

2.11 Optional accessories .......................................................................................................... 16

3. Delivery, transport and setting up 17

3.1 For your Safety ................................................................................................................... 17

3.2 Delivery .............................................................................................................................. 18

3.3 Transport ............................................................................................................................ 18

3.4 Unpacking ......................................................................................................................... 18

3.5 Storage after delivery ........................................................................................................18

3.6 Setting up .......................................................................................................................... 19

4. Putting into operation 23

4.1 Connecting the appliance .................................................................................................23

4.2 Switching on ...................................................................................................................... 24

5. Operation and control 25

5.1 Operating personnel.......................................................................................................... 25

5.2 Opening the door .............................................................................................................. 25

5.3 Loading the appliance ....................................................................................................... 26

5.4 Operating the appliance .................................................................................................... 26

5.5 Temperature monitoring .................................................................................................. 30

5.6 Ending operation ............................................................................................................... 32

4 D33363 | Date 01/2020

Contents

6. Malfunctions, warning and error messages 33

6.1 Warning messages of the temperature monitoring function ..........................................33

6.2 Malfunctions, operating problems and appliance errors ................................................ 34

6.3 Power failure ...................................................................................................................... 35

7. Menu mode 36

7.1 Overview ............................................................................................................................ 36

7.2 Basic operation in menu mode using the example of language selection ....................... 37

7.3 Setup.................................................................................................................................. 38

7.4 Date and Time ................................................................................................................... 42

7.5 Calibration ......................................................................................................................... 44

8. Maintenance and service 46

8.1 Cleaning ............................................................................................................................. 46

8.2 Regular maintenance.........................................................................................................46

8.3 Repairs and service ............................................................................................................ 46

9. Storage and disposal 47

9.1 Storage ..............................................................................................................................47

9.2 Disposal .............................................................................................................................47

D33363 | Date 01/2020 5

For your Safety

1. For your Safety

1.1 Terms and signs used

In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these hints and regulations to avoid accidents and damage. These terms and signs are explained below.

1.1.1 Terms used

"Warning"

"Caution"

is used whenever you or somebody else could be injured if you do not observe the accompanying safety regulation.

is used for information that is important for avoiding damage.

1.1.2 Signs used

Warning signs (warning of a danger)

Danger of

electrocution

Danger

of explo-

sion

Dangerous

gases / va-

pours

Prohibition signs (forbidding an action)

Do not lift Do not

tilt

Do not enter

Regulation signs (stipulating an action)

Danger of

burns

Danger of

toppling

over

Hazard area!

Observe the opera-

ting instructions

Disconnect

the mains

plug

Wear

gloves

Wear safety

boots

Observe

information

in separate

manual

Other icons

Important or useful additional information

6 D33363 | Date 01/2020

For your Safety

1.2 Product safety and dangers

The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They contain the latest technology and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Only electrical technicians may work on the electrical equipment of the appliances.

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and persons could be severely injured or poisoned. The appliance may only be loaded with materials/test objects which do not form any toxic or explosive vapours when heated up (see also page 11).

Warning! If the door is open while the appliance is in operation, the appliance may overheat and pose a ﬁ re hazard. Do not leave the door open during operation.

Warning! Depending on operation, the surfaces in the working chamber and the chamber load may still be very hot after the appliance is switched off. Touching these surfaces can cause burns. Wear heatresistant protective gloves or wait until the appliance cools down.

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

D33363 | Date 01/2020 7

For your Safety

1.3 Requirements of the operating personnel

The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

Repairs may only be performed by qualified electricians. The regulations in the separate service manual must be observed.

1.4 Responsibility of the owner

The owner of the appliance

► is responsible for the flawless condition of the appliance and for its proper operation in

accordance with its intended use (see page 11 );

► is responsible for ensuring that persons who are to operate or service the appliance are

qualified to do this, have been instructed accordingly and are familiar with the operating instructions at hand;

► must know about the applicable guidelines, requirements and operational safety regula-

tions, and train staff accordingly;

► is responsible for ensuring that unauthorised persons have no access to the appliance; ► is responsible for ensuring that the maintenance plan is adhered to and that maintenance

work is carried out properly (see page 46);

► has to ensure that the appliance and its surroundings are kept clean and tidy, for example

through corresponding instructions and inspections;

► is responsible for ensuring that personal protective clothing is worn by operating person-

nel, e.g. work clothes, safety shoes and protective gloves.

1.5 Changes and alterations

No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer.

Unauthorised modifications or changes result in the CE declaration of conformity losing its validity and the appliance must no longer be operated.

The manufacturer is not liable for any damage, danger or injuries that result from unauthorised changes or alterations, or from non-observance of the regulations in this manual.

1.6 Behaviour in case of malfunctions and irregularities

The appliance may only be used in a flawless condition. If you as the operator notice irregularities, malfunctions or damage, immediately take the appliance out of service and inform your superior.

You can find information on correcting malfunctions from page 33.

8 D33363 | Date 01/2020

1.7 Switching off the appliance in an emergency

ONN

Push the On/Off switch on the control panel ( Fig. 1 ) and disconnect power plug. This disconnects the appliance from the power supply at all poles.

Warning! Depending on the operation performed , the surfaces in the working chamber and the chamber load may still be very hot after the appliance is switched off. Touching these surfaces can cause burns. Wear heat-resistant protective gloves or wait until the appliance cools down.

Fig. 1 Switch off the appliance by pressing the On/ Off switch

For your Safety

D33363 | Date 01/2020 9

Construction and description

2. Construction and description

2.1 Construction

Fig. 2 Construction 1 ControlCOCKPIT with capacitive function

keys (see page 27) 2 On/Off switch (see page 24) 3 Working chamber fan (for

.../IF... appliances only)

4 Steel grid 5 Working chamber 6 Nameplate (covered, see page 13) 7 Door handle (see page 25) 8 Turn control with confirmation key

10 D33363 | Date 01/2020

Construction and description

2.2 Intended use

Based on the standards and guidelines listed in the following, the products described in this manual have received a CE label from the company Memmert:

Product Intended use Directives

UNxx UFxx INxx IFxx

Product Intended use as a medical device Directive

UNxxm IN

xxm

This appliance is exclusively intended for heating up non-explosive substances and objects. Any other use is improper and may result in hazards and damage.

The appliance is not explosion-proof (does not comply with the German occupational health and safety regulation VBG 24). The appliance may only be loaded with materials and substances which cannot form any toxic or explosive vapours at the set temperature and which cannot explode, burst or ignite.

The appliance may not be used for the drying, evaporation and burning-in of paints or similar materials, the solvents of which could form an explosive mixture when combined with air. If there is any doubt as to the composition of materials, they must not be loaded into the appliance. Potentially explosive gasair mixtures must not form, neither in the working chamber nor in the direct vicinity of the appliance.

The appliance may be used for heating fango, silicate and APS packs for physical therapy and keeping them warm.

► Directive 2004/108/EC amended

(Directive of the European Parliament and of the Council on the approximation of the laws of the Member States relating to electromagnetic compatibility). Standards complied with: DIN EN 61326:2004-05 EN 61326:1997 EN 61326/A1:1998 EN 61326/A2:2001 EN 61326/A2:2003

► Directive 2006/95/EC amended

(Directive of the European Parliament and of the Council on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits). Standards complied with: DIN EN 61 010-1 (VDE 0411 part 1) DIN EN 61 010-2-010 (VDE 0411 part 2-010) EN 61 010-1:2001, EN 61 010-2010

Directive 93/42/EEC (Council Directive concerning medical devices)

D33363 | Date 01/2020 11

Construction and description

2.3 Function

Appliances of the UN... and IN

... type series feature

natural circulation (convection). For the UF type series, air is circulated by a fan at the working chamber rear panel Fig. 3 , No. 1). It increases the air flow and provides stronger horizontal forced air circulation than natural convection.

In both the convection and fan ventilated appliances, supply air (2) is preheated in a pre-heating chamber (3). Through the ventilation slits in the side panel of the working chamber, the preheated air is introduced into the interior of the chamber. The supply and exhaust air (5) volume (air change) is controlled by the air flap (4) on the rear panel of the appliance.

... and IF...

Fig. 3 Function 1 Fan 2 Fresh air 3 Pre-heating chamber 4 Air flap 5 Exhaust air

2.4 Material

For the outer housing, MEMMERT deploys stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion-resistance towards many (but not all!) chemical compounds (caution for example with chlorine compounds).

The chamber load for the appliance must be carefully checked for chemical compatibility with the materials mentioned. A material resistance table can be requested from the manufacturer.

2.5 Electrical equipment

► Operating voltage and current consumption: See nameplate ► Protection class I, i.e. operating insulation with PE conductor in accordance with EN 61010 ► Protection type IP 20 acc. to EN 60 529 ► Interference suppression acc. to EN 55011 class B ► Appliance fuse: Fusible link 250 V/15 A quick-blow ► The temperature controller is protected with a miniature fuse 100 mA (160 mA at 115 V)

12 D33363 | Date 01/2020

Construction and description

2.6 Connections and interfaces

2.6.1 Electrical connection

This appliance is intended for operation on an electrical power system with a system impedance Z must ensure that the appliance is operated only on an electrical power system that meets these requirements. If necessary, you can ask your local energy supply company what the system impedance is.

Observe the country-specific regulations when connecting (e.g. in Germany DIN VDE 0100 with residual current circuit breaker).

2.6.2 Communication interface

The Ethernet interface is intended for appliances which meet the requirements of IEC 60950-1. Via Ethernet interface, the appliance can be

connected to a network to read out protocol logs with AtmoCONTROL, the optional appliance software. The Ethernet interface is located on the rear of the appliance (Fig. 4 ).

For identification purposes, each appliance connected must have its own unique IP address. Setting the IP address is described on page 38.

With an optional USB to Ethernet converter, the appliance can be directly connected to a computer / laptop (see Optional accessories on page 16).

of a maximum of 0.292 ohm at the point of transfer (service line). The operator

max

Fig. 4 Ethernet interface

2.7 Designation (nameplate)

The nameplate (Fig. 5) provides information about the appliance model, manufacturer and technical data. It is attached to the front of the appliance, on the right side under the door (see page 10).

Typ: UN260 230 V~ 50/60 Hz DIN12880-2007-Kl.: 1

Schutzart DIN EN 60529 - IP 20

GmbH+Co.KG D-91126 Schwabach FRG



Rittersbacher Str. 38 Made in Germany

Äußere

F-Nr.: B618.3008

14,8 A 3400 W

Nenntemp.: 300 °C

Fig. 5 Nameplate (example) 1 Type designation

2 Operating voltage 3 Applied standard 4 Protection type 5 CE conformity

D33363 | Date 01/2020 13

6 Address of manufacturer 7 Disposal note 8 Temperature range 9 Connection / power ratings 10 Appliance number

Construction and description

2.8 Technical data

Appliance size 30 55 75 110 160 260

Appliance width D1 [mm] 585 585 585 745 745 824 Appliance height E Appliance depth F Depth of door lock [mm] 56 Working chamber width A1 [mm] 400 400 400 560 560 640 Working chamber height B1 [mm] 320 400 560 480 720 800 Working chamber depth C Chamber volume [litres] 32 53 74 108 161 256 Weight [kg] 48 57 66 78 96 110

Power [W]

Current consumption [A]

max. number of sliding shelves 3 4 6 5 8 9 max. load per sliding shelve [kg] 20 max. load per appliance [kg] 60 80 120 175 210 300

Setting temperature range

Adjustment precision

See Fig. 6 on page 15

With the interior lighting on, the minimum temperature might not be reached.

to +250 °C if your device is equipped with a glass door

[mm] 707 787 947 867 1107 1186

(footprint) [mm] 434 514 514 584 584 684

[mm] 250 330 330 400 400 500

115 V, 50/60 Hz 800 900 900 900 900 900

I...

230 V, 50/60 Hz 1600 1000 1250 1400 1600 1700 230 V, 50/60 Hz 1600 2000 2500 2800 3200 3400

U...

115 V, 50/60 Hz 1600 1700 1800 1800 1800 1800 230 V, 50/60 Hz 7,0 4,3 5,4 6,1 7,0 7,4

I...

115 V, 50/60 Hz 7,0 7,8 7,8 7,8 7,8 7,8 230 V, 50/60 Hz 7,0 8,7 10,9 12,2 13,9 14,8

U...

115 V, 50/60 Hz 13,9 14,8 15,6 15,6 15,6 15,6

IN/IF +20 bis +80 °C UN/UF +20 bis +300 °C

2 3

IN/IF 0,1 K UN/UF bis 99,9 °C: 0,1 K, ab 100 °C: 0,5 K

Appliance size 450 750 1060

Appliance width D1 [mm] 1224 1224 1224 Appliance height E1 [mm] 1247 1720 1720 Appliance depth F1 (footprint) [mm] 784 784 1035 Depth of door lock [mm] 56 Working chamber width A Working chamber height B1 [mm] 720 1200 1200 Working chamber depth C1 [mm] 600 600 850 Chamber volume [litres] 449 749 1060 Weight [kg] 170 217 252

14 D33363 | Date 01/2020

[mm] 1040 1040 1040

Construction and description

Appliance size 450 750 1060

I...

Power [W]

U...

I...

Current consumption [A]

max. number of sliding shelves 8 14 14 max. load per sliding shelve [kg] 30 60

max. load per appliance [kg] 300

Setting temperature range

Adjustment precision

See Fig. 6 on page 15

With the interior lighting on, the minimum temperature might not be reached.

to +250 °C if your device is equipped with a glass door

U...

115 V, 50/60 Hz 1500 1800 – 230 V, 50/60 Hz 1800 2000 – 400 V, 50/60 Hz 5800 7000 7000 3 x 230 V o. N., 50/60 Hz 5800 7000 7000 3 x 208 V, 50/60 Hz 4800 5700 5700 230 V, 50/60 Hz 7,8 8,7 – 115 V, 50/60 Hz 13,0 15,6 – 400 V, 50/60 Hz 3 x 8,4 3 x 10,1 3 x 10,1 3 x 230 V o. N., 50/60 Hz 3 x 14,6 3 x 17,6 3 x 17,6 3 x 208 V, 50/60 Hz 3 x 13,3 3 x 15,1 3 x 15,1

IN/IF +20 bis +80 °C UN/UF +20 bis +300 °C IN/IF 0,1 K – UN/UF bis 99,9 °C: 0,1 K, ab 100 °C: 0,5 K

2 3

–

Fig. 6 Dimensions (see table on page 14)

D33363 | Date 01/2020 15

Construction and description

2.9 Declaration of conformity

You can download the EC declaration of conformity of the appliance online: English: http://www.memmert.com/en/service/downloads/ce-statement/ German: http://www.memmert.com/de/service/downloads/eg-konformitaetserklaerung/

2.10 Ambient conditions

► The appliance may only be used in enclosed rooms and under the following ambient

conditions:

Ambient temperature

Humidity rh max. 80 %, non-condensing

Overvoltage category II

Pollution degree 2

Altitude of installation max. 2,000 m above sea level

+5 ºC to +40 ºC

► The appliance may not be used in areas where there is a risk of explosion. The ambient air

must not contain any explosive dusts, gases, vapours or gas-air mixtures. The appliance is

not explosion-proof.

► Heavy dust production or aggressive vapours in the vicinity of the appliance could lead to

sedimentation in the interior and, as a consequence, could result in short circuits or dam-

age to electrical parts. For this reason, sufficient measures to prevent large clouds of dust

or aggressive vapours from developing should be taken.

2.11 Scope of delivery

► Power cable ► Tilt protection ► One or two sliding steel grids (load capacity 30 kg each) ► The operating instructions at hand ► Calibration certificate

2.12 Optional accessories

► AtmoCONTROL software for reading out

and processing of protocol log files

► USB to Ethernet converter (Fig. 7 ). Makes

it possible to connect the appliance's

network interface (see page 13) to the

USB port of a computer / laptop.

► Reinforced, sliding steel grids with a load

capacity of 60 kg each (for appliance size

110 and larger)

Fig. 7 Converter USB to Ethernet

16 D33363 | Date 01/2020

3. Delivery, transport and setting up

3.1 For your Safety

Warning! Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. To carry appliances of the sizes 30 and 55, at least two persons, for appliances of the sizes 75, 110, 160 and 260, four people are needed. Appliances larger than that may not be carried but must be transported with a manual pallet jack or forklift truck.

30 55 75 110 160 260 450 750

Warning! You may get your hands or feet squashed when transporting and installing the appliance. Wear protective gloves and safety boots. When grasping the bottom of the appliance, grasp it only on the sides:

Delivery, transport and setting up

D33363 | Date 01/2020 17

Warning! The appliance could fall over and seriously injure you. Never tilt the appliance and transport it in upright position and without load only (except for standard accessories such as steel grids or shelves). Appliances with castors always have to be moved by two people.

Delivery, transport and setting up

3.2 Delivery

The appliance is packed in cardboard and is delivered on a wooden palette.

3.3 Transport

The appliance can be transported in three ways:

► With a forklift truck; move the forks of the truck entirely under the pallet ► On a manual pallet jack ► On its own castors, in case of the corresponding configuration, for which the catch on the

(front) castors must be released

3.4 Unpacking

To avoid damage, do not unpack the appliance until you reach the installation site.

Remove the cardboard packaging by pulling it upwards or carefully cutting along an edge.

3.4.1 Checking for completeness and transport damage

► Check the delivery note to ensure that the delivery is complete. ► Check the appliance for damage.

If you notice deviations from the delivery note, damage or irregularities, do not put the appliance into operation but inform the haulage company and the manufacturer.

3.4.2 Removing the transport protection

Remove the transport protection. It is located between the door hinge, door and frame and has to be removed after opening the door.

3.4.3 Disposing of packaging material

Dispose of the packaging material (cardboard, wood, foil) in accordance with the applicable disposal regulations for the respective material in your country.

3.5 Storage after delivery

If the appliance is first to be stored after delivery: Read the storage conditions from page

47.

18 D33363 | Date 01/2020

Delivery, transport and setting up

3.6 Setting up

Warning! Due to its centre of gravity, the appliance can fall over to the front and injure you or other people. Always attach the appliance to a wall with the tilt protection (see page 21). If this cannot be done due to space problems, do not operate the appliance and do not open the door. Contact the Memmert service team (see page 2).

3.6.1 Prerequisites

The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 14). Do not place the appliance on a flammable surface.

Depending on the model (see nameplate), a 230 V, 115 V or 400 V power connection must be available at the installation site.

The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm (Fig. 8). Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times.

For appliances with castors, these need to be positioned in forward direction at all times.

FP

FP FP FP

Fig. 8 Minimum clearance from walls and ceiling

D33363 | Date 01/2020 19

Delivery, transport and setting up

3.6.2 Installation options

Setting up Comments Suitable for appliance size ...

30 55 75 110 160 260 450 750

Floor

 

Table

Stacked

Check the load capacity first

two appliances maximum; mounting material (feet) provided





Wall

mounting

Base

Castor

frame

Height ad-

justable feet

Separately packaged fastening material is included in the scope of delivery. Observe the assembly instructions provided.

with/without castors













 

20 D33363 | Date 01/2020

3.6.3 Tilt protection

Attach the appliance to a wall with the tilt protection. The tilt protection is included in the delivery.

1. As illustrated, fasten the

tilt protection to the rear

side of the appliance.

2. Bend the tilt protec-

tion upwards by 90 ° in

the desired distance to

the wall (consider the

minimum distance to the

wall, see Fig. 8).

3. Drill a hole, insert a plug

and screw the tilt protec-

tion to a suitable wall.

Delivery, transport and setting up

D33363 | Date 01/2020 21

Delivery, transport and setting up

3.6.4 Adjusting the doors

For appliances it is possible to adjust doors that warp due to the floor conditions. In order to do so, every door has two adjuster screws at the top and at the bottom (Fig. 9).

First, adjust the door at the top and then, if further adjustment is necessary, at the bottom

as well.

1. Open the door.

2. Undo the screws.

3. Adjust the door.

4. Tighten the screws again.

5. Check door alignment.

6. If necessary, readjust.

Fig. 9 Door adjustment screws

22 D33363 | Date 01/2020

Putting into operation

4. Putting into operation

Caution:

The first time the appliance is operated, it must not be left unattended until it has reached

the steady state.

4.1 Connecting the appliance

WARNING

Condensation might cause a short circuit. After transport or storage at high humidity conditions, the appliance shall be stored unpacked at normal conditions for at least 24 hours. During this period of time the appliance shall not be connected to the power supply.

Caution:

Observe the country-specific regulations when making connections (e.g. in Germany DIN

VDE 0100 with residual current circuit breaker). Observe the connection and power rat-

ings (see nameplate and Technical data on page 14). Make sure to establish a safe PE

conductor connection. Lay the power cable so that

► it is always accessible and within reach so it can be disconnected quickly in the event of

failure or emergencies;

► no one can trip over it; ► it does not come into contact with any hot parts.

230/115-V appliances:

Plug the provided power cable into the rear of the appliance and connect it to a CEE 7/4 socket (Fig. 10).

Fig. 10 Power connection 230/115 V

400V appliances:

The power cable is permanently installed. Connect the plug to a 400 V CEE coupling (Fig. 11).

Fig. 11 400 V CEE connection

D33363 | Date 01/2020 23

Putting into operation

4.2 Switching on

Switch on the appliance by pressing the On/Off switch on the front of the appliance ( Fig. 12 ).

The starting process is shown by three animated white dots . If the dots have another colour, an error has occurred (see page 34).

After the first start-up, the appliance display is set to

English by default. You can change the language as

described from page 37. However, to get a basic

overview of operating the appliance, you should read

the following chapter first.

Fig. 12 Switch on appliance

24 D33363 | Date 01/2020

Operation and control

5. Operation and control

5.1 Operating personnel

The appliance may only be operated by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

5.2 Opening the door

► To open the door, pull the door handle to the side (to the left or to the right, depending

on the door variation, see Fig. 13, A) and open the door completely.

► To close the appliance, push the door closed and the door handle to the side (B).

Fig. 13 Opening and closing the door

Warning! If the door is open while the appliance is in operation, the appliance may overheat and pose a ﬁ re hazard. Do not leave the door open during operation.

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

D33363 | Date 01/2020 25

Operation and control

5.3 Loading the appliance

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and persons could be severely injured or poisoned. The appliance may only be loaded with materials which do not form any toxic or explosive vapours when heated up and cannot ignite (see also page 11). If there is any doubt as to the composition of materials, they must not be loaded into the appliance.

Caution:

Check the chamber load for chemical compatibility with the materials of the appliance (see page 12).

Caution:

If the chamber load is wet or very humid, water may accumulate on the floor and damage the heater. If wet, use a drip tray on the bottom of the tube.

Insert the sliding steel grids or sliding shelves. The maximum number or grids / shelves and the load capacity are specified in the technical data overview on page 14.

The chamber must not be loaded too tightly, so that proper air circulation in the working chamber is guaranteed. Do not place any chamber load on the floor, touching the side walls or right below the ceiling of the working chamber (Fig. 14 , see also the "correct loading" sticker on the appliance).

In case of improper loading (chamber loaded too tightly), the set temperature may be exceeded or it may take longer until it is reached.

To achieve the correct heating capacity, the type of slide-in unit used – Grid or Shelf – must be set in the menu under

Fig. 14 Correct placement of the chamber load

SETUP (see page 41).

5.4 Operating the appliance

5.4.1 ControlCOCKPIT

In manual operation, the desired parameters are entered at the ControlCOCKPIT on the front of the appliance (Fig. 15 and Fig. 16 ). You can also make basic settings here (menu). Additionally, warning messages are displayed, e.g. if the temperature is exceeded.

26 D33363 | Date 01/2020

Operation and control

53 412

TEMP

180.4°C

Set 180

TIMER

30m04h

44h:44m

End

13:30 23.11.

End 14: 45

.4°C

FAN

FLAP

40 %

20%

Fig. 15 ControlCOCKPIT for UF.../IF... appliances in operating mode

12 5

TEMP

180.0 °C

Set 180.9°C

FLAP

TIMER

30m04h

44h:44m

End

13:30 23.11.

End 14: 45

FLAP

40 %

11 1267 8 9 10

10 11 1267 8 9

Fig. 16 ControlCOCKPIT for UN.../IN... appliances in operating mode

1 Activation key for temperature setpoint

adjustment 2 Setpoint and actual temperature display 3 Fan speed display 4 Activation key for fan speed setting 5 Switch to menu mode (see page 36) 6 Activation key digital backwards counter

with target time setting, adjustable from 1

minute to 99 days

8 Display digital backwards counter with

target time setting, adjustable from 1 min-

ute to 99 days 9 Air flap position display 10 Activation key for air flap position adjust-

ment 11 Turn control for setpoint adjustment 12 Confirmation key (accepts setting made

with the turn control)

7 On/Off switch

D33363 | Date 01/2020 27

Operation and control

TIMER

5.4.2 Basic operation

In general, all settings are made according to the following pattern:

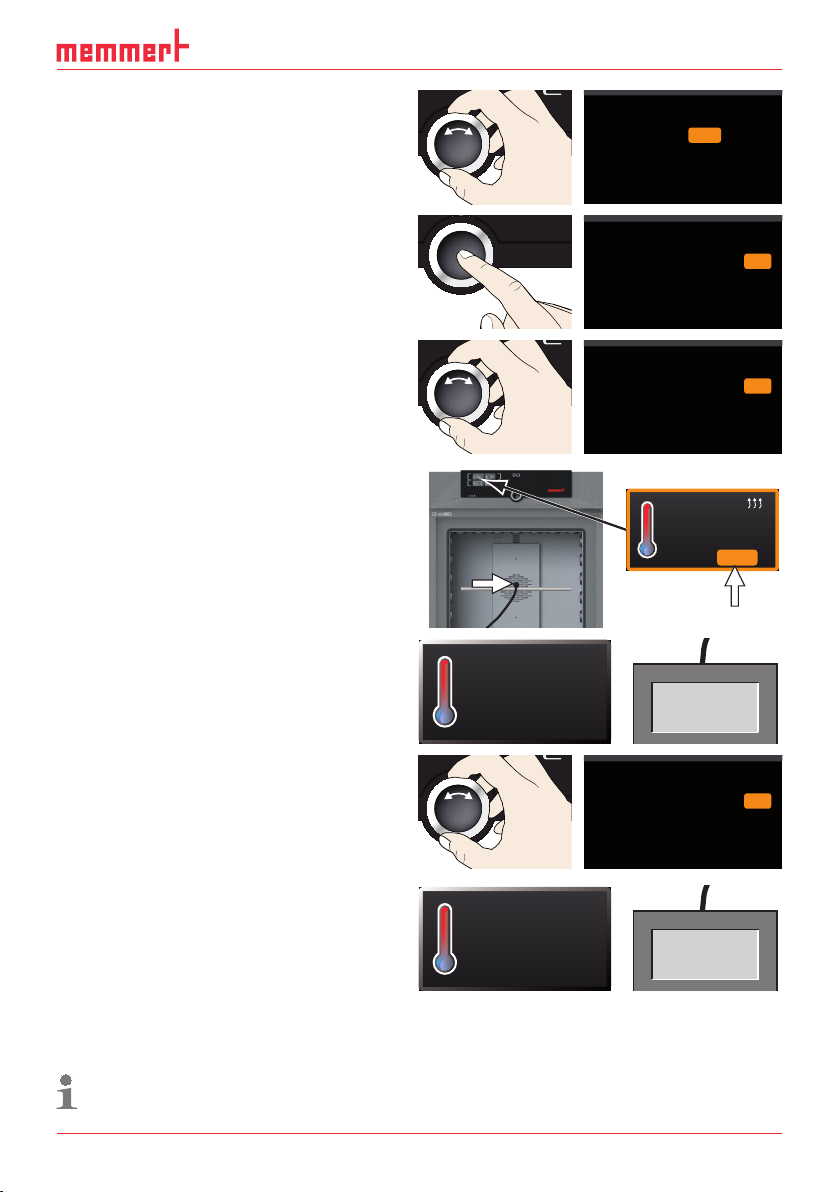

1. Activate the desired parameter (e.g. temperature). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is lined in colour, the other displays are dimmed. The set value is highlighted in colour.

TEMP

22.4°C

37.0°CSet

.5°C100

2. By turning the turn control to the left or right, adjust the set value (e.g. to

180.0 ºC).

TEMP

22.4 °C

180.0 °CSet

3. Save the set value by pressing the confirmation key.

TEMP

The display returns to normal and the appliance begins adjusting to the defined set value.

23.2 °C

Set 180

.0 °C

Additional parameters (air flap position etc.) can be set accordingly.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically returns to the main menu and restores the former values.

If you want to cancel the setting procedure, press the activation key on the left or right of the display that you want to exit. The appliance restores the former values. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

5.4.3 Operating modes

The appliance can be operated in different modes:

► Manual mode: The appliance runs in permanent operation at the values set on the

ControlCOCKPIT. Operation in this mode is described in chapter 5.4.4.

► Operation with digital backwards counter with target time setting, adjustable from 1 min-

ute to 99 days (Timer): The appliance runs at the values set until the timer has elapsed. Operation in this mode is described in chapter 5.4.5 .

► via remote control (see page 41)

28 D33363 | Date 01/2020

Operation and control

5.4.4 Manual mode

In this operating mode, the appliance runs in permanent operation at the values set on the ControlCOCKPIT.

Adjustment options

As described in chapter 5.4.2, you can set the following parameters after pressing the corresponding activation key (in any sequence):

Temperature Adjustment range: model dependent (see nameplate and technical date on page 14)

Heating operation is indicated by the You can select °C or °F as the temperature unit displayed (see

page 39).

Air flap position Adjustment range: 0 % (closed, recirculating operation) to 100 %

(completely opened, fresh air operation) in steps of 10%

symbol.

TEMP

24.4 °C

180.4 °CSet

FLAP

%40

Fan speed (only for UF

Adjustment range: 0 to 100 % in steps of 10%

.../IF... appliances)

FAN

5.4.5 Operation with digital backwards counter with target time setting,

adjustable from 1 minute to 99 days (Timer)

In timer operation, you can adjust the time the appliance runs at the set value.

1. Press the activation key to the left of the timer display. The timer display is activated.

2. Turn the turn control until the desired duration is displayed – in this example 4 hours 30 minutes. The approximate end time is shown beneath, in a smaller font.

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes)

format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum duration adjustable is 99 days 00 hours.

TIMER

--h- m

9:00 23.11.

Ende

TIMER

04 mh 3

13:30 23.11.

End

D33363 | Date 01/2020 29

Operation and control

3. Press the confirmation key.

The display now shows the remaining time in a large font and the approximate end time in a smaller font beneath.

4. Now, as described under 5.4.2, set the individual values for temperature, air flap position etc. which you want the appliance to operate at. The set values can be changed at any time while the timer elapses. The changes are effective immediately.

In Setup, you can choose if the timer should run setpoint-dependent or not. This deter-

mines whether the timer should not start until a tolerance band around the set temperature is reached or whether it should start right after activation (see page

41). If the timer runs setpoint-dependent, this is indicated by the timer display.

When the timer has elapsed, the display shows 00h:00m. All functions (heating etc.) are switched off. If a fan had been active, it will keep on running for a short safety period. In addition, an acoustic alarm sounds, which can be turned off by pressing the confirmation key.

TIMER

End

30m04h

13:30 23.11.

symbol in the

TIMER

00m00h

End

13:30 23.11.

To deactivate the timer, open the timer display by pressing the activation key again and then turning the turn control to reduce the timer setting until --:-- is displayed. Confirm with the confirmation key.

5.5 Temperature monitoring

The appliance is equipped with a double overtemperature protection (mechanical/electronic) in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction:

End

TIMER

--m--h

9:00 23.11.

► Electronic temperature monitoring (TWW/TWB) (TWB only if equipped with a second tem-

perature sensor, option A6)

► mechanical temperature limiter (TB)

30 D33363 | Date 01/2020

Operation and control

5.5.1 Electronic temperature monitoring

The monitoring temperature of the electronic temperature monitoring is measured via the Pt100 temperature sensor in the interior of the chamber. The type of temperature monitoring (TWW/TWB) and the monitoring temperature are set in menu mode in the Setup display (see page 40). The setting made applies to all operating modes.

If the manually set monitoring temperature is exceeded, temperature monitoring takes over temperature control and begins to regulate the monitoring temperature (TWW, Fig. 17) or switches off the heating (TWB, Fig. 18).

The two types of temperature monitoring are only available for appliances equipped with

a second temperature sensor (option A6). For appliances with only one temperature sensor, only TWW is available.

°C

Emergency operation

Setting Max Alarm

Set temperature

Controller error

Fig. 17 Schematic diagram of how the TWW temperature monitoring system works

°C

heating switched off by TWB

Setting Max Alarm

Set temperature

Controller error

Fig. 18 Schematic diagram of how the TWB temperature monitoring works (only if equipped with a second temperature sensor, option A6)

D33363 | Date 01/2020 31

Operation and control

180.4°C

TEMP

Set 185

.0°C

23.2°C

TEMP

Set 180

.0°C

TEMP

TB Set 190.0 °C

195.4°C

5.5.2 Mechanical temperature monitoring: Temperature limiter (TB)

The appliance is equipped with a mechanical temperature limiter (TB) of protection class 1 in accordance with DIN 12 880.

If the electronic monitoring unit should fail during operation and the factory-set maximum temperature is exceeded by approx. 20 °C, the temperature limiter, as the final protective measure, switches off the heating permanently.

5.5.3 Function

If temperature monitoring has been triggered, this is indicated by the temperature display: the actual temperature is highlighted in red and a warning symbol

is shown (Fig. 19 ). The type of temperature monitoring triggered is shown beneath the temperature: TB for mechanical and TWW or TWB for electronic temperature monitoring. The alarm is additionally signalled by an intermittent acoustic signal, which can

TEMP

195.4°C

TB Set 190.0

TIMER

44h:44m

Ende

13:30 23.11.

End14 :45

Set 180.0°C

30m04h

.°C

LÜFTER

°C

FLAP

KLAPPE

40%

20%

°C

0°C

Fig. 19 Temperature monitoring triggered

be turned off by pressing the confirmation key. Information on what to do in this case are provided in the chapter Malfunctions, warning and error messages from page 33.

5.6 Ending operation

Warning!

Depending on the operation performed , the surfaces in the working

chamber and the chamber load may still be very hot after the appli-

ance is switched off. Touching these surfaces can cause burns. Wear

heat-resistant protective gloves or wait until the appliance cools

down.

1. Switch off active appliance functions

(turn back the set values).

2. Remove the chamber load.

3. Switch off the appliance (Fig. 20 ).

Fig. 20 Switch off appliance

32 D33363 | Date 01/2020

Malfunctions, warning and error messages

6. Malfunctions, warning and error messages

Warning!

After removing covers, live parts may be exposed. You may receive

an electric shock if you touch these parts. Malfunctions requiring

work inside the appliance may only be rectiﬁ ed by electricians. Ob-

serve the separate service manual for this.

Do not try to rectify appliance errors yourself but contact the MEMMERT customer service department (see page 2) or an authorised service point.

In case of enquiries, please always specify the model and appliance number from the nameplate (see page 13).

6.1 Warning messages of the temperature monitoring function

Description Cause Action See

Temperature alarm and "TWW" are displayed

TEMP

195.4 °C

TWW Set 190.0 °C

The adjustable undertemperature / overtemperature controller (TWW) has assumed heating control.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring (

MAX

temp) or decreasing the setpoint

temperature. If the alarm continues: Contact

customer service

page 40

page 2

Temperature alarm and "TWB" are displayed

TEMP

195.4 °C

TWB Set 190.0 °C

Temperature alarm and

TB are displayed

TEMP

The electronic temperature limiter (TWB) permanently switched off heating.

The mechanical temperature limiter (TB) permanently switched off heating.

Deactivate the alarm by pressing the confirmation key.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring (

MAX

temp) or decreasing the setpoint

temperature. If the alarm continues: Contact

customer service

Switch off the appliance and leave to cool down. Contact customer service and have the error rectified (e.g. by replacing the temperature sensor).

page 40

page 2

230.4 °C

D33363 | Date 01/2020 33

Malfunctions, warning and error messages

6.2 Malfunctions, operating problems and appliance errors

Error description Cause of errors Rectifying errors See

Displays are dark External power supply

Individual or all displays cannot be activated

Displays suddenly look different

Error message E-3 in the temperature display

TEMP

was interrupted

Miniature fuse, appliance fuse or power module faulty

The appliance is in timer or remote control mode (mode "Write" or "Write + Alarm")

Appliance is in "wrong" mode

Temperature sensor defective.

E-3 °C

Set 45.0 °C

Check the power supply

Contact customer service

Wait until the end of the timer or switch off the remote control

Change to operating or menu mode by pressing the

MENU key

► Switch off appli-

ance.

► Remove the cham-

ber load

► Contact customer

service

page 23

page 2

When switching on the appliance, the start animation is displayed in another colour than white

► Cyan :

Not enough storage space on the SD card

► Red :

The system files could not be loaded

► Orange : The

fonts and images could not be loaded

34 D33363 | Date 01/2020

Contact customer service

page 2

Malfunctions, warning and error messages

6.3 Power failure

Warning!

Depending on the operation performed, the surfaces in the interior

and the chamber load may still be very hot after power loss. Ad-

ditionally, depending on the duration of the power loss, the appli-

ance might heat up again after power supply has been restored (see

below). Touching these surfaces can cause burns. Wear heat-resistant

protective gloves or wait until the appliance cools down ﬁ rst.

In case of a power failure, the appliance operates as follows:

In manual mode

After power supply has been restored, operation is continued with the parameters set. The time and the duration of the power failure is documented in the protocol log memory.

In timer mode

In case of an interruption of the power supply of less than 60 minutes, the current timer is continued from the point at which it was interrupted. For interruptions of the power supply longer than this, all appliance functions (heating, fan etc.) are switched off and the air flap is opened.

In remote control mode:

The previous values are restored.

D33363 | Date 01/2020 35

Menu mode

7. Menu mode

In menu mode, you can make basic settings as well as adjust appliance parameters.

Caution:

Before changing menu settings, read the description of the respective functions on the following pages to avoid possible damage to the appliance and/or chamber load.

To enter menu mode, press the MENU key.

To exit the menu mode at any time, press the MENU key again. The appliance then returns to manual mode. Only changes accepted by pressing the confirmation key are saved.

7.1 Overview

Press the MENU key to change between the displays in menu mode:

12 34 5

TIME

LANGUAGE

SIGNALTÖNE

SETUP

6789 1011

Fig. 21 ControlCOCKPIT in menu mode

1 Language selection activation key 2 Language selection display 3 Date and time display 4 Date and time setting activation key 5 Return to manual mode 6 Setup activation key (basic appliance set-

tings)

CALIB

7 Setup display (basic appliance settings) 8 Adjustment display 9 Adjustment activation key 10 Turn control for adjustment 11 Confirmation key (accepts setting made

with the turn control)

36 D33363 | Date 01/2020

Menu mode

7.2 Basic operation in menu mode using the example of language

selection

In general, all settings in menu mode are done just like in manual mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change. A more detailed description is provided in the following, using the example of language selection.

1. Activate the desired parameter (in this

example the language). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is enlarged.

ENGLISH

DEUTSCH

FRANCAIS

ESPANOL

POLSKI

CESTINA

If you want to exit or cancel your settings, again press the activation key which you have used to activate the display. The appliance returns to the menu overview. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

2. With the turn control, select the desired

new setting, e.g. Español (Spanish).

ENGLISH

DEUTSCH

FRANCAIS

ESPANOL

POLSKI

3. Save the setting by pressing the confir-

mation key.

ENGLISH

DEUTSCH

FRANCAIS

ESPANOL

POLSKI

4. To return to the menu overview, press the

activation key again.

You can now

► activate another menu function by press-

ing the corresponding activation key or

► return to manual mode by pressing the

MENU key.

D33363 | Date 01/2020 37

IP address

Balance

Subnet mas

IP Adresse

Unit

Einheit

Alarm temp

Alarm Tem

Timer mode

Timer Mod

Slide-in unit

LANGUAGE

SETUP

MAGYAR

ITALIANO

MAGYAR

ITALIANO

LANGUAGE

SETUP

SPRACHE

SIGNALTÖNE

SIGNALTÖ

TIME

CALIB

TIM

CALI

Menu mode

All other settings can be made accordingly. The settings possible are described in the following sections.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically returns to the main menu and restores the former values.

7.3 Setup

In the SETUP display, you can set the following parameters:

► the IP address and Subnet mask of the appliance's Ethernet interface (for connection to

a network)

► the Unit of the temperature display (°C or °F, see page 39) ► the type of temperature monitoring (TWW or TWB, Alarm Temp, only if equipped with

a second temperature sensor, option A6) and the trigger temperature of the monitoring function (

► how the digital backwards counter with target time setting works (Timer mode, see page

41)

► the type of the slide-in unit (Grid or Shelf, see page 41) ► Remote control (see page 41) ► Gateway (see page 42)

If the SETUP menu contains more entries than can be displayed, this is indicated by the display “1/2”. This means that there is a second „page“ of entries.

To display the hidden entries, use the turn control to scroll beyond the lowest entry. The page display changes to “2/2”.

7.3.1 IP address and subnet mask

If you want to operate one ore more appliances in a network, each appliance must have its own unique IP address for identification. By default, each appliance is delivered with the IP address 192.168.100.100.

Max alarm, see page 40)

Programm negnulletsniEllokotorPtäreG efliHnekcurD

AtmoCONTROL

INP 250 Test 01

180

.0°C

HPP 250 Labor

.0°C

.4%rh

Programmname

Editor

SimulationProtokoll

STAND BY

151

Setu

1/2

IP adress 255.145.136.

Subnet mask 255. 255. 0 .0

Unit

°C F

+-+

Fig. 22 Operation of several appliances in a network (schematic example)

192.168.1.216

192.168.

LAN 1: 192.168.1.233

LAN 2: 192.168.1.215

LAN 3: 192.168.1.241

38 D33363 | Date 01/2020

Menu mode

SETUP

1. Activate the

IP address is automatically highlighted.

SETUP display. The entry

Setup

SETUP

IP address 192.168. 10 0. 100

Balance

Subnet mask 255.255.0 .0

IP Adresse

Unit

Einheit

Alarm temp

Alarm Temp

Timer mode

Timer Mode

Slide-in unit

+30%

192.168. 10 0. 100

°C F

TWW TWB

Grid Shelf

2. Accept the selection by pressing the confirmation key. The first three digits of the IP address are automatically selected.

IP address 192.168.100.100

Subnet mask 255.255. 0. 0

Unit

Alarm temp

Timer mode

°C F

TWW TWB

3. With the turn control, set the new number, e.g. 255.

IP address 255.168.100.100

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

°C F

TWW TWB

4. Accept the selection by pressing the confirmation key. The next three digits of the IP address are automatically selected. Setting these is done with the turn control according to the description above.

IP address 255. 168.100.100

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

°C F

TWW TWB

5. After setting the last three digits, accept the new IP address by pressing the confirmation key. The selection returns to the overview.

The subnet mask is set accordingly.

IP address 255. 145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

°C F

TWW TWB

7.3.2 Unit

Here, you can choose whether the temperature is displayed in °C or °F.

7.3.3 Temperature monitoring ( Alarm Temp and Max

Alarm)

Here, the type of monitoring function that should be activated (TWW or TWB, description from page 30) can be set ( temperature monitoring should be triggered (

The selection option TWW/TWB is only available for appliances with a second temperature sensor (option A6).

The monitoring temperature must be set sufficiently high above the maximum set temperature. We recommend 5 to 10 K difference for UN IF

...

Alarm Temp), as well as the temperature at which the automatic

Max alarm).

.../UF... and 1 to 3 K difference for IN.../

IP address 255. 145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

°C °F

TWW TWB

D33363 | Date 01/2020 39

Menu mode

SETUP

1. Activate the

Alarm temp with the turn control.

SETUP display and select

2. Accept the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

3. With the turn control, select the desired setting – in this example TWB.

4. Save the setting by pressing the confirmation key.

5. Select Max Alarm with the turn control.

IP address 255.145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

IP address 255.145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

IP address 255.145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

IP address 255.145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

2/2

Max Alarm

°C F

TWW TWB

°C F

TWW TWB

°C F

TWW TWB

°C F

TWW TWB

190 °C

SETUP

6. Accept the selection by pressing the confirmation key. The current settings are automatically highlighted.

2/2

Max Alarm

SETUP

190 °C

7. With the turn control, select the desired new trigger temperature - in this example

160 °C.

2/2

Max Alarm

SETUP

160 °C

8. Save the setting by pressing the confirmation key. The electronic temperature monitoring system will now be triggered

2/2

Max Alarm

SETUP

160 °C

when the actual temperature reaches 160 °C.

40 D33363 | Date 01/2020

7.3.4 Timer Mode

SETUP

Setup

Here, you can choose whether the digital backwards counter with target time setting (see page 29, timer) should run setpointdependent or not – this determines whether the timer should not start until a tolerance band of ±3 K around the set temperature is reached (Fig. 23, B) or whether it should start right after activation (A).

Menu mode

IP address 255. 145.136.225

Subnet mask 255. 255.0 .0

Unit

Alarm temp

Timer mode

°C F

TWW TWB

°C/°F

Timer

6 K

Fig. 23 Timer Mode A Timer independent of setpoint: Timer starts right after activation B Timer setpoint-dependent: Timer does not start until tolerance band is reached

If the temperature tolerance band is exceeded in setpoint-dependent operation, the timer will be interrupted and only be resumed when the setpoint temperature has been reached again.

7.3.5 Type of the slide-in unit (Grid or Shelf)

Here, you have to set the type of the slide-in unit (grid or shelf) used. The selection Shelf enables you to adjust the control function to the different air flow characteristics in the interior when using optional sliding shelves instead of the grids that are part of the standard delivery.

IP adress 255. 145.136.225

Subnet mask 255. 255.0 .0

Unit Alarm temp

Timer mode

Slide-in unit

°C °F

TWW TWB

Grid Shelf

7.3.6 Remote control

In the setup entry Remote control, you can set whether the appliance should be controlled via remote control and if so, in which mode. These settings are available:

2/2

Balance

+30 %

► Off ► Read Only ► Write + Read

Remote Control Off

Gateway 192.168.5 .1

► Write + Alarm

When the appliance is in remote control mode, the

symbol appears in the temperature display. In the settings cannot be controlled at the ControlCOCKPIT until the remote control has been switched off (setting Off) or set to

Write + Read and Write + Alarm, the appliance

Read Only.

In order to use the remote control function, programming skills and special libraries are required.

TEMP

23.2 °C

Set 38

.0 °C

D33363 | Date 01/2020 41

Menu mode

7.3.7 Gateway

The setup entry Gateway is used to connect two networks with different protocols.

The gateway is set the same way as the IP address (see page 38).

7.4 Date and Time

In the Time display, you can set date and time, time zone and daylight saving time. Changes can only be made in manual operating mode.

Always set the time zone (and summer time yes/no) before you set the date and time. Avoid changing the set time after that since this can lead to gaps or overlapping when recording measured values. If you still need to change the time, you should not run a programme immediately before or after doing so.

2/2

Balance

Remote Control Off

Gateway 192.168.5 .1

+30 %

1. Activate the time setting. To do so, press

the activation key on the right side of the

Time display. The display is enlarged

and the first adjustment option (

Date)

automatically highlighted.

2. Turn the turn control until Time zone is

highlighted.

3. Accept the selection by pressing the

confirmation key.

4. Set the time zone of the installation site

with the turn control, e.g. 00:00 for Great Britain, 01:00 for France, Spain or Germany. Accept the selection by pressing the confirmation key.

5. With the turn control, select the Daylight

savings entry

Date

Time

Time zone

Daylight savings

Date and time

12. 05. 2012

12:00

GMT 01:00

Date

Time

Time zone

Daylight savings

Date

Time

Time zone

Daylight savings

Date

Time

Time zone

Daylight savings

Date

Time

Time zone

Daylight savings

12.05.2012
