Melitta ALPHA BROCHURE

280

500

135

The Cafina

ALPHA is delivered ready for connection. However, before setting up the necessary connections

must be installed on site easily accessible within a radius of 1 m. This preliminary work must be performed by

licensed professionals in strict compliance with valid regulations. The Melitta

customer service is not

authorised for this work and therefore does not take any responsibility for the installation.

ALPHA-mc milk cooler

The machines must be placed on a level tabletop. The supply lines must be routed up from below. A hole of approx. Ø 120 mm (1) must be drilled in the tabletop as feed-through for the lines. Machines with container drop require a hole of

540*

585*

ALPHA coin tester or ALPHA card reader

approx. Ø 150 mm (2). * With the fitted feet the machines can be raised by approx. 20 mm.

625

min. 650

480

130

Cabinet depth

min. 650 mm

105

Brita-Purity

at least 600

110

200

Electrical connections (a):

230 V 1N: ALPHA 1 W: 2.80 kW 16 A

ALPHA 12 C: 3.0 kW 16 A ALPHA 12 M: 3.0 kW 16 A Milk cooler mc: 0.15 kW Cup warmer cw: 0.15 kW

Weights approx.:

ALPHA-1W-1G: 65.2 kg ALPHA-1W-2G: 70.7 kg ALPHA-12C-1G, ALPHA-12M-1G, ALPHA 12CM-1G: 71.2 kg ALPHA-12C-2G, ALPHA-12M-2G, ALPHA 12CM-2G: 76.7 kg

ALPHA-S: 2.17 kW 16 A 400 V 3N~:

ALPHA 12C: 6.8 kW 16A ALPHA 12M: 6.8 kW 16A ALPHA 12CM: 6.8 kW 16 A

The supply line must be separately fused by the customer. The connection must be made via an easily accessible earthing contact socket outlet or CEE socket. This socket must be protected by a ground fault circuit breaker (max. 30 mA). If permanent connection cannot be avoided, a switch with min. 3 mm contact separation must be installed in the immediate vicinity of the machine for the purpose of all-pole electrical isolation.

Water supply connections (b):

400

175

330

426

1) Ø 120 mm for supply and drain line

2) Ø 150 mm for container drop (optional)

Tap water connection: G 3/4” male thread According to the regulations of the German Association for Gas and Water (DVGW) a stop cock with a check valve

must be installed in an easily accessible place. A special connection hose is supplied. For safety reasons, this hose should not be shortened.

Tap water pressure: min. 0.25 MPa (2.5 bar) at approx. 2 l/min. If higher than 0.6 MPa (6 bar) under static conditions, a pressure reducer is required.

Carbonate hardness of tap water: 1°

dKH - 3° dKH no action required

If higher than 4° dKH, a decarbonizer is required (Brita-Purity)

If lower than 1° dKH please contact Melitta

SystemService for further assistance!

Waste water connection: min. DN 25 - NW 1”

700

540*

quire Required clearance above the

bean container: 200 mm

bean co

The above machine is fitted with a water drainage socket and is to be connected to an on-site drain using the supplied hose. The required odour trap can be provided by Melitta

customer service.

Pay systems:

ALPHA MP (Width/Depth/Height) approx.: 135 x 380 x 540 mm ALPHA CR (Width/Depth/Height) approx.: 135 x 480 x 540 mm

ALPHA change machine

480

491

ALPHA MW (Width/Depth/Height) approx.: 200 x 480 x 540 mm Pay systems can be supplied for connection to one or two machines.

Date: 01/2008 Drawing no.:

Change

Gnt/Sei

Rkn/Sei 16.01.08

Name

23.09.2009

Date

Page: 1 of 1

Subject to alterations. Ownership of Melitta SystemService. Duplication not allowed.

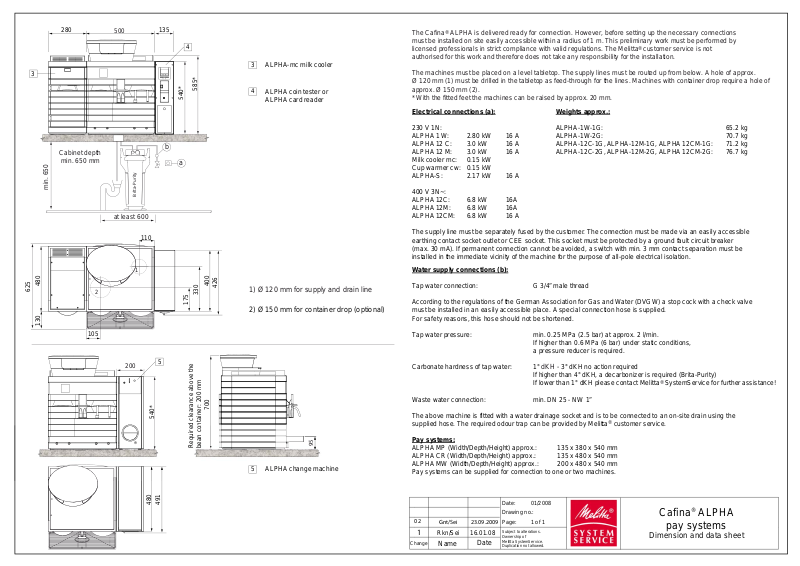

Cafina® ALPHA

pay systems

Dimension and data sheet
