Meliconi Speedy 110 Plus User Manual

GB

Thank you for choosing MELICONI.

This simplified universal remote control contains all the main functions of most TV remote controls.

Before programming and using the remote control, fit the batteries.

Keep your Instructions and Code Booklet for future reference.

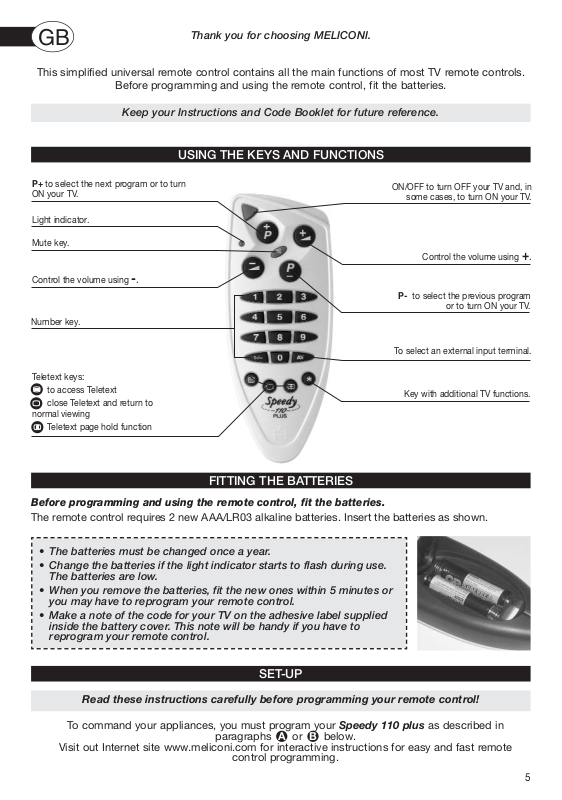

USING THE KEYS AND FUNCTIONS

P+ to select the next program or to turn
ON your TV.

Light indicator.

Mute key.

Control the volume using

Number key.

Teletext keys:

to access Teletext
close Teletext and return to

normal viewing

Teletext page hold function

-

.

ON/OFF to turn OFF your TV and, in

some cases, to turn ON your TV.

Control the volume using

P- to select the previous program

To select an external input terminal.

Key with additional TV functions.

or to turn ON your TV.

+

.

FITTING THE BATTERIES

Before programming and using the remote control, fit the batteries.

The remote control requires 2 new AAA/LR03 alkaline batteries. Insert the batteries as shown.

• The batteries must be changed once a year.

• Change the batteries if the light indicator starts to flash during use.
The batteries are low.

• When you remove the batteries, fit the new ones within 5 minutes or
you may have to reprogram your remote control.

• Make a note of the code for your TV on the adhesive label supplied
inside the battery cover. This note will be handy if you have to
reprogram your remote control.

SET-UP

Read these instructions carefully before programming your remote control!

To command your appliances, you must program your Speedy 110 plus as described in

Visit out Internet site www.meliconi.com for interactive instructions for easy and fast remote

paragraphs

A or B below.

control programming.

5

A

1. Make sure that your TV is ON.

2. In the list of codes at the end of this booklet, look for your TV brand and make a note of the

corresponding TV code indicated to the side (e.g. Philips 0025). If your TV brand is not listed, apply the
global search described in paragraph B.

3. Hold down the and keys together until the light indicator at the top starts to flash indicating that
the remote control is ready for programming.

4. Release the keys, Within 15 seconds, enter the brand code previously identified (e.g. 0025). The light
indicator flashes more quickly to indicate that the remote control is ready for the search.

5. Point the remote control at the TV. Press and release the key slowly several times. Stop when your TV
goes OFF (you may have to press the key dozens of times).

6. When your TV is off, press the key to confirm.
Three long flashes indicate that the operation has been completed correctly.

Additional check

Check that some of the other functions used on your original remote control are working correctly. If the
commands function incorrectly or erratically, you have probably entered a code for a similar but different
remote control. In this case, repeat the search procedure from point 3.

BRAND SEARCH PROGRAMMING MODE

Identify and take note of the TV code which you have searched for following the code noting procedure

NOTE: during the search operation, the light indicator flashes more quickly. The light indicator
stops flashing and the remote control leaves the programming mode in the following cases:

• if no keys are pressed for 12 seconds

• if the code search list is completed. In this case, switch to programming mode

B

(see “PROGRAMMED CODE NOTING” section).

B

GLOBAL SEARCH REMOTE CONTROL PROGRAMMING

This operation may take a few minutes.

1. Make sure that the TV is ON.

2. Hold down the and keys together until the light indicator at the top starts to flash indicating that

the remote control is ready for programming.

3. Release the keys. Within 15 seconds, enter the code 0000.
The light indicator flashes more quickly to indicate that the remote control is ready for the search.

4. Point the remote control at the TV. Press and release the key slowly several times. Stop when your TV
goes OFF (you may have to press the key over a hundred times).

5. When your TV is off, press the key to confirm. Three long flashes indicate that the operation has
been completed correctly.

Additional check

Check that some of the other functions used on your original remote control are working correctly.
If the commands function incorrectly or erratically, you have probably entered a code for a similar but
different remote control.
In this case, repeat the search procedure from point 2.

6
