1. Copyright and Disclaimer
Copyright © 2013 MEITRACK. All rights reserved.
MEITRACK and
.
The user manual may be changed without prior notification.
This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written
authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including
photocopying and recording.
In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages
(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or
inability or illegality to use the product or documentation.
are trademarks that belong to Meitrack Group
2. Applications
The supporting with Meiligao’s RS232 interface terminal
For two-way audio and send & receive text massages
3. Product Function and Specification
3.1 Product Function
The main interface shows: local time, latitude and longitude data, speed, GPS positioning status
Two-way audio and listening function
English SMS
RS232 interface
3.2 Specification
Item Description
Dimension 120 x 55 x 22mm
Weigh t 200g
Normal Standby power consumption 25mA
Operating Temperature -20℃~55℃
Copyright © 20 13 Meitrac k Group All rights reserved.
3
Page 4
File Na me：
Project:: MVT600/T1 Creation Date:
Sub Proje ct:：
Revision: V1.2 Conf idential: Exte rnal Docume ntation
MEIT RACK Handset User G uide Cr ea tor Evan L ee
Accessories User Manual
Operating Humidity 5%~95%
Operating Voltage 5V
Baud Rate 115200bps
Screen Dot-Matrix 128X64
4. Main Device and Accessories
Handset

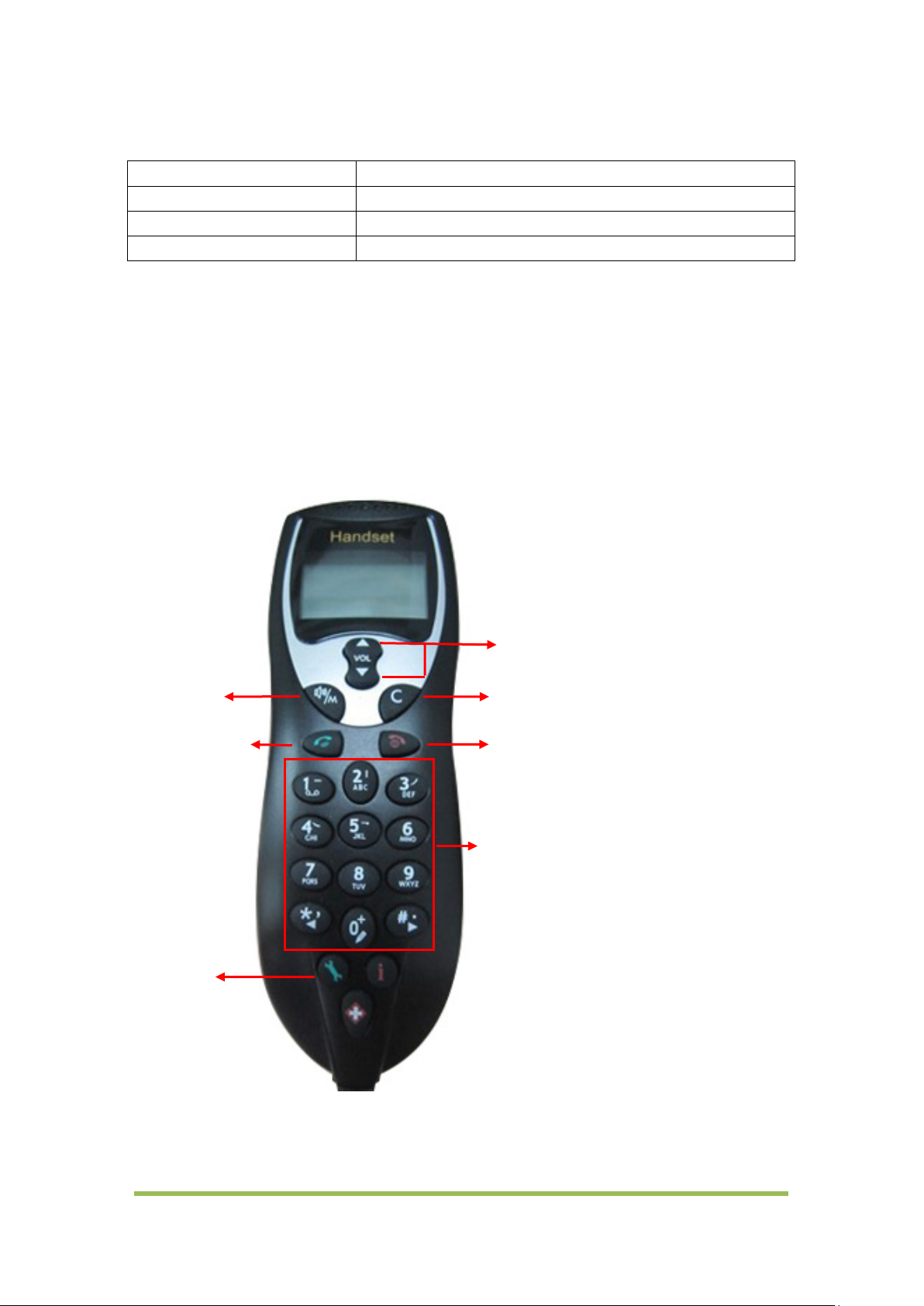

5. Outward Appearance
Update Date：
Page：
2012-07-06
2013-06-26
4 of 8
Up/Down Scroll Key
Menu/Enter Key
Rollback/Delete Key
Dial/Answer Key Hang up/Return Key
Number Buttons
Setting Key
Copyright © 20 13 Meitrac k Group All rights reserved.
4
Page 5
Hang up/Return
Up/Down Scroll
Used to scroll up or down the menu and content, also known as the “Up
used to decrease the volume or microphone sensitivity
File Na me：
Project:: MVT600/T1 Creation Date:
Sub Proje ct:：
Revision: V1.2 Conf idential: Exte rnal Docume ntation
MEIT RACK Handset User G uide Cr ea tor Evan L ee
Accessories User Manual
Update Date：
Page：
Key Description:
Name Function
Dial/Answer Key Used to answer an incoming call when an incoming call
Editing the information for sending
Idle time for the start dialing
Used to hang up call when calling
Key
Return to the main interface for operating the menu
Used to illuminate the screen backlight when idle
Menu/Enter Key
(OK Key)
Used to bring up the main menu when idle
Used to confirm the current menu when select menu
2012-07-06
2013-06-26
5 of 8
Key
key”,“Down Key”
The UP KEY used to increase the volume or microphone sensitivity when
calling
The DO W N K EY
when calling
Rollback/Delete
Key
Number Buttons
Used to delete input characters when editing SMS；
Operating menu is used to return to the previous menu
0-9：Numbers Key
*Key：Left back to select the character when selecting the character
#Key：Right back to select the character when selecting the character
Setting Key Switching setting volume and microphone sensitivity when calling
6. First Use
6.1 Fixed Installation
Camera and vehicle：According to customers’ needs

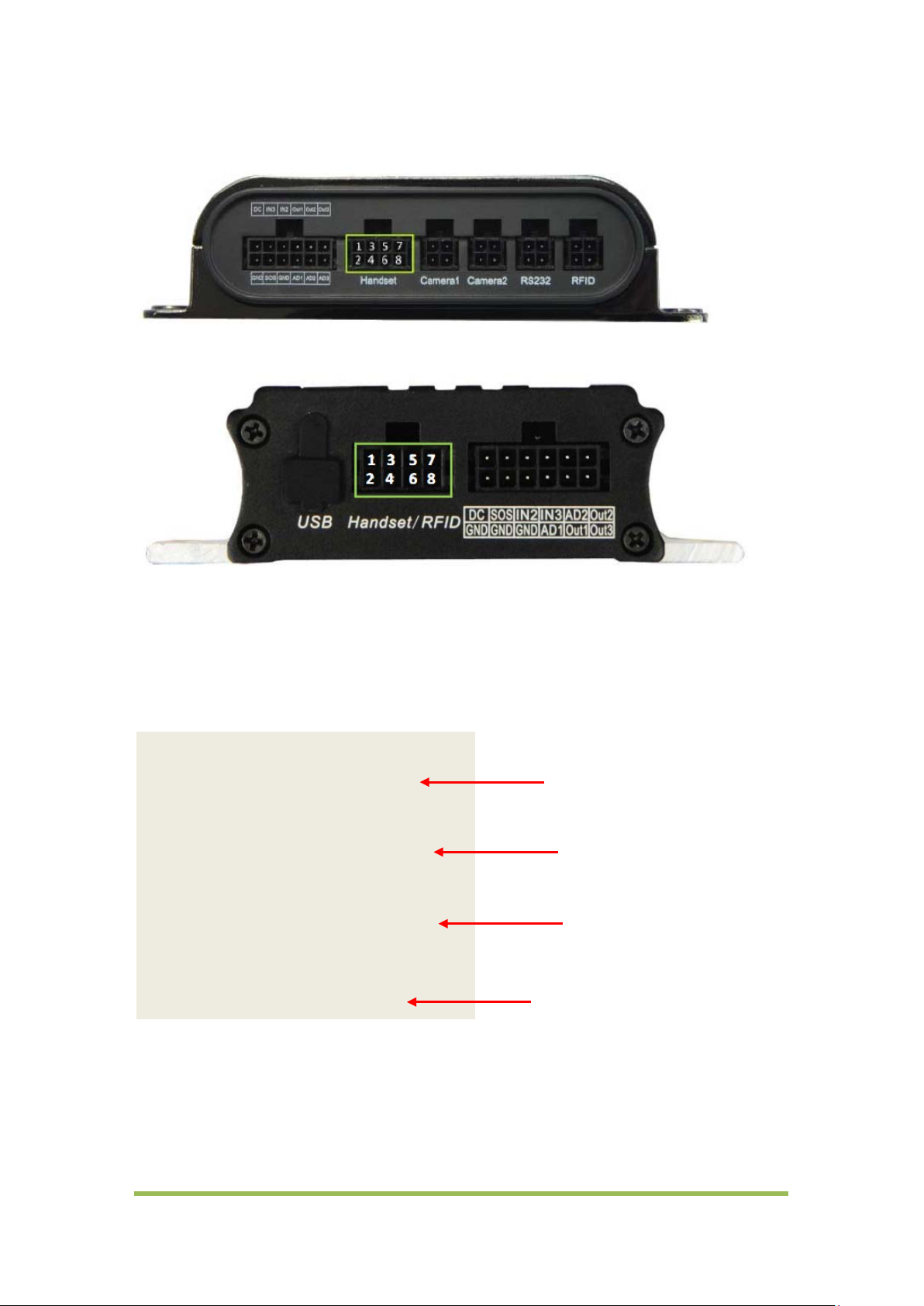

6.2 Connection Terminal
Inset the locator interface of handset to terminal dedicated interface
MVT600 dedicated interface as follows (when connect MVT600, must be connected to an external power supply)
Copyright © 20 13 Meitrac k Group All rights reserved.
5
Page 6
Spd:000 GPS:Y
File Na me：
Project:: MVT600/T1 Creation Date:
Sub Proje ct:：
Revision: V1.2 Conf idential: Exte rnal Docume ntation
T1 dedicated interface is as follows:
MEIT RACK Handset User G uide Cr ea tor Evan L ee
2012-07-06
2013-06-26
6 of 8
Accessories User Manual
Update Date：
Page：
7. Feature
Main Platform
12/05/28 06:49
Lat :N22.513320
Lon:E114.056946
Copyright © 20 13 Meitrac k Group All rights reserved.
GPS T ime and Date
Latitude
Longitude
Speed and GPS Status
6
Page 7
File Na me：
Project:: MVT600/T1 Creation Date:
Sub Proje ct:：
Revision: V1.2 Conf idential: Exte rnal Docume ntation
MEIT RACK Handset User G uide Cr ea tor Evan L ee
Accessories User Manual
System Menu
First Grade Menu Second Grade Menu
Call Records
（CALL）
Outgoing Calls （Dialed）
Received Calls （Received）
Missed Calls （Missed）
SMS
（message）
Inbox （Received）
New creative Information
（Edit）
7.1 Call Records
7.1.1 Missed Calls
Update Date：
Page：
2012-07-06
2013-06-26
7 of 8
Show all missed calls
7.1.2 Received calls
Show successfully answered number when the call is coming in.
When a call is coming, use the call handle panel “Dial Key”to answer; Reject a call/end a call press the “Hang-up
ke y ”.
7.2.3 Dialed calls
Display using the digital keypad or speed dialing number
There are two ways to dial up:
Ordinary dial-up：Use the digital keypad for entering numbers, press “Dial key” to dial; End the call press
“Hang-up Key ”. Use the “Setting Key” to select the speaker volume and microphone sensitivity, use the arrow
keys for adjustment.
Select dial-up：Press the arrow keys to select the number to recall in the call log, press dial keys for calling.
7.2 SMS
7.2.1 Inbox
It is able to view the SMS number and content of the SMS (Only in English).
Copyright © 20 13 Meitrac k Group All rights reserved.
7
Page 8
File Na me：
Project:: MVT600/T1 Creation Date:
Sub Proje ct:：
Revision: V1.2 Conf idential: Exte rnal Docume ntation
MEIT RACK Handset User G uide Cr ea tor Evan L ee
2012-07-06
2013-06-26
8 of 8
Accessories User Manual
Update Date：
Page：
7.2.2 New SMS
The goal of SMS sent by the call handle is the server (KC-SMM) supports only English charac ters.
When editing the message, press the number keys show characters, using “*/#Key” character selection, input “C
key” to delete characters, only supports English input.
Finished editing, use the “Dial Key” or “OK Key” to finish editing and remind to enter the received number, after
enter and then press “Dial Key ” or “OK Key”, the screen indicates “SMS has been delivered”.
Please do not hesitate to email us at
[email protected] if you have any questions.
Copyright © 20 13 Meitrac k Group All rights reserved.
8
