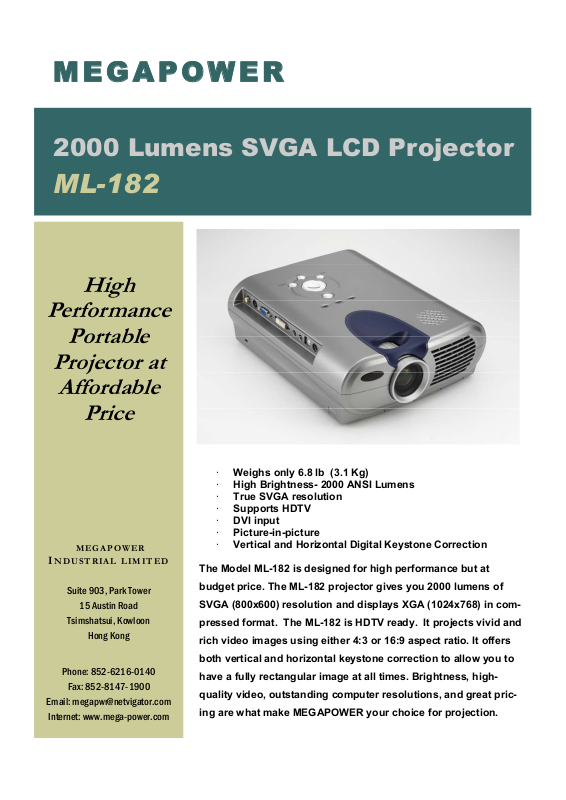

Megapower ML-182 Product Sheet

MEGAPOWER

2000 Lumens SVGA LCD Projector

ML-182

High

Performance

Portable

Projector at

Affordable

Price

MEGAPOWER

INDUSTRIAL LIMITED

Suite 903, Park Tower

15 Austin Road

Tsimshatsui, Kowloon

Hong Kong

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Internet: www.mega-power.com

· Weighs only 6.8 lb (3.1 Kg)

· High Brightness- 2000 ANSI Lumens

· True SVGA resolution

· Supports HDTV

· DVI input

· Picture-in-picture

· Vertical and Horizontal Digital Keystone Correction

The Model ML-182 is designed for high performance but at

budget price. The ML-182 projector gives you 2000 lumens of

SVGA (800x600) resolution and displays XGA (1024x768) in com-

pressed format. The ML-182 is HDTV ready. It projects vivid and

rich video images using either 4:3 or 16:9 aspect ratio. It offers

both vertical and horizontal keystone correction to allow you to

have a fully rectangular image at all times. Brightness, high-

quality video, outstanding computer resolutions, and great pric-

ing are what make MEGAPOWER your choice for projection.

ML-182 2000 ANSI LUMENS SVGA LCD PROJECTOR

Specifications

Item Category ML-182

1. Model Name ML-182

2. Video Compatible NTSC / PAL / SECAM

3. Projection System LCD Type

4. Panel 0.79” LCD x 3

5. Native Resolution SVGA (800 x 600)

6. Resolution Supported VGA to UXGA

7. Brightness 2000 ANSI Lumens (Typical)

8 Image Size

9. Throw Ratio

10 Zoom Ratio 1.20

11 Projection Distance

12 Lens

13 Uniformity 90%

14 Contrast Ratio 400:1

15 Color Full 16.7 million color palette

16 Aspect Ratio 4:3 / 16:9 screen selectable

17 Horizontal Frequency

18 Vertical Scan Rate

19 Projection Position Front / Rear / Ceiling /Rear Ceiling

20 Lamp 180W, 2000 hours lamp life(Normal model)

21 Audio Noise <37db

22 Keystone Correction Angle +/- 15 degrees Vertical and +/- 10 degrees Horizontal

30”∼300”

64.2”(Wide) ∼53.6”(Tele) @ 2m

1.25m∼9.35m

Manual Zoom, F=1.72∼1.98, f=25∼30mm

15∼90 KHZ

43∼85 HZ

3000 hours lamp life(ECO model)

23 Optical Correction 1:6

24 Input Terminals RGB: Analog-D-sub 15 pin x 1

S-Video: Mini-din 4 pin x 1

Video: Composite Video x 1

DVI-I Data Connection x 1

Audio-In: Mini jack x 1

Audio-Out: Mini jack x 1

USB IR Control x 1

RS232 x 1

1
