Page 1
USER MANUAL
Table of Contents
Safety Information……………………………………...………………3
Specifications………………………………………...…………………4
Size………………………………………………………………………5
Main Power Connection…………………………...…………………..6
DMX-512 Connection……………………………..…………………...6
Main Control Menu……………………………………………………..7
Rigging the Fixture……………………………….…………………….9
DMX Profile.....................................................................................9
Cleaning & Maintenance...............................................................12
Parts List.......................................................................................12
Accessories……………………………………………………………12
Page 2
Page 3
Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 104º.
Protection Against Electrical Damage
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
5. Unit must not be left on for a long period of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
3
Page 4
Specifications
Part Numbers
Fixture Flight Case
5199– Circa Scoop XS LED CAS-5199-4 Quad Road Case
Mechanical Specifications
DMX Connectors: 5-pin XLR Connectors
Power Connectors: Power Con Type
Mounting Yoke: Square Yoke
Thermal: Maximum ambient temperature 110° F
Fastening System: Single Quick Release Clamp Mounts
Electrical Specifications
LED Quantity: 84 RGB 12 Warm White 45 Warm White + Amber SMD LEDS Watts: 0.8 Watt each
Fuse: 5x20 F5AL250V
LED Angle: 140° (outer ring)
Power Input Voltage: 110V-240 50/60 Hz
Ballast: Electronic auto switching
Power Consumption Watts: 93
LED Lifetime: *60 to 100 thousand hours
Scan Rate: 7000Hz
Maximum surface temperature 140° F
Amps: 1.30
Control & Programming
DMX 512 Protocol
DMX Modes: 5 Mode of Operation
Mode 2 Channel Dimmer, Macro
Mode 3 Channel Dimmer, Warm White, Amber
Mode 9 Channel Outer R,G, B, Inner R,G,B, Warm White, Amber, Reflective Warm White
Mode 14 Channel Dimmer, Outer R,G,B, Outer Strobe, Inner R,G,B, Inner Strobe, Warm White, Amber, Center Strobe
Reflective Center, Reflective Strobe
Mode 17 Channel Dimmer, Outer R,G,B, Macro, Macro Speed, Outer Strobe, Inner R,G,B, Macro, Macro Speed, Inner
Strobe, Warm White, Amber ,Reflective Center, Center Strobe
Control Options: Display Control
*LED Manufactures rated average life span
4
Page 5

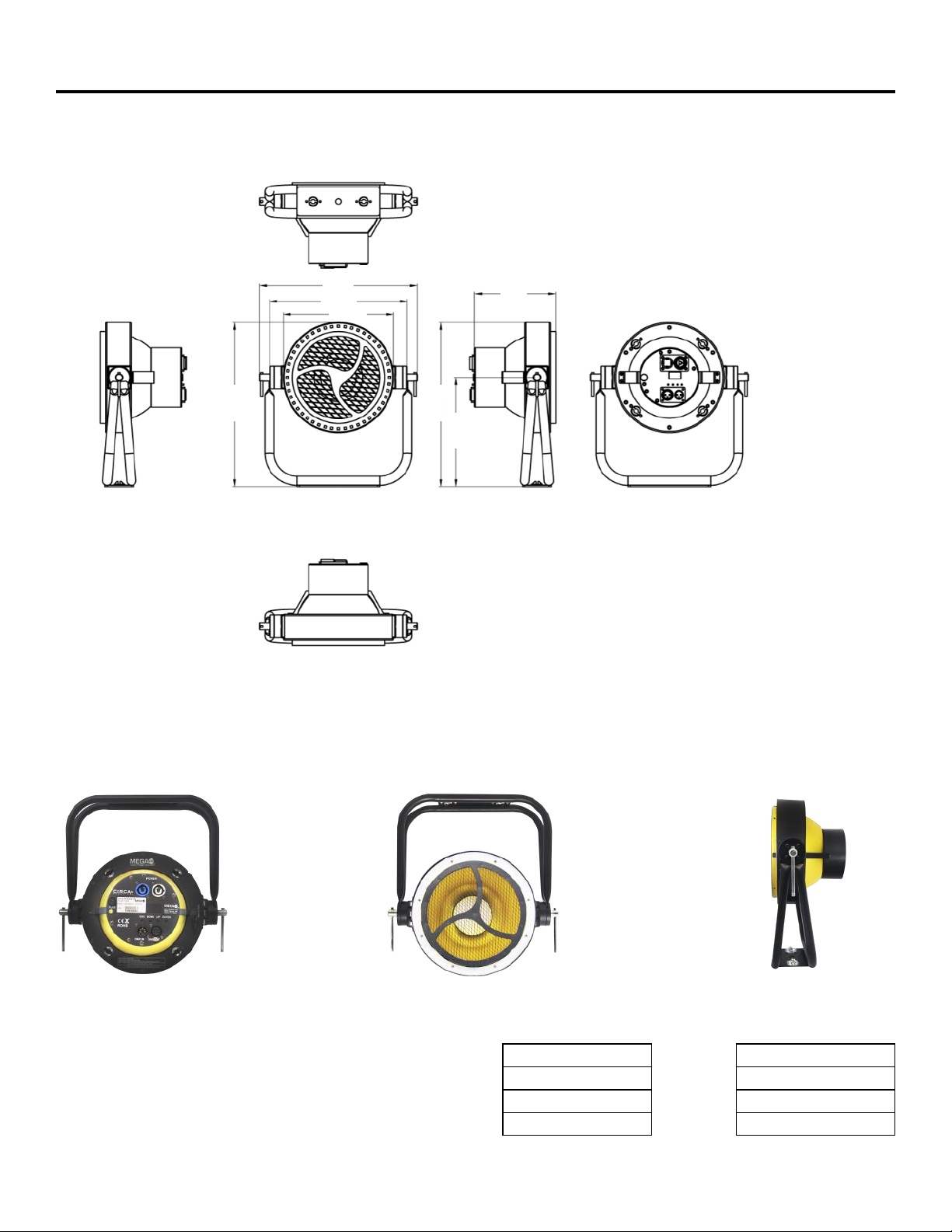

Size
13.5”
11.80”
9.5”
14.12”
14.12”
7.3”
9.25”
Fixture Size Packaged Size
13.5" X 7.3" X 14.12" 16.5" X 11" X 17"
Fixture Weight Packaged Weight
8lb 12lb
5
Page 6

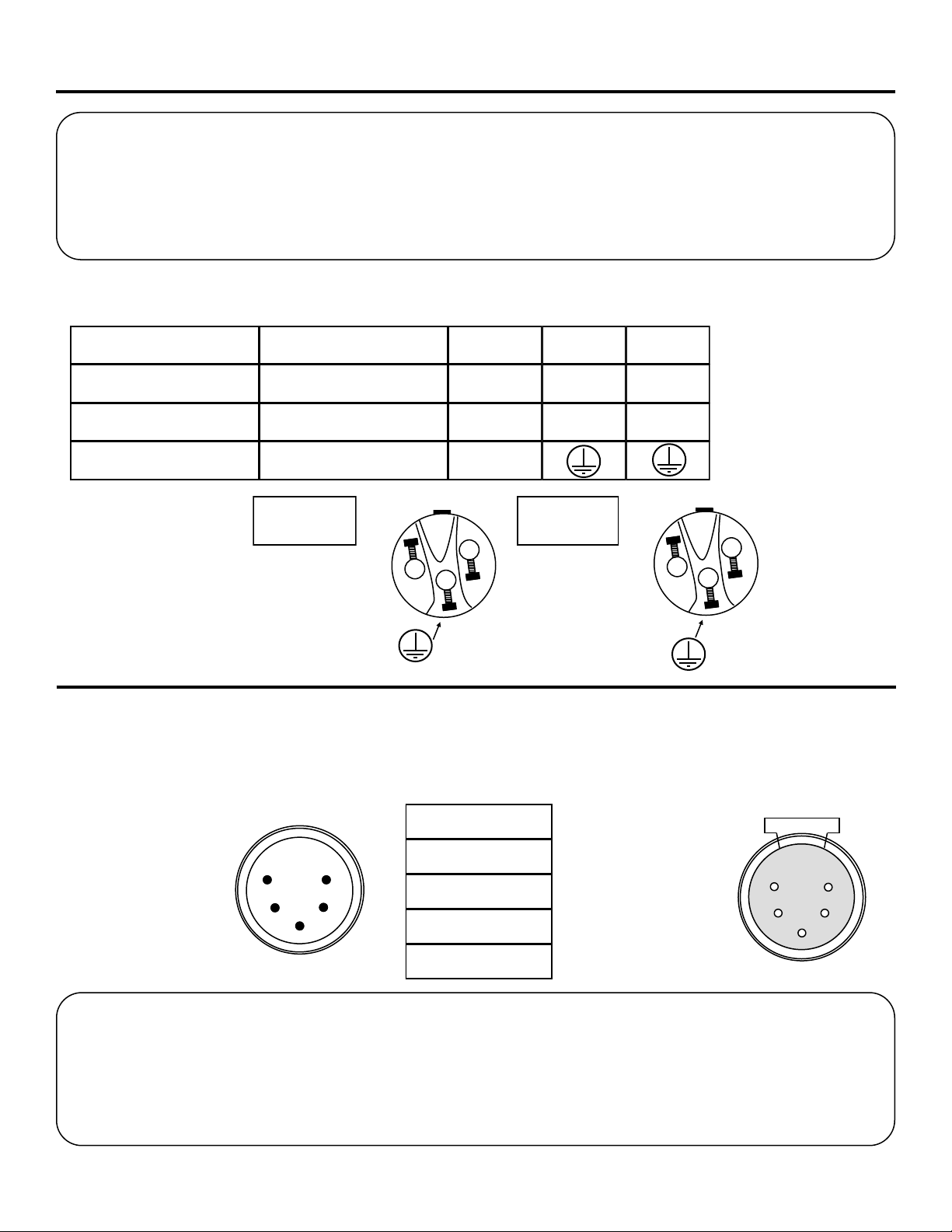

Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
4. Power link maximum 10 units at 110V
This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz
The occupation of the connection-cable is as follows:
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Connection
Light Blue
Yellow/Green
110V
N
Live
Neutral
Ground
L
L
N
220V
Connection
220V
L
L
L
L
DMX-512 Connection
The fixture is equipped with 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a
shielded twisted pair cable designed for RS-485 and 5 pin XLR plugs and connectors in order to connect the controller
with the fixture or the fixture with another.
DMX—Input
DMX—Output
1. Shield
2. Signal (-)
1
2
5
4
3
3. Signal (+)
4. N/A
5
4
1
2
3
5. N/A
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-Lite dealer (P-DMX-T).
6
Page 7
Display Control
Mega Lite
Circa XL Scoop
V1.2
Address
001
DMX On
Main Menu
>Channel Mode
LED Dimmer
LED Strobe
2 CH
3 CH
9 CH
14 CH
17 CH
Dimmer, Macro
Dimmer, Warm White, Amber
Outer R,G,B, Inner R,G,B, Warm White, Amber ,Reflective Center,
Dimmer, Outer R,G,B, Outer Strobe, Inner R,G,B, Inner Strobe, Warm White, amber, Center Strobe, Reflective Center
Reflective Strobe
Dimmer, Outer R,G,B, Macro, Macro Speed, Outer Strobe, Inner R,G,B, Macro, Macro Speed, Inner Strobe, Warm White, amber,
Reflective Center, Center Strobe
ESC DOWN UP
ENTER
DMX Address
Press Enter to select the DMX start channel. Use the up/down keys (001 to 512) , Press
Enter to confirm the setting. Press ESC to return to Main Menu.
(Notes: Display must be on Main Menu for fixture to operate on DMX Mode)
Channel Mode
Press Enter to select the DMX Channel mode of operation. Use the up/down
keys to select Channel mode from
Warm White
Main Menu
Channel Mode
>LED Dimmer
LED Strobe
Main Menu
Channel Mode
LED Dimmer
>LED Strobe
Main Menu
>Fan Test
Auto Mode
Auto Speed
Press Enter to confirm the setting. Press ESC to return to Main Menu.
LED Dimmer
For LED Dimmer control press Enter. Select from 255 steps. Of the 9 ch. Press ESC to
return to Main Menu.
Strobe
This function allows you to select a preprogrammed strobe sequences. Press Enter use
the up/down keys to select desired strobe program (15 options). Press Enter to set the
desired sped use the up/down keys (15 options). Press Enter to confirm the settings.
(note; Dimmer of selected intensity must be dimmed prior in Dimmer option)
Fan Test
Press Up Or Down. Select from Center Fan Test or Ring Fan Test
7
Page 8
Main Menu
>Auto Mode
Auto Speed
Temperature
Main Menu
Auto Mode
>Auto Speed
Temperature
Main Menu
Auto Mode
Auto Speed
>Temperature
Auto Mode
Press Enter. Select from 6 modes Press ESC to return to Main Menu.
(Note: If you want to have fixture remain on Auto Test do not press ESC and just power off
and on fixture to return to last setting)
Auto Speed
Press Enter. Select from 6 modes Press ESC to return to Main Menu.
(Note: If you want to have fixture remain on Auto Test do not press ESC and just power off
and on fixture to return to last setting)
Temperature
This fixture is equipped with internal temperature sensors. Once head reaches a tempera-
ture of 96°the IP rated fan will engage
Main Menu
Dimmer Speed
Temperature
>Setting
Config Menu
>Oled Back Light
DMX Fail
Dimmer Setting
Config Menu
LCD Back Light
>DMX Fail
Dimmer Setting
Config Menu
LCD Back Light
DMX Fail
>Dimmer Setting
Setting
Setting Control Options
To turn off display screen after 2 minutes of no use select Disable. To enable
screen to remain on when in use select Enable.
To hold the last DMX command is case of DMX Signal loss select Enable. To have
the fixture DMX Setting at 0 if DMX signal is loss use Disable option.
Select Dimmer Setting to be used for dimming type when used in Ch3 mode.
Linear
Square Law
Inv. Square Law
S Type
Config Menu
DMX Fail
Dimmer Setting
>Factory Reset
Restore fixture to original factory display settings
8
Page 9
Rigging the fixture
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
DMX Profile
Circa XS Scoop LED 2 Ch Mode
DMX Channel Function Description Value Init
1 Dimmer Dimmer Off to Full 0-255 255
No Function 0-41
Macro 1 (slow to fast) 42-83
2 Macro
Macro 2 (slow to fast) 84-125
Macro 3 (slow to fast) 126-167
Macro 4 (slow to fast) 168-209
Macro 5 (slow to fast) 210-255
0
Circa XS Scoop LED 3 Ch Mode
DMX Channel Function Description Value Init
1 Dimmer Dimmer Off to Full 0-255 255
2 LED Color Center & Back Warm White 0-255 255
3 LED Color Center Amber 0-255 255
9
Page 10
Circa XS Scoop LED 14 Ch Mode
DMX Channel Function Description Value Init
1 Dimmer Master Dimmer Off to Full 0-255 255
2 LED Color Outer Red LED intensity 0-255 255
3 LED Color Outer Green LED intensity 0-255 255
4 LED Color Outer Blue LED intensity 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
5 Outer Strobe
6 LED Color Inner Red LED intensity 0-255 255
7 LED Color Inner Green LED intensity 0-255 255
8 LED Color Inner Blue LED intensity 0-255 255
9 Inner Strobe
10 LED Color Center Warm White 0-255 255
11 LED Color Center Amber 0-255 255
12 Center Strobe
13 LED Color Reflective Warm White 0-255 255
14 Reflective Strobe
Strobe Pulse (slow to fast) 128-170
Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
No Function 0-1
Strobe (slow to fast) 2-127
Strobe Pulse (slow to fast) 128-170
Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
No Function 0-1
Strobe (slow to fast) 2-127
Strobe Pulse (slow to fast) 128-170
Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
No Function 0-1
Strobe (slow to fast) 2-127
Strobe Pulse (slow to fast) 128-170
Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
0
0
0
0
10
Page 11
Circa XS Scoop LED 17 Ch Mode
DMX Channel Function Description Value Init
1 Dimmer Master Dimmer Off to Full 0-255 255
2 LED Color Outer Red LED intensity 0-255 255
3 LED Color Outer Green LED Intensity 0-255 255
4 LED Color Outer Blue LED Intensity 0-255 255
No Function 0-1
5 Macro Fade 2-85 0
Snap 86-170
Pulse (selected color) 171-255
6 Macro Speed Outer Ring Macro Speed 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
7 Outer Ring Strobe Pulse (slow to fast) 128-170 0
Strobe Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
8 LED Color Inner Red LED intensity 0-255 255
9 LED Color Inner Green LED Intensity 0-255 255
10 LED Color Inner Blue LED Intensity 0-255 255
No Function 0-1
11 Macro Fade 2-85 0
Snap 86-170
Pulse (selected color) 171-255
12 Macro Speed Inner Ring Macro Speed 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
13 Inner Ring Strobe Pulse (slow to fast) 128-170 0
Strobe Random Strobe (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
14 Warm White Center Warm White 0-255 255
15 Amber Center Amber 0-255 255
16 Warm White Center Reflective Warm White 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
17 Center Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random Pulse (slow to fast) 214-255
11
Page 12
Cleaning and Maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbal-
ances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or
solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require
more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can
damage the fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid
oil run outs when motor wheel rotate
Note: There is no serviceable parts inside the device except for the fuse. Maintenance and service operations are to be
carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers only
Should you have further questions , please contact your dealer.
12
Parts List
5201-LED-MOD-I LED Module Inner (segment)
5201-LED-MOD-C LED Module Center
5201-LED-MOD-R LED Module Reflective Ring (half)
5201-LED-MOD-RC LED Module Reflective Center (1/3)
5201-LED-MOD-O LED Module Outer Ring (half)
5201-POW Power Supply
5201-PCB-DRI-A PCB Driver A
5201-PCB-DRI-B PCB Driver B
5201-PCB-POW PCB for Power Distribution
5201-BEZ-RIN Outer Ring Milky Diffusion Plastic
5200-BEZ-CEN Center Globe Filter Plastic
5201-PCB-MAI-DIS Display and Main PCB
5200-FAN-X.W X.W-6010M24B Fan
5200-HOU-NET Housing Net
5200-HOU-KNO Housing base for Knob
5200-KNO Knob
5200-FAN-HW5 HW5020B Fan
5200-HOU-QUI Quick Release Clamp Mount
5199-ACC-BAS Removable Floor Base
Accessories
5199-ACC-SMO Smoke Ring Filter
CAS-5199-4 4 Unit Road Case
5199-ACC-7MO 7 Unit Mounting Frame
5199-ACC-4MO 4 Unit Mounting Frame
Page 13
Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax 210-855-6279
www.mega.lighting / [email protected]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LED’s or Lamp’s are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, incidental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a problem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Voice: 210-684-2600
E-mail: [email protected]
Specifications in this manual are subject to change.
Loading...
