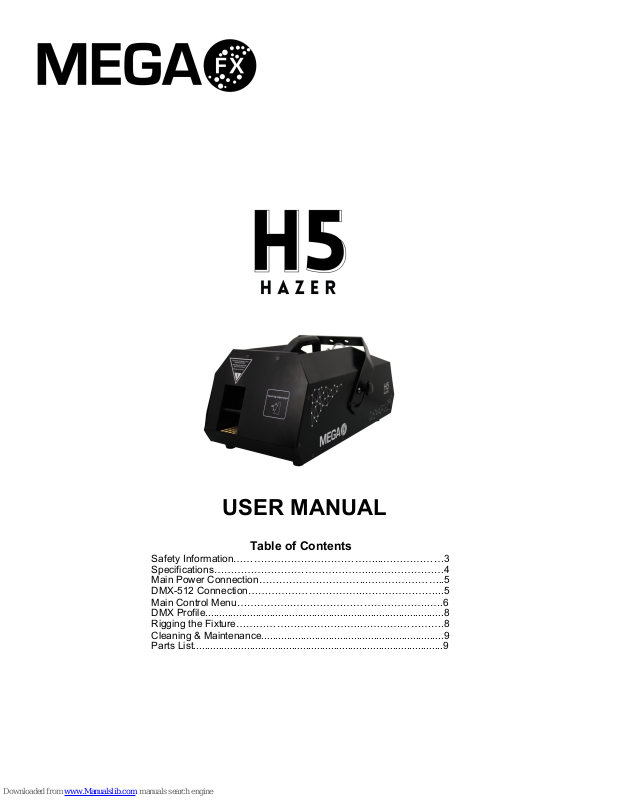

Mega H5 Hazer User Manual

USER MANUAL

Table of Contents

Safety Information……………………………………...………………3
Specifications………………………………………...…………………4
Main Power Connection…………………………...…………………..5
DMX-512 Connection……………………………..…………………...5
Main Control Menu……………..…………………………………..….6

DMX Profile.....................................................................................8

Rigging the Fixture……………………………….…………………….8

Cleaning & Maintenance.................................................................9

Parts List.........................................................................................9

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

3. Replace fuse only with the specified type and rating.

4. Do Not install the unit to close to a heat source.

5. Make sure cable are properly secured away from unit movement.

6. Maximum surface operating temperature 140º.

Protection Against Fire

1. Disconnect power before servicing.

2. For connection to main power supply proceed to page 5.

3. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

Protection Against Mechanical Hazards

1. Use safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit

3. Do not open unit risk of electrical shock.

3
