Medion SIM 2090 user Manual

Notes on This Manual

Keep these instructions with your computer at all times. The proper set up, use and
care can help extend the life of your computer. In the event that you transfer
ownership of this computer, please provide these instructions to the new owner.

This manual is divided into sections to help you find the information you require.
Along with the Table of Contents, an Index has been provided to help you
locate information.

In addition, many application programs include extensive help functions. As a
general rule, you can access help functions by pressing F1 on the keyboard. These
help functions are available to you when you use the Microsoft Windows
system or the various application programs.

This interactive manual is designed to provide additional information about your
Notebook as well as useful links accessible via the World Wide Web.

Windows Vista™ offers you additional aids to learn about the new version of
Windows and your Notebook. You can find this information in the Welcome
Center after booting up your Notebook. We have listed further useful sources of
information starting on page 51.

®

operating

Document Your Notebook

It is important to document the details of your Notebook purchase in the event you
need warranty service. The serial number can be found on the back of the
Notebook:

Serial Number ......................................

Date of Purchase ......................................

Place of Purchase ......................................

Audience

These instructions are intended for both the novice and advanced user. Regardless
of the possible professional utilization, this Notebook is designed for day-to-day
household use. The functions and applications for use with this Notebook have
been designed with the entire family in mind.

Quality

We have selected the components in this computer for their high level of
functionality, ease of use, safety and reliability.

Through balanced hardware and software design we are able to provide you with
an innovative personal computer useful for applications relating to both work and
leisure.

We are pleased to welcome you as our newest customer.

Copying this manual

This document contains legally protected information. All rights reserved. Copying
in mechanical, electronic and any other form without the written approval of the
manufacturer is prohibited.

Copyright

All rights reserved. Microsoft
Corporation in the U.S. and other countries.

Pentium

The names of actual companies and products mentioned herein may be the trademarks of
their respective owners.

Information in this document is subject to change without notice.

©

2007 MEDION®. / 07-03

®

is a registered trademark of Intel Corporation.

®

, MS-DOS®, and Windows are registered trademarks of Microsoft

-ii-

Table of Contents:

Safety and Maintenance.........................................................................1

Safety Instructions...........................................................................................3

Data Security............................................................................................... 4

Set-Up Location...........................................................................................4

Ambient Temperature .................................................................................5

Working in Comfort ....................................................................................6

Connecting .................................................................................................7

Power supply.........................................................................................7

Cabling.................................................................................................. 8

Information about the regulatory compliance according to R&TTE .............9

Modem .......................................................................................................9

Touch Pad................................................................................................... 9

Battery Operation...................................................................................... 10

Views & Handling ................................................................................ 11

Included with Your Notebook .......................................................................13

Views ............................................................................................................14

Open Notebook ........................................................................................14

Front View.................................................................................................15

Left Side ....................................................................................................15

Right Side.................................................................................................. 16

Rear Side ...................................................................................................16

Device Indicators....................................................................................... 17

Hotkeys ..................................................................................................... 18

Getting Started..............................................................................................19

How to start: .............................................................................................19

Step 1.................................................................................................. 19

Step 2.................................................................................................. 20

Step 3.................................................................................................. 20

Short description of the Windows® Desktop .........................................21

Main Components ................................................................................ 23

Power Supply................................................................................................ 25

On/Off Button........................................................................................... 25

Power Adapter ..........................................................................................25

Battery Operation...................................................................................... 26

Inserting the Battery ............................................................................26

Removing the Battery ..........................................................................26

Charging the Battery............................................................................27

Discharging the battery .......................................................................27

Battery Performance ............................................................................28

Power Management..................................................................................29

Sleep Mode ( Ö ) .................................................................... 29

Hibernate Mode ( Ö ) ..................................................................29

- iii -

Display.......................................................................................................... 30

Opening and Closing the Display..............................................................30

Screen Resolution...................................................................................... 30

Connecting an External Monitor ...............................................................31

Duplicating the Desktop...................................................................... 31

Extending the Desktop.........................................................................32

Data Entry .....................................................................................................33

The Keyboard............................................................................................33

Notebook-Specific Key Combinations ..................................................33

Touch Pad................................................................................................. 34

The Hard drive...............................................................................................35

Important Directories ................................................................................36

The Optical Drive ..........................................................................................37

Loading a Disc........................................................................................... 37

Emergency Ejection of a Blocked Disc ..................................................38

Playing Back and Retrieving Data from Discs .............................................38

Regional Playback Information for DVD.....................................................39

Subjects Concerning the CD/DVD-Rewriter............................................... 39

Recordable/Rewriteable Discs ..............................................................39

The Sound Card ............................................................................................40

External Audio Ports ..................................................................................41

Modem (optional).........................................................................................42

Modem Port..............................................................................................42

The Network .................................................................................................43

What is a network?....................................................................................43

Ethernet-Network ................................................................................43

Wireless LAN........................................................................................ 44

Troubleshooting within the Network ...................................................45

The Card Reader............................................................................................46

Inserting Memory Cards............................................................................ 46

Removing Memory Cards.......................................................................... 46

Express Card .................................................................................................47

Installing Express Card ..............................................................................47

Removing Express Card.............................................................................47

Universal Serial Bus (USB) Port.......................................................................48

IEEE 1394 (FireWire) ......................................................................................49

Application Options for IEEE1394..............................................................49

Technical Specifications.............................................................................49

Securing the Notebook .................................................................................50

Startup Password ......................................................................................50

Using a safety lock..................................................................................... 50

-iv-

Software........................................................................................................51

Getting to Know Windows Vista™.............................................................. 51

Windows Vista™ – Quickstartguide....................................................... 51

Windows Vista™ – Help and Support.................................................... 51

Windows Vista™ – Welcome Center .....................................................52

Windows Vista™ – User Account Control .............................................. 53

Installation of Software..............................................................................54

Software De-installation....................................................................... 55

Windows Activation ..................................................................................56

Product activation on your Notebook ..................................................56

The BIOS Set-up-Program..........................................................................57

Running the BIOS Set-up .....................................................................57

BullGuard Internet Security .......................................................................58

First Aid ...............................................................................................61

FAQ – Frequently Asked Questions................................................................ 63

Data and System Security..............................................................................64

Data Security............................................................................................. 64

Maintenance Programs .............................................................................64

Password Reset Disk ..................................................................................64

Windows® Update...................................................................................... 65

Windows Update Information for Data Security................................... 65

System Restore.............................................................................................. 66

Correction.................................................................................................66

System Restore powered by Symantec ......................................................67

Limits of the Recovery.......................................................................... 67

Performing the Restore ........................................................................67

Troubleshooting............................................................................................68

Localize the Cause..................................................................................... 68

Check Cables and Connections............................................................68

Errors And Possible Causes...................................................................69

Additional Support.................................................................................... 69

Driver Support ..........................................................................................70

Maintenance .................................................................................................70

Care of the TFT Display .............................................................................70

Transporting the Notebook ....................................................................... 71

Recycling and Disposal.............................................................................. 72

Batteries and Proper Treatment............................................................72

Upgrades and Repairs ...............................................................................74

Notes for Service Engineers.................................................................. 74

-v-

Appendix .............................................................................................75

Standards......................................................................................................77

Electromagnetic Compatibility ..................................................................77

ISO 13406-2 Class II ..................................................................................77

FCC Compliance Statement ......................................................................79

Restricted Warranty .......................................................................................80

Index.............................................................................................................86

-vi-

Safety

Chapter 1

Safety and Maintenance

Subject Page

Safety Instructions ............................................................. 3

Data Security...................................................................... 4

Set-up Location.................................................................. 4

Ambient Temperature ......................................................5

Working in Comfort .......................................................... 6

Connecting ........................................................................ 5

Information about the regulatory compliance

according to R&TTE ........................................................... 9

Modem .............................................................................. 9

Touch Pad.......................................................................... 9

Battery Operation............................................................. 10

Handling Components Aid Appendix

-2-

Safety Instructions

Please follow the instructions in this section for the safe operation of your
notebook:

• Do not allow small children to play unattended with electrical equipment.
Children are incapable of judging potential risks properly.

• Keep the packing materials, such as foil away from children. The danger of
suffocation could arise in the case of misuse.

• Do not open the case of the notebook, the battery or the power adaptor.
When the case is open there is a danger of severe electric shock.

• CD-ROM-/CDRW-/DVD-drives are Laser Class 1 devices. These lasers must
remain in their sealed casing. DO NOT remove the drive covers, as exposure
to the lasers may be harmful.

• Do not insert objects through the slots and openings of the notebook. This
may lead to electric shock, electrical short-circuit or fire that will damage
your notebook.

• Slots and openings in the notebook serve to ventilate it. Do not cover up
these openings, because the notebook could overheat otherwise.

• The notebook is not intended to be operated in a heavy industry company.
Operation under extreme environmental conditions can result in damage to
your notebook.

• Do not operate the notebook during a thunderstorm, in order to avoid
damage through lightning strike.

• Do not cover the slots and openings of the notebook. Never place objects
on top of the notebook that would exert any pressure on the display. There
is a danger that even slight pressure may break the TFT display.

• There is a risk of injury if the TFT display breaks. Use protective gloves to
pack up the broken pieces and contact customer service to arrange for
proper disposal. It is important to thoroughly wash your hands after
handling a broken TFT display. There is a chance that chemicals may have
been released.

• Do not forcibly open it.

• In order to avoid damage to the display, do not touch it with your fingers or

sharp objects.

• Never lift the notebook by the TFT Display; doing so could break the hinges.

Safety

Handling Components Aid Appendix

-3-

Switch off your Notebook immediately or do not switch it on at all and
contact customer service …

• … if the power cord or the connectors attached to it are burnt or damaged.
Replace the defective power cord with an original power cord. Under no
circumstances may a defective power cord be repaired.

• ... if the housing of the Notebook is damaged or fluids have leaked into it.
Have the Notebook checked by customer service first, because the Notebook
may not be safely operated otherwise and there may be a life-threatening
risk of electrocution!

Data Security

Attention!

Every time you update your data make back-up copies on an external
storage medium. The supplier does not assume liability for data loss
or damage to data storage units, and no claims can be accepted for
damages resulting from the loss of data or consequential losses.

Set-Up Location

• Keep your notebook and all connected peripherals away from moisture,
dust, heat and direct sunlight. Failure to do so can lead to Notebook
malfunction or damage.

• It is highly recommended you do not use the notebook outdoors.

• Operate the notebook and all peripherals on a stable, balanced and

vibration-free surface.

• Do not leave the base of your notebook on your lap or any part of your body
for a long period of time. The notebook can become very warm while it is
turned on or charging and can cause discomfort or injury from heat
exposure.

• In the first hours of operation, new devices may emit a typical, unavoidable
but completely harmless smell, which will decline increasingly in the course
of time. We recommend you to ventilate the room regularly, in order to
counteract the formation of the smell. During the development of this
product, we have made sure that the applicable limits are clearly fallen
below.

-4-

Ambient Temperature

• The notebook is most reliably operated at an ambient temperature between
+41° (5° C) and +104° F (40° C) and at a relative humidity between 20% and
70% (without condensation).

• When powered off, the notebook can be stored at temperatures between
32° and 140° F (0° and 60° C).

• Unplug the cable during thunderstorms and make especially sure to remove
the antenna cables, if present. We recommend the use of a surge protector
for additional safety, in order to protect your notebook from being damaged
by power peaks or lightning strikes through the power network.

• Wait until the notebook has reached ambient (room) temperature before
turning it on or connecting it to the power adapter. Drastic variations in
temperature and humidity can create condensation within the Notebook
and may cause it to short-circuit.

• For transporting the notebook keep the original packing.

Safety

Handling Components Aid Appendix

-5-

Working in Comfort

Sitting in one position for long periods can be uncomfortable. To minimize the
potential for physical discomfort or injury, it’s important that you maintain proper
posture.

• Back – While sitting at your work surface, make sure your back is supported
by the chair’s backrest in erect position or angled slightly backwards.

• Arms – Your arms should be relaxed and loose, elbows close to your sides,
with forearms and hands approximately parallel to the floor.

• Wrists – Your wrists should be as straight as possible while using the
keyboard, mouse or trackball. They should not be bent sideways, or more
than 10 degrees up or down.

• Legs – Your thighs should be horizontal or angled slightly downward. Your
lower legs should be near a right angle to your thighs. Your feet should rest
flat on the floor. If necessary, use a footrest, but double check that you have
your seat height adjusted correctly before getting a footrest.

• Head – Your head should be upright or tilted slightly forward. Avoid
working with your head or trunk twisted.

• Overall – Change your position frequently and take regular breaks to avoid
fatigue.

-6-

Connecting

Pay attention to the following information, in order to connect your notebook
correctly:

Power supply

• Do not open the power adapter housing. When the housing is open there is
a danger of severe electric shock. It contains no user-serviceable parts.

• The electric outlet must be in the vicinity of the notebook and within reach
of the power adapter cables.

• To disconnect your notebook from the power source, or set the notebook to
battery operation, remove the power cord from the notebook’s power
socket.

• Only use the notebook with a power adaptor operating at
AC 110-240V~/50-60 Hz. For details on power consumption, please refer to
the rating plate on the rear of your notebook. If you are unsure of the type
of power supply available at the point of use, ask your local power
company.

• Use only the supplied power cord and power adapter.

• If using an extension cord, make certain that it meets your local safety

requirements. If in doubt, consult an electrician.

• To provide additional protection against electric shock, power surges,
lightning strikes, or other electrical damage to your notebook, we
recommend the use of a surge protector.

• Firstly remove the plug, and then the connector of the notebook, from the
power source, if you want to detach the network adapter from the mains
power supply. A reverse sequence could damage the network adapter or the
notebook. Always hold the connector firmly when removing it. Never pull
on the power cord.

Safety

Handling Components Aid Appendix

-7-

Cabling

• Arrange cables so no one can walk on or trip over them.

• Do not place objects on any of the cables.

• To avoid damage to your Notebook, connect your peripherals (e.g.,

keyboard, mouse and monitor) whilst your notebook is powered off. Some
devices can be connected whilst your notebook is in use. These devices
usually have a USB or IEEE 1394 connector. Please follow the appropriate
instructions for each device.

• Keep the notebook at least one meter (approximately three feet) away from
high frequency and magnetic interference sources (e.g., televisions,
loudspeaker cabinets, mobile telephones, etc.) in order to avoid
malfunctions and/or loss of data.

• Please note that only shielded cables shorter than 3 metres (9.84 ft) should
be used for the LPT, COM, USB, IEEE 1394, audio, video and network
interfaces with this notebook. Please use only doubly screened cables in the
case of printer cables.

• Do not replace the cables supplied. Only use the cable supplied with the
notebook, since that cable will have been tested extensively in our
laboratory.

• Also only use the connection cables supplied with the devices to connect
your peripherals.

• Make sure that all connecting cables are connected with the respective
peripheral devices, in order to avoid perturbing radiation. Remove any
cables not needed.

• The connection of devices is limited to equipment that complies with
EN60950 “Safety of information technology equipment” or EN60065
“Audio, video and similar electronic apparatus. Safety requirements”.

-8-

Information about the regulatory compliance
according to R&TTE

The following remote equipment has been supplied with this notebook:

• Wireless LAN

The company declares herewith that these devices are in agreement with the
fundamental requirements and the other relevant terms of the 1999/5/EG
Guideline. Complete declarations of conformity are available under

www.medion.com/conformity

The modem (optional) meets the requirements of TBR21 (01/1998) and
EG201120/V1.1.1/01/98 regarding connection with an analogue telephone
network.

.

Modem

• If your system has a modem, please make sure you connect it to an
analogue telephone line only. Connecting to a digital PBX, a digital line
designed for broadband services or ISDN, a shared service line or a
payphone will damage the modem or the devices to which it is connected.

Touch Pad

Safety

Handling Components Aid Appendix

• Light pressure with the tip of your finger is all that is required to operate the
touch pad. Because the touch pad is electrostatic sensitive, objects cannot
be used in place of your fingers. Using a pen or other object can damage the
touch pad or cause the notebook to malfunction.

-9-

Battery Operation

To extend the life and power of your battery and guarantee secure operation, the
instructions below should be followed:

• Never expose the battery to direct sunlight or heat for long periods.

• Do not dispose of the battery by fire.

• Disregarding these instructions will lead to damage and under some

circumstances may even cause the battery to explode.

• Do not open the battery housing; it contains no user-serviceable parts.

• Keep the battery away from electrically conductive materials, chemical

substances and cleaning agents.

• Only use the originally supplied power adapter to charge the battery.

• Ensure (through the display or the signalling sound of the notebook) that

the battery is completely discharged before recharging it.

• Replace the battery only with the same type or an equivalent type
recommended by the manufacturer.

• Charge the battery only until the battery charging light goes out. Also, refer
to the instructions under “Charging the
Battery” on page 27 for instructions on checking the battery level.

• Only change the battery when the unit is switched off.

• Batteries are classified as special waste and should always be disposed of

properly. Contact Customer Service for more details.

-10-

Safety

Chapter 2

Views & Handling

Subject Page

Included with your notebook ............................................13

Open notebook................................................................... 14

Left side...............................................................................15

Right side ............................................................................16

Rear side..............................................................................16

Power and status indicators.................................................17

Hotkeys ............................................................................... 18

Getting started .................................................................... 19

Handling

Components Aid Appendix

-12-

Included with Your Notebook

Please check that the contents are complete and notify us within 14 days of
purchase if any of the following components are missing:

• Notebook

• Battery

• Power adapter with connection cable

(Model: FSP 065-AAC)

• Application-/Support-Disc

• OEM version of operating system

• Documentation

Safety

Handling

Components Aid Appendix

-13-

Views

Open Notebook

1

2

6

4

5

7

(Diagram the same)

1 - TFT display............................................................................. (Ö p. 30)

2 - Power ON/OFF ...................................................................... (Ö p. 25)

3 - Hotkeys ................................................................................ (Ö p. 18)

4 - Keyboard ...............................................................................(Ö p. 33)

5 - Touchpad .............................................................................. (Ö p. 34)

6 - Stereo speaker

7 - Device indicators ................................................................... (Ö p. 17)

-14-

3

Front View

8 9 10 11

8 - FireWire IEEE 1394 ............................................................... (Ö p. 49)

9 - Microphone In ...................................................................... (Ö p. 41)

10 - Audio Out / Headphones ...................................................... (Ö p. 41)

11 - Display Catch......................................................................... (Ö p. 41)

(Diagram the same)

Left Side

Safety

Handling

12 13 14 15

12 - Optical Drive ....................................................................... (Ö p. 37)

13 - USB port ............................................................................... (Ö p. 48)

14 - Express Card ......................................................................... (Ö p. 47)

15 - Card reader .......................................................................... (Ö p. 23)

(Diagram the same)

-15-

Components Aid Appendix

Right Side

13 - USB port ............................................................................... (Ö p. 48)

16 - Modem port (RJ-11) (optinal)................................................ (Ö p. 41)

17 - LAN port (RJ-45) ................................................................... (Ö p. 43)

18 - External monitor port VGA .................................................... (Ö p. 31)

19 - Power socket ....................................................................... (Ö p. 25)

13 16 17 18 19

(Diagram the same)

Rear Side

20

20 - Kensington® lock .................................................................... (Ö p. 50)

(Diagram the same)

-16-

Device Indicators

LED's indicate the power and operating system states of the Notebook. The
meaning of each LED is:

Num Lock

This LED lights when NUM-Lock has been activated. It sets the
keyboard so that numbers are assigned to certain characters,
simplifying numerical data input.

Safety

Capital Lock

This LED lights when CAPS-Lock has been activated. This sets
the keyboard to capital letters.

Handling

Scroll Lock

This LED indicates that the Scroll Lock key on the keyboard is
activated. The Scroll Lock key has different functions depending
on the software you are using.

Access LED

This LED lights when the Notebook is accessing the hard disk.

Components Aid Appendix

Power LED

This LED lights when operation (battery / power).

Battery LED

This LED lights when the battery is charging. When the battery is
charged the light goes out.

Wireless LAN

Display for wireless data exchange. If the display lights
steadily the wireless LAN function is enabled (optional feature).

-17-

Hotkeys

Launches the E-Mail Program.

Launches the Internet Browser.

To enable or disable the wireless LAN.

This button opens the search function in the explorer.

-18-

Getting Started

Before you get started using your notebook, first take a few moments to read the
important section on Safety.

This notebook comes with software fully pre-installed. You do not have to install
any of the discs supplied.

How to start:

Safety

Step 1

• Insert the battery before bringing the notebook into operation by sliding the
battery pack into the compartment.

• Connect the supplied power adapter to the notebook at the notebook
power socket (19).

• Open the display to the required position with your thumb and index
fingers.

• Switch the notebook on by operating the On/Off Switch (2). The notebook
starts and now goes through a number of phases.

Note

Make sure there is no bootable disc (e.g., the Recovery disc) in the
optical drive. Such discs will prevent the operating system from
loading off the hard drive.

The operating system is loaded from the hard disk. During the initial set-up, the
loading process takes slightly longer than normal to register the operating system
and the individual components completely. Your operating system is finished
loading when a welcome screen is shown on your display.

Handling

Components Aid Appendix

-19-

Step 2

Follow the instructions on the screen. Dialogue boxes will explain any steps that
need to be taken.

The greeting procedure will guide you through a series of dialogue boxes. The
information in each dialogue box will explain the steps that need to be taken.

Should you have any questions just click on

• License Agreement
The greeting procedure also displays the license agreement. Please read this
carefully. It contains important legal information on the use of your
software. In order to see the full text, use the mouse and the scroll bar on
the right side of the screen to move downwards until you have reached the
end of the document. You accept the agreement by clicking on the “I
accept the agreement” option field. Only by doing so will you be
entitled to use the product under lawful terms and conditions.

.

Step 3

After the login procedure the Windows® desktop appears on your screen.
You will find a brief overview on the following pages.
After the login procedure the Windows® desktop appears on your screen. This can

be adjusted so that the screen of your computer looks different.
However, basic operation is guaranteed.

-20-

Short description of the Windows® Desktop

After the login procedure the Windows® Vista™ desktop appears on your screen.
(Your desktop might not look exactly like the one shown here.)

s

t

u

v

n o p q r

1. Start Button

Clicking the Start button brings up a menu where you can access help, software
programs, files, and settings.

2. All Programs

All of the software programs installed on your notebook are ordinarily listed here.
Click All Programs to reveal an extensive menu.

3. Program Bar

The most commonly used software programs are listed here.

4. Turn Off Computer

Click on this interface with the left mouse button and select the Shut Down
option, in order to switch the Notebook off.

5. Task Bar

Here you receive information and status reports about Windows
programs are running.

®

Vista™ and which

Safety

Handling

Components Aid Appendix

-21-

6. Desktop Icons

Desktop icons link to their respective programs. To start a program, double-click its
desktop icon.

7. Logged in User

This tells you which user is logged in to your notebook.

8. Control Panel

You can use the icons in Control Panel to change the appearance and functionality
of Windows

9. Windows

®

Vista™. These icons represent options for configuring your notebook.

®

Vista™ Help

Here you can find information on using your notebook, networking, backup, and
many other tasks.

-22-

Safety Handling

Chapter 3

Main Components

Subject Page

Power Supply ..................................................................... 25

Display ...............................................................................30

Data entry ..........................................................................33

Hard Drive........................................................................... 35

Optical Drive....................................................................... 37

Sound Card......................................................................... 40

Modem (optional)............................................................... 41

Network.............................................................................. 43

The Card Reader.................................................................. 46

Express Card ......................................................................47

Universal Serial Bus (USB) Port ............................................48

IEEE 1394 (FireWire) ............................................................49

Securing the Notebook ...................................................... 49

Software..............................................................................51

Components

Aid Appendix

-24-

Power Supply

On/Off Button

Power on or off your notebook by pressing the on/off button (2) briefly.
The operational indicator will inform you about the operational status of the

notebook. The notebook will always be switched off, if the main switch is pressed
for more than 4 seconds.

Warning!

Do not switch off your notebook while the hard disk or the optical
drive is running and the corresponding media activity LEDs are lit.
Otherwise data may be lost. To protect the hard disk you should
always wait for 20 seconds after powering down the notebook before
powering it up again.

Power Adapter

Safety Handling

Your notebook is supplied with a universal AC power adapter, which automatically
adjusts to the available power source. The following levels are supported: AC 100-
240V~/ 50-60 Hz. Please follow the power supply safety instructions found
on page 5.

The power adapter is connected via a power cord to an AC outlet. The DC power
lead from the power adapter is connected to the right side of the notebook (19).

The adapter provides the notebook with power and also charges the battery. The
power supply indicators of the notebook provide details on the operating state. The
battery is also being charged when you are working on your notebook with the
power adapter. The power adapter is still live if the notebook is not connected with
it. You should therefore unplug the power adapter from the outlet if it is not
connected to the notebook.

Warning!

Use only the power adapter and power cord supplied with your
notebook.

-25-

Components

Aid Appendix

Battery Operation

Note

Please charge and discharge the new battery completely two to three
times in succession, so that it will achieve its full performance!

Batteries store electrical energy in their cells and then deliver it when needed.
The useful life and performance of your battery depend on careful handling.
The battery should be completely discharged before a charging process and

completely charged again, in order to optimize its useful life and its performance.
You must also pay attention to the Safety Notes from page 8.

Inserting the Battery

Slide the battery into the battery compartment.

Removing the Battery

Slide the battery locks to remove the battery.

Warning!

Do not remove the battery while the notebook is running on battery
power. You increase the possibility of losing data.

Warning!

Pay attention that the contacts to the battery and the notebook are
not dirty or damaged when storing the battery and using the
notebook. This could lead to malfunctions.

-26-

Charging the Battery

The battery is charged via the power adapter. If the power adapter is connected, it
charges the battery automatically, whether the notebook is turned on or not. When
the notebook is switched off, full charging takes a few hours. If the notebook is
switched on, the charging process takes a significantly longer time.

Note

The charging process will be interrupted if the temperature or the
voltage of the battery is too high.

Discharging the battery

Operate the notebook by means of the battery until it switches off independently
because of the low battery charge.

Note

Think about saving your open files in good time, to avoid a possible
loss of data.

Safety Handling

Components

Aid Appendix

-27-

Battery Performance

The particular operating duration will vary according to the setting of the energy
saving functions. You can adjust these to your requirements under Energy
Options in System Control. Apart from this, your notebook will require a higher
power demand when carrying out certain tasks, such as playing back a DVD.

Checking the Battery Level

In order to check the current level of the
battery, move the cursor over the
power symbol in the taskbar.

The symbol of a battery is displayed
during battery operation.

You will receive additional information
about settings if you double click on
this symbol.

Note

If you ignore the warning signal when the battery level is low, your
notebook goes into hibernate mode.

Warning!

Never remove the battery while the notebook is switched on or if the
notebook has not yet gone into hibernate mode, as this may lead to
loss of data.

-28-

Power Management

Your notebook offers automatic and modifiable power saving functions that you
can use to maximize battery life and reduce overall operating costs. The power
saving modes are known as sleep mode and hibernate mode.

Sleep Mode ( Ö )

When in sleep mode, the contents of the RAM of your notebook are preserved
while practically all other components of your notebook are shut down, reducing
your power consumption to a minimum. By pressing any key on the keypad, you
can bring your notebook back to the fully operational state. You will restart at
precisely the line in which you were working prior to the interruption. The
computer takes less time to go into and come out of sleep mode, but uses more
power than hibernate mode.

Hibernate Mode ( Ö )

The hibernate mode is an alternative to a complete shutdown of the notebook. In
this mode all data from RAM (system and graphic data) are copied to the hard disk
as a file. As soon as the data has been safely saved, the notebook powers down.
When the notebook is switched on again, this file is written back to RAM by the
BIOS. In a few moments the notebook is in the exact state as when it was last used.
If while working on a document the notebook is closed (assuming the correct ACPI
setting), the notebook saves the data in RAM for you automatically. You will restart
at precisely the line in which you were working prior to the interruption. The
computer uses no power while it is in hibernate mode, but it takes a little longer for
the computer to go into and come out of hibernation compared to sleep.

Safety Handling

Components

Aid Appendix

-29-

Display

Unlike a normal monitor, the TFT display does not produce either radiation or
flicker.

Opening and Closing the Display

The display is locked by means of a special construction of the display hinge, so
that an additional lock is not necessary.

1. To open, lift the display with your thumbs and index finger and position it as
desired.

Warning!

Do not try to forcibly open the display.

The opening and closing of the display can be assigned various functions via the
Power management feature.

Screen Resolution

The integral screen has a native resolution of 1280 x 800 pixels. If you change to a
presentation with different characteristics in the Windows “Personalization” Help
Program, the display will not appear on the whole area of the screen, among other
effects.

Using a higher resolution can lead to distortion of the display, especially with text.
Using a lower resolution may cause the display to use only a portion of the screen
area.

You will adjust the presentation to the mode supported with the Windows
“Personalization” Help Program.

-30-

Connecting an External Monitor

The notebook has a VGA port (18) for connecting an external monitor.

1. Shut down your notebook.

2. Connect the video signal cable of the external monitor to the VGA port of
the notebook (18).

3. Connect the external monitor to the electrical socket and power it up.

4. Start your notebook.

The external screen will be determined after the operating system has been loaded.
The following Window will appear and various possible presentations will be
offered to you:

Safety Handling

Duplicating the Desktop

This mode duplicates the display of the Notebook on the external monitor.

You will switch between the following combinations with the help of the Fn + F2
key combination:

• Only Notebook (1 x Fn + F2)

• Only external monitor (2 x Fn + F2)

• Notebook + external monitor (3 x Fn + F2)

Note

The external monitor should support the same screen resolution
as your notebook (1280x800), because it is possible to carry out the
Cloning Mode otherwise. You will have to adjust the resolution of the
notebook to the external monitor under Display Settings, in order
to be able to carry out the Fn + F3 command, if your external device
does not support the respective resolution.

-31-

Components

Aid Appendix

Extending the Desktop

An empty Desktop will be displayed on the second [external] monitor in this mode.
Windows from the first screen cane shifted to the second one and vice versa.

This option does not support the key combination Fn + F2.
The screen resolution and the colour quality of the individual display devices can be

set under “Control Panel Ö Personalize Ö Display Settings”.

-32-

Data Entry

The Keyboard

By dual assignment of certain keys you have the same range of functions available
to you as with a normal Windows keyboard. Some functions are input using the Fn
key, which is normal on notebook computers.

Notebook-Specific Key Combinations

Combination Description

Fn + F2

Fn + F3 Enable or disable the touchpad function.

Fn + F4 Reduces screen brightness.

Fn + F5 Enhances screen brightness.

Fn + F7 Decreases the volume of the built-in speakers.

Fn + F8 Increases the volume of the built-in speakers.

Fn + F9 Disable the computer’s audio function.

Fn + F12

Toggles the display screen between LCD, external display
and simultaneous display.

Power saving functions. This key combination is set to
Hibernate by default. To adjust this key to your own needs
go to Personalization Ö Screensaver in Power
Options.

Safety Handling

Components

Aid Appendix

-33-

Touch Pad

The touchpad is positioned in front of the keyboard.
The mouse pointer (cursor) follows the direction pre-determined on the touchpad

by the movement of your finger in the normal mode.

Caution!

Do not use a ball-point pen or other object on the touch pad, as this

could damage or cause a malfunction of your touch pad.

Below the touch pad are the left and right mouse buttons which can be used as on
a normal mouse.

You can also perform a direct click or double click using the touch pad by tapping
the surface briefly once or twice.

In the Windows
make using the touch pad easier.

®

Control Panel you will find a number of useful settings that will

-34-

The Hard drive

The hard drive is the main storage medium combining large storage capacity and
rapid data access.

The Windows operating system cannot use the full capacity of the hard drive,
which means that there will be a difference between the capacity that the BIOS
displays and what the operating system displays.

The hard drive contains the operating system of the computer, other application
programs and backup files. These programs and files are pre-installed on your
notebook, so you may note that some of the space on your hard drive is already
taken.

Whenever the computer is accessing the hard disk, the corresponding LED
illuminates.

Warning!

Never switch off the computer while the busy indicator is lit since this
may result in loss of data.

If you are looking for a file on the hard drive and you know the name, go to Search
on the Start menu to find the file. Following is some general information on where
you might find some common files.

Usually your hard drive is divided into several partitions, as shown below. The
partitions of your hard drive may vary from what is shown here.

BOOT C: Windows

Software programs
Your documents

RECOVER D: Drivers for internal Notebook components

Installation files for software that came with your
Notebook

Restore software

Safety Handling

Components

Aid Appendix

-35-

Important Directories

The most important directories preinstalled on your notebook are shown below.
These directories may vary from what is shown here.

Warning!

Do not delete or modify these directories or their contents since data
could be lost or the functionality of the system could be at risk.

Also pay attention to this:

You will no longer be able to carry out the recreation of the supply
status by means of the Support Disc (Ö p. 67), if you have converted
the Recovery Partition into a NTFS file system.

C:\ This is the main hard disk drive partition for your notebook. It is where your

program files, settings, and documents are stored, as well as files necessary
for running Windows.

C:\Program Files

Includes files belonging to software programs.

C:\Windows

The main directory for Windows.

D:\Driver

Drivers for internal notebook components.

D:\Tools

Includes installation files for software that came with your notebook.

D:\Recover

Includes the files needed to perform a system restore.

-36-

The Optical Drive

Loading a Disc

Unlike optical drives of desktop PCs optical drives of notebooks retain discs with the
help of a locking mechanism.

When inserting the disc you should take care to push the disc right onto the
locking mechanism so that it can lock in
position.

Note

Do not place protective foils or other stickers on your discs. To avoid
damage to your drive, do not use deformed of damaged discs.

Warning!

Do not use scratched or dirty discs, discs with pieces broken off or
discs of poor quality. Because of the high speeds in the drive the discs
might break and damage your data as well as your drive. Examine the
discs before you enter them. If damage or dirt is visible, you should
not use them. Damage caused by faulty media is excluded from
warranty and their repair must be charged.

Safety Handling

Components

Warning!

The disc can be damaged when the drive drawer is pushed in, if it has
not been positioned on the support correctly.

1. Press the eject button at the optical drive to open the tray.

2. Pull the tray out completely with care.

3. Remove the disc from its case, without touching the unprinted side if
possible.

4. Place the disc on the tray so that it lays flat with the label facing upward and
gently push the tray in to close it. The disc will now lie flat on the tray and
will engage onto the disc holder audibly.

5. Test that the disc is able to turn freely and then push the tray back into the
optical drive carefully.
The ‘E’ drive letter will have been allocated to your optical drive in the
delivery status. You will have easy access to your files on your disks with
Windows Explorer (Computer). Start the Computer Help Program by

-37-

Aid Appendix

means of the Desktop link or by pressing the Windows key á and the ‘E’
key at the same time. Open Windows Explorer by means of Start Ö All
Programs Ö Accessories.
The pre-installed media reproduction will be used automatically during
access to DVD videos (or audio and video files on normal data CDs).

6. Press the eject button if you want to remove a disc.

Warning!

While the notebook is accessing the optical drive the media activity
indicator is lit. Do not try to remove the disc from the drive while this
LED is lit.

Emergency Ejection of a Blocked Disc

If the tray fails to open automatically, then the tray can be opened manually
provided there is an opening for emergency ejection.

Restart your notebook and if the tray is still locked proceed as follows:

1. Shut down Windows and switch off your notebook.

2. Insert a long thin object (like a straightened paper clip) into the emergency
ejection opening until you feel resistance.

3. Press lightly and the tray will open.

4. Remove the disc and restart the notebook.

Playing Back and Retrieving Data from Discs

Your notebook is able to playback and to retrieve Audio CDs, DVD Movies and Data
discs.

After loading the disc your operating system will open a selection window with
different options for playback. Normally there are various programs at your
disposal.

If your operating system doesn’t open the selection window you still have the
possibility of the access via the “Explorer” or “Computer”.

-38-

Regional Playback Information for DVD

The playback of DVD movies includes the decoding of MPEG2 videos, digital AC3
audio data and the deciphering of CSS protected contents.

CSS (sometimes called copy guard) is the name of a data protection program
incorporated by the movie industry as an action against illegal copies.

Among the numerous regulations for CSS licensees the most important ones are
the country specific playback restrictions.

In order to facilitate the geographically restricted release of movies, DVD titles are
released for certain regions. Copyright laws require the restriction of each DVD
movie to a certain region (usually the region, in which it is sold).

DVD movie versions can be published in several regions but the CSS regulations
require that each CSS decipherable system may only be used in one region.

Note

The decoding software included with your Notebook may be
changed for regional DVD decoding up to five times, after which
the drive will only play DVD movies for the region setting last
entered. Changing the region code after that will require factory
resetting which is not covered by warranty. If resetting is desired,
shipping and resetting costs will be billed to the user.

Safety Handling

Components

Subjects Concerning the CD/DVD-Rewriter

This Section only relates to devices that have been supplied with a CD-RW, a
combination drive or a DVD-RW drive.

First of all, you receive information on the so-called blank discs.

Recordable/Rewriteable Discs

Normal Discs are pressed from a digital, glass master and then sealed. In the case of
blank disc, the information is burnt onto the disc with the laser of the Rewriter.
Therefore these discs are more sensitive than normal discs.

Please avoid the following when using recordable/rewriteable discs - especially
blanks - that have never before been used:

• radiation by direct sunlight (UVA/UVB)

• scratches and damage to the disc surface

• extreme temperatures

-39-

Aid Appendix

The Sound Card

Your notebook has an integrated stereo sound card (on-board) with 16-bit and 3D
spatial sound effects (3D). The sound card is compatible with the industry standard
Sound Blaster and Microsoft Sound System Version 2.0. This guarantees optimal
support for all popular programs and games. If you wish to alter the base volume,
click on the loudspeaker symbol in the task bar.

Click on Mixer, in order to open the volume mixer.

By using the keys Fn + Ç and Fn + È you have the possibility to regulate the
volume.

-40-

External Audio Ports

Your notebook has a loudspeaker, so you can always playback sounds without
additional equipment. The use of the external connections gives you a good
opportunity to connect your notebook to external devices.

Caution!

The use of earphones with a high volume can lead to lasting damage
to your hearing. Set the volume to the lowest level before
reproducing any sound. Start the sound reproduction and increase
the volume to the level that is comfortable for you.

It can cause damage to the hearing ability of the
listener if a device is operated through earphones with
an increased volume for a long period.

Microphone In

(9)

Audio Out

(10)

For recording via an external microphone.
For sound reproduction via an external surround

system for external center / subwoofer.

For sound reproduction via external stereo
equipment such as loudspeakers (active) or
headphones.

Safety Handling

Components

Aid Appendix

-41-

Modem (optional)

The built-in modem is able to receive data according to the ITU standard for V.90
transmissions with up 56 Kbit/s. Since the power output of modems is restricted
due to the regulations of some telecommunication providers, the possible
maximum download speed can be restricted. The actual speed may be dependent
on the online conditions and other factors.

Data sent from the user to the server are transmitted with 31.2 Kbit/s. Prerequisite
for this high speed reception is an analogue telephone line compatible with the
V.90 standard and a corresponding compatible Internet provider or company­owned host computer.

The modem is fitted with an RJ-11 interface, into which a standard telephone lead
can be plugged.

Warning!

Use only with an analogue telephone line. The modem cannot
withstand the voltage levels of digital telephone systems such PBX or
lines such as ISDN or Broadband services. (see safety instructions on
page 9).

Modem Port

1. Insert one end of the RJ11-connection (telephone plug connector) into the
modem/network interface (16) and the other into an analogue telephone
socket that is easily accessible.

Note:

Do not place the notebook in Hibernate (or Sleep) mode if you are
connected to your Internet provider, since this will cause the modem
connection to be lost.

-42-

The Network

What is a network?

A network means connecting your notebook to one or several other computers.
Users can transfer data between computers and share resources such as printers,
modems and hard disk drives.

Here are some practical examples:

• You can exchange E-mail and manage appointments in an
office.

• Users can share a printer in a network and save their data on a central server.

• Users can share one modem among computers for Internet access.

• Two or more computers can be connected to play network games or share

data.

Ethernet-Network

If your notebook has an Ethernet connection, you can use this to connect to a
network.

The following explanation refers to notebooks with a network connector.
Connect one end to the RJ45 connection (Western plug) at the network interface of

your notebook (17) and the other to another PC or a hub/switch.
The Windows Help and Support Centre offer extensive information about

networking your Notebook. You can access this information by clicking on Start,
then Help and Support.

Safety Handling

Components

Aid Appendix

-43-

Wireless LAN

Wireless LAN is an optional feature. This function allows you to create a wireless
network link with an access point or directly with another wireless-enabled PC.

Using the Quick launch button you can enable or disable the wireless LAN function.
A corresponding LED will light.

Warning!

Make sure the Wireless LAN option is switched OFF in any
environment where it might interfere with critical and sensitive
devices, e.g., on aircraft, in hospitals and other medical centres, etc.

Conditions

An access point is a wireless transmitter that communicates with your notebook
and controls access to the network connection (e.g., a home network or a
broadband connection such as DSL). Wireless access points are often found in
offices, airports, universities or Internet cafés. They offer access to networks or to
the Internet. Access authorizations are normally needed. A fee may be required
to use a public access point. To set up a wireless network to share Internet access,
files, and printers at home, you will need an access point, a router, and a
broadband (DSL or cable) modem. Some access points can also serve as a router
and/or a broadband modem. Check with your retailer or Internet Service Provider
to find the best solution for your needs. A link to another computer with wireless
LAN functionality can also be created without an access point. This will allow
you to share files, but you will need an access point and a router to share an
Internet connection. The wireless network link works according to standard IEEE

802.11g which is also compatible with the IEEE 802.11b standard. The standard

802.11a is not supported. If encrypted transmission is used, this must operate
according to the same principle on all devices. Encryption is a method of
protecting the network from unauthorized access. The transmission speed (max. 54
Mbp/s) can vary according to the distance and loading of the partner.

-44-

Troubleshooting within the Network

Why does an error message appear when I click on the network
environment?

The computer name must be unique on the network and may
not be the same as the task group.

It appears that the network boards are unable to communicate. What
might be the problem?

Maybe one of the used network boards works with a different
speed (e. g. 10 instead 100 Mbit/s) and your network computer
is unable to recognize this. If necessary, set the network driver to
the compatible speed.

If two PCs should be linked you require a cross-link cable,
otherwise use a patch cable.

In addition, check the protocols and the configuration.

The data transmission is incorrect or very slow. What might be the
problem?

Maybe you have the wrong cable (UTP / CAT3 or lower) or the
problem is the proximity of a power cord or another source of
interference.

Safety Handling

Components

Aid Appendix

-45-

The Card Reader

Memory cards are media that are being used for a variety of purposes, especially in
digital photography. They are increasingly replacing the floppy disk. The form and
capacity of a memory card can vary according to the manufacturer.

Your notebook supports the following formats:

• MMC (MultiMediaCard)

• SD (Secure Digital)

• Memory Stick / Memory Stick Pro

When inserting memory cards, ensure that the contacts are facing the right way.
See table below. Incorrect insertion of a card can cause damage to the card reader
and/or the card.

Card type Contacts

SD (Secure Digital)
MMC (MultiMediaCard)
Memory Stick
Memory Stick Pro

Inserting Memory Cards

pointing downwards
pointing downwards
pointing downwards
pointing downwards

Note

Memory cards can only be installed in one direction. Refer to the
instructions on the previous page.

Push the memory card into the slot.

Removing Memory Cards

To remove the SD/MMC-cards or memory sticks press the card further into the slot.
Then pull out and remove the card.

-46-

Express Card

Your notebook supports the Express standard.
Both Express/34 and Express/54 cards (the naming refers to the sizes of the cards)

are available on the market. Your notebook supports both card formats.

Installing Express Card

Note

Please always read the instructions that come with your Express card
before installation. Remove the dummy card from the slot before
installation. Replace the card to protect contacts against dirt if the
Slot is not used.

Removing Express Card

Please take note of the following before removing the Express card:

• Terminate the program which you used with the card.

• Left-click on the icon Safely Remove Hardware

card and click on Stop.

In order to remove the card, first push it into the contact to unlock it. Pull the card
from the bay and store it securely.

in the taskbar, select the

Safety Handling

Components

Aid Appendix

-47-

Universal Serial Bus (USB) Port

USB ports provide an easy way to connect many peripheral devices to your
Notebook (16). You can use any USB device with any USB port. Your notebook will
have 3 USB 2.0 connection sockets (USB 1.1 compatible).

Some USB devices require that you reinstall software drivers when you connect the
device to a different USB port than the one originally used. This can be avoided by
always using the device with the same USB port.

Devices connected directly to the USB bus should not draw more than 500 mA.
Should the devices need more power than this, it will be necessary to provide a
powered hub. The data transfer speed is 1.5 Mbit/s or 12 Mbit/s, depending on the
device connected.

Note

Some USB devices require that you reinstall software drivers when
you connect the device to a different USB port than the one originally
used. This can be avoided by always using the device with the same
USB port.

-48-

IEEE 1394 (FireWire)

The IEEE 1394 (also known as iLink® or FireWire®) port (8) provide an easy and high­performance way of connecting high-speed storage, imaging, and many new types
of audio/video devices easily.

Application Options for IEEE1394

• Connection of digital devices of the entertainment industry, such as set-top
speakers, digital video and camcorder, ‘Digital Versatile Disk’ (DVD),
television etc.

• Multimedia applications and video processing.

• Input and output devices such as printers, scanners, etc.

Technical Specifications

• Depending on the application, the maximum data transfer is about 100, 200
or 400 Mbit/s, corresponding to a data throughput of up to 50 MB per
second.

• The device can be plugged in or unplugged during operation (hot
plugging).

• The standardised cord (‘Shielded Twisted Pair’ -STP) includes 6 strands. Two
lines are live (8V up to 40V, 1.5 A max.) and can be used as an external
power supply. The four signal lines transfer data or control information.
Some devices do not require a power supply via the cord so that four pole
plugs are used.

Safety Handling

Components

Aid Appendix

-49-

Securing the Notebook

Your new Notebook will make software and hardware solutions to unauthorized
access available to you.

Startup Password

You can protect your notebook against unauthorized use with a switching on
password. Then, an invitation to enter the password will appear on the screen
when the notebook is switched on.

The password will be set up in BIOS.

Warning!

Keep your password in a safe place. You will not have any possibility
of deleting your password if you forget it. Contact your Customer
Service in that case.

You can also use the security options of Windows Vista™, in order to protect your
data against unauthorized access. You will find further information in the chapter
“Data and System Security” starting on page 64.

Using a safety lock

You can prevent theft by using a so called Kensington lock, which can be bought
at your local retailer.

The cable wraps around an object and the “T” shaped end inserts into the
Kensington lock port and a key or combination dial is used to secure the lock in
place. Please keep your key at a safety place.

-50-

Software

There are many kinds of help and information for using your Notebook. This section
tells you where to get help with the Microsoft
software programs, and your notebook.

Getting to Know Windows Vista™

Windows Vista™ offers different options to understand its operation. We will
mention only a few of those options here:

Windows Vista™ – Quickstartguide

This Handbook will give you a brief overview of the operation of your operating
system.

The following themes are dealt with in it:

• Initial steps

• The Welcome Center

• Innovations

• Help displays

We recommend this reading matter to beginners and those switching from other
versions of Windows.

®

Windows® Vista™ operating system,

Safety Handling

Components

Windows Vista™ – Help and Support

An answer to almost every question can be found in this program.
This help function fully covers the Windows operating system.
It is helpful for both beginners and professionals. You can print or bookmark the

information, which is categorized into topics. You start like this:

1. Click on Start

2. Now select Help and Support

-51-

Aid Appendix

Windows Vista™ – Welcome Center

You will see the Welcome Center at the first display of the Windows Vista™ Desktop.
This contains useful links that will make it easier for you to start using Windows.

It is the aim of this feature to enable both beginners and experienced users to make
additional setting for the optimal use of Windows Vista™ after first bringing the
Notebook into operation.

The Welcome Center has been subdivided into many small groups of subjects, so
that the user will have the possibility of adjusting the content optimally to his or her
knowledge. There are some of the links in the following:

• View computer details
(Find information about you computer, the type of your graphics card and
the Windows Vista™ version here)

• Transfer files and settings
(Transfer data and settings of your old Notebook with this)

• Add new users
(Administrate and open user accounts for each user of the Notebook with
this)

• Windows Anytime Upgrade (WAU)
(Carry out upgrades to higher versions of Windows Vista™, in order to be
able to use the expanded digital features, through this)

• Connect to the Internet
(Configure your internet access with this)

-52-

• What’s new in Windows Vista™
(Learn how Windows Vista™ is different in comparison to older versions)

• The use of the email program

• …and much more!

Use the Welcome Center to understand your Notebook better and in order to be
able to use it optimally. It will also serve you as an additional source of information
for recognizing and removing potential problems.

You will call up the Welcome Center as follows, if you closed it after the start:

Safety Handling

1. Click on Start

2. Select Welcome Center in the Program List.

Windows Vista™ – User Account Control

The User account control contributes to the prevention of unauthorized changes to
the Notebook.

A window with the message “If you started this action, continue.” will appear
as soon as you carry out an unauthorized change.

• Click on Continue, in order to continue the procedure.

• Click on Cancel, in order to end the procedure.

Components

Aid Appendix

-53-

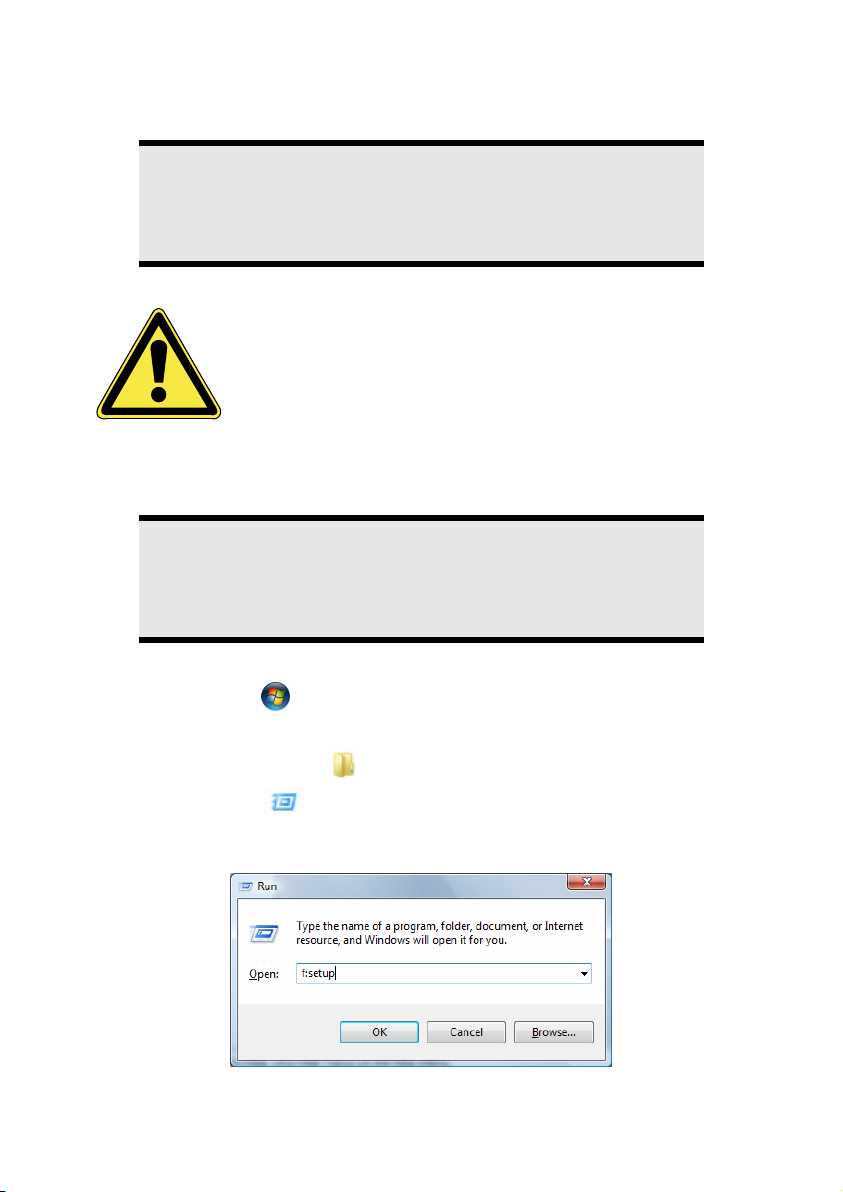

Installation of Software

Note

If your operating system is configured that the installation procedure
accepts only signed drivers (default) and software an information
screen will appear.

The software included in delivery is already pre-installed in the factory.

It happens that during installation procedure important files
can be changed or even cancelled. To avoid eventual problems
in using older files after installation, make sure to safeguard
your hard disk.

Please follow the instruction of the software vendor. We will describe a typical
installation. Once you insert a disc, the installation menu is started automatically.

Note

If the automatic start does not work, it is likely that the so-called
Autorun function has been deactivated. Read the respective chapter
in Windows Help on how to activate this function.

An example for the manual installation without the autorun function:

1. Click on Start

2. Click on  All Programs.

3. Open the Accessories

4. Select the item Run.

5. Now enter the letter of the CD-ROM drive followed by a colon and the
program name setup:

program point.

-54-

6. Click on “OK”.

7. Follow the instruction given by the program.

Software De-installation

In order to remove installed software from your Notebook, follow the next steps:

Safety Handling

1. Click on Start

2. Click on

3. Then select the Programs

.

Control Panel.

option.

4. Select the respective program, start the de-installation and follow the
instructions on the screen.

Components

Aid Appendix

-55-

Windows Activation

Microsoft is committed to the protection of intellectual property rights and the
reduction of software piracy. Therefore Windows Vista™ contains software-based
product activation technology. Your copy of Windows Vista™ has already been
activated for your Notebook.

Product activation is needed if some components of your Notebook have been
replaced or you use a non-authorized BIOS. If necessary you can activate Windows
Vista™ as often as requested.

You will probably need to activate Windows Vista™ by telephone even if Internet
Activation is available. This is due to the pre-activated SLP version which runs with a
special Product-ID. However, activation needs your unique Product ID which can
be found on the Certificate of Authenticity sticker on your Notebook housing.
When you call, please inform your agent that you are running an OEM-(SLP)
version of the software.

Product activation on your Notebook

In few cases it may still be required to activate Windows Vista™. If activation via the
internet is acknowledged with an error message you should perform the
following steps.

1. Please select the telephone activation and click until the related screen
appears.

2. Now click on Change Product Key. A new window appears. Enter the
product key. This is located on the Certificated of Authenticity (COA),
on the computer’s casing.

3. Acknowledge your entry and follow the instructions on the screen. Notify
your Microsoft consultant, if necessary, that you have an OEM license.

-56-

The BIOS Set-up-Program

In BIOS setup (Basic Configuration) there are a number of configurable parameter
settings available for your notebook. For example, you can change the operating
mode of the interfaces, security features or power management.

Warning!

The notebook is factory pre-set to guarantee optimum operation.
Only modify the parameters if necessary and if you are familiar with
the configuration options.

Running the BIOS Set-up

You can only run the BIOS configuration program at system start-up. If the
notebook has already started, power it down and then up again. Press the F2
function key in order to start the BIOS-SET-UP.

Safety Handling

Components

Aid Appendix

-57-

BullGuard Internet Security

The BullGuard Internet Security Package is a combination of the currently most up­to-date PC security technologies on the market and thus offers you 24-hour
optimum protection.

BullGuard is already installed, so that additional installation will not be necessary. If
you nevertheless have to carry out an installation (e.g. after system restoration),
you will find the software package on the application/support disc supplied with
the machine.

BullGuard Internet Security consists of the following security components:

• Antivirus
The centrepiece of any serious PC security application, the Antivirus
application screens your e-mails, and scans your hard drives for viruses and
malware. The BullGuard Antivirus combines the highest update frequency in
the business with a no-nonsense user-interface.

• Antispyware
BullGuard Antispyware protects your PC from all known kinds of spyware
and adware by searching and cleaning files, registry keys, processes and
cookies, protecting you from identity theft and the loss of personal
information.

• Spamfilter*
The BullGuard Spamfilter will protect you from annoying spam and
potentially costly phishing attempts - a key tool in keeping your Inbox free
from unsolicited mail.

• Backup*
Backing up your files has never been easier with both local and online
backup. Not only can you customise the size of your online backup drive to
suit your needs - once uploaded, you can access these files from any
computer connected to the internet anywhere in the world!

• Support*
BullGuard Support is a key component in all BullGuard products. Assistance
with all security related questions available to all users directly from the
application. No FAQ, no automated response – real people and live help.

*Information

The Antispyware, Spam filter, Backup and Support
components will only be released at the free registration and will be
deactivated after the expiry of 90 days.
Procure a BullGuard subscription through the internet link given
below, in order to be able to continue to use this module.

-58-

The BullGuard Internet Security Package will be updated with the most up-to-date
virus information for 90 days after the free registration.

The registration window will only appear after your notebook has been restarted.
You will register by entering your email address and a password.

The antivirus software will continue to run after the expiry of 90 days, but it will no
longer be updated, so that your notebook will not be protected against new
viruses.

The purchase of various subscriptions through BullGuard is possible in order to
always receive the most up-to-date information and updates.

A subscription will be purchased on the internet and carried out without
complications. An additional release or the entering of a licence is not necessary.
Neither changes nor additional settings will have to be made.

The release will take place automatically after the purchase of a subscription.
Read the information about this on the internet at:

https://www.bullguard.com/buy_new.aspx?

Safety Handling

Components

Aid Appendix

-59-

-60-

Safety Handling Components

Chapter 4

First Aid

Subject Page

FAQ..................................................................................... 63

Data and System Security.................................................... 64

System Recovery .................................................................66

Troubleshooting .................................................................68

Maintenance .......................................................................70

Aid

Appendix

-62-

FAQ – Frequently Asked Questions

Do I still have to install the enclosed discs?

No. Basically all programs are already preinstalled. The discs are
only intended as backup copies.

What is the Windows activation?

Your operating instructions include a chapter about this subject.

When do I have to activate Windows?

Your software has been preactivated in the factory. An activation
will only be required, if ...

... several components are replaced by others.
... your installed a new motherboard.
... a different BIOS version has been installed.
... you install the software to another computer.

How do I perform a data backup?

Make a backup and a retrospective backup of selected data on
external media (CD-R), in order to become familiar with the
technology.

A backup is unusable if you are not in a position to recreate the
data, the medium (CD-R) is defective or is no longer available.

Safety Handling Components

When is the recovery of the factory setting recommended?

This method should be chosen as the last resort. Read chapter
“System Restore” concerning the possible alternatives.

Why is the boot partition missing when booting from the support/
application disc?

The first partition is formatted with the file system NTFS.
Compared to FAT32 this file system offers more security and a
more efficient access. However, NTFS partitions can only be read
from operating systems supporting this. This is not the case in the
aforementioned disc.

-63-

Aid

Appendix

Data and System Security

The programs described below are part of your Windows operating system. You
will find additional information on these programs in the Windows Help file.

Data Security

Back up data regularly on external media such as a CD-R or CD-RW. Windows offers
Backup Status and Configuration.

This program is found in Accessories Ö System Tools within the Start menu. You
should make a backup disk with all your passwords and the operating system’s
original configuration.

Maintenance Programs

You can avoid some hardware and software errors with disk maintenance programs
such as Disk Defragmenter and Disk Cleanup. The program System
Information can also be helpful since it gives you detailed information about your
system configuration. You will find these programs in Accessories Ö System

Tools.

Password Reset Disk

To protect individual user accounts from complications resulting from lost
passwords, users should create a password reset disk and keep it in a safe place. If
the user should forget his/her password, the password can be reset with the
password reset disk so that the user has access again to his/her local user account.

Windows Help describes how to create a password reset disk.

-64-

Windows® Update

Windows Update is the online updating of Windows. Use Windows Update to

download elements such as security updates, important updates, the newest help
files, drivers and Internet products from the Internet. The website is regularly
augmented by new content, so that you can download the newest updates and
error corrections at any time, to protect the notebook and guarantee its
functioning. Windows Update will search through the notebook and provide a list
of individual updates specially for the configuration of your notebook.

Each update that Microsoft regards as important for the operation of the operating
system, programs or hardware components will be classified as an “important
update” and automatically selected for installation for you.

Important updates will be provided to remove known problems and to protect the
notebook against known security risks.

Carry out four simple steps, to download the updates needed and to keep your
computer on the current status of technology:

Safety Handling Components

1. Click on Start

2. Click on  All Programs.

3. Open Windows Update

4. Click on Check for update.

5. Click on Add to select the desired update and to add it to the updates to be
installed, while you are searching through the available updates in each
category. You can also read a complete description of each individual
element by clicking on the Read further Link.

6. Click on Check and install updates, when you have selected all the
desired updates, and then click on Install now.

.

.

Windows Update Information for Data Security

Windows Update needs certain information about the respective notebook, so that
a suitable list with updates can be provided for you. This information will include
the following:

• Version number of the operating system

• Version number of Internet Explorer

• Version numbers of additional software programs

• Plug & Play identification key of the hardware devices

Windows Update will stand up for the protection of your private data and will not
record your name, address, email address or other forms of personal data. The
information collected will only be used during the time that you are visiting the
website. It will also not be stored.

Aid

Appendix

-65-

System Restore

Windows Vista™ provides a useful function (System Restore) enabling the storage
of the so-called Recovery points.

The system remembers the current configuration as a snapshot and returns to this,
if necessary. The advantage is that an unsuccessful installation can be cancelled.

Recovery points are created automatically by the system, but they can also be set
manually.

You can determine and configure yourself the maximum memory taken up by this.
You find this program in the program file under Accessories Ö System Tools.

We recommend setting a recovery point before installing a new software or
driver. If the system does not run stable any longer this enables you usually to
return to a workable configuration without deleting newly created documents. In
the next paragraph read your options for a repair of an incorrect installation.

Correction

Windows Vista™ includes various functions ensuring that the Notebook as well as
the installed applications and devices work correctly.

These functions assist you in solving the problems which might occur by adding,
deleting or replacing files required for the functionality of the operating system, the
applications and devices. The recovery function or functions you use depend on the
type of occurring problem or error. For detailed information refer to the Windows
help.

-66-

System Restore powered by Symantec

If your system is not functioning properly and Windows Vista™ System Restore
did not solve the problem, then you should use the Application Support Disc to
restore your system.

Limits of the Recovery

• Changes made to the original configuration (RAS, Desktop or Internet
settings) and installed Software will be ignored by this Recovery and will not
be reloaded.

• Driver Updates or hardware installed by you will be ignored by this
Recovery.

Warning!

Safety Handling Components

All data on drive C will be erased. If necessary, backup all required
data on drive D. (You must pay attention to the information of pages
4 and 64).

This recovery will reset your system to its condition at delivery. Printer
installations or other additional software must be reinstalled.

Performing the Restore

1. First, please read the entire System Restore section of the Windows Help
file.

2. Insert the Support-Disc and reboot the notebook.

3. Select the option „Boot from CD-ROM “.

4. Follow the instructions on the screen.

The Notebook will restart and will return to the state at delivery.

-67-

Aid

Appendix

Troubleshooting

Localize the Cause

Errors can have simple causes, but sometimes they are caused by faulty equipment.
We would like to give you some tips to help solve common problems. Should
these instructions not lead to success, please feel free to contact us.

Check Cables and Connections

Visibly check all cables and connections. Should all lights be off, check whether all
equipment is supplied with power.

• In battery mode, connect the notebook to the power adapter and ensure
that the battery is charged up.

• If you are operating the notebook with the power adapter, check the
electrical socket, power cord and all switches in the circuit of the electrical
socket.

• Switch off the notebook and check all cable connections. Check the
connections to peripherals. Do not exchange cables, even though they may
look similar. The polarity in the cables may be different. When it is confirmed
that the notebook has power and all connections are correct, turn the
notebook on again.

-68-

Errors And Possible Causes

The screen is black.

• Confirm that the system is not in stand-by mode. Press any key on the
keyboard to test this

The notebook switches itself off during operation.

• The accumulator could be empty. Connect the notebook by means of the
network adapter and charge the accumulator.

The notebook cannot be switched on.

• Operate the notebook by means of the accumulator and check whether it is
correctly inserted and charged.

Incorrect time and date display.

• Double click the time display in the task bar and set the correct values
afterwards.

No data can be read from the optical drive.

• Check whether the disc is correctly inserted.

• Is the drive displayed in Explorer? If yes, test another disc.

The WLAN connection is not functioning.

• Using the quick launch button you can enable or disable the wireless LAN
function.

Safety Handling Components

Additional Support

If the suggestions in the above section have not solved your problem, please
contact customer care and we will attempt to help you solve the problem. Before
you call, however, please have the following information available:

• How is your computer configured?

• What additional peripherals do you use?

• What messages, if any, appear on your screen?

• What software were you using when the error occurred?

• What steps have you already undertaken to solve the problem?

• Have you upgraded or removed drivers or hardware?

• Can you manually repeat the problem?

• If you have been given a customer number previously, please have this

available.

-69-

Aid

Appendix

Driver Support

This notebook has been extensively tested in our laboratories with a large number
of compatible devices. It fulfils all required standards and complies with the
standard “Designed for Windows”, which certifies utmost compatibility. However,
the software drivers for individual components are updated from time to time. This
is a regular process provided by the manufacturer to mend possible compatibility
problems that may occur with components (e.g., programs or hardware) that were
not tested at the time of your notebook’s manufacture.

Maintenance

Warning!

There are no user-serviceable or user-cleanable parts inside the
notebook housing. Never open the notebook housing.

Following these measures can extend the lifetime of your notebook:

• Before cleaning, always remove the power adapter plug and all connecting
cables.

• Only use a damp, lint-free cloth to clean the notebook.

• Do not use any solvents, corrosive or gaseous cleaning agents.

• Do not use CD-ROM cleaning discs or similar products that clean the lens of

the laser to clean your optical drive.

• Dust or grease on the touchpad will impair its sensitivity. Remove dust or
grease on the surface of the Touchpad with a strip of sticky tape.

Care of the TFT Display

• Always close the notebook when not in use. Avoid touching or scratching
the surface of the screen as it is easily damaged.

• Make sure that no water drops are allowed to remain on the screen. Water
can cause permanent discoloration.

• Clean the screen with a dry, soft, lint-free cloth.

• Do not expose the screen to bright sunlight or ultraviolet radiation.

• The notebook and its packaging are recyclable.

-70-

Transporting the Notebook

Please use the following guidelines when transporting the notebook:

• Switch off the notebook. This will prevent damage to the hard disk. When
the notebook is turned off, the hard disk heads are moved into a safe area.

• Wait until the Notebook has reached ambient (room) temperature before
connecting it to the power supply. Drastic variations in temperature and
humidity can create condensation within the Notebook and may cause it to
short-circuit.

• Close the notebook and ensure that the cover locks shut.

• Always use the notebook carrying case. This helps to protect the notebook

from dirt, moisture, jolts and scratches.

• Should you need to ship your notebook, always use the original packaging
and make certain the shipper knows the contents contain fragile electronic
equipment.

• Fully charge your battery and any spare batteries immediately before a long
journey.

• Enquire about the electricity and communication provision at the location
before a journey.

• Acquire the necessary adapter for electricity or communication (modem,
LAN, etc.), if necessary, before starting your journey.

• Put the battery into the packaging separately when despatching the
notebook.

• It is recommended to send the notebook and all magnetic storage media
(floppy disks, external drives) through the x-ray device (the device into
which you put your bags), when you are passing through the baggage
check at airports. Avoid the magnetic detector (the construction, through
which you walk) or the magnetic rod (the manual device of the security
personnel), because they could destroy your data, among other
consequences.

Safety Handling Components

Aid

Appendix

-71-

Recycling and Disposal

Device
At the end of its life, the appliance must not be disposed of in household rubbish.

Enquire about the options for environmentally-friendly disposal

Batteries
Do not dispose of used batteries in the household rubbish! They must be deposited

at a collection point for used batteries.

Packaging
To avoid damage during transport, the Notebook is stored in a packaging.

Packaging is produced mostly from materials which can be disposed of in an
environmentally friendly manner and be professionally recycled.

Should you have any questions concerning the disposal please contact your dealer
or our service.

Batteries and Proper Treatment

Batteries may contain combustible materials. By misuse, this may cause battery
leakage, heat, explosion or ignition, bringing about injury or damage to the
device. Please observe strictly the following matters:

Warning!

There is a lithium battery on the motherboard. Lithium batteries are
hazardous waste and need to be disposed of properly. If necessary,
we will take back your used CMOS lithium battery.

• KEEP CHILDREN AWAY from batteries. If by any chance, the batteries are
swallowed, consult a doctor immediately.

• DO NOT CHARGE batteries (except rechargeable batteries).

• DO NOT FORCIBLY DISCHARGE batteries.

• DO NOT SHORT-CIRCUIT batteries.

• DO NOT HEAT or DISPOSE OFF IN FIRE.

-72-

• DO NOT DISASSEMBLE or DEFORM batteries. Your hands and fingers may be
injured, or the liquid of the battery may get into your eyes or adhere to your
skin. If this happens, rinse with a large quantity of water immediately and
consult a doctor.

• DO NOT expose batteries to strong impact by dropping or throwing the
batteries.

• DO NOT reverse the positive (+) and negative (-) terminals to avoid short-
circuit.

• Do NOT MIX used and new or different types of batteries together.
Your equipment may not operate properly. In addition, the battery
exhausted first may be excessively drained (over-discharged).

• REMOVE PROMPTLY the used batteries from the device.

• REPLACE ALL BATTERIES with new batteries of the same type at the same

time.

• INSULATE THE TERMINAL parts with tape or the like at the storage or
disposal of the batteries.

• DO NOT throw rundown batteries in the domestic refuses! Respect the
environment and throw them in the specific containers for separate
collection. If necessary, turn to your reseller or to our service assistance.
Thank you!

Safety Handling Components

Aid

Appendix

-73-

Upgrades and Repairs

• Only a qualified Service Engineer should perform upgrades and repairs to
your notebook.

• If you do not have the necessary qualifications, go to an appropriate Service
Engineer. Please contact the Service Centre if you are experiencing technical
problems with your notebook.

• Please contact our authorized Service Partners exclusively in the case of a
necessary repair.

Notes for Service Engineers

• Before opening the housing, disconnect the notebook from all power
sources and remove any connecting cables. If the notebook has not been
disconnected from the power outlet before being opened, there is a danger
of severe electric shock. There is also a risk of damage to the components.

• Internal components of the notebook may be damaged by electrostatic
discharge (ESD). Perform system upgrades and changes in an ESD-protected
work area. If no such work area is available, wear an antistatic wrist strap or
touch a highly conductive metal object. Your service centre can repair
damage sustained by inappropriate handling for a fee.

• Use only original spare parts.

Notes on Laser Radiation:

• Laser devices of Laser Class 1 to Laser Class 3b may be used in the notebook.
Where the notebook housing remains closed, the device meets the
requirements of Laser Class 1. By opening the notebook housing you will
gain access to laser devices of up to Laser Class 3b.

• The CD-ROM/CD-RW/DVD/DVD-RW drive contains no user-serviceable
parts. Only the manufacturer should perform repairs to the CD-ROM/CD­RW/DVD/DVD-RW drives.

When removing and/or opening laser devices, the following guidelines must be
observed:

• DO NOT look into the laser beam, even while wearing optical protection.

• DO NOT allow yourself to be exposed to the laser beam. Avoid exposure of

the eyes or skin to direct or stray
radiation.

-74-

Safety Handling Components Aid

Chapter 5

Appendix

Subject Page

Standards............................................................................77

Index................................................................................... 86

Appendix

-76-

Standards

Electromagnetic Compatibility

• When connecting additional components, please observe the Guidelines on
Electromagnetic Compatibility (EMC).
Please note that only shielded cables shorter than
3 meters (9.84 ft) should be used for the LPT, COM, USB, IEEE 1394, audio,
video and network interfaces with this notebook.

• Keep the notebook at least one meter (approximately three feet) away from
high frequency and magnetic interference sources (e.g., televisions,
loudspeaker cabinets, mobile telephones, etc.) in order to avoid
malfunctions and/or loss of data.

ISO 13406-2 Class II

Active matrix LCDs (TFT) with a resolution of 1280 x 800 pixel (WXGA), which are
in turn composed of three sub-pixels each (red, green, blue), contain about 3.1
million addressable transistors. Because of this very high number of transistors and
their extremely complex production process occasionally defective or incorrectly
addressed pixels or sub-pixels may occur.

There have been several attempts in the past to define the acceptable number of
defective pixels. But this can be difficult and varies widely between different
manufacturers.

We, therefore, adhere to the clear and strict requirements of ISO 13406-2,
class II, for the warranty handling of all TFT display products. These requirements
are summarized below.

Within ISO-standard 13406-2 the general requirements regarding pixel defects are
defined. Pixel defects are classified into three failure types and four failure classes.
Each individual pixel is made up of three sub-pixels in the primary colours (red,
green, blue).

Safety Handling Components Aid

Appendix

-77-

Pixel structure

Rows

Blue
Green
Red

Types of Pixel Failures:

• Type 1:
A constantly lit pixel (a bright, white spot), even though it is not addressed.
A white pixel is caused when all three sub-pixel are lit.

• Type 2:
A pixel that does not light up (dark, black spot), although it is addressed

• Type 3:
Abnormal or defective red, green or blue sub-pixels.
(E.g. constantly lit with half the brightness, one colour is not shining,
blinking or flickering, but not belonging to Type 1 or 2 Pixel Failures)

In addition: A cluster of type 3 (= 2 or more defective sub-pixels in an array of
5 x 5 pixel). A cluster is an array of 5 x 5 pixel (15 x 5 sub-pixel).

ISO 13406-2, Class II

Resolution Type 1 Type 2 Type 3 Cluster

Type 1,

Cluster
Type 3

Type 2

1024 x 768 2 2 4 0 2

1280 x 854 3 3 6 0 3

1280 x 1024 3 3 7 0 3

1400 x 1050 3 3 8 0 3

-78-

Example:

A 17” - SXGA-display consists of 1280 horizontal and 1024 vertical picture dots
(pixel), which amounts to a total of 1,31 million pixels. Based on one million pixels
this translates into a factor of about 1.31.
Class II type failure consequently allows for three defects each of type 1 and type 2
and 7 defects of type 3 and 3 cluster of type 3.

These cases are normally not covered by warranty.
If the number of failures exceeds the figures of any category mentioned above then
this may be covered by the warranty.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced technician for help.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Shielded
interface cables, if any, must be used in order to comply with the emission limits.

Safety Handling Components Aid

Appendix

-79-

Restricted Warranty

I. General Conditions of Warranty

1. General

This warranty covers defects relating to workmanship and manufacture in MEDION
products. The period during which this warranty is valid and during which claims
against the warranty can be made to MEDION must be in accordance with the
following terms in order to be considered eligible:

• Is effective from the date of purchase or receipt of the MEDION product from
an authorised seller of MEDION products; and

• expires at the end of the warranty period specified on the warranty card
provided with the product.

For the warranty to be valid, you must:

• provide suitable evidence of purchase, a copy of the original purchase
receipt from an authorised seller of MEDION products is preferred; or

• register your product within 28 days of purchase either online at

www.MEDION.co.uk

registration card included with the product.

Please keep the original purchase receipt and the warranty card in a safe place.
MEDION and its authorised sellers reserve the right to refuse a repair under
warranty or a warranty confirmation if a proof of purchase [or registration of
purchase] cannot be established, or has not been, submitted.

When it is necessary to return your product for repair please ensure that your
product is suitably packed for transportation.

Provided that your product is still within warranty (please check the duration of the
warranty period as described above) and is eligible for repair or replacement under
the terms of the warranty, to return your product, please telephone MEDION on
the service hotline number. You will be sent a pre-paid transportation box suitable
for returning your product to MEDION. PLEASE MAKE SURE THAT YOU HAVE A
BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT
TO MEDION. MEDION shall bear the costs of postage and packaging for returning
the product and the transportation risk. However, if following examination of the
defective product in question, MEDION, in its reasonable opinion, considers that
the defect has been caused by:

or by completing and returning the pre-paid

-80-

• your operating and/or using the product other than as instructed in the
accompanying documentation;

• damage caused in transit as a result of your negligence in packaging of the
product; and/or

• otherwise than in accordance with the terms of this warranty;

This warranty shall be void and you may be required by MEDION to reimburse
MEDION for the reasonable costs of postage and packaging before MEDION will
return the product to you. If so and you would still like MEDION to repair or replace
the product, MEDION may do so but you will be charged MEDION’s standard rates
for repair and replacement for this service.

Before returning the product, please contact MEDION via the service hotline or via
the internet (www.MEDION.co.uk). You will receive a reference number (RMA No.)
on the warranty card. Please mark the outside of your package to ensure that this
reference number is clearly visible. Please submit a letter containing as much
detailed information as possible and, a full description of the defect or fault.

This should include:

• a description of the fault;

• when it occurred, how long it has been evident and how frequently it

occurs;

• any errors message(s) displayed when using the product;

• a description of the circumstance(s) and conditions in which the fault

occurs; and

• whether it is an intermittent or persistent fault;

This will greatly assist MEDION in identifying the defect, when submitted together
with the defective product.

Unless otherwise instructed by a MEDION representative in all cases, the product
must be returned complete with all parts which were included with the original
product. Incomplete contents of the returned package may lead to a delay in the
repair or replacement. MEDION does not accept any liability for any additionally
submitted material(s) which were not supplied with the original MEDION product.

This warranty does not affect your statutory rights in any way and is subject to the
applicable legal statutes of the country where the product was sold to you by an
authorised MEDION seller.

Safety Handling Components Aid

Appendix

-81-

2. Scope

Subject to any exclusions set out within this warranty, where there is a defect in
your MEDION product covered by this warranty, MEDION will repair or replace the
MEDION product. The decision whether to repair or replace the product will be
made solely at the discretion of MEDION. MEDION may, in its own discretion,
replace the product returned for repair under warranty with a replacement product
that is either identical or, in the event that such product(s) are no longer available, a
product of equal or superior specification and quality.

No warranty is given for batteries or rechargeable batteries or for consumable
materials subject to wear and tear, i.e. for parts which have to be replaced
periodically during the normal use of the product, such as video-projector lamp.

Non critical failures that fall within industry specified tolerances e.g. noise, LCD
pixels are not covered by this warranty. Please consult the appropriate section in
your user or instruction manual for this product for exact specifications and
tolerances.

To the extent which is permitted under law, MEDION will accept no liability for
burnt-in images on plasma or LCD products as a result of normal wear and tear
during the operation of the product. Please refer to your user or instruction manual
for this product for detailed operating instructions for your plasma or LCD product.

The warranty does not cover errors relating to the playback of data media in an
incompatible format or created with unsuitable software.

If it is found during repair or assessment that the defect concerned is not covered
under warranty, MEDION reserves the right to invoice you for all reasonable costs
incurred by MEDION. These costs will be in relation to the return of the product,
including reasonable administration costs, plus reasonable costs for materials used
and labour provided when repairing or replacing the product. This is subject to
MEDION providing you with an estimate for carrying out such work prior to costs
being incurred and that you have accepted the estimate.

You are entitled to seek independent advice or consultation relating to your
product or any of MEDION’s findings. MEDION will not be liable for any costs
incurred to you when doing so.

-82-

3. Exclusion from warranty

To the extent permitted by law, this warranty shall be void in the event that defects
or loss caused by:

a. failure and damage resulting from the operation of the product in an

environment other than that recommended in the accompanying user or
instruction manual (e.g. in direct sunlight or in a damp room);

b. accidental damage;
c. use other than in accordance with the accompanying user or instruction

manual;

d. modifications, conversions, expansions, maintenance and/or repairs made

to the MEDION product by unauthorised repairers or use of unauthorised
third party parts;

e. negligence;
f. virus attack or software errors; or
g. improper transportation or packaging during return of the product.

This warranty will also be considered void if labels or serial numbers of the product
or of a component of the product are modified or made illegible.

To the extent permitted by law, MEDION shall; only be responsible for losses which
are a reasonably foreseeable consequence of the relevant defect in the product;
MEDION will not be responsible for any costs incurred in relation to software
configuration; economic loss; loss of opportunity; loss of income; or loss of data or
software arising out of its repair or replacement of a MEDION product under this
warranty.

Safety Handling Components Aid

4. Service Hotline

Before returning the product to MEDION you must contact us using the service
hotline or via the internet (www.MEDION.co.uk). You will receive further
instructions for making your claim under warranty when you call.

The service hotline is available on 362 days in the year, including Sundays and bank
holidays but excluding Christmas day, New Years Day and Easter day. The service
hotline is subject to [national rate] telephone call charges. These charges are
subject to change. The price of your call will be stated at the beginning of the call.

-83-

Appendix

II. Special warranty conditions for MEDION PC,
notebook, pocket PC (PDA) and navigation
devices (PNA)

The following terms apply to MEDION PC, notebook, desktop, pocket PC and
laptop products and optional items included with such products. If one of these
items has a fault, you also have a warranty claim for its repair or replacement, from
MEDION. The warranty covers the costs of materials and labour for repairing or
replacing the defective MEDION product or the optional item in question.

Hardware connected to your product that was not produced or marketed by
MEDION can invalidate the warranty if MEDION can reasonably demonstrate that
damage to the MEDION product or of the optional item included with the delivery
was caused by such hardware. You are entitled to seek independent advice or
consultation relating to your product or any of MEDION’s findings. MEDION will
not be liable for any costs incurred to you when doing so.

This warranty is restricted in relation to any pre-installed operating system as well
as to application programme software that is included with the MEDION product in
question. This warranty is restricted as follows:

For pre-installed operating system as well as to application programme software
included in the MEDION product, MEDION only guarantees the data media (e.g.
the diskettes and CD-ROMs) upon which this software is delivered and warrants
that such data media shall be free from material and processing defects for a period
of 90 days from the date of purchase of the MEDION product from an authorised
seller of MEDION. MEDION will replace defective data media free of charge.

Any claims in respect of defective pre-installed operating system as well as to
application programme software are hereby expressly excluded and you should
contact the relevant licensor or copyright owner of the defective software in
question. MEDION does not guarantee that any software supplied with MEDION
products will function without interruption, will be free from errors or that it will
fulfil your requirements. MEDION does not guarantee the 100% accuracy of the
maps provided with the Navigation device.

It may be necessary to delete all data in the product in order to repair the MEDION
product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON
THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent
permitted by law, MEDION excludes all liability for loss of data and MEDION
recommends in all cases that you back up all data on your MEDION product before
returning the product to MEDION.

-84-

III. Special warranty conditions for repair on
site or replacement on site

If a claim for repair or replacement on site is included within the terms of the
warranty card provided with the product, the special warranty conditions for repair
or replacement of your MEDION product on site apply.

The following provisions must be made by you for carrying out repairs or
replacements on site:

• MEDION or its authorised personnel must have unrestricted, safe and
immediate access to the products.

• Telecommunication facilities required by MEDION or its authorised
personnel for proper execution of your order, for testing and diagnostic
purposes and for remedying faults are provided by you at your own
expense.

• You are responsible yourself for restoring the application software after the
repair services have been carried out by MEDION or its authorised
personnel.

• You must take all other necessary steps to enable MEDION or its authorised
personnel to carry out your order properly.

• You are responsible yourself for connecting and configuring any existing
external peripheral products after MEDION or its authorised personnel have
carried out their repairs.

• The free cancellation period for repairs or replacements on site is 24 hours,
thereafter our reasonable costs resulting from late or missing cancellation
shall be invoiced at your expense.

Safety Handling Components Aid

Appendix

-85-

Index

A

All programs .................................21

Ambient Temperature .....................5

Audience..........................................i

Autorun ........................................54

B

Batteries and Proper Treatment .....72

Battery operation

Battery Power............................28

Charging...................................27

Checking the Battery Level ........28

Discharging the Battery .............27

Removing..................................26

Battery Power................................28

BIOS Setup-Program .....................57

BIOS Utility

Running ....................................57

BullGuard Internet Security ...........58

C

Cabling ...........................................8

Care of Displays ............................70

CD/DVD-Rewriter..........................39

CD-blanks .....................................39

CD-ROM .......................................37

Charging the Battery .....................27

Checking the Battery Level ............28

Connectors

External Monitor .......................31

Modem .....................................42

Power socket.............................16

Sound card................................40

USB ...........................................48

Control panel................................22

Copyright

©

...................................... ii

Correction.....................................66

D

Data and System Security..............64

Data Entry..................................... 33

Data Security...................................4

Directories.....................................36

Disc-Drive .....................................37

Discharging the battery................. 27

Discs

Loading..................................... 37

Removing Blocked Discs............38

Display.......................................... 30

Opening and Closing the Display

.............................................30

Driver Support ..............................70

Drivers ..........................................36

DVD-Drive..................................... 37

E

Electromagnetic Compatibility ......77

EMC..............................................77

Emergency Ejection of a

Blocked Disc.............................. 38

Express card

Installing ...................................47

Removing..................................47

Express Card/54............................ 47

Extended desktop .........................32

External Monitor ...........................31

F

Factory Settings

Recovery ...................................67

FAQ...............................................63

Fast Ethernet-Network................... 43

FCC Compliance Statement ..........79

Files

Finding......................................35

Finding Files.................................. 35

Frequently asked questions...........63

G

Getting started

Inserting the battery..................19

Getting Started .............................19

-86-

H

Hard drive .....................................35

Hard Drive

Partitions...................................35

Help ..............................................51

I

Icons .............................................22

IEEE 1394 ......................................49

Indicators

Access .......................................17

Battery.......................................17

Capital Lock ..............................17

Num Lock..................................17

Power........................................17

Scroll Lock.................................17

Wireless LAN..............................17

Introduction....................................3

ISO 13406-2 Class II ......................77

K

Kensington-lock ............................50

Keyboard ......................................33

L

Laser radiation...............................74

License agreement ........................20

M

Main components.........................23

IEEE 1394 ..................................49

Multimedia card reader .............46

Main Operation.............................25

Maintenance .................................70

Care of the TFT Display..............70

Transporting the Notebook .......71

Maintenance Programs .................64

Memory cards

Inserting....................................46

Removing..................................46

Memory Stick ................................46

MMC.............................................46

Modem .........................................42

Modem Port..................................42

Mouse...........................................34

Multimedia card reader................. 46

MultiMediaCard............................46

N

Network........................................43

Fast Ethernet-Network...............43

Troubleshooting .......................45

What is a Network? ...................43

Wireless LAN .............................44

O

On/Off Button...............................25

P

Partitions....................................... 35

Password Reset Disk...................... 64

Performing the Restore..................67

Power

Turning off your computer........21

Power Management...................... 29

Power supply.................................. 7

Power Supply ...............................25

Battery Operation......................26

Hibernate Mode ........................29

Main Operation......................... 25

Sleep Mode...............................29

Program bar..................................21

Programs

Location .................................... 36

Q

Quality............................................ ii

Quick launch buttons....................18

R

Recover ......................................... 36

Recovery

Factory Settings.........................67

Recycling and Disposal .................72

Reinigungsmittel...........................70

Removing the Battery.................... 26

Repairs .......................................... 74

Restoring

Limits ........................................67

Running the Bios Setup.................57

Safety Handling Components Aid

Appendix

-87-

S

Safety and maintenance ..................1

Safety Instructions...........................3

Ambient Temperature .................5

Battery Operation......................10

Cabling .......................................8

Data Security...............................4

Modem .......................................9

Power supply ..............................7

Set-Up location............................4

Touch Pad ...................................9

Upgrades and Repairs................74

Screen Resolution..........................30

SD.................................................46

Search ...........................................35

Secure Digital................................46

Securing the Notebook

Startup Password ......................50

Serial Number ..................................i

Service Engineers ..........................74

Set-Up Location...............................4

Sleep Mode...................................29

Software........................................51

Deinstallation ............................55

Installation ................................54
