Mediatrix 3621, 3631, 3632 Installation Manual

Download
Page 1
Discover the Power of 5
Hardware Installation Guide
Mediatrix® 3600 Series
Digital Gateways
Mediatrix 3621 / 3631 / 3632 (E1 PRI)
Product Version 2.0 Document Revision 15
March 2, 2012
Pb
RoHS
COMPLIANT 2002/95/EC
Page 2
Media5 Corporation Hardware Installation Guide
Media5 Corporation 4229 Garlock Street Sherbrooke, Québec, Canada J1L 2C8
Mediatrix® 3600 Series Hardware Installation Guide
© 2012, Media5 Corporation All rights reserved. No part of this publication may be reproduced or used in any form or by any means
– graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of the publisher.
Media5 Corporation reserves the right to revise this publication and make changes at any time and without the obligation to notify any person and/or entity of such revisions and/or changes.
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corporation. Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. All other trademarks and registered trademarks are the property of their respective owners.
Third-Party Software Copyright Information
®
The Mediatrix
3600 Series firmware aggregates some third-party software modules (open source and commercial) that are distributed to you in accordance with their respective licenses. Refer to the Third Party Software Copyright Information addendum available on the Mediatrix Download Portal, which lists the third-party software modules along with any copyright and license information.
Page 3
Hardware Installation Guide

Contents

Preface
About this Manual.............................................................................................................vii
Document Objectives.................................................................................................................................. vii
Intended Audience...................................................................................................................................... vii
Related Documentation............................................................................................................................. viii
Document Structure................................................................................................................................... viii
Document Conventions ...............................................................................................................................ix
Warning Definition................................................... ... .................................................................................................ix
Other Conventions ......................................................................................................................................................ix
SCN vs PSTN..............................................................................................................................................................ix
Standards Supported ............................................................................................................ ......................................ix
Obtaining Documentation.............................................................................................................................x
Media5 Web Site......................................................................................................................................................... x
Media5 Download Portal............................................................................................................................................. x
Documentation Feedback ........................................................................................................................................... x
End User Technical Support.........................................................................................................................x
Chapter 1
Overview ..............................................................................................................................1
Overview.......................................................................................................................................................1
Key Features...............................................................................................................................................................1
Mediatrix 3600 Connectors and Indicators ............... ....................................... ... ... ... ....................................2
Product Serial Number Location .................................................................................................................................2
Front Indicators and Connectors.................................................................................................................................2
Rear Panel ..................................................................................................................................................................3
Port Numbering Convention ..................................... ... ....................................... ... ... .... ................................6
WAN/LAN Slot – Ethernet Connectors........................................................................................................................6
Service Slot 1..............................................................................................................................................................6
Service Slots 2/3 – PRI Connector .............................................................................................................................6
Chapter 2
Installation ...........................................................................................................................7
Planning the Installation................................................................................................................................7
Installation Checklist....................................................................................................................................................7
Site Log.......................................................................................................................................................................8
Network Information....................................................................................................................................................8
Safety Recommendations.............................................................................................................................8
Maintaining Safety with Electricity...............................................................................................................................8
General Safety Practices.............................................................................................................................................9
Preventing Electrostatic Discharge Damage...............................................................................................................9
Required Mounting Tools and Equipment ....................................................................................................9
Unpacking and Inspection ............................................................................................................................9
Location and Mounting Requirements .......................................................................................................10
Location.....................................................................................................................................................................10
Mounting Brackets.....................................................................................................................................................10
Rack-Mounting.......................................................................................................................................................... 11
Mediatrix 3600 – Digital Gateway
iii
Page 4
Contents

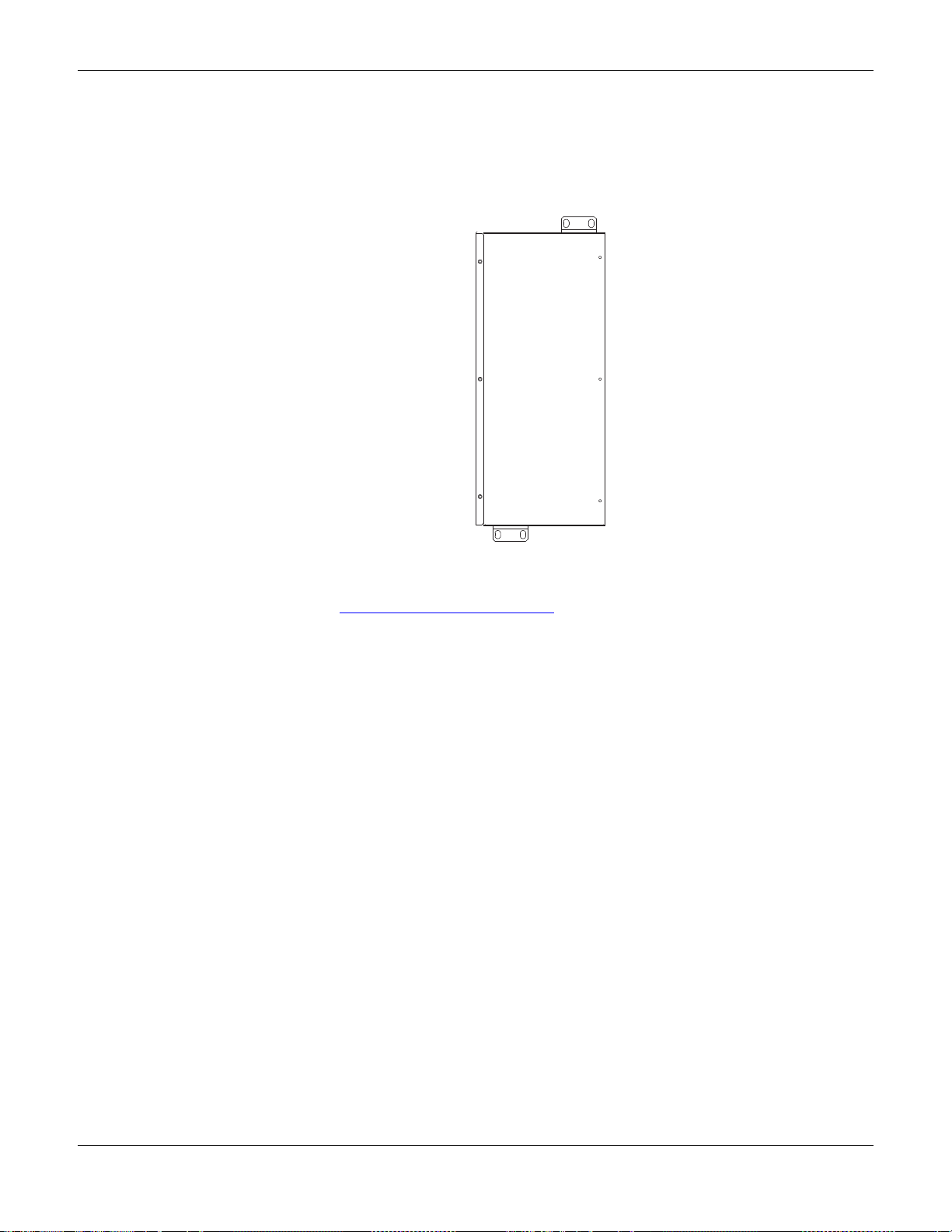

Wall-Mounting ...........................................................................................................................................................12
Free Standing Unit .......................................................... ... .................................... ... ... .............................................13
Condensation ............................................................................................................................................................ 13
Cleaning....................................................................................................................................................................13
Hardware Installation..................................................................................................................................14
Connecting Cables....................................................................................................................................................14
Chapter 3
Powering on the Mediatrix 3600.......................................................................................15
IP Address Discovery or Configuration.......................................................................................................15
Dynamic WAN IPv4 Address Discovery....................................................................................................................15
Default Static WAN IPv4 Address Configuration.......................................................................................................16
IPv6 Link Local Address Configuration .....................................................................................................................17
LAN Interface Access................................................................................................................................................17
Verifying the Installation............................................................................................................................................17
Indicators (LEDs)........................................................................................................................................18
LED Patterns – Specific Conditions ..........................................................................................................................18
LED Patterns – Default Behaviour ......................................................... .. ... .............................................................. 19
RESET/DEFAULT Button...........................................................................................................................20
At Run-Time..............................................................................................................................................................20
At Start-Time.............................................................................................................................................................20
Partial Reset..............................................................................................................................................................20
Factory Reset............................................................................................................................................................21
Management Choices.................................................................................................................................22
Appendix A
Standards Compliance and Safety Information .............................................................23
Standards Supported..................................................................................................................................23
Disclaimers .................................................................................................................................................24
Federal Communications Commission (FCC) Part 15........................... .. .................................................................24
CE Marking................................................................................................................................................................24
RoHS China ..............................................................................................................................................................25
Translated Warning Definition ....................................................................................................................26
Safety Warnings .........................................................................................................................................27
Circuit Breaker (15A) Warning ..................................................................................................................................27
TN Power Warning.................................................................................................................................................... 27
Product Disposal Warning.........................................................................................................................................27
No. 26 AWG Warning................................................................................................................................................27
LAN Connector Warning ...........................................................................................................................................27
Socket Outlet Warning ..............................................................................................................................................27
Advertencias de Seguridad.........................................................................................................................28
Disyuntor (15A) Advertencia .....................................................................................................................................28
TN Potencia Advertencia...........................................................................................................................................28
Eliminación de Productos Advertencia......................................................................................................................28
N º 26 AWG Advertencia........................................................................................................................................... 28
Conector LAN Advertencia........................................................................................................................................28
Enchufe de Salida Advertencia................................................................................................................................. 28
Safety Recommendations...........................................................................................................................29
iv
Mediatrix 3600 – Digital Gateway
Page 5
Hardware Installation Guide
Appendix B
Cabling Considerations....................................................................................................31
Ethernet RJ-45 Cable............................................................... ... .... ... ........................................................31
Straight Through Cable.............................................................................................................................................32
Crossover Cable........................................................................................................................................................33

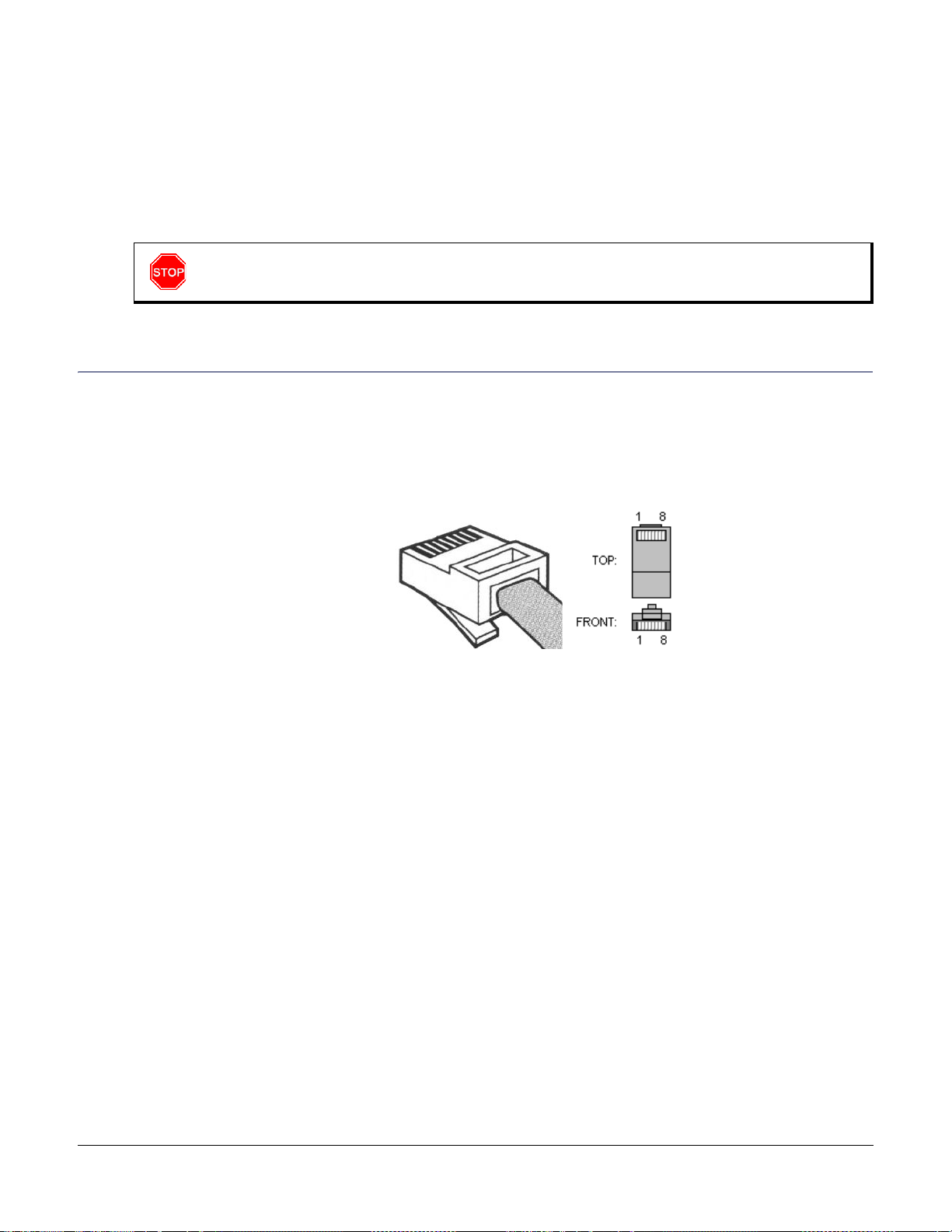

E1 PRI RJ-45 Cable ...................................................................................................................................33

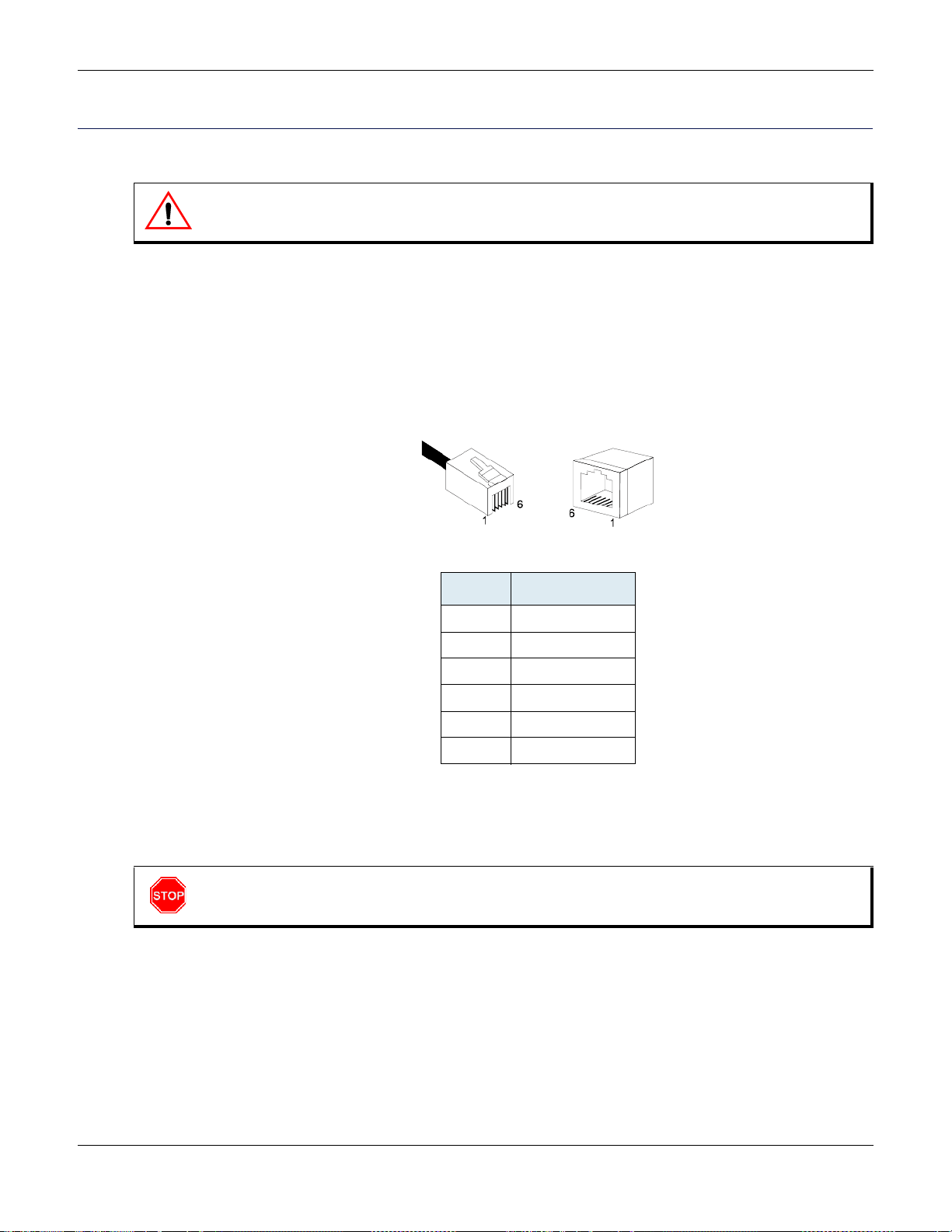

RJ-11 (Telephone) Cable ...........................................................................................................................34
Wiring Conventions...................................................................................................................................................34
Serial Console (RS-232).............................................................................................................................35
DTE or DCE ..............................................................................................................................................................35
Crossover Cable (Null Modem).................................................................................................................................35
Appendix C
Standard Hardware Information.......................................................................................37
Industry Standard Protocols ..................................... ... ... .... ... ... ... ....................................... ... .....................37
Hardware Features.....................................................................................................................................38
Interfaces...................................................................................................................................................................38
Power........................................................................................................................................................................38
Product Architecture Details.......................................................................................................................38
Real Time Fax Router Technical Specifications.........................................................................................39
Audio Specifications ...................................................................................................................................39
DTMF Tone Detection ........................................................................ ... ... ... ...............................................39
DTMF Tone Generation.................. ... .... ... ... ....................................... ... ... ... ...............................................39
Power Consumption ...................................................................................................................................40
MTBF Value.................... ... ... .... ... ....................................... ... ... ... ...............................................................40
Operating Environment................... ... .... ...................................... .... ... ... ... ..................................................40
Dimensions and Weight..............................................................................................................................41
Warranty.....................................................................................................................................................41
Appendix D
Interface Card Installation Instructions...........................................................................43
General Information.................................................. ... ... .... ... ... ... ...............................................................43
Interface Card Installation Instructions .......................................................................................................43
Appendix E
Glossary.............................................................................................................................47
Appendix F
List of Acronyms...............................................................................................................51
Mediatrix 3600 – Digital Gateway
v
Page 6
Contents
vi
Mediatrix 3600 – Digital Gateway
Page 7
P REFACE
P
Thank you for purchasing the Mediatrix 3600 Series from Media5 Corporation. The Mediatrix 3600 Series ISDN VoIP Digital Gateways allow enterprises to lower communications costs over
any IP link. The Mediatrix 3600 units constitute an ideal solution for enterprise voice applications or for connecting to a service provider’s broadband access.

Document Objectives

The Mediatrix 3600 Hardware Installation Guide provides technical information on how to physically install the Mediatrix 3600. It also describes the cabling required for the Mediatrix 3600 device.
The information included in this guide consists of:
Hardware descriptions of the Mediatrix 3600 device Hardware installation instructions Installation scenarios examples LED indications Cabling and pin-out data

About this Manual

Table 1: Mediatrix 3600 Series Models
Model Interfaces VoIP Call Capacity
Mediatrix 3621 1xE1-PRI interface up to 15 Mediatrix 3631 1xE1-PRI interface up to 30 Mediatrix 3632 2xE1-PRI interface up to 60
Note: There are many flavours of the Mediatrix 3600 device. Because of this, some of the information
provided may not apply to your particular Mediatrix 3600 device model.
Please refer to the Dgw v2.0 Software Configuration Guide for software configuration information. Use the Mediatrix 3600 Hardware Installation Guide in conjunction with the appropriate publications listed in
Related Documentation” on page viii.
“

Intended Audience

This guide is intended for the following audiences:
Technical staff who are familiar with electronic circuitry, networking theory and have experience
as an electronic technician.
System administrators with a basic networking background and experience, but who might not
be familiar with the Mediatrix 3600 device.
System administrators who are responsible for installing and configuring networking equipment
and who are familiar with the Mediatrix 3600 device.
Mediatrix 3600 – Digital Gateway
vii
Page 8
Preface - About this Manual Related Documentation

Related Documentation

In addition to this manual, the Mediatrix 3600 document set includes the following:
Dgw v2.0 Software Configuration Guide
Describes how to configure and operate the Mediatrix 3600.
Mediatrix 3600 Installation Guide
This booklet allows you to quickly setup and work with the Mediatrix 3600. The booklet for your specific platform is available at: http://www.media5corp.com/quickstart
Configuration Reference Guide
Lists all the parameters, tables, and commands available in the Mediatrix 3600.
Notification Reference Guide
Lists and describes all syslog messages and notification messages that the Mediatrix 3600 may send.
Third Party Software Copyright Information
This document lists the third-party software modules used in the Mediatrix 3600 along with any copyright and license information. This document is available at: http://www.media5corp.com/
repository/common%20manuals/Third-Party_Software_Copyright_Information_Mediatrix.pdf.
Be sure to read any readme files, technical bulletins, or additional release notes for important information.

Document Structure

The Mediatrix 3600 Hardware Installation Guide contains the following information.
“Chapter 1 ­“Chapter 2 -
“Chapter 3 ­page 15
“Appendix A ­Information” on page 23
“Appendix B ­page 31
“Appendix C ­on page 37
“Appendix D ­Instructions” on page 43
Overview” on page 1 Provides a brief description of the Mediatrix 3600. Installation” on page 7 Contains instructions for installing the Mediatrix 3600
Powering on the Mediatrix 3600” on
Standards Compliance and Safety
Cabling Considerations” on
Standard Hardware Information”
Interface Card Installation
Table 2: Mediatrix 3600 Hardware Installation Guide Chapter/Appendices
Title Summary
and connecting the cables. Leads you through the basic steps to start the
Mediatrix 3600. Lists the various standards compliance of the
Mediatrix 3600. Describes the pin-to-pin connections for cables used
with the Mediatrix 3600. Lists the technical hardware information of the
Mediatrix 3600. Describes how to install interface cards in a Mediatrix
3600 unit.
viii
Mediatrix 3600 – Digital Gateway
Page 9
Document Conventions Hardware Installation Guide

Document Conventions

The following information provides an explanation of the symbols that appear on the Mediatrix 3600 and in the documentation for the product.

Warning Definition

Warning: Means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, you must be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
Where to find Translated Warning Definition
For safety and warning information, see “Appendix A - Standards Compliance and Safety Information” on
page 23.
This Appendix describes the international agency compliance and safety information for the Mediatrix 3600. It also includes a translation of the safety warning listed in the previous section.

Other Conventions

The following are other conventions you will encounter in this manual.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury and/or damage to the equipment or property.
Note: Indicates important information about the current topic.
Standards Supported Indicates which RFC, Draft or other standard document is supported for a

SCN vs PSTN

In Media5’ and other vendor’s documentation, the terms SCN and PSTN are used. A SCN (Switched Circuit Network) is a general term to designate a communication network in which any user may be connected to any other user through the use of message, circuit, or packet switching and control devices. The Public Switched Telephone Network (PSTN) or a Private Branch eXchange (PBX) are examples of SCNs.

Standards Supported

When available, this document lists the standards onto which features are based. These standards may be RFCs (Request for Comments), Internet-Drafts, or other standards.
The Mediatrix 3600’s implementations are based on the standards, so it’s possible that some behaviour differs from the official standards.
For more information on and a list of RFCs and Internet-Drafts, refer to the IETF web site at http://www.ietf.org
specific feature.
.
Mediatrix 3600 – Digital Gateway
ix
Page 10
Preface - About this Manual Obtaining Documentation

Obtaining Documentation

These sections explain how to obtain documentation from Media5.

Media5 Web Site

Media5 offers the latest version of its products’ documentation on its web site. You will thus be able to access and download the most current Media5 documentation. Follow this link: http://www.media5corp.com/en/
documentation.
Note: This site does not contain any firmware versions.

Media5 Download Portal

Media5 offers online documentation via a self register web-portal. You will thus be able to access and download the most current Media5 documentation. Follow this link to register: http://www.media5corp.com/en/
support-portal.
Note: This site does not contain any firmware versions.

Documentation Feedback

Media5 welcomes your evaluation of this manual and any suggestions you may have. These help us to improve the quality and usefulness of our publications.
Please send your comments to:
Media5 Corporation Attention: Documentation Department 4229, Garlock Street Sherbrooke, Quebec Canada J1L 2C8 Fax: +1 (819) 829-5100
We appreciate your comments.

End User Technical Support

In order to maximize technical support resources, Media5 works through its partners to resolve technical support issues. All end users requiring technical support are encouraged to contact their vendor directly.
x
Mediatrix 3600 – Digital Gateway
Page 11
C HAPTER
1

Overview

Overview

This chapter describes the Mediatrix 3600 connectors and indicators.
Provider-specific profiles ensure that the Mediatrix 3600 is a genuine plug and play solution. It offers a low total cost of ownership as it reduces installation and maintenance costs. Moreover, the Mediatrix 3600 integrates features such as TLS, SRTP, and HTTPS designed to bring enhanced security for network management, SIP signalling and media transmission aspects.
The Mediatrix 3600 series ISDN VoIP Digital Gateways allow enterprises to lower communications costs over any IP link. Designed specifically for enterprise applications, the Mediatrix 3600 digital gateways make use of existing broadband access equipment to connect to any standards-based VoIP network.
The Mediatrix 3600 digital gateways meet the requirements of enterprises that want to connect their ISDN equipment, such as PBXs, through a PRI (Primary Rate Interface) interface to an IP network or as a gateway to the PSTN.
Mediatrix 3600 digital gateways provide transparent ISDN port extensions over an IP network. The remote ISDN terminals can be managed centrally and benefit from PBX services such as calling groups and voice mail.
The following are the Mediatrix 3600 models currently available:
Table 3: Mediatrix 3600 Models

Key Features

Model Interfaces VoIP Calls Capacity Service Slot Used
Mediatrix 3621 1xE1-PRI interface up to 15 Slot 2 Mediatrix 3631 1xE1-PRI interface up to 30 Slot 2 Mediatrix 3632 2xE1-PRI interface up to 60 Slots 2 and 3
Up to 60 simultaneous calls
  ISDN BRI and T1/E1 PRI interface ports R2 CAS E1 interface ports HTTP, SNMP, FTP and TFTP for configuration and management True Plug-and-Play Automatic configuration script download Call Routing service Secure SIP signalling Secure Media transmission SNMPv3 and web management DHCP Client PPPoE Client T.38 support Command Line Interface (CLI) SSL/TLS Encryption
Mediatrix 3600 – Digital Gateway
1
Page 12
Chapter 1 - Overview Mediatrix 3600 Connectors and Indicators
13
14
1 2 3 4 12115 9 1076 8
Currently
Unused

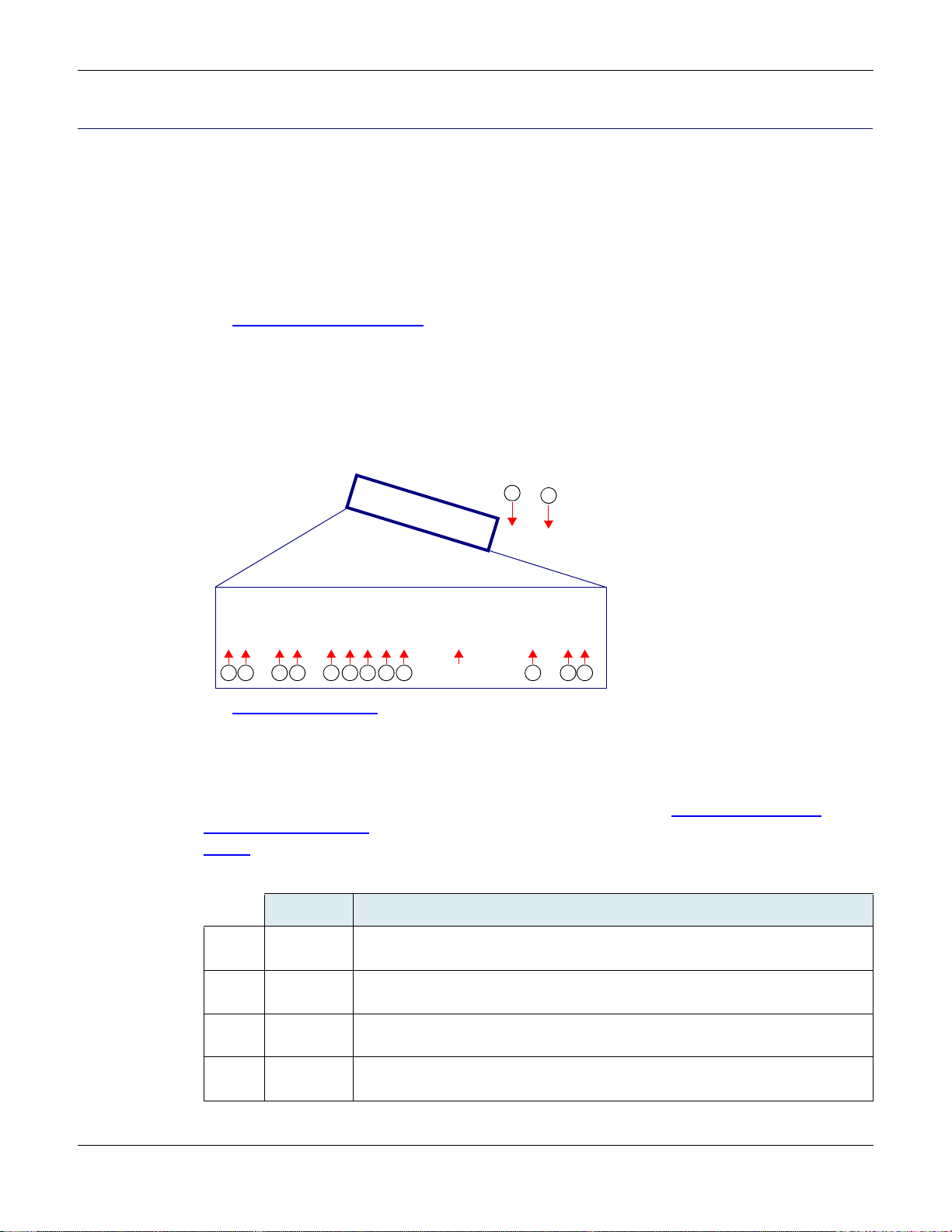

Mediatrix 3600 Connectors and Indicators

This section provides an overview of the front and rear panels of the Mediatrix 3600. The rear panel differs depending on the Mediatrix 3600 model you have.

Product Serial Number Location

The serial number label for the Mediatrix 3600 device is located on the bottom of the unit.

Front Indicators and Connectors

See “Indicators (LEDs)” on page 18 for a description of the LED patterns the Mediatrix 3600 may have and the states they represent.
Figure 1: Front Panel Indicators
See “Rear Panel” on page 3 for a description of the Mediatrix 3600 Service Slot sections for your specific model.
Front LEDs
All indicators (LEDs) located on the front panel are also duplicated on the rear of the Mediatrix 3600, which allows you to rack-mount the unit with the front or rear facing forwards. See “Location and Mounting
Requirements” on page 10 for more details. Table 4
describes the LEDs on the front panel of the Mediatrix 3600.
Table 4: Front Panel LEDs
LED Description
1. IN USE When lit, at least one of the channels of the E1/T1 connector in Service Slot 3 is in
use.
2. ERROR/ TROUBLE
3. IN USE When lit. at least one of the channels of the E1/T1 connector in Service Slot 2 is in
4. ERROR/
2
TROUBLE
This LED is not currently used on the Mediatrix 3600.
use. This LED is not currently used on the Mediatrix 3600.
Mediatrix 3600 – Digital Gateway
Page 13
Mediatrix 3600 Connectors and Indicators Hardware Installation Guide
Table 4: Front Panel LEDs (Continued)
LED Description
ETH 1-4 Provides the state of the LAN network connected to the ETH 1-4 connectors:
5.
6.
7.
8.
9. ETH 5 Provides the state of the WAN network connected to the ETH 5 connector:
10. WI/FI This LED is not currently used on the Mediatrix 3600.
• Green: The Mediatrix 3600 uses a 10 Mbps connection.
• Yellow: The Mediatrix 3600 uses a 100 Mbps connection.
The LED remains ON to indicate a Link and blinks if traffic passes.
• Green: The Mediatrix 3600 uses a 10 Mbps connection.
• Yellow: The Mediatrix 3600 uses a 100 Mbps connection.
The LED remains ON to indicate a Link and blinks if traffic passes.

Rear Panel

11. ERROR/
ALARM
12. POWER/ UPS
This LED is not currently used on the Mediatrix 3600.
Indicates the status of the power feeding:
• Green: The Mediatrix 3600 is powered by its power supply.
• Yellow: The Mediatrix 3600 is powered by an external UPS.
Front Connectors
Table 5 describes the connectors on the front panel of the Mediatrix 3600.
Table 5: Front Panel Connectors
Connector Description
13. USB USB 2.0 Type A connector.
14. RS-232 RS-232 connector that connects the Mediatrix 3600 with a serial terminal such as
a PC or workstation with a RS-232 interface. You must use a cross-over or null­modem cable.
The following are the rear connectors and indicators of the Mediatrix 3621 / 3631 / 3632 models.
Rear Connectors
Standards Supported • ETSI 300 753: Acoustic Noise
The Mediatrix 3600 has four main sections on its rear panel. These sections may or may not be available depending on your Mediatrix 3600 model:
WAN/LAN Slot: Contains the Ethernet connectors and their associated LEDs. Service Slot 1: Currently unused. Service Slot 2: Contains 1 E1/T1 connector. Service Slot 3: Contains 1 E1/T1 connector (available only on the Mediatrix 3532 and Mediatrix
Mediatrix 3600 – Digital Gateway
3632).
3
Page 14
Chapter 1 - Overview Mediatrix 3600 Connectors and Indicators
Slot 3
Slot 2
Slot 1
WAN/LAN Slot
1
2
3
5
6
4
7
8

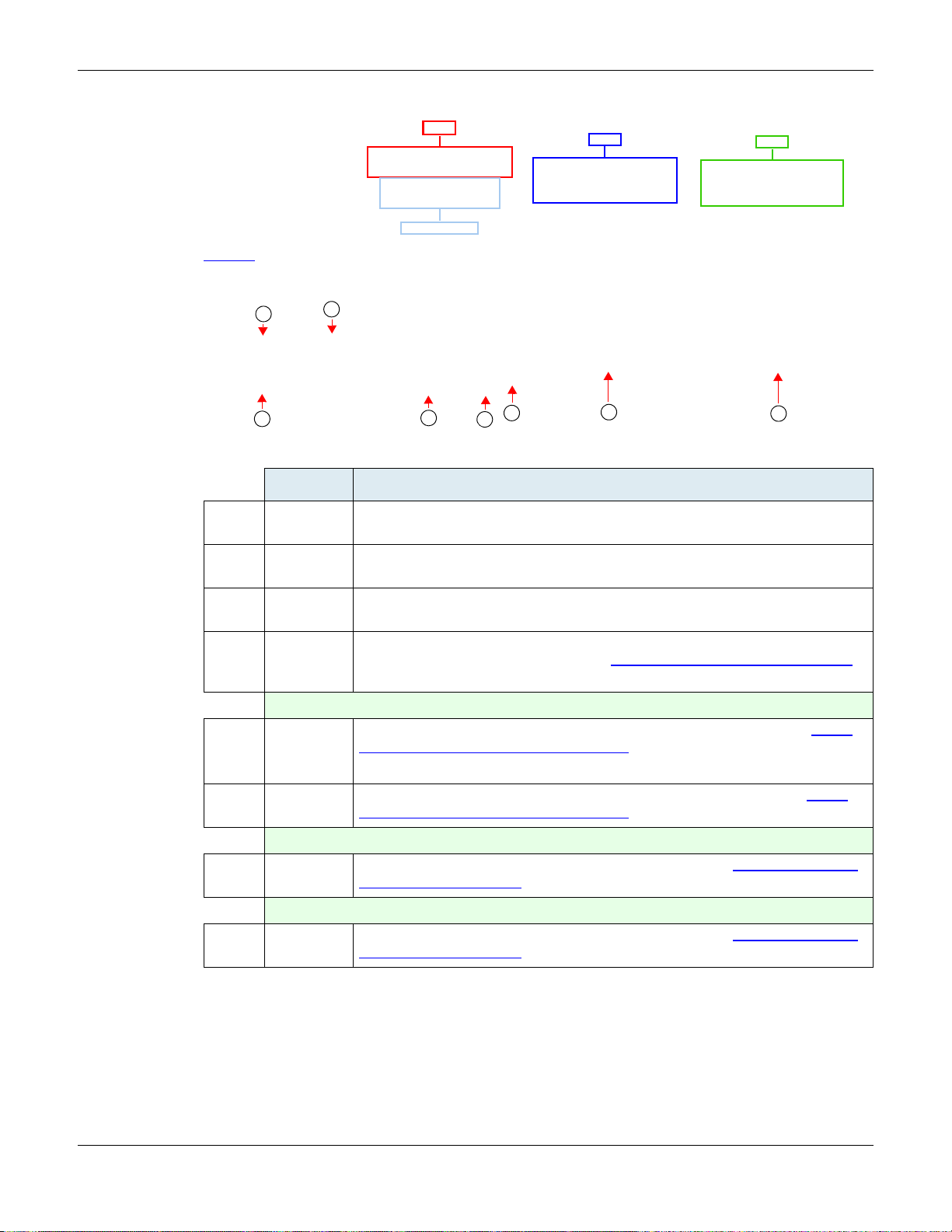

Figure 2: PRI Models Slot Sections
Figure 3
shows the rear panel of the Mediatrix 3600.
Figure 3: PRI Models Rear Panel Connectors
Table 6: PRI Models Rear Panel Connectors
Connector Description
1. On/Off
Turns the Mediatrix 3600 on or off.
Switch
2. Power
Standard universal input (100-240 VAC; 50-60 Hz; 2A) power supply.
connector
3. Fan V ariable speed fan. The noise level complies with the ETSI 300 753 standard
(63 dB for office, 75 dB for telecom environment).
4. Reset Default button
Resets configuration parameters of the Mediatrix 3600 to default (known) values. It can be used to reconfigure the unit. See “
RESET/DEFAULT Button” on page 20
for more details.
WAN/LAN Slot
5. ETH 1-4 Four 10/100 BaseT Ethernet RJ-45 co nnectors for access to a LAN. See “
LAN Slot – Ethernet Connectors” on page 6 for more details.
Note: These connectors are only used to contact the unit on the LAN side.
6. ETH 5 One 10/100 BaseT Ethernet RJ-45 connector for access to a WAN. See “WAN/
LAN Slot – Ethernet Connectors” on page 6 for more details.
Service Slot 2
7. E1 / T1 One RJ-45 connector offering E1/T1 ISDN connectivity. See “
Service Slots 2/3 –
PRI Connector” on page 6 for more details.
Service Slot 3
8. E1 / T1 One RJ-45 connector offering E1/T1 ISDN connectivity. See “
Service Slots 2/3 –
PRI Connector” on page 6 for more details.
WAN/
4
Mediatrix 3600 – Digital Gateway
Page 15
Mediatrix 3600 Connectors and Indicators Hardware Installation Guide
3
1
2
4
9
5
10
678
11
10 Mbps Connection
100 Mbps Connection
Rear Indicators
All LEDs located on the front panel are also duplicated on the rear of the Mediatrix 3600, which allows you to rack-mount the unit with the front or rear facing forwards. See “
page 10 for more details.
Figure 4: PRI Models Rear Panel Indicators
Table 7: PRI Models Rear Panel LEDs
LED Description
Location and Mounting Requirements” on
1. POWER/ UPS
Indicates the status of the power feeding:
• Green: The Mediatrix 3600 is powered by its power supply.
• Yellow: The Mediatrix 3600 is powered by an external UPS.
2. LAN T wo indicators directly incorporated into each LAN connector that provide the state
of the LAN network connected to it:
• Green LED: The Mediatrix 3600 uses a 10 Mbps connection.
• Yellow LED: The Mediatrix 3600 uses a 100 Mbps connection.
The LEDs remain ON to indicate a Link and blink if traffic passes.
3. WAN Provides the state of the WAN network connected to the ETH 5 connector:
• Green: The Mediatrix 3600 uses a 10 Mbps connection.
• Yellow: The Mediatrix 3600 uses a 100 Mbps connection.
The LED remains ON to indicate a Link and blinks if traffic passes.
4. ERROR/
This LED is not currently used on the Mediatrix 3600.
ALARM
5. Wi-Fi This LED is not currently used on the Mediatrix 3600.
6. IN USE When lit, at least one of the channels of the E1/T1 connector of Service Slot 2 is in
use.
7. ERROR/
This LED is not currently used on the Mediatrix 3600.
TROUBLE
8. LINK Indicates the state of the ISDN network connected to this connector:
• Yellow LED: The connection has a Loss of Signal (LOS).
• Green LED: The connection works properly.
9. IN USE When lit, at least one of the channels of the E1/T1 connector of Service Slot 3 is in
use.
10. ERROR/
This LED is not currently used on the Mediatrix 3600.
TROUBLE
Mediatrix 3600 – Digital Gateway
5
Page 16
Chapter 1 - Overview Port Numbering Convention
LAN
Connector
#1
LAN
Connector
#3
LAN
Connector
#2
LAN
Connector
#4
WAN
Connector
Table 7: PRI Models Rear Panel LEDs (Continued)
LED Description
11. LINK Indicates the state of the ISDN network connected to this connector:
• Yellow LED: The connection has a Loss of Signal (LOS).
• Green LED: The connection works properly.

Port Numbering Convention

The following describes the port numbering conventions of the Slot sections.
WAN/LAN Slot – Ethernet Connectors
Standards Supported • IEEE 802.3: LAN/MAN CSMA/CD Access Method
• EIA/TIA 568-A: Commercial Building Wiring Standard
The following describes the port numbering conventions of the Ethernet connectors.
Figure 5: Ethernet Connectors Port Numbering Conventions
Note: The LAN connectors are used to contact the unit on the LAN side. They can also be used as a SIP
gateway to be bound on the LAN. However, there is no routing between the LAN and the uplink interface.

Service Slot 1

This slot is currently unused.
Service Slots 2/3 – PRI Connector
Standards Supported • EIA/TIA-464-B: Requirements for Private Branch Exchange
Note: Service Slot 3 is available only on the Mediatrix 3632 model.
Each slot has only one PRI connector. This connector has software configurable pin outs, and can be set in either Network or User mode.
User mode: The connector emulates the subscriber (terminal) side of the digital connection.
You can connect the SCN to the connector.
Network mode: The connector emulates the central office (network) side of the digital
Refer to the Software Configuration Guide for more details. Also refer to “ information on the proper cabling.
connection. You can connect a PBX to the connector.
(PBX) Switching Equipment
E1 PRI RJ-45 Cable” on page 33 for
6
Mediatrix 3600 – Digital Gateway
Page 17
C HAPTER
2
This chapter describes the installation of the Mediatrix 3600.

Planning the Installation

Before installing the Mediatrix 3600, you should complete the following tasks:
Create a network diagram (see section “Network Diagram” on page 8). Gather IP-related information (see section “IP-Related Information” on page 8 for more
information).
Install the hardware and software needed to configure the Mediatrix 3600 (see section
“Network Information” on page 8).

Installation Checklist

The installation checklist lists the tasks for installing the Mediatrix 3600. Print a copy of this checklist and mark the entries as you complete each task. Include the completed checklist in your site log.
Mediatrix 3600 name/serial number _________________________________________________________

Installation

Figure 6: Installation Checklist
Task Verified By Date
Network information available & recorded in site log Environmental specifications verified Site power voltages verified Installation site pre-power check completed Required tools available Additional equipment available Mediatrix 3600 received Quick start guide received Regulatory compliance and safety information received Warranty card received Software version verified Rack, desktop, or wall mounting of chassis completed Initial electrical connections established ASCII terminal attached to console port Cable length limits verified Initial configuration performed Initial operation verified
Mediatrix 3600 – Digital Gateway
7
Page 18
Chapter 2 - Installation Safety Recommendations

Site Log

Media5 recommends that you maintain a site log to record all actions relevant to the Mediatrix 3600, such as:
Installation: Print a copy of the installation checklist and insert it into the site log. Upgrades and maintenance: Use the site log to record ongoing maintenance and expansion
history. Update the site log to reflect the following:
• Configuration changes
• Maintenance schedules, requirements, and procedures performed
• Comments, notes, and problems
• Software changes and updates to firmware

Network Information

When planning the installation of the Mediatrix 3600, you should consider the following network information.
Network Diagram
It is always good practice to draw a network overview diagram that displays all neighbouring IP nodes, serial connected elements, and other components. It is recommended that you keep a copy in the site log (see “Site
Log” on page 8 for more information on keeping a site log).
IP-Related Information
Before you can install the Mediatrix 3600, you need to have the following information:
IP addresses used for Ethernet LAN and WAN connectors Subnet mask used for Ethernet LAN and WAN connectors IP addresses of the central SIP server IP addresses of the central server used for configuration upload and download
Power Source
If you suspect that your AC power is not reliable, for example if room lights flicker often or there is machinery with large motors nearby, have a qualified professional test the power. Install a power conditioner if necessary.

Safety Recommendations

The following are safety recommendations and best practices to follow when working with the Mediatrix 3600.

Maintaining Safety with Electricity

Warning: Do not work on the Mediatrix 3600, connect or disconnect cables during periods of lightning
activity.
Warning: Disconnect all power before servicing the Mediatrix 3600.
Warning: Hazardous network voltages might be present in WAN, LAN, and telephone networks
connectors regardless of whether power to the device is OFF or ON. Use caution when working near these connectors to avoid electric shock. When detaching cables, detach the end away from the Mediatrix 3600 first.
8
Mediatrix 3600 – Digital Gateway
Page 19
Required Mounting Tools and Equipment Hardware Installation Guide

General Safety Practices

Follow these guidelines to ensure personal safety and protect the equipment:
Keep the Mediatrix 3600 clear and dust-free during and after installation. Locate the emergency power-off switch for the room in which you are working. Then, if an
electrical accident occurs, you can act quickly to turn off the power.
Disconnect all power before installing the Mediatrix 3600. Do not work alone if potentially hazardous conditions exist. Never assume that power is disconnected from a circuit. Always check. Do not perform any action that creates a potential hazard to people or makes equipment
unsafe.
Warning: This equipment must be installed and maintained by service personnel. Incorrectly connecting
this equipment to a general-purpose outlet could be hazardous. The telecommunications lines must be disconnected before unplugging the main power connector.

Preventing Electrostatic Discharge Damage

Always follow electrostatic discharge (ESD) prevention procedures when installing or working around the Mediatrix 3600.
Ensure that the Mediatrix 3600 chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip
to earth ground to channel unwanted ESD voltages to ground safely. If no ESD wrist strap is available, ground yourself by touching the metal part of the chassis.

Required Mounting Tools and Equipment

You will need the following tools and parts to properly install the Mediatrix 3600:
Screwdriver as required for attaching brackets to rack or wall. Philips screwdriver for attaching brackets to the Mediatrix 3600. Screws and anchors for wall-mounting, if required.
• Four wood screws or other fasteners, for installing the chassis on a wall.
ESD-preventive wrist strap.
In addition, you might need the following external equipment:
Modem for remote access. RJ-45 cables for the WAN and LAN connections.

Unpacking and Inspection

If you haven’t already done so, unpack the Mediatrix 3600 device. Carefully remove it from the package and packing material. The Mediatrix 3600 package contains the following items:
1 x Mediatrix 3600 unit 1 x power cord for the country in which you are using the Mediatrix 3600 1 x wall/rack mounting kit 1 x Bumpon 3 x 10/100 BaseT Ethernet RJ-45 cables (Mediatrix 3621/3631) 5 x 10/100 BaseT Ethernet RJ-45 cables (Mediatrix 3632) 1 x Printed Flyer
TM
kit for desktop use
Mediatrix 3600 – Digital Gateway
9
Page 20
Chapter 2 - Installation Location and Mounting Requirements
You may also need additional 10/100 BaseT Ethernet RJ-45 cables.

Location and Mounting Requirements

Warning: To prevent fire or shock hazard do not expose the unit to rain or moisture.
The Mediatrix 3600 is suitable for use in an office environment where it can be placed in the same room or cabinet where the PBX/telephony equipment is located. The unit can be wall-mounted, mounted on a standard
48.26 cm (19 in.) equipment rack, or free standing. In addition, the Mediatrix 3600 can be rack-mounted in a wiring closet or equipment room.

Location

Install the Mediatrix 3600 in a well-ventilated location where it will not be exposed to high temperature or humidity. Do not install the Mediatrix 3600 in a location exposed to direct sunlight or near stoves or radiators. Excessive heat could damage the internal components.
When deciding where to position the Mediatrix 3600, ensure that:
The Mediatrix 3600 is accessible for future upgrade, maintenance and troubleshoo ting, and
cables can be easily connected.
The cabling is away from the following:
• Sources of electrical noise such as radios, transmitters, and broadband amplifiers.
• Power lines and fluorescent lighting fixtures.
• Water or moisture that could enter the casing of the Mediatrix 3600.
The fan on the Mediatrix 3600 is not blocked or that the rear of the unit is not too close to the
wall. The unit requires a minimum of 25 mm (1 in.) clearance.
The operating temperature is between 0 The humidity is not over 85% and is non-condensing.
o
C and 40oC.

Mounting Brackets

10
Wiring Requirements
Make sure that the telephone wiring, LAN and WAN cables reach the device and can be dressed in a manner that is safe for the wiring, does not pull or create lateral stress on the connectors on the device, and does not present a trip hazard to personnel working in the vicinity of the equipment. Do not connect any cable or wiring at this time.
The Mediatrix 3600 ships with two brackets for rack-mount installation in a 19-inch rack or wall-mount installation.
Figure 7: Mounting Bracket
Mediatrix 3600 – Digital Gateway
Page 21
Location and Mounting Requirements Hardware Installation Guide
A
B
C
Front Facing Installation Rear Facing Installation

Rack-Mounting

Standards Supported • EIA-310-D
• ETS 300 119
The Mediatrix 3600 fits in most standard 48.26 cm (19 in.) racks. Media5 recommends to use a rack compliant EIA-310-D.
All LEDs located on the front panel are also duplicated on the rear of the Mediatrix 3600, which allows you to rack-mount the unit with the front or the rear facing forwards.
To rack-mount the Mediatrix 3600:
1. Disconnect all of the cables from the Mediatrix 3600, if applicable.
2. Place the Mediatrix 3600 right side up on a hard flat surface, with the front or rear facing toward you
according to the way you want to insert it in the rack.
3. Place one bracket over the mounting holes on the left side of the Mediatrix 3600.
• For a front facing installation, place the bracket at the front of the unit.
• For a rear facing installation, place the bracket at the rear of the unit, inverted.
4. Align the bracket with the screw holes and tab hole as illustrated in Figure 8 Figure 8: Rack-Mounting Installation
.
Table 8
describes the mounting pieces you need to rack-mount the Mediatrix 3600.
Table 8: Mounting Pieces
Item Qty. Description
A 1 Mediatrix 3600 casing B2Bracket C 4 18-8 SS Flat Head Philips Machine Screw 8-32 Thread, 5/16" Length
5. Insert the two screws in the mounting bracket, and then tighten.
Note: Use the screws supplied with the mounting brackets. Damage caused to the unit by using incorrect
screws invalidates your warranty.
6. Repeat steps 3, 4 and 5 for the other side of the Mediatrix 3600.
7. Insert the Mediatrix 3600 into the rack and secure with suitable screws (not provided). Be sure that
the fan is not obstructed. To prevent bodily injury when mounting or servicing the Mediatrix 3600 in a rack, ensure that the
rack remains stable.
Mediatrix 3600 – Digital Gateway
11
Page 22
Chapter 2 - Installation Location and Mounting Requirements
A
C
B
The following guidelines are provided to ensure your safety:
• Mount the Mediatrix 3600 at the bottom of the rack if it is the only unit in the rack.
• When mounting the Mediatrix 3600 in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the Mediatrix 3600 in the rack.
8. Proceed to “Hardware Installation” on page 14.

Wall-Mounting

You can use the mounting brackets to wall-mount a single Mediatrix 3600.
Caution: You can wall-mount the Mediatrix 3600 with either the right or left side facing up; however, the
front and rear panels must be vertical.
To wall-mount the Mediatrix 36 0 0:
1. Disconnect all of the cables from the Mediatrix 3600 before mounting, if applicable.
2. Ensure that the wall you are using is smooth, flat, dry and sturdy. Attach a piece of plywood,
approximately 305 mm x 510 mm x 12 mm (12 inches x 20 inches x 0.5 inches) securely to the wall, if necessary.
3. Place the Mediatrix 3600 right side up on a hard flat surface, with the front facing toward you.
4. Place one bracket over the mounting holes on the left side of the Mediatrix 3600 and align the
bracket with the screw holes and tab hole as illustrated in Figure 9
.
Figure 9: Wall-Mounting Installation
describes the mounting pieces you need to wall-mount the Mediatrix 3600.
Table 8
Table 9: Wall-Mounting Pieces
Item Qty. Description
A 1 Mediatrix 3600 casing B2Bracket
5. Insert the two screws in the mounting bracket, and then tighten.
C 8 18-8 SS Flat Head Philips Machine Screw 8-32 Thread, 5/16" Length
Note: Use the screws supplied with the mounting brackets. Damage caused to the unit by using incorrect
screws invalidates your warranty.
12
Mediatrix 3600 – Digital Gateway
Page 23
Location and Mounting Requirements Hardware Installation Guide
6. Repeat steps 3 to 5 for the bracket on the other side of the Mediatrix 3600.
Media5 recommends to place the second bracket in the opposite corner to the first bracket for increased stability.
7. Position the Mediatrix 3600 against the wall (or plywood) with the front and rear panels vertical. Figure 10: Wall-Mount Installation Example
8. Attach the Mediatrix 3600 to the wall (or plywood) with screws (not provided) to ensure that it is
9. Proceed to “

Free Standing Unit

When installing the Mediatrix 3600 on a desk or table, it should be located at least 20 cm from your monitor, computer casing or other peripherals, including speakers. Never put books or paper on the Mediatrix 3600.
You must also apply the BumponTM authoadhesive protective products to the bottom of the Mediatrix 3600. These will stabilize the Mediatrix 3600 and offer skidding resistance.

Condensation

When bringing the unit into a warm environment from the cold, condensation may result that might be harmful to the unit. If this occurs, allow the unit to acclimatize for an hour before powering it on.

Cleaning

To clean the Mediatrix 3600, wipe with a soft dry cloth. Do not use volatile liquids such as benzine and thinner that are harmful to the unit casing.
For resistant markings, wet a cloth with a mild detergent, wring well and then wipe off. Use a dry cloth to dry the surface.
secure.
Hardware Installation” on page 14.
Mediatrix 3600 – Digital Gateway
13
Page 24
Chapter 2 - Installation Hardware Installation
Slot 3
Slot 2
Slot 1
Basic Slot
2
3
4
4
5

Hardware Installation

This section describes how to set the connectors of the Mediatrix 3600.
Caution: The Mediatrix 3600 must be installed on a circuit equipped with a breaker so that you can easily
power the unit off if required.
Warning: To avoid electrical shock, apply the following instructions:
• The device must be installed by technical personnel.
• Be sure the ground path is connected.
See “Appendix B - Cabling Considerations” on page 31 for more details on the cables the Mediatrix 3600 uses.

Connecting Cables

The following describes how to connect the various cables to the Mediatrix 3600.

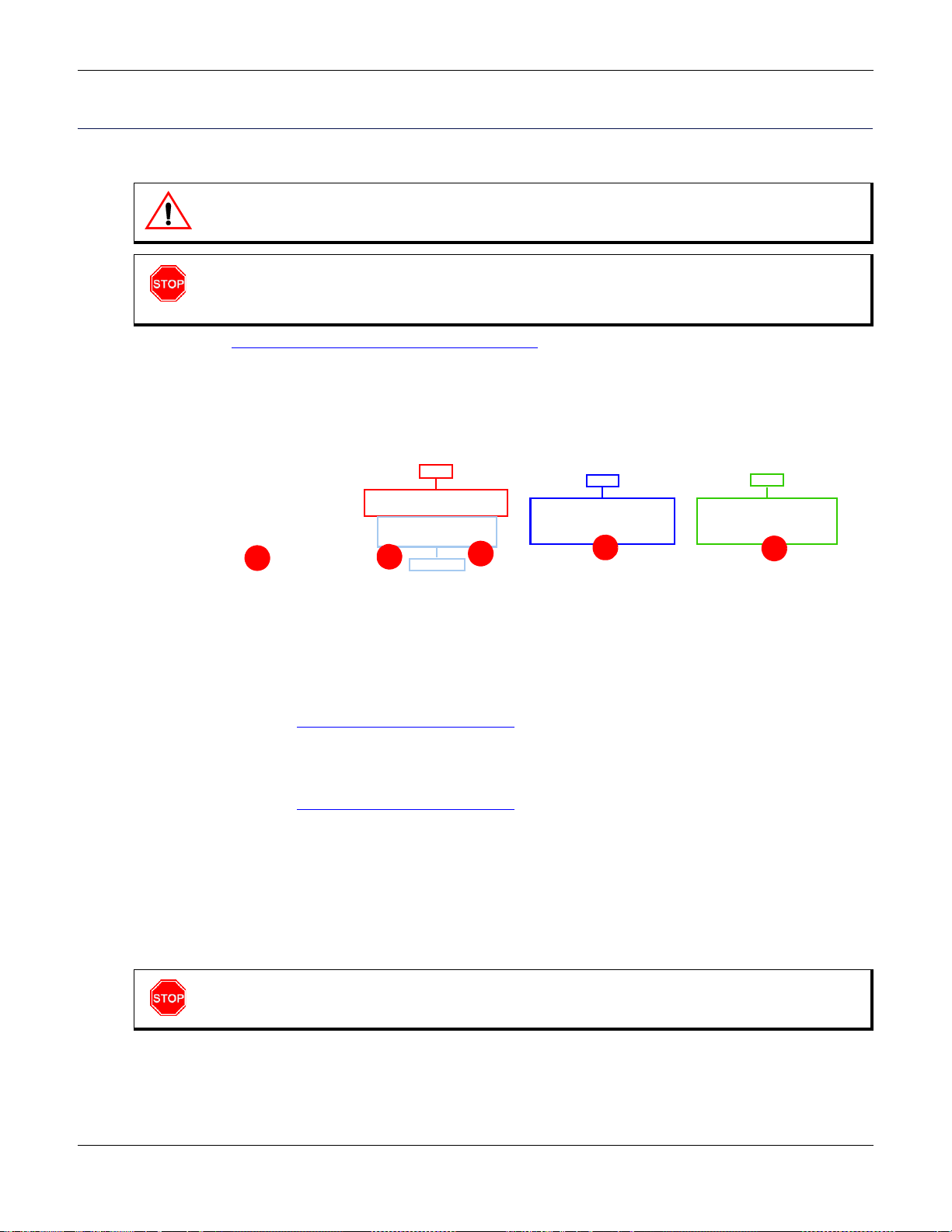

Figure 11: Hardware Installation
To install the cables:
1. Before you begin, be sure that the Mediatrix 3600 is powered off.
2. Create a WAN connection by connecting a 10/100 BaseT Ethernet RJ-45 cable into the ETH5
connector of the Mediatrix 3600. The other end of the cable is connected to the WAN via a modem or other means.
Ethernet RJ-45 Cable” on page 31 for more details on this cable.
See “
3. If you want to contact the unit via its LAN side, connect a 10/100 BaseT Ethernet RJ-45 cable into
either the ETH1, ETH2, ETH3, or ETH4 connectors of the Mediatrix 3600. Connect the other end to a computer.
See “
Ethernet RJ-45 Cable” on page 31 for more details on this cable.
4. Create an ISDN connection by connecting an E1 RJ-45 cable into any of the two E1 / T1 connectors
of Slot 2/3 sections of the Mediatrix 3600 (Slot 3 is available on the Mediatrix 3632 model).
• If you are using the Mediatrix 3600 with a PBX, connect the other end of the cable to the PBX.
• If you are using the Mediatrix 3600 with the PSTN, connect the other end of the cable to a proper PSTN outlet.
5. Connect the power cord to the Mediatrix 3600 and then connect the other end to an electrical outlet.
Warning: The electrical outlet must be installed near the Mediatrix 3600 so that it is easily accessible.
You are now ready to start the Mediatrix 3600.
14
Mediatrix 3600 – Digital Gateway
Page 25
C HAPTER
3

Powering on the Mediatrix 3600

This chapter describes the initial provisioning of the Mediatrix 3600.

IP Address Discovery or Configuration

This section describes how to contact the Mediatrix 3600's management interface to start with unit configuration.
Note that the Mediatrix 3600 IPv6 interface is disabled by default. Once the physical connection is complete and the Mediatrix 3600 is powered up, you must first find out the IP
address the Mediatrix 3600 is using. The Mediatrix 3600' s WAN IP address can be set either dynamically or statically. The default behaviour of the Mediatrix 3600 is to try to obtain a dynamic IP address through a DHCP server.
You can also access the Mediatrix 3600 through its private LAN interface.

Dynamic WAN IPv4 Address Discovery

The default configuration is set so that the unit can be directly plugged into a network and provisioned with a DHCP server. Media5 strongly recommends to set your DHCP server before installing the unit on the network. This way, you know the WAN IP address associated with a particular unit.
Caution: If you set a Mediatrix 3600 with a static eth1-4 IPv4 address in a subnet (for instance,
192.168.200.1) and the eth5 interface receives a dynamic IP address in the same subnet (via a DHCP server or PPP peer), you will not be able to contact the unit via the WAN. You must be careful that a dynamic IP address does not overlap a static IP subnet that is already configured. Note that the current default value of the Mediatrix 3600 is 192.168.0.10.
See the Software Configuration Guide for more details on how to set an external DHCP server.
Caution: If you are experiencing problems, or if you do not want to use a DHCP server and use a static IP
address instead, perform a Partial Reset procedure, as explained in “
DHCP servers generally allocate a range of IP addresses for use on a network and reserve IP addresses for specific devices using a unique identifier for each device. The Mediatrix 3600 unique identifier is its media access control (MAC) address. You can locate the MAC address as follows:
Partial Reset” on page 20.
It is printed on the label located on the bottom side of the unit. It is stored in the System Information page of the web interface.
If you have not reserved a WAN IP address, you can discover which WAN IP address has been assigned to the Mediatrix 3600 by either:
consulting your DHCP server's logs to find out details on the DHCP lease that was given to the
Mediatrix 3600.
using a network packet sniffer (e.g., Wireshark) to examine the DHCP messages exchanged
between the Mediatrix 3600 and your DHCP server while the Mediatrix 3600 boots up.
Mediatrix 3600 – Digital Gateway
15
Page 26
Chapter 3 - Powering on the M ediatrix 3600 IP Address Discovery or Configuration
To start the Mediatrix 3600 with a dynamic IP address:
1. If you need to discover the IP address of the Mediatrix 3600, install and start your network packet sniffer.
2. Power on the Mediatrix 3600 by flipping the power switch. If this is the very first time you are installing the Mediatrix 3600, it will restart twice.
3. Power on the PCs. Your computers do not have to be turned on for the telephone or fax services. You can now access the Mediatrix 3600 web interface. Refer to the Software Configuration Guide
for more details.
Initial Provisioning Sequence
When starting the Mediatrix 3600 for the first time, it needs to be configured before it can support calls. This process is known as provisioning. This sequence assumes that you have installed the Mediatrix 3600 hardware as per “
The Mediatrix 3600 requests its configuration only on the first restart. You can change the configuration at will after the initial provisioning and the provisioning system can refresh the Mediatrix 3600 configuration.
Hardware Installation” on page 14.
Initial provisioning sequence:
1. When the Mediatrix 3600 starts, it broadcasts a message requesting DHCP services (if the unit is configured to start in DHCP mode).
2. The DHCP server responds with a set of WAN IP addresses and network parameters, one of which is the Mediatrix 3600 WAN IP address.
The following are some of the network parameters assigned via DHCP:
• Mediatrix 3600 WAN IP address
• Subnet Mask
• Default Router IP address
• DNS IP addresses
• Configuration script server IP address and port number (optional)
• SIP Servers IP address and port number
3. The Mediatrix 3600 request its configuration by using a configuration file.

Default Static WAN IPv4 Address Configuration

If there is no DHCP server in your network, then the WAN IP address has to be configured statically.
To start the Mediatrix 3600 with a static WAN IP address:
1. Power on the Mediatrix 3600 by flipping the power switch. If this is the very first time you are installing the Mediatrix 3600, it will restart twice.
2. Reconfigure the IP address of your computer to 192.168.0.11 and the Subnet Mask to
255.255.255.0. Restart the computer.
3. Power on the PCs.
Your computers do not have to be turned on for the telephone or fax services.
4. Insert a small, unbent paper clip into the RESET/DEFAULT hole located at the rear of the Mediatrix
3600. The Power LED will start blinking, and after a few seconds, all the LEDS will start blinking. Release
the paper clip after all the LEDs start blinking and before they all stop blinking (between 7-11 seconds).
This procedure is called a partial reset. After a partial reset is performed, the Mediatrix 3600 uses the default WAN IP address 192.168.0.1/24. Refer to “ partial reset procedure.
16
Partial Reset” on page 20 for details on the
Mediatrix 3600 – Digital Gateway
Page 27
IP Address Discovery or Configuration Hardware Installation Guide
The corresponding link-local IPv6 address is also available and printed on the sticker under the Mediatrix 3600.
You can now access the Mediatrix 3600 web interface. Refer to the Software Configuration Guide for more details.

IPv6 Link Local Address Configuration

If there is no DHCPv6 server or IPv6 router in your network, you can use the link local address to contact the unit. Note that the Mediatrix 3600 IPv6 interface is disabled by default.
1. With a 10/100 Hub and two 10/100 BaseT Ethernet RJ-45 straight cables, connect both cables to the Hub; one of them is connected into the ETH5 connector. The other cable links the computer to the Hub.
2. Power on the Mediatrix 3600 by connecting the other end of the power cord to an electrical outlet. The electrical outlet must be installed near the Mediatrix 3600 so that it is easily accessi ble .
3. Insert a small, unbent paper clip into the RESET/DEFAULT hole located at the rear of the Mediatrix
3600. The Power LED will start blinking, and after a few seconds, all the LEDS will start blinking. Release
the paper clip after all the LEDs start blinking and before they all stop blinking (between 7-11 seconds).
This procedure is called a partial reset. After a partial reset is performed, the Mediatrix 3600 enables its link local IPv6 address. Refer to “ procedure.
The corresponding link-local IPv6 address is also available and printed on the sticker under the Mediatrix 3600.
4. Proceed with accessing the Mediatrix 3600’s web interface by using the unit’s link local address. The unit’s link local address is printed on a sticker under the unit. The link local address can be determined by using the following pattern: [fe80::290:f8ff:feXX:XXXX]
where XXXXXX are the last 6 digits of the unit’s MAC address. Example: The link local address for the Mediatrix 3600 with MAC address 00:90:F8:12:34:56 would be [fe80::290:f8ff:fe12:3456].
Partial Reset” on page 20 for details on the partial reset
Note: On Windows, a scope ID needs to be added to the link local address ([fe80::290:f8ff:fe12:3456%11]).
You can find this number by executing the ‘ipconfig’ command in a command prompt. Note the number at the end of the IPv6 default Gateway for the interface used to contact the unit.
On Linux, the scope identifier may be the link name or the interface number. The interface number can be determined through the Linux command line.

LAN Interface Access

You can access the Mediatrix 3600 via web and SNMP on the unit’s private LAN interface at the address
192.168.0.10. In that case, you must set up your PC to use the private IP address 192.168.0.11.
1. Power on the Mediatrix 3600 by flipping the power switch. If this is the very first time you are installing the Mediatrix 3600, it will restart twice.
You can now access the Mediatrix 3600 web interface. Refer to the Software Configuration Guide for more details.

Verifying the Installation

There are a few ways to verify that the Mediatrix 3600 is properly connected to the IP network and is working:
By contacting it with a SNMP browser By contacting it via the CLI By contacting it via a web browser By pinging it
Mediatrix 3600 – Digital Gateway
17
Page 28
Chapter 3 - Powering on the M ediatrix 3600 Indicators (LEDs)
These procedures assume that you know the IP address of the Mediatrix 3600 you want to verify. If the Mediatrix 3600 does not respond, do the following:
Verify that the LAN and WAN cables are securely connected to the Mediatrix 3600 and to the
network connectors.
Be sure that you did not connect crossover network cables. Verify the state of the IP network to ensure it is not down (the ETH LED should be ON or
blinking).

Indicators (LEDs)

The indicators (LEDs) of the Mediatrix 3600 are described in “Mediatrix 3600 Connectors and Indicators” on
page 2.
LED Patterns – Specific Conditions
Table 10 describes the different states a Mediatrix unit can have and their associated LED patterns.
Table 10: LED Patterns
Condition Description LED Pattern
RestartPending Triggered when the RESET/DEFAULT button is
pressed in the ResetPending state. The unit prepares for a physical shutdown and restart.
RecoveryPending Triggered when the RESET/DEFAULT button is
pressed at start-time or for at least 7 seconds.
DefaultSettingsPending Triggered when the RESET/DEFAULT button is
not released while in ResetPending state. At run time, if the RESET/DEFAULT button is
released within 5 seconds, the unit applies default settings, otherwise the action is cancelled and the unit goes back to the operation mode state or it resets.
At start time, the unit stays in this state until the RESET/DEFAULT button is released. The unit then applies the default settings and restarts.
UpdateInProgress A firmware pack is downloaded into the unit
and written to persistent storage.
UpdateFailed Triggered after a failure of a firmware pack
download operation. After 4 seconds, the unit restarts.
Power LEDs:
• blinking green, 1Hz, 50% duty
All other LEDs:
•OFF
All LEDs:
• blinking, 1Hz, 50% duty
All LEDs:
• steady ON
All LEDs:
• cycling from left to right, individually blinking 1Hz, 33% duty
All LEDs:
• blinking at 3Hz, 50% duty. One LED out of two has a 180 degree phase. This pattern lasts for 8 seconds.
18
Mediatrix 3600 – Digital Gateway
Page 29
Indicators (LEDs) Hardware Installation Guide
Table 10: LED Patterns (Continued)
Condition Description LED Pattern
Rescue Network Enabled
Triggered after the user has performed a partial reset procedure.
BootOnRecoveryBank Triggered when the unit is booting on the
recovery bank and no update is pending.
Automatic network configuration in
Waiting for DHCP (IPv4 or IPv6) answer or IPv6 router advertisement or PPPoE connection.
progress No network address set Triggered when the unit cannot be co ntacted
because DHCP failed, PPP failed, and no static interface is configured.
NetworkRescue The unit tries to download and install a firmware
given by the Network Rescue server.
LED Patterns – Default Behaviour
When no specific condition matches those described in Table 10, the LEDs behave individually according to the following rules:
Power and Ready LEDs:
• blinking (synchronized) 1Hz, 75% duty
Power LEDs:
• blinking green,
0.25Hz, 75% duty
All LEDs:
• Blinking green, 3Hz, 50% duty
Power LEDs:
• blinking green, 3 Hz, 50% duty.
Ready LED:
•Off
All other LEDs:
• blinking to show a LED displacing light from left to right and right to left.
Table 11: Default LED Behaviour
LED Type
a
Condition Behaviour
RestartInProgress Blinking green, 1 Hz, 50% duty
Power
RestartCompleted Steady green No network traffic, 100 Mbits/s Steady green No network traffic, 10 Mbits/s Steady orange
Ethernet
Network traffic, 100 Mbits/s Blinking green, variable rate Network traffic, 10 Mbits/s Blinking orange, variable rate Lines Idle and Unlocked Off Lines InUse and Unlocked Steady green
In Use
Shutting Down Steady yellow Locked Blinking yellow, 1 Hz, 50% duty
a. The ERROR/ALARM and ERROR/TROUBLE indicators do not currently ha ve ind ividual
behaviours like the other indicators.
Mediatrix 3600 – Digital Gateway
19
Page 30
Chapter 3 - Powering on the M ediatrix 3600 RESET/DEFAULT Button

RESET/DEFAULT Button

The RESET/DEFAULT button allows you to:
Cancel an action that was started. Revert to known factory settings if the Mediatrix 3600 refuses to work properly for any reason
or the connection to the network is lost.
Reconfigure a unit.

At Run-Time

The RESET/DEFAULT button can be used at run-time – you can press the button while the Mediatrix 3600 is running without powering the unit off. Table 12 describes the actions you can perform in this case.
Table 12: RESET/DEFAULT Button Interaction
RESET/
DEFAUL T Button
Pressed for:
Action Comments LEDs Pattern
2 to 6 seconds Restarts the
7 to 11 seconds Sets the Mediatrix
12 to 16 seconds Restarts the
17 seconds and more

At Start-Time

You can use the RESET/DEFAULT button at start-time – you power the unit off, and then depress the button until the LEDs stop blinking and remain ON. This applies the “Factory Reset” procedure (see “Factory Reset”
on page 21). This feature reverts the Mediatrix 3600 back to its default factory settings.

Partial Reset

The Partial reset provides a way to contact the Mediatrix 3600 in a known and static state while keeping most of the configuration unchanged.
Following a partial reset, the Mediatrix 3600 management interface is set to the Rescue interface. The default address for this interface is 192.168.0.1/24 and has its corresponding link-local IPv6 available and printed on the sticker under the Mediatrix 3600. Any existing network interface that conflicts with the Rescue interface address is disabled.
You can contact the Mediatrix 3600 at this address to access its configuration parameters. It is not advised to access the unit on a regular basis through the Rescue network interface. You should reconfigure the unit’s network interfaces as soon as possible in order to access it through another interface. See “
Reset” on page 21 for more details.
No changes are made to the
Mediatrix 3600
3600 in Partial Reset Mode
Mediatrix 3600 in Factory Reset
No action is taken The RESET/DEFAULT Button
Mediatrix 3600 settings.
Sets some of the Mediatrix 3600 configuration to pre-determined values.
Deletes the persistent configuration, creates a new configuration file with the default factory values, and then restarts the unit.
Pressed event is ignored
Power LEDs:
• blinking green, 1Hz, 50% duty
All other LEDs:
•OFF
All LEDs
• blinking, 1Hz, 50% duty
All LEDs
• steady ON
N/A
After a Partial
20
Mediatrix 3600 – Digital Gateway
Page 31
RESET/DEFAULT Button Hardware Installation Guide
In a partial reset, the following services and parameters are also affected:
AAA service: User(s) from profile are restored with their factory password.  SNMP service: Resets the enableSnmpV1, enableSnmpV2, enableSnmpV3 and snmpPort
values to their default values.
WEB service: Resets the serverPort to its default value.
To trigger the Partial Reset:
1. Insert a small, unbent paper clip into the RESET/DEFAULT hole located at the rear of the Mediatrix
3600. While pressing the RESET/DEFAULT button, restart the unit. Do not depress before all the LEDs start blinking (between 7-11 seconds).
2. Release the paper clip.
After a Partial Reset
Following a partial reset, you should:
1. Create or activate network interfaces as described in the Software Configuration Guide, Chapter Interface Parameters, Section Interfaces Configuration. Do not disable the Rescue interface!
2. Change the Mediatrix 3600 system management network interface to something other than Rescue as described in the Software Configuration Guide, Chapter Miscellaneous – Management Interface, Section Management Interface Configuration.

Factory Reset

The Factory reset reverts the Mediatrix 3600 back to its default factory settings. It deletes the persistent MIB values of the unit, including:
The Factory reset creates a new configuration file with the default factory values. It should be performed with the Mediatrix 3600 connected to a network with access to a DHCP server. If the unit canno t find a DHCP server, it sends requests indefinitely.
To trigger the Factory Reset:
Note that you must be able to cont act the interface you select in order to continue with the following steps.
3. Contact the Mediatrix 3600 through the new system management network interface.
4. Disable the Rescue network interface as described in the Software Configuration Guide, Chapter
Interface Parameters, Section Interfaces Configuration.
The firmware pack download configuration files. The SNMP configuration, including the SNMPv3 passwords and users. The PPPoE configuration, including the PPP user names and passwords.
1. Power the Mediatrix 3600 off.
2. Insert a small, unbent paper clip into the RESET/DEFAULT hole located at the rear of the Mediatrix
3600. While pressing the RESET/DEFAULT button, restart the unit. Do not depress before the LEDs stop blinking and are steadily ON.
3. Release the paper clip. The Mediatrix 3600 restarts. This procedure resets all variables in the MIB modules to their default value. When the Mediatrix 3600 has finished its provisioning sequence, it is ready to be used with a DHCP-
provided IP address and MIB parameters.
Mediatrix 3600 – Digital Gateway
21
Page 32
Chapter 3 - Powering on the M ediatrix 3600 Management Choices
This procedure can also be performed at run-time.
Note: The Factory reset alters any persistent configuration data of the Mediatrix 36 00.

Management Choices

Congratulations for properly installing the Mediatrix 3600. You can now configure the software parameters of the unit.
The Mediatrix 3600 offers various management options. All these options are described in the Dgw v2.0 Software Configuration Guide.
Table 13: Management Options
Management Choice Features
Web GUI The Mediatrix 3600 web interface allows you to configure the following information:
• Network attributes
• SIP parameters
• VoIP settings
• Management settings such as configuration scripts, restore / backup, etc.
SNMPv1/2/3 The Mediatrix 3600 SNMP feature allows you to configure all the MIB services. Command Line
Interface (CLI) Unit Manager
Network
The Mediatrix 3600 CLI feature allows you to configure all the MIB services.
The UMN offers the following:
• Auto-discovery
• Group provisioning
• SNMP access and remote management.
22
Mediatrix 3600 – Digital Gateway
Page 33
A PPENDIX
A
This Appendix lists the various standards compliance of the Mediatrix 3600.

Standards Supported

The Mediatrix 3600 complies to the following standards:
Category Specification
Agency approvals • UL mark
Safety standards • UL60950-1: 2003 1
Standards Compliance and
Safety Information
Table 14: Standards Compliance
• European Union, CE mark (Declaration of Conformity)
•FCC
st
Edition
• CAN/CSA-C22.2 No. 60950-1-03 1
• IEC 60950 (1
st
Edition 2001 With all national deviations)
st
Edition April 1, 2003
Emissions • FCC Part 15:2004 Class B
• EN55022 (2006) Class B
• EN61000-3-2 (2000) Harmonic current emissions
• EN61000-3-3 (1995) Voltage fluctuations and flicker (with amendment A1)
Immunity EN55024:1998 including the following (with amendments A1 and A2):
• EN61000-4-2 (1995), ESD
• EN61000-4-3 (1996), Radiated RF
• EN61000-4-4 (1995), Burst Transients
• EN61000-4-5 (1995), Surge
• EN61000-4-6 (1996), Conducted RF
• EN61000-4-11 (1995), Voltage Dips and Interruptions
Telecom • TBR4:1995 (with amendments A1: 1997)
a. Clauses 9.2, 9.3.5, TC25002/4/5, TC27002/4/5, TC27003/11/12/15/19/27/28/31/40/42/46/58/404/411/413/414/417, TC28005/ 12/406/424, TC24020, TC10002/4/10
Note: The standards compliance of the Mediatrix 3600 are printed on a sticker located on the bottom of the
unit.
a
Mediatrix 3600 – Digital Gateway
23
Page 34
Appendix A - Standards Compliance and Safety Information Disclaimers

Disclaimers

The following are the disclaimers related to the Mediatrix 3600.

Federal Communications Commission (FCC) Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help
Note: Any changes or modifications not expressly approved by Media5 could void th e user’s authority to
operate the equipment.

CE Marking

DECLARATION OF CONFORMITY We Media5 Corporation, located at 4229 Garlock st. Sherbrooke, Québec, Canada J1L 2C8
declare that for the hereinafter mentioned product the presumption of conformity with the applicable essential requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN
PARLIAMENT (RTTE DIRECTIVE) is given. Any unauthorized modification of the product voids this declaration. For a copy of the original signed Declaration Of Conformity please contact Media5 at the above address.
24
Mediatrix 3600 – Digital Gateway
Page 35
Disclaimers Hardware Installation Guide

RoHS China

Mediatrix 3600 – Digital Gateway
25
Page 36
Appendix A - Standards Compliance and Safety Information Translated Warning Definition

Translated Warning Definition

The following information provides an explanation of the symbols which appear on the Mediatrix 3600 and in the documentation for the product.
Warning: Means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, you must be aware of the hazards involved with electrical circuitry and familiar with standard practices for preventing accidents.
Waarschuwing: Dit waarschuwingssymbool betekent gevaar. U overtreat in een situatie die lichamelijk
letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen.
Varoitus: Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen
kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin li ittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista.
Attention: Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents.
Warnung: Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer
Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt.
Avvertenza: Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti.
Advarsel: Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før
du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker.
Aviso: Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos.
Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes.
¡Advertencia!: Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de
manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes.
Varning!: Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till
personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador.
26
Mediatrix 3600 – Digital Gateway
Page 37
Safety Warnings Hardware Installation Guide

Safety Warnings

This section lists the following safety warnings:
Circuit Breaker (15A) Warning TN Power Warning Product Disposal Warning No. 26 AWG Warning LAN Connector Warning Socket Outlet Warning

Circuit Breaker (15A) Warning

Warning: This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure
that a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the phase conductors (all current-carrying conductors).

TN Power Warning

Warning: The device is designed to work with TN power systems.

Product Disposal Warning

Warning: Ultimate disposal of this product should be handled according to all national laws and
regulations.

No. 26 AW G Warning

Warning: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

LAN Connector Warning

Warning: Do not connect the LAN connector directly to the Public Switched Telephone Network (PSTN),
to an off premise application, an out of plant application, any exposed plant application, or to any equipment other than the intended application, connection may result in a safety hazard, and/or defective operation and/or equipment damage.
Exposed plant means where any portion of the circuit is subject to accidental contact with electric lighting or power conductors operating at a voltage exceeding 300V between conductors or is subject to lightning strikes.

Socket Outlet Warning

Warning: The socket outlet, if used, shall be located near the equipment and shall be easily accessible by
the user.The AC adaptor inlet is considered as disconnection device. The device must be readily operational.
Mediatrix 3600 – Digital Gateway
27
Page 38
Appendix A - Standards Compliance and Safety Information Advertencias de Seguridad

Advertencias de Seguridad

En esta sección se enumeran las siguientes advertencias de seguridad:
Disyuntor (15A) Advertencia TN Potencia Advertencia Eliminación de Productos Advertencia N º 26 AWG Advertencia Conector LAN Advertencia Enchufe de Salida Advertencia

Disyuntor (15A) Advertencia

¡Advertencia!: Este producto se basa en las protecciones de seguridad contra corto-circuitos (sobre
corriente)instaladas en el edificio. Asegúrese de que un fusible o disyuntor no superior a 120 VAC, 15A EE.UU. (240 VCA, 10 internacionales) se utiliza en la fase de los conductores (todos los conductores de transporte).

TN Potencia Advertencia

¡Advertencia!: El dispositivo está diseñado para trabajar con sistemas de potencia TN.

Eliminación de Productos Advertencia

¡Advertencia!: Eliminación definitiva de este producto debe manejarse de acuerdo a las leyes y
reglamentos nacionales.

N º 26 A WG Advertencia

¡Advertencia!: Para reducir el riesgo de incendio, utilice únicamente cable telefonico N º 26 AWG o
superior.

Conector LAN Advertencia

¡Advertencia!: No conecte el conector LAN directamente a la red telefónica pública conmutada (RTPC),
ni a una red de plantel exterior, ni a cualquier red expuesta al exterior, ni a ningun equipo que no sea la aplicación, la conexión puede resultar de alto riesgo, y / o funcionamiento defectuoso y / o daño del equipo.
La exposicion a una red de plante exterior implica que cualquier parte del circuito está sujeto a contacto accidental con la corriente eléctrica o conductores de energía que operan a una tensión superior a 300 V entre los conductores, o sometida a rayos.

Enchufe de Salida Advertencia

¡Advertencia!: La toma de salida, si se utilizan, se debe encuentrar cerca del equipo y deberán ser
fácilmente accesibles por el ususario. El adaptador de CA de entrada se considera como dispositivo de desconexión. El dispositivo deberá ser de operacion simple.
28
Mediatrix 3600 – Digital Gateway
Page 39
Safety Recommendations Hardware Installation Guide

Safety Recommendations

To insure general safety follow these guidelines:
Do not open or disassemble this product. Do not get this product wet or pour liquids into it. Do not perform any action that creates a potential hazard to people or makes the equipment
unsafe.
Caution: When using this equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry
tub, in a wet basement or near a sw imming pool.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote
risk of electric shock from lightning.
• Do not use the telephone to report a gas leak in the vicinity of the leak.
Mediatrix 3600 – Digital Gateway
29
Page 40
Appendix A - Standards Compliance and Safety Information Safety Recommendations
30
Mediatrix 3600 – Digital Gateway
Page 41
A PPENDIX
1
2
3
4
5
6
7
8
B
This Appendix describes the pin-to-pin connections for cables used with the Mediatrix 3600.
Warning: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Ethernet RJ-45 Cable

The RJ-45 connector is commonly used for network cabling and for telephony applications. It is used to wire both ends identically so the signals pass straight through.
RJ-45 cabling is also known as Twisted-pair Ethernet (TPE), Unshielded twisted pair (UTP) and 10/100 Base-T.

Cabling Considerations

Figure 12: RJ-45 Cable
When connecting an Ethernet cable to the Mediatrix 3600, use a standard telecommunicatio n cord with a minimum of 26 AWG wire size. It is possible to use either a crossover or straight Ethernet cable to connect in the Ethernet connectors. These connectors perform automatic MDI / MDIX detection, meaning that they adapt to the type of cable connected to them.
The auto MDI / MDIX feature works only when the connectors are configured in auto detect mode, which is the default mode.
Whenever you force the Mediatrix 3600 to use a specific Ethernet mode (for example 100 Mb Full Dup lex), the type of cable to use depends on the other peer. For example, a straight cable is required to connect the Mediatrix 3600 to a hub or a switch, while a crossover cable is required to connect the Mediatrix 3600 to a PC.
Mediatrix 3600 – Digital Gateway
31
Page 42
Appendix B - Cabling Considerations Ethernet RJ-45 Cable
Pin 1 Pin 2 Pin 3 Pin 6
Pin 1 Pin 2 Pin 3 Pin 6

Straight Through Cable

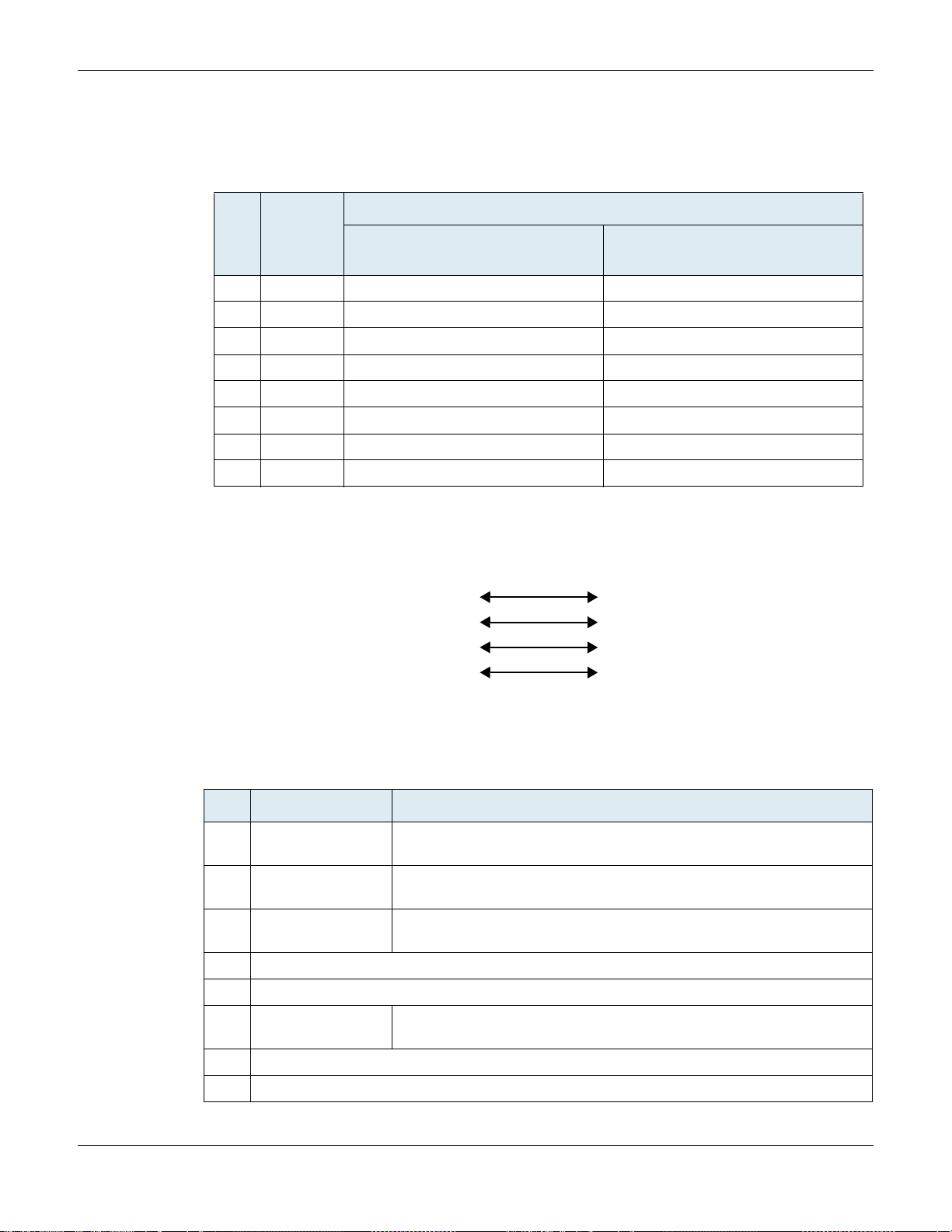

A RJ-45 straight through cable is used to connect a computer to a network device. For instance, you must use straight through cables to connect a computer to a network hub, switch, and router.
Table 15: RJ-45 Pinout Information
Colour Coding
Pin # Function
EIA/TIA 568A
1 Transmit + Wh ite with green stripe White with orange stripe 2 Transmit - Green with white stripe or solid green Orange with white stripe or solid orange 3 Receive + White with orange stripe White with green stripe 4 N/A Blue with white stripe or solid blue Blue with white stripe or solid blue 5 N/A White with blue stripe White with blue stripe 6 Receive - Orange with white stripe or solid orange Green with white stripe or solid green 7 N/A White with brown stripe or solid brown White with brown stripe or solid brown 8 N/A Brown with white stripe or solid brown Brown with white stripe or solid brown
EIA/TIA 568B
AT&T 258A
The RJ-45 cable uses two pairs of wires: one pair for transmission and the second pair for reception. It is wired so that pins 1 & 2 are on one twisted pair and pins 3 & 6 are on a second pair according to common wiring standards which meet the EIA/TIA T568A and T568B requirements.
Figure 13: Straight Through Connectivity
Pin Name and Function
The following is the function of each pin in a RJ-45 cable.
Table 16: Pin Name and Function
Pin # Name Function
1 Transmit Data Plus Positive signal for the TD differential pair. This signal contains the serial
output data stream transmitted onto the network.
2 Transmit Data Minus Negative signal for the TD differential pair. This contains the same output as
pin 1.
3 Receive Data Plus Positive si gnal for the RD differential pair. This signal contains the serial
input data stream received from the network. 4 not connected 5 not connected 6 Receive data minus Negative signal for the RD differential pair. This signal contains the same
input as pin 3. 7 not connected 8 not connected
32
Mediatrix 3600 – Digital Gateway
Page 43
E1 PRI RJ-45 Cable Hardware Installation Guide
1- TX+ 2- TX­3- RC+ 6- RC-
TX+ -1
TX- -2
RC+ -3
RC- -6
Pin 1 Pin 2 Pin 4 Pin 5
Pin 1 Pin 2 Pin 4 Pin 5

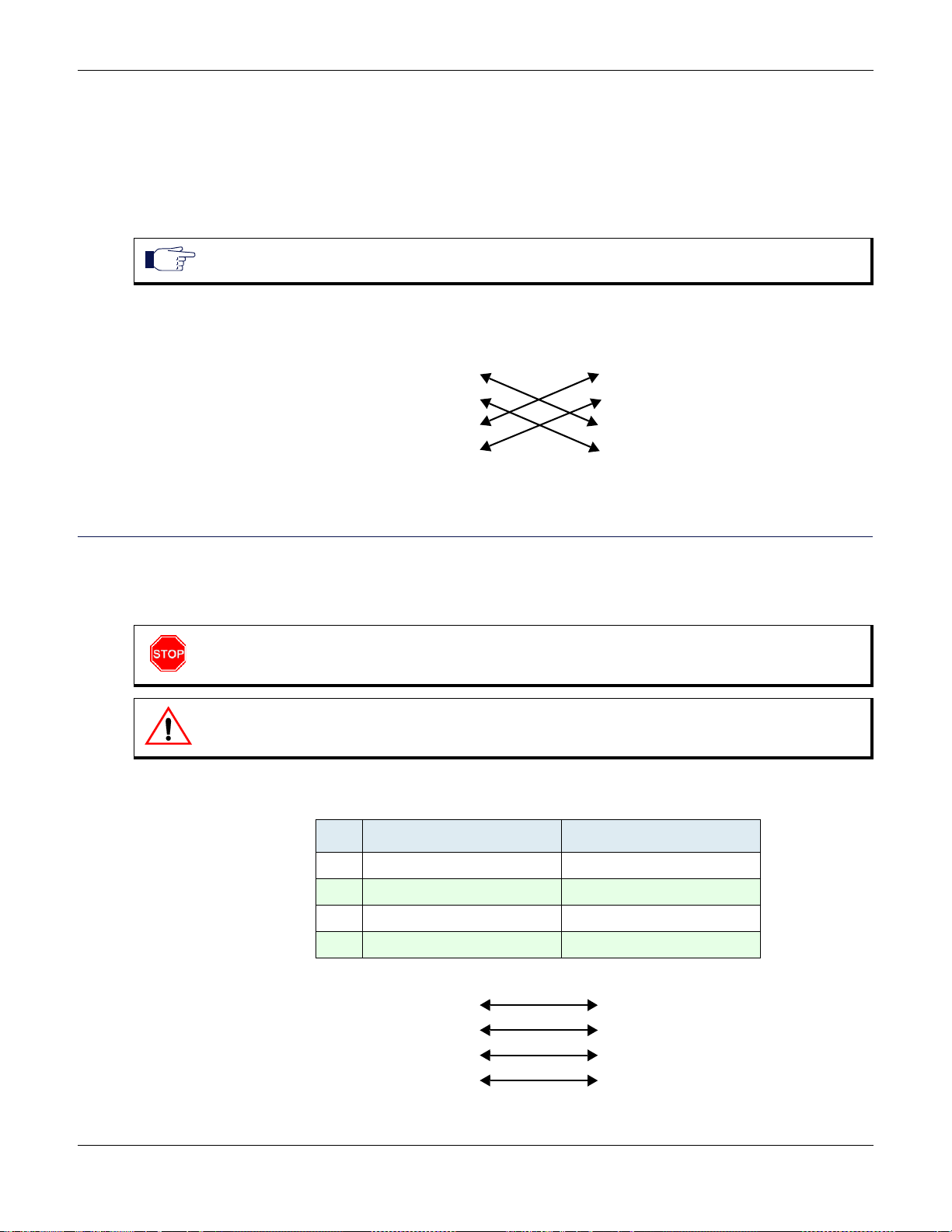

Crossover Cable

A RJ-45 crossover cable is used when only two systems are to be connected to each other, peer to peer, at the Ethernet Cards by “crossing over” (reversing) their respective pin contacts. An example would be connecting two computers together to create a network. The crossover eliminates the need for a hub when connecting two computers. A crossover cable may also be required when connecting a hub to a hub, or a transceiver to transceiver or repeater to repeater. When connecting a hub to a transceiver, a straight through cable is always used.
Note: This is not an IEEE supported configuration and should be used for test purposes only.
A crossover cable is sometimes called a null modem. The coloured wires at either end are put into different pin numbers, or crossed over.
Figure 14: Crossover Connectivity

E1 PRI RJ-45 Cable

The E1 PRI is usually connected to a PBX or switch – local exchange (LE). Type and pin outs of these devices vary depending on the manufacturer. The PRI ports pin outs are configurable, so ensure that the appropriate mode (NET or USR) is configured. Refer to the Software Configuration Guide for more details.
Warning: Hazardous network voltages may be present in the PRI cables. If you detach the cable, detach
the end away from the Mediatrix 3600 first to avoid possible electric shock. Network hazardous voltages may be present on the device in the area of the PRI port, even when power is turned OFF.
Caution: To prevent damage to the Mediatrix 3600, make sure that you connect the PRI cable to the PRI
port only and not to any other RJ-45 socket.
The following describes the RJ-45 pinout information.
Table 17: RJ-45 Pinout Information – PRI
Pin # NT Interface TE Interface – Default value
1 Transmit #2 Receive #2 2 Transmit #1 Receive #1 4 Receive #2 Transmit #2 5 Receive #1 Transmit #1
Mediatrix 3600 – Digital Gateway
Figure 15: RJ-45 Connectivity – PRI
33
Page 44
Appendix B - Cabling Considerations RJ-11 (Telephone) Cable

RJ-11 (Telephone) Cable

The RJ-11 cable is commonly used for telephone connection.
Caution: Do not plug a phone jack connector into an RJ-45 port.

Wiring Conventions

For telephone connections, a cable requires one pair of wires. Each wire is identified by different colours. For instance, one wire might be red and the other, red with white stripes. Also, an RJ-11 connector must be attached to both ends of the cable.
Each wire pair must be attached to the RJ-11 connectors in a specific orientation. The following figure illustrates how the pins on the RJ-11 connector are numbered. Be sure to hold the connectors in the same orientation when attaching the wires to the pins.
Figure 16: RJ-11 Connector Pin Numbers
Table 18: RJ-11 Pinout Information
Pin # Function
1 Not used 2 Not used 3 Ring 4Tip 5 Not used 6 Not used
The RJ-11 pair of wires is wired so that pins 3 and 4 are connected to the Ring and Tip , which meets the following requirements:
EIA/TIA-IS 968 CS-03 Issue 8, Part III requirements.
Warning: The RJ-11 cable should comply with UL 1863 and CSA C22.2 No 233 standards.
34
Mediatrix 3600 – Digital Gateway
Page 45
Serial Console (RS-232) Hardware Inst alla t ion Guide
2- RX 3- TX 5- GND
TX -2 TX -3
GND -5
7- SG 8- CD
SG -7
CD -8 6- DSR 1- DCD 4- DTR
DSR -6 DCD -1
DTR -4
4- DTR DTR -4

Serial Console (RS-232)

DTE or DCE

A device that communicates over a synchronous serial interface is either a DTE (Data Terminal Equipment) or DCE (Data Communications Equipment) device. DTE devices usually connect to DCE devices. The Mediatrix 3600 and a PC are a DTE, while a CLI terminal is a DCE.

Crossover Cable (Null Modem)

The crossover version of the DB-9 cable (also known as null modem) uses a female-to-female cable in any application where you wish to connect the Mediatrix 3600 with another DTE device such as a PC or workstation. This cable is required for CLI application.
The purpose of a null-modem cable is to permit two RS-232 “DTE” devices to communicate with each other without modems or other communication devices (i.e., DCEs) between them.
To achieve this, the most obvious connection is that the TD signal of one device must be connected to the RD input of the other device (and vice versa).
Figure 17: DB-9 Crossover Connectivity
Mediatrix 3600 – Digital Gateway
35
Page 46
Appendix B - Cabling Considerations Serial Console (RS-232)
36
Mediatrix 3600 – Digital Gateway
Page 47
A PPENDIX
C

Standard Hardware Information

The specifications and information regarding this product are subject to change without notice. Every effort is made to ensure the accuracy of this document. Because of ongoing product improvements and revisions, Media5 cannot guarantee its accuracy, nor can be responsible for errors or omissions. Please contact your Media5 sales representative to obtain the latest version of the technical specifications.

Industry Standard Protocols

The Mediatrix 3600 has been designed to support all major industry standards used today, as well as those that will eventually be implemented at a later date. Because of this specific design characteristic, the Mediatrix 3600 can be integrated with existing telephone, fax and data equipment such as PCs and routers.
Parameter Description
Vocoders • G.711 (a-law, u-law) with optional VAD support
Table 19: Industry Standard Protocols
• G.723.1a
•G.726
• G.729a
• G.729ab IP Telephony Protocols • SIP - RFC 3261, RFC 3262, RFC 3263 Real-Time Transport Protocols • RTP/RTCP - RFC 1889, RFC 1890, RFC 2833, RFC 3389 Network Management
Protocols
Data Features • PPPoE client - RFC 1332, RFC 1661, RFC 1334, RFC 1994,
QoS • ToS
•SNMPv3
• DHCP - RFC 2131, RFC 2132
• TFTP - RFC 1350
• Syslog - RFC 3164
• HTTP 1.0 - RFC 1945
• HTTP 1.1 - RFC 2616
• HTTPS
• Basic and digest HTTP authentication - RFC 2617
RFC 2516, RFC 1471, RFC 1472, RFC 1473, RFC 1877. Note: some PPPoE RFCs are implemented partially.
• TFTP or HTTP auto-provisioning
• DHCP server
• NAPT
• DiffServ
•802.1p
•802.1Q
Mediatrix 3600 – Digital Gateway
37
Page 48
Appendix C - Standard Hardware Information Hardware Features
Table 19: Industry Standard Protocols (Continued)
Parameter Description
Voice Signalling • Euro ISDN EDSS-1 / ETSI PRI/NET5
• ETS 300 012-1 (ITU-T I.430)
• ETS 300 402-2 (ITU-T Q.921)
• ETS 300 403-1/2 (ITU-T Q.931)
• ETS 300 102-2 (ITU-T Q.931)
• ETS 300 402-1 (ITU-T Q.921)
• ETS 300 403-2 (ITU-T Q.931)
• ETS 300 102-1 (ITU-T Q.931)
• ISDN speech, audio and data (Fax Gr 4, UDI 64, RDI 64)
• ECMA-143 (QSIG-BC) CAS Signaling • E1 R2 Digital Line Signalling (ITU-T Q.421)
• E1 R2 MFC Interregister Signalling (ITU-T Q.441)
• Country-specific R2 settings for Brazil, Argentina, Mexico and
Saudi Arabia

Hardware Features

Interfaces

1 x RJ-45 WAN connector, 10/100 BaseT Ethernet access 4 x RJ-45 LAN connectors, 10/100 BaseT Ethernet access 30 or 60 simultaneous calls One or two ISDN PRI ports software configurable as NT or TE

Power

AC: Standard power cord receptacle (IEC 320 – C14) for universal AC input internal SMPS.

Product Architecture Details

Supports multiple concurrent communications using any vocoders. DSP-based DTMF detection and generation. DSP-based fax relay. Embedded IPv4 TCP/IP stack with configurable QoS implemented by:
• ToS byte at Network layer 3
• 802.1p at Data Link layer 2
Network parameters assigned via DHCP
38
Mediatrix 3600 – Digital Gateway
Page 49
Real Time Fax Router Technical Specifications Hardware Installation Guide

Real Time Fax Router Technical Specifications

Automatic selection between voice and fax.
Table 20: Fax Technical Specifications
Parameter Description
Ethernet 10/100 BaseT Ethernet Data Link Ethernet Network IP (Internet Protocol) Transport TCP / UDP Protocols Group 3 Fax
Clear channel (G.711) or T.38 Real Time Fax Over IP protocol Stack Fax Data Compression MH Fax Transmission Up to 14.4 kbps

Audio Specifications

Software-adjustable dynamic and static jitter buffer protection. Programmable by country: Call progress tone generation including dial tone, busy tone,
ringback and error tones.
Silence detection/suppression level software adjustable.

DTMF Tone Detection

Parameter Description
16-Digit DTMF Decoding 0 to 9, *, #, A, B, C, D Permitted Amplitude Tilt High frequency can be +2 dB to -8 dB relative to low frequency Dynamic Range -35 dBm to +3 dBm per tone Frequency Accept ± 1.5% of nominal frequencies Minimum Tone Duration 40 ms Interdigit Timing Detects like digits with a 40 ms interdigit delay

DTMF Tone Generation

Table 21: DTMF Tone Detectio n
Per Frequency Nominal -6 dBm to -4 dBm
Mediatrix 3600 – Digital Gateway
Table 22: DTMF Tone Generation
Parameter Description
39
Page 50
Appendix C - Standard Hardware Information Power Consumption
Table 22: DTMF Tone Generation (Continued)
Parameter Description
Frequency Deviation Less than 1%

Power Consumption

Table 23: Power Consumption
Mediatrix
Model
3621/3631
3632
Voltage/
Frequency
120Vac / 60Hz all channels active 240 15 29 15 240Vac / 50Hz all channels active 160 16 38 16 120Vac / 60Hz all channels active 290 18 35 18 240Vac / 50Hz all channels active 185 19 44 19

MTBF Value

The Mean Time Before Failure (MTBF) value of the Mediatrix 3600 models is estimated as follows:
Mediatrix 3621/3631: 160,000 hours Mediatrix 3632: 180,000 hours
These values are at 25 degrees Celsius ambient temperature. It has been defined using RelCalc v5.0, Bellcore method (LimitedStress - Method I, Case 3), Desktop unit with 4 extensions ringing, 20 on standby.

Operating Environment

Operating Condition
Current
(mA)
Power (W) VA
Thermal
Dissipatio
n (W)
Table 24: Operating Environment
Parameter Description
Operating Temperature 0°C to 40°C Humidity Up to 85%, non-condensing Storage -20°C to +70°C
40
Mediatrix 3600 – Digital Gateway
Page 51
Dimensions and Weight Hardware Insta lla tion Guide

Dimensions and Weight

Table 25: Dimensions and Weight
Parameter Description
Dimensions Height: 4.4 cm (1.73 in)
Width, no mounting brackets: 44.5 cm (17.5 in)
Width, with mounting brackets: 48.5 cm (19 in)
Depth: 20.5 cm (8 in) Weight Mediatrix 3621/3631: 2.8 kg (6.2 lb)
Mediatrix 3632: 3.0 kg (6.6 lb)

Warranty

All Media5 products carry Media5 Corporation's standard three-year hardware and software warranty. An extended warranty is available.
Mediatrix 3600 – Digital Gateway
41
Page 52
Appendix C - Standard Hardware Information Warranty
42
Mediatrix 3600 – Digital Gateway
Page 53
A PPENDIX
D
Interface Card Installation
This Appendix describes how to install interface cards in a Mediatrix 3600 unit.

General Information

This assembly instruction is generic to any model of interface card.
Some of the steps are optional, depending on the model to be assembled. The pictures shown in this Appendix are for reference only. The specification of the screws used in this assembly instruction are:
• 615-00023-00G: Screw #4-40 3/16" Flat Head Phillips 70% Undercut Stainless Steel
• 615-00039-00G: Screw #4-40 1/4" Pan head Phillips Stainless steel internal lock SEMS

Interface Card Installation Instructions

Instructions
Follow these instructions with care .
1. Remove ALL cables connected to the unit prior to start working. The Mediatrix 3600 series has internal AC/DC power supply and telephony interfaces with
hazardous sections accessible when the cover is removed. It is imperative for your own safety to remove all cables connected to the unit prior to start working.
2. Remove the screws of the ear mounting brackets on each side of the unit (keep them for re­assembly of the casing).
3. Remove all the screws of the top casing. There are three screws located on the top side, three screws located on the bottom side, and one
screw located on each side (keep them for re-assembly of the casing).
4. Slide the top casing to remove it from the unit.
5. Remove the screws of the “SLOT2” and/or “SLOT3” plate where you want to install the new card
(keep them for re-assembly of the casing).
Note: When installing a mix of digital interface card and analog interface card, ALWAYS install the digital
interface card in “SLOT2”.
Mediatrix 3600 – Digital Gateway
43
Page 54
Appendix D - Interface Card Installation Instructions Interface Card Installation Instructions
6. Align the 4x21 pins header connector of the card to the receptacle on the motherboard. Make sure that the card header is well inserted onto its mating receptacle.
Note: Special note for the interface card 3301-080 (2FXS/6FXO card): Bend slightly the capacitors on the
motherboard in order to allow adequate installation of the card. Latest Motherboard assemblies have a low height capacitor model to resolve this known issue.
Figure 18: Bending of Capacitor
7. Screw the interface card’s plate with the 615-00023-00G screws (torque: 3 inch pounds).
Figure 19: Screw Interface Card’s Plate
8. Screw the center of the plate with 615-00039-00G model (torque: 3 inch pounds).
Figure 20: Screw Center of Plate
9. Slide-in the top cover all the way to the end. Make sure that the RS-232 connector does not interfere
with its opening on the top cover.
44
Mediatrix 3600 – Digital Gateway
Page 55
Interface Card Installation Instructions Hardware Installation Guide
10. Screw th e top casing at all 8 locations (torque: 3 inch pounds).
There are three screws located on the top side, three screws located on the bottom side, and one screw located on each side.
11. Insta ll the ear mounting brackets and screw them in place (torque: 4 inch pounds).
12. Make sure th ere is no sound/rattle coming from the unit when manipulated (loose part).
13. Appl y the card serial number la bel next to the base unit label.
Figure 21: Applying the Card Serial Number Label
14. Recon nect the power and telephony cables.
15. Upg rade the unit firmware if necessary.
Note: Special note for the interface card 3301-080 (2FXS/6FXO card): Use Firmware DGW v2.0r8.111 or
higher.
Mediatrix 3600 – Digital Gateway
45
Page 56
Appendix D - Interface Card Installation Instructions Interface Card Installation Instructions
46
Mediatrix 3600 – Digital Gateway
Page 57
A PPENDIX
E
10 BaseT
An Ethernet local area network that works on twisted pair wiring.
100 BaseT
A newer version of Ethernet that operates at 10 times the speed of a 10 BaseT Ethernet.
Domain Name Server (DNS)
Internet service that translates domain names into IP addresses. To use a domain name, a DNS service must translate the name into the corresponding IP address. For instance, the domain name www.example.com might translate to 198.105.232.4.
Dual-Tone Multi-Frequency (DTMF)
In telephone systems, multi-frequency signalling in which a standard set combinations of two specific voice band frequencies, one from a group of four low frequencies and the other from a group of four higher frequencies, are used. Although some military telephones have 16 keys, telephones using DTMF usually have 12 keys. Each key corresponds to a different pair of frequencies. Each pair of frequencies corresponds to one of the ten decimal digits, or to the symbol “#” or “*”, the “*” being reserved for special purposes.
Dynamic Host Configuration Protocol (DHCP)
TCP/IP protocol that enables PCs and workstations to get temporary or permanent IP addresses (out of a pool) from centrally-administered servers.

Glossary

Federal Communications Commission (FCC)
U.S. government regulatory body for radio, television, interstate telecommunications services, and international services originating in the United States.
Gateway
A device linking two different types of networks that use different protocols (for example, between the packet network and the Public Switched Telephone Network).
Integrated Services Digital Network (ISDN)
A set of digital transmission protocols defined by the international standards body for telecommunications, the ITU-T (formerly called the CCITT). These protocols are accepted as standards by virtually every telecommunications carrier all over the world.
ISDN complements the traditional telephone system so that a single pair of telephone wires is capable of carrying voice and data simultaneously. It is a fully digital network where all devices and applications present themselves in a digital form.
International Telecommunication Union (ITU)
Organization based in Geneva, Switzerland, that is the most important telecom standards-setting body in the world.
Internet Protocol (IP)
A standard describing software that keeps track of the Internet’s addresses for different nodes, routes outgoing messages, and recognizes incoming messages.
Light Emitting Diode (LED)
A semiconductor diode that emits light when a current is passed through it.
Mediatrix 3600 – Digital Gateway
47
Page 58
Appendix E - Glossary Local Area Network (LAN)
Local Area Network (LAN)
Data-only communications network confined to a limited geographic area, with moderate to high data rates. See also WAN.
Media Access Control (MAC) Address
A layer 2 address, 6 bytes long, associated with a particular network device; used to identify devices in a network; also called hardware or physical address.
Network
A group of computers, terminals, and other devices and the hardware and software that enable them to exchange data and share resources over short or long distances. A network can consist of any combination of local area networks (LAN) or wide area networks (WAN).
Primary Rate Interface (PRI)
A telecommunications standard for carrying multiple DS0 voice and data transmissions between two physical locations. All data and voice channels are (ISDN) and operate at 64 kbit/s.
North America and Japan use a T1 of 23 B channels and one D channel which corresponds to a T1 line. Europe, Australia and most of the rest of the world use the slightly higher capacity E1, which is composed of 31 B channels and one D channel.
Fewer active B channels (also called user channels) can be used for a fractional T1. More channels can be used with more T1's, or with a fractional or full T3 or E3.
Private Branch Exchange (PBX)
A small to medium sized telephone system and switch that provides communications between onsite telephones and exterior communications networks.
Protocol
A formal set of rules developed by international standards bodies, LAN equipment vendors, or groups governing the format, control, and timing of network communications. A set of conventions dealing with transmissions between two systems. Typically defines how to implement a group of services in one or two layers of the OSI reference model. Protocols can describe low-level details of machine-to-machine interfaces or high-level exchanges between allocation programs.
Public Switched Telephone Network (PSTN)
The local telephone company network that carries voice data over analog telephone lines.
Router
A specialized switching device which allows customers to link different geographically dispersed local area networks and computer systems. This is achieved even though it encompasses different types of traffic under different protocols, creating a single, more efficient, enterprise-wide network.
Switched Circuit Network (SCN)
A communication network, such as the public switched telephone network (PSTN), in which any user may be connected to any other user through the use of message, circuit, or packet switching and control devices.
Server
A computer or device on a network that works in conjunction with a client to perform some operation.
Session Initiation Protocol (SIP)
A protocol for transporting call setup, routing, authentication, and other feature messages to endpoints within the IP domain, whether those messages originate from outside the IP cloud over SCN resources or within the cloud.
48
Mediatrix 3600 – Digital Gateway
Page 59
Subnet Hardware Installation Guide
Subnet
An efficient means of splitting packets into two fields to separate packets for local destinations from packets for remote destinations in TCP/IP networks.
Transmission Control Protocol/Internet Protocol (TCP/IP)
The basic communication language or protocol of the Internet. It can also be used as a communications protocol in a private network (either an intranet or an extranet).
V o ice Over IP (VoIP)
The technology used to transmit voice conversations over a data network using the Internet Protocol. Such data network may be the Internet or a corporate Intranet.
Wide Area Network (WAN)
A large (geographically dispersed) network, usually constructed with serial lines, that covers a large geographic area. A WAN connects LANs using transmission lines provided by a common carrier.
Mediatrix 3600 – Digital Gateway
49
Page 60
Appendix E - Glossary Wide Area Network (WAN)
50
Mediatrix 3600 – Digital Gateway
Page 61
A PPENDIX
F

List of Acronyms

AWG American Wire Gauge CE Cummunauté européenne (French) dB Decibel
DCE Data Communications Equipment DHCP Dynamic Host Configuration Protocol DNS Domain Name Server DTE Data Terminal Equipment
ESD Electrostatic Discharge ETSI European Telecommunications Standards Institute
Hz Hertz IETF Internet Engineering Task Force LED Light Emitting Diode MAC Media Access Control
MDI Media Dependent Interface MDIX Media Dependent Interface Crossover
PBX Private Branch eXchange PRI Primary Rate Interface PSTN Public Switched Telephone Network
RFC Request for Comment SCN Switched Circuit Network
SIP Session Initiation Protocol TPE Twisted-Pair Ethernet UL Underwriters Laboratories Incorporated
USB Universal Serial Bus UTP Unshielded Twisted pair
VAC Volts Alternating Curre nt VoIP Voice over Internet Protocol
WAN Wide Area Network
Mediatrix 3600 – Digital Gateway
51
Page 62
Appendix F - List of Acronyms
52
Mediatrix 3600 – Digital Gateway
Page 63

Index

Numerics
10 BaseT 3, 4, 5, 14, 31
47
defined see also cabling
100 BaseT
3, 4, 5, 14, 31
47
defined see also cabling
A
acronyms 51 audience, intended auto MDI/MDIX
vii
31
C
cables, connecting 14 cabling
34
RJ-11 RJ-45
crossover pin name pinout information straight through
RS-232
crossover
pinout information (straight through) see also 10 BaseT see also 100 BaseT
cleaning the unit compliance to standards. see standards compliance condensation connecting
cables during installation
14
unit
connectors
Ethernet
2
front port numbering convention
Ethernet
PRI
4
power rear
3
reset default
crossover cable. see cabling customer services
33
32
32
32
35
35
13
13
14
4
6
6
4
x
D
document
conventions objectives structure
documentation
Media5 download portal Mediatrix download portal where to obtain
ix
vii
viii
x
x
x
E
end user technical support x Ethernet connection
LAN connectors
4
Ethernet connection (continued)
WAN connector
4
F
factory reset
reverting to see also partial reset
front
connectors indicators
21
2
2
H
humidity level 10
I
indicators
front
2
5
rear inspecting the contents installation
cables, connecting
7
checklist
connecting the hardware
default static IP address configuration
dynamic IP address discovery
free standing unit
LAN interface access
network information
proper location
provisioning sequence, initial
rack-mounting
required tools and equipment
reserving IP address
safety recommendations
selecting site for
setting up the unit for the first time
8
site log
17
verifying
wall-mounting
wiring requirements intended audience
9
14
14
13
17
8
10
11
15
8
10
12
10
vii
K
key features 1
L
LAN
cable
17
connectors
defined LEDs
defined
states location, defining for installation
4
48 47
18
M
MAC address 15
48
defined
16
15
16
9
15
10
Mediatrix 3600 – Digital Gateway
53
Page 64
Index
MDI/MDIX, auto 31 Media5 download portal Mediatrix download portal mounting
on a rack on a wall
11
12
x
x
O
objectives of document vii operating temperature overview of the product
10
1
P
partial reset 20
see also factory reset
port numbering convention
Ethernet connectors
PRI connectors product models product overview provisioning, initial sequence
1
6
6
1
R
rack-mounting the unit 11 rear
connectors
indicators related documentation Reset, partial reset procedure reset, factory reset procedure RJ-11. see cabling RJ-45. see cabling RS-232. see cabling
3
5
viii
16
20
21
TPE. see cabling translated warning definition
26
U
unpacking the contents 9 using this manual UTP. see cabling
ix
V
verifying the installation 17
W
wall-mounting the unit 12 WAN, connector wiring, requirements for installation
4
10
S
safety
recommendations
warnings
Circuit Breaker (15A) LAN Connector No. 26 AWG Product Disposal Socket Outlet
TN Power site, selecting for unit standards compliance
agency approvals CE marking emissions FCC Part 15 disclaimer immunity RoHS China safety standards
telecom standards supported straight through cable. see cabling support services
23
23
29
27
27, 28
27, 28
27, 28
27, 28
27, 28
10
23
24
23
24
25
23
ix
x
T
technical support for end user x temperature, operating
10
54
Mediatrix 3600 – Digital Gateway
