Series Datasheet
Version 02
28
Feb 2019
Page
M.
Reizner
1

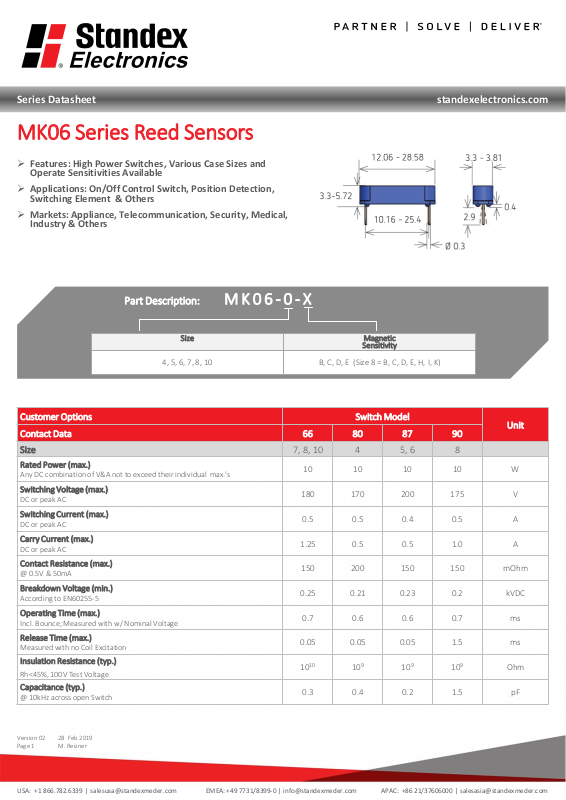

MK06 Series Reed Sensors
➢ Features: High Power Switches, Various Case Sizes and
Operate Sensitivities Available
➢ Applications: On/Off Control Switch, Position Detection,
Switching Element & Others
➢ Markets: Appliance, Telecommunication, Security, Medical,
Industry & Others
Customer
Options Switch Model
Unit
Contact Data
66 80 87 90
Size
7, 8, 10 4 5, 6 8
Rated Power (max.)
Any DC combination of V&A not to exceed their individual max.’s
10 10 10 10 W
Switching Voltage (max.)
DC or peak AC
180 170 200 175 V
Switching Current (max.)
DC or peak AC
0.5 0.5 0.4 0.5 A
Carry Current (max.)
DC or peak AC
1.25 0.5 0.5 1.0 A
Contact Resistance (max.)
@ 0.5V & 50mA
150 200 150 150 mOhm
Breakdown
Voltage (min.)
According
to EN60255-5
0.25 0.21 0.23 0.2 kVDC
Operating Time (max.)
Incl. Bounce; Measured with w/ Nominal Voltage
0.7 0.6 0.6 0.7 ms
Release Time (max.)
Measured
with no Coil Excitation
0.05 0.05 0.05 1.5 ms
Insulation
Resistance (typ.)
Rh<45%, 100V Test
Voltage
10
10
10
9
10
9
10
9
Ohm
Capacitance
(typ.)
@ 10kHz
across open Switch
0.3 0.4 0.2 1.5 pF
Part
Description: MK06- 0 - X
Size Magnetic
Sensitivity
4, 5, 6, 7, 8, 10 B, C, D, E (Size 8 = B, C, D, E, H, I, K)
Page 2
USA:
+1 866.782.6339
|
salesusa@standexmeder.com
EMEA:
+49 7731/8399-0
|
info@standexmeder.com
APAC:
+86 21/37606000
|
salesasia@standexmeder.com
standexelectronics.com
Series Datasheet
Version 02
28
Feb 2019
Page
M.
Reizner
2
Layout
Top View
MK06 Series Reed Sensors
MK06 Reed Sensor
Housing and Lead Specifications
Housing Material PBT Glass Fiber Reinforced
Case Color Blue
Sealing Compound Epoxy Resin
Lead Design THT
Environmental Data
Unit
Shock Resistance (max.)
1/2 sine wave duration 11ms
30 g
Vibration Resistance (max.)
20
g
Operating Temperature
-20 to 130
°C
Storage Temperature
-35 to 130 °C
Soldering Temperature (max.)
5 sec. max.
260
°C
Glossary Magnetic Sensitivity
Sens. (Form A, B) A B C D E F G
Sens. (Form C) H I K
AT
05-10
10-15
15-20
20-25
25-30
30-35
35-40
Glossary Contact Form
Form A
NO = Normally Open Contacts
SPST = Single Pole Single Throw
Form B
NC = Normally Closed Contacts
SPST = Single Pole Single Throw
Form C
Changeover
SPDT = Single Pole Double Throw
Handling & Assembly Instructions
➢ Use proper lead clamping or heat sinking techniques to
prevent mechanical and/or heat stress during,
soldering, and welding
➢
Mechanical shock as the result of dropping the reed
sensor typically from a distance of greater than 12”
may change it’s magnetic sensitivity and/or destroy the
sensor
Page 3
USA:
+1 866.782.6339
|
salesusa@standexmeder.com
EMEA:
+49 7731/8399-0
|
info@standexmeder.com
APAC:
+86 21/37606000
|
salesasia@standexmeder.com
standexelectronics.com
Series Datasheet
Version 02
28
Feb 2019
Page
M.
Reizner
3
MK06 Series Reed Sensors
Please note: All technical specifications on this series datasheet refer to the standard product range. Modifications in the sense of technical
progress are reserved. For general information only. For more specific information, please consult the product datasheet, available upon request.
This series datasheet could contain technical inaccuracies or typographical errors. Changes are periodically made to the information herein. These
change will be incorporated in future revisions.
For deviating values, most current specifications and products please contact your nearest sales office.
Life Test Data
*Load increase reduces life expectancy of Reed Switches
Load
Typical Number of Operations
KSK-1A66
100V/10mA
20V/500mA
10V/100mA
10V/4mA
<5V/10mA
1,E+05 1,E+06 1,E+07 1,E+08 1,E+09 1,E+10
Life Test Data
*Load increase reduces life expectancy of Reed Switches
KSK-1C90U / KSK-1C90F
100V/10mA
20V/500mA
10V/100mA
10V/4mA
<5V/10mA
1,E+05 1,E+06 1,E+07 1,E+08 1,E+09 1,E+10
Load (DC)
Typical Number of Operations
Life Test Data
*Load increase reduces life expectancy of Reed Switches
Load
Typical Number of Operations
KSK-1A80
100V/10mA
20V/500mA
10V/100mA
10V/4mA
<5V/10mA
1,E+05 1,E+06 1,E+07 1,E+08 1,E+09 1,E+10
.
Life Test Data
*Load increase reduces life expectancy of Reed Switches
Typical Number of Operations
KSK-1A87
100V/10mA
20V/500mA
10V/100mA
10V/4mA
<5V/10mA
1,E+05 1,E+06 1,E+07 1,E+08 1,E+09 1,E+10
