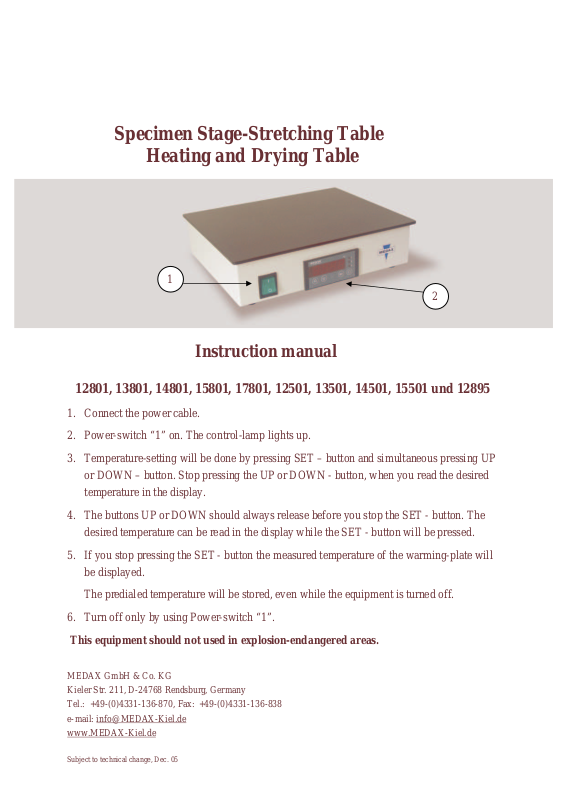

Specimen Stage-Stretching Table
Heating and Drying Table
Instruction manual
12801, 13801, 14801, 15801, 17801, 12501, 13501, 14501, 15501 und 12895
1. Connect the power cable.

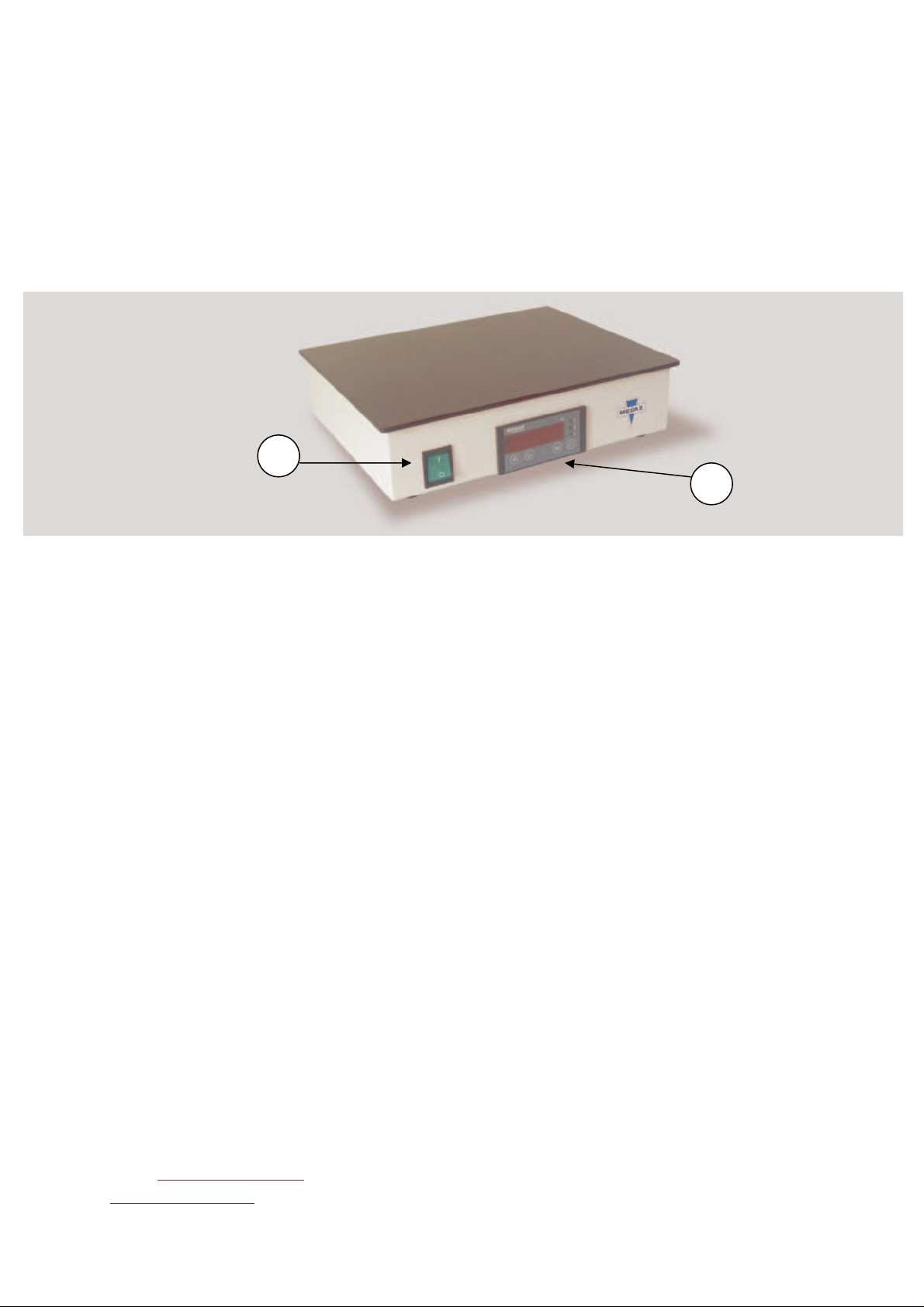

2. Power-switch “1” on. The control-lamp lights up.
3. Temperature-setting will be done by pressing SET – button and simultaneous pressing UP
or DOWN – button. Stop pressing the UP or DOWN - button, when you read the desired
temperature in the display.
4. The buttons UP or DOWN should always release before you stop the SET - button. The
desired temperature can be read in the display while the SET - button will be pressed.
5. If you stop pressing the SET - button the measured temperature of the warming-plate will
be displayed.
The predialed temperature will be stored, even while the equipment is turned off.
6. Turn off only by using Power-switch “1”.
This equipment should not used in explosion-endangered areas.
MEDAX GmbH & Co. KG
Kieler Str. 211, D-24768 Rendsburg, Germany
Tel.: +49-(0)4331-136-870, Fax: +49-(0)4331-136-838
e-mail: [email protected]
www.MEDAX-Kiel.de
Subject to technical change, Dec. 05
Page 2
Power plug with integrated
3
Spare Part List
Pos. Description Part-No.
1
MEN 28100
fuses
2 Fuse 2,5 A MEN 11700
Fuse 4,0 A MEN 12100 Only 14801 - 110 V
3 Switch MEN 10500
4 Digital Controller MEN 32000
5 Thermometer probe MEN 00200
6 Fuse of Temperature MEN 01700
7 Condenser MEN 25400
8 Heating Element
for Type
MEN 14300 12501
MEN 07200 15501
MEN 06900 15801
F 1 / F 2
S 1 / H 1
DR 1
R 1
F 3
C 1
E 1
MEN 06400 12801 / 12895
MEN 14900 17801
MEN 06500 13801 / 13501
MEN 06600 14801 / 14501

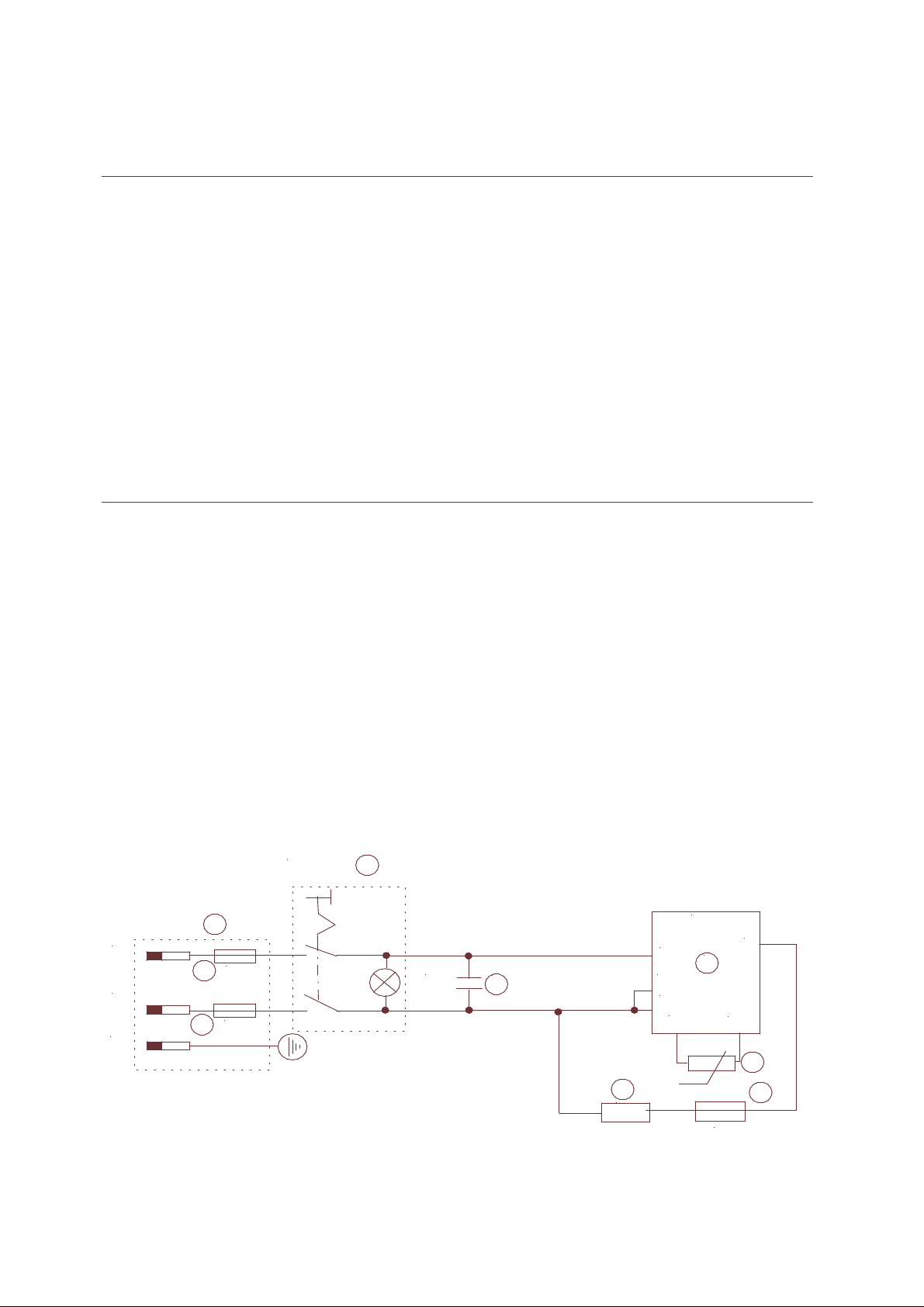

Electrical Diagram
S1 / H1
1
L
2
F1
N
2
F2
MP
Subject to technical change, Dec. 05
C 1
7
8
E1
DR 1
5
6
7
11
R1
4
4
12
5
6
F3
