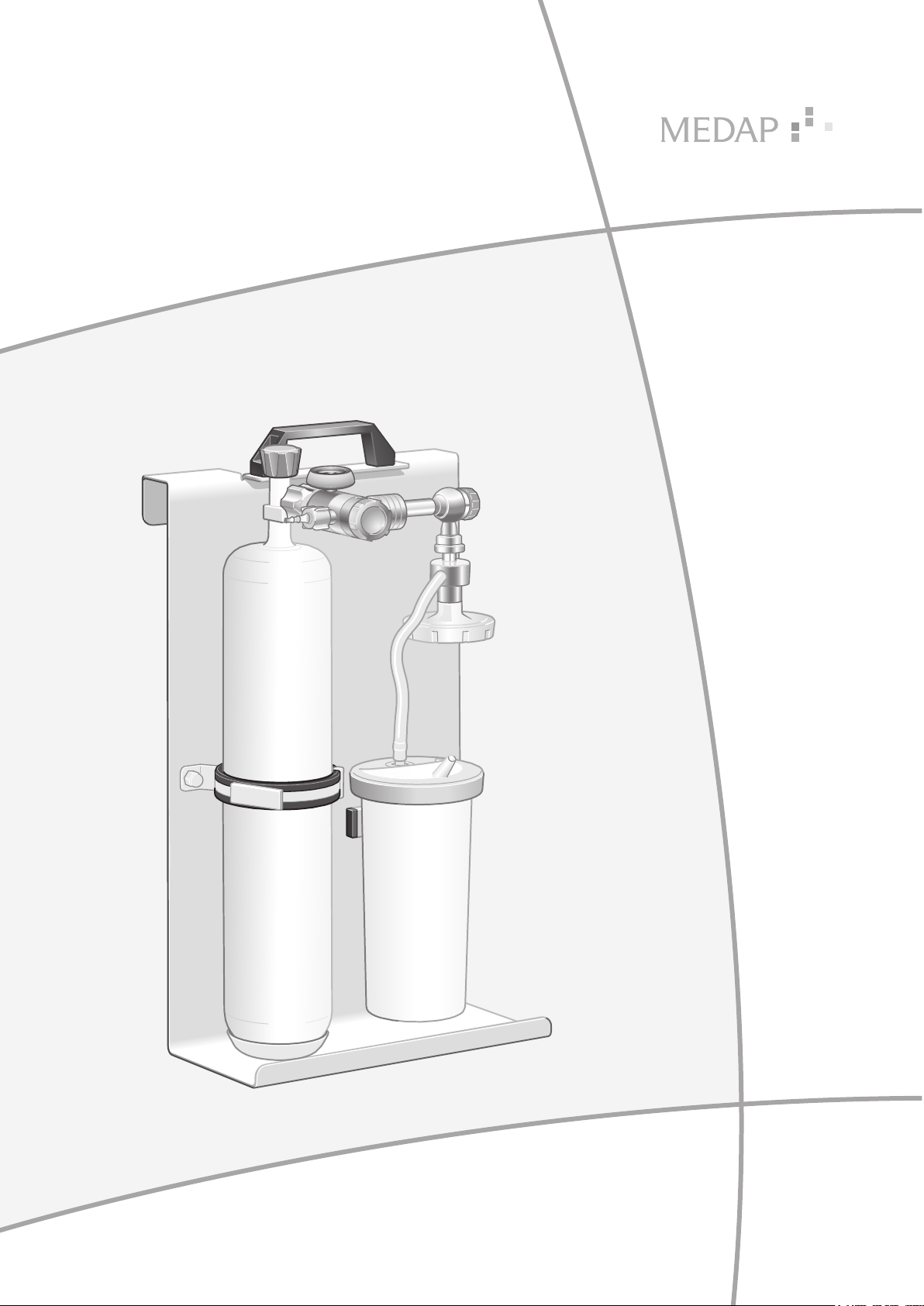

Page 1
OPERATING INSTRUCTIONS
EMERGENCY OXYGEN UNIT
GA 5752 5556 GB 05
Page 2
Subject to technical modification!
Illustrations and technical specifications may vary slightly from those in these Operating
Instructions as a result of ongoing product development.
V05 2019-12
2
GA 5752 5556 GB 05
Page 3
Table of contents
Table of contents
1 Introduction ..............................................................................................................................................5
1.1 Foreword .................................................................................................................................................... 5
1.2 How to use these operating instructions .................................................................................................... 5
1.2.1 Abbreviations ...............................................................................................................................5
1.2.2 Symbols .......................................................................................................................................5
1.2.2.1 Cross-references ....................................................................................................... 5
1.2.2.2 Actions and responses .............................................................................................. 5
1.2.3 Definitions ....................................................................................................................................6
1.2.3.1 Design of safety notes ............................................................................................... 6
1.2.3.2 Structure of notes ...................................................................................................... 6
1.2.4 Symbols used ..............................................................................................................................6
1.3 Disposal ......................................................................................................................................................7
1.3.1 Packaging ....................................................................................................................................7
1.3.2 ATMOS products .......................................................................................................................... 7
1.4 Overview ....................................................................................................................................................8
1.5 Basic requirements .....................................................................................................................................8
1.5.1 Use in accordance with the intended purpose ............................................................................. 8
1.5.2 Applicable standards ....................................................................................................................9
1.5.3 Treatment system as per Article 12 .............................................................................................. 9
1.5.4 Intended purpose ......................................................................................................................... 9
1.5.5 Interface description ...................................................................................................................10
1.5.5.1 Oxygen cylinder ....................................................................................................... 10
1.5.5.2 Vacuum connection tube ......................................................................................... 10
1.5.5.3 Suction tube ............................................................................................................. 11
1.5.5.4 Connection tube ...................................................................................................... 11
1.5.5.5 Bubble humidifier (REF 5752 5315) ........................................................................ 11
2 Safety notes ............................................................................................................................................12
2.1 General safety notes ................................................................................................................................ 12
3 Initial operation .......................................................................................................................................13
3.1 General .....................................................................................................................................................13
3.2 Connecting the pressure regulator ........................................................................................................... 13
3.3 Oxygen supply via tube adapter ............................................................................................................... 14
3.4 Connecting the fine regulator ................................................................................................................... 15
3.5 Connecting the gas-jet pump ...................................................................................................................15
3.6 Mounting the tubes ................................................................................................................................... 15
3.7 Aspiration and oxygen therapy ................................................................................................................. 16
3.7.1 Connecting the accessories (optional) ....................................................................................... 16
3.7.1.1 Connection of bubble humidifier MEDAP (REF 5752 5315) .................................... 16
3.7.1.2 Connection of disposable humidifiers from other manufacturers ............................ 17
GA 5752 5556 GB 05
3
Page 4
Table of contents
4 Operation ................................................................................................................................................18
4.1 Function test ............................................................................................................................................. 18
4.2 Check the filling level of the oxygen cylinder............................................................................................ 18
4.3 Oxygen extraction ....................................................................................................................................19
4.4 Setting the vacuum level .......................................................................................................................... 19
5 Taking the unit out of operation ............................................................................................................ 20
5.1 Stopping oxygen extraction ...................................................................................................................... 20
5.2 Replacing the oxygen cylinder ................................................................................................................. 20
5.3 Detaching tubes .......................................................................................................................................21
6 Cleaning and disinfection ......................................................................................................................22
6.1 General .....................................................................................................................................................22
7 Maintenance ............................................................................................................................................23
7.1 General .....................................................................................................................................................23
7.2 Periodic tests ............................................................................................................................................ 23
7.3 Visual and functional inspections .............................................................................................................23
7.4 Malfunctions and troubleshooting.............................................................................................................24
7.5 Repairs ..................................................................................................................................................... 25
7.6 Service hotline .......................................................................................................................................... 25
7.7 Spare parts ............................................................................................................................................... 25
7.8 Sending in the device ............................................................................................................................... 25
8 Technical specifications ........................................................................................................................ 26
8.1 Ambient conditions ................................................................................................................................... 26
8.2 Technical specifications ............................................................................................................................ 26
8.3 Dimensions and weights ..........................................................................................................................26
9 Accessories ............................................................................................................................................ 27
9.1 Accessories .............................................................................................................................................. 27
9.2 Consumables ...........................................................................................................................................27
4
GA 5752 5556 GB 05
Page 5
1 Introduction
1.1 Foreword
Your facility has selected the leading-edge medical technology made by ATMOS. We sincerely
appreciate the trust you have placed in us.
1.2 How to use these operating instructions
These operating instructions are provided to familiarise you with the features of this ATMOS
product.
They are subdivided into several chapters.
Please note:
• Please read these operating instructions carefully and completely before using the product for
the first time.
• Always proceed in accordance with the information contained herein.
• Store these operating instructions in a location near the product.
Introduction
Foreword
1
1.2.1 Abbreviations
EN European standard
EEC European Economic Community
VDE Verband der Elektrotechnik Elektronik Informationstechnik (Association for
Electrical, Electronic & Information Technology)
1.2.2 Symbols
1.2.2.1 Cross-references
References to other pages in these operating instructions are identified with a double arrow
symbol ‘’.
1.2.2.2 Actions and responses
The ‘’ symbol identifies an action taken by the user, while the ‘’ symbol identifies the reaction
that this will induce in the system.
Example:
Turn on the light switch.
Lamp lights up.
GA 5752 5556 GB 05
5
Page 6
Introduction
1
How to use these operating instructions
1.2.3 Definitions
1.2.3.1 Design of safety notes
Pictogram Descriptor Text
DANGER!
Indicates a direct and immediate risk to
persons which may be fatal or result in
most serious injury.
WARNING!
Indicates a potential risk to persons or
property which may result in health hazard
or grave property damage.
CAUTION!
Indicates a potential risk to property which
may result in property damage.
The text for the safety note
describes the type of risk and
how to avert it.
Tab. 1: Design of safety notes
1.2.3.2 Structure of notes
Notes not referring to personal injury or property damage are structured as follows:
Pictogram Descriptor Reference to
NOTE Supplementary assistance or further useful information
ENVIRONMENT Information regarding proper disposal.
Tab. 2: Structure of notes
1.2.4 Symbols used
Symbols are attached to products, type plates and packaging.
Symbols Identification
without potential injury to persons or property damage is
described in the text of the note.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Serial number’.
6
GA 5752 5556 GB 05
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Product number’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Follow operating instructions’.
Page 7

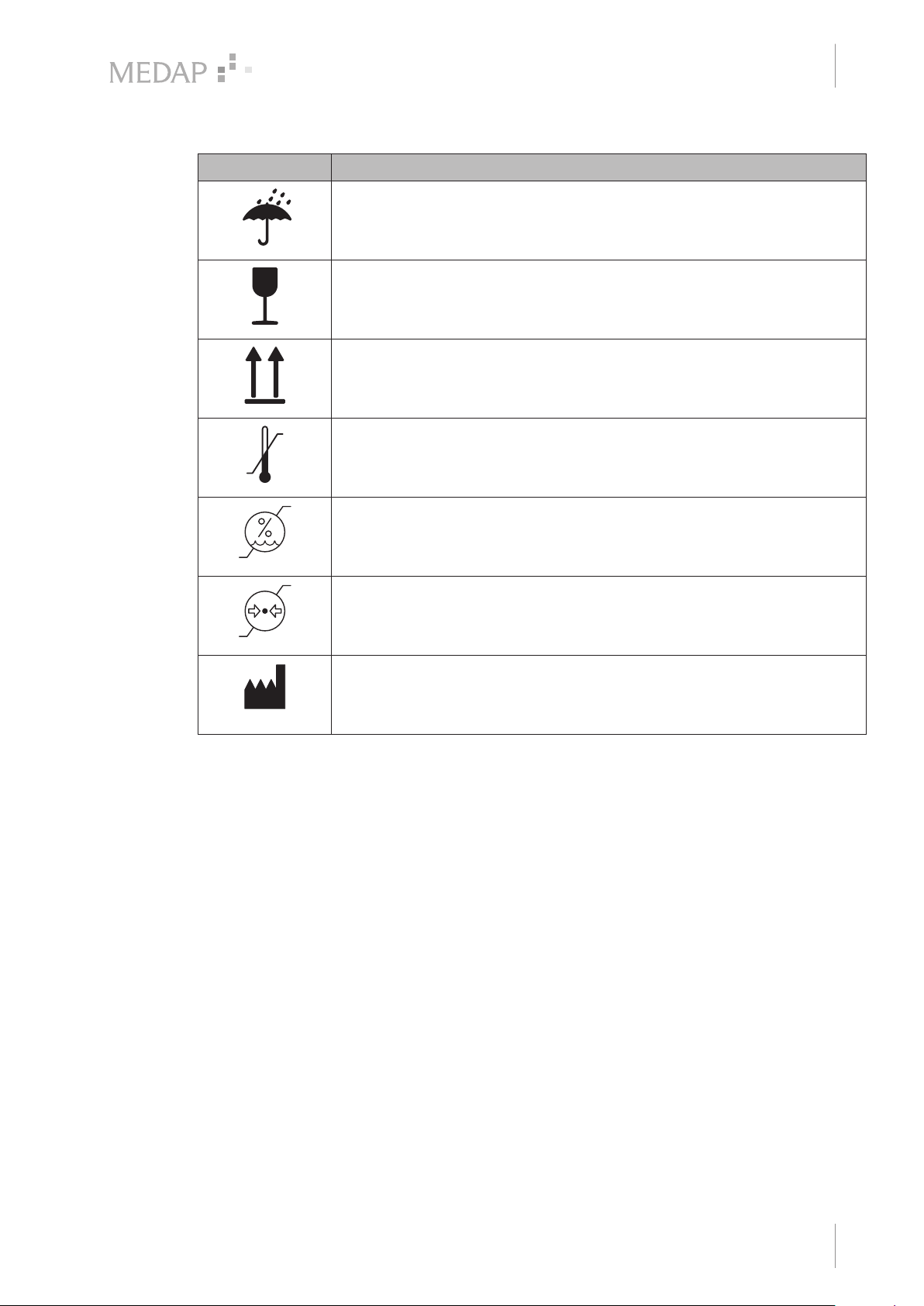

Symbols Identification
Packaging label.
Symbol for ‘Keep dry’.
Packaging label.
Symbol for ‘Fragile! Handle with care’.
Packaging label.
Symbol for ‘Top’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Temperature limitations’.
Introduction
Disposal
1
Tab. 3: Symbols
1.3 Disposal
1.3.1 Packaging
The packaging is made of materials compatible with the environment. ATMOS will dispose of the
packaging materials upon request.
1.3.2 ATMOS products
ATMOS will take back used products or those which are no longer in service.
Please contact your ATMOS representative for more detailed information.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Relative humidity’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Atmospheric pressure’.
Labelling in compliance with the ISO 15223-1 standard.
Symbol for ‘Name and address of the manufacturer as well as date of
manufacture’.
GA 5752 5556 GB 05
7
Page 8
Introduction
1
Overview
1.4 Overview
3
5
2
6
1
8
4
7
9

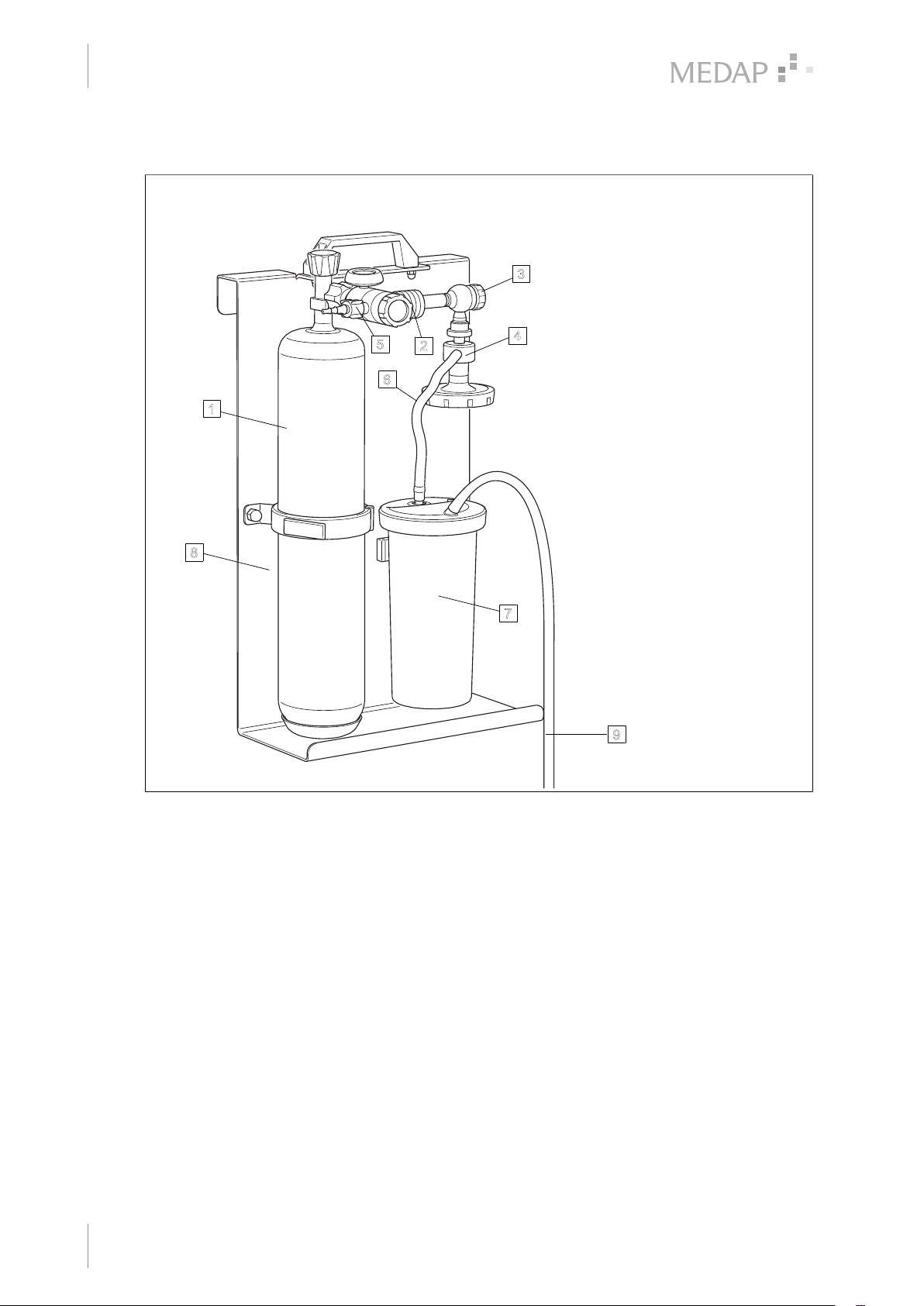

Fig. 1: Overview of emergency oxygen unit
1 Oxygen cylinder 6 Connection tube
2 Pressure regulator 7 Aspiration set
3 Fine regulator 8 Carrying board
4 Gas-jet pump 9 Suction tube
5 Tube adapter
1.5 Basic requirements
1.5.1 Use in accordance with the intended purpose
This product is a medical device according to the Medical Devices Directive 93/42/EEC.
This product is to be used exclusively in human medicine.
Patients may be placed on the device and put in position only under the supervision of medical
personnel.
Accessories
Accessories or combinations of accessories may be utilised only as and when indicated in these
operating instructions.
8
GA 5752 5556 GB 05
Page 9
Use other accessories, combinations and parts subject to wear only if these are intended
expressly for the application and will not adversely affect performance features or safety
requirements.
1.5.2 Applicable standards
The product satisfies the basic requirements set forth in Annex I to Council Directive 93/42/EEC
concerning medical devices (Medical Devices Directive) as well as the applicable national
(German) codes and the Medical Devices Act (MPG) in Germany. This has also been
demonstrated through the application of the corresponding standards which have been
harmonised with Directive 93/42/EEC.
1.5.3 Treatment system as per Article 12
The product consists of several components which together comprise one treatment system as
per Article 12 of the Medical Devices Directive 93/42/EEC (Paragraph 10 of the Medical Devices
Act).
The emergency oxygen unit consists of the following components:
• Pressure regulator (REF 5752 5545)
• Carrying board for 2 or 3 litre oxygen cylinders (REF 5752 4678)
• FINA fine regulator oxygen (REF 5752 3705)
• Gas-jet pump oxygen, low flow rate / high vacuum LF/HV (REF 5750 7540)
• AS aspiration (REF 5752 4681)
Introduction
Basic requirements
1
1.5.4 Intended purpose
Name: Emergency oxygen unit
Main function: Treatment system consisting of several components for
Medical indications /
application:
Specification of the main
function:
administration of oxygen and for bronchial aspiration
Supply of patients with medical oxygen and bronchial aspiration if a
central gas supply is not available (e.g. interhospital transport)
The emergency oxygen unit is a treatment system as per Article 12
of the Medical Devices Directive 93/42/EEC (Paragraph 10 of the
Medical Devices Act).
The components are listed in the following chapter of these
operating instructions.
The carrying board provides a basis for a 2 or 3 l oxygen cylinder. A
pressure reducer is connected to the oxygen cylinder and reduces
the pressure to the usual pressure of central gas supply systems.
An integrated flowmeter in the pressure reducer can be used for
inhalation or insufflation of oxygen within the scope of oxygen
enrichment for patients breathing by themselves. In the coupling
DIN of the pressure regulator a fine regulator oxygen can be
inserted. A gas-jet pump can be connected to the outlet of the fine
regulator, converting the oxygen into vacuum via Venturi principle.
The application set aspiration consists of a septic fluid jar with lid
for bronchial aspiration. The permissible pressure in the oxygen
cylinder is 200 bar.
User profile: Doctor, medically trained staff
Patient groups: Patients of all ages
GA 5752 5556 GB 05
9
Page 10
1
Introduction
Basic requirements
Application organ: Outlet flowmeter: Lung
Outlet coupling: No specific organ
Application time: For continuous operation; in practice, short-term use on the patient
(< 30 days)
Application site: The application site is the clinical environment and doctor’s
practices. The application of the product may only be performed by
medically trained and instructed staff.
Contraindications: The emergency oxygen unit may not be used for the following
purposes:
• Outside the medical sector
• In MR areas
• For ultra-pure gases
• For corrosive, aggressive and toxic gases, acetylene, propane,
butane and other flammable gases
• With a supply pressure higher than 200 bar
• The undosed supply of medical oxygen (connection of tapping
units intended for this purpose is strictly necessary)
• When applying oxygen in its function as a medication, it is absolutely necessary to measure the flow rate.
The product is: Active
Sterility: Not a sterile product
Single-use product /
reprocessing:
1.5.5 Interface description
1.5.5.1 Oxygen cylinder
The oxygen cylinder is mounted to the carrying board with a clamp bracket and supplies oxygen
to the emergency oxygen unit.
Technical specifications
• 2 or 3 l
• Cylinder diameter 100 mm
• Cylinder height at least 250 mm
• Ball-shaped bottom
• Weight maximum 6 kg
• 200 bar / 20000 kPa
• Connection DIN 477-1
The treatment system and parts of the accessories are reusable.
For information on reprocessing, cleaning and disinfection, please
see the operating instructions.
1.5.5.2 Vacuum connection tube
The vacuum connection tube is used to connect the tapping unit and the septic fluid jar.
10
GA 5752 5556 GB 05
Page 11
Technical specifications
• Shore hardness of 60
• Inner diameter 6 mm
• Length 50 cm (±10 cm)
• Vacuum resistant down to −95 kPa (may not collapse)
Prerequisites
• The inner diameter of the vacuum connection tube should match the outer diameter of the
tube connector on the septic fluid jar cap of the pump.
The vacuum connection tube will be referred to only as ‘connection tube’ below.
1.5.5.3 Suction tube
The suction tube is used to connect the tube connector on the septic fluid jar on the patient side
and the fingertip or the utensil.
Technical specifications
• Shore hardness of 60
• Inner diameter 6–8 mm
• Length of 1.3 m to 3.0 m
• Vacuum resistant down to −95 kPa (may not collapse)
Introduction
Basic requirements
1
Prerequisites
• The outer diameter of the tube connector on the patient side of the septic fluid jar cap must
match the inner diameter of the suction tube.
1.5.5.4 Connection tube
The connection tube is used to connect the tube adapter on the flowmeter outlet of the pressure
regulator to the inhalation mask.
Technical specifications
• Inner diameter 5 mm
Prerequisites
• The inner diameter of the connection tube should match the tube connector on the flowmeter
outlet of the pressure regulator and the tube connector of the inhalation mask.
1.5.5.5 Bubble humidifier (REF 5752 5315)
The bubble humidifier can be integrated between the flowmeter outlet of the pressure regulator
and the connection tube of the inhalation mask to humidify the oxygen. Instead of the tube
adapter, the angled adapter (REF 5752 5606) is connected to the flowmeter outlet of the
pressure regulator for this purpose. The bubble humidifier is connected at the outlet of the angled
adapter, and the connection tube to the inhalation mask is connected at the outlet of the bubble
humidifier [ Page 16].
GA 5752 5556 GB 05
11
Page 12
Safety notes
2
General safety notes
2 Safety notes
2.1 General safety notes
DANGER!
Danger to life!
The undosed supply of gases is hazardous to the patient.
Use only tapping units with dosing systems.
DANGER!
Danger to life!
Danger due to unauthorised modifications.
The product may not be modified.
WARNING!
Risk of injury!
Hazard resulting from incorrect handling.
Be absolutely sure to observe the operating instructions for all the products used in
the configuration.
WARNING!
Risk of injury!
ATMOS products may be used only when fully functional.
Check to ensure that the ATMOS product is fully functional and in good working
order prior to use.
CAUTION!
Observe ambient conditions.
The precision, operation, mechanical stability and tightness of the product cannot
be guaranteed if the maximum upper and lower ambient temperatures are
exceeded.
DANGER!
Danger to life!
Danger due to improper configuration of the system.
The configuration of the overall system as well as the functional testing are subject
to the overall responsibility of the medical staff. The operator must check the proper
functionality and suitability of the connected accessories for each intended
application prior to every use, in particular, connection parts, sealing properties and
suitability with regard to material, work pressure and flow.
12
GA 5752 5556 GB 05
Page 13
3 Initial operation
2
1
3.1 General
NOTE
The oxygen cylinder, connection tube to inhalation mask and inhalation mask are
not included in the scope of delivery.
NOTE
Please refer to the operating instructions on the carrying board (REF 5752 4733)
for the assembly of the oxygen cylinder to the carrying board.
3.2 Connecting the pressure regulator
1
Initial operation
General
Connecting the pressure regulator
Ensure that the pressure regulator is
closed.
Plug the cap nut (1) of the pressure
regulator onto the thread of the connection
thread (2) of the oxygen cylinder.
Tighten the cap nut by hand.
The pressure regulator is mounted.
3

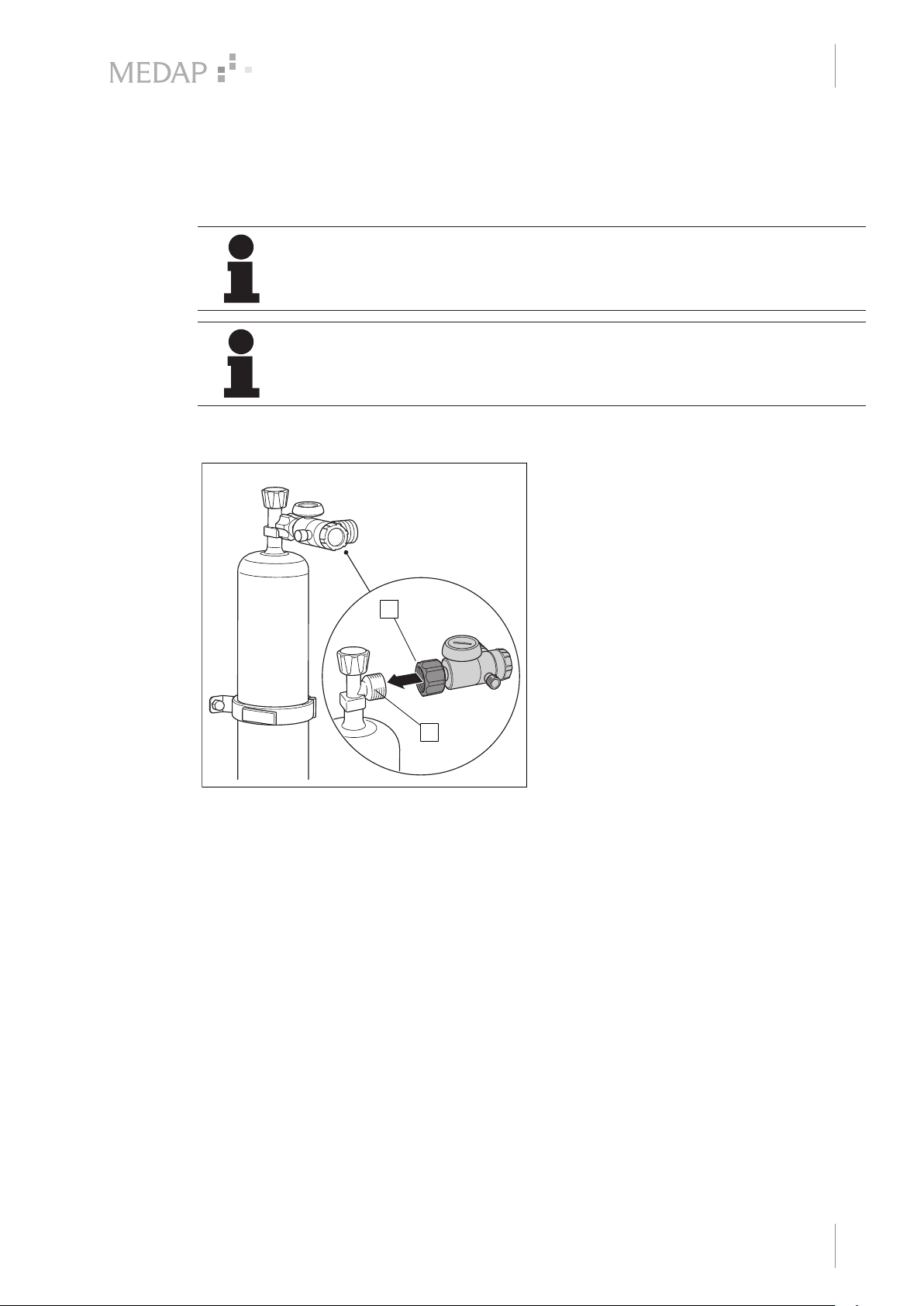

Fig. 2: Connecting the pressure regulator
2
GA 5752 5556 GB 05
13
Page 14
Initial operation
1
2
1
2
3
Oxygen supply via tube adapter
3.3 Oxygen supply via tube adapter
1
Screwing on the tube adapter
Screw the tube adapter (1) onto the tube
connector (2) of the pressure regulator.
2

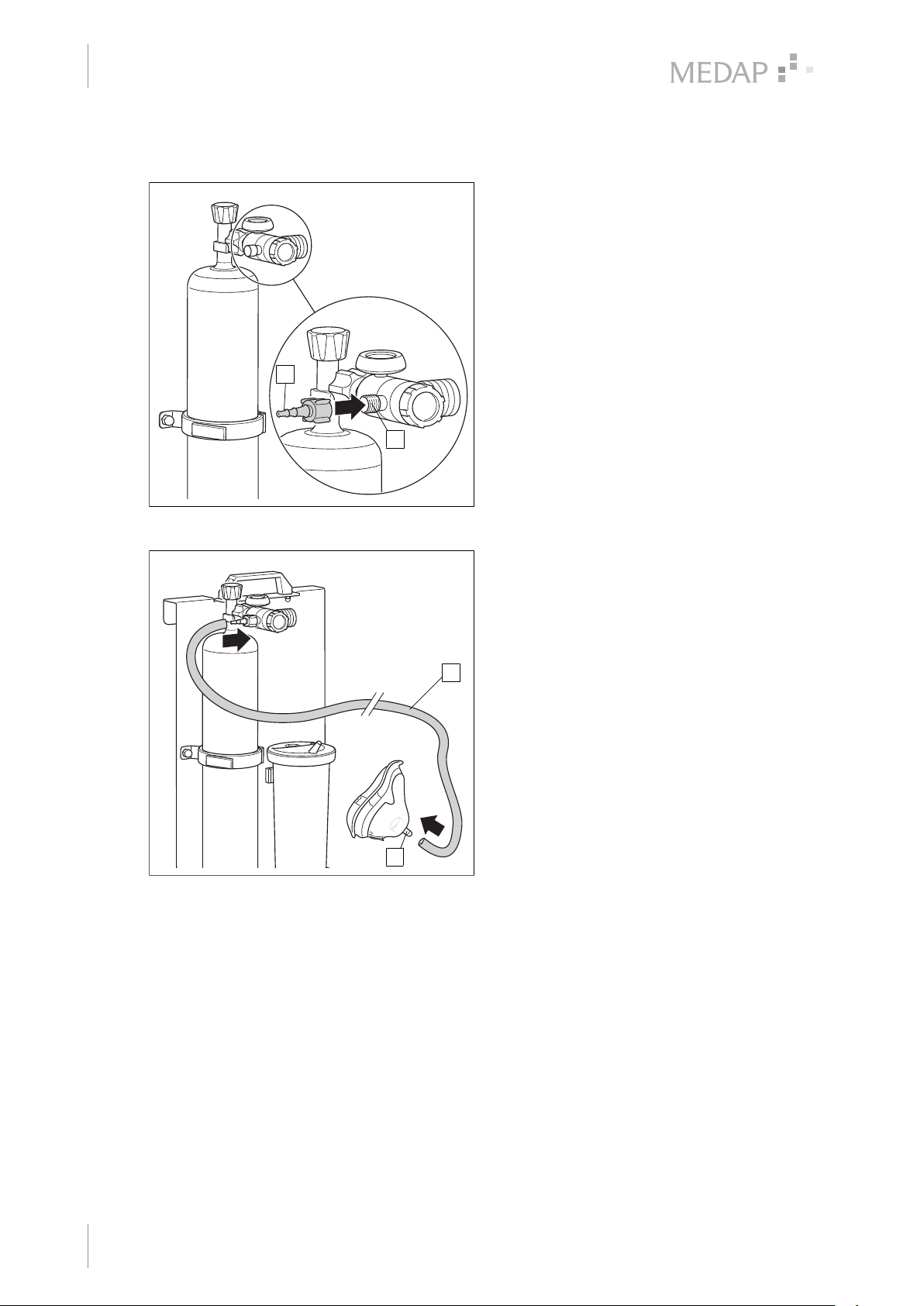

Fig. 3: Providing oxygen supply
Fig. 4: Connecting the connection tube
Connecting the connection tube
Attach the connection tube (1) to the tube
adapter.
Attach the other end of the connection tube
to the inhalation mask (2).
1
2
Oxygen supply is functional.
14
GA 5752 5556 GB 05
Page 15

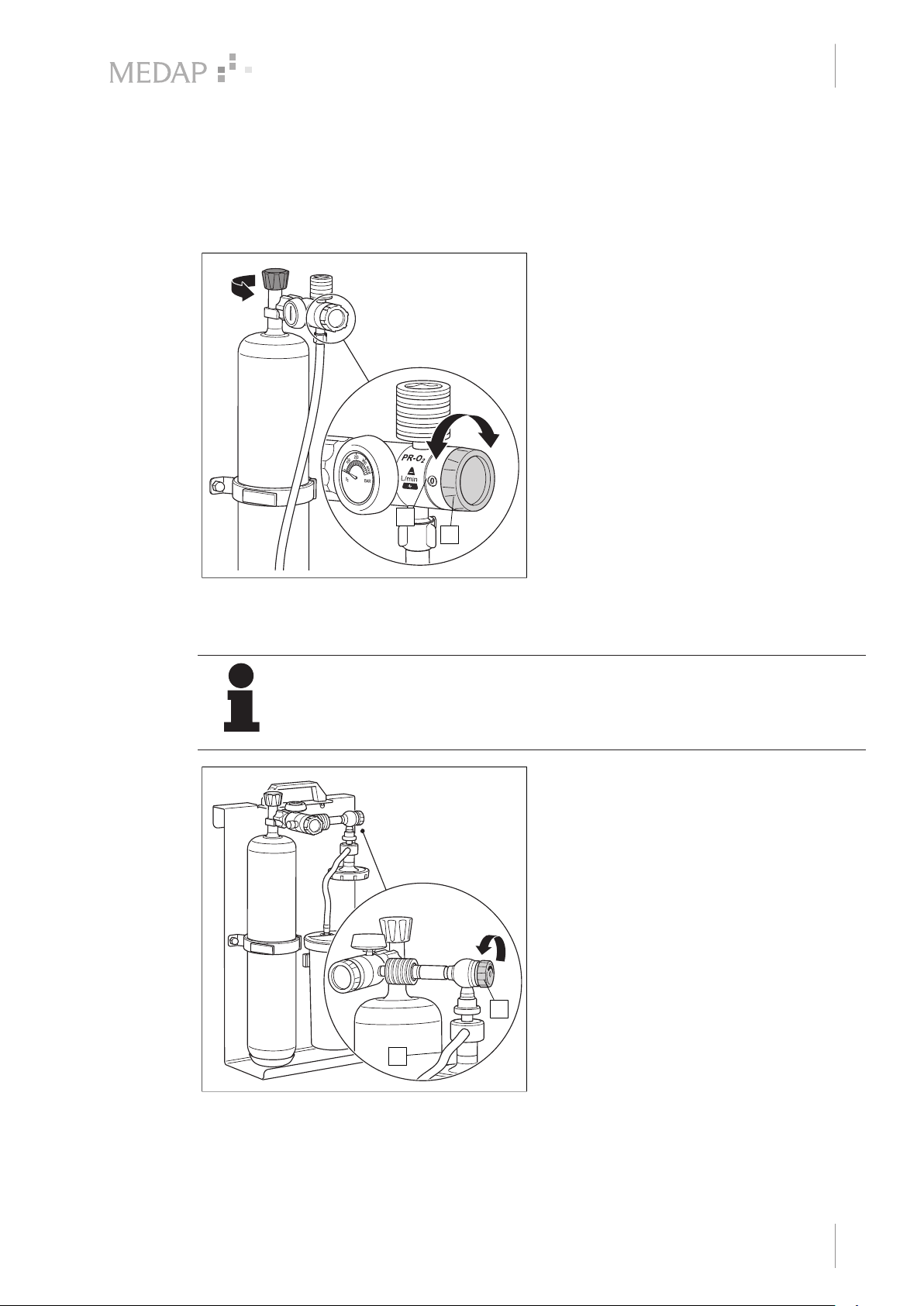

3.4 Connecting the fine regulator
1
2
1
2
Initial operation
Connecting the fine regulator
Connecting the fine regulator
Insert the fine regulator (1) into the DIN
coupling (2) on the pressure regulator.
2
1
3

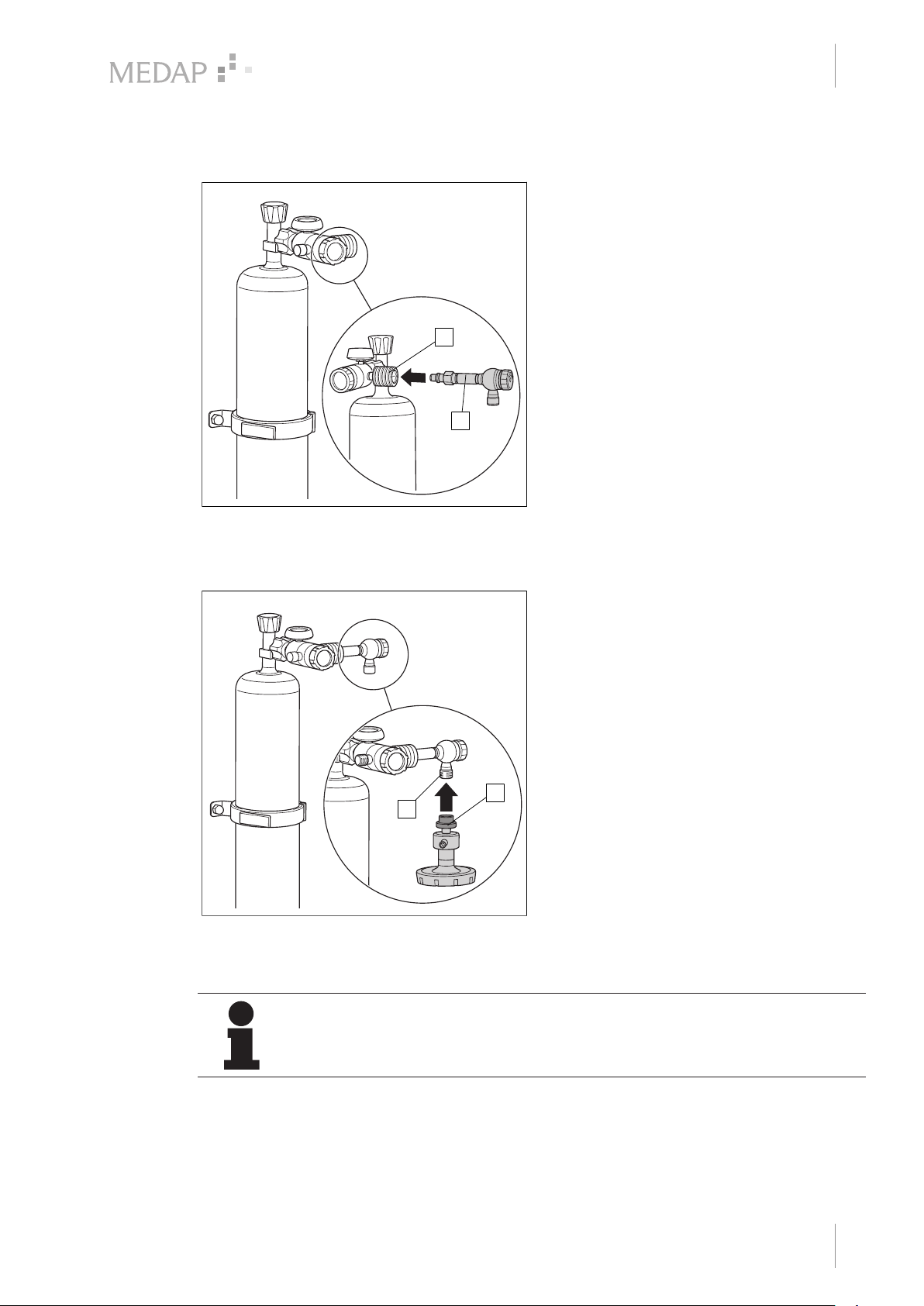

Fig. 5: Connecting the fine regulator
3.5 Connecting the gas-jet pump
Fig. 6: Connecting the gas-jet pump
Connecting the gas-jet pump
Fit the cap nut (1) of the gas-jet pump onto
the connection thread (2) of the fine
regulator.
Tighten the cap nut.
The gas-jet pump is mounted.
1
2
3.6 Mounting the tubes
NOTE
Use the hydrophobic bacterial and viral filter (REF 5752 2557) instead of the tube
adapter (REF 5752 2295) to increase safety.
GA 5752 5556 GB 05
15
Page 16
3
2
1
4
3
5
Initial operation
Aspiration and oxygen therapy
2
Mounting the tubes
Fit the adapter (1) into the septic fluid jar
cap.
Attach the connection tube (2) to the
adapter.
3
1
5
4
Attach the other end of the connection tube
to the tube connector (3) on the gas-jet
pump.
Attach the suction tube (4) to the patient-
side connector (5) on the septic fluid jar
cap.
Aspiration set is functional.

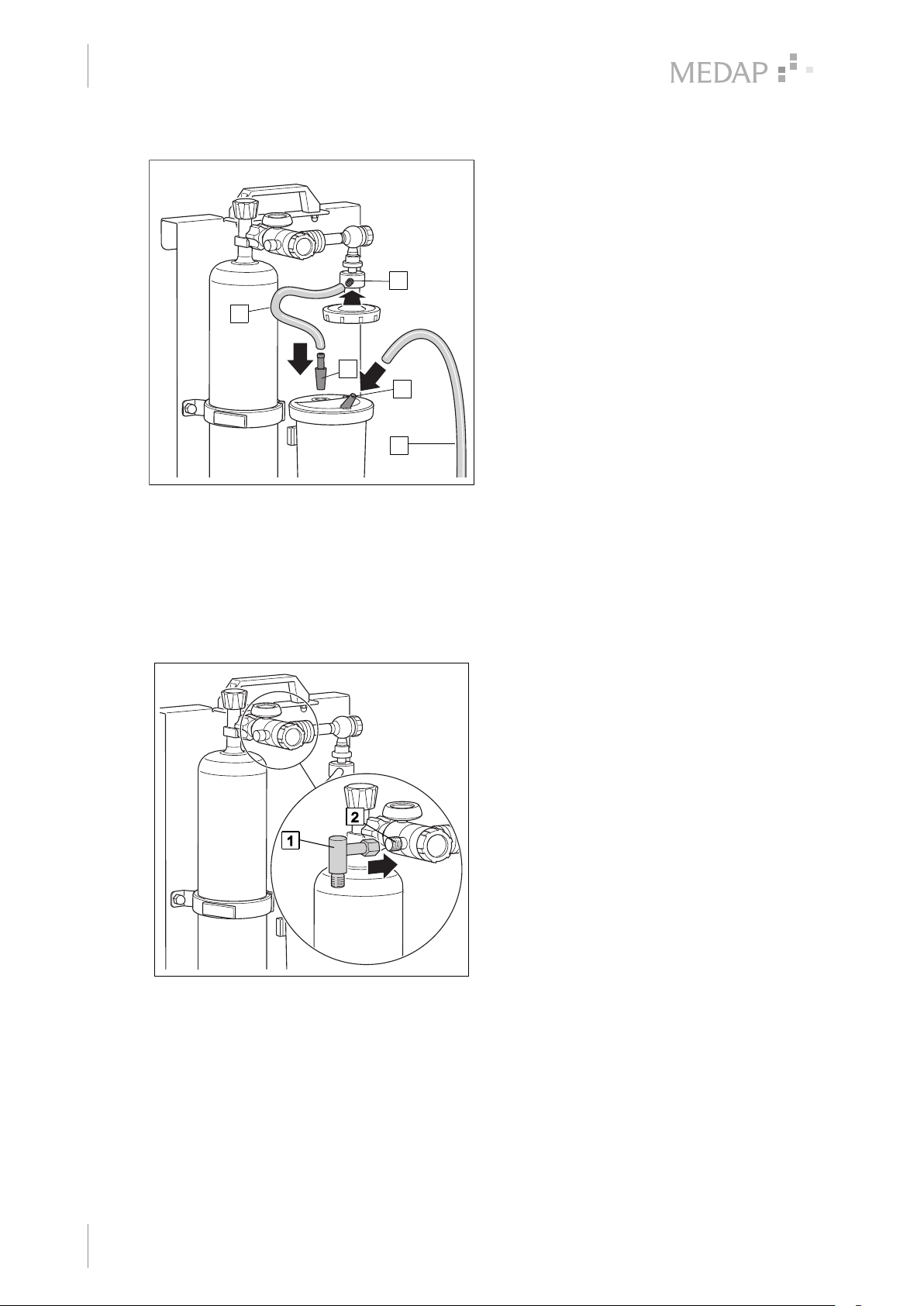

Fig. 7: Mounting the tubes
3.7 Aspiration and oxygen therapy
3.7.1 Connecting the accessories (optional)
3.7.1.1 Connection of bubble humidifier MEDAP (REF 5752 5315)
Connecting the angled adapter
Screw the angled adapter (1) onto the tube
connector (2) of the pressure regulator.
16
Fig. 8: Connecting the angled adapter
GA 5752 5556 GB 05
Page 17
Initial operation
1
2
5
4
3
Aspiration and oxygen therapy
Connecting the bubble humidifier
Ensure that the tube connector of the
bubble humidifier has two seals.
2
3
4
1
5
Screw the bubble humidifier (1) directly to
the angled adapter (2) and tighten fingertight as far as it will go.
Attach the connection tube (3) to the tube
connector (4) of the bubble humidifier.
Attach the other end of the connection tube
to the inhalation mask (5).
Oxygen supply is functional.
Pay attention that no tensile forces affect
the bubble humidifier.
3

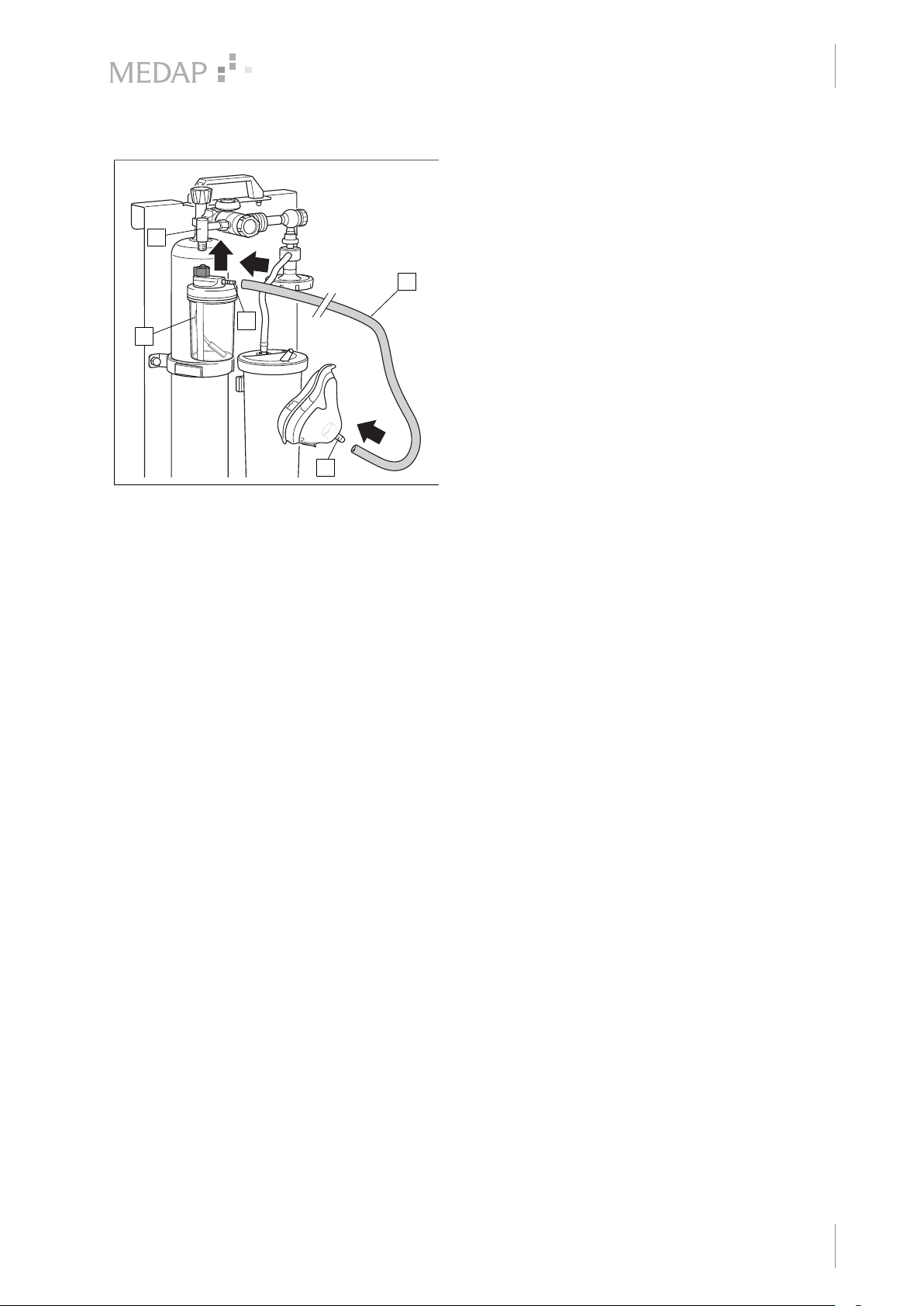

Fig. 9: Connection of bubble humidifier
3.7.1.2 Connection of disposable humidifiers from other manufacturers
Disposable humidifiers may be connected to the flowmeter outlet. An angled adapter must be
used for disposable humidifiers.
Screw the disposable humidifier directly to the flowmeter output (2) and tighten finger-tight as
far as it will go.
GA 5752 5556 GB 05
17
Page 18
Operation
4
Function test
4 Operation
4.1 Function test
Prior to using the system, the operator must check that the product is fully functional and in good
condition. Prior to each use, carry out the following functionality checks:
Pressure regulator
• State of manual tightening
• State of seal in cap nut
• Ease of movement at the connection threads (difficulty of movement is an indication of damage or soiling to the threads),
• Damage to supply tubes
• Airtightness
• Intact connection thread for accessories
NOTE
Unscrew manual tightening only after pressure has been fully released from the
pressure regulator. First, close the valve on the oxygen cylinder; then release the
pressure on the click-stop flowmeter.
Suction unit
• Damage of seal rims of float in the overflow protection device
• Any cracks in septic fluid jar
• Splintering at the contact surfaces of the septic fluid jar
• Damage to seal of the septic fluid jar cap
• Cracked or hardened connection tubes
• State of seal in cap nut of gas-jet pump
• Free movement of control valve of fine regulator for gas-jet pump
Oxygen cylinder
• Sufficient filling level
4.2 Check the filling level of the oxygen cylinder
NOTE
Check airtightness of all accessory connections before beginning treatment.
Manually retighten connecting nuts as necessary and readjust to the amount of
oxygen required.
The duration of use in treatment depends on the filling level of the oxygen cylinder. The filling
level may be checked as follows:
Cylinder pressure (kPa) * cylinder volume (V) / O2 dosage (l/min)
Example of calculation:
• Cylinder pressure = 200 kPa
• Cylinder volume = 2 l
• O2 dosage = 4 (l/min)
• 200 * 2 / 4 = 100 min
The cylinder contents will last for approximately 1.5 hours.
18
Checking the filling level
Open cylinder valve.
GA 5752 5556 GB 05
Page 19
Set hand wheel of the click-stop flowmeter at the pressure regulator.
2
1
2
1
Check gauge to see whether the cylinder contains sufficient oxygen for treatment.
4.3 Oxygen extraction
Operation
Oxygen extraction

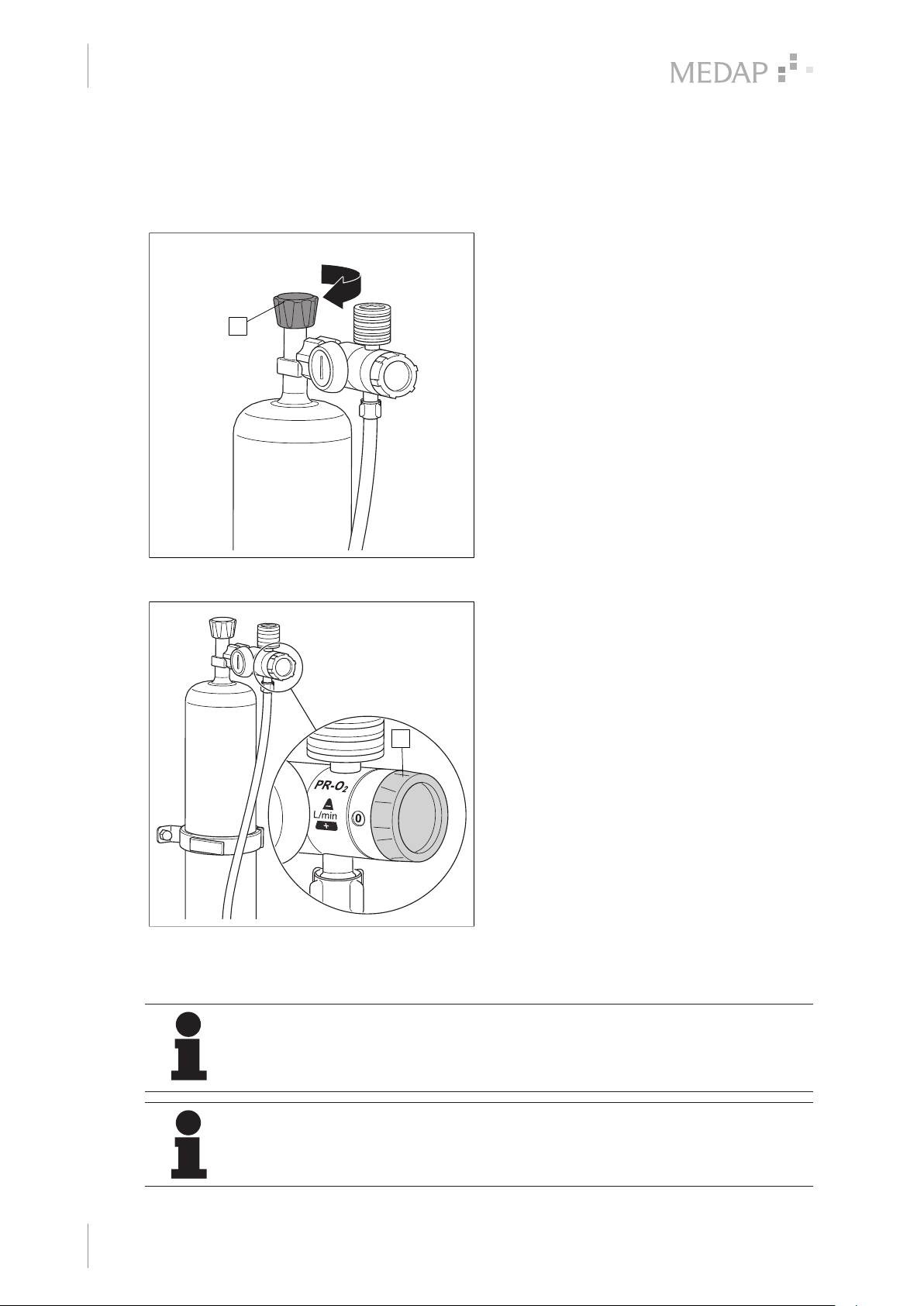

Setting the flow
Set hand wheel (1) of the click-stop
flowmeter to [0].
Open the cylinder valve of the oxygen
cylinder anticlockwise and check whether
the cylinder contains sufficient content for
treatment [ Page 18].
Set the desired flow quantity on the hand
wheel.
The arrow (2) on the pressure regulator
indicates flow quantity.
4
Fig. 10: Setting the flow
4.4 Setting the vacuum level
NOTE
Check airtightness of all accessory connections before beginning treatment.
Manually retighten connecting nuts as necessary and readjust to the amount of
oxygen required.
2
1
Setting the vacuum level
Close the control valve (1) on the fine
regulator.
Open the cylinder valve of the oxygen
cylinder and check whether the cylinder
contains sufficient content for treatment [
Page 18].
Turn the control valve of the fine regulator
slowly one full rotation in an anticlockwise
direction.
Bend the suction tube (2).
1
Set the suction rate required using the
control valve.
Fig. 11: Setting the vacuum level
2
GA 5752 5556 GB 05
19
Page 20
Taking the unit out of operation
1
1
5
Stopping oxygen extraction
5 Taking the unit out of operation
5.1 Stopping oxygen extraction
1
Closing the cylinder valve
Turn the hand wheel (1) of the cylinder
valve slowly in a clockwise direction.
Cylinder valve is closed.
Oxygen supply is interrupted.
Fig. 12: Closing the cylinder valve
Fig. 13: Closing the pressure regulator
5.2 Replacing the oxygen cylinder
NOTE
Unscrew manual tightening only after pressure has been fully released from the
pressure regulator. First, close the valve on the oxygen cylinder; then release the
pressure on the click-stop flowmeter.
Releasing the pressure
Set the hand wheel (1) of the click-stop
flowmeter to [15].
Pressure is released.
Closing the pressure regulator
1
Set the hand wheel (1) of the click-stop
flowmeter to [0].
20
GA 5752 5556 GB 05
NOTE
Please refer to the operating instructions on the carrying board (REF 5752 4733)
for the assembly of the oxygen cylinder to the carrying board.
Page 21
Taking the unit out of operation
2
1
2
1
4
3
Detaching tubes
Replacing the oxygen cylinder
Release the pressure.
Close the pressure regulator.
Unscrew the pressure regulator (1).
Replace the oxygen cylinder (2).
Screw the pressure regulator back into
1
2
place.
5
Fig. 14: Replacing the oxygen cylinder
5.3 Detaching tubes
3
Fig. 15: Detaching tubes
Detaching tubes
Remove the suction tube (1) from the
patient-side tube connector (5) on the
septic fluid jar cap.
Detach the adapter (2) and connection tube
4
2
1
(3) from the septic fluid jar cap.
Remove the other end of the connection
tube from the connector (4) on the gas-jet
pump.
GA 5752 5556 GB 05
21
Page 22
Cleaning and disinfection
6
General
6 Cleaning and disinfection
6.1 General
The product must be cleaned as well as wipe disinfected after every use. Perform visual and
functional inspections after each cleaning and disinfection process. Please strictly observe the
cleaning instructions in the operating instructions of the connected products.
DANGER!
Risk due to incorrect use of detergents and disinfectants!
It is strictly advised to observe the manufacturer’s instructions regarding how to
use the detergents and disinfectants as well as to observe the valid hospital
hygiene rules.
DANGER!
Infection hazard!
Product may be contaminated.
Always wear gloves for cleaning and disinfection.
22
GA 5752 5556 GB 05
Page 23
7 Maintenance
7.1 General
Maintenance, repairs and periodic tests may only be carried out by persons who have the
appropriate technical knowledge and are familiar with the product. To carry out these measures,
the person must have the necessary test devices and original spare parts.
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This
ensures that repairs and testing are carried out professionally, original spare parts are used and
warranty claims remain unaffected.
DANGER!
Health hazard!
The product is used in the treatment of patients. The product or some of its
components may be contaminated.
Clean and disinfect the product before maintenance and repair.
Repair work may be performed by personnel authorised by ATMOS.
Maintenance
General
7
7.2 Periodic tests
Observe the instructions for the individual components.
7.3 Visual and functional inspections
To ensure correct operation, it is necessary to have visual and functional inspections performed
by a trained person prior to each use.
Documentation of the results of the visual and functional inspections is recommended and should
include the date and signature of the person who performed the inspections. The following table
can be used as a template.
Suggestion:
No. Inspection Defects are present No defects
1 Has the product been cleaned
and disinfected according to
the hygiene guideline?
Comment:
2 Is the product sealed?
Do not use the product any
longer.
Clean and disinfect the
product according to the
guidelines.
Do not use the product any
longer.
Comment:
3 Are there damages to
mechanical parts?
Comment:
4 (Space for other tests)
Do not use the product any
longer.
Inform service personnel.
GA 5752 5556 GB 05
23
Page 24
Maintenance
7
Malfunctions and troubleshooting
No. Inspection Defects are present No defects
Comment:
Tab. 4: Visual and functional inspections
7.4 Malfunctions and troubleshooting
Defect Source of malfunction Troubleshooting
No or reduced flow rate No pressure available Check the contents of the oxygen
cylinder; if necessary, replace the
oxygen cylinder
Open the oxygen cylinder
Fit the fine regulator correctly
Open the fine regulator
Cylinder pressure gauge is
not working
No or only little oxygen
released
Gas-jet pump is defective Contact technical service
Pressure regulator is
defective
Fine regulator defective
Oxygen cylinder is empty Replace the oxygen cylinder
Fine regulator is not fitted
properly in DIN coupling of
the pressure regulator
Oxygen cylinder is not open Open the oxygen cylinder
Fine regulator is not open Open the fine regulator
Oxygen cylinder is empty Replace the oxygen cylinder
Oxygen cylinder is not open Open the oxygen cylinder
Pressure regulator is
defective
No oxygen pressure Check the contents of the oxygen
Pressure regulator with
flowmeter clogged
Leaking manual tightening Check seal in DIN 477-1
Fit the fine regulator correctly
Contact technical service
cylinder; if necessary, replace the
oxygen cylinder
Contact technical service
connection of pressure regulator
Retighten manual tightening
24
Tab. 5: Troubleshooting
GA 5752 5556 GB 05
Leaking or contaminated
accessories
Replace or clean accessories
Page 25
7.5 Repairs
The following issues may require repairs by the manufacturer or an authorised service partner:
• Liquid has penetrated the device.
• The performance has significantly decreased.
• Inexplicable notifications appear.
• Abnormal noises occur.
• Functional faults cannot be rectified according to the measures in chapter Malfunctions and
troubleshooting [ page 24].
If defects are detected, the product may not be used any longer.
Make a note of the deficiencies and the REF number on the data plate and inform your
responsible ATMOS representative.
Observe the information in chapter Sending in the device [ page 25].
7.6 Service hotline
+49 7653 689-0
Maintenance
Repairs
7
7.7 Spare parts
5750 6522 Humidifier bottle for bubble humidifier MEDAP
Tab. 6: Spare parts
7.8 Sending in the device
Remove and properly dispose of consumables.
Clean and disinfect the product and accessories according to the operating instructions.
Place used accessories with the product.
Fill in the form QD 434 ‘Delivery complaint / return shipment’ and the respective
decontamination certificate.
This form is enclosed with each delivery and can be found at www.atmosmed.com.
The device must be well padded and packed in suitable packaging.
Place the form QD 434 ‘Delivery complaint / return shipment’ and the respective
decontamination certificate in an envelope.
Affix the envelope to the outside of the package.
Send the product to ATMOS or to your dealer.
GA 5752 5556 GB 05
25
Page 26
Technical specifications
8
Ambient conditions
8 Technical specifications
8.1 Ambient conditions
Temperature: Shipping / storage −20 °C to +60 °C
Temperature: Operation −20 °C to +60 °C
Relative humidity: Shipping / storage 10% to 95%
Relative humidity: Operation 10% to 95%
Atmospheric pressure: Shipping / storage 700 hPa to 1060 hPa
Atmospheric pressure: Operation 700 hPa to 1060 hPa
8.2 Technical specifications
Observe the instructions for the individual components in the respective operating instructions.
8.3 Dimensions and weights
Dimensions (W x H x D) 250 x 545 x 200 mm
Weight without cylinder 4.3 kg
Maximum weight (with 3 l cylinder) 9.2 kg
26
GA 5752 5556 GB 05
Page 27
9 Accessories
9.1 Accessories
5752 5606 Angled adapter UNF 9/16"
5752 5315 Bubble humidifier
Tab. 7: Accessories
9.2 Consumables
5750 5045 Hydrophobic bacterial filter paper (100 pieces)
5752 2557 Hydrophobic bacterial and viral filter (pore size 1 μm)
000.0347.0 Fingertip
5750 5467 Vacuum connection tube, 6 x 12 mm, by the metre
Tab. 8: Consumables
Table of contents
GA 5752 5556 GB 05
27
Page 28
Manufacturer:
ATMOS
MedizinTechnik GmbH & Co. KG
Ludwig-Kegel-Str. 16
79853 Lenzkirch
GERMANY
Phone: +49 7653 689-0
www.atmosmed.com
Loading...
