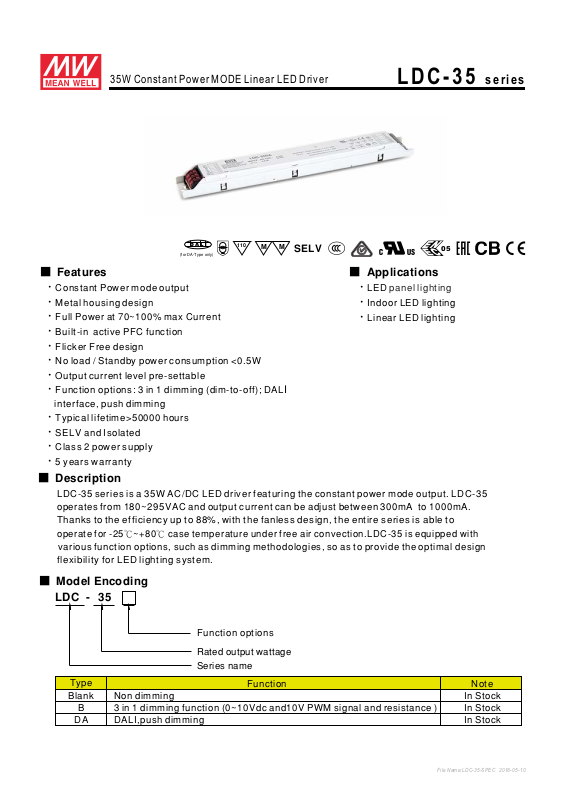

MEANWELL LDC-35B Datasheet

Page 1

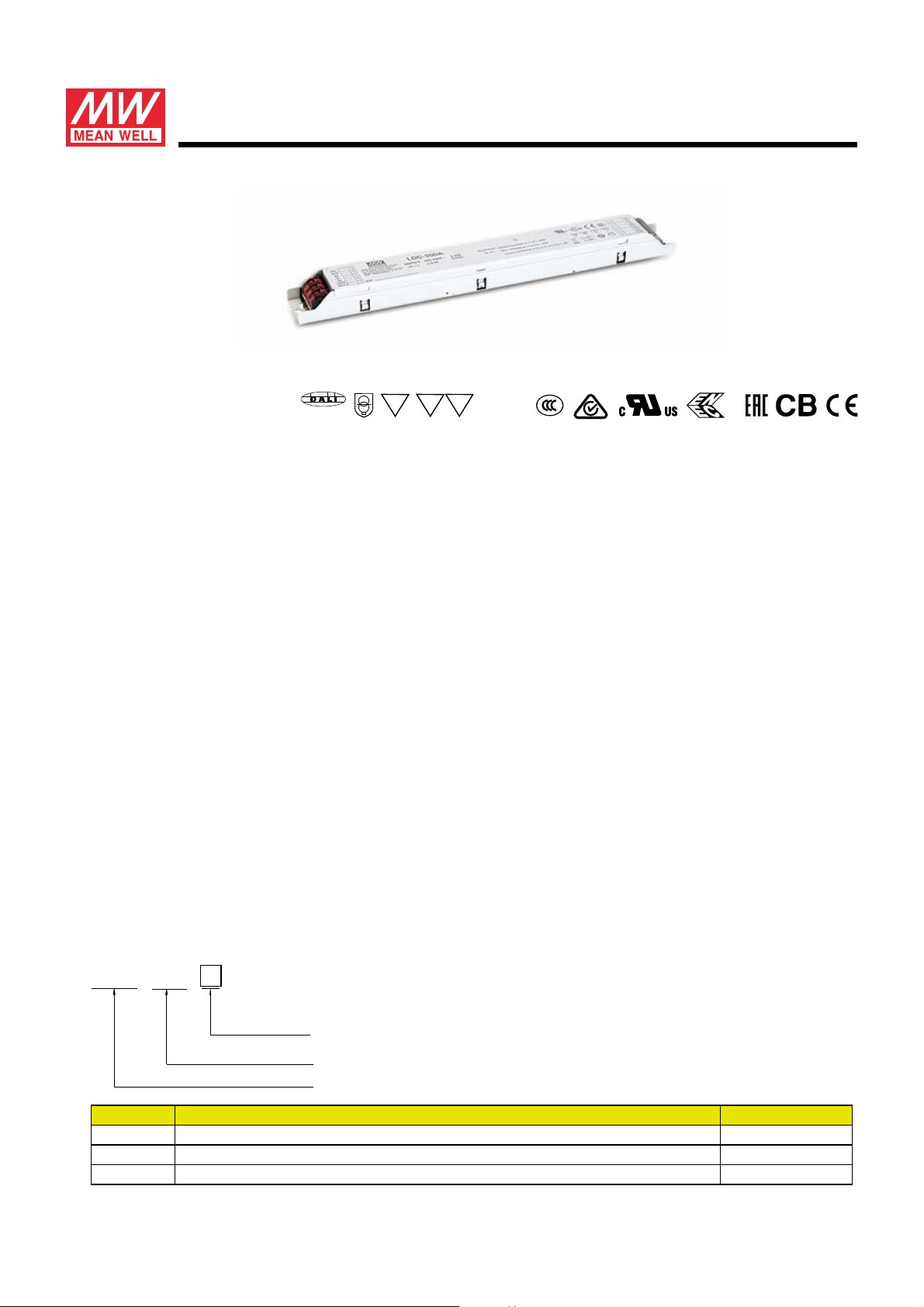

35W Constant Power MODE Linear LED Driver
110
(for DA-Type only)
M M
SELV
LDC-35 series
Features ApplicationsConstant Power mode output
Metal housing designFull Power at 70~100% max Current
LED panel lightingIndoor LED lighting
Linear LED lightingBuilt-in active PFC functionFlicker Free design <0.5WNo load / Standby power consumptionOutput current level pre-settableFunction options: 3 in 1 dimming (dim-to-off); DALI
interface, push dimming
Typical lifetime>50000 hoursSELV and IsolatedClass 2 power supply5 years warranty
05
Description
LDC-35 series is a 35W AC/DC LED driver featuring the constant power mode output. LDC-35
operates from 180~295VAC and output current can be adjust between 300mA to 1000mA.
Thanks to the efficiency up to 88%, with the fanless design, the entire series is able to operate for -25 ~+80 case temperature under free air convection.LDC-35 is equipped with℃℃
various function options, such as dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
Model Encoding
LDC -
Blank
35
Type
Non dimming
B
DA In StockDALI,push dimming
3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance )
Function options
Rated output wattage Series name
Function Note
In Stock In Stock
File Name:LDC-35-SPEC 2018-05-10
Page 2
SPECIFICATION
MODEL
OUTPUT CURRENT REGION
RATED POWER Note.2
CONSTANT CURRENT REGION
FULL POWER CURRENT RANGE
OUTPUT
INPUT
PROTECTION
FUNCTION
ENVIRONMENT
SAFETY & EMC
OTHERS
NOTE
OPEN CIRCUIT VOLTAGE
LOW FREQUENCY
CURRENT RIPPLE
CURRENT TOLERANCE
SET UP TIME
VO LTAG E RANGE Note.3
FREQUENCY RANGE
POWER FACTOR
TOTALHARMONIC DISTORTION
EFFICIENCY (Typ.)
AC CURRENT(Typ.)
INRUSH CURRENT
MAX. No. of PSUs on 16A CIRCUIT BREAKER
LEAKAGE CURRENT
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
DIMMING
TEMP. COMPENSATION WORKING TEMP.
MAX. CASE TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
DALI STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated and 25 of ambient temperature.current
2. Please refer to " ".OUTPUT CURRENT SETTING
3. De rating may be needed under low input voltages. Please .- refer to STATIC CHARACTERISTIC sections for details
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly point (or TMP, per DLC), is about 70 or less.tc
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
35W Constant Power MODE Linear LED Driver
LDC-35
300 ~ 1000mA(300mAdefault)
35W
27 ~ 56V
Note.2
625 ~ 1000mA
60V
(max.)
3.0% max. @rated current
±5.0%
Note.4
(Typ.)
Note.5
500ms/230VAC
180 ~ 295VAC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF 0.95/230VAC@load 50%; PF 0.92/277VAC@load 75%≧≧≧≧ (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 10%(@load 50%/230VAC; @load 75%/277VAC)≧≧ (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
88%(230VAC@Full load)
0.2A / 230VAC 0.16A/ 277VAC
(Typ.)
COLD START 30A(twidth= s measured at 50% Ipeak)/230VAC250 Per NEMA 410μ;
17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
<0.75mA / 277VAC
Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
61 ~ 80V
Shut down o/p voltage with auto-recovery or re-power on to recovery
Shut down o/p voltage, with auto-recovery
Please refer to DIMMING OPERATION”section By external NTC, please refer to TEMPERATURE COMPENSATION OPERATION section“”
Tcase=-25 ~ +80 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) Tcase=+80 20 ~ 95% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH
±℃ ℃0.03%/ (0 ~ 60 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL8750 ENEC EN61347-1, EN61347-2-13, ;, CSA C22.2 No. 250.13-12; AS/NZS 61347.1:2016, AS/NZS IEC 61347.2.13:2013
Note.5
EN62384; GB19510.14,GB19510.1 approved, EAC TP TC 004
Compliance to IEC62386-101.102.207 for DA-Type only I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH Compliance to
EN55015,EN61000-3-2 Class C (@load 50%) ; EN61000-3-3;GB/T17743,GB17625.1 ,EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Earth:2KV,Line-Line:1KV) criteria A,EAC TP TC 020
1097K hrs min. Telcordia SR-332 (Bellcore) 286Khrs min. MIL-HDBK-217F (25 )
280 30* *21mm (L*W*H)
0.22Kg; 54pcs/12.88Kg/0.91CUFT
LDC-35 series
File Name:LDC-35-SPEC 2018-05-10
Page 3
35W Constant Power MODE Linear LED Driver
0V
10V
20V
30V
40V
50V
60V
100mA 300mA 500mA 700mA 900mA 1100mA

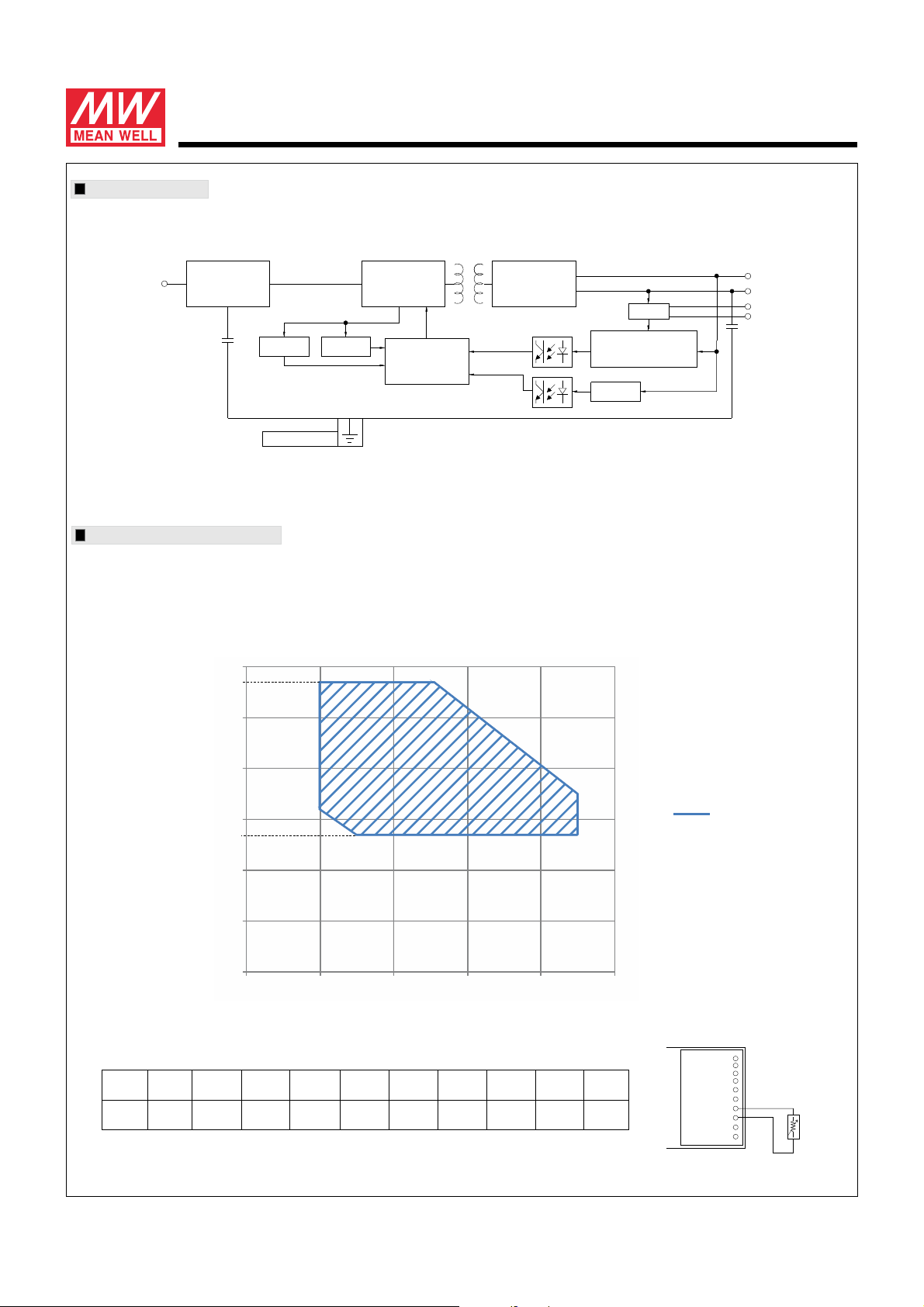

BLOCK DIAGRAM
LDC-35 series
PFC fosc : 50~400KHz
PWM fosc : 30~200KHz
I/P
EMI FILTER
&
RECTIFIERS
O.L.P.O.T.P.
CASE GROUND
POWER
SWITCHING
OUTPUT CURRENT SETTING
I-V OperatingArea.
Output rated current level can be adjusted by a additive resistance.
LDC-35
56V
PWM & P FC
CONTROL
RECTIFIERS
&
FILTER
DETECTION
CIRCUIT
O.V.P.
CP.
+V
-V DIM+
DIM-
(B Type)
VO LTAGE
27V
Rated current setting table
15.2K
19K
24.5K 43K 100K 300K
32.5K 46K
1A 0.9A 0.8A 0.7A
Note: output power 35W
0.62A
0.6A
CURRENT
72.5K
0.5A
0.45A
0.4A 0.35A
NC150K
0.3A
TB2
LDC-35
Vo+ Vo+ Vo-
Vo­NTC NTC
IADJ IADJ DIM+ DIM-
File Name:LDC-35-SPEC 2018-05-10
resistor
Page 4
35W Constant Power MODE Linear LED Driver
LDC-35 series

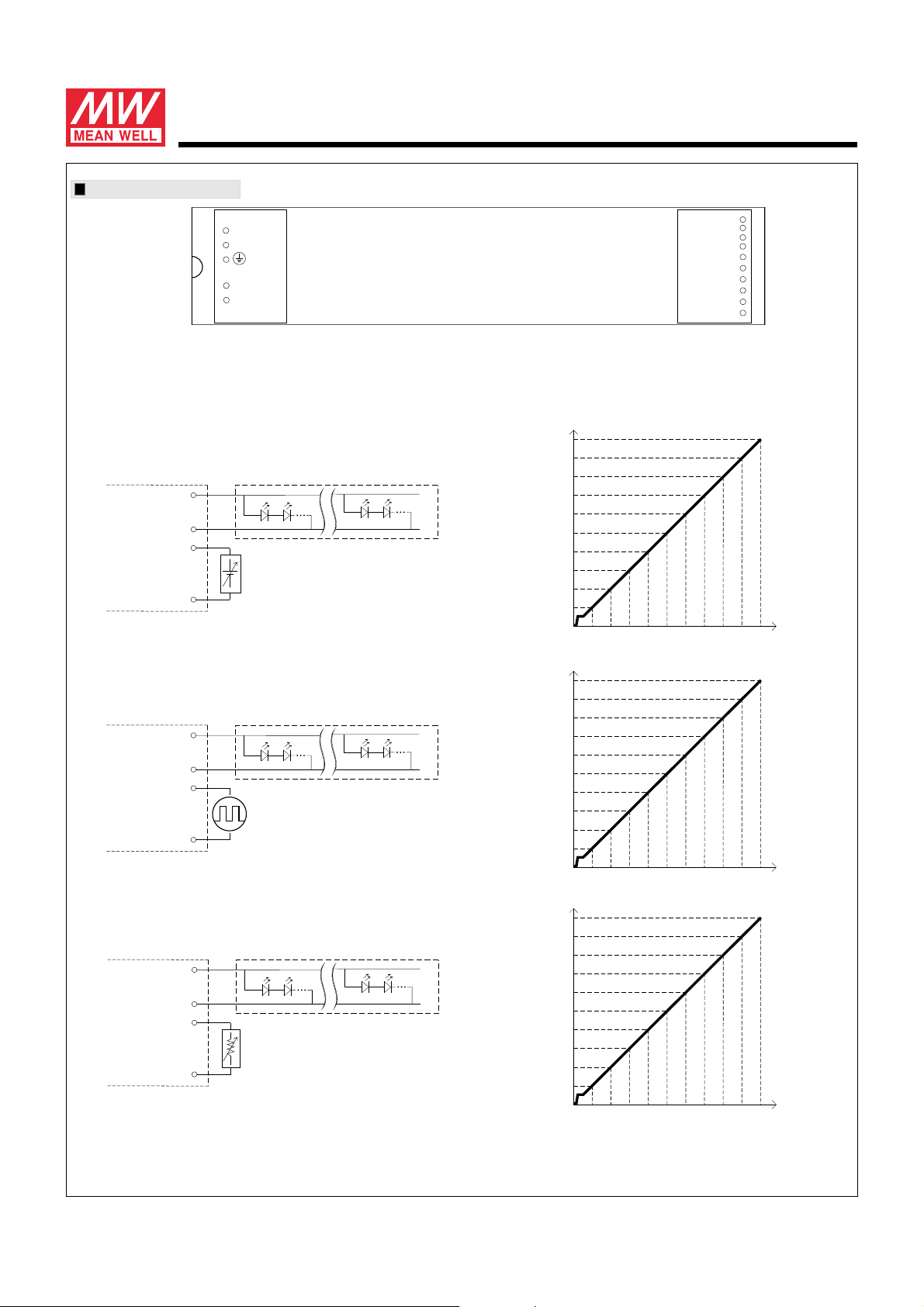

DIMMING OPERATION
AC/L AC/N
FG
DA-;N DA+;Ls
3 in 1 dimming function(for B-Type)Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
0 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers. Dimming source current from power supply: 100 A(typ.) μ
Applying additive 0 ~ 10VDC
+
Vo+
-
Vo-
DIM+
DIM-
DO NOT connect "DIM- to Vo-"
+
-
+
-
Additive Voltage
100%
90%
80%
70%
60%
50%
40%
Output current (%)
30%
20%
10%
0%
0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
Dimming input:Additive voltage
Vo+ Vo+ Vo-
Vo­NTC NTC
IADJ
IADJ DIM+ DIM-
Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
+
Vo+
-
Vo-
DIM+
DIM-
DO NOT connect "DIM- to Vo-"
Additive PWM signal
+
-
Applying additive resistance:
+
Vo+
-
Vo-
DIM+
DIM-
DO NOT connect "DIM- to Vo-"
Additive Resistance
+
-
100%
90%
80%
70%
60%
50%
40%
Output current (%)
30%
20%
10%
0%
0%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Duty cycle of additive 10V PWM signal dimming input
100%
90%
80%
70%
60%
50%
40%
Output current (%)
30%
20%
10%
0%
Short
10K/N 20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
(N=driver quantityfor synchronized )dimming operation
Dimming input:Additive resistance
Note : 1. Min. dimming level is about 8% and the output current is not defined when 0%< out<8%.I
2. The output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.
3. To ensure the dimming performance at low dimming level,output current must be over 45mA.
File Name:LDC-35-SPEC 2018-05-10
Page 5
35W Constant Power MODE Linear LED Driver

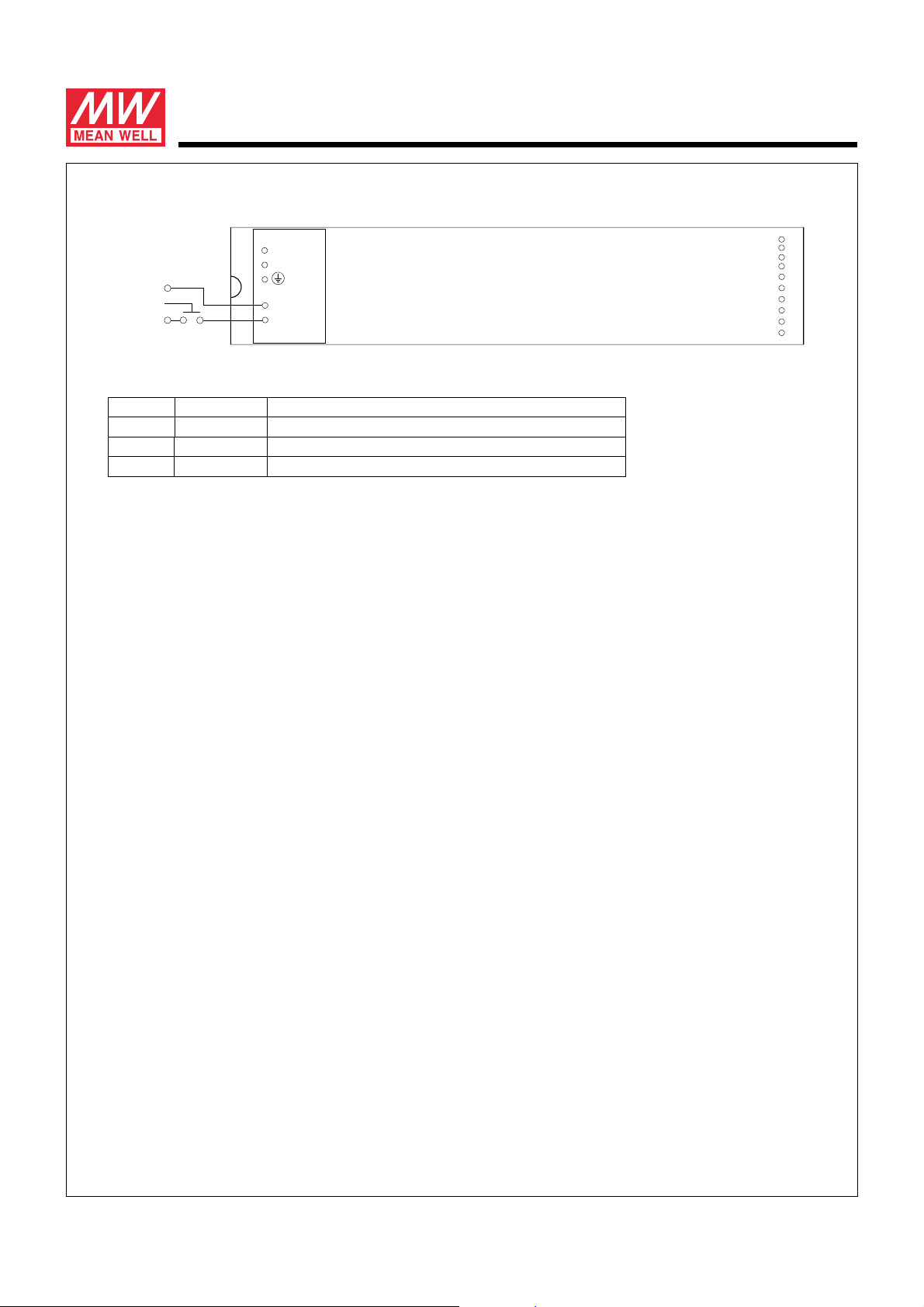

DALI interface
AC/L AC/N
AC/N Push Button
AC/L
PUSH dimming(primary side)
Action FunctionAction duration
Short push 0.1~1 sec. Turn ON-OFF the driver
Long push 1.5~10 sec. Every Long Push changes the dimming direction, dimming up or down
Reset >11 sec. Set up the dimming level to 100%
The factory default dimming level is at 100%.If the push action lasts less than 0.05 sec., it will not lead to a change for the status of the driver.Up to 10 drivers can perform the PUSH dimming at the same time when utilizing one common push button.The maximum length of the cable from the push button to the last driver is 20 meters.The additive push button can be connected only between the LS terminal, as displayed in the diagram,
and AC/L (in brown or black); it will lead to short circuit if it is connected toAC/N.
FG
DA-;N DA+;Ls
LDC-35 series
Vo+ Vo+ Vo-
Vo­NTC NTC
IADJ IADJ DIM+ DIM-
DALI interface(primary side)
Apply DALI signal between DA+ and DA-DALI protocol comprises 16 groups and 64 addresses.First step is fixed at 8% of rated output power.
NOTE: DALI, Push dimming can not be used in the same time!(The factory setting defaults to DA)
File Name:LDC-35-SPEC 2018-05-10
Page 6
35W Constant Power MODE Linear LED Driver
LDC-35 series

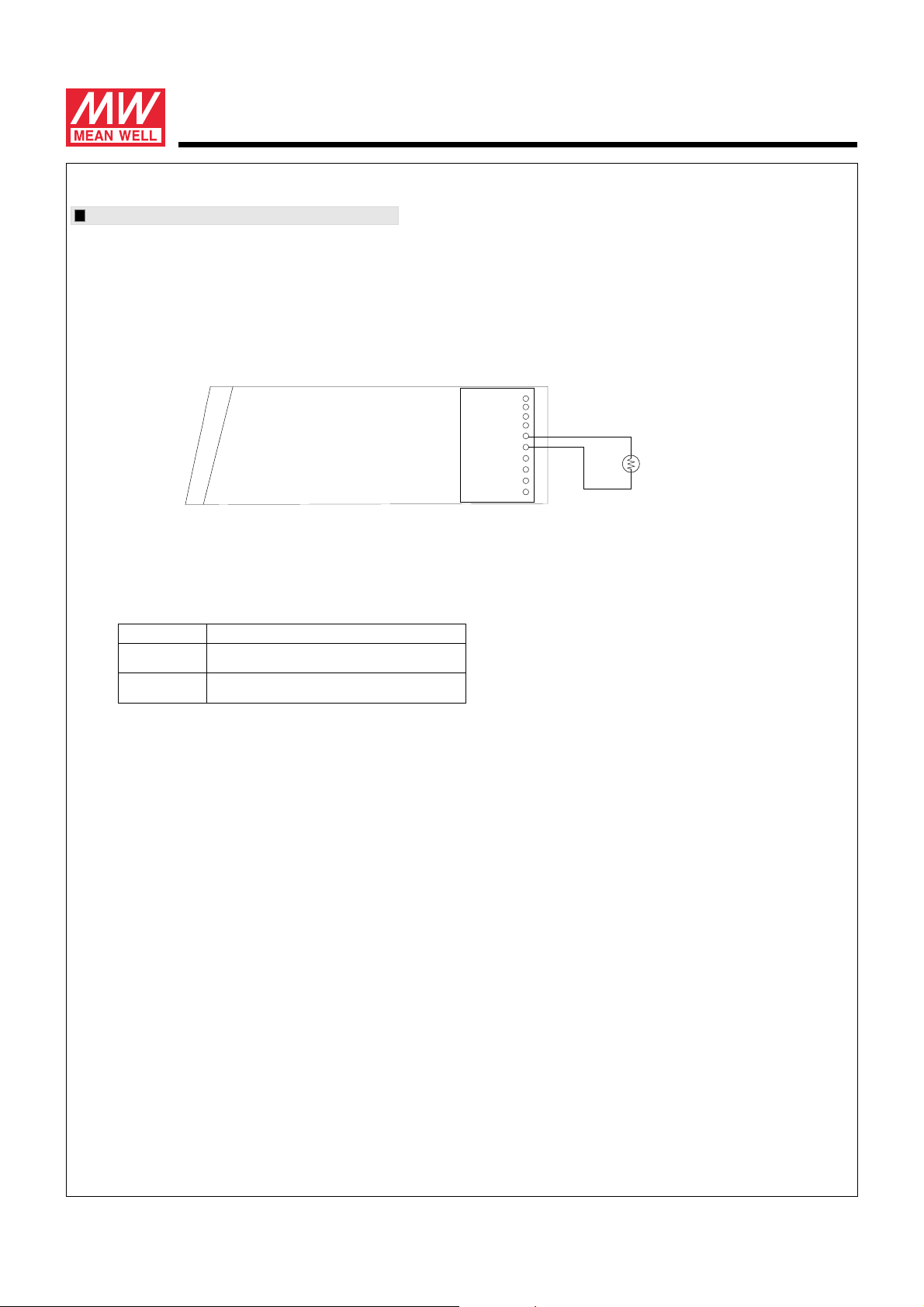

TEMPERATURE COMPENSATION OPERATION
LDC-35 have the built-in temperature compensation function ; by connecting a temperature sensor (NTC resistor) between the +NTC / -NTC terminal of LDC-35 and the detecting point on the lighting system or the surrounding environment, output current of LDC-35 could be correspondingly changed, based on the sensed temperature, to ensure the long life of LED.
Vo+ Vo+ Vo-
Vo­NTC NTC
IADJ
IADJ
DIM+ DIM-
LDC-35 can still be operated normally when the NTC resistor is not connected and the value of output current will be the current level selected
through the IADJ. pin NTC reference:
NTC resistance
<20K
Output current reduce as the resistance decreases
Output Current
NTC resistor
>20K
Notes: 1. MEAN WELL does not offer the NTC resistor and all the data above are measured by using resistor.
2. If new brand of NTC resistor is applied,please check the temperature curve first.
Dimming function of the driver will be invalid when the "temperature compensation" function is in use.
Normal output current
File Name:LDC-35-SPEC 2018-05-10
Page 7
76
78
80
82
84
86
88
90
92
50% 60% 70% 80% 90% 100%
277V
230V
2
3
4
5
6
7
8
9
10
50% 60% 70% 80% 90% 100%
277V
230V
0.88
0.9
0.92
0.94
0.96
0.98
1
50% 60% 70% 80% 90% 100%
277V
230V
35W Constant Power MODE Linear LED Driver

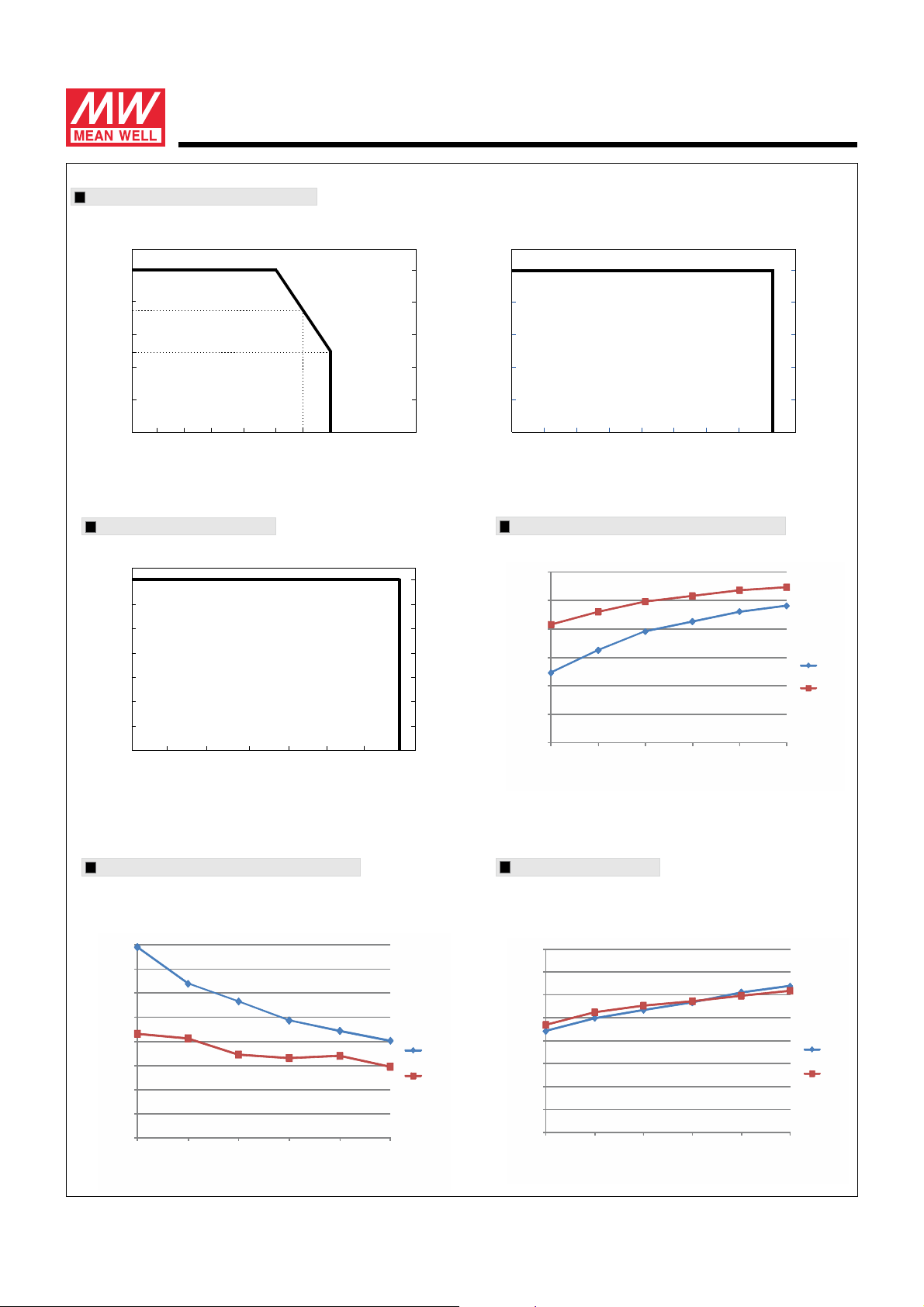

OUTPUT LOAD vs TEMPERATURE
LDC-35 series
100
80
60
50
40
LOAD (%)
20
-25 0-10 15 30 50
AMBIENT TEMPERATURE,Ta ( )
STATIC CHARACTERISTIC
100
90
80
70
60
LOAD (%)
50
40
100
80
60
40
LOAD (%)
20
70
60
(HORIZONTAL)
-25-100 204555657580
(HORIZONTAL)
Tcase ( )
POWER FACTOR (PF) CHARACTERISTIC
Tcase at 75
PF
190
180
200
210
INPUT VOLTAGE (V) 60Hz
TOTAL HARMONIC DISTORTION (THD)
1000mAModel, Tcase at 75
THD
LOAD
220
230
240
295
(35W)
LOAD
(230Vac Input)
EFFICIENCY vs LOAD
LDC-35 series possess superior working efficiency up to 90%.
1000mA Model, Tcase at 75
EFFICIENCY(%)
LOAD
File Name:LDC-35-SPEC 2018-05-10
Page 8

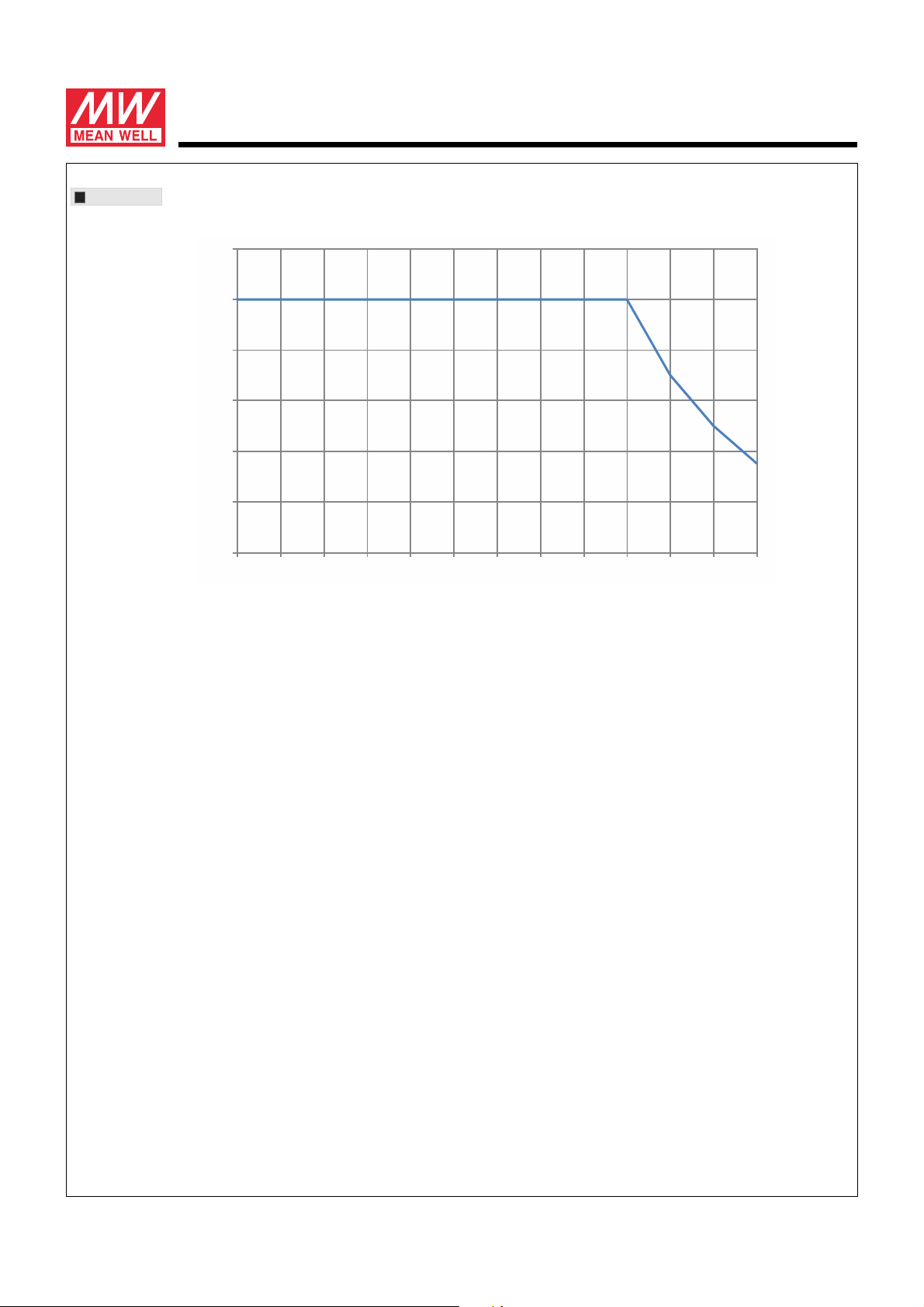

LIFE TIME
0
20
40
60
80
100
120
20 30 40 50 60 70 80
35W Constant Power MODE Linear LED Driver
LIFETIME(Kh)
LDC-35 series
Tcase ( )
File Name:LDC-35-SPEC 2018-05-10
Page 9
35W Constant Power MODE Linear LED Driver

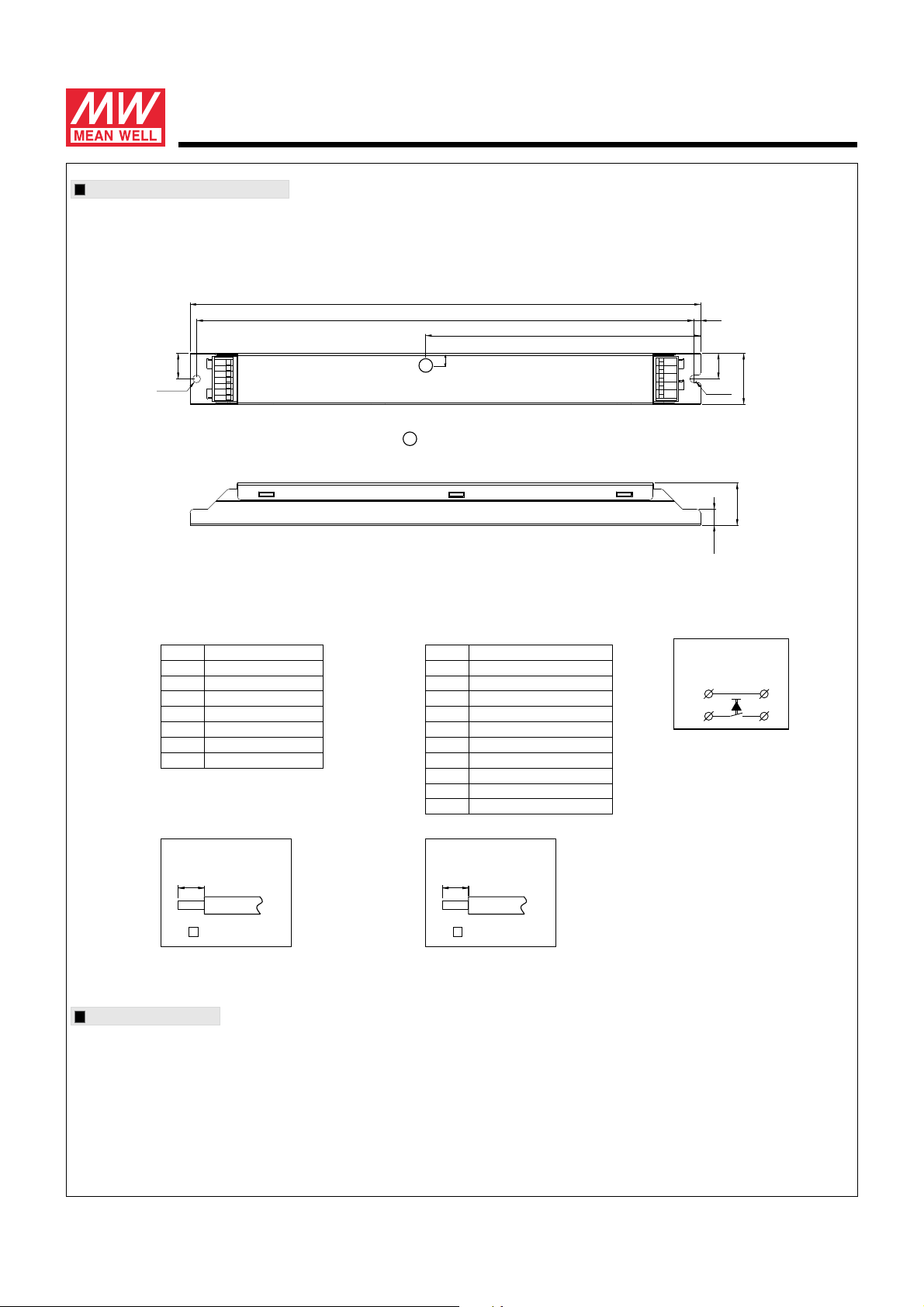

MECHANICAL SPECIFICATION
280
273
LDC-35 series
CASE NO.: 263A Unit:mm
3.5
145
ψ4.5
1
2
15
3
TB1
4
5 6
7
: Max. Case Temperature
6
tc
tc
Terminal Pin No. Assignment (TB1) : Terminal Pin No. Assignment (TB2) :
Pin N o.
1 2 3 4 5 6 7
Assignment
ACL ACN
NC FG
NC(for DA-type only )
DA-/N(for DA-type only)
DA+/Ls(for DA-type only)
Pin N o.
1 2 3 4 5 6 7 8 9
10
Assignment
Vo+ Vo+ Vo-
Vo-
NTC
NTC IADJ IADJ
DIM+(for B-type only)
DIM-(for B-type only)
1 2 3 4 5 6 7 8 9
10
15
TB2
ψ4.5
9.5
PUSH DIMMING
Device connection
Retractive push-to-make
switch
ACN
ACL
30
21
N
L
S
TB1 wiring:
8-9mm
0.5-0.75mm
2
Installation Manual
Pl ase refer to :e http://www.meanwell.com/manual.html
TB2 wiring:
8-9mm
0.2-0.5mm
2
File Name:LDC-35-SPEC 2018-05-10
