MEANWELL GS15E-2P1J Datasheet

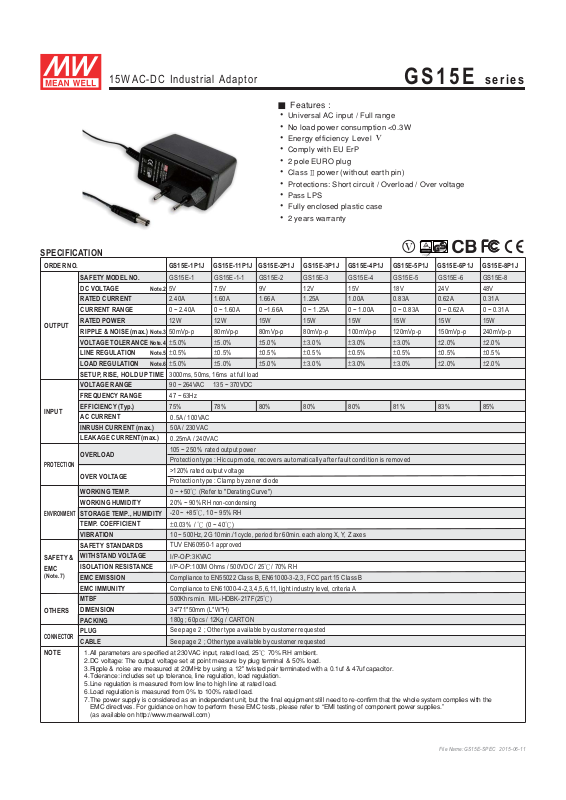

SPECIFICATION

ORDER NO.

SAFETY MODEL NO.

DC VOLTA GE

RATED CURRENT

CURRENT RANGE

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

(Note. 7)

OTHERS

CONNECTOR

NOTE

RATED POWER

RIPPLE & NOISE (max.)

VOLTAGE TOLERANCE

LINE REGULATION Note.5

LOAD REGULATION Note.6

SETUP, RISE, HOLD UPTIME
VOLTAGE RANGE

FREQUENCY RANGE

EFFICIENCY (Typ.)

AC CURRENT
INRUSH CURRENT (max.)

LEAKAGE CURRENT(max.)

OVERLOAD

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS
WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

DIMENSION

PACKING
PLUG

CABLE

1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient. ℃

2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.

3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.

4.Tolerance: includes set up tolerance, line regulation, load regulation.

5.Line regulation is measured from low line to high line at rated load.

6.Load regulation is measured from 0% to 100% rated load.

7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)

15WAC-DC Industrial Adaptor

GS15E-1P1J GS15E-11P1J GS15E-2P1J GS15E-3P1J GS15E-4P1J GS15E-5P1J GS15E-6P1J GS15E-8P1J

GS15E-1 GS15E-1-1 GS15E-2 GS15E-3 GS15E-4 GS15E-5 GS15E-6 GS15E-8

5V 7.5V 9V 12V 15V 18V 24V 48V

Note.2

2.40A 1.60A 1.66A 1.25A 1.00A 0.83A 0.62A 0.31A

0 ~ 2.40A 0 ~ 1.60A 0 ~1.66A 0 ~ 1.25A 0 ~ 1.00A 0 ~ 0.83A 0 ~ 0.62A 0 ~ 0.31A

12W 12W 15W 15W 15W 15W 15W 15W

Note.3

50mVp-p 80mVp-p 80mVp-p 80mVp-p 100mVp-p 120mVp-p 150mVp-p 240mVp-p
±5.0%

Note.4

±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
±5.0%

3000ms, 50ms, 16ms at full load
90 ~ 264VAC 135 ~ 370VDC

47 ~ 63Hz

75%

0.5A / 100VAC

50A / 230VAC

0.25mA / 240VAC

105 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed

>120% rated output voltage
Protection type : Clamp by zener diode

0 ~ +50 (Refer to "Derating Curve")℃

20% ~ 90% RH non-condensing

-20 ~ +85 , 10 ~ 95% RH℃

±℃℃0.03% / (0 ~ 40 )

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

TUV EN60950-1 approved

I/P-O/P:3KVAC
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55022 Class B, EN61000-3-2,3, FCC part 15 Class B

Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
500Khrs min. MIL-HDBK-217F(25 )℃

34*71*50mm (L*W*H)
180g ; 60pcs / 12Kg / CARTON
See page 2 ; Other type available by customer requested

See page 2 ; Other type available by customer requested

±5.0%

±5.0%

78% 80% 80% 80% 81% 83% 85%

GS15E series

■ Features :

Universal AC input / Full range
No load power consumption <0.3W
Energy efficiency Level Ⅴ
Comply with EU ErP
2 pole EURO plug
Class power (without earth pin)II
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case
2 years warranty

±5.0%

±5.0%

±3.0%

±3.0%

±3.0%

±3.0%

±3.0%

±3.0%

±2.0% ±2.0%

±2.0%

±2.0%

File Name:GS15E-SPEC 2015-06-11

15WAC-DC Industrial Adaptor

GS15E series

Mechanical Specification

40.05ψ±

19 0.5±

70 1±

50 1±

34 1±

Unit:mm

UL1185 18AWG 1830 +100/-0mm

71.5 1±

11

C"+"

ID 2.1 x OD 5.5

34.5

18.6

Derating Curve

100

70

LOAD (%)

0102030 5040

AMBIENT TEMPERATURE ( )℃

28

NAME PLATE

22

Plug Assignment

Standard plug: P1J

P1J

P/N

OUTPUT

CENTER

+

Static Characteristics

100

90

80

70

60

LOAD (%)

50

40

90 10095 120110 160140 200180 240220 264

INPUT VOLTAGE (VAC) 60Hz

File Name:GS15E-SPEC 2015-06-11
