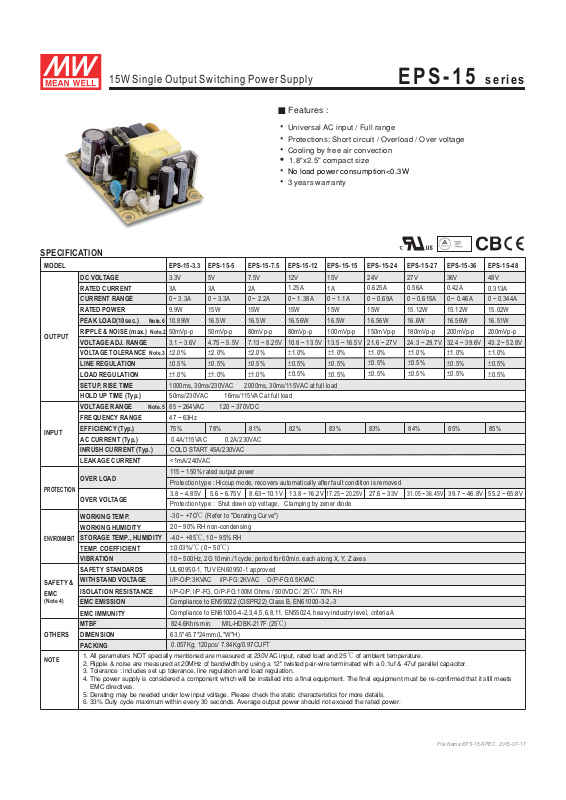

MEANWELL EPS-15-15 Datasheet

15W Single Output Switching Power Supply

SPECIFICATION

MODEL EPS-15-3.3

DC VO LTAG E

RATED CURRENT

CURRENT RANGE

RATED POWER

PEAK LOAD(10sec.) Note.6

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

(Note 4)

NOTE

RIPPLE & NOISE (max.)

VOLTAGE ADJ. RANGE

VOLTAGE TOLERANCE Note.3

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

EFFICIENCY (Typ.)

AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVER LOAD

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION

SAFETY STANDARDS
WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY
MTBF

DIMENSIONOTHERS

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.

5. Derating may be needed under low input voltage. Please check the static characteristics for more details.

6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.

3.3V

3A

0 ~ 3.3A

9.9W

10.89W

Note.2

50mVp-p

3.1 ~ 3.6V

±2.0%

±0.5%

±1.0%

1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load

50ms/230VAC 16ms/115VAC at full load

Note.5

85 ~ 264VAC 120 ~ 370VDC

47 ~ 63Hz

75%

0.4A/115VAC 0.2A/230VAC

COLD START 45A/230VAC

<1mA/240VAC

115 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

3.8 ~ 4.85V 5.6 ~ 6.75V 8.63~ 10.1V 13.8 ~ 16.2V

Protection type : Shut down o/p voltage, Clamping by zener diode

-30 ~ +7 (Refer to "Derating Curve")0℃

20 ~ 90% RH non-condensing

-40 ~ +85 , 10 ~ 95% RH℃
±0.03%/ (0 ~ 50 )℃℃

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

UL60950-1, TUV EN60950-1 approved

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A

824.6Khrs min. MIL-HDBK-217F (25 )℃

63.5*45.7*24mm (L*W*H)

0.057Kg; 120pcs/ 7.84Kg/0.97CUFT

EPS-15 series

■ Features :

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection

1.8"x2.5" compact size

No load power consumption<0.3W
3 years warranty

EPS-15-5 EPS-15-7.5 EPS-15-15

5V 7.5V 15V

3A 2A 1A

0 ~ 3.3A 0 ~ 2.2A 0 ~ 1.1A

15W 15W 15W

16.5W 16.5W 16.5W

50mVp-p 80mVp-p 100mVp-p

4.75 ~ 5.5V 7.13 ~ 8.25V 13.5 ~ 16.5V

±2.0% ±2.0%

±0.5% ±0.5%

±1.0% ±1.0%

78% 81% 83% 83% 84% 85%

EPS-15-12

12V

1.25A

0 ~ 1.38A

15W

16.56W

80mVp-p

10.8 ~ 13.5V

±1.0%

±0.5%

±0.5%

82%

±1.0%

±0.5%

±0.5%

17.25 ~ 20.25V

EPS-15-24 EPS-15-27

24V 27V

0.625A 0.56A

0 ~ 0.69A 0 ~ 0.615A

15W 15.12W

16.56W 16.6W

150mVp-p 180mVp-p

21.6 ~ 27V 24.3 ~ 29.7V

±1.0% ±1.0%

±0.5% ±0.5%

±0.5% ±0.5%

27.6 ~ 33V

31.05 ~ 36.45V

EPS-15-36

36V

0.42A

0 ~ 0.46A

15.12W

16.56W

200mVp-p

32.4 ~ 39.6V

±1.0%

±0.5%

±0.5%

85%

39.7 ~ 46.8V 55.2 ~ 65.8V

EPS-15-48

48V

0.313A

0 ~ 0.344A

15.02W

16.51W

200mVp-p

43.2 ~ 52.8V

±1.0%

±0.5%

±0.5%

File Name:EPS-15-SPEC 2015-07-17

15W Single Output Switching Power Supply

EPS-15 series

Mechanical Specification

AC Input Connector (CN1) : JST B3P-VH or equivalent

Pin N o.

Assignment

1

AC/L

2

No Pin

AC/N

3

: Grounding Required

M1 is safety ground

Mating Housing

JST V HR JST SVH-21T-P1.1

or equivalent or equivalent

45.7

3.175

39.35

24

3 max.

3.175

FS1

F3.15A/250VAC

1
2
3

CN1

M1

Terminal

63.5

57.15

HS1

CN2

1

2

SVR1

4- 3.3ψ

DC Output Connector (CN2) : JST B2P-VH or equivalent

Pin N o.

1
2

Assignment

+V

-V

Mating Housing

JST VHR

or equivalent

JST SVH-21T-P1.1

or equivalent

Unit:mm

Terminal

Block Diagram

I/P

FG

Output Derating

100

80

60

50

40

LOAD (%)

20

-30 0 2010 30 40

EMI FILTER

&

RECTIFIER

O.L.P.

6050

POWER

SWITCHING

CONTROL

(HORIZONTAL)

70

RECTIFIERS

&

FILTER

DETECTION

CIRCUIT

Static Characteristics

100

90

80

70

60

50

LOAD (%)

40

85 10095 120115 160140 200180 240220 264

fosc : 65KHz

+V

-V

INPUT VOLTAGE (V) 60Hz
