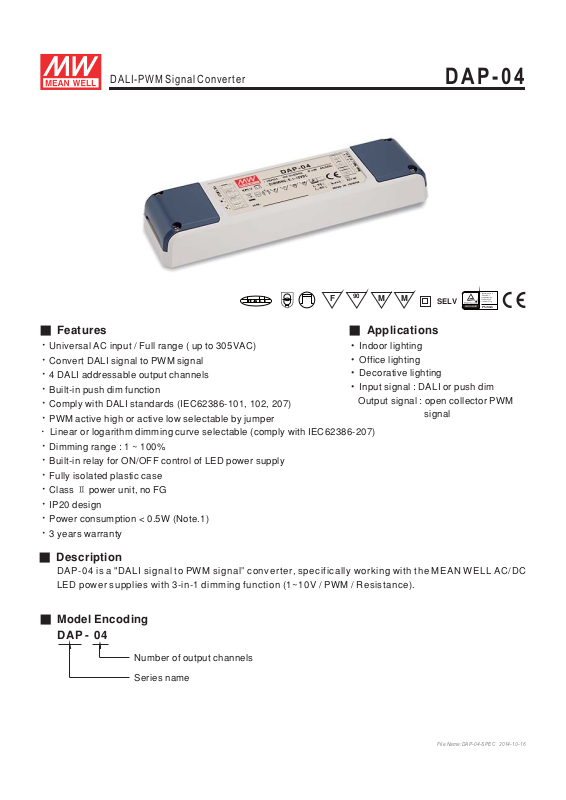

MEANWELL DAP-04 Datasheet

Page 1

DALI-PWM Signal Converter

MMF

■ Features ■ Applications

Universal AC input / Full range ( up to 305VAC) Convert DALI signal to PWM signal 4 DALI addressable output channels Built-in push dim function Comply with DALI standards (IEC62386-101, 102, 207) PWM active high or active low selectable by jumper

 Linear or logarithm dimming curve selectable (comply with IEC62386-207)

Indoor lighting Office lighting Decorative lighting Input signal : DALI or push dim

Output signal : open collector PWM signal

Dimming range : 1 ~ 100% Built-in relay for ON/OFF control of LED power supply Fully isolated plastic case Class power unit, no FGⅡ IP20 design Power consumption < 0.5W (Note.1) 3 years warranty

DAP-04

tgepruf t

Bauar Sicherheit

egel gema od

SELV

wac g

www. ID 2000000000

tuv.com

■ Description

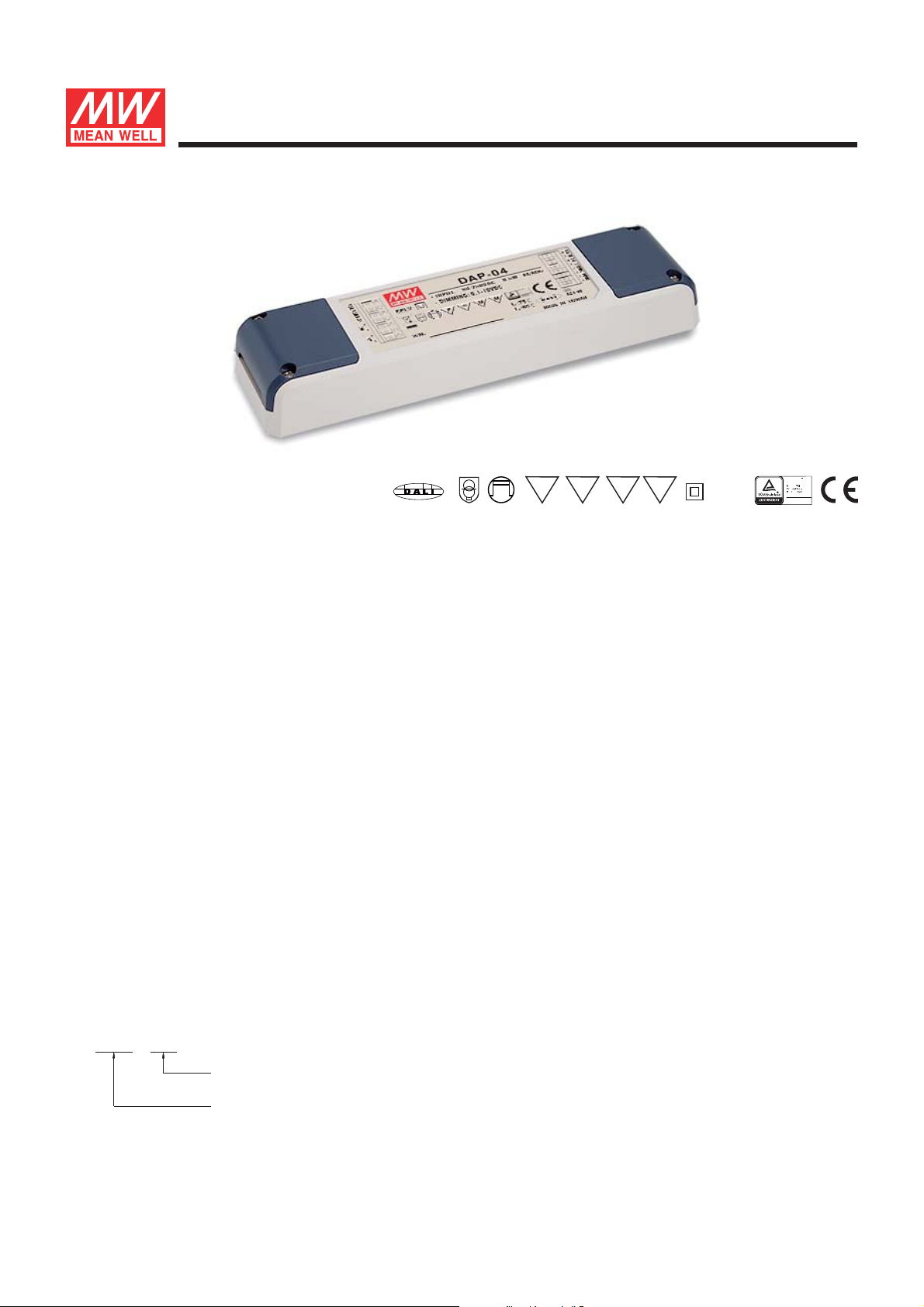

DAP-04 is a "DALI signal to PWM signal converter, specifically working with the MEAN WELL AC/DC LED power supplies with 3-in-1 dimming function (1~10V / PWM / Resistance).

■ Model Encoding

DAP - 04

Number of output channels

Series name

File Name:DAP-04-SPEC 2014-10-16

Page 2

DALI-PWM Signal Converter

SPECIFICATION

MODEL DAP-04

NUMBER OF OUTPUT CHANNELS

OUTPUT

INPUT

FUNCTION

ENVIRONMENT

SAFETY &

EMC

NOTE

OUTPUT SIGNAL

OUTPUT PWM LOGIC

DIMMING RANGE

VOLTAGE RANGE

FREQUENCY RANGE

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT <0.5mA / 240VAC

POWER CONSUMPTION (Typ.)

INPUT SIGNAL

RELAYSWITCH

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY VIBRATION

SAFETY STANDARDS

DALI STANDARDS

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

DIMENSIONOTHERS

PACKING

1. Power consumption<0.5W is measured at 230VAC.

PWM, 1KHz (Typ.)

Active high or active low selectable by jumper ; Factory setting is active high

1 ~ 100%

90 ~ 305VAC 127 ~ 431VDC [DC input operation possible by connecting AC/L(+),AC/N(-)]

47 ~ 63Hz

0.1A

COLD START 15A(t =500 s measured at 50% I ) at 230VACwidth peak

0.5W

DALI or push dim

240VAC / 8A, ON / OFF control refer to DIM1

-30~ +60℃

20 ~ 90% RH non-condensing

-40 ~ +80 , 10 ~ 95% RH℃

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

EN61347-1, EN61347-2-11, EN61058-1 Clause 8/17/20/25 approved

Comply with IEC62386-101, 102, 207

I/P-O/P:3.75KVAC I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55015, EN61000-3-2,3

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547 light industry level (surge 2KV), criteriaA

246.9K hrs min. MIL-HDBK-217F (25 )℃

165*46*23mm (L*W*H)

0.16Kg; 84pcs/14.4Kgs/1.14CUFT

DAP-04

File Name:DAP-04-SPEC 2014-10-16

Page 3

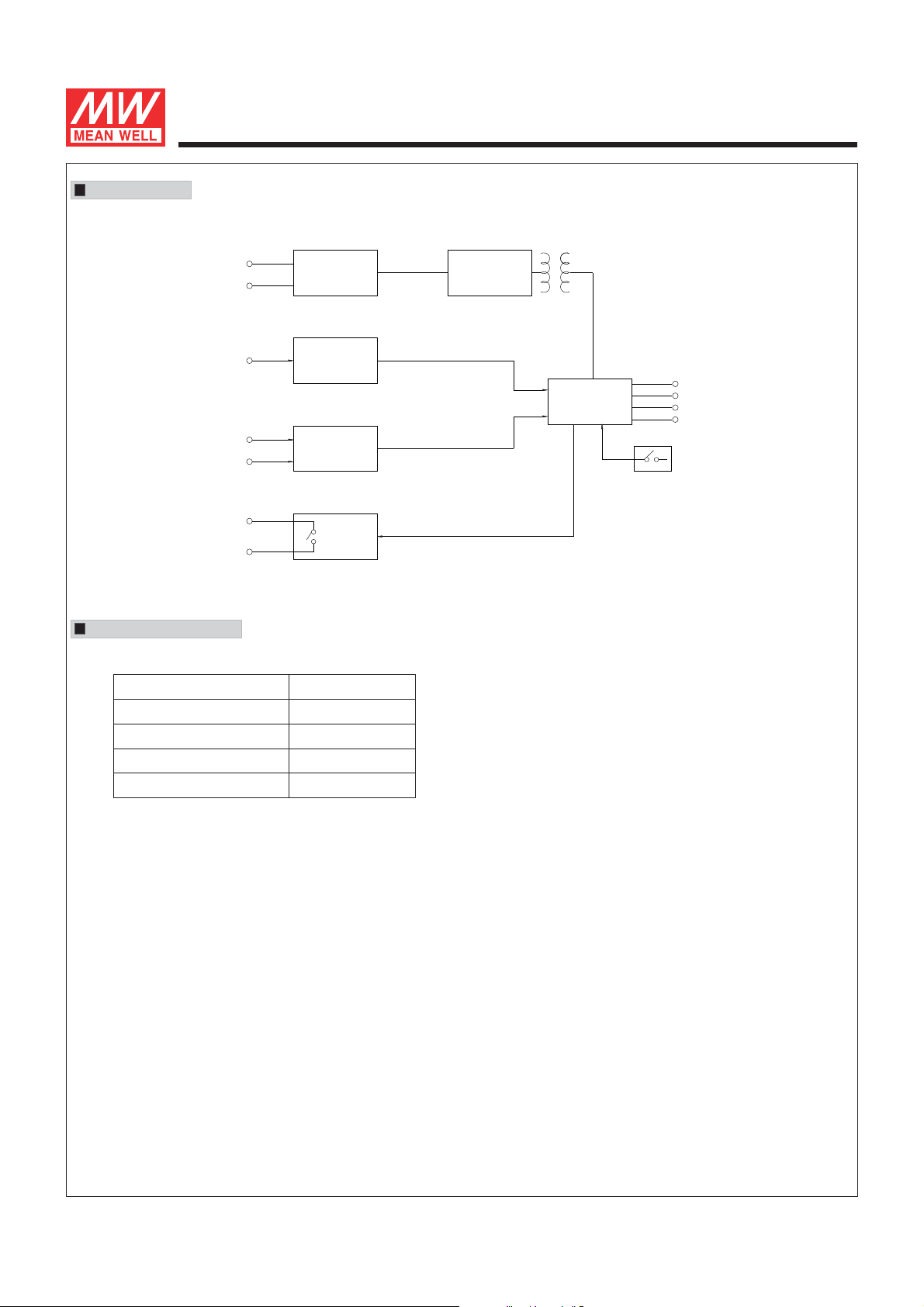

Block Diagram

DALI-PWM Signal Converter

DAP-04

AC/L

AC/N

PUSH

DA+

DA-

RY+

RY-

DIMMING OPERATION

※ PUSH dim(primary side)

Function

No change of state

EMI

FILTER

PUSH

DIM

INTERFACE

DALI

INTERFACE

Pushing time

<0.05 sec.

0.1~1 sec.Turn ON-OFF

1.5~10 sec.Dimming up or down

>11 sec.Setting light to 100%

AUX

POWER

MCU

DIM1 DIM2 DIM3 DIM4

ACTIVE HIGH/LOW SELECT

Maximum length of the cable, from push button to last driver, is 20 meter. Factory default dimming setting : 100%.

Every long pushing action will change the dimming direction.

※ DALI interface(primary side)

DALI protocol including 16 groups and 64 addresses.

File Name:DAP-04-SPEC 2014-10-16

Page 4

DALI-PWM Signal Converter

Connection of Dimming Operation

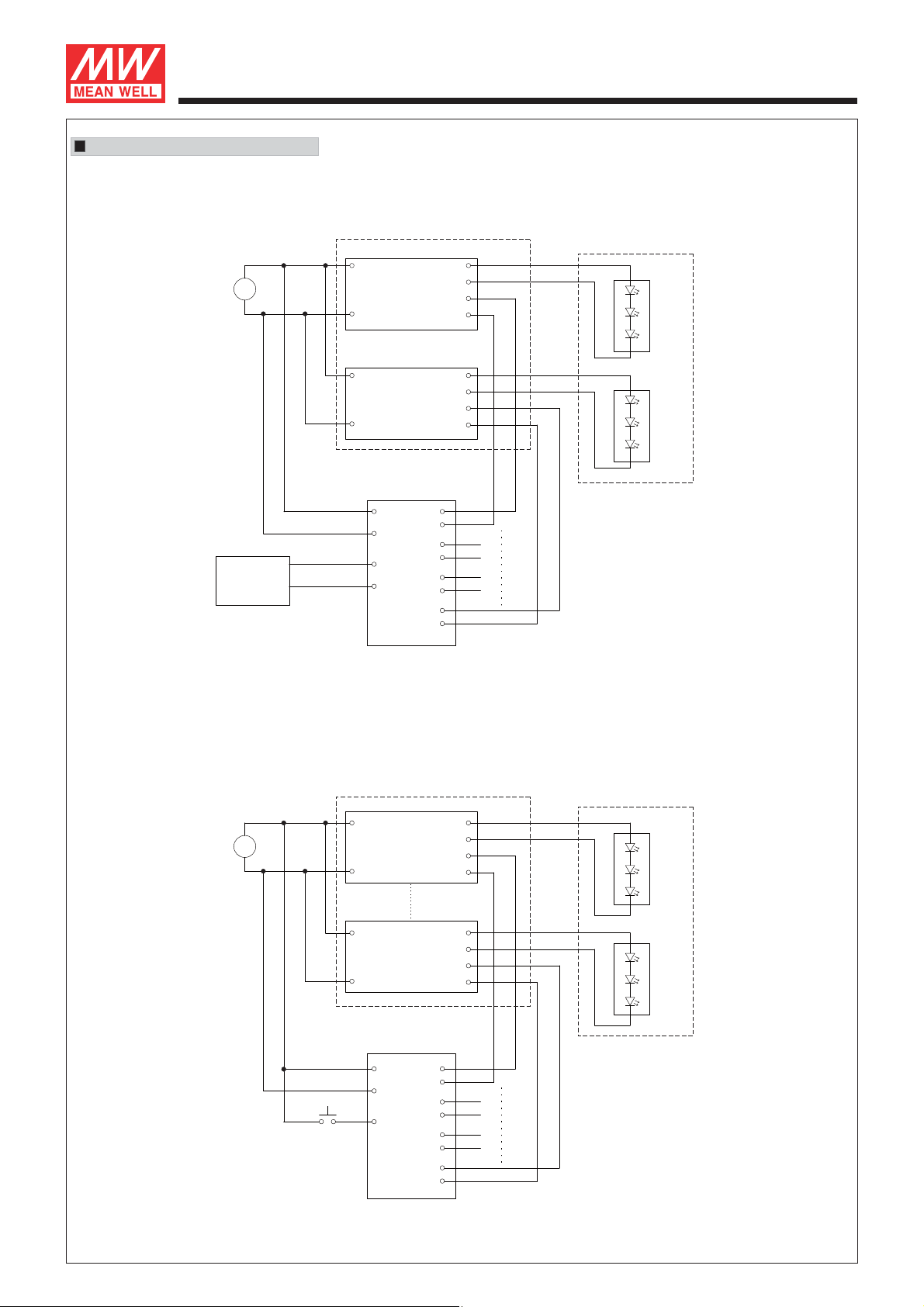

DALI Dimming solution :

DAP-04 with MEAN WELL's LED power supply

DAP-04

MEAN WELL's AC/DC LED PSU

.......

DIM1

DIM2

DIM3

DIM4

DAP-04

V+ VDIM+ DIM-

Up to 4 channels

Lamp 1

..............................

Lamp 4

LED Lighting Fixture

AC/L

AC source

DALI

controller

DALI Bus

AD/DC

LED PSU 1

AC/N

AC/L

AD/DC

LED PSU 4

AC/N

AC/L

AC/N

DA+

DA-

(DALI-PWM signal converter)

※Note: Choose a suitable cable for connecting the DAP-04 and DALI controller and make sure the maximum voltage

drop between these two units should not be higher than 2V. (Maximum cable length for 1.5mm cables is 300m.)

Push Dimming Solution :

DAP-04 with MEAN WELL's LED power supply

MEAN WELL's AC/DC LED PSU

DIM1

DIM2

DIM3

DIM4

DAP-04

V+ VDIM+ DIM-

Up to 4 channels

AC source

AC/L

AD/DC

Push dimmer

LED PSU 1

AC/N

AC/L

AD/DC

LED PSU 4

AC/N

AC/L

AC/N

PUSH

(DALI-PWM signal converter)

※Note: Only use Normally Open Push Button without light indicator .

Lamp 1

..............................

Lamp 4

LED Lighting Fixture

File Name:DAP-04-SPEC 2014-10-16

Page 5

DALI-PWM Signal Converter

DAP-04

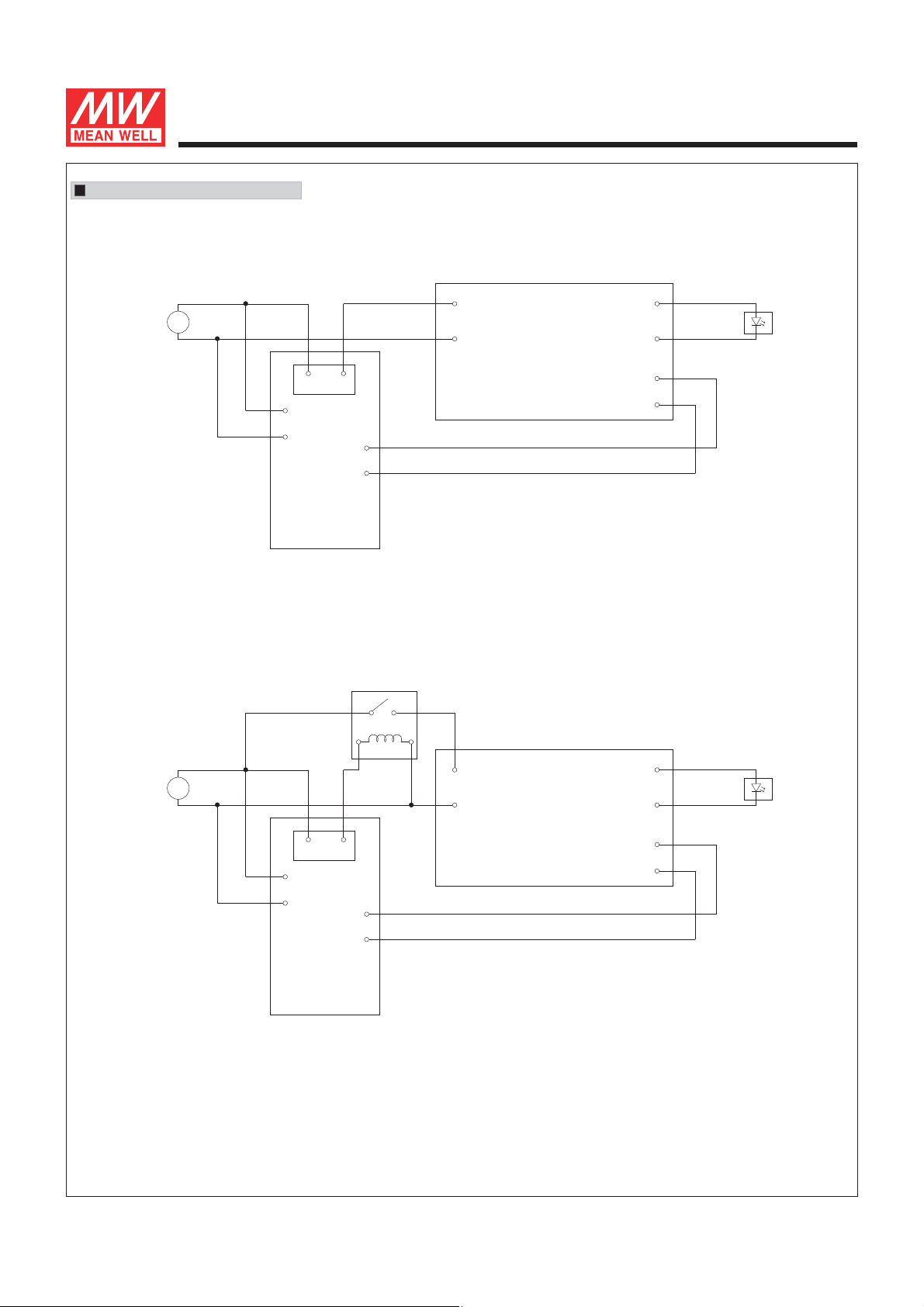

Dimming with ON/OFFLED PSU

The DAP-04 is equipped with a relay that can be used to turn ON/OFF MEAN WELL LED PSUs. The relay is in the closed

position when the DIM1 generates dimming signal; the relay is in the open position when there is no output signal on the DIM1.

V+

V-

LED Lighting Fixture

DIM+

DIM-

AC source

AC/L

RY+ RY-

AC/L

AC/N

(DALI-PWM signal converter )

DIM1

DAP-04

AC/N

MEAN WELL

AC/DC LED PSU

Figure 1

An additional magnetic switch is needed when the total input current of the selected LED PSUs is higher than 8Aor used

with LED PSUs whose inrush current is greater than 50A, please refer to the figure 2.

Relay or magnetic switch

AC source

AC/L

RY+ RY-

AC/L

AC/N

(DALI-PWM signal converter )

DIM1

DAP-04

AC/N

MEAN WELL

AC/DC LED PSU

Figure 2

V+

V-

LED Lighting Fixture

DIM+

DIM-

File Name:DAP-04-SPEC 2014-10-16

Page 6

DALI-PWM Signal Converter

DAP-04

SYNCHRONIZATION OPERATION

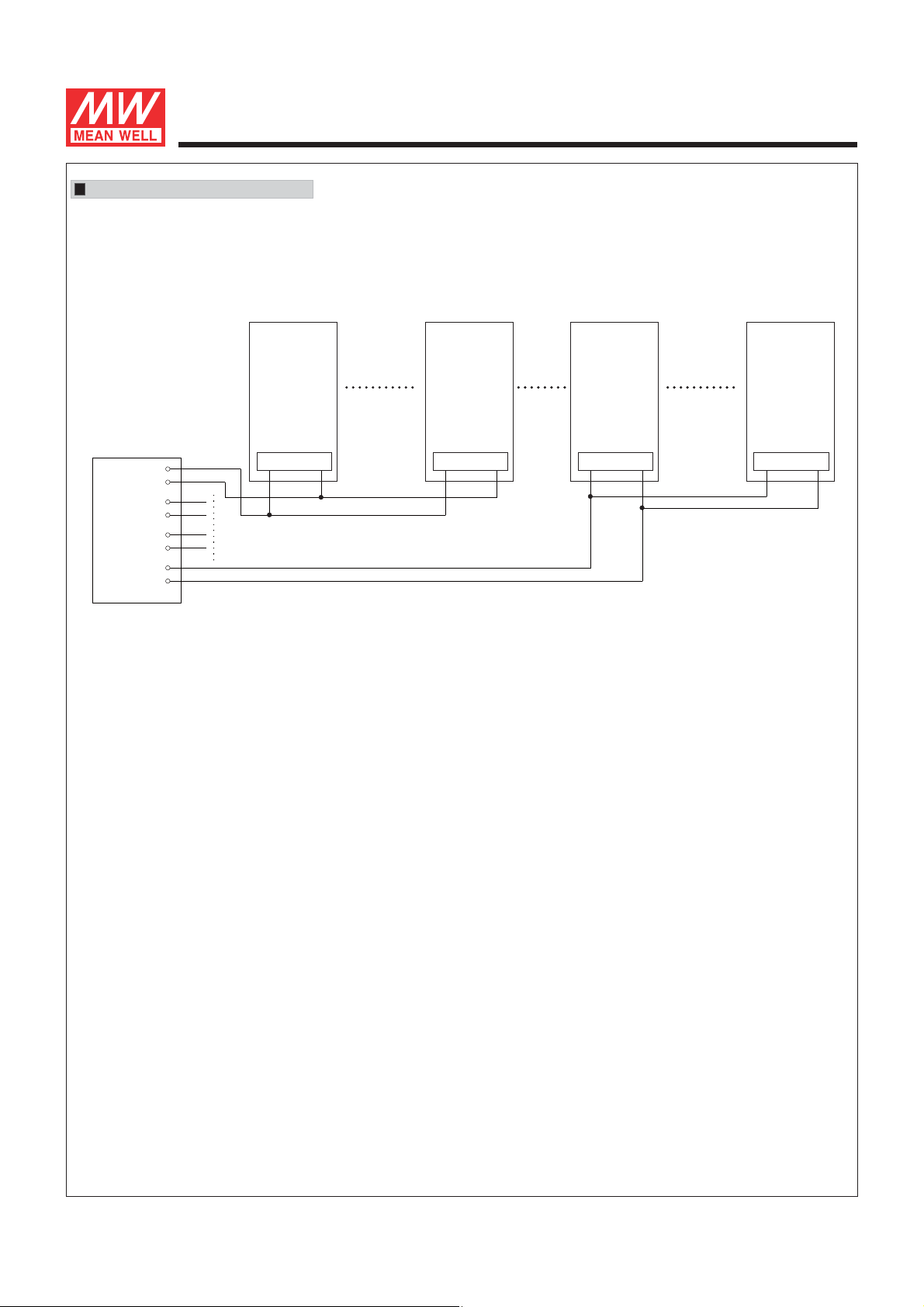

DAP-04 provides 4-channel outputs; every channel controls up to 20 units of MEAN WELLLED PSU.

The 4 channels can thus control up to 80 units of MEAN WELLLED PSU. (Note. 1)

The dimming percentage of the MEAN WELL LED PSUs controlled by the same channel of DAP-04 is the same.

The dimming percentage per DAP-04 channel can be controlled independently.

The maximum allowable voltage drop between the DAP-04 and LED PSUs should not be higher than 0.5V.

DIM1

DIM2

DIM3

DIM4

Up to 4 channels

DAP-04

(DALI-PWM signal converter)

Dimmingable

20 drivers(max.) 20 drivers(max.)

LED PSU

DIM+ DIM+DIM+ DIM+DIM- DIM-

++++

----

Dimmingable

LED PSU

DIM- DIM-

Dimmingable

LED PSU

Note. 1 : Light intensity of LEDs in the same group may be decreased when one of the LED PSUs is AC OFF.

Dimmingable

LED PSU

File Name:DAP-04-SPEC 2014-10-16

Page 7

DALI-PWM Signal Converter

DAP-04

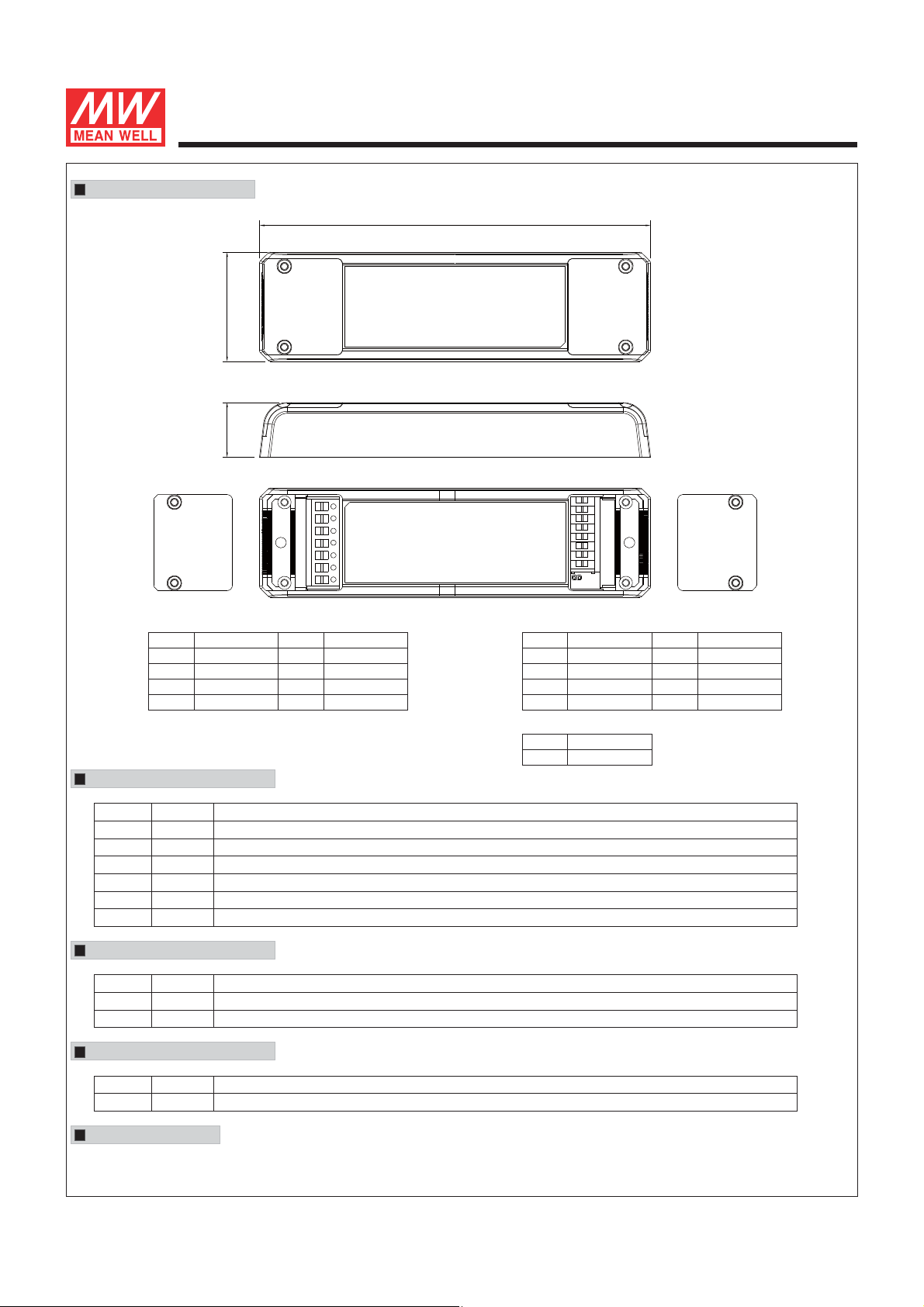

Mechanical Specification

Terminal Pin No.Assignment(TB1) Terminal Pin No.Assignment(TB2)

Pin No. Pin No. Pin No. Pin No.

Assignment Assignment Assignment Assignment 1 1 2 2 3 3 4 4

AC/L DIM1+ AC/N DIM1-

PUSH

DA+

Function Description of TB1

165

1 2 3

TB1 TB2

4 5 6 7

5 5 6 6 7 7

DARY+

RY-

1 2 3 4 5 6 7 8

JP1

DIM2+

DIM2-

Terminal Pin No.Assignment(JP1)

Pin N o.

1,2

Assignment

ACT-HI

Case No.DAP-04 Unit:mm

DIM3+ DIM3DIM4+

DIM4-

Pin No.

6,7

Function

AC/L

AC/N

PUSH

RY+ / RY-

Description

AC Line connection.

AC Neutral connection.

Dimming input. One pushbutton connected between the PUSH andAC/L.

DA+

DALI Signal positive.

DA-

DALI Signal negative.

Relay contact rating(max.) : 240VAC / 8A resistive "Short" when DIM1 output duty cycle >0 ; "Open" when DIM1 output duty cycle=0

Function Description of TB2

Pin No.

1,3,5,7 DIM+

Function

DIM-2,4,6,8

Description

Dimming output Connect to DIM+(Blue) line of dimmingable LED power.

Dimming output Connect to DIM-(White) line of dimmingable LED power.

Function Description of JP1

Pin No.

1,2

Function

ACT-HI

Description

PWM active High / Low selection. Short :Active High. Open :Active Low. Factory setting is Active High.

Installation Manual

Please refer to : http://www.meanwell.com/search/dap-04/DAP-04.pdf
