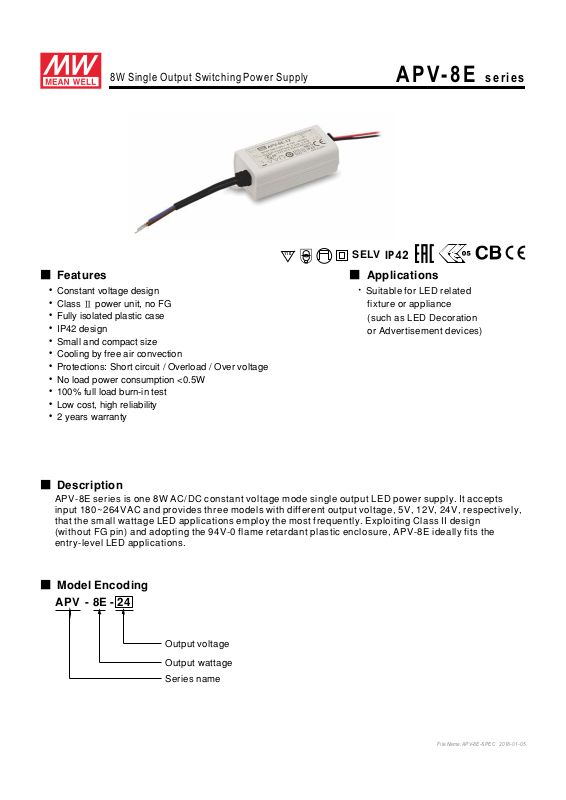

Page 1

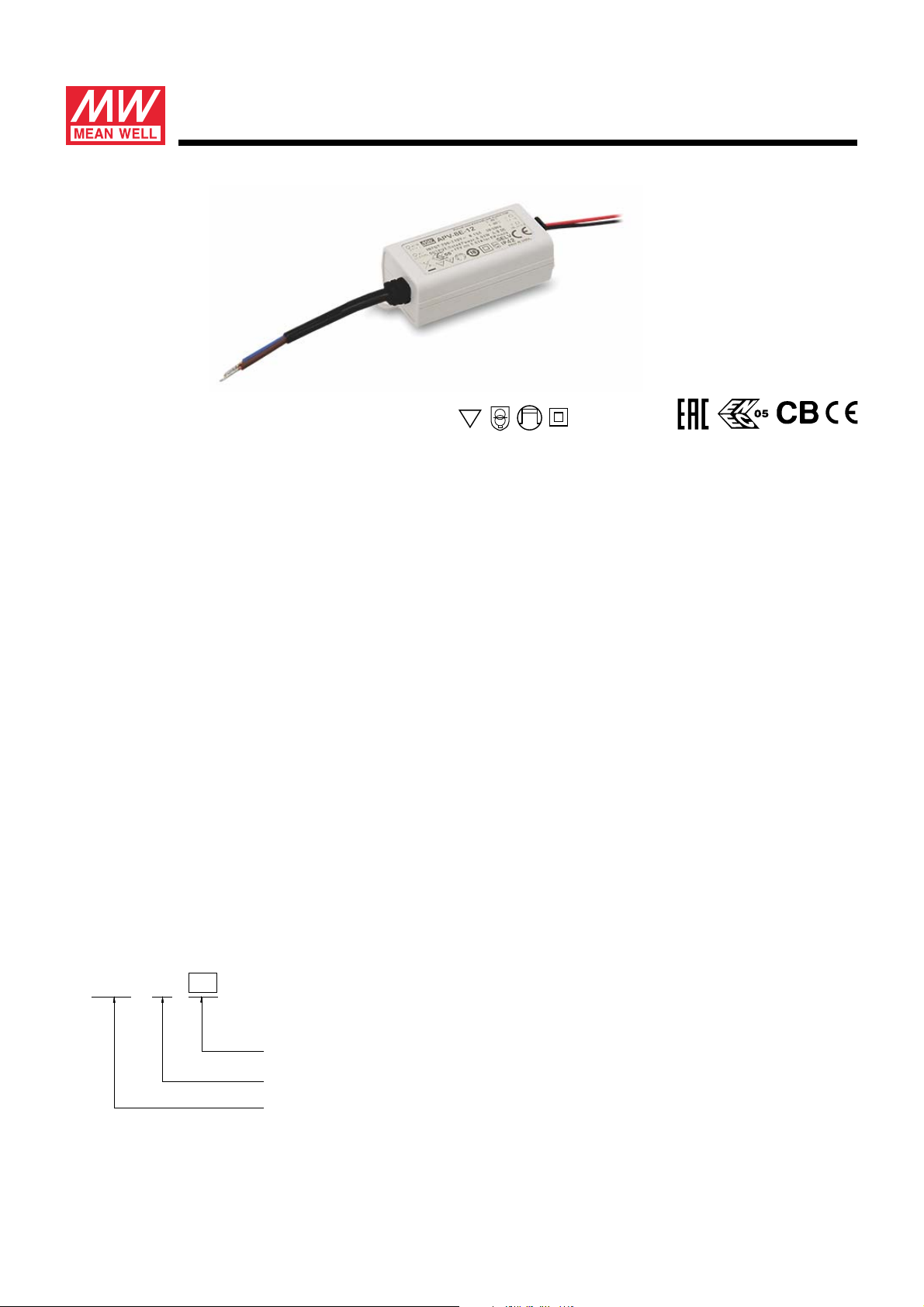

8W Single Output Switching Power Supply
APV-8E series
110
SELV
IP42
■ Features ■ Applications
Constant voltage design
Class power unit, no FGⅡ
Fully isolated plastic case
IP42 design
Suitable for LED related
fixture or appliance
(such as LED Decoration
or Advertisement devices)
Small and compact size
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
100% full load burn-in test
Low cost, high reliability
2 years warranty
■ Description
APV-8E series is one 8W AC/DC constant voltage mode single output LED power supply. It accepts
input 180~264VAC and provides three models with different output voltage, 5V, 12V, 24V, respectively,
that the small wattage LED applications employ the most frequently. Exploiting Class II design
(without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-8E ideally fits the
entry-level LED applications.
■ Model Encoding
-24
APV -
8E
Output voltage
Output wattage
Series name
File Name:APV-8E-SPEC 2018-01-05
Page 2
SPECIFICATION
MODEL
DC VO LTAGE
RATED CURRENT
CURRENT RANGE
OUTPUT
RATED POWER
RIPPLE & NOISE
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VO LTAGE RANG E
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
SHORT CIRCUIT
PROTECTION
OVER LOAD
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be
6. When applying DC voltage for input, please connect the brown input wire to the positive side whereas blue input wire to the negative side.
8W Single Output Switching Power Supply
APV-8E-12
12V
0.67A
0 ~ 0.67A
8.04W
250mVp-p
(max.) Note.2
Note.3
APV-8E-5
5V
1.4A
0 ~ 1.4A
7W
250mVp-p
±5.0%
APV-8E series
APV-8E-24
24V
0.34A
0 ~ 0.34A
8.16W
300mVp-p
±1.0%
±2.0%
500ms, 30ms / 230VAC
20ms/230VAC at full load
Note.4
180 ~ 264VAC 254 ~ 370VDC ( )
Note.6
47 ~ 63Hz
PF>0.5/230VAC at full load
74%
77.5%
78.5%
0.15A/230VAC
COLD START 70A(twidth=120 s measured at 50% Ipeak) at 230VACμ
0.25mA / 240VAC
Hiccup mode, recovers automatically after fault condition is removed
Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.75 ~ 6.75V
13.8 ~ 16V
27.6 ~ 32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
-30 ~ +70 (Refer to "Derating Curve")℃
20 ~ 90% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH℃
±℃ ℃0.03%/ (0 ~ 45 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ENEC EN61347-1,EN61347-2-13,EN62384, EAC TP TC 004 approved;
design refer to UL8750,CSAC22.2 No.250.0-08; EN60950-1
I/P-O/P:3.75KVAC
I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH℃
Compliance to EN55015,EN61000-3-2 ClassA,EN61000-3-3, EAC TPTC 020
Compliance to EN61547,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A, EAC TP TC 020
1631.5K hrs min. MIL-HDBK-217F (25 )℃
60*30*23.5(L*W*H)
0.05Kg; 144pcs/7.6Kg/0.75CUFT
affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
File Name:APV-8E-SPEC 2018-01-05
Page 3
8W Single Output Switching Power Supply
APV-8E series
Mechanical Specification
AC/N(Blue)
AC/L(Brown)
IEC52 H03VVH2-F 0.75mm
150±10
Unit:mm
73.1
65.5
23.5
150 10±
UL1569 20AWG
+V(Red)
-V(Black)
60
2
30
8.5
tc
: Max. Case Temperature
12.5
tc
35
Block Diagram
I/P
EMI FILTER
RECTIFIERS
POWER
SWITCHING
PWM
CONTROL
RECTIFIERS
&
FILTER
Derating Curve Static Characteristics
100
LOAD (%)
90
80
70
60
50
40
180
190
200
210
LOAD (%)
100
80
60
50
40
20
-30 0
10 20
30 40
60
50
45
(HORIZONTAL)
70
DETECTION
CIRCUIT
230
220
fosc : 67 KHz
250
240 264
+V
-V
AMBIENT TEMPERATURE ( )℃
INPUT VOLTAGE (VAC) 60Hz
File Name:APV-8E-SPEC 2018-01-05
