16W Single Output Switching Power Supply
110
APV-16E series
SELV
IP42
■ Features ■ Applications
Constant voltage design
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
Suitable for LED related
fixture or appliance
(such as LED Decoration
or Advertisement devices)
Class power unit, no FGⅡ
No load power consumption <0.5W
IP42 design
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 years warranty
■ Description

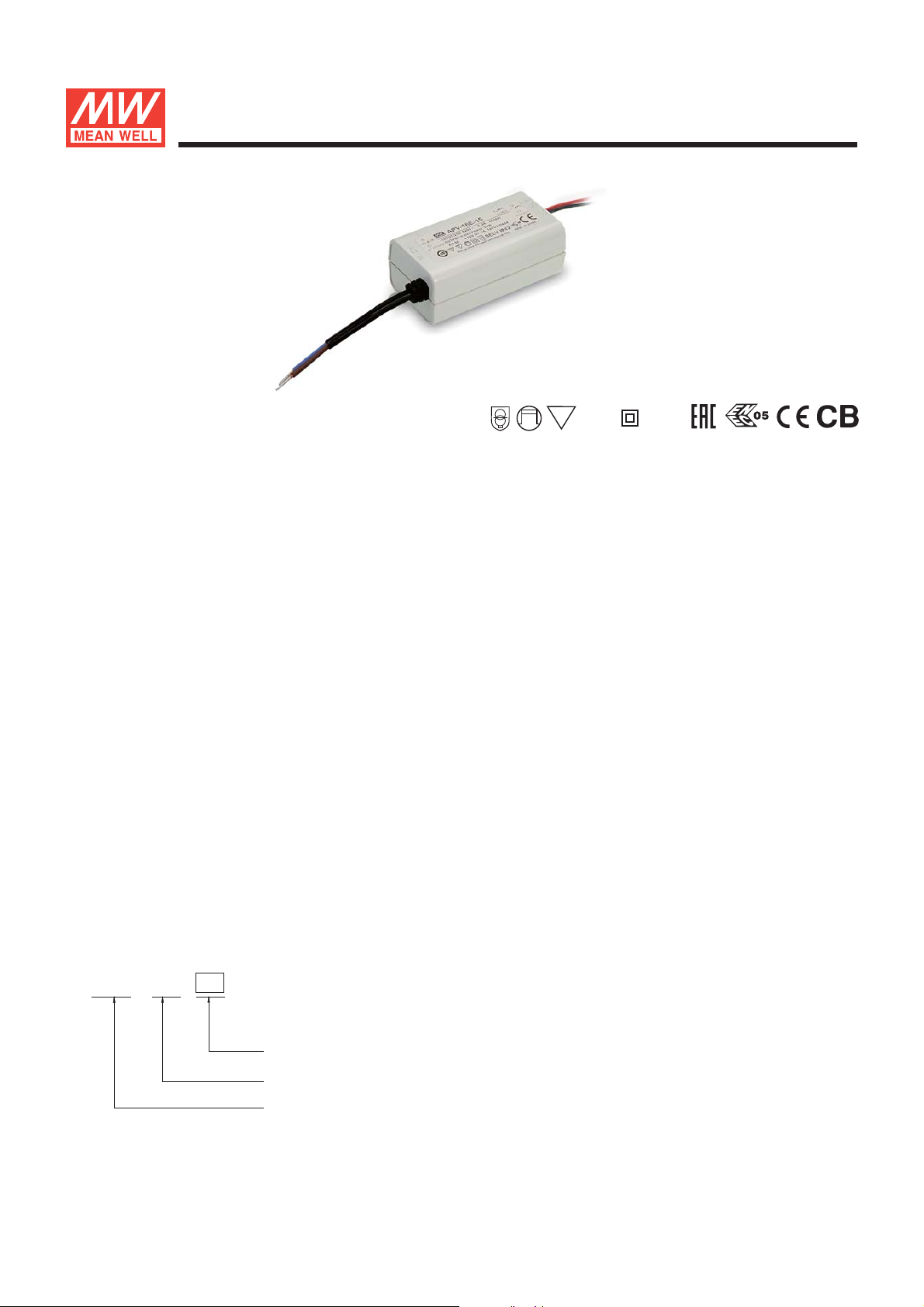

APV-16E series is one 16W AC/DC constant voltage mode single output LED power supply. It accepts
input 180~264VAC and provides four models with different output voltage, 5V, 12V, 15V,24V,
respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II
design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-16E ideally fits
the entry-level LED applications.
■ Model Encoding
-15
APV -
16E
Output voltage
Output wattage
Series name
File Name:APV-16E-SPEC 2018-05-02
Page 2
16W Single Output Switching Power Supply
APV-16E series
SPECIFICATION
MODEL APV-16E-5 APV-16E-12 APV-16E-15 APV-16E-24
DC VO LTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RIPPLE & NOISE
VOLTAGE TOLERANCE Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME(Typ.)
VO LTAGE RANG E Note.4
FREQUENCY RANGE
POWER FACTOR
EFFICIENCY
INPUT
AC CURRENT
INRUSH CURRENT
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER LOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY &
EMC
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
(max.)Note.2
(Typ.)
(Typ.)
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5V 12V 15V 24V
2.6A 1.25A 1A 0.67A
0 ~ 2.6A 0 ~ 1.25A 0 ~ 1A 0 ~ 0.67A
13W 15W 15W 16.08W
100mVp-p 120mVp-p 120mVp-p 150mVp-p
±5.0%
±1.0%
±2.0%
Note.6
500ms, 30ms / 230VAC at full load
20ms/230VAC at full load
180 ~ 264VAC 254 ~ 370VDC
47 ~ 63Hz
PF>0.5/230VAC at full load
75% 79% 80% 82%
0.3A/230VAC
(Typ.)
COLD START 50A(twidth=185 s measured at 50% Ipeak) at 230VACμ
13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC
0.25mA / 240VAC
Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.75 ~ 6.75V 13.8 ~ 16V 17.5 ~ 21V 27.6 ~ 32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
-30 ~ +70 (Refer to "Derating Curve")℃
20 ~ 90% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH℃
±℃ ℃0.03%/ (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ENEC EN61347-1, EN61347-2-13, EN62384 EAC TP TC 004, IP42 approved,
I/P-O/P:3.75KVAC
I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH℃
Compliance to EN55015,EN61000-3-2 ClassA,EN61000-3-3, EAC TPTC 020
Compliance to EN61547,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A, EAC TP TC 020
1145.7K hrs min. MIL-HDBK-217F (25 )℃
77*40*29mm (L*W*H)
0.1Kg; 120pcs/14Kg/1.06CUFT
File Name:APV-16E-SPEC 2018-05-02
Page 3
16W Single Output Switching Power Supply
APV-16E series

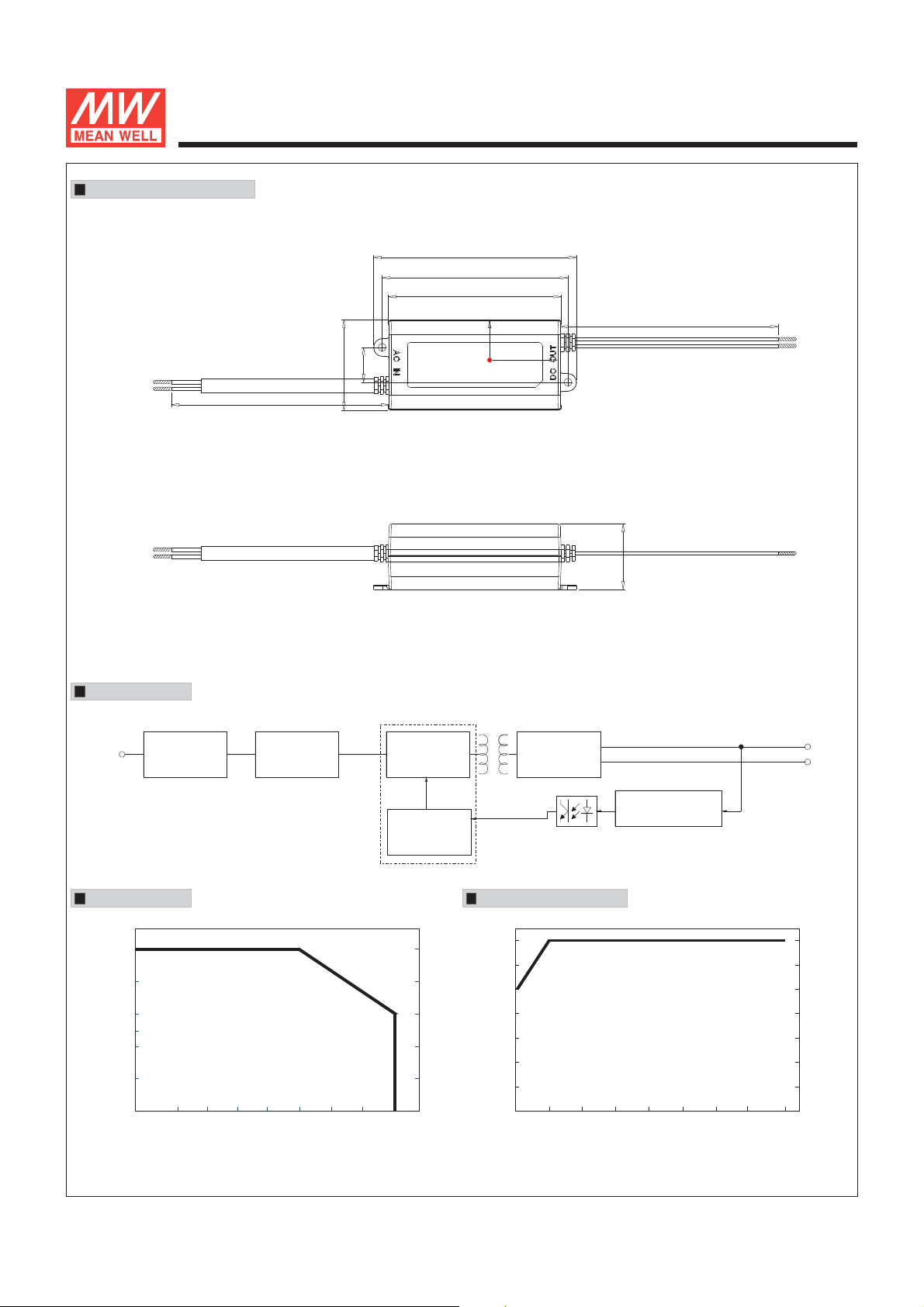

Mechanical Specification
AC/N(Blue)
AC/L(Brown)
IEC52 H03VVH2-F 0.75mm
150 10±
Unit:mm
90
82.5
77
150 10±
19
2
40
15.5
31
T case
UL1569 20AWG
+V(Red)
-V(Black)
※ T case: Max. Case Temperature
29
Block Diagram
I/P
EMI FILTER
RECTIFIERS
POWER
SWITCH-
ING
PWM
CONTROL
RECTIFIERS
&
FILTER
Derating Curve Static Characteristics
100
LOAD (%)
90
80
70
60
50
40
180
190
200
210
LOAD (%)
100
80
60
50
40
20
-30 0
10 20
30 40
60
50
(HORIZONTAL)
70
DETECTION
CIRCUIT
230
220
fosc : 67 KHz
250
240 264
+V
-V
AMBIENT TEMPERATURE ( )℃
INPUT VOLTAGE (VAC) 60Hz
File Name:APV-16E-SPEC 2018-05-02
