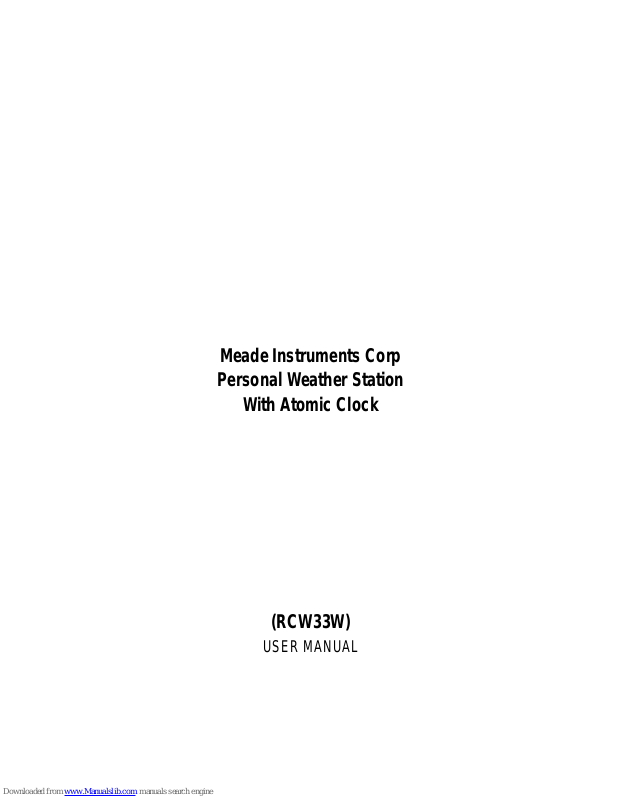

Meade Instruments Corp
Personal Weather Station
With At omic Clock
(RCW33W)
USER MANUAL
2
TABLE OF CONTENTS
INTRODUCTION 3
PRODUCT OVERVIEW 4
BEFORE YOU BEGI N 7
BATTERY INSTALLATION 8
LOW BATTERY WARNING 9
GETTING STARTED 9
PLACEMENT OF THE UNITS 10
REMOTE AND INDOOR TEMPE RA TURE 10
WEATHER FOR ECAST 10
LOST COMMUNICATION 11
TRANSMISSI ON COLLISIO N 12
WWVB RADIO CONTROLLED TIME 12
ATOMIC CLOCK 13
TIME AND CALENDAR DISPLAY M ODES 14
MANUAL SE TTI NG S 14
PRECAUTIONS 15
TROUBLESHOOTING 16
SPECIFICATIONS 17
FCC STATEMENT 18
DECLARATION OF CONFORMITY 19
ST AN DA RD W A RR AN TY I NF OR MATION 20
3
INTRODUCTION
Thank you for selecting the Meade Atomic Wall Clock. This device combines
precise time keeping with monitoring and displaying the weather conditions
from one remote location.
In this package you will find:
• One main unit (receiver)
• One remote sensor (transmitter) TS13C
• One User Manual
Please keep this manual handy as you use your new item. It contains practical
step-by-step instructions, as well as technical specifications and precautions
you should know.
4
PRODUCT OVERVIEW
MAIN UNIT
FEATURES
• Time automatically sets to the US Atomic Clock
• 12 or 24 hours T im e For mat
• Jumbo time digits
• Day of the week displayed in English, Spanish, French, German and
Italian
• Weather Forecast in Sunny, Partly Cloudy, Cloudy, Rainy and Heavy
Rain icons
• Wireless Reception of th e Temperature from the Remote Sensor to the
Main Unit from up to 100 feet (30 meters) away
• Indoor and Remote Temperat ure di s play
• Low Battery Indicators
5
FRONT/REAR VIEW
A. WEAT HER AND TIME IN EASY-TO READ DIGITS
B. MODE button
• Toggles between time modes - time with seconds and time with the
day of the week
• Activates clock’s manual programming mode
C. UP ( ▲) button
• Increases the parameters
• Activates US Time Zone selection mode
• Activates manual search for atomic time signal
6
D. DOWN ( ▼) button
• Decreases the parameters
• Activates manual remote channel search
E. BATTERY COMPARTMENT
• Accommodates 2 (two) UM-3 or AA 1.5V alkaline batteries
F. UNFOLDING TABLE STAND
• Holds unit in upright position on a flat surface
G. WALL- MOUNT RECESSE D OPENING
• Keeps the unit on the wall
REMOTE SENSOR
FEATURES
• Remote temperature transmission to the main unit via 433 MHz
frequency
• Case can be wall mounted using built-in hanger
• Selection of the temperature display in Celsius or Fahrenheit
• Three channel selection
• LCD displays temperature, and channel
A. LED INDICATOR
• Flashes once when the remote sensor transmits a reading to the main
unit.
