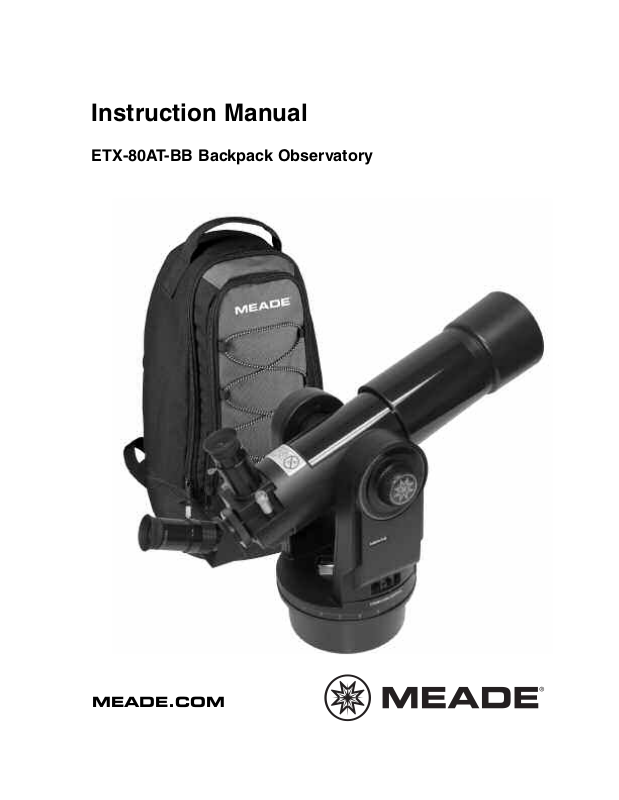

Page 1

Instruction Manual

ETX-80AT-BB Backpack Observatory

MEADE.COM

Page 2

Page 3

WARNING!

Never use a Meade®Telescope to look at the Sun! Looking at or near the Sun will

cause instant and irreversible damage to your eye. Eye damage is often painless, so there is no warning to the observer that damage has occurred until it is too late. Do not point the telescope or its viewfinder at or near the Sun. Do not look through the telescope or its viewfinder as it is moving. Children should always have adult supervision while observing.

CAUTION: Use care to install batteries in the orientation indicated by illustration in the battery slots of the battery holder. Follow battery manufacturer's precautions. Do not install batteries backwards or mix new and used batteries. Do not mix battery types. If these precautions are not followed, batteries may explode, catch fire, or leak. Improperly installed batteries void your Meade warranty.

If you are anxious to use your telescope for the first time, read the QUICK-START

GUIDE on page 4.

CONTENTS

Quick-Start Guide .......................................................... 4

elescope Features ...................................................... 6

T AutoStar

Getting Started ..............................................................13

AutoStar Menus ............................................................21

AutoStar Operation ........................................................22

Advanced AutoStar Operation........................................29

Optional Accessor

Maintenance ..................................................................34

Specifications ................................................................36

Appendix A:

Appendix B: Latitude Chart ............................................39

Appendix C: Training the Drive ......................................40

Appendix D: Basic Astronomy........................................41

Features ........................................................10

Parts Listing ..............................................................13

elescope/Tripod Assembly ......................................13

wing Your Gear in the Backpack ..........................14

Sto

Safety Precautions....................................................14

Choosing an Eyepiece ..............................................15

Manual Operation of the Telescope w/out AutoStar..15

Manual Operation of the Telescope with AutoStar....16

Slew Speeds ............................................................16

Observe the Moon ....................................................17

To Track an Object Automatically ..............................17

Moving Through AutoStar’s Menus ..........................17

Initializing AutoStar ..................................................17

Easy Alignment ........................................................19

Go To Saturn ............................................................19

Using the Guided Tour ..............................................20

Menu Tree ................................................................21

AutoStar Navigation Exercise ..................................22

Entering Data, Moving Through AutoStar’s Menus ..23

Objects Menu............................................................24

Event Menu, Glossary Menu ....................................25

Utilities Menu ............................................................25

Setup Menu ..............................................................26

Terrestrial Observing, Astronomical Observing ......29

Sidereal Rate ............................................................29

Advanced Alt/Az Alignment Methods........................29

Observing Satellites ..................................................30

Digital Photog

Troubleshooting ........................................................35

raphy with the ETX

ies......................................................33

Using AutoStar to Enter Coordinates ........38

............................

The name

ks registered with the U.S. Trademark and Patent Office

mar and in principal countries throughout the world. All rights reser

Patents: US 6,392,799 and other patents pending.

“Meade

ed.

the Meade logo

”

, and

ade-

are tr

“ETX”

Page 4

QUICK-START GUIDE

Setting up the Tripod Step 1: Remove the telescope and tripod from the giftbox.

Step 2a: Loosen the locking ring....

Step 2b: ...and push down as far as it will go to open tripod.

Step 2: Hold the tr ring to loosen the tripod mechanism. Push down on the locking ring as far as it will go to spread out the tripod legs. Turn the locking ring to tighten the tripod in place.

Step 3: You can adjust the height of the tripod, by lifting a leg lock lever and sliding the inner leg in or out to the desired length. Then re-tighten the lock. Repeat for the other two legs.

Step 4: Use the tripod on level and even ground. Pointing accuracy depends on the base of the tripod being level with the horizon. The bubble level on top of the tripod can help determine if the base is level: Move the base until the bubble is in the center of the circle.

Attach the Telescope to the Base Step 5: Thread the supplied bolts about two or three turns

through the underside of the telescope base.

Step 6: Line up the bolts over the key-like holes on the base of the tripod and slide the bolts into the holes. Rotate the telescope clockwise until the bolts fit into the hole bays. Then, reach under the tripod base and tighten the bolts to a firm feel.

ipod by its handle and turn the locking

Step 6: Attach bolts and thread into key-like holes.

Step 7: Loosen vertical lock to move optical tube.

Step 7: Loosen the vertical lock and move the optical tube downward. Then, re-tighten the vertical lock.

Step 8: Remove the inverted dewshield from the end of the telescope. Unthread the dust cover to remove from the scope. Thread the dewshield over the end of the telescope.

Step 9: Remove the eyepiece caps from the 90 degree eyepiece holder and the rear cell port. Screw on the 45 degree

ism to the rear cell port. You can put two eyepieces into

pr this telescope at the same time.

Step 10 : Slip a lower power eyepiece, such as a 25mm or 26 mm eyepiece into the 45 degree prism and another eyepiece into the 90 degree holder.

ou can s

Y mirror control to the up or do

witch between the two eyepieces by turning the flip

wn position.

Page 5

Step 13: Focus insert batteries.

Step 14: Plug in handbox and turn on computer control panel.

Step 11 :Secure the eyepieces in place with their respective thumbsrews. Always start observing using a low power eyepiece to get a nice widefield of view. Later on you can change to high power, if so desired. But high powered eyepieces have a much narrower field of view and it’s more difficult to locate objects using high powered eyepieces.

Step 12 :You can focus the eyepieces by turning the focus knob. The focus knob has a very fine focus, so you may have to turn the knob 20 complete turns or more to focus on an object.

Connect the AutoStar Handbox Step 13:

holder from the compartment so you don’t accidentally pull out the wires attached to the holder “AA” batteries in the holder. Refer to the diagram on the holder to orient the batteries properly. Replace the holder back into the battery compartment and replace the lid.

Step 14: Make sure that the computer control panel power switch is in the OFF position. Remove AutoStar from the packing materials and plug it into the HBX port.

Flip the Power Switch on the computer control panel to the ON position. The copyright message lights on AutoStar’s LCD display.

Lift the battery cover. Gently remove the battery

. Insert 6 user supplied

Step 17: Sight along the top of the optical tube.

w in

Flip Bar do

wn position.

Note: Flip Barlow control in the “down” position.

Step 15:

Sun warning.

Observe Step 16:

the telescope up, down, right, or left. To change the telescope’s slew speed, briefly press the Speed/? key. Each press decreases the slew speed down one level, and then will cycle back to the fastest speed.

Step 17: Sight along the side of the telescope’s main tube to locate an object. At first, practice during the daytime using the AutoStar’s Arrow keys to center on objects in the telescope’s field of view. Observe trees, mountains, signs and so forth. Then when you’re comfortable locating objects in this manner, try at night on the Moon, planets and stars.

Note about the Flip Barlow:T

rotate the the Flip Barlow control so that it is in the down position (see diagram, left). The Flip Barlow doubles the magnification of y

If you use the Flip Barlow, you will need to turn the focus knob in a counterclockwise direction. You may have to turn the focus knob 20 or more turns to focus with the Barlow engaged.

Press the key prompted by AutoStar to accept the

You can now use the AutoStar Arrow keys to move

our e

epiece

o use the b

uilt-in 2x Barlow,

Page 6

TELESCOPE FEATURES

Fig. 1: The ETX-80AT-BB Telescope.

1. Eyepiece

2. Eyepiece holder thumbscrew ° Erecting Prism

4. Rear Cell Port ° Eyepiece holder

5. epiece

7. Eyepiece holder thumbscrew

8. Fork arms

Optical tube

10. Objective lens cell

11. Dew shield

12. Dust cap

13. Vertical lock Horizontal lock

14.

15. Focus knob

16. Computer control panel

A. HBX port B. LED C. On/Off D. AUX port

17. Base housing Base/Holes f

18.

19. Battery compartment Flip mirror control (inset)

20.

or tr

ipod bolts

Page 7

Fig. 1b : The computer control panel: A - HBX port; B - LED; C - On/Off; D - AUX port.

Fig. 1c: The battery compartment.

2# 2$

Fig. 2: The AutoStar Handbox (see page 10).

Fig.3:

The tr

ipod.

utoStar

21.

22. Tripod bubble level

23. Base Handle

24.

25.

Adjustable legs

26. Locking ring

27.

28.

29. Bubble level/compass

30.

aces/accessor

Leg br Leg locks

Flip Bar

y holders

Page 8

Caution:

Using products other than standard Meade accessories may cause damage to the telescope’s internal electronics and may void the Meade warranty.

ETX: Your Personal Window to the Universe

The Meade ETX-80AT-BB is an extremely versatile, high-resolution telescope with features similar to those once available only with larger and more specialized imaging systems. With pushbutton controls, automatic tracking of celestial objects, and software downloading capability, an ETX telescope may be all the telescope ever required by many terrestrial and astronomical observers.

our ETX telescope reveals nature in an ever-expanding level of detail. Observe the feather

Y structure of an eagle from 50 yards or study the rings of the planet Saturn from a distance of 800 million miles clusters, remote galaxies, and even stars recently discovered to have planets orbiting about them. Meade ETX telescopes are instruments fully capable of growing with your interest and are ideal for both the casual observer and serious astronomer alike.

b Eyepiece:

tighten in place with thumbscrew (

. Focus beyond the Solar System and observe majestic nebulae, ancient star

Place the MA 25mm or other eyepiece into the 45° Eyepiece Holder (3, Fig. 1) and

2, Fig.1).

c Eyepiece Holder Thumbscrew: Secures the eyepiece. Tighten to a "firm feel" only.

° Erecting Prism:Holds the eyepiece at angle for convenient viewing and correctly

d 45

orients images in the eyepiece.

E Rear Cell Port: Attach any 35mm camera with a removable lens to this port using an

optional #64ST T-Adapter or attach the 45° prism ( through the eyepiece.

3, Fig. 1) for correctly oriented images

F 90° Eyepiece Holder: Holds the eyepiece upright for easy viewing.

G Eyepiece:

tighten in place with thumbscrew (

Place the MA 25mm or other eyepiece into the 90° Eyepiece Holder (5, Fig. 1) and

7, Fig.1).

H Eyepiece Holder Thumbscrew: Secures the eyepiece. Tighten to a "firm feel" only.

I Fork Arms: Hold the optical tube in place.

J Optical Tube: The main optical component that gathers the light from distant objects and

brings this light to a focus at the eyepiece.

1) Movable Objective Lens Cell: This component contains the telescope’s lenses.The focus

knob (

15, Fig. 1) moves the cell for precise image focus.

1! Dew Shield: Slows down the advance of dew, which distorts observing conditions.

1@ Dust Cap: Unthread the dust cap counterclockwise from the front lens of the telescope

before observing.

Note: The dust cap should be replaced after each obser power turned off to the telescope. Verify that any dew that might have collected during the observing session has evaporated before you replace the dust cap.

tical Loc

1# V

it to be freely mo feel" only) prevents the telescope from being moved manually, but allows the vertical motor drive to operate for AutoStar operation.

Caution: When loosening the v (

9, Fig. 1). The weight of the objective lens could cause the tube to swing

suddenly downward and damage the telescope.

ning the v

ed up and down. Turning the vertical lock clockwise (tighten to a "firm

ertical lock counterclockwise unlocks the telescope, enabling

ertical lock, be sure to hold onto the optical tube

ving session and the

1$ Horizontal Lock: Controls the manual horizontal rotation of the telescope. Turning the

izontal lock counterclockwise unlocks the telescope, allowing it to be freely rotated by

hor hand side-to-side about the horizontal axis. Turning the horizontal lock clockwise prevents the telescope from being rotated man

utoStar oper

or A

ation.

ually

, b

ut allo

ws the hor

ontal motor dr

ive to operate

Page 9

Fig. 4a: Flip mirror control in the “up” position.

1% Focus Knob:

ocus an image. The ETX-80AT-BB telescope can be focused on objects from a distance

to f of about 17 ft. to infinity. Rotate the focus knob clockwise to focus on distant objects, and countercloc

Note: The first time you focus the telescope, you may have to rotate the focus knob 20 to 40 complete turns as this is a fine focus mechanism which allows you to focus an image very precisely.

Moves the telescope’s objective lens (10, Fig. 1) in a finely-controlled motion

kwise to focus on nearby objects.

1^ Computer Control Panel:

A. Handbox (HBX) Port

B. LED: The red power indicator light illuminates when power is supplied to

the AutoStar handbox and to the telescope’s motor drive.

C. ON/OFF Switch: Turns the Computer Control Panel and AutoStar ON or OFF.

D. Auxiliary (AUX) Port:

sories, such as the Meade “AstroFinder Software with Cable Connector Kit,” which allows you to control your ETX from a PC. See

: Plug the AutoStar coil cord (8, Fig. 5) into this port.

Provides connection for current and future Meade acces-

OPTIONAL

ACCESSORIES

, page 33.

1& Base Housing: Contains mechanical and electrical assemblies that operate the telescope.

1* Base/Bolt Hole for Tripod Bolts: Thread the tripod bolts up through the tripod

and into the two holes in the base.

1( Battery Compartment: Install batteries in this compartment. See Step #12, page 14 for

more information.

2) Flip Mirror Control: ETX telescopes include an internal mirror. With the flip mirror control

in the “Up” position, light is diverted to the eyepiece in the 90° eyepiece holder

5, Fig. 1). With the flip mirror control in the down position, light is diverted through the rear

( cell port (4, Fig. 1) for use with the the 45° prism and eyepiece or to a camera for photography. See Figs. 4a and 4b.

Fig. 4b: Flip mirror control in the “down” position.

2! AutoStar with attached cord: See pages 10 to 12 for a description of AutoStar’s

features.

The Tripod

2@ Bubble Level: Use when aligning your telescope. When the bubble is in the center

circle, the base is level.

2# Base: Attach the telescope to the base.

2$ Handle: Conveniently placed for lifting and moving the tripod.

2% Adjustable Tripod legs: Support the telescope. The height of the legs can be adjusted.

2* belo

See

2^ Locking Ring: To open the tripod, loosen the ring and push it down as far as it will go.

Tighten the r begin to pull upward. Close the legs against the center post (be careful not to close on your fingers).

ing to lock the tripod in an open position. To close tripod, loosen the ring and

asten legs in the closed position.

Tighten r

ing to f

2& Leg Braces/Accessory holders: Strengthens the legs when the tripod is in the open posi-

tion. Also, you can place eyepieces and other accessories in the holes on the tray.

2* Leg Locks: Lift the lever to move the inner tripod leg segment in or out when adjusting the

height of the tripod.

2( Bubb

le Le

vel:

Helps y

ou le

el the tr

ipod and to find Nor

th during the alignment procedure.

3) Flip Barlow: Flip the switch to engage the Barlow. The Barlow doubles the magnification

of y

our eyepiece.You may have to turn the focus knob several times to refocus. See page

15 for more information.

Page 10

AUTOSTAR FEATURES

Fig. 5: #494 AutoStar Handbox.

Tour the Cosmos with Just the Push of a Button

Control of the ETX-80AT-BB is through the operation of the standard-equipment #494 AutoStar. Nearly all functions of the telescope are accomplished with just a few pushes of AutoStar’s buttons. Some of the major features of AutoStar are:

• Automatically move the telescope to any of the 1400 objects stored in the database or manually enter the astronomical coordinates of any celestial object.

• Take a guided tour of the best celestial objects to view on any given night of the year.

•

Download the latest satellite data and software revisions directly from the Meade website

.meade

www

( al #506 AstroFinder page 33.)

Access a glossar

•

• Calculate which eyepiece to use for optimum viewing of a celestial object.

Mount the telescope in the “Alt/Az” mode (Altitude - Azimuth, or vertical - horizontal) for

• fully automatic tracking of celestial objects.

.com

) and share softw

Softw

™

y of astronomical ter

are with other A

are and Cab

le Connector Kit. See

utoStar enthusiasts

OPTIONAL

(Requires option

CCESSORIES

Page 11

utoStar Computer Controller provides control of virtually every telescope function within

The A a compact handbox. AutoStar has soft-touch keys designed to have a positive feel. The LCD (Liquid Cr dark. The backlit display, key arrangement, and sequential database make AutoStar extremely user friendly.

ystal Display) is backlit with a red LED (Light Emitting Diode) for easy viewing in the

Note: AutoStar does not require batteries; the telescope’s batteries supply power to AutoStar.

b 2-Line LCD Display: Provides a visual interface between AutoStar and the telescope.

op line:

•

• Bottom line: Displays a menu option or information about a subject.

ys a menu item, or a menu option.

Displa

c ENTER Key: Accesses the AutoStar menus. See MOVING THROUGH AUTOSTAR'S MENUS,

page 17 and AUTOSTAR’S MENUS, page 21. The ENTER key is similar to the Return key on a computer.

Note: If ENTER is pressed for two seconds or more and then released, AutoStar emits a beep and “ENTER to Sync” is displayed. "ENTER to Sync" is relevant only after the telescope has been aligned and is pointing at an object. If the "ENTER to Sync" feature is accessed by mistake, press MODE to return to the previous screen. See

HIGH PRECISION, page 28, for more details about this feature.

d MODE Key: Returns to the previous menu. If you keep pressing Mode, it will continue to

access previous menus until the top level, “Select Item," is reached. The MODE key is similar to the ESCAPE key on a computer.

NOTE: If MODE is pressed and held for two seconds or more, the following information is then available using the Scroll keys (6 , Fig. 5):

• Right Ascension and Declination (astronomical) coordinates (see APPENDIX A)

• Altitude (vertical) and Azimuth (horizontal) coordinates

• Local Time and Local Sidereal Time (LST)

• Timer and Alarm Status

NOTE:

Throughout this manual, you will notice the term "Alt/Az." Alt/Az stands for altitude-azim is just a fancy way of saying the telescope mo and from side to side. Not all telescopes move like this. Alt/Az alignment is just one of many methods used by amateur astronomers to help locate stars in the night sky.

uth, which

ves up and down,

Press MODE again to return to the previous menu.

e GO TO Key: Moves the telescope to the coordinates of the currently selected object.While

the telescope is moving (or “slewing”), the operation may be stopped at any time by pressing any key except GO TO. Pressing GO TO again resumes the slew to the object.

f Arr

g Scr

ow Keys:Move the telescope up, down, left and right, at one of nine different speeds.

Speed selection is explained in

ys:

le with the Arro

•

Alt/Az Alignment - Use the Up and Down Arrow keys to move the telescope vertically up and down. The Left Arrow key rotates the telescope (horizontally) countercloc

• Data Entry - Use the Up and Down Arrow keys to scroll through the letters of the alphabet and n the Up Arrow key starts with the digit "9." The Left and Right Arrow keys are used to move the blinking cursor left and right across the LCD display.

oll K

the first line of the screen. second line key to move quickly through the options.

The Scroll k numerical digits.

alphabet & digits (A to Z, 0 to 9). backward (Z to A, 9 to 0). Common symbols are also available in the list.

w k

, while the Right Arrow key rotates it clockwise.

kwise

umer

Accesses men

Press the Scroll keys to move through a list of options. Press and

ys, like the Arrow keys, also scroll through the letters of the alphabet and

The Scroll Do

SLEW SPEEDS, page 16. The following functions are avail-

The Down Arrow key starts with the letter "A" and

ical digits

Options within the men

wn k

u options within a selected men

u are displa

y and the Do

wn Arrow key move forward through the

The Scroll Up key and the Up Arrow key move

The men

ed, one at a time, on the

u is displa

hold a Scroll

ed on

Page 12

H Speed/? Key: Pressing the Speed/? key cycles through the nine slew speeds that move

TIPS

FOR BEGINNERS

the telescope. Each time the Speed/? key is pressed briefly, the current slew speed is shown for about two seconds on the display. See

The Speed/? k

ey also accesses the "Help" file. "Help" provides on-screen information on

SLEW SPEEDS, page 16.

how to accomplish whatever task is currently active.

NOTE: Pressing the Speed/? key very briefly changes the slew speed. Holding down the Speed/? key longer (one to two seconds) accesses the Help function.

Hold down the Speed/? key and then follow the prompts on the display to access details of AutoStar functions in the Help feature. The Help system is essentially an on-screen instruction manual.

If you have a question about an AutoStar operation,

e.g., INITIALIZATION, ALIGNMENT,

etc., hold down the Speed/? key and follow the directions that scroll on the second line of

the LCD screen. When a word appears in [brackets], press ENTER to access the AutoStar Glossary. A definition or more detailed information is displayed. Press MODE to return to the scrolling AutoStar Help display.

When satisfied with the Help pro

ue with the chosen procedure.

contin

vided, press MODE to return to the original screen and

I Coil Cord (not visible in diagram): Plug the AutoStar coil cord into the HBX port

A, Fig. 1) of the computer control panel of the telescope.

(

Join an Astronomy Club

Attend a Star Party

One of the fun ways to learn about astronomy is to join an astronomy club. Check your local newspaper, school, library, or telescope dealer/store to find out if there’s a club in your area.

At club meetings, you will meet other astronomy enthusiasts with whom you will be able to share your discoveries. Clubs are an excellent way to learn more about observing the sky, to find out where the best observing sites are, and to compare notes about telescopes and so forth.

Often, club members are excellent astrophotographers. Not only will you be able to see examples of their art, but you may even be able to pick up some

ks of the trade” to try out on your ETX tele-

“tr

See page 31 f

scope photography with the ETX.

roups also hold regular

y g

Man Parties at which you can check out and observe with many different telescopes and other pieces of astronomical equipment. Telescope and Astronomy print schedules for many popular Star Parties around the United States and Canada.

, e

or more inf

Magazines such as

, filters

epieces

ly scheduled Star

ipods,

, tr

mation about

Sky &

Page 13

6a:

Fig.

Loosen the tr

king ring...

loc

Fig. 6b: ...push down as far as it will go.

ipod’s

GETTING STARTED

Parts Listing

Getting the telescope ready for first observations requires only a few minutes. When first opening the packing box, note carefully the following parts:

• The ETX Astro Telescope with fork mount system, photographic type tripod.

• Water-resistant backpack. #494 AutoStar handbox with attached coil cord.

•

• Meade premium eyepieces; 45° erecting prism.

• Hex-wrench, packed with the instruction manual. See page 34.

Telescope Assembly

Setup The Tripod

Your backpack observatory does not ship with the parts stowed in the backpack. Before stowing the gear in the backpack and taking it out into the field, assemble the telescope in a familiar environment to practice the setup.

1. Hold the tripod by its handle and turn the locking ring to loosen the tripod mechanism Fig. 6a). Push down on the locking ring as far as it will go to spread out the tripod legs

(

Fig. 6b). Turn the locking ring to tighten the tripod in place.

(

2. Adjust the height of the tripod, by lifting one of the tripod leg lock levers and sliding the

inner leg in or out to the desired length. Then press down on the lever to re-lock. Repeat for the other two legs.

3. Use the tripod on a level and even ground. Pointing accuracy depends on the base of the

tripod being level with the horizon. The bubble level on top of the tripod can help determine if the base is level: Move the base until the bubble is in the center of the circle.

GENERAL MAINTENANCE

Fig. 7: Thread bolts into

telescope base.

Fig.8:Line up bolts o

keylike holes.

Fig. 9: Loosen vertical lock to move optical tube.

Attach the Telescope to the Base

4. Thread the supplied bolts about two or three turns through the underside of the tele-

scope base (

5. Line up the bolts over the key-like holes on the base of the tripod and slide the bolts into

the holes (Fig. 8). Rotate the telescope clockwise until the bolts fit into the hole bays. Then, reach under the tripod base and tighten the bolts to a firm feel.

6. The optical tube is shipped with the tube upright between the forks. Loosen the vertical

lock ( vertical lock.

7. Remove the inverted dewshield from the end of the telescope. Remove the dust cap from

the end of the telescope by rotating it counterclockwise. Then thread the dewshield over the end of the telescope.

8: Remove the eyepiece cap from the 90 degree eyepiece holder and also the cap from the

rear cell port. Screw on the 45 degree prism to the rear cell port.

9. You can put two eyepieces into this telescope at the same time: Slip a lower power eye-

piece piece into the 90 degree holder.You can switch between the two eyepieces by turning the flip mirror control to the up or down position.

Note: It is strongly recommended that you remove the 45 degree prism from the telescope during the alignment procedure. The prism can correct the orientation of land objects during the daytime, but is not necessarily needed for astronomical viewing. You may use it, but during alignment the prism might strike the telescope base and obstruct the align process.

Fig. 7).

Fig. 9) and move the optical tube down between the fork arms. Then, re-tighten the

, such as a 25mm or 26 mm eyepiece into the 45 degree prism and another eye-

Page 14

Focus knob.

Fig 10.

Insert batteries.

Fig 11.

Fig 12. Plug AutoStar into the HBX port of the computer control panel.

Fig 13. Thread the dust cover onto the tube.

Fig 14. The dewshield.

Secure the eyepieces in place with their respective thumbsrews.

10.

Tip: Always start observing using a low power eyepiece to get a nice wide field of view. Later on you can change to high power, if so desired. But high powered eyepieces have

uch narrower field of view and it’s more difficult to locate objects using high powered

a m eyepieces.

11. You can focus the eyepieces by turning the focus knob.

Tip: The focus knob has a very fine focus, so you may have to turn the knob 20 complete turns or more to focus on an object.

Connect the AutoStar Handbox

12. Lift the battery cover. Now gently remove the battery holder from the compartment so you don’t accidentally pull out the wires attached to the holder. Insert 6 user supplied “AA” batteries in the holder. Refer to the diagram on the holder to orient the batteries properly. Replace the holder back into the battery compartment and replace the lid.

13. Make sure that the computer control panel power switch is in the OFF position. Remove AutoStar from the packing materials and plug it into the HBX port.

14. Flip the Power Switch on the computer control panel to the ON position. The copyright message lights on AutoStar’s LCD display.

Press the key prompted by AutoStar to accept the Sun warning.

15.

Stowing your Gear in the Backpack

First disassemble the telescope assembly.

1. Loosen the vertical lock. Now move the tube to an upright position so that it is pointing straight up through the fork arms and re-tighten the vertical lock.

2. Loosen the bolts on the underside of the tripod base, rotate the telescope counterclockwise, and lift the telescope off of the tripod. Now remove the bolts from the base.

3. Unscrew the dew shield. Thread the dust cover over the end of the telescope. Then flip the dewshield over and place it over the end of the tube.

4. Next, close and lock the tripod: Hold the tripod by its handle and turn the locking ring to loosen the tripod mechanism.

5. Lift the locking ring as far as it will go. Turn the locking ring to tighten the tripod in place.

Caution: Be careful not to close the tripod legs on your fingers.

Now, place the accessories and telescope into the backpack.

6. Put the eyepiece container into the provided pouches in the accessory compartment with the “lip” at the top. Place the bolts

7. Stow the ETX telescope in your backpack. Use the velcro tape inside of the backpack to

further secure it in place. Place the AutoStar handbox into the lower section of the pack.

9. Zip up the pack. Slide the tr

10.

ou carr

y and mo

, prism into their respective pouches. Zip up the accessory compartment.

ipod under the loops on the pac

y the pac

e the lock down toward the tripod with your other hand.

k. Secure the tripod using the loop lock: Hold the knot with one hand

k so that the f

eet will face downward when

Fig 15. Secure the telescope in the backpack using the velcro strap.

Safety Precautions

• Take care not to allow the telescope to be jolted severely while hiking.

• Try not to run for any significant distance. Don’t toss the telescope in the pack on the

round.

Excessiv

e vibrations may damage the telescope.

• The backpack is made of water-resistant material, but isn’t waterproof. Some areas, such as the zipper seam might allow rain to penetrate and cause damage to the telescope.

Page 15

Choosing an Eyepiece

A telescope’s eyepiece magnifies the image formed by the telescope’s main optics. Each eyepiece has a focal length, expressed in millimeters, or “mm.” The smaller the focal length, the higher the magnification. For example, an eyepiece with a focal length of 9mm has a higher magnification than an eyepiece with a focal length of 25mm.

Your telescope comes supplied with two standard eyepieces.

Low power eyepieces offer a wide field of view, bright, high-contrast images, and excellent eye relief dur power eyepiece. When the object is located and centered in the eyepiece, you may wish to switch to a higher power eyepiece to enlarge the image as much as practical for prevailing seeing conditions

The power, or magnification of a telescope is determined by the focal length of the telescope and the focal length of the eyepiece being used. To calculate eyepiece power, divide the telescope's focal length by the eyepiece's focal length. E.g., Assume you are using a 25mm eyepiece. The focal length of the ETX-80AT-BB is 400mm (see

The eyepiece power, or magnification is therefore 14x. However, your telescope also contains a built-in 2 times Barlow. This means you also have to multiply magnification figure by two.

ing long observing sessions. To find an object with a telescope, always start with a low

Note: Seeing conditions vary widely from night-to-night and site-to-site. Turbulence

in the air, even on an apparently clear night, can distort images. If an image appears fuzzy and ill-defined, back off to a lower power eyepiece for a more wellresolved image (

Telescope Focal Length ÷ Eyepiece Focal Length = Magnification

Fig. 18a and 18b, page 18).

SPECIFICATIONS, page 36).

400mm ÷ 25mm = 16

16 x 2 = 32

So your telescope has a 32 times magnification.

Manual Operation of the Telescope without AutoStar

If you wish to observe a distant land object, such as a mountain top or a bird, you can observe by merely pointing the telescope and looking through the eyepiece. Assemble the telescope, loosen the horizontal and vertical locks ( object you wish to observe. Sight along the top of the tube until you find the object. When the object appears in the eyepiece, focus the image using the by turning the focus knob (

Rotate the knob cloc

1).

nearby objects.

You can also observe stars and objects in the night sky using this method, but note that objects begin to slowly drift across the eyepiece field.This motion is caused by the rotation of the Earth. As you become familiar with AutoStar operation, you can counteract the drift using the automatic tracking feature in the Setup menu (see

17), or by using AutoStar's GO TO capabilities (see

kwise to focus on distant objects and counterclockwise to focus on

13 and 14, Fig. 1), and turn the telescope towards the

15, Fig.

TO TRACK AN OBJECT AUTOMATICALLY, page

GO TO SATURN, page 19).

Fig.

tube.

16:

Sight along the top of the optical

Page 16

Fig. 17: AutoStar's Arrow keys.

Manual Operation of the Telescope Using AutoStar's Arrow Keys

You may also observe land and astronomical objects using AutoStar's Arrow keys.

If you have not already done so, prepare your telescope following the steps described in

TELESCOPE ASSEMBLY, page 13. Next, flip the On/Off Switch (16C, Fig. 1b) on the computer

control panel to the ON Speed/? key (

7, Fig. 5) to accept the Sun warning. The "Getting Started" message displays.

position. The copyright message lights on AutoStar’s display. Press the

Keep pressing the ENTER key until "Country/State" appears on the display. (Ignore the prompts requesting "Date" and "Time" for now – these functions will be explained later in the manual).

Use the Scroll keys to cycle through the database of countries/states. Press ENTER when your location displays. Next, use the Scroll keys to scroll to the nearest city to your observing site and press ENTER.

Next, use the Scroll keys to scroll to your telescope model and press

ENTER. The display then reads "Setup: Align."

You can now use the Arrow keys ( To change the telescope’s slew speed, briefly press the Speed/? key ( decreases the sle

w speed down one level, and then cycles back to the fastest speed. See page

5, Fig. 5) to slew (move) the telescope up, down, right, or left.

7, Fig. 5). Each press

16 for more information.

Tighten (to a "firm feel" only, do not overtighten) the vertical and horizontal locks (

). Sight along the side of the telescope’s main tube to locate an object and practice using

Fig. 1

utoStar’s Arrow keys to center the object in the telescope’s field of view. Use the tele-

the A scope’s focus knob (

15, Fig. 1) to bring the object into focus.

13 and 14,

This procedure demonstrates just a very small part of AutoStar's capabilities. In the next section of this manual, you will begin to learn how to make use of AutoStar's extensive and powerful features.

Slew Speeds

AutoStar has nine slew speeds that are directly proportional to the sidereal rate (this is the speed at which stars move) and have been calculated to accomplish specific functions. Pressing the SPEED/? key changes the slew speed, which is then shown for about two seconds on AutoStar’s display.

The nine available speeds are:

N Speed 1 = 2x = 2 x sidereal (0.5 arc-min/sec or 0.008°/sec)

N Speed 2 = 8x = 8 x sidereal (2 arc-min/sec or 0.033°/sec)

N Speed 3 = 16x = 16 x sidereal (4 arc-min/sec or 0.067°/sec)

N Speed 4 = 32x = 32 x sidereal (8 arc-min/sec or 0.13°/sec)

N Speed 5 = 64x = 64 x sidereal (16 arc-min/sec or 0.27°/sec)

N Speed 6 = 0.5° = 120 x sidereal (30 arc-min/sec or 0.5°/sec)

N Speed 7 = 1°/s = 240 x sidereal (60 arc-min/sec or 1°/sec)

N Speed 8 = 2°/s = 480 x sidereal (120 arc-min/sec or 2°/sec)

N Speed 9 = Max = (Maximum speed possible, dependent on battery power)

or 3:

Speeds 1,

yepiece, such as a 12mm or a 9mm eyepiece.

Best used f

or fine center

ing of an object in the field of vie

w of a higher po

wer

Speeds 4, 5, or 6: Enables centering an object in the field of a low-to-moderate power eye-

, such as a standard 25mm eyepiece.

piece

Speeds 7 or 8: Best used f

or rough center

ing of an object in the e

yepiece.

Speed 9: Moves the telescope quickly from one point in the sky to another.

Page 17

Observe the Moon

Point your telescope at the Moon (note that the Moon is not visible every night) and practice using the Arrow keys and the slew speeds to view different features. The Moon contains many interesting features, including craters, mountain ranges, and fault lines. The best time to view the Moon is during its crescent or half phase. Sunlight strikes the Moon at an angle during these periods and adds a depth to the view. No shadows are seen during a full Moon, causing the overly bright surface to appear flat and rather uninteresting.

Consider the use of a neutral density Moon filter when observing the Moon. Not only does it cut

wn the Moon's bright glare, but it also enhances contrast, providing a more dramatic image.

To Track an Object Automatically

As the Ear speed at which the stars move is called the sidereal rate.You can setup your telescope to move at the sidereal rate so that it automatically "tracks" the stars and other objects in the night sky. In other words, if the telescope is not tracking an astronomical object, the object will drift out of the eyepiece field of view. The tracking function automatically keeps an object more or less centered in the telescope’

To track objects, you must first initialize AutoStar and then select "Targets: Astronomical" from the A

ve through the AutoStar menus.

th rotates beneath the night sky, the stars appear to move from East to West. The

s eyepiece.

utoStar Setup menu. You must also learn how the AutoStar keypad operates in order to

Moving Through AutoStar’s Menus

The AutoStar database is organized in levels for quick and easy navigation.

• Press ENTER to go deeper into AutoStar's menu levels.

• Press MODE to move back toward the top menu level.

• Use the Scroll keys to move up and down through the options available for each level.

• Use the Scroll keys to enter characters and digits.

The Arrow keys are used to move the telescope, and can also enter numbers and letters.

NOTE:

AutoStar requests the Country/State, City, and Telescope Model information only the first time AutoStar is activated. If you wish to change this information, use the "Site" and "Telescope Model" options in the Setup menu.

Initializing AutoStar

This section describes how to initialize AutoStar. Perform this procedure the first time you use AutoStar or after performing a RESET.

Secure the locks: Make sure that the vertical and horizontal locks (13 and 14, Fig. 1) are

1. secured.

Plug in AutoStar: Connect AutoStar to the HBX port of the computer control panel (16a,

Fig. 1B

Turn on the control panel: Flip the telescope power switch of the computer control panel

3. to the ON position.

The AutoStar screen is activated and a copyright message displays briefly, followed by a short beep. Then AutoStar takes a few moments to start up the system.

Sun Warning: A message displays that warns not to look at the Sun. At the end of this

4. message, press the Speed/? key to signify that the message has been read and | understood.

5. Getting Star (

Daylight Savings Time: The next screen requests the status of Daylight Savings Time.

6. Press one of the Scroll keys to toggle between the YES/NO settings. When the desired setting displays, press ENTER.

ted:

The Getting Star

2, Fig. 5) to bypass the Help tutorial and continue with initialization.

Note: When multiple choices are available within a menu option, the option that is

currently enab (>).

led is usually displa

ted men

u displa

ed first and highlighted b

ys a scrolling message

ight pointing Arro

y a r

. Press ENTER

Page 18

Initialization is a pro-

TIPS

FOR BEGINNERS

cedure that ensures

utoStar oper-

that A ates correctly. When

ou first use AutoStar,

y it doesn't yet know where the observation location site is, what your model number is (AutoStar operates with several different models of Meade telescopes) or if you are in a daylight savings time period.

During the procedure, you are requested to enter this information. AutoStar uses this information , plus time and date information it receives for a high-precision internal clock to precisely calculate the location of celestial objects, such as stars and planets, and how to move your telescope correctly for various operations.

You will only be asked for the location and model number

ormation the first

inf time you initialize AutoStar or after a reset. You can change this information (for example, you may move more than 50 miles away) by going to the Site and Telescope model options in the Setup menu.

7. Set

Your Location or Zip Code:

The Location screen displa

wish to choose either the zip code of your observing location or the location (

ys. This screen asks you if you

i.e., entering the city and state or country of your observing location). Press Up to select the zip code option or do

wn to enter the city and state.

Note: The location settings (country/state/province and city, or zip code) are only asked for the first time you turn on the control panel. If you wish to change this setting later on, use the Site menu. See SITE, page 28, for more information.

a. If you chose the zip code option, the leftmost “0” is highlighted. Use the Scroll keys to scroll

through the digits. When you reach the desired number, use the Right Arrow key to move to the ne

xt digit position. Repeat this process until all 5 digits of your zip code are entered.

Press ENTER.

b. If you chose the location option, the next screen asks for the country or state/province (list-

ed alphabetically) of the obser

ving site.

Use the Scroll keys to scroll through the list of countries, states, and provinces. Press ENTER when the correct location displays.

xt screen asks for the city (listed alphabetically) closest to the observing site. Use

The ne the Scroll keys to scroll through the list of cities. Press ENTER when the correct city appears on screen.

Select model number. As AutoStar operates with several different models of telescopes, it next requests your telescope model number. Use the Scroll keys to cycle through the models. Press ENTER when your model number displays.

System initialization is complete. The Easy Alignment feature begins automatically after

9. the control panel is initialized.

Too Much Power?

Can you ever have too much power? If the type of power you’re referring to is eyepiece magnification, yes, you can! The most common mistake of the beginning observer is to “overpower” his or her telescope by using high magnifications which the telescope’s aperture and atmospheric conditions can not reasonab er, but bright and well-resolved image is far superior to one that is larger (see belo employed only under the steadiest atmospheric conditions

AutoStar can calculate the best eyepiece for you to use. Try out the “Eyepiece Calc” feature in the Utilities menu.

Most observers should have three or four additional eyepieces to achieve the full range of reasonable magnifications possible with the ETX telescopes.

OPTIONAL A

See

ly support. Keep in mind that a small-

ut dim and poorly resolved

w). Powers above 110X should be

, b

CCESSORIES,

page 33.

Fig. 18a & b: Jupiter; example of too much magnification.

Page 19

North

Declination 

at 0˚

Pointer

Note:

The "Telescope: Mount" option of the Setup menu is set to "Alt/Az" as the def

ault alignment

by the factory. The

xample presented in

e this section assumes that you are performing an alignment procedure

or the first time with

f your telescope and therefore, the "Telescope: Mount" option does not need to be selected.

Fig. 19: Alt/Az Alignment Home Position

Easy Alignment

After you initialize the system, AutoStar displays “Easy Align.” The fastest and easiest way to start observing with AutoStar is with Easy Alignment.

During Easy Alignment, AutoStar automatically picks two alignment stars from its database of celestial objects. It will then slew the telescope to a first alignment star. The user is asked to verify that the telescope is pointed at the chosen star and then to center the star in the eye-

. The process is repeated with a second star to complete the alignment.

piece

Select Alignment:

2. Set Home Position: AutoStar then prompts you to set the telescope in the Alt/Az Alignment home position (see margin note and Figs. 19 and 20). To set your telescope in the "Alt/Az" home position:

• Loosen the telescope’s vertical lock (

• Level the optical tube with the horizon. Move the optical tube until the pointer points at

“0” on the setting circle (Fig. 19).

• Tighten the vertical lock to a "firm feel" only.

• Unlock the horizontal lock (14, Fig. 1) and turn the telescope horizontally until it points

North. Re-lock the horizontal lock.

• Remove the 45° prism and eyepiece from the rear cell port. It may interfere with the

alignment procedure. After alignment, you may replace the prism and eyepiece.

• Press ENTER.

3. Center Alignment Stars: The AutoStar then slews to the first star for alignment. It may not appear in the field of view in the eyepiece. The alignment star should be easily recognized and be the brightest star in the area of the sky where the telescope is pointing. Use the Arrow keys to move the telescope until the star is visible and centered in the eyepiece. Press ENTER. Repeat procedure for the second alignment star.

NOTE: AutoStar locates alignment stars based on the date, time, and location entered. The alignment stars may change from night to night. All that is required is for the observer to center the selected stars in the eyepiece when prompted.

Note: The GO TO key also allows you to perform a "spiral search." A spiral search is useful when the telescope slews to an object, but that object is not visible in the eyepiece after the telescope finishes it search. (This sometimes occurs during an alignment procedure.) Press GO TO when the slew is finished and the telescope starts slewing in a spiral pattern at a very slow speed around the search area. Look through the eyepiece and when the object does become visible, press MODE to stop the spiral search. Then use the Arrow keys to center the object.

“Align Easy” displays. Press ENTER.

13, Fig. 1).

Fig. 20: The ETX-80 is supplied with a bubble level. When setting the home position, use the

b the telescope and to find Nor

Remove the eyepiece from the 90° holder and drop in the b telescope tube the bubble enters the center circle of the bubble level. Line up the Nor line of the compass with you telescope tube. the tube until the tube points North.

el to help level

le le

th.

ble level. Adjust the

th - South

Go To Saturn

After performing the Easy Alignment procedure, the motor drive begins operating and the telescope is aligned for a night of viewing. Objects in the eyepiece should maintain their position even though the Earth is rotating beneath the stars.

IMPORTANT NOTE: Once aligned, only use the GO TO or Arrow keys to move the telescope. Do not loosen the telescope locks (

13 and 14, Fig. 1), or move the base

manually, or alignment will be lost.

This exercise demonstrates how to select an object for viewing from AutoStar’s database. This example demonstrates how to select Saturn.

y need to choose another

TE:

Satur

n is not visib

le the entire y

ear and y

ou ma object from AutoStar's database; however, the procedure, as described below, remains the same.

1 After the telescope is aligned, “Select Item: Object” displays. Press ENTER.

“Object:

Solar System”

displa

Press ENTER.

3. “Solar System: Mercury” displays. Keep pressing the Scroll Down key until “Solar System: Saturn” displays.

Page 20

NOTE:

TIPS

FOR BEGINNERS

Keep in mind that when viewing through an eyepiece in the 90°eyepiece holder, images of terrestrial objects

ight-side-up,

are r but reversed left-forright. Normally, such an image orientation is not bothersome, unless trying to read a distant sign, for example.

If you wish to use the telescope for terrestrial observation, use the eyepiece in the 45° prism. The image in this eyepiece will be correctly oriented.

4. Press ENTER. “Calculating” displays. Then “Saturn” and a set of coordinates displays.

n’s (and other planets’) coordinates change throughout the year.

Satur

5. Press GO TO. “Saturn: Slewing...” displays and the telescope slews until it finds Saturn.You may need to use the Arrow keys to center Saturn precisely in the eyepiece. AutoStar then automatically sle object you may have chosen);

ws (moves) the telescope so that it "tracks" Saturn (or whatever other

i.e., Saturn remains centered in the eyepiece. If an object is observed in the telescope without using AutoStar's GO TO or automatic tracking capabilities, objects in the eyepiece gradually drift out of the field of view due to the Earth's rotation.

Using the Guided Tour

You’ve been hiking all day and night falls after you’ve set up camp. The only light is from the stars, which seem so close that you feel you can reach out and touch them. You’ve gotten your friends all excited about looking through your scope during the hike.

You initialize Autostar, set the home position and get aligned.You find Jupiter in the Solar System menu and you show off Jupiter’s four moons and you talk about the detail you can see in the bands circling the giant planet.

Next, you choose Saturn from the Solar system menu and — Autostar displays “Below hori-

on.” So you quickly pick out Mars from the menu. It’s also below the horizon.Your friends are

z losing interest.

This is the perfect time to use Autostar’s “Guided Tour.”

Guided Tour is one of Autostar’s more fun features. For example, check out the tour called “Tonight’s Best.” “Tonight’s Best” will take you on a tour of the best objects in the sky. Objects that are in the sky right now—the tour changes all the time depending on the time, date and place.

1. To find the Guided Tour menu, keep pressing MODE until “Select Item: Object” displays.

2. Press one of the Scroll keys to page through the menus. Keep pressing until “Select Item: Guided Tour” displays.

3. Press ENTER. “Guided Tour: Tonight’s Best” displays. Press ENTER.

4. “Tonight’s Best: Searching...” displays. After calculating, “Tonight’s Best: Jupiter” might displays—different objects may be displayed on a tour list on any given night.

5. Press ENTER to display information about an object. Even though you may have just looked at Jupiter, read the information screens (use the scroll keys to page through these screens). You may discover some cool information you didn’t know about Jupiter.

Press MODE to retur

n to the list of objects. Press one of the Scroll keys to scroll through the list. Press ENTER when you find the next object you wish to observe; press ENTER to select the object. Then press GO TO to move the telescope to that object. Repeat this procedure to find other objects.

7. Press and hold down MODE for two seconds to leave the Guided Tour menu.

Tour

Which One’s the Alignment

Star?

If AutoStar has chosen an alignment star with which

ou are unf

y in your eyepiece is really the alignment star?

The r ly the br view an alignment star in an eyepiece, it stands out dramatically from the rest of the stars in that portion of the sky.

If you have an obstruction, such as a tree or a building b have any doubts at all about the star that has been chosen, no problem. Just press the Scroll Down key and A

amiliar

ule of thumb is that an alignment star is usual-

ightest star in that area of the sky

king y

loc

utoStar will find another star to align upon.

w can you be sure if the star

, ho

w of the alignment star

our vie

When you

, or if y

Page 21

Tonight's Best

How Far is Far

Star's Life

Downloaded Tours

User-created Tours

Solar System

Mercury

Etc

Moon

teroids

omets

Constellations

Andromeda

Etc

Dee

amed

Obj

ect

ala

ies

bulae

ssier

Etc

Star

amed

atalog

ble

aria

ble

Etc

Satellite

lect

lete

dit

User

Obj

ects

lect

lete

dit

Landmar

lect

lete

dentify

Sunrise

Sunset

Moonrise

Moonset

Moon Phases

ext Full Moon

Next N

ew Moon

Next 1st Q

Next 3rd

Meteor Sho

wers

uadrantids

rid

ta A

uarids

lta A

uarids

erseids

rio

nids

urids

Leonids

eminids

sids

Solar

cli

ses

Lunar

cli

ses

Aut

umn

uino

ernal

uino

inter Solstice

Summer Solstice

To u

Objects

...

Accretion Dis

Etc

B...

C...

...

E...

...

R...

...

Timer

Star t &

Sto

Alarm

& O

yepiece

Calc

eld of

iew

Magnification

ggest

Dis

lay

tions

arning

etting Started

Brightness Ad

Contrast Ad

Beep

Slee

Sco

ord

Align

asy

ne Star

Two Star

Date

Time

Daylight Sa

ving

Te lescope

Telescop

e Model

cal Length

z/R

Ratio

Dec

Ratio

unt

z/R

ercent

Dec

ercent

ain Dri

ing R

ate

erse L

erse U

uiet Sle

ation

Min A

ali

rat

e Motor

recision

Ta r

gets

tronomical

rrestr

ial

Site

lect

lete

dit

Downlo

Statistics

eset

Select Item:

Obj

ect

Select Item:

ent

Select Item:

Guided Tour

Select Item:

Glossary

Select Item:

Utilities

Select Item

Setu

AUTOSTAR MENUS

Fig. 21 The Complete AutoStar Menu Structure.

Page 22

AUTOSTAR OPERATION

The Universe of

Autostar

Select Item: Setup

Select Item: Utilities

Select Item: Glossary

elect Item:

Guided Tour

Select Item: Event

Select Item: Object

ETUP Quick, easy alignment permits all telescope operations with only a 2-minute setup.

UTILITIES Calculate eyepiece magnifications; set the timer for an observing s

ession; or survey user

landmarks in 30-second intervals.

LOSSARY Discover the world of astronomy by alphabetically accessing  astronomical terms.

OBJECT Select from over 1400 database objects and press GO TO to move the telescope automatically to the object and place it in the telescopic field of view.

EVENT  Access the time of an astronomical e

vent, such as the  rising or setting times of the Moon.

UIDED TOUR Journey through the universe as Autostar escorts you to the  best celestial objects at your location.

Object Event  Guided Tours Glossary Utilities Setup



Select Item Solar System

Select Item Object

ENTER

Fig. 22: The AutoStar Universe: The six primary categories listed in the Select Item menu of AutoStar.

Fig. 23: Menus set in a

loop.

Fig. 24: AutoStar menu levels.

It is important to understand that menu selections are set in a loop (Fig. 23).This means that pressing the Scroll Down key (

6, Fig. 5) cycles down through all the available options within a given category, then returns to the first option. The Scroll Up key (6, Fig. 5) cycles up through the options in the opposite order. Note that this capability is a quick way to get to an option that is near the bottom of the list. The following example demonstrates this capability.

Example:

To navigate to the “Select Item: Setup” menu option when the “Select Item: Object” menu is displayed:

1. Press the Scroll Down key four times or the Scroll Up key once.

The screen in

Fig. 24 displays two lines of information. The top line shows the current menu level. The second line displays an option which may be selected within that menu level. Some options are choices that select the next menu level down. The Scroll keys move up and down

ailable options, showing one option at a time.

within the list of a

When the desired option is displayed on the second line, press the ENTER key to choose that option and move down one menu level.

Press the MODE key to leave a level;

IMPORTANT NOTE: No matter how many levels into AutoStar are traveled, each press of the MODE key moves up a level, until the top level, "Select Item," is

e.g., the wrong menu option is chosen.

reached. Once in the Select Item level, press MODE to return to the topmost level, "Select Item: Object."

AutoStar Navigation Exercise

To demonstrate how the AutoStar menu structure works, the following exercise calculates Sunset time so an e

NOTE: To perform an accurate calculation, AutoStar must be properly initialized with the current date, time, and location of the observing site. To enter the current date

, time, and location information of your observing site, see

OST

vening observing session can be planned.

, page 17, bef

ore proceeding with this e

ercise

INITIALIZING

Page 23

TIP: When multiple choices are available within a menu option, the option that is currently selected is usually displayed first and highlighted by a right pointing arrow (>).

o Calculate Sunset time:

1. Press the MODE key several times, until “Select Item: Object” is displayed.

2. Press the Scroll Down key once to display the “Event” option in the “Select Item” menu.

Press the ENTER key to choose the "Event" option and move down a level. "Event:

3. Sunrise" is displayed.

4. Press the Scroll Down key once to display the "Sunset" option in the Event menu.

Press the ENTER key to choose the "Sunset" option and move down another level.

6. Autostar calculates the Sunset time based on the current date, time, and location. Autostar then displays the results of the calculation.

Press MODE once to start moving back up through the Autostar levels. The first level up is

7. the Event menu.

8. Press MODE again to move up another level. This is the top level, "Select Item."

9. Press MODE again to return to the starting point of "Select Item: Object."

Entering Numbers and Text into Autostar

To enter numbers and text:

N Use the Up and Down Arrow keys to scroll through numbers 0 - 9 and the alphabet. The

Down Arrow key begins with the letter "A;" the Up Arrow key begins with digit "9."

To move the cursor across the display:

N Use the Right or Left Arrow key (5, Fig. 5) to move the cursor from one number to the next

in the display

N Press ENTER when the desired information has been entered.

Navigating Autostar

Autostar's menus are organized for quick and easy navigation:

N Press ENTER to go deeper into Autostar's menu levels.

N Press MODE (3, Fig. 5) to move back toward the top menu level.

N Press the Scroll keys to move up and down through the options or lists

N Press the Arrow keys to move the cursor across the display.

N Press the Help (?) key to access on-line help.

Adjusting the Speed of a Scrolling Message

N Press and hold the Scroll Up key to increase the scrolling speed when a message is scroll-

ing across the display.

y to decrease the scrolling speed when a message is

N Press and hold the Scroll Do

scrolling across the displa

wn k

Page 24

Object Menu

Almost all observing with Autostar is performed using the Object menu category. (NOTE:

Exceptions include Guided Tour and Landmark Survey.)See GO TO SATURN, page 19, for an

xample of observing using the Object menu. Also see

Many Autostar menu categories contain databases. An Autostar database is a list of viewable

, such as stars, planets, comets, nebulae, and so forth. When one of these objects is

objects selected from a database, Autostar moves your telescope (if properly aligned) and points it at the selected object.

The Object Menu options include:

Solar System is a database of the eight planets (Earth is not included) in order out from the Sun, followed by the Moon, asteroids, and comets.

Constellation is a database of all 88 Northern and Southern Hemisphere constellations. When this menu option is chosen and a constellation name appears on the first line of the screen, press GO TO once to change the second line to the name of the brightest star in the constellation. Press GO TO a second time to slew the telescope to that star. Use the Scroll keys to cycle through the list of stars in the constellation, from brightest to dimmest.

Deep Sky is a database of objects outside our Solar System such as neb galaxies, and quasars.

Star is a database of stars listed in different categories such as named, double, variable, or nearby.

Satellite is a database of Earth-orbiting objects such as the International Space Station, the Hubble Space Telescope, Global Positioning System (GPS) satellites, and geosynchronous orbit satellites.

User Objects allows the user to define and store in memory deep-sky objects of specific interest that are not currently in the Autostar database. See "Appendix B" for more information.

Landmarks stores the location of terrestrial points of interest in the permanent Autostar database.

IMPORTANT NOTE: To use the Landmark function, the telescope must be located and aligned exactly as when the landmark was added to the database.

N Select: To select a Landmark already in the database (see ADD below), choose the

"Select" option and scroll through the list. Press ENTER to select a Landmark, then press GO TO and the telescope slews to the object.

N Add: To add a Landmark, choose the "Add" option. Enter a name for the Landmark. Locate

and center the Landmark in the eyepiece, then press ENTER.

Identify is an exciting feature for an observer who wants to scan the night sky and start exploring. After the telescope has been properly aligned, use the Autostar Arrow keys to move about in the sky. Then follow this procedure:

ANT NOTE:

IMPOR

Identify procedure. Do not loosen the telescope locks or move the base or alignment is lost.

Only use the Arro

w k

TAKE A GUIDED TOUR,

eys to move the telescope during the

page 20.

ulae, star clusters,

1. When a desired object is visible in the eyepiece, keep pressing MODE until the “Select Item: Object” menu is displayed. Press ENTER to select this menu.

Scroll through the Object men

3. Press ENTER. Autostar searches the database for the identity of the object being observed.

4. If the telescope is not directly on an Autostar database object, the nearest database object is located and displa object.

u options until the

ed on the screen.

“Object:

Press GO

Identify”

TO and the telescope slews to that

screen appears

Page 25

Event Menu

TIPS

FOR BEGINNERS

The Event menu provides access to dates and times of astronomical events. The Event database includes:

Sunrise and Sunset calculates the time that the Sun rises or sets on the current date. Find

ise and set times for other dates by entering a new date into the “Setup: Date” menu. See

DATE, page 27.

Moonrise and Moonset calculates the time that the Moon rises or sets on the current date.

ise and set times for other dates by entering a new date into the “Setup: Date” menu. See

Find r

DATE, page 27.

Moon Phases displays the date and time of the next Full, New, 1st Quarter, and 3rd Quarter

Moon.

Meteor Showers provides information Leonids,

etc. Also lists the dates of the showers and when they reach maximum.

NOTE: Meteor showers cover large areas of the sky and are usually best observed with the naked eye.

Solar Eclipse lists upcoming Solar Eclipses, including the date and type (total, annular, or partial) of eclipse

, and the location and time of the first and last contacts of the Moon's shadow. Use the Scroll Up and Down keys to display the available data. Remember, never use a telescope to look at the Sun! See “WARNING!” to the left.

Lunar Eclipse lists upcoming Lunar Eclipses, including the date and type (total, partial, penumbral) of eclipse. Use the Scroll Up and Down keys to display the available data.

Autumn and Vernal Equinox calculates the time and date of the fall or spring equinox of the current year.

Winter and Summer Solstice calcu- lates the time and date of the winter or summer solstice of the current year.

on upcoming meteor showers, such as the Perseids, the

Glossary Menu

The Glossary menu provides an alphabetical listing of definitions and descriptions for common astronomical terms and Autostar functions. Access directly through the Glossary menu or through hypertext words embedded in Autostar. A

hypertext word is any word in [brack-

ets

], usually f

ound when using the Autostar Help function or when reading a scrolling message such as a description of a planet or star

. Press ENTER whenever a hypertext word is on screen and Autostar goes to the glossary entry for that word.

o access directly from the Glossar

T menu, use the Scroll keys to scroll through the alphabet. Press ENTER on the desired letter. Scroll to the desired

y and then press ENTER to read the

entr description.

Utilities Menu

The Utilities menu provides access to several extra features within Autostar, including a countdown timer and an alarm. The Utilities functions include:

• Try to pick an observing site away from street and house lights and car headlights. While this is not always possible, the darker the site, the better.

• Give your eyes about ten minutes to adjust to the darkness before observing. Give your eyes a rest from observing every ten or fifteen minutes to relieve eyestrain.

• Try not to use a standard flashlight. A lot of observers use red LED flashlights or tape red cellophane o setup and map reading so the

ually readjust their e

contin Be careful not to shine br other obser flashlight into the telescope while someone is

ving!

obser

Dress warmly. It gets chilly when you’re sitting

•

or prolonged periods.

• Practice setting up your equipment during the day or in a lighted area to become familiar with it before going to a dark site.

our 25mm e

Use y

• objects and wider areas of space open star clusters when y such as cr

Satur

•

Know your observing site. If you’re going to try out an unfamiliar site, check it out in the daylight for possible obstructions and pitfalls.

er their flashlights to use f

es to the dar

ers in the area.

ou wish to vie

aters on the Moon or the r

ight lights if there are

yepiece to view terrestrial

our 9mm eyepiece

Use y

w something up close

y don’t ha

Do not shine a

e to

kness

, such as

ings of

Page 26

Timer selects a countdown timer. This feature is useful for functions such as astrophotography

and tracking satellites. See OBSERVING SATELLITES, page 30.To use the Timer, press ENTER, then choose “Set” or “Start/Stop."

Set: Enter the time to be counted down, in hours, minutes, and seconds, then press ENTER.

N Start/Stop: Activates the timer set previously. Use the Scroll keys to toggle between ON and

OFF. When ON is displayed, press ENTER to activate the timer. When the timer runs out, four beeps sound and the timer is deactiv

ated.

Alarm selects a time for an alarm signal as a reminder. To use the Alarm, press ENTER, then choose "Set" or "Start/Stop."

Set: Enter the time of day for the alarm to sound, in hours, minutes, and seconds, then press ENTER.

N Start/Stop: Activates the alarm set previously. Use the Scroll keys to toggle between ON

and OFF. When ON is displayed, press ENTER to activate the alarm. When the alarm time arrives, Autostar beeps. Press ENTER to deactivate the alarm.

Eyepiece Calc calculates information about an eyepiece for the specific telescope to which

utostar is connected.

N Field of View: Scroll through a list of available eyepieces. When an eyepiece is selected,

the field of view is calculated.

N Magnification: Scroll through a list of available eyepieces. When an eyepiece is selected, the

magnification is calculated.

N Suggest: Autostar calculates and suggests the best eyepiece for viewing, based on the tel-

escope and the object being viewed.

Display Options enables or disables Autostar’s two initial displays. If both displays are disabled, Autostar begins with the Date display.

N Sun Warning: Turns the “Sun Warning” message on or off.

N Getting Started: Turns the “Getting Started” message on or off.

Brightness Adj: Adjusts the brightness of the display using the Scroll keys. When complete, press ENTER.

Contrast Adj: Adjusts the contrast of the display using the Scroll keys. When complete, press ENTER.

NOTE: This feature is usually only required in very cold weather.

ns the beep on or off.

Beep: T

Sleep Scope is a power saving option that shuts down Autostar and the telescope without forgetting its alignment. With "Sleep Scope" selected, press ENTER to activate the Sleep function. Autostar goes dark, but the internal clock keeps running. Press any key, except ENTER, to reactivate Autostar and the telescope.

ark Scope

is designed f

or a telescope that is not mo

ved between observing sessions. Align the telescope one time, then use this function to park the telescope. Next time it is powered up, enter the correct date and time – no alignment is required. Pressing ENTER causes the telescope to move to its pre-determined Park position. Once parked, the screen prompts to turn off power.

IMPOR

ANT NO

TE:

When the "P

k Scope" option is chosen and the displa

prompts you to turn off the telescope's power, Autostar is unable to be returned to

ning the power off and then back on.

es the telescope in such a way as to prevent the cords and

Cor

ation without tur

oper

Wrap,

when set to "On," mo cables attached to your telescope assembly from getting wound around the assembly and tangled as the telescope sle

ws to objects

"Off" is the def

ault setting.

Setup Menu

The Setup menu’s primary function is to align the telescope (see EASY ALIGN, page 19). However, there are numerous other features available within the Setup menu, including:

Page 27

TIPS

FOR BEGINNERS

Date changes the date used b

y Autostar. This function is useful to check events in the past or future. For example, set the Date menu for a day three months in the future. Then check the "Select Item: Event" menu for the Sunset time on that date. See

Time changes the time entered into A

ly calculate locations and events. Time may be set to 24-hour mode (military time) by

proper selecting the "b

lank" option which follows the "AM" and "PM" options.

utostar. Setting the correct time is critical for Autostar to

EVENT MENU, page 25.

Daylight Saving is used to enable or disable Daylight Savings time.

NOTE: Daylight Savings Time may be referred to by different names in various areas of the world. Check local time to verify.

Telescope accesses the several options, including:

N Model: Allows you to select the telescope model connected to Autostar.

N Focal Length: Displays the focal length of the selected telescope.

N Az Ratio and Alt Ratio: The Az (Azimuth) ratio and Alt (Altitude) ratio refers to the gears

of the telescope's motors. Do not alter these numbers.

N Az Percent: The Az (Azimuth) Percent allows you to change the azimuth backlash, i.e., the

way the Arrow keys move the telescope along the azimuth (horizontal) axis. If you enter a value near 100, the telescope tube responds more quickly (it responds immediately at 100%) as you hold down an Arrow key and also slews (moves) the tube more quickly. If you enter a value near 0, it takes longer for the tube to respond as you hold down an Arrow key and also slews the tube more slowly. Experiment with this option.Try changing the percent value until you get a "feel" for the Arrow keys that is comfortable for you.

Alt Percent: The Alt (Altitude) Percent operates identical to the AZ Percent option (see above), but allows you to change the altitude backlash, i.e., the way the Arrow keys move the telescope when moving along the altitude (vertical) axis.

N Train Drive: Trains the Altitude and

Azimuth motors to locate objects with more precision.

If you are experiencing any problems with pointing accuracy, follow the procedure described in

TRAINING THE DRIVE, page 40, to

APPENDIX C:

insure accurate pointing and tracking.

N Tracking Rate: Changes the speed

at which the telescope tracks targets in the sky

Sidereal: The default setting for A

utostar; sidereal rate is the

standard r

ate at which stars

e from East to

est across

W the sky due to the rotation of the Earth.

Lunar: Choose this option to

ly track the Moon over

proper long observing sessions.

Custom:

Allows entry of user-

defined tracking rates.

N Reverse L/R: Reverses the func-

tions of the Left and Right Arrow

es the

WN:

y mo

erses the

ys (

i.e., the Right k

k telescope to the left

se UP/DO

ver

N Re

functions of the Up and Down Arrow

i.e., the Up key moves the tele-

keys ( scope down

One of the most exciting resources for astronomy is the internet. The internet is full of websites with new images, discoveries, and the latest astronomical information. For example, when comet Hale-Bopp made its approach to our Sun in 1998, astronomers around the world posted new photos daily.

You can find websites for almost any topic relating to astronomy on the internet. Try the following key word searches: NASA, Hubble, HST, astronomy, Messier, satellite, nebula, black hole, variable stars, etc.

Check out Meade’s website for the latest product and technical information. You can download the latest software revisions, links to other astronomical sites, coordinates of celestial objects and the latest satellite tr handbo find our website at:

Here are some other sites y

• Sky & Telescope:

Astronomy:

•

The Starfield:

•

• Astronomy Picture of the Day:

• Heaven’s Above (satellite observing information):

Surf the Web

or your #494 AutoStar

mation f

king inf

See page 30 f

http://www.meade.com/

http://www

http://www2.astronomy.com/astro/

http://users.nac.net/gburke/

http://antwr

http://www.heavens-above.com/

or more inf

ou might find interesting:

.skypub.com/

.gsfc.nasa.goc/apod/

ormation. You’ll

Page 28

IMPORTANT NOTE:

While performing the automatic tracking procedure, only use the Arrow keys to move the telescope. Once the telescope has been set in the Alt/Az home position, do not loosen the telescope locks (13 and 14, Fig. 1), or move the base manually, or alignment will be lost.

Time Zone Shift

Atlantic -4 Hours Eastern -5 Hours Central -6 Hours Mountain -7 Hours

acific

P Hawaii -10 Hours

Table 1: Time Zone Shift.

-8 Hours

NOTE:

The Download function requires the optional #506 Astrofinder Software and Cable Connector Kit. See the instruction sheet included with the kit f

mation on

w to do

wnload.

OPTIONAL

more inf ho Also see

ACCESSORIES, page

33.

N Quiet Slew: Sets the maximum slew rate to 1.5° for quieter operation.

N Max Elevation: Allows you to enter a value in degrees that sets a limit as to how far the

optical tube can swing upward during a programmed slew. (Note that it does not prevent

ou from performing a manual slew past this limit.) This is useful when you have a camera

y or other peripheral attached to the telescope—you can prevent it from striking the telescope base.

N Min AOS (Acquisition of Signal): Allows you enter a value in degrees. This value repre-

sents the altitude at which your telescope begins to slew when acquiring a satellite track. This is useful when y

ou are observing satellites, but a tall tree or building is obstructing the

telescope. For example, you might begin to track the satellite at 15° altitude, instead of 5°.

See

OBSERVING SATELLITES, page 30, f

N Calibrate Motor: If the telescope motors appear to have a problem, use this option to

or more information about satellites.

retest the motors before performing a Reset. This option is also used if an Autostar unit is moved between telescopes, to match Autostar to the new telescope. To calibrate the motors, select this option and press ENTER.

N High Precision: If High Precision is turned on, when looking for a faint celestial object (i.e.,

a nebula or galaxy), Autostar first slews to a nearby bright star and displays "ENTER to Sync." Center the star in the eyepiece, then press ENTER. At that point the telescope has a high precision alignment to that par

t of the sky and it then slews to the object that was

originally requested.

Targets switches between Astronomical targets and Terrestrial targets. If "Astronomical" is selected, the telescope tracking motor is activated and any object you observe will remain centered in the eyepiece. If "Terrestrial" is selected, the tracking motor is turned off. To learn how to track an object automatically, see page 17.

Site provides access to several options including:

N Select: Displays the currently selected observing site. Use the Scroll keys to cycle through

all available sites (see

ADD below). Press ENTER when the site you wish to select displays.

Use this option when you move to a different geographic location.

N Add: Allows you to add new observing sites to the database (up to six sites may be stored).

Scroll through the list of Countries/States. Press ENTER when the site you wish to add displays. Then choose the desired city in the same manner.

N Delete: Deletes a stored site from the database.

N Edit: Edits a selected site, including: the name, latitude, longitude, and time zone. Time

Zone refers to the Greenwich Mean Time (GMT) time zone shift. Users West of Greenwich, England use “-” hours, East of Greenwich use “+” hours. For the United States, look up the time zone shift in

TE:Autostar compensates f

DAYLIGHT SAVING

MENU:

N Ad

oper

dress:Use the Up and Do

zip code

. Press ENTER when the entry is complete.

wnloadtransf

ation, the warning “Downloading Do Not Turn Off ” appears.

TE:

The Do

le Connector Kit.

Cab mation on how to download. Also see

Statistics pro

N Character

N V

vides basic statistical data about A

sion

Sho

Table 1.

ylight savings time, if selected. See

or da

, page 27.

eys to enter your street address, city, state, and

w k

ers inf

wn Arro

mation from a personal computer or another Autostar. During the

wnload function requires the optional #506 Astrofinder Softw

uction sheet included with the kit for more infor-

OPTIONAL ACCESSORIES, page 33.

, including:

utostar

s Free:Sho

See the instr

ws how much room is available in user-defined object memory.

ws the current version of the Autostar software.

SETUP

are and

Reset completely resets Autostar. Most values entered into the menus revert to factory

utostar requires initialization again after a Reset before proceeding with observa-

aults

def tions

. See

INITIALIZING A

UTOSTAR

, page 17.

Page 29

ADVANCED FEATURES

North

Declination 

at 0˚

Pointer

Terrestrial Observing

The ETX-80AT-BB makes an excellent high-resolution, terrestrial (land) telescope. Viewing terrestrial objects requires looking along the Earth's surface through heat waves. These heat waves often cause degradation of image quality. Low power eyepieces, like the MA 25mm eye-

, magnify these heat waves less than higher power eyepieces. Therefore, low power eye-

piece pieces provide a steadier, higher quality image. If the image is fuzzy or ill-defined, reduce to a

wer power eyepiece, where the heat waves do not have such an effect on image quality.

lo Observing in early morning hours, before the ground has built up internal heat, produces better viewing conditions than during late afternoon hours.

Astronomical Observing

Used as an astronomical instrument, your telescope has many optical and electromechanical capabilities. It is in astronomical applications where the high level of optical performance is readily visible. The range of observable astronomical objects is, with minor qualification, limited only by the observer’s motivation.

Sidereal Rate

As the Earth rotates beneath the night sky, the stars appear to move from East to West. The speed at which the stars move is called the sidereal rate.

If the telescope is aligned, the motor drive is designed to rotate the telescope at the sidereal rate so that it automatically tracks the stars. This tracking makes it easy to locate objects and keep them centered in the telescope’s eyepiece.

Alignment (Mount)

The telescope's mount permits the movement of the telescope in both Altitude (vertically) and Azimuth (horizontally). In order to automatically track a celestial object, the mount must be properly aligned. Easy Alignment is described on page 19.

Fig. 25: Alt/Az Home

Position.

Alt/Az Alignment

One-Star Alt/AZ Alignment or Two-Star Alt/AZ Alignment allows you to choose the alignment stars during the alignment procedure. The stars are chosen from AutoStar’s database of alignment stars. The database displays after One-Star Alt/Az or Two-Star Alt/Az Alignment is selected. .

The term "Alt/Az." is frequently used to refer to the Altitude or horizontal and Azimuth or vertical movements of the ETX-80AT-BB telescope. Other terms to describe a telescope's movement may be used with telescopes that have mounts different from the ETX-80AT-BB.

Alt/Az Home Position

To set your telescope in the "Alt/Az" home position (also see Fig. 20, page 19).:

eel" only

m f

13, Fig. 1).

• Loosen the telescope’s vertical lock (

• Level the optical tube with the horizon. Move the optical tube until the pointer points on the setting circle

“0”

tical loc

Re-loc

k the hor

Tighten the v

•

• Unlock the horizontal lock (

th.

Nor

• Remove the 45° prism and eyepiece from the rear cell port. It may interfere with the

alignment procedure. After alignment, you may replace the prism and eyepiece.

• Press ENTER.

k to a "fir

14, Fig. 1) and turn the telescope horizontally until it points

ontal loc

Page 30

Two-Star Alt/Az Alignment

wo-Star Alignment requires some knowledge of the night sky. AutoStar provides a database of

T bright stars and two stars from this database are chosen by the observer for alignment.

1. Perform steps 1 through 8 as described in the EASY ALIGNMENT PROCEDURE, page 19.

. Align to the first star. AutoStar then displays a database of stars for the observer to

choose from. Use the Scroll keys to scroll to a star that you wish to align upon. Select a star that you can easily locate in the night sky.

Press ENTER.

3. the telescope until the star is visible and centered in the eyepiece.

Press ENTER. Repeat procedure for the second alignment star. The telescope is aligned

4. and you are now ready to use AutoStar's GO TO capabilities for a night of observing.

The telescope slews to the star for alignment. Use the Arrow keys to move

One-Star Alt/Az Alignment

One-Star Alignment requires some knowledge of the night sky. AutoStar provides a database of bright stars. One-Star Alignment is identical to Two-Star Alt/Az: Alignment (see TWO-STAR

ALT/AZ ALIGNMENT, above), except only one star from this database is chosen by the observ-

er for alignment.

IMPORTANT NOTE: The accuracy of One-Star Alt/Az Alignment, unlike the TwoStar Alt/Az Alignment procedure, depends on how well the observer levels the telescope and how close to North the telescope is pointed when setting the Home Position ( more precise than One-Star Alignment.

Fig. 24). Because Two-Star Alignment uses two stars to align upon, it is

Observing a Satellite

NOTE: Satellite observing is an exciting challenge. Most satellites are in low orbit, traveling at approximately 17,500 mph. They move quickly across the sky and are visible only for a few minutes, requiring AutoStar to slew the telescope rapidly. Best viewing is near Sunrise or Sunset when the sky is still dark. Viewing in the middle of the night can be problematic because the satellite may pass overhead, but not be visible as it is in the Earth's shadow.

1. Choose a satellite from the Select menu, then press ENTER. AutoStar scans its database to find if that satellite is expected to pass overhead within the next 6 hours.

2. If a satellite is expected, use the Scroll keys to access a list of information about the pass, including acquisition time, location,

3. At the end of the list is “Alarm.” Press ENTER and AutoStar automatically sets the alarm to sound several minutes before the scheduled appearance. You may return to regular observations until the alarm goes off.

4. When the alarm goes off, return to the Satellite menu and press a Scroll key until the desired satellite is on the top line of the display.

5. Press GO TO. AutoStar slews the telescope to where the satellite should appear.The motor

e stops and a countdo

TE:

If the scheduled appear building, tree, or hill), press ENTER and AutoStar starts to move the telescope along the expected satellite track. When the track clears the obstruction, press ENTER again to pause the telescope

With about 20 seconds left on the countdo

6. for the satellite to enter the field of view.

7. When the satellite enters the field of view, press ENTER. The telescope starts to track with the satellite.

wn star

etc.

ance position of the satellite is obstr

, then contin

wn timer

ue with this procedure.

, start watching through the eyepiece

ucted (i.e

., b

y a

Page 31

Use the Arrow keys to center the object in the eyepiece to view the object. Satellite orbits

8. change and new satellites (including the Space Shuttle) are launched. Visit the Meade website ( instructions on how to download this data to AutoStar. If orbital parameters are more than one month old, the satellite pass ma download new satellite data into AutoStar memory requires the optional Astrofinder Softw

www.meade.com) approximately once a month to get updated information and

y not happen at the time predicted by AutoStar. To

are and Cable Connector Kit. See

OPTIONAL ACCESSORIES, page 33.

Digital Photography with the ETX

Although digital camer traditional 35mm cameras, they provide some significant advantages to the casual astrophotographer: You do not have to develop the images (instant images), lower costs, computer and internet readiness. And because unwanted photos are easily discarded, they provide the freedom to experiment.

Digital cameras present some problems for the astrophotographer: Many models have lenses that cannot be removed, present difficulties in attaching to a telescope, often lack manual focusing and allow limited exposure times. Long exposures with digital cameras introduce undesirable noise and artifacts into a digital image. This limits the range of astro images to the Moon, planets and bright stars.

SLR digital cameras usually work the best for astrophotography, although they are still a bit pricey.

Some tips for better photos:

• If you cannot remove the lens to your camera, look for a commercially available digital t-adapter. New solutions for attaching a digital camera to a telescope are becoming available as time goes by.

• If the camera is not directly coupled to the eyepiece, keep it as close to the eyepiece as possible and center the image to be photographed to minimize vignetting (darkening of the edges of the photo).

• Try to block ambient light (from street lights, house, etc.) from the eyepiece and the camera with a piece of cardboard, a screen, etc.

• Keep extra (charged) batteries on hand for your camera as digital cameras often drain batteries in a short period of time. Rechargeable Lithium batteries provide power for a longer period than non-rechargeable batteries. If practical, use an AC adapter.

• If using manual focus, set to infinity. Otherwise, using the camera's autofocus is OK.

• Experiment with your camera's exposure, brightness and /or contrast settings. Keep notes for future reference.

• Many digital cameras have a manual ISO setting. Short exposures times work the best.

• Use your camera's highest image quality and lowest compression settings. Although this fills up your camera's memory more quickly, it produces the best quality photos.

• Use the camera's timer or remote shutter release (if available for your camera) to minimize vibration. Wireless shutter releases may be available for some model digital cameras. If you do not have a shutter release, use the camera’s timer (sometimes called “self-timer”), which is available with most digital cameras. The timer also minimizes vibration.

as still cannot match the quality of images provided by

Photography with Meade’s AutoStar Suite™

The AutoStar Suite with Meade LPI™ (Lunar Planetary Imager) or Meade Deep Sky Imager™ turns your Meade ETX telescope, AutoStar and PC into even more powerful and easy-to-use astronomical 5. Press GO TO. AutoStar slews the telescope to where the satellite should appear. The motor drive stops and a countdown starts.

NOTE: If the scheduled appearance position of the satellite is obstructed (i.e., by a

e the telescope

uilding, tree

b along the e ENTER again to pause the telescope, then continue with this procedure.

, or hill), press ENTER and A

xpected satellite track. When the track clears the obstruction, press

utoStar star

ts to mo

Page 32

With about 20 seconds left on the countdown timer, start watching through the eyepiece for the

6. satellite to enter the field of view.

7. When the satellite enters the field of view, press ENTER. The telescope starts to track with the satel-

. instrument.

lite

LPI (

Fig. 26) and Deep Sky Imager (Fig. 27) combine the power of an electronic

astronomical imager with the simplicity of a web cam. Check out the following imager features:

• LPI: Achieve great results the first time out on the Moon, planets, brighter deep-sky objects and ter-

restrial targets.

• Deep Sky Imager: Capture dim and faint objects that are often invisible to the eye, that once could only

be captured by large observatories or expensive CCD equipment. For example, the Horsehead and Reflection nebulas in Orion.

• Easy to use with real-time display of object on your PC screen. Just center, focus and shoot.

• Magic Eye software-assisted focusing.

• Automatic and manual exposure control from .001 to 15 seconds (up to 450x longer than web cams).

• Automatically takes multiple exposures.

The AutoStar Suite Software includes powerful tools to help you get the most from your Meade ETX telescope:

• Sophisticated planetarium program with over 19 million objects.

• Select objects from the planetarium display and the telescope slews to those objects.

• Create time-lapse movies of objects, such as Jupiter

• Create your own Guided Tours.

• Advanced Image Processing Software including Unsharp Masking, Convolution Filtering and many

other features.

• Control all AutoStar functions from your PC.

• Talking Telescope software translates AutoStar text to synthesized speech through PC speaker.

• Includes a cable to connect your ETX model to your PC.

Fig. 26: The Lunar Planetary Imager.

Fig. 27: The Deep Sky Imager.

Page 33

OPTIONAL ACCESSORIES

A wide assor Meade accessories greatly extend many important applications to the telescope, from lowpower, wide-field terrestrial viewing to high-power lunar and planetary observing. The premium quality of these accessories is well-suited to the quality of the instrument itself.

Meade telescopes and accessories, including optional accessories for ETX telescopes, are available at more than 3,000 dealer locations in the U.S. and Canada and through Meade international distributors worldwide. Once you have identified the accessories you wish to order, contact your local Meade authorized dealer. To find a dealer near you call visit the Meade website at

#506 AstroFinder™ Software and Cable Connector Kit: Displays more than 10,000 celestial wonders – galaxies, nebulae, star clusters, stars, and planets – on your PC, enabling even the beginner to locate and identify objects to observe with the telescope or to print out star charts for use in observing sessions. Operates with any Windows™-based personal computer. The Cable Connector Kit permits connection of the ETX-80AT-BB, AutoStar, and PC, for downloading of new software to AutoStar or for updating of Earth satellite or other celestial object positions

epieces (1.25" barrel diameter):For higher or lower magnifications, Meade 4-element

Series 4000 eyepieces yield wider fields of view with excellent edge-of-field corrections and are available in a large range of focal lengths.

tment of professional Meade accessories are available for the ETX-80AT-BB.

(800) 626-3233 or

www.meade.com.

. This kit is included with each AstroFinder Software package.

Fig 29:

#827 Right-Angle

Viewfinder.

Fig. 28: Meade Series 4000 Super Plossl Eyepieces.

#126 2x Barlow Lens (1.25"): For telescopes that accommodate 1.25" eyepieces, the Barlow lens doubles each eyepiece power while maintaining excellent image corrections.

#3200 Lunar & Planetary Color Filter Set: Meade optical glass color filters increase image contrast and resolution of the Moon and planets. The #3200 Set includes light yellow, very light red, very light blue, and neutral density filters. Each filter threads into the barrels of all Meade MA, PL, and WA eyepieces and is packed in a separate plastic case for secure storage.

#827 8 x 25mm Right-Angle Viewfinder and Bracket: For easy sighting of terrestrial or astronomical objects prior to their observation in the main telescope, the #827 8 x 25mm Right-Angle Vie

wfinder (Fig.30) displa

helicoid focusing; the included viewfinder bracket attaches to the main telescope in seconds.

-Adapter:

64T

-mount that is correct f

the

The

ys a wide 7.5

-adapter allo

or your individual brand of camera separately.

° field of view. Includes a crosshair eyepiece and precise

our ETX telescope

ou connect a 35mm camer

ws y

a to y

. Obtain

Page 34

MAINTENANCE AND SERVICING

General Maintenance

The ETX-80AT-BB telescope is a precision optical instrument designed to yield a lifetime of rewarding applications. Given the care and respect due any precision instrument, your telescope will rarely require factory servicing or maintenance. Maintenance guidelines include:

1. Avoid cleaning the telescope’s optics. A little dust on the front surface of the telescope’s correcting lens causes virtually no degradation of image quality and should not be considered reason to clean the lens.

2. When absolutely necessary, dust on the front lens should be removed with gentle strokes of a camel hair br use a commercial photographic lens cleaner.

3. Organic materials (e.g., fingerprints) on the front lens may be removed with a solution of 3 parts distilled water to 1 part isopropyl alcohol. A single drop of biodegradable dishwashing soap may be added per pint of solution. Use soft, white facial tissues and make short, gentle strokes. Change tissues often.

CAUTION: Do not use scented, colored, or lotioned tissues as damage could result to the optics.

4. If your telescope is used outdoors on a humid night, telescope surfaces may accumulate water condensation. While such condensation does not normally cause any damage to the telescope, it is recommended that the entire telescope be wiped down with a dry cloth before being packed away. Do not, however, wipe any of the optical surfaces. Rather, simply allow the telescope to sit for some time in warm indoor air, so that the wet optical surfaces can dry unattended. In addition, the dust cap should not be placed back on to the optical tube until the telescope is thoroughly dry.

5 If your telescope is not to be used for an extended period, perhaps for one month or more,

it is advisable to remove the six AA-size batteries from inside the drive base. Batteries left installed for prolonged periods may leak, causing damage to the telescope’s electronic circuitry. See

6. Do not leave your telescope outdoors on a warm day or inside a sealed car for an extended period of time. Excessive ambient temperatures can damage the telescope’s internal lubrication and electronic circuitry.

7. A (English-format) hex wrench is provided with the ETX-80AT-BB. Use the wrench to tighten the set-screws of any knobs which may loosen, such as the horizontal lock knob or focus knob.

ush or blown off with an ear syringe (available at any pharmacy

TELESCOPE ASSEMBLY, page 13.

). Do not

Storage and Transport

When not in use, store the telescope in a cool, dry place. Do not expose the instrument to

It is best to store the telescope in its or

e heat or moisture

xcessiv

e and horizontal locks (13 and 14, Fig. 1) in the unlocked positions. If shipping the telescope, use the original box and packing material to protect the telescope during shipment.

ting the telescope

When tr can damage the optical tube and/or the objective lens. It is highly recommended to use the optional Hard Case to transport the telescope. See

anspor

, take care not to bump or drop the instrument; this type of abuse

OPTIONAL ACCESSORIES, page 33.

iginal box with the vertical

Inspecting the Optics

A Note About the “Flashlight Test": If a flashlight or other high-intensity light source is point-

ed down the main telescope tube, the view (depending upon the observer’s line of sight and the angle of the light) may reveal what appears to be scratches, dark or bright spots, or uneven coatings, giving the appearance of poor quality optics.These effects are only seen when a high intensity light is transmitted through the lens or reflected off the mirror, and can be seen on any high quality optical system, including giant research telescopes

The optical quality of a telescope cannot be judged by the “flashlight test"; the true test of optical quality can only be conducted through careful star testing.

Page 35

Troubleshooting

The following suggestions may be helpful with operation of the ETX-80AT-BB.

The power indicator light on the telescope does not come on or there is no response when pressing A

• Verify that the Computer Control Panel power switch (10c, Fig. 1) is in the ON position.

• Verify that the AutoStar cord (8, Fig. 5) is firmly connected to the HBX port (10a, Fig. 1).

• Verify that the batteries are installed correctly and that they have sufficient charge. See

TELESCOPE ASSEMBLY, page 13.

Note: If the batteries are getting low on charge, there will be a marked difference in the slew speed. The speed indicator lights may also flash and the speed may change. If any of these symptoms occur, turn the power off and replace the batteries.

• If AutoStar does not respond to commands, set the Computer Control Panel power switch to OFF and then back to ON.

• If the telescope does not slew after power is applied or if the motor quits or stalls, verify that there are no physical obstructions that would impede telescope movement.

• If all physical obstacles are removed and the telescope still does not move properly, turn off the power and unplug AutoStar. Plug the AutoStar back in and turn the power back on.

Cannot seem to focus (No image appears in the eyepiece):

• Keep turning the focus knob. Your ETX telescope has a fine focusing mechanism which allows you to focus an image very precisely. However, this means that you may have to rotate the focus knob 20 to 40 complete turns to achieve focus, particularly the first time you use your telescope. After that, fewer turns will be needed.

Still unable to see an image through the eyepiece:

• Confirm that the dust cap has been removed from the telescope.

• Confirm that the flip-mirror control (20, Fig. 1) is in the “up” position (Fig. 4a) if using the eyepiece holder ( the flip-mirror control is in the “down” position (

utoStar Arrow keys:

3, Fig. 1) so that light is directed to the eyepiece (1, Fig. 1). Confirm that

Fig. 4b) if using the #933 Erecting Prism.

Slew speed does not change when the Speed/? key is pressed, or the telescope moves slowly even though the fast slew speed is chosen:

•

The battery power may be low. See TELESCOPE ASSEMBLY, page 13.

Images through the eyepiece appear unfocused or distorted:

• The magnification used may be too high for the seeing conditions. Back off to a lower power eyepiece. See

• If inside a warm house or building, move outside. Interior air conditions may distort terrestrial or celestial images, making it difficult, if not impossible, to obtain a sharp focus. For optimal viewing, use the telescope outside in the open air instead of observing through an open or closed window or screen.

• If viewing a land object on a warm day, heat waves distort the image.

• The optics within the telescope need time to adjust to the outside ambient temperature to provide the sharpest image. To "cool down" the optics, set the telescope outside for 10 to 15 minutes before observing begins.

Telescope moves off a terrestrial object while observing:

•

Verify that the vertical and horizontal locks have been tightened to a "firm feel" (13 and 14,

Fig. 1).

Telescope pauses when changing slew direction:

• This pause is normal.

A terrestrial object appears reversed left-for-right:

• An eyepiece in the standard 90° observing position (5, Fig. 1) yields this image orientation. To view a correctly oriented image, the Erecting Prism (

TOO MUCH POWER?, page 18.

3, Fig. 1) is required.

Page 36

Meade Customer Service

If you have a question concerning your ETX-80AT-BB, contact the Meade Instruments Customer Service Department at:

Telephone: (800) 626-3233

Customer Service hours are 8:00 AM to 5:00 PM, Pacific Time, Monday through Friday. In the unlikely event that the ETX requires factory servicing or repairs, write or call the Meade Customer Service Department first, before returning the telescope to the factory, giving full particulars as to the nature of the prob great majority of servicing issues can be resolved by telephone, avoiding return of the telescope to the factory.

lem, as well as your name, address, and daytime telephone number. The

ETX-80AT-BB Specifications

Optical design ................................................................Achromatic Refractor

Clear aperture ..........................................................80mm (2.76”)

Focal length ....................................................................400mm

Focal ratio (photographic speed)....................................f/4.4

Near focus (approx.) ......................................................17 ft. (5.2m)

Resolving power ............................................................1.6 arc secs

Multi-coatings on objective lens ....................................Standard

Limiting visual stellar magnitude (approx.) ....................11.5

Image scale ....................................................................4.1°/inch

Maximum practical visual power ....................................240X

Optical tube dimensions

(dia. x length) ..........................................................9.3cm x 30.4-37.1cm (3.6” x 12-14.6”)

Eyepieces

2x Flip Barlow ................................................................Built in

Telescope mounting........................................................Fork type; double tine

Setting circle diameters ..........................................Dec: 3.5”; RA: 7”

Input voltage ..........................................................9-volts DC

Motor Drive System ................................................

Slow-Motion Controls ....................................................Electric, 9 speed, both axes

Hemispheres of operation ..............................................North and South, switchable

Bearings:

Altitude ....................................................................Acetal

Azimuth ..................................................................Nylon

Materials

Tube body ..............................................................ABS

Mounting ................................................................High-impact ABS

Objective lens (crown, flint) ....................................BK7, F2

Telescope dimensions ....................................................40.4cm x 18cm x 22cm (15.9” x 7” x 9”)

Prism ..............................................................................45° roof

ripod..............................................................................Photo style

Battery Life (approx.)

with AutoStar ..........................................................20 hrs.

Compass/Bubble Level included

DC servo motors with encoders, both axes

Page 37

AutoStar Specifications

Processor ................................................................................68HC11, 8MHz

Flash Memory ................................................................512KB, reloadable

eypad............................................................................10 key alphanumeric

Display ............................................................................2 line, 16 character LCD

Backlight ........................................................................Red LED

Coil Cord ........................................................................24"

AutoStar Dimensions

Length ............................................................................14.2cm (5.60")

Width (LCD end) ............................................................78.0cm (3.08")

Width (Connector end) ..................................................53.5cm (2.10")

Depth ..............................................................................23.5cm (0.93")

AutoStar net weight ........................................................0.169kg (0.35 lbs.

)

Page 38

APPENDIX A: USING AUTOSTAR TO ENTER R.A. AND DEC COORDINATES

Although AutoStar's database contains more than 1400 objects (stars, nebulae, planets, etc.) that you can observe, you may eventually want to view objects that are not part of the database. AutoStar provides a feature that allows you to enter an object's R.A and Dec coordinates in the "User: Objects" option of AutoStar's Object menu and then automatically slews the telescope to the user-entered coordinates

In order to use this menu option, you first need to look up the R.A and Dec coordinates of the object or objects you wish to observe. Check out your local library, computer store or bookstore for astronomy books, CD Roms, or magazines (such as coordinates of celestial objects.

The objects/coordinates you enter become part of your own permanent database, called "User Objects." You may use this menu to view these object as often as you like, but the objects' coordinates just need to be entered once

To enter coordinates of an object into the "User: Objects" option of the Object menu:

1. Make sure AutoStar has been initialized (see INITIALIZING AUTOSTAR, page 17) and the

telescope has been aligned and set to the Alt/Az home alignment position (see

ALIGNMENT, page 19).

2. After the telescope is aligned, "Select Item: Object" displays. (If necessary, use the Scroll

keys to scroll through the menus, as previously described, to find this option.) Press ENTER.

3. "Object: Solar System" displays. Keep pressing the Scroll Up key until "Object: User Object"

displays and press ENTER.

4. "User Object: Select" displays. Press the Scroll Down key once. "User Object: Add" dis-

plays. Press ENTER.

5. "Name" displays on the top line and a blinking cursor on the second line. Use the Arrow

keys (as previously described) to enter the name of the object you wish to add to the database. When you are finished, press ENTER.

Right Asc.: +00.00.0" displays. Use the Arrow keys to enter the digits for the Right

6. "

Ascension coordinate of your object. If necessary, use the Scroll Keys to change "+" to "-." When you are finished, press ENTER.

7. "

Declination: +00°.00'" displays. Use the Arrow keys to enter the digits for the Declination coordinate of your object. If necessary, use the Scroll Keys to change "+" to "-." are finished, press ENTER.

8. AutoStar then prompts you to enter the Size of the object. This step is optional. Use the Arro

w keys to enter this information, if so desired, and press ENTER to go to the next dis-

play. If you do not wish to enter this information, simply press ENTER.

AutoStar then prompts you to enter the Magnitude of the object. This step is also optional.

Use the Arro

xt displa

w k "User Object:

ys to enter this inf

Add" displays again.

Sky & Telescope or Astronomy), to find

When you

mation, if so desired, and press ENTER to go to the

EASY

TO a user-entered object:

o GO

y once. "User Object: Select" dis-

ed, press the Scroll Up k

With "User Object:

Press ENTER.

pla

Use the Scroll k

3. The name of the object and the Right Ascension and Declination coordinates display.

Press GO

Add" displa

ys (if necessar

O and the telescope sle

y) to scroll to the desired object.

ws to the object.

Press ENTER.

Page 39

APPENDIX B: HELPFUL CHARTS

Latitude Chart for Major Cities of the World

Latitudes of major cities around the world are listed below. To determine the latitude of an observing site not listed on the chart, locate the city closest to your site. Then follow the procedure below:

thern Hemisphere observers (N):If the site is over 70 miles (110 km) North of the listed city, add one degree for

Nor

every 70 miles. If the site is over 70 miles South of the listed city, subtract one degree per 70 miles.

Southern Hemisphere observers (S): If the site is over 70 miles North of the listed city, subtract one degree for every 70 miles. If the site is over 70 miles South of the listed city, add one degree per 70 miles.

UNITED

STATES

City State Latitude

Albuquerque New Mexico 35° N Anchorage Alaska 61° N Atlanta Georgia 34° N Boston Chicago Illinois 42° N Cleveland Ohio 41° N Dallas Texas 33° N Denver Colorado 40° N Detroit Michigan 42° N Honolulu Hawaii 21° N Jackson Mississippi 32° N Kansas City Missouri 39° N Las Vegas Nevada 36° N Little Rock Arkansas 35° N Los Angeles California 34° N Miami Florida 26° N Milwaukee Wisconsin 46° N Nashville Tennessee 36° N New Orleans Louisiana 30° N New York New York 41° N Oklahoma City Oklahoma 35° N Philadelphia Pennsylvania 40° N Phoenix Arizona 33° N Portland Oregon 46° N Richmond Virginia 37° N Salt Lake City Utah 41° N San Antonio Texas 29° N San Diego California 33° N

rancisco California 38° N

San F Seattle Washington 47° N Washington District of Columbia 39° N Wichita Kansas 38° N

Massachusetts 42° N

EUROPE

City

Amsterdam Netherlands 52° N Athens Bern Switzerland 47° N Copenhagen Denmark 56° N Dublin Ireland 53° N

ankfurt Germany 50° N

F Glasgow Scotland 56° N Helsinki Finland 60° N Lisbon Portugal 39° N London England 51° N

Madr Oslo Norway 60° N Paris Rome Italy 42° N Stockholm Sweden 59° N Vienna

Warsaw Poland 52° N

Countr

Greece

Spain

ance

ia 48° N

ustr

Latitude

°N

40° N

°N

SOUTH AMERICA City Country Latitude

Asuncion Paraguay 25° S Brasilia Brazil 24° S Buenos Aires Argentina 35° S Montevideo Uruguay 35° S Santiago Chile 34° S

ASIA City Country Latitude

Beijing China 40° N Seoul South Korea 37° N Taipei Taiwan 25° N Tokyo Japan 36° N Victoria Hong Kong 23° N

AFRICA City Country Latitude

Cairo Egypt 30° N Cape Town South Africa 34° S Rabat Morocco 34° N Tunis Tunisia 37°N Windhoek Namibia 23° S

AUSTRALIA City State Latitude

Adelaide South Australia 35° S Brisbane Queensland 27° S Canberra New South Wales 35° S Alice Springs Northern Territory 24° S Hobart Tasmania 43° S Perth Western Australia 32° S

y New South Wales 34° S

Sydne Melbour

Victoria 38° S

Page 40

TIPS

FOR BEGINNERS

Press > until it i

s centered

Press < until it is centered

rain Drive

Az. Train

Train Drive Alt. Train

Drive Setup For this op. . .

Center reference object



ENTER

cope slews left.

ring target back to center using the Right Arrow key.

Scope slews right. Bring target back to center using t

he Left Arrow key.

Menu returns to A

z. training.

Altitude (vertical) training.

Reminder to  use terrestrial target.

Train Drive Az. Train

Select Item Object

Press until it is centered

ENTER

MODE

Center target using Arrow keys.

Scope slews down. Bring target back to center using the Up Arrow key.

Scope slews up. Bring target back to center using the Down Arrow key.

Multiple presses.

ENTER

Select Item Object

Select Item

Setup

Setup Align

Setup Telescope

ENTER

ress the scroll 

p key once.

Access the Setup menu.

ultiple presses.

Access the  Telescope menu.

ENTER

Telescope Telescope Model

Telescope Train Drive

Train Drive Az. Train

Drive Setup For this op. . .

Center reference object.

ENTER

Multiple presses.

Choose the Train Drive option.

Azimuth  (horizontal) training.

Reminder to  use terrestrial target.

Center target using Arrow keys.

ENTER

erify that AUTOSTAR 

NITIALIZATION is  complete.  P

ress MODE until 

elect Item is displayed.

APPENDIX C: TRAINING THE DRIVE

Train the telescope motors using AutoStar. Perform this procedure after RESET or if you are experiencing any pointing accuracy problems. Figure 30 depicts the complete Drive Training procedure.

Note: Use a terrestrial object, such as a telephone pole or lamp post, to train the drive. Complete this exer-

cise once e

very 3 to 6 months to maintain the highest level of telescope pointing accuracy.

Further Study....

This manual gives only the briefest introduction to astronomy. If you are interested in pursuing further studies in astronomy, a few topics are suggested

Figure 30: Training the Drive Procedure.

below that are worth reading up on. Try looking up some of these topics in AutoStar’s glossary.

Also included below is a small sampling of books, magazines, and organizations that you might find helpful.

Topics

1. How is a star born? How does a solar system form?

2. How is the distance to a star measured? What is a light year?

3. What is red shift and blue shift?

4. How are the craters on our Moon formed? How old is the Moon and Earth? How old is the Sun?

What is a black hole? A quasar? A neutron star?

6. What are stars made of? Why are stars different colors? What is a white dwarf? A red giant?

7. What is a nova? A supernova?

8. What are comets? Asteroids? Meteors? Meteor showers? Where do they come from?

9. What is a planetary nebula? A globular cluster?

10. What is the Big Bang? Is the universe expanding or contracting, or does it always remain the same?

Books

1. The Guide to Amateur Astronomy by Jack Newton and Philip Teece

2. The Sky:

Turn Left at Orion by Guy Consolmagno & Dan

3. Da

A User’s Guide by David Levy

vis

4. Astrophotography for the Amateur by Michael Covington

gazines

elescope

1. Sky &

Box 9111, Belmont, MA 02178

Astronomy

Box 1612, Waukesha, WI 53187

Organizations:

1. Astronomical League Executive Secretary 5675 Real del Norte, Las Cruces, NM 88012 The Astronomical Society of the P

acific 390 Ashton Ave, San Francisco, CA 94112 The Planetar

3. 65 Nor

y Society

th Catalina Ave, Pasadena, CA 91106

Page 41

Fig. 31: The Moon. Note the deep shadows in the craters.

APPENDIX D: BASIC ASTRONOMY

In the ear er than the ETX-80AT-BB, turned it to look towards the sky instead of distant trees and mountains thought of the universe. Imagine what it must have been like being the first human to see moons

volve around the planet Jupiter or to see the changing phases of Venus! Because of his

re observations, Galileo correctly realized Earth's movement and position around the Sun, and in doing so, gave birth to modern astronomy. Yet Galileo's telescope was so crude, he could not clearly make out the rings of Saturn.

Galileo's discoveries laid the foundation for understanding the motion and nature of the planets, stars, and galaxies. Building on his foundation, Henrietta Leavitt determined how to measure the distance to stars; Albert Einstein unraveled the relationship of time and light. Almost daily, using sophisticated successors to Galileo's crude telescope, such as the Hubble Space Telescope, more and more mysteries of the universe are being solved and understood. We are living in a golden age of astronomy.

Unlike other sciences, astronomy welcomes contributions from amateurs. Much of the knowledge we have on subjects such as comets, meteor showers, variable stars, the Moon, and our solar system comes from observations made by amateur astronomers. So as you look through your Meade ETX telescope, keep in mind Galileo. To him, a telescope was not a mere machine of glass and metal, but something far more - a window through which the beating heart of the universe might be glimpsed, a fuse to set fire to mind and imagination.

AutoStar Glossary

Be sure to make use of AutoStar’s Glossary feature. The Glossary menu provides an alphabetical listing of definitions and descriptions of common astronomical terms. Access directly through the Glossary menu or through hypertext words embedded in AutoStar. See

Objects in Space

Listed below are some of the many astronomical objects that can be seen with the ETX-80ATBB:

The Moon

The Moon is, on average, a distance of 239,000 miles (380,000km) from Earth and is best observed during its crescent or half phase when Sunlight strikes the Moon’s surface at an angle. It casts shadows and adds a sense of depth to the view ( during a full Moon, causing the overly bright Moon to appear flat and rather uninteresting through the telescope. Be sure to use a neutral Moon filter when observing the Moon. Not only does it protect your eyes from the bright glare of the Moon, but it also helps enhance contrast, providing a more dramatic image.

Using the ETX-80AT-BB, brilliant detail can be observed on the Moon, including hundreds of lunar craters and maria, described below.

Craters are round meteor impact sites covering most of the Moon’s surface. With no atmosphere on the Moon, no weather conditions exist, so the only erosive force is meteor strikes. Under these conditions, lunar craters can last for millions of years.

Maria (plural for mare) are smooth, dark areas scattered across the lunar surface. These dark areas are large ancient impact basins that were filled with lava from the interior of the Moon by the depth and force of a meteor or comet impact.

Twelve Apollo astronauts left their bootprints on the Moon in the late 1960's and early 1970's. However, no telescope on Earth is able to see these footprints or any other artifacts. In fact, the smallest lunar features that may be seen with the largest telescope on Earth are about one-half mile across.

ly 17th century, Italian Scientist Galileo, using a crude telescope considerably small-

. What he saw, and what he realized about what he saw, forever changed the way mankind

Edwin Hubble proposed a glimpse into the origin of the universe;

GLOSSARY

, page 25, for more information.

Fig. 31). No shadows are seen

Page 42

Fig. 32: Jupiter and its four largest moons. The moons can be observed in a different position

very night.

Fig. 33: Saturn has the most extensive ring structure in our Solar System.

Fig. 34: The Pleiades is one of the most beautiful open clusters.

Planets

Planets change positions in the sky as they orbit around the Sun. To locate the planets on a given day or month, consult a monthly astronomy magazine, such as Sky and Telescope or

Astronomy.

Listed below are the best planets for viewing through the ETX-80AT-BB.

Venus is about nine-tenths the diameter of Earth. As Venus orbits the Sun, observers can see it go through phases (crescent, half

, and full) much like those of the Moon. The disk of Venus

appears white as Sunlight is reflected off the thick cloud cover that completely obscures any

ace detail.

surf

Mars is about half the diameter of Earth, and appears through the telescope as a tiny reddishorange disk. It may be possible to see a hint of white at one of the planet’s Polar ice caps. Approximately every two years, when Mars is closest to Earth in its orbit, additional detail and coloring on the planet's surface may be visible.

Jupiter is the largest planet in our solar system and is 11 times the diameter of Earth. The planet appears as a disk with dark lines stretching across the surface. These lines are cloud bands in the atmosphere. Four of Jupiter’s 16 moons (Io, Europa, Ganymede, and Callisto) can be seen as “star-like” points of light when using even the lowest magnification (

Fig. 32). These moons orbit Jupiter so that the number of moons visible on any given night changes as they circle around the giant planet.

Saturn is nine times the diameter of Earth and appears as a small, round disk with rings extending out from either side (

Fig. 33). In 1610, Galileo, the first person to observe Saturn through a telescope, did not understand that what he was seeing were rings. Instead, he believed that Saturn had “ears.” Saturn’s rings are composed of billions of ice particles ranging in size from a speck of dust to the size of a house. The major division in Saturn's rings, called the Cassini Division, is occasionally visible through the ETX-80AT-BB. Titan, the largest of Saturn’s 18 moons can also be seen as a bright, star-like object near the planet.

Deep-Sky Objects

Star charts can be used to locate constellations, individual stars and deep-sky objects. Examples of various deep-sky objects are given below:

Stars are large gaseous objects that are self-illuminated by nuclear fusion in their core. Because of their vast distances from our solar system, all stars appear as pinpoints of light, irrespective of the size of the telescope used.

Nebulae are vast interstellar clouds of gas and dust where stars are formed. Most impressive of these is the Great Nebula in Orion (M42), a diffuse nebula that appears as a faint wispy gray cloud. M42 is 1600 light years from Earth.

Open Clusters are loose groupings of young stars, all recently formed from the same diffuse nebula. The Pleiades is an open cluster 410 light years away (Fig. 34). Through the ETX-80ATBB, numerous stars are visible.

Constellations are large, imaginary patterns of stars believed by ancient civilizations to be the celestial equivalent of objects, animals, people, or gods. These patterns are too large to be seen through a telescope. To learn the constellations, start with an easy grouping of stars, such as the Big Dipper in Ursa Major. Then, use a star chart to explore across the sky.

Galaxies are large assemblies of stars, nebulae, and star clusters that are bound by gravity. The most common shape is spiral (such as our own Milky Way), but galaxies can also be elliptical, or even irregular blobs. The Andromeda Galaxy (M31) is the closest spiral-type galaxy to our own. This galaxy appears fuzzy and cigar-shaped. It is 2.2 million light years away in the constellation Andromeda, located between the large “W” of Cassiopeia and the great square of Pegasus.

Page 43

Page 44

(800) 626-3233

www.meade.com

MEADE LIMITED WARRANTY

Every Meade telescope, spotting scope, and telescope accessory is warranted by Meade Instruments Corporation (“Meade”) to be free of defects in materials and workmanship for a period of ONE YEAR from the date of original purchase in the U.S.A. and Canada. Meade will repair or replace a product, or part thereof, found by Meade to be defective, provided the defective part is returned to Meade, freight-prepaid, with proof of purchase. This warranty applies to the original purchaser only and is non-transferable. Meade products purchased outside North America are not included in this warranty, but are covered under separate warranties issued by Meade international distributors.

RGA Number Required: Prior to the return of any product or part, a Return Goods Authorization (RGA) number must be obtained from Meade by writing, or calling (949) 451-1450. Each returned part or product must include a written statement detailing the nature of the claimed defect, as well as the owner’s name, address, and phone number.

This warranty is not valid in cases where the product has been abused or mishandled, where unauthorized repairs have been attempted or performed, or where depreciation of the product is due to normal wear-and-tear. Meade specifically disclaims special, indirect, or consequential damages or lost profit which may result from a breach of this warranty. Any implied warranties which cannot be disclaimed are hereby limited to a term of one year from the date of original retail purchase.

This warranty gives you specific rights.You may have other rights which vary from state to state.

Meade reserves the right to change product specifications or to discontinue products without notice.

This warranty supercedes all previous Meade product warranties.

Part no. 14-6881-00 06/00

Meade ETX-80AT-BB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
