Meade CaptureView CV-5, CV-5 8x42 User Manual
CV-5 8 x 42 Digital Camera Binocular
®
Contents
Quick Start ................................................................................ 4
Features.................................................................................... 7
Introduction .............................................................................. 9
How to Use Your Binocular ......................................................10
Adjust Eye Relief, Adjust the Barrels ..................................10
Focus the Binocular ..............................................................11
Insert Batteries..........................................................................12
Camera Modes ........................................................................13
Using Buttons and Moving through Menus ..............................14
Taking a Picture ........................................................................15
Capturing Video ........................................................................16
Playback....................................................................................17
Other Menu Options ................................................................18
Use Flashback ......................................................................18
Some suggestions for using Flashback ................................19
Delete Images, Format Storage Media ................................20
Change Resolution ................................................................21
Change the Exposure Setting ..............................................22
Use the Setting Menu, Set the Current Time and Date ........23
Adjust the Beep, Turn Menu Display Icons On or Off............24
Record the Date Stamp ........................................................24
Select the Flicker Rate, Set the Flashback Period ................25
Select the Factory Default Settings ......................................25
Mass Storage, Card Present, Battery Life ............................26
Install the Image Editing Software ........................................27
Other Software and System Requirements ..............................28
Maintenance and Troubleshooting ............................................29
Specifications............................................................................30
3
Quick Start
Turn on camera.
Press and hold down Menu
button for 3 seconds.
Point at something interesting and press the Shutter button.
You’ve taken a picture!
2
Install 2 AA batteries.
(Not included.)
1
4
Select the Still Camera Mode.
Press Menu button. Use Right and Left buttons to move the selection box over
the DSC icon. Press the Menu button. Press the Shutter button to exit menu.
Menu
Button
Left
Button
Shutter
Button
DSC Icon
Right
Button
3
How to start taking pictures...
4
Menu
Button
Left
Button
Shutter
Button
Right
Button
5
Quick Start
Select the Flashback Mode.
Press Menu button. Use the Right or Left button to move the selection box
over the Flashback icon. Press the Menu button to enter Flashback mode..
Press the Shutter button again to stop recording.
CaptureView has recorded only the last 10 seconds of the activity. See USE
FLASHBACK, SUGGESTED USES FOR FLASHBACK and FLASHBACK PERIODS pages
18, 19 and 25 for more information.
6
Turn on camera.
Press and hold down Menu
button for 3 seconds.
5
8
Point at an interesting activity and press the Shutter button to enter
the record mode.
Flashback
icon
7
How to use Flashback...
Have you ever wanted to record just the play of
the game (your daughter kicking the winning
goal) or capture just the highlight of an event
(your son receiving his diploma)?
Use
Flashback when you want to capture video
of short activities like these—without using up
all your memory. You can enter the record mode
for as long as you like, but using
Flashback,
you’ll only save the last 10 seconds of video (or
if you prefer, you can also select 5, 15 or 20
seconds of recording time from the Flashback
Period menu option).
Quick Start
Sit back and relax a minute.
CaptureView automatically installs on your PC.
No drivers are needed.
Enjoy your photos.
Open Ulead Photo Express to view, edit
and print your pictures.
Install Ulead Photo Express.
Insert the CD, click on Ulead Photo Express
and follow the on-screen instructions.
10
Plug in.
Connect CaptureView to your PC or Mac (OS 9.0
or higher) using the included USB cable.
9
1
12

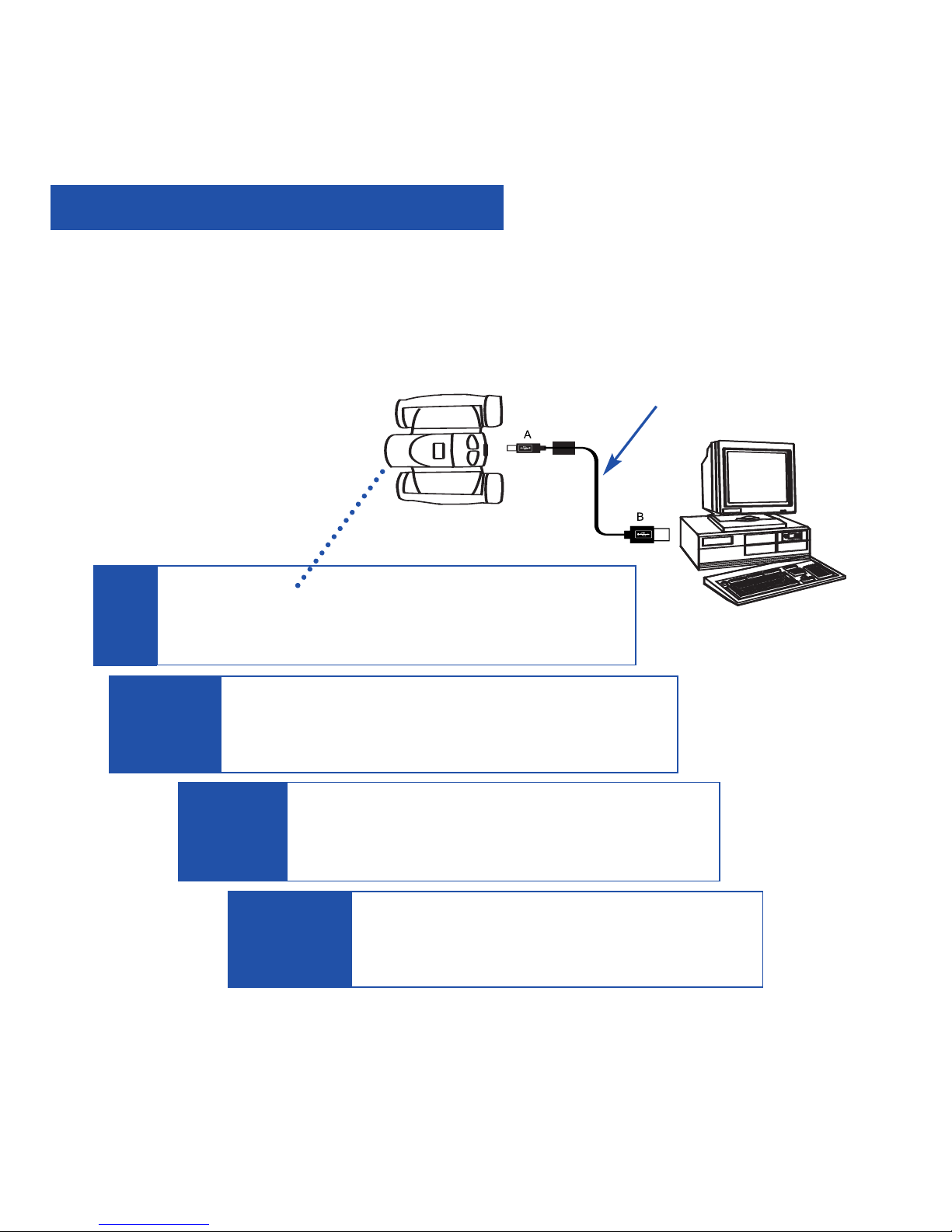

How to download your pictures...
USB Cable
6
7
Fig. 1: Top View
1. Diopter Scale (on
underside of right
eyepiece)
2. SD Card Port
3. Eyepiece
4. Menu Button
5. Shutter Button
6. Left Button
7. Right Button
8. LCD Screen
9. Objective Lens
10. Camera Lens
(not visible, see
Fig. 2)
11. Barrel
12. USB Port
13. Battery Compartment
Lid (see
Fig. 2)
14. Focus knob (not visible,
see Fig. 2)
Features
b
d
j
i
1!
1@
c
g
h
e
f
Fig. 1
Features
8
1#
1)
b
1$
Fig. 2: Bottom View
1. Diopter Scale
10. Camera Lens
(not visible)
13. Battery
Compartment Lid
(squeeze and pull
back to remove)
14. Focus knob
Fig. 2
9
Congratulations on purchasing the Meade®CaptureView®CV-5. CV-5 is an
8 x 42mm full-featured binocular. It is integrated with a digital camera that requires no
film to capture pictures or video. This manual is designed to quickly guide you
through the operation of your CaptureView CV-5. For best results, take a few
moments to become familiar with the operation of your device, and save the manual
for future reference.
A few of CaptureView’s many features:
• Fully functional binocular.
• Digital camera that captures pictures and video.
• Color LCD display panel allows you to easily navigate the operational menus.
• Flashback feature allows you to easily record just the highlight of an activity.
Important Note:
Images and video are saved in flash memory. This means that all images and
video are still saved when the batteries are depleted or removed.
Be sure CaptureView is off before changing batteries.
WARNING! Never use your binocular to look at the Sun! Looking at or near
the Sun will cause instant and irreversible damage to your eye. Eye damage is
often painless, so there is no warning to the observer that damage has occurred
until it is too late. Do not point the binocular at or near the Sun. Children should
always have adult supervision while observing.
Introduction
Adjust Eye Relief
Adjust the Barrels
You need to adjust the barrels, as the
distance between your eyes is usually
different than the distance between
another person’s eyes.
• If you wear eyeglasses, fold down
the rubber eyecups and hold the
eyepieces up against your glasses.
How to Use Your Binocular
If you want to... Do this...
Fold down
1. Hold CaptureView up to your eyes in
the normal viewing position. Use
both hands to hold each barrel firmly.
2. Pull the barrels apart or push the
barrels together until you see a
single circular field with both of your
eyes.
10
Barrel
Barrel
