MCZ Magritte User Manual

INSTALLATION AND USE MANUAL Index
MAGRITTE
Page
1
INTRODUCTION....................................................................................................................................2
1. WARNINGS AND WARRANTY CONDITIONS .....................................................................................3
1.1. SAFETY WARNINGS........................................................................................................................3
1.2. GUARANTEE CONDITIONS ..............................................................................................................3
1.2.1. Exclusions................................................................................................................................3
2. MAGRITTE CLADDING WITH FORMA PURO FIREPLACE STOVE.......................................................5
3. MAGRITTE CLADDING ASSEMBLY.....................................................................................................6
3.1. MAGRITTE CLADDING COMPONENTS...............................................................................................6
3.2. PHASE 1 - POSITIONING OF FIREPLACE STOVE PURO75 (F/PURO95).................................................7
3.3. PHASE 2 – ASSEMBLY OF RISERS (elements 1,2,3) ...........................................................................8
3.4. PHASE 3 - ASSEMBLY OF FIRE BED AND BENCH TOP (elements 4 and 5)..........................................10
3.5. PHASE 4 - ASSEMBLY OF INNER AND OUTER SIDES (elements 6,7,8,9,10) .......................................12
3.6. PHASE 5 - ASSEMBLY OF LEDGE (element 11) ................................................................................14
3.7. TECHNICAL TERMS GLOSSARY OF THE PICTURES ..........................................................................17
Index Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL
MAGRITTE
INTRODUCTION
Dear Customer, thank you for choosing a MCZ product and in particular the Magritte
(Forma Puro75, Forma Puro95 versions) claddings Forma Puro (FP) range.
We are sure that, by using it, you will appreciate the quality of an accurately designed and tested product. Our goal is to combine technology with easy of use and, above all, safety.
For optimal functioning of the Magritte claddings and to fully enjoy the heat and sense of well being that will spread throughout your home, we suggest that you carefully read this use and maintenance manual before using the product for the first time; please contact your dealer should you require assistance in resolving any doubts or problems.
Congratulations on your choice and remember, the fireplace stove MUST NEVER be used by children who should always be kept at a safe distance!
Introduction
page
2
Revisions to the publication
In order to improve the product, the Manufacturer reserves the right to modify and update this publication without prior notice.
Reproduction, even partial, of this manual without the Manufacturer's authorisation is prohibited.
Manual preservation.
Please take care of this manual and keep it in a place that can be quickly and easily reached.
If this manual should be lost or destroyed, or if it is in poor condition, request a copy from your dealer or directly from the manufacturer, providing product identification data.
Introduction
Technical service – all rights reserved by mcz spa Reproduction prohibited
INSTALLATION AND USE MANUAL
MAGRITTE
1. WARNINGS AND WARRANTY CONDITIONS
1.1. SAFETY WARNINGS
Check the conditions of the surface that will support the weight of the stove. If it is made of flammable material (such as wood, carpet, or plastic) provide suitable insulation.
The user is fully liable for improper product use, releasing MCZ from any civil or penal liabilities.
Any tampering with the fireplace stove, or use of non­original spare parts, may be hazardous to the user and releases MCZ from any civil or penal liability.
Incorrect installation or poor maintenance (not compliant with the provisions of this manual) may cause damages to persons, animals or property. MCZ is not civilly or criminally liable in these cases.
Chapter 1
page
3
1.2. GUARANTEE CONDITIONS
MCZ guarantees the product, with the exception for the elements subject to normal wear listed below, for two years from the date of
purchase that is proven by a document that indicates the dealer's name and date of sale, if the completed warranty certificate was returned within 8 days and if the product was installed and inspected by a specialised installation technician and according to the detailed instructions indicated in the instruction manual supplied with the product.
The warranty includes the free replacement or repair of parts
recognised as factory defective.
1.2.1. Exclusions
The guarantee does not cover any part that may be defective due to negligence or careless use, incorrect maintenance, installation non compliant with that specified by MCZ.
MCZ refuses to accept any responsibility for any damage which may be caused, directly or indirectly, by persons, animals or things as a result of the failure to observe all the provisions set forth in the instruction booklet, especially those concerning warnings on the subject of installation, use and maintenance of the appliance.
In the event of product inefficiency, please contact your dealer and/or area importer.
Damages caused by transport and handling are not covered by the guarantee.
Exclusively refer to the supplied manual for product installation and use.
The guarantee will be invalidated in the event of damage caused by tampering with the appliance, atmospheric agents, natural disasters,
Chapter 1
Technical service – all rights reserved by mcz spa Reproduction prohibited
INSTALLATION AND USE MANUAL
MAGRITTE
electrical discharges, fire and lack of, or incorrect, maintenance in terms of the manufacturer's instructions.
REQUEST FOR SERVICE Requests for service must be addressed to the dealer
who shall forward the request to the MCZ technical assistance service.
MCZ is not liable in the event the product and any other accessory is improperly used or modified without authorisation.
Only original MCZ spare parts must be used for all replacements.
Chapter 1
page
4
Chapter 1
Technical service – all rights reserved by mcz spa Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 2
MAGRITTE
2. MAGRITTE CLADDING WITH FORMA PURO FIREPLACE STOVE
page
5
The Goya model is
a recessed
cladding, i.e. the fireplace stove is recessed into the wall. Therefore it is necessary to build a counter-wall that protrudes from the perimeter wall. The depth of the wall to be constructed is at your discretion, but it cannot be less than 200 mm.
N.B. ( ) QUOTE MAGRITTE FORMA PURO95
30
625 (484)
995 (854)
260 80
MURO PERIMETRALE MURO PERIMETRALE
MURO PERIMETRALE
42
1658 (1900)
PARETE
200
INCASSO
800
Chapter 2 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
6
3. MAGRITTE CLADDING ASSEMBLY
The assembly of the Magritte cladding is not especially difficult. However, the various steps in assembly should be undertaken with care. It is advisable to install the cladding at the same time as the Forma fireplace stove in order to constantly monitor that the work in progress is being done properly.
3.1. MAGRITTE CLADDING COMPONENTS
COMPONENTE
ALZATA CENTRALE
ALZATA LATERALE SX
ALZATA PANCA
PIANO FUOCO
PIANO PANCA
SPALLA INTERNA SX
N.
1
1
1
1
1
SPALLA CENTRALE 1
SPALLA ESTERNA SX1
SPALLA ESTERNA DX
VELETTA
SUPPORTO VELETTA
TIRANTE
1
1SPALLA INTERNA DX
1
1
1
1
N.B. The version for Forma Puro95 does not include element 2 (
) rests against the wall (flush, laterally, with elements 4 -
riser Ledge
-).
lh side riser
fire bed
-, 8 -
) and element 1 (
lh outer side
- and 11 –
centre
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
7

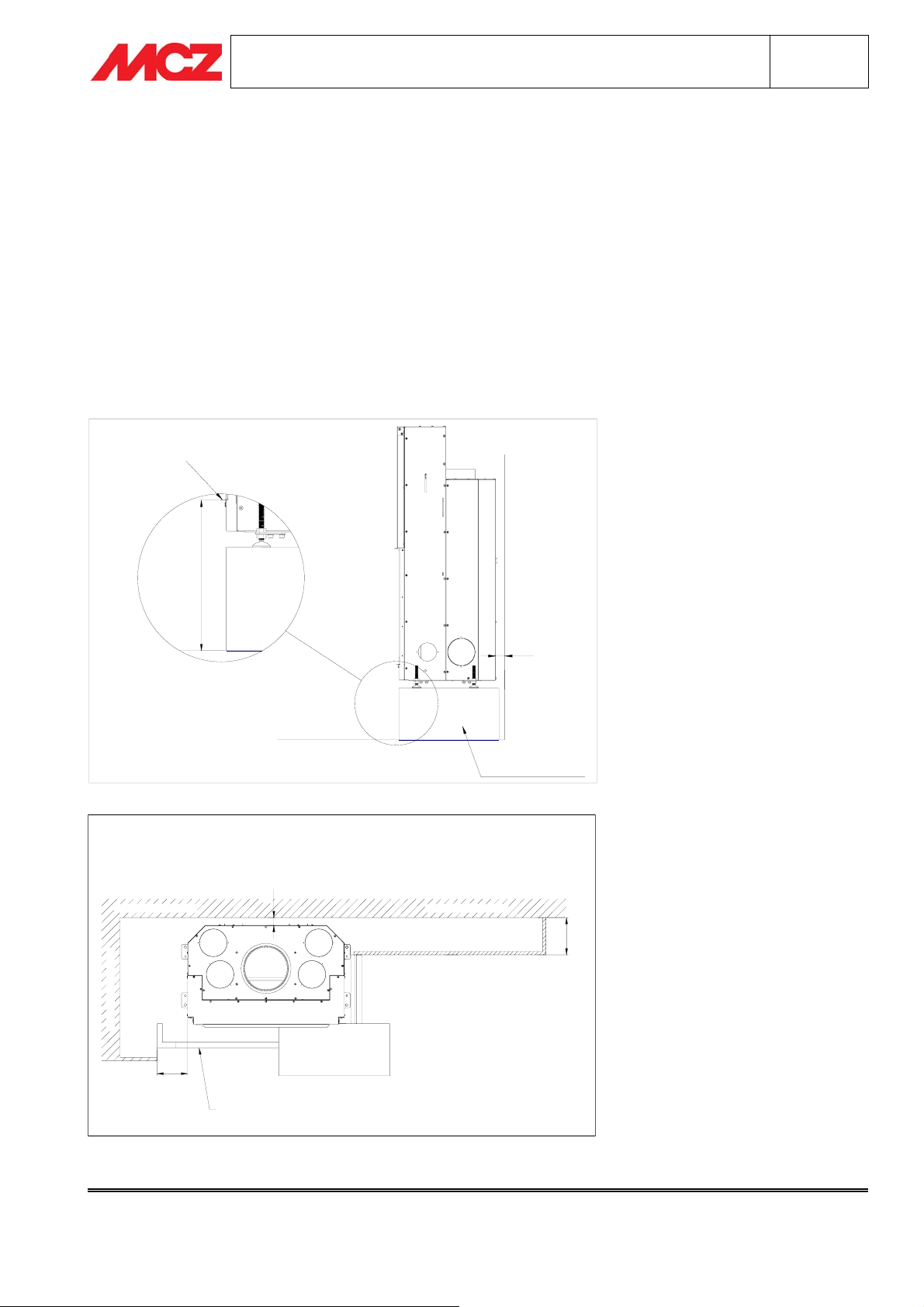

3.2. PHASE 1 - POSITIONING OF FIREPLACE STOVE PURO75 (F/PURO95)
Place Forma Puro75 (Forma Puro95) in the desired position and at a safe distance from the rear wall. Raise the fireplace stove so that the height of the edge-cover profile from the floor is 340 mm (=height of fire bed of
cladding).   A second adjustment of the unit, if necessary, is made during assembly of the cladding.
N.B. It is necessary to create a support base upon which to fasten the Puro75/95. The unit must be stable and firmly in contact with the floor.
Before making the connection to the flue pipe and with the installation of the fireplace stove complete, check the correct position of Forma Puro75 (Forma Puro95) with respect to the central riser (1) and fire bed (4) of the Magritte cladding. It is advisable to dry position the two components. Make sure to provide temporary supports for the fire bed. When the check is complete, install the unit Forma Puro 75 (Forma Puro 95) in accordance with the instructions in the respective
Manual for Installation and Use
test is successful, you can install the Magritte cladding.
PROFILO
COPRIBORDO
and run a quick test for proper operation. If the
MURO PERIMETRALE
MURO PERIMETRALE
340
42
PAVIMENTO
BASE APPOGGIO FORMA PURO
42
MURO PERIMETRALE
PARETE
200
INCASSO
165
ALZATA CENTRALE
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
8
3.3. PHASE 2 – ASSEMBLY OF RISERS (elements 1,2,3)
Position the centre riser, the side riser and the bench riser as shown in the figure. Check that they are square and level, and add shims if necessary.
N.B. ( ) QUOTE MAGRITTE FORMA PURO95
50
310
MURO PERIMETRALE
MURO PERIMETRALE
70(0)
80(0)
42
1028 (1350)
MURO PERIMETRALE
PARETE
470
80
N.B. The version for Forma Puro95 doe not include element 2 (
) rests on the wall, remaining flush with it.
riser
260
lh side riser)
200
INCASSO
and element 1 (
centre
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
MAGRITTE FORMA PURO75
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
9

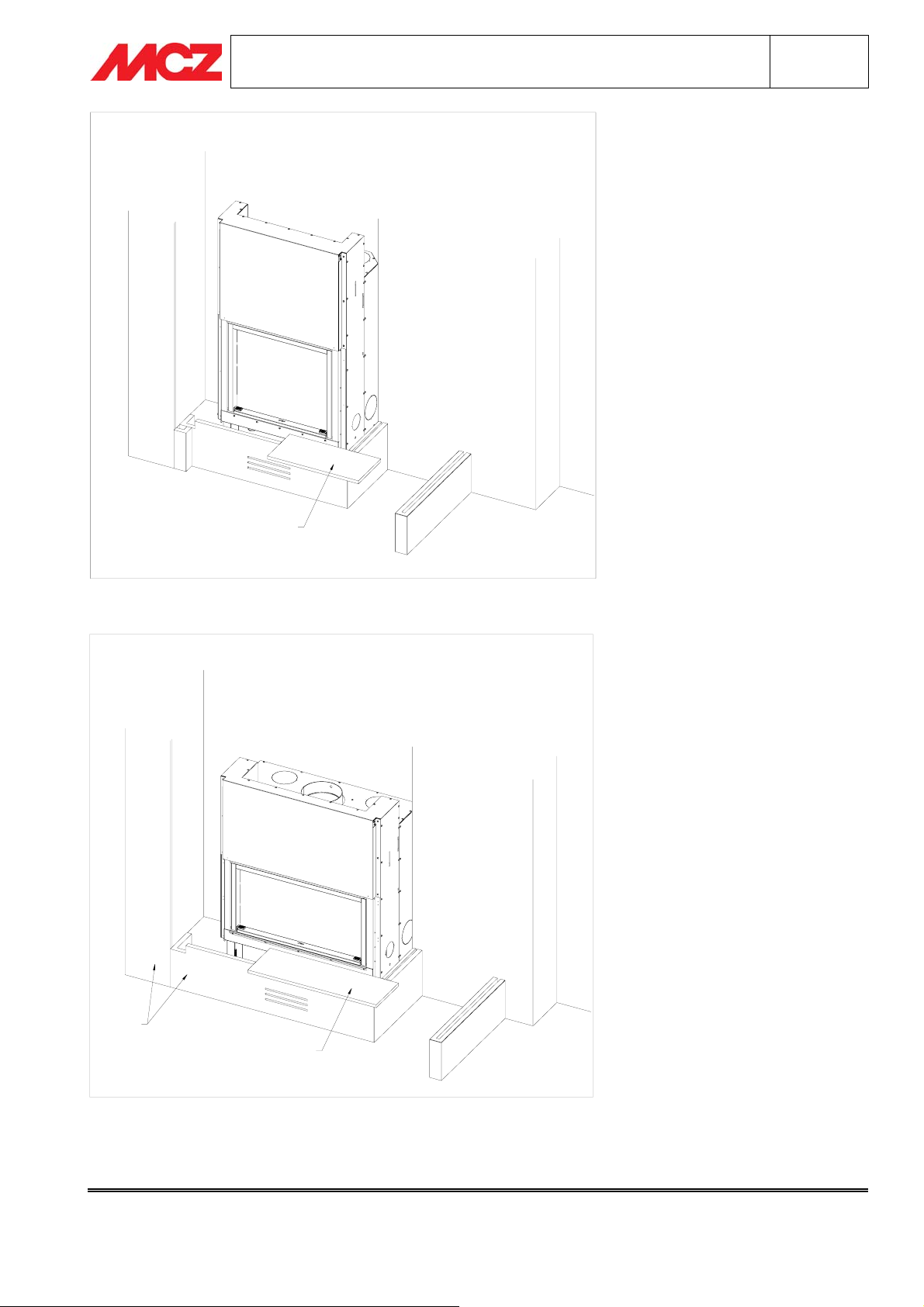

SUPPORTO IN MARMO
PER PIANO FUOCO
E PIANO PANCA
MAGRITTE FORMA PURO75
MAGRITTE FORMA PURO95
A FILO
SUPPORTO IN MARMO
PER PIANO FUOCO
E PIANO PANCA
MAGRITTE FORMA PURO95
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
10
3.4. PHASE 3 - ASSEMBLY OF FIRE BED AND BENCH TOP (elements 4 and 5)
Dry position the fire bed (it is advisable to provide two temporary supports) and the bench top as in the figures. Check that they square, level, and rest perfectly on the riser elements so as to form a single surface.
MAGRITTE FORMA PURO75

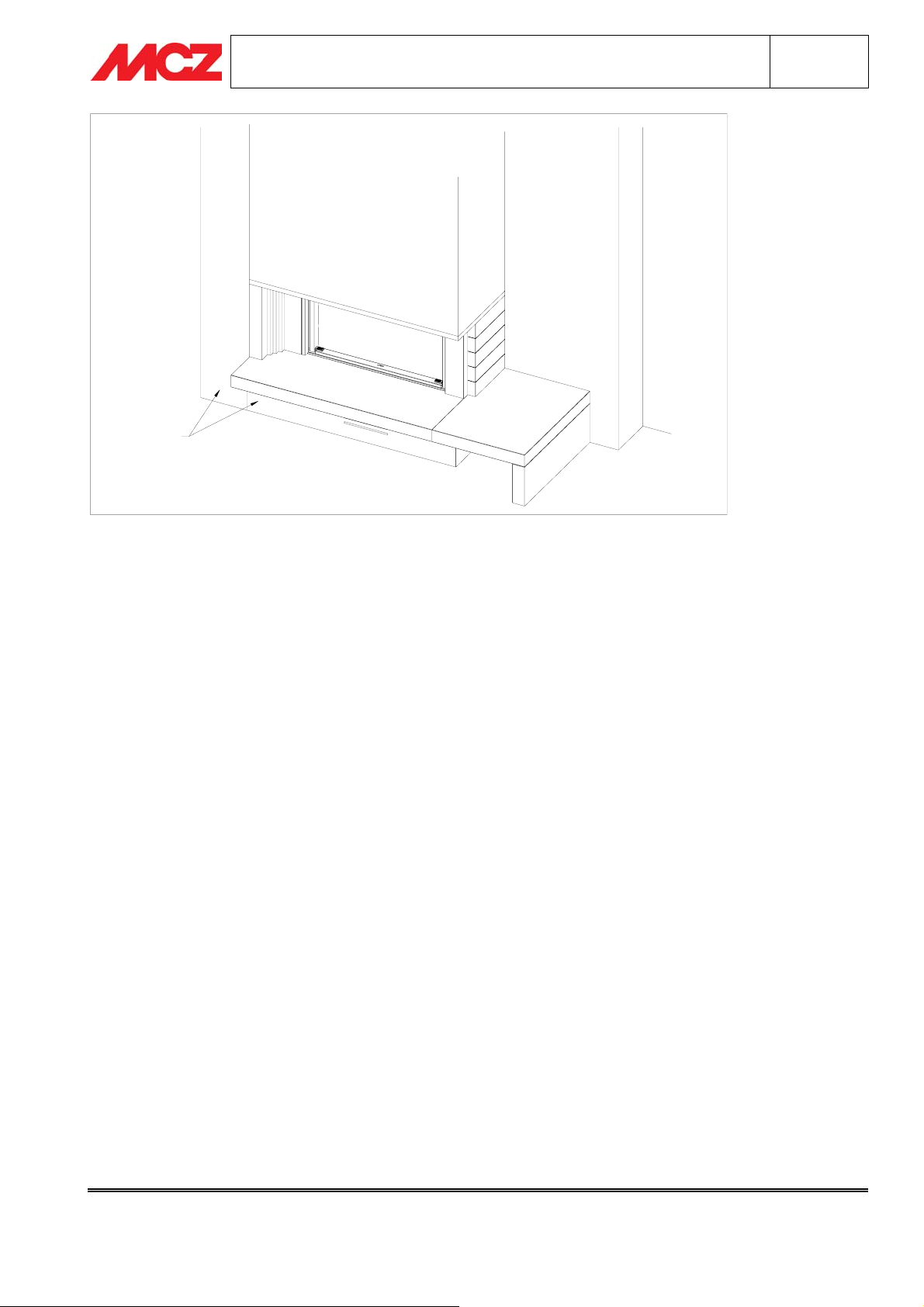

A FILO
A FILO
Cement the fire bed and the bench top to the marble support of the centre riser, to the centre riser itself and to the bench riser.
N.B. After fastening, make sure that the entire structure (consisting of the fire bed, bench top and risers)  is solid and stable.  Incorrect assembly may cause the fire bed to overturn.
Adjust the position of the Forma fireplace stove so that the distance with respect to the fire bed is 5 mm.
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
11

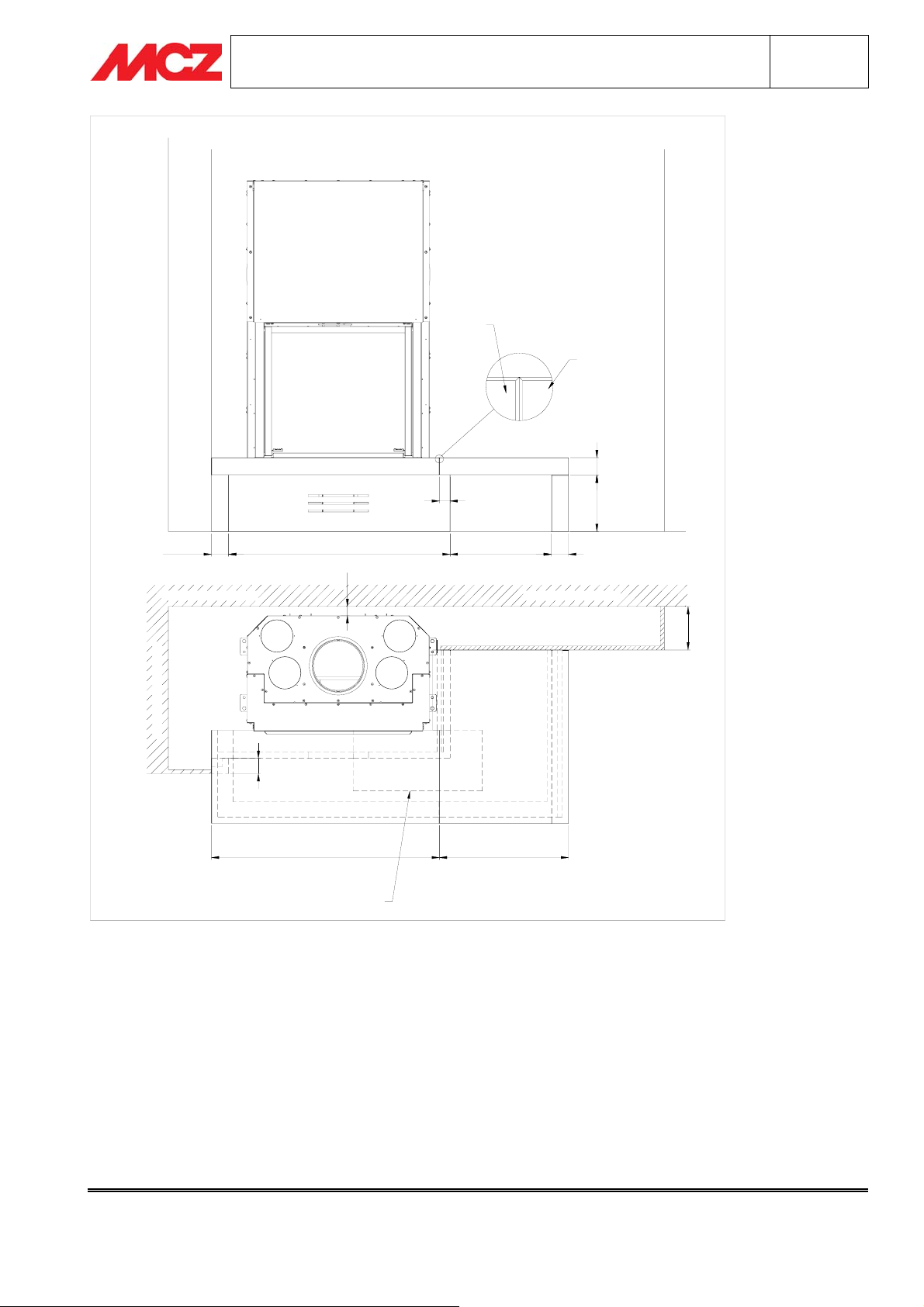

N.B. ( ) QUOTE MAGRITTE FORMA PURO95
PIANO
FUOCO
PIANO PANCA
80260
50
80 (0)
MURO PERIMETRALE
MURO PERIMETRALE
SUPPORTO SUL QUALE
INCOLLARE PIANO FUOCO
70(0)
1028(1350)
42
1058(1300)
PIANO PANCA
470 80
MURO PERIMETRALE
PARETE
600
200
INCASSO
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
12
3.5. PHASE 4 - ASSEMBLY OF INNER AND OUTER SIDES (elements 6,7,8,9,10)
Dry position the inner and outer sides as shown in the figures. N.B. Before proceeding with final fastening, check the position of the two outer sides with respect
to the ledge. They must be flush with it. The outer sides can be adjusted so as to correct any discrepancies (of a few mm) which would make give the cladding an unpleasant appearance.
N.B. ( ) QUOTE MAGRITTE FORMA PURO95
80 (0)
MURO PERIMETRALE
MURO PERIMETRALE
10
80
230
ALLINEATI (ECCETTO COMPENSAZIONI)
1028 (1350)
42
70
50
470 80
MURO PERIMETRALE
PARETE
360
50
625 (484)
260 80
200
INCASSO
800
1658 (1900)
N.B. The version for Forma98 does not include element 2 ( rests against the wall (flush, laterally, with elements 4 -
fire bed
lh side riser
-, 7 -
) and element 1 (
lh outer side
- and 10 –
centre riser
Ledge
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
)
-).
SPALLA ESTER.
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
SPALLA CENTR.
E
N
.
O
R
I
E
Z
T
A
L
S
E
O
G
E
L
E
L
R
A
P
S
R
E
G
O
L
A
Z
S
I
O
P
N
A
L
E
L
A
E
S
T
E
R
R
E
G
O
L
A
Z
S
I
O
P
N
A
L
E
L
A
C
E
N
T
R
.
.
13
ALLINEATI
(ECCETTO
COMPENSAZIONI)
ALLINEATI
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
14
3.6. PHASE 5 - ASSEMBLY OF LEDGE (element 11)
Place the steel tie (element 13) and the ledge support (element 12) by anchoring it to the ceiling. Make sure to position it as vertically as possible, and to adjust the level by means of the lug. Place the ledge above the support and resting on the sides.
N.B. ( ) QUOTE MAGRITTE FORMA PURO95
A FILO
30
MURO PERIMETRALE
MURO PERIMETRALE
42
1108 (1350)
570
625 (484)
80260
MURO PERIMETRALE
PARETE
800
995 (854)
200
INCASSO
1058 (1300)
600
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
15
A FILO
A FILO

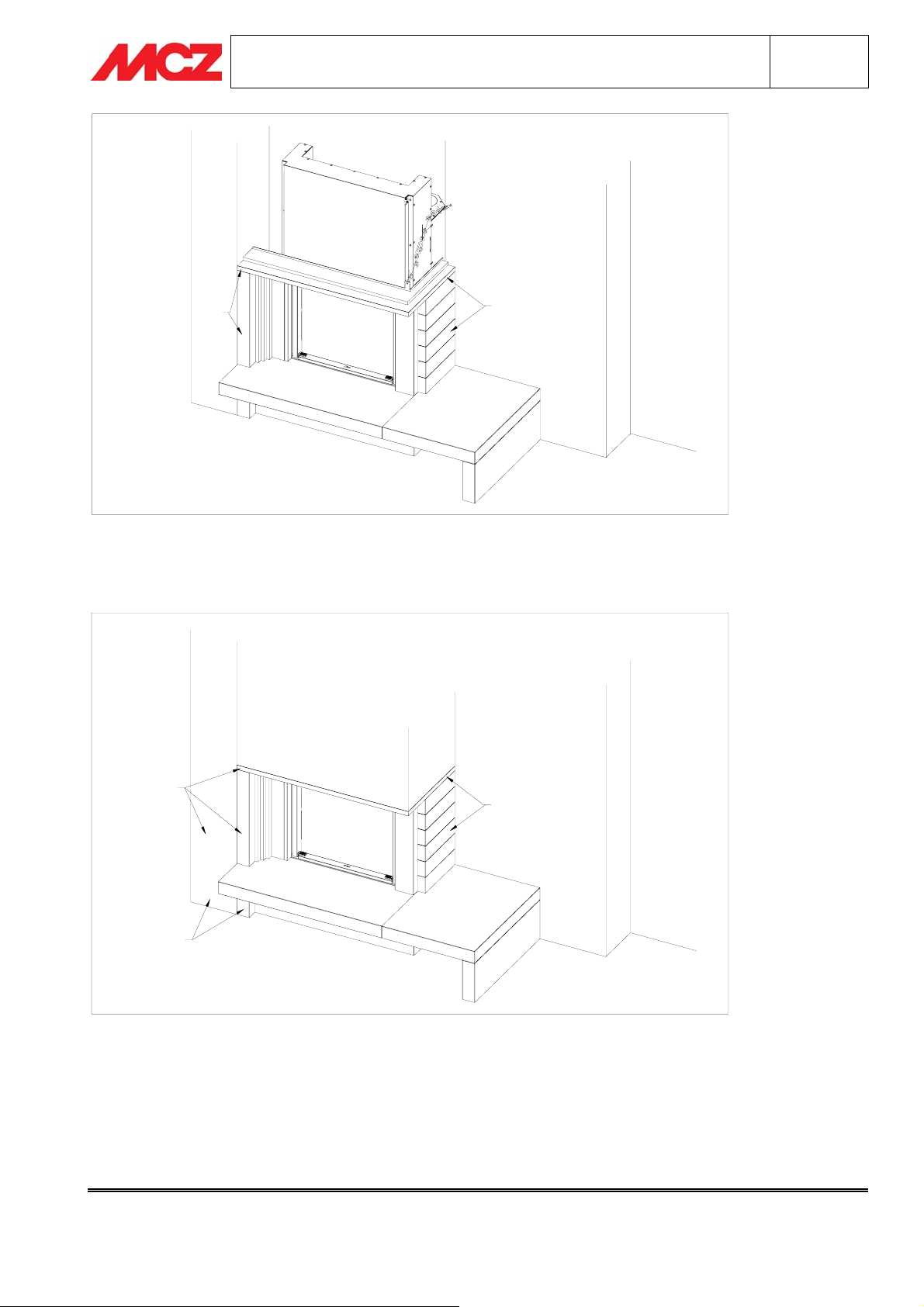

When assembly is complete, construct the decorative hood liner with material such as fireproof plasterboard with a load-bearing frame in galvanized steel.
A FILO
A FILO
A FILO
MAGRITTE FORMA PURO75
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
MAGRITTE
16
A FILO
MAGRITTE FORMA PURO95
Chapter 3 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Glossary
MAGRITTE
3.7. TECHNICAL TERMS GLOSSARY OF THE PICTURES
PAGE 5 PAGE 5
N.B. ( )DIMENSIONS OF MAGRITTE FORMA
N.B. () QUOTE MAGRITTE FORMA PURO95 MURO PERIMETRALE PERIMETER WALL PARETE WALL 200 INCASSO 200 RECESSED
PAGE 6 PAGE 6
COMPONENTE COMPONENT ALZATA CENTRALE CENTRE RISER ALZATA LATERALE SX LH SIDE RISER ALZATA PANCA BENCH RISER PIANO FUOCO FIRE BED PIANO PANCA BENCH TOP SPALLA INTERNA SX LH INNER SIDE SPALLA CENTRALE CENTRE SIDE SPALLA ESTERNA SX LH OUTER SIDE SPALLA INTERNA DX RH INNER SIDE SPALLA ESTERNA DX RH OUTER SIDE VELETTA LEDGE SUPPORTO VELETTA LEDGE SUPPORT TIRANTE TIE
PAGE 7 PAGE 7
PROFILO COPRIBORDO EDGE-COVER PROFILE PAVIMENTO FLOOR BASE APPOGGIO FORMA PURO SUPPORT BASE FORMA PURO MURO PERIMETRALE PERIMETER WALL PARETE WALL 200 INCASSO 200 RECESSED ALZATA CENTRALE CENTRE RISER
PAGE 8 PAGE 8
N.B. () QUOTE MAGRITTE FORMA PURO95 PAVIMENTO FLOOR MURO PERIMETRALE PERIMETER WALL PARETE WALL
PAGE 9 PAGE 9
SUPPORTO IN MARMO PER PIANO FUOCO E PIANO PANCA
PURO 95
N.B. ()DIMENSIONS OF MAGRITTE FORMA
PURO 95
MARBLE SUPPORT FOR FIRE BED AND
BENCH TOP
page
17
Glossary Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Glossary
MAGRITTE
PAGE 10 PAGE 10
A FILO FLUSH
PAGE 11 PAGE 11
N.B. ( )DIMENSIONS OF MAGRITTE FORMA
N.B. () QUOTE MAGRITTE FORMA PURO95
PURO 95
PIANO FUOCO FIRE BED
PIANO PANCA
BENCH TOP
MURO PERIMETRALE PERIMETER WALL
PARETE 200 INCASSO SUPPORTO SUL QUALE INCOLLARE
PIANO FUOCO PIANO PANCA
WALL 200 RECESSED SUPPORT UPON WHICH TO CEMENT THE
FIRE BED AND BENCH TOP
PAGE 12 PAGE 12
N.B. ( )DIMENSIONS OF MAGRITTE FORMA
N.B. () QUOTE MAGRITTE FORMA PURO95
ALLINEATI (ECCETTO COMPENSAZIONI)
PURO 95
ALIGNED MURO PERIMETRALE PERIMETER WALL PARETE WALL
200 INCASSO
200 RECESSED
PAGE 13 PAGE 13
REGOLAZIONE SPALLE ESTER. SPALLA CENTR. REGOLAZIONE SPALLA CENTR. SPALLA ESTER. ALLINEATI (ECCETTO COMPENSAZIONI) ALLINEATI
ADJUSTMENT OF OUTER SIDES
CENTRE SIDE
ADJUSTMENT OF CENTRE SIDE
OUTER SIDE
ALIGNED (EXCEPT COMPENSATIONS)
ALIGNED
PAGE 14 PAGE 14
N.B. ( )DIMENSIONS OF MAGRITTE FORMA N.B. () QUOTE MAGRITTE FORMA PURO95
A FILO MURO PERIMETRALE PARETE 200 INCASSO
PURO 95 FLUSH PERIMETER WALL WALL 200 RECESSED
PAGE 15/16 PAGE 15/16
A FILO
FLUSH
page
18
Glossary Technical service – all rights reserved by mcz spa
Reproduction prohibited
Loading...
