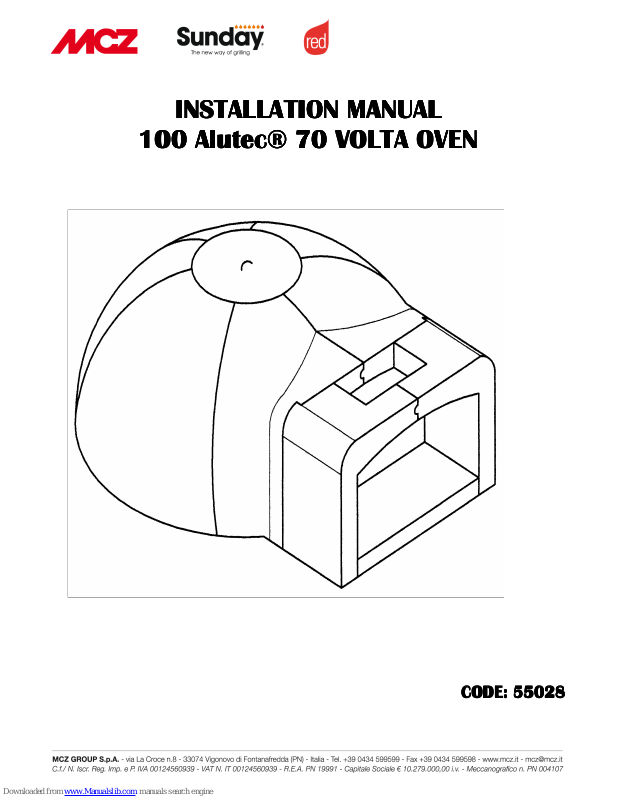

MCZ 100 Alutec Installation Manual

INSTALLATION MANUAL

INSTALLATION MANUALINSTALLATION MANUAL

INSTALLATION MANUAL

100

100 100

100 Alutec

AlutecAlutec

Alutec®

® ®

® 70

70 70

70 VOLTA OVEN

VOLTA OVENVOLTA OVEN

VOLTA OVEN

CODE: 55028

CODE: 55028CODE: 55028

CODE: 55028

ASSEMBLY STEPS

PARTS LIST

1/2/3/4/5/6/7 - OVEN FIRE PLANE
8/9/10/11/12/13/14 - OVEN VAULT
15/16/17 - OVEN ARC
18 - STEEL DOOR

DIMENSIONS

TECHNICAL DATA

MINIMUM ROOM VOLUME : 132 m3
OPTIMUM WOOD CONSUMPTION : 11 Kg/h
TOTAL WEIGHT : 451 Kg
EXTERNAL AIR INLET : 350 cm2

FLUE PIPE

SECTION: 25x 25 Height: 5.5 - 10 m
SECTION: ø 25 Height: 5.5 - 10 m
SECTION: 30x 30 Height: 3.5 - 5 m
SECTION: ø 30 Height: 3.5 - 5 m
