McQuay WGSH048 Parts List

Replacement Parts List No. 700025000

New 8/2012

SmartSource™ Single Stage

Water Source Heat Pump

WGSH, WGSV

Sizes 042 - 070

Design 1

To ﬁnd your Daikin McQuay parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Contents

Parts List Revision History ....................................................................................................................................... 3

Nomenclature

Serial Number ..................................................................................................................................................... 4

Model Number ................................................................................................................................................. 4-6

Electrical Legend ..................................................................................................................................................... 7

Typical Refrigeration Cycles ................................................................................................................................... 8

Blower Fan Assembly .............................................................................................................................................. 9

Electric Heat .......................................................................................................................................................... 10

Refrigeration Circuit ......................................................................................................................................... 11-12

Water Flow Control, Dsuperheater, Ground Loop ................................................................................................. 13

Control Box

Microtech III Controller ...................................................................................................................................... 14

Field Installed Accessories ............................................................................................................................... 15-18

Critical Parts List............................................................................................................................................... CPL1

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 2

Parts List Revision History

Rev. Date Description

NEW 8/12 NEW

13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 3

Nomenclature

Serial Number

AUB U 12 05 00148

Plant Identiﬁcation Abbreviation

AUB = Auburn

U= Unit

Week of Manufacture

Year of Manufacture

12= 2012 13= 2013

etc.

Serial Number (build sequence)

Model Number

W GSH 042 B 1 E WL R T 4 Y Y Y C S YYY B 2 A Y E Y Y 2L B J Y Y Y YYY

Code 01 02-03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 -18 19 20 21 22 23 24 25 26 27 28 29 30 31 32-34

Y YYY S Y Y B A B A Y A T Y C Y YY Y Y 2 Y Y S A L K Y Y Y Y YY

Code 35 36-38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66-67

Y Y A Y Y Y Y A A Y C Y Y YY FF ST ST YY YYY Y C Y Y YY 1

Code 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92

Code 01= Unit Type W= Water Source Heat Pump

Code 02= Model Type GS= High Efﬁciency, Single Stage

Code 03= Conﬁguration H= Horizontal V= Vertical

Code 04= Unit Size (BtuH Nominal Cooling) 042= 42000 048= 48000 060= 60000 070= 70000

Code 05= Unit Control B= MicroTech III Unit Controller

Code 06= Design Series (Vintage) 1= Design 1

Code 07= Voltage E= 208-230/60/1 F= 208-230/60/3 K= 460/60/3

Code 10= Discharge Air Location E= End (Horizontal Unit only) T= Top (Vertical Unit only) S= Straight (Horizontal Unit only)

Code 11= Fan Motor 4= ECM Constant CFM

Code 12= Dehumidiﬁcation Option B= Hot Gas Reheat Smart Dehumidiﬁcation C= Simpliﬁed Dehumidiﬁcation (Lower CFM no HGRH or no Humidistat) D= Humidistat Controlled Dehumidiﬁcation (No HGRH) E= Humidistat only Y= None

Code 13= Sound Packages A= Premium Y= None

Code 14= IAQ Packages (Indoor Air Quality) Y= None

Code 15= Coaxial Heat Exchanger Construction C= Copper Inner Tube- Steel Outer Tube S= Cupro-Nickel Inner Tube- Steel Outer Tube

Code 08= Range for Entering Water/Glycol Temp. GW= Ground Water WL= Water Loop GL= Ground Loop

Code 09= Return Air Location L= Left-Hand Return Air & Right-Hand Piping R= Right-Hand Return Air & Right-Hand Piping

Code 16= Primary Air Coil Options S= Standard E= E-Coated

Codes 17-18= Always YYY

Continued on next page.

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 4

Nomenclature

Code 19= Communication Module B= BACnet F= BACnet - WSHP System L= LonWorks Y= None

Code 20= Filter Rack 2= 4-Sided, 2" w/Duct Collar & Door 3= 4-Sided, 2" w/Duct Collar, Door, Hi-Merv Seal 4= 4-Sided, 4" w/Duct Collar, Door, Hi-Merv Seal Y= None

Code 21= Filter Type A= 2" Disposable E= Merv 8 Factory Installed G= Merv 13 (4" thick) Factory Installed Y= None

Code 22= Water Coil- Indoor Air E= Waterside Economizer Y= None

Code 23= Electric Heating- Indoor Air C= 5.0 kw Internal Electric Heater E= 10.0 kw Internal Electric Heater F= 15.0 kw Internal Electric Heater- 2 Stage G= 20.0 kw Internal Electric Heater- 2 Stage P= Control for Electric Heat, Single 24V Signal (Field Installed Duct Heater by Others) Y= None

Code 29= Coaxial Coil Supply Liquid Strianer Y= None

Code 30= Always Y

Code 31= Desuperheater Water Flow Options Q= Pump 208-230/60/1V Y= None

Codes 32- 34= Always YYY

Code 35= Water Coil Piping (HW or Waterside Economizer) A= 3-Way, Motorized- 24V Valve Control, NO to Coax Y= None

Codes 36-38 = Always YYY

Code 39= Primary Drain Pan Material S= Stainless Steel

Code 40= Secondary Drain Pan Material Y= None

Code 41= Compressor Insulation B= Sound Blanket P= Premium Y= None

Code 42= Compressor Isolation B= Isolated Base

Code 24= Control Secondary Heat Type B= Boilerless Electric Heat E= Emergency Heat P= Primary Electric Heat (No Heat Pump Heating) S= Supplemental Heat Y= None

Code 25= Desuperheater (Hot Water Generator) D= Desuperheater Y= None

Code 26= Loop Pump 1S= One Low Head 230 Volt Pump, Grundfos UP26-99F 1L= One High Head 230 Volt Pump, Grundfos UP26-116F 2S= Two Low Head 230 Volt Pump, Grundfos UP26-99F 2L= Two High Head 230 Volt Pump, Grundfos UP26-116F 3S= One Low Head 115 Volt Pump, Grundfos UP26-99F 4S= Two Low Head 115 Volt Pump, Grundfos UP26-99F YY= None

Code 27= Coaxial Coil Supply Liquid Flow Control B= 2-Way, Motorized- 24V Valve Control, NO C= 2-Way, Motorized- 24V Valve Control, NC Y= None

Code 28= Coaxial Coil Supply Liquid Auto Flow Reg J= 9.0 GPM K= 10.0 GPM L= 11.0 GPM M= 12.0 GPM N= 13.0 GPM P= 15.0 GPM S= 18.0 GPM Y= None

Code 43= Insulation- Compressor Compartment A= 1/2" Fiberglass Skin Faced B= 1/2" Fiberglass Foil Faced C= 3/8" Closed Cell Foam

Code 44= Insulation- Air Side A= 1/2" Fiberglass Skin Faced B= 1/2" Fiberglass Foil Faced C= 3/8" Closed Cell Foam P= Premium

Code 45= Insulation- Piping A= Insulated Piping Y= None

Code 46= Always Y

Code 47= Cabinet Finish A= Powder Coat G= Galvanized Steel

Code 48= Cabinet Color T= Textured Charcoal Bronze W= Off White Y= None

Code 49= Always Y

Code 50= Fan Motor Control C= Various Speeds with 4 Adjustment Settings

Code 51= Fan Motor Control location Y= None

Continued on next page.

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 5

Nomenclature

Code 52= Always YY

Code 53= Disconnect Switch N= Non-Fused Y= None

Code 54= Always Y

Code 55= Control Transformer 1= 50VA 2= 75VA

Code 56= Thermostat/Sensor Control S= Sensor Control T= Thermostat Control

Code 57= Currrent Sensing Switches Y= None

Code 58= Condensate Overﬂow Protection S= Sensor

Code 59= High Pressure Switch A= 600 psi NC

Code 60= Low Pressure Switch or Sensor L= 7 psi NC

Code 61= Low Temp. Protection Compressor Suction K= 10K Thermistor

Code 62= Discharge Air Thermistor K= 10K Thermistor Y= None

Code 63= Leaving Supply Fluid Temp K= 10K Thermistor Y= None

Code 64= Entering Supply Fluid Temp K= 10K Thermistor Y= None

Code 65= Return Air Thermistor K= 10K Thermistor Y= None

Code 66-67 = Always YY

Code 68= Terminal Block Connection Y= None

Code 69= Emergency Switch for Electric Heat Y= None

Code 70= Annunciator A= Yes

Code 71= Reset Button Y= None

Code 73= Emergency Stop Y= None

Code 74= External Binary Output 1 Y= None

Code 75= Expansion Device A= Thermal Exp. Valve Thermal Bulb & Equalizer Tube

Code 76= Alarm Relay A= Alarm Relay (Dry Contacts) Y= None

Code 77= Dirty Filter Sensor Y= None

Code 78= Reversing Valve C= Normally Open in Cooling Mode

Code 79= Outside Air Control Y= None

Code 80= Always Y

Code 81= Boilerless Electric Heat Setpoint GL= Glycol 28F WA= Water 55F YY= None

Code 82= Freeze Fault Protection FF= Freeze Fault Protection YY= None

Code 83= Occupied Setpoint Differential (1-5F) ST= Setpoint (1˚F)

Code 84= Unoccupied Setpoint Differential (2-10F) ST= Setpoint (2˚F)

Code 85= Hydronic Heating on Setpoint (70-90F) YY= None

Code 86= BACnet Address YYY= None

Code 87= Always Y

Code 88= Agency C= ETL, CETL, ARI

Code 89= Conformance Y= None

Code 90= Always Y

Code 91= Extended Warranty

Code 92= Product Style

Code 72 = Monitoring Y= None

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 6

Electrical Legend

AN1, 2 ........................ LED/Annunciator Circuit 1, 2

C01 - 04 ..................... Fan Motor, Capacitor 1-4

C11 - 12 ..................... Capacitor, Compressor

CP1, 2 ........................ Compressor 1, 2

COS ........................... Condensate Overﬂow Sensor

DAT ............................ Discharge Air Temp Sensor

EWT ........................... Entering Water Temp Sensor

HP1, 2 ........................ High Pressure Switch 1, 2

ISO ............................ Water Flow Isolation Valve Actuator

LT1, 2 ......................... Suction Line Temp Sensor 1, 2

LWT ........................... Leaving Water Temp Sensor

MCB ........................... Main Control Board

NCB ........................... Network Control Board

RAT ............................ Return Air Temp Sensor

RV1, 2 ........................Reversing Valve 1, 2

TR1 ............................ Transformer, Control

TR2 ............................ Transformer, Fan Motor

TR3 ............................ Transformer, Loop Pump

WSE .......................... Water Side Economizer Actuator

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 7

Typical Refrigeration Cycles

Cooling Refrigeration Cycle (single circuit only shown)

Return Air

Thermal

Expansion Valve

Co-Axial Heat

Exchanger

Coil- Air to Refrigerant

Heat Exchanger

Blower

Heating Refrigeration Cycle (single circuit only shown)

Conditioned Air (Cooling)

Return Air

Thermal

Expansion Valve

Water In

Water Out

Sensing Bulb &

Capillary Tube

Compressor

Reversing Valve

Co-Axial Heat

Exchanger

Coil- Air to Refrigerant

Heat Exchanger

Blower

Reversing Valve

Conditioned Air (Heating)

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 8

Water In

Water Out

Sensing Bulb &

Capillary Tube

Compressor

Blower Fan Assembly

350

365

370

300

Ref. Part No. Description Number 042 048 060 070

300 ECM Motor, 208-230/60/1 *

3/4 HP 669822531 1 3/4 HP 669822533 1

1 HP 669822535 1

1 HP 669822537 1

300 ECM Motor, 265/60/1 * 3/4 HP 669822532 1 3/4 HP 669822534 1 1 HP 669822536 1 1 HP 669822538 1

M350 Blower Hsg & Wheel Assy 668151101 1 1 1 1 M365 Band- Motor Mount 910121966 1 1 1 1 M370 Arm- Motor Mount 910121965 4 4 4 4

* Check the name plate to verify program. Fan motors are shipped programmed.

Unit Sizes

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 9

Electric Heat

Ref. Description No. 042 - 070

N/S Electric Heater, 208-230/60/1 5KW 910122441 Electric Heater, 208-230/60/3 5KW 910122442 Electric Heater, 265/60/1 5KW 910122443 Electric Heater, 460/60/3 5KW 910122444

N/S Electric Heater, 208-230/60/1 10KW 910127107 Electric Heater, 208-230/60/3 10KW 910127108 Electric Heater, 265/60/1 10KW 910122430 Electric Heater, 460/60/3 10KW 910127109

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 10

Refrigeration Circuit

Components

Ref. Part No. Description Number 042 048 060 070

N/S Hex Nut, Compr. Mounting 802012035 4 4 4 4 N/S Grommet Compressor 4RHZ9154 4 4 4 4

N/S Sleeve 060623401 4 4 4 4

N/S Compressor, 36000 BTUH 208-230/60/1 669816409 1 Compressor, 42000 BTUH 208-230/60/1 668408001 1 Compressor, 51000 BTUH 208-230/60/1 669816415 1 Compressor, 61500 BTUH 208-230/60/1 669816418 1

N/S Compressor, 36000 BTUH 460/60/3 669816410 1 Compressor, 41900 BTUH 460/60/3 668408003 1 Compressor, 51500 BTUH 460/60/3 669816416 1 Compressor, 61500 BTUH 460/60/3 669816419 1

N/S Compressor, 36000 BTUH 208-230/60/3 669816411 1 Compressor, 41900 BTUH 208-230/60/3 668408002 1 Compressor, 51500 BTUH 208-230/60/3 669816417 1 Compressor, 61500 BTUH 208-230/60/3 669816420 1

N/S Sound Blanket 30 x 16.5" 669280601 1 1 1 1

N/S Condenser Copper Inner Tube (C15=C) 669817501 1 1

Condenser Copper Inner Tube (C15=C) 669817503 1 1 N/S Adapter 106475001 1 1 1 1

N/S Evaporator Coil LH 669952022 1 1 Evaporator Coil RH 669952036 1 1 Evaporator Coil LH 669952045 1 1 Evaporator Coil RH 669952034 1 1

Unit Sizes

N/S Reversing Valve 910125410 1 1 1 1 N/S Solenoid 106694207 1 1 1 1 N/S High Pressure Switch 910117560 1 1 1 1 N/S Low Pressure Switch 107225101 1 1 1 1

N/S Seat, Fitting 668188801 1 1 1 1 N/S Core, Valve 668188701 1 1 1 1 N/S Cap, Valve 668189501 1 1 1 1 N/S Fusible Plug Assy 850008345 1 1 1 1 Plug Only 283° F 106057401 1 1 1 1

N/S Thermal Expansion Valve, TXV 2.5T 910116445 1 N/S Thermal Expansion Valve, TXV 3T 910116446 1 1 N/S Thermal Expansion Valve, TXV 4T 910116447 1

* Refer to IM 1151 for installing a motorized valve kit on MicroTech III units.

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 11

Refrigeration Circuit

Components

Ref. Part No. Description Number 042 048 060 070

HGRH Coil Assy- Horizontal

N/S HGRH Coil 669949308 1 1 HGRH Coil 669949316 1 1

HGRH Coil Assy- Vertical N/S HGRH Coil LH 669949318 1 1 HGRH Coil RH 669949317 1 1 HGRH Coil LH 669949319 1 1 HGRH Coil RH 669949312 1 1

N/S Valve, Check- HGRH 5/8 ODS 669816600 1 1 1 1 N/S 3-Way Valve, HGRH, .625" 910114188 1 1 1 1 N/S Solenoid, HGRH 910125395 1 1 1 1

N/S Mounting Bracket, Vertical 669819510 4 4 4 4 N/S Mounting Bracket, Horizontal 669819511 2 2 2 2

N/S Condensate Pan, Horizontal Unit Sizes 042, 048 LH 669972215 1 1 Unit Sizes 042, 048 RH 669972216 1 1 Unit Sizes 060, 070 LH 669972220 1 1 Unit Sizes 060, 070 RH 669972222 1 1

Unit Sizes

N/S Condensate Pan, Vertical Unit Sizes 042 - 070 669972206 1 1 1 1

N/S Auxilliary Drain Pan, SSTL 669816839 1 1 1 1

Base Pan

Ref. Description Char Bronze Off White No. Textured Pwd Pwd Galv.

N/S Base Pan, Horizontal Unit Sizes 042, 048 LH 669942508 669942204 Unit Sizes 042, 048 RH 669942515 669942522 669942213 Unit Sizes 060, 070 LH 669942501 669942217 Unit Sizes 060, 070 RH 669942518 669942214

N/S Base Pan, Vertical Unit Sizes 036 - 070 669942503 669942209

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 12

Refrigeration Circuit

Components

Water Flow Control

Ref. Description Part No. Qty. No.

N/S Auto Flow Control Valve 9.0 GPM 910122446 1 Auto Flow Control Valve 10.0 GPM 910122447 1 Auto Flow Control Valve 11.0 GPM 910122448 1 Auto Flow Control Valve 12.0 GPM 910122449 1 Auto Flow Control Valve 13.0 GPM 910122450 1 Auto Flow Control Valve 15.0 GPM 910122451 1 Auto Flow Control Valve 18.0 GPM 910122452 1

Desuperheater

Ref. Description Part No. Qty. No.

N/S Desuperheater Coil Copper Inner Tube Unit Sizes 040- 048 910116350 1 Unit Sizes 060- 070 910116351 1

N/S Pump, Circulating 230V 668200901 1 N/S Switch, Temp, Open on Rise 910129278 1 N/S Switch, Temp, Close on Rise 910129279 1

Ground Loop

Ref. Description Part No. Qty. No.

N/S Pump Circulator, Low Head 115/60/1 910131434 1 N/S Pump Circulator, Low Head 115/60/1 910131435 1 N/S Pump Circulator, Low Head 230/60/1 668200904 1 N/S Pump Circulator, Low Head 230/60/1 668200908 1 N/S Pump Circulator, High Head 230/60/1 668200911 1 N/S Pump Circulator, High Head 230/60/1 668200910 1 N/S Flange Kit, Isolation Valve, 3/4" 910131451 2 Flange Kit, Isolation Valve, 1" 910131452 2 N/S Check Valve, 3/4" 910132273 1 Check Valve, 1" 910132274 1 N/S Relay, DPST, 30A 106500101 1 N/S Gasket 910105429 1

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 13

Control Box

Components

Ref. Part No. Description Number 042 048 060 070

Unit Sizes

N/S Bracket, Capacitor 850010570 1 1 1 1

N/S Capacitor, 208-230/60/1 45MFD 370VAC 910120052 1 Capacitor, 208-230/60/1 70MFD 370VAC 910120057 1 1 Capacitor, 208-230/60/1 80MFD 370VAC 910120058 1

N/S MicroTech III Control Board, Series 2 250806500 * 1 1 1 1 N/S I/O Expansion Board Assy, Series 2 250806601 1 1 1 1

N/S Fan Speed Selection Board 668917201 1 1 1 1

N/S Annunciator LED 668395201 2 2 2 2

N/S LonWorks Comm. Card 668105801 N/S BACnet Comm. Card- Programmable 668105901

** 1 1 1 1 ** 1 1 1 1

N/S Stand Off PC Board 802028115 8 8 8 8 Edge- Holders Comm. Card only 910105356 5 5 5 5

N/S H1 Connector, 2-Pin (24V Power) 4EGA9159 1 1 1 1 N/S H2 Connector, 2-Pin/1-Blank (Fan Output) 4EGA9160 1 1 1 1 N/S H3 Connector, 2-Pin (Hi Pressure Switch) 668302122 1 1 1 1 N/S H4 Connector, 4-Pin (Dis Air/Leaving H

O Temp Sensor) 668302122 3 3 3 3

2

N/S H6 Connector, 7-Pin (Cond OF/Low P/Low T/Rev Vlv) 4EGA9164 1 1 1 1 N/S H8 Connector, 3-Pin (Motorized & Iso Vlvs/Pump Relay) 4EGA9160 1 1 1 1 N/S H9 Connector, 2-Pin (RA Temp Sensor) 4EGA9160 1 1 1 1

N/S Disconnect Switch, Non-Fused 669977002 1 1 1 1

N/S Rocker Switch DPST 061350601 1 1 1 1 N/S Relay, Fan, DPST 6A 802005906 1 1 1 1 N/S Terminal Block, 115A (TB1) 208-230/460/60/3 668989901 1 1 1 1 N/S Terminal Block, 175A (TB1) 208/265/60/1 4ECA8877 1 1 1 1 N/S Contactor, Compressor 24V 3PDT 073322601 1 1 1 1

N/S Transformer, 50VA 208/230V 910116202 1 1 1 1 Transformer, 75VA 208/230V 910116213 1 1 1 1 Transformer, 50VA 265V 910116203 1 1 1 1 Transformer, 75VA 265V 910116209 1 1 1 1 Transformer, 50VA 460V 910116205 1 1 1 1 Transformer, 75VA 460V 910116209 1 1 1 1

N/S Suction Line Temp Sensor, (LT) 10K 910121231 1 1 1 1

N/S Discharge Air (DAT) 10K/72” 910106325 1 1 1 1 N/S Return Air (RAT) 10K/72” 910106325 1 1 1 1 N/S Entering Water (EWT)- .875" 10K/80” 910121231 1 1 N/S Leaving Water (LWT)- .875" 10K/80” 910121231 1 1 N/S Entering Water (EWT) 10K/80” 107201601 1 1 1 1

N/S Leaving Water (LWT) 10K/80” 107201601 1 1 1 1

N/S= Not shown on diagram. * Used on any unit with the following applications: 2 Compressors/Stages, Supplemental Electric Heat, Multi-speed ECM Motors, and Hot Gas Bypass. ** Field-upgrading requires a Service Tool for com. card programming, com-card stand-off & main PCB jumper change.

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 14

Field Installed Accessories

Filters 042-048

Description Horizontal Vertical

Kit, Filter, 2" Throwaway 669817403 669817407

12 Pack of 2" Throwaway 910129106 910129102

Kit, Filter, 2" MERV 8 Throwaway 669817413 669817417 12 Pack of 2"MERV 8 Throwaway 910129117 910129112

Kit, Filter, 4" MERV 13 Throwaway 669817423 669817427 6 Pack of 4" MERV 13 Throwaway 910129128 910129123

Filters 060-070

Description Horizontal Vertical

Kit, Filter, 2" Throwaway 669817404 669817407

12 Pack of 2" Throwaway 910129107 910129102

Kit, Filter, 2" MERV 8 Throwaway 669817414 669817418 12 Pack of 2"MERV 8 Throwaway 910129118 910129113

Kit, Filter, 4" MERV 13 Throwaway 669817424 669817428 12 Pack of 4" MERV 13 Throwaway 910129129 910129124

Unit Hanger

Description

Unit Hanger Kit 1 Unit Sizes 024-070 669997602

1

Kit includes four (4) brackets (p/n 669823200), four (4) grommets (p/n 802003334), and hardware.

Part Number

Thermostat Accessory Kits

Description T'Stat Guard 105571101

10 Pack 105571110

Wall Plate 107096101

Part Number

MTIII Communication Module Kits

Description LonWorks Comm Module 910128888

BacNet Comm Module 910128889 Wire Harness Assy Kit for MicroTech III (H8, ISO Valve, & Actuator) 910107989

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 15

Part Number

Field Installed Accessories

Ball Valve

Description Combination Shutoff/Balancing Valve with Memory Stop (2/unit)

Ball Valve, 1" FPT 802026109 106065302 106065310

Motorized Water Valves

Description Kit Actuator Body Motorized Valve Kit, 1” Sweat, Normally Closed (NC) 8.9Cv 910131361 910129596 910129295

Motorized Valve Kit, 1” NPT, Normally Closed (NC) 8.9Cv 910131355 910129596 910129298

Motorized Valve Kit, 1” Sweat, Normally Open (NO) 8.9Cv 910131358 910129599 910129295

Motorized Valve Kit, 1” NPT, Normally Open (NO) 8.9Cv 910128988 910129599 910129298

Part No.

2 Pack 10 Pack

Waterside Economizer

Description Part Number

3-Way Valve, 1” 910128663

Actuator 107179809

Valve, Air Manual 107264801

Thermostats

Description Part Number

Programmable TStat - 3 Cool-4 Heat, built-in humidity sensing, ACO and 7-day. 910121750

Remote Room Sensor, Indoor (Used with T'Stat 910121750) 910129095 Remote Room Sensor, Outdoor (Used with T'Stat 910121750) 910129096 Non-Programmable TStat - 2 Cool-2 Heat, ACO & MCO. 910121746

Programmable TStat - 2 Cool-2 Heat, ACO & MCO and 7-day. 910121748 Remote Room Sensor, Indoor (Used with T'Stat 910121746 & 910121748) 667720401

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 16

Field Installed Accessories

Hoses

Description Speciﬁcation Part Number

Hose Assy, Fire Rated Condensate 3/4" NPT X 2' 106063801 3/4" NPT X 3' 106063901 Hose Assy, Fire Rated Supply/Return (2 Pack) 1/2" NPT X 2' 106062801 1/2" NPT X 3' 106063101 3/4" NPT X 2' 106062901 3/4" NPT X 3' 106063201 1" NPT X 2' 106063401 1" NPT X 3' 106063501

Hose Assy, Plastic Condensate 3/4" NPT X 30" 106063701

3/4" NPT X 36" 106665101 1/2" Flow Control Hose Kit, Fire Rated Supply/Return 0.5 GPM 106582901 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 1.0 GPM 106582902 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose. 1.5 GPM 106582903

2.0 GPM 106582904

2.5 GPM 106582905

3.0 GPM 106582906

3.5 GPM 106582907

4.0 GPM 106582908

4.5 GPM 106582909

5.0 GPM 106582910

3/4" Flow Control Hose Kit, Fire Rated Supply/Return 3.0 GPM 106582913 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 3.5 GPM 106582914 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose.

4.5 GPM 106582916

5.0 GPM 106582917

5.5 GPM 106582918

6.0 GPM 106582919

6.5 GPM 106582920

7.0 GPM 106582921

7.5 GPM 106582922

8.0 GPM 106582923

9.0 GPM 106582924

10.0 GPM 106582925

11.0 GPM 106582926

12.0 GPM 106582927

13.0 GPM 106582928

15.0 GPM 106582929 1" Flow Control Hose Kit, Fire Rated Supply/Return 8.0 GPM 106582932 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 9.0 GPM 106582933 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose.

11.0 GPM 106582935

12.0 GPM 106582936

13.0 GPM 106582937

15.0 GPM 106582936

18.0 GPM 106582937

5.5 GPM 106582911

6.0 GPM 106582912

4.0 GPM 106582915

10.0 GPM 106582934

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 17

Field Installed Accessories

Continued

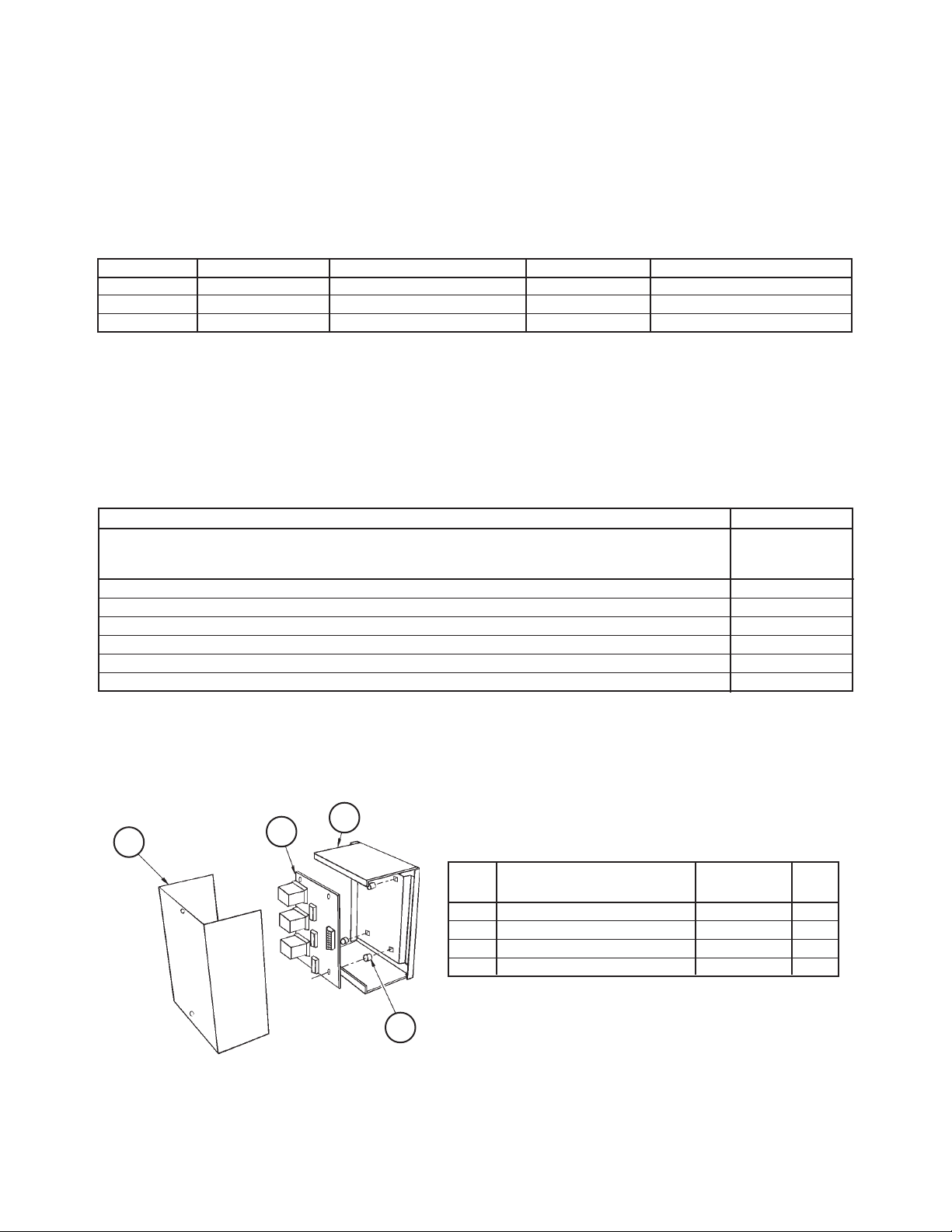

MicroTech III Temperature Sensors

Part No. Tenant Override Set Point Adjustment Status LED Fan & Mode Switches

669529001 Yes No No No 669529101 Yes 55˚ to 95˚F (12˚ to 35˚C) Yes Yes 669529201 Yes -3˚ to +3˚F (-1.5˚ to 1.5˚C) No Yes

Note: Can only be used in conjunction with a communication (Comm.) card. See OM 931 for required jumper settings.

MicroTech III Unit Control Accessories

Description Part Number

** Multiple Unit Control Panel:

Allows a master unit controlled by a T'Stat, to operate up to 3 secondary units Not Recommended for use with a Boilerless System Kit

Boilerless System Kit (S042) 0062522201 Boilerless System Kit (S048-S060) 0062522204 Boilerless System Kit with I/O Expansion Board 910110355 Boilerless System Kit without I/O Expansion Board 910110353 Programmmable Sensor for BACnet/LON- 3 Cool-4 Heat w/ built-in humidity sensing 910121754 Sensor for BACnet/LON- 2 Cool-2 Heat w/Warm-Cooler Temp Adj. 910121753

** Kit components listed below

056794201

Multiple Unit Control Panel Kit

310

WSHP; WGSH/WGSV 042- 070 Design 1 New 8/12 RPL 700025000 / Page 18

311

313

Ref. Description Part No. Qty.

No.

310 Cover, Control Box 106436101 1 311 Circuit Board 056794001 1 312 Stand Off, Circuit Board 802028090 6 313 Box 850007827 1

312

Critical Daikin McQuay OEM Parts Are What Your

Daikin McQuay HVAC Unit Needs!

SmartSourceTM Single Stage WSHP

WGSH, WGSV

Sizes 042 - 070

Design 1

CRITICAL PART COMPONENTS MODEL UNIT SIZE VOLTAGE NUMBER CONTROLS

MicroTech III Control Board, Series 2 ALL ALL N/A 250806500 I/O Expansion Board Assy, Series 2 ALL ALL N/A 250806601 LonWorks Comm. Card & Software ALL ALL N/A 250806801 BACnet Comm. Card & Software ALL ALL N/A 250806701

COMPRESSOR

36000 BTUH ALL 042 208-230/60/1 669816409

42000 BTUH ALL 048 208-230/60/1 668408001

51000 BTUH ALL 060 208-230/60/1 669816415 61500 BTUH ALL 070 208-230/60/1 669816418 36000 BTUH ALL 042 460/60/3 669816410

41900 BTUH ALL 048 460/60/3 668408003

51500 BTUH ALL 060 460/60/3 669816416 61500 BTUH ALL 070 460/60/3 669816419 36000 BTUH ALL 042 208-230/60/3 669816411

41900 BTUH ALL 048 208-230/60/3 668408002

51500 BTUH ALL 060 208-230/60/3 669816417 61500 BTUH ALL 070 208-230/60/3 669816420

BLOWER FAN MOTOR

3/4HP ALL 042 208-230/60/1 669822531 3/4HP ALL 048 208-230/60/1 669822533 1/1HP ALL 060 208-230/60/1 669822535 1/1HP ALL 070 208-230/60/1 669822537 3/4HP ALL 042 265/60/1 669822532 3/4HP ALL 048 265/60/1 669822534 1/1HP ALL 060 265/60/1 669822536 1/1HP ALL 070 265/60/1 669822538

BLOWER FAN ASSY Blower Housing Assy ALL ALL ALL 668151101 REFRIGERATION CIRCUIT

Reversing Valve ALL ALL N/A 910125410 Solenoid-Reversing Valve ALL ALL N/A 106694207 Thermal Expansion Valve 2.5 Ton ALL 042 N/A 910116445 Thermal Expansion Valve 3 Ton ALL 048, 060 N/A 910116446 Thermal Expansion Valve 4 Ton ALL 070 N/A 910116447

SENSOR

Discharge Air Sensor (DAT) 10K/72" ALL ALL N/A 910106325 Return Air Sensor (RAT) 10K/72" ALL ALL N/A 910106325 Entering Water Sensor (EWT) 10K/80" ALL 042, 048 N/A 910121231 Leaving Water Sensor (LWT) 10K/80" ALL 042, 048 N/A 910121231 Entering Water Sensor (EWT) 10K/80" ALL ALL N/A 107201601 Leaving Water Sensor (LWT) 10K/80" ALL ALL N/A 107201601

Call Your Local Daikin McQuay Parts Distributor For All Your Parts Needs.

To Locate A Distributor, Go To www.DaikinMcQuay.com or Call 1-800-37PARTS

7000250 New 8/2012 CPL Page 1 of 1

McQuay WGSH048 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
