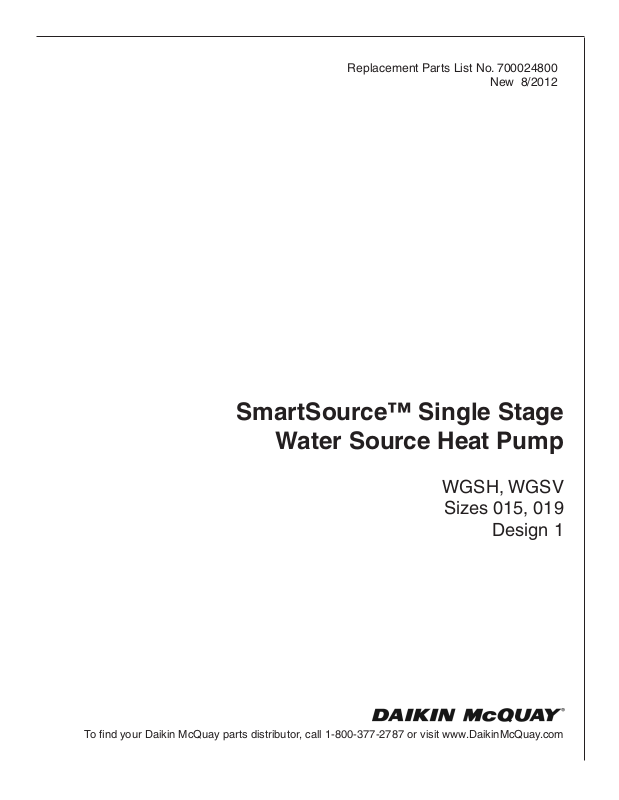

McQuay WGSH015 Parts List

Replacement Parts List No. 700024800

New 8/2012

SmartSource™ Single Stage

Water Source Heat Pump

WGSH, WGSV

Sizes 015, 019

Design 1

To ﬁnd your Daikin McQuay parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Contents

Parts List Revision History ....................................................................................................................................... 3

Nomenclature

Serial Number ..................................................................................................................................................... 4

Model Number ................................................................................................................................................. 4-6

Electrical Legend ..................................................................................................................................................... 7

Typical Refrigeration Cycles ................................................................................................................................... 8

Blower Fan Assembly .............................................................................................................................................. 9

Refrigeration Circuit ......................................................................................................................................... 10-11

Control Box

Microtech III Controller ...................................................................................................................................... 12

Field Installed Accessories ............................................................................................................................... 13-16

Critical Parts List............................................................................................................................................... CPL1

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 2

Parts List Revision History

Rev. Date Description

NEW 8/12 NEW

13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 3

Nomenclature

Serial Number

AUB U 12 05 00148

Plant Identiﬁcation Abbreviation

AUB = Auburn

U= Unit

Week of Manufacture

Year of Manufacture

12= 2012 13= 2013

etc.

Serial Number (build sequence)

Model Number

W GSH 015 B 1 E WL R T 4 Y Y Y C S YYY B 2 A Y Y Y Y Y B D Y Y Y YYY

Code 01 02-03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 -18 19 20 21 22 23 24 25 26 27 28 29 30 31 32-34

Y YYY S Y Y B A B A Y A T Y C Y YY Y Y 2 Y Y S A L K Y Y Y Y YY

Code 35 36-38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66-67

Y Y A Y Y Y Y A A Y C Y Y YY FF ST ST YY YYY Y C Y Y YY 1

Code 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92

Code 01= Unit Type W= Water Source Heat Pump

Code 02= Model Type GS= High Efﬁciency, Single Stage

Code 03= Conﬁguration H= Horizontal V= Vertical

Code 04= Unit Size (BtuH Nominal Cooling) 015= 15000 019= 19000

Code 11= Fan Motor 4= ECM Constant CFM

Code 12= Dehumidiﬁcation Option B= Hot Gas Reheat Smart Dehumidiﬁcation C= Simpliﬁed Dehumidiﬁcation (Lower CFM no HGRH or no Humidistat) D= Humidistat Controlled Dehumidiﬁcation (No HGRH) E= Humidistat only Y= None

Code 13= Sound Packages Y= None

Code 05= Unit Control B= MicroTech III Unit Controller

Code 06= Design Series (Vintage) 1= Design 1

Code 07= Voltage E= 208-230/60/1 J= 265/60/1

Code 08= Range for Entering Water/Glycol Temp. GW= Ground Water WL= Water Loop GL= Ground Loop

Code 09= Return Air Location L= Left-Hand Return Air & Right-Hand Piping R= Right-Hand Return Air & Right-Hand Piping

Code 10= Discharge Air Location E= End (Horizontal Unit only) T= Top (Vertical Unit only) S= Straight (Horizontal Unit only)

Code 14= IAQ Packages (Indoor Air Quality) Y= None

Code 15= Coaxial Heat Exchanger Construction C= Copper Inner Tube- Steel Outer Tube S= Cupro-Nickel Inner Tube- Steel Outer Tube

Code 16= Primary Air Coil Options S= Standard E= E-Coated

Codes 17-18= Always YYY

Code 19= Communication Module B= BACnet F= BACnet - WSHP System L= LonWorks Y= None

Continued on next page.

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 4

Nomenclature

Code 20= Filter Rack 2= 4-Sided, 2" w/Duct Collar & Door 3= 4-Sided, 2" w/Duct Collar, Door, Hi-Merv Seal 4= 4-Sided, 4" w/Duct Collar, Door, Hi-Merv Seal Y= None

Code 21= Filter Type A= 2" Disposable E= Merv 8 Factory Installed G= Merv 13 (4" thick) Factory Installed Y= None

Code 22= Water Coil- Indoor Air E= Waterside Economizer Y= None

Code 23= Electric Heating- Indoor Air Y= None

Code 24= Control Secondary Heat Type B= Boilerless Electric Heat E= Emergency Heat P= Primary Electric Heat (No Heat Pump Heating) S= Supplemental Heat Y= None

Code 25= Desuperheater (Hot Water Generator) D= Desuperheater Y= None

Code 26= Loop Pump YY= None

Code 40= Secondary Drain Pan Material Y= None

Code 41= Compressor Insulation B= Sound Blanket P= Premium Y= None

Code 42= Compressor Isolation B= Isolated Base

Code 43= Insulation- Compressor Compartment A= 1/2" Fiberglass Skin Faced B= 1/2" Fiberglass Foil Faced C= 3/8" Closed Cell Foam P= Premium

Code 44= Insulation- Air Side A= 1/2" Fiberglass Skin Faced B= 1/2" Fiberglass Foil Faced C= 3/8" Closed Cell Foam P= Premium

Code 45= Insulation- Piping A= Insulated Piping Y= None

Code 46= Always Y

Code 47= Cabinet Finish A= Powder Coat G= Galvanized Steel

Code 27= Coaxial Coil Supply Liquid Flow Control B= 2-Way, Motorized- 24V Valve Control, NO C= 2-Way, Motorized- 24V Valve Control, NC Y= None

Code 28= Coaxial Coil Supply Liquid Auto Flow Reg D= 3.0 GPM E= 4.0 GPM G= 5.0 GPM Y= None

Code 29= Coaxial Coil Supply Liquid Strianer Y= None

Code 30= Always Y

Code 31= Desuperheater Water Flow Options Q= Pump 208-230/60/1V Y= None

Codes 32- 34= Always YYY

Code 35= Water Coil Piping (HW or Waterside Economizer) A= 3-Way, Motorized- 24V Valve Control, NO to Coax Y= None

Codes 36-38 = Always YYY

Code 39= Primary Drain Pan Material S= Stainless Steel

Code 48= Cabinet Color T= Textured Charcoal Bronze W= Off White Y= None

Code 49= Always Y

Code 50= Fan Motor Control C= Various Speeds with 4 Adjustment Settings

Code 51= Fan Motor Control location Y= None

Code 52= Always YY

Code 53= Disconnect Switch N= Non-Fused Y= None

Code 54= Always Y

Code 55= Control Transformer 1= 50VA 2= 75VA

Code 56= Thermostat/Sensor Control S= Sensor Control T= Thermostat Control

Code 57= Currrent Sensing Switches Y= None

Continued on next page.

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 5

Nomenclature

Code 58= Condensate Overﬂow Protection S= Sensor

Code 59= High Pressure Switch A= 600 psi NC

Code 60= Low Pressure Switch or Sensor L= 7 psi NC

Code 61= Low Temp. Protection Compressor Suction K= 10K Thermistor

Code 62= Discharge Air Thermistor K= 10K Thermistor Y= None

Code 63= Leaving Supply Fluid Temp K= 10K Thermistor Y= None

Code 64= Entering Supply Fluid Temp K= 10K Thermistor Y= None

Code 65= Return Air Thermistor K= 10K Thermistor Y= None

Code 66-67 = Always YY

Code 68= Terminal Block Connection Y= None

Code 69= Emergency Switch for Electric Heat Y= None

Code 70= Annunciator A= Yes

Code 71= Reset Button Y= None Code 72 = Monitoring Y= None

Code 73= Emergency Stop Y= None Code 74= External Binary Output 1 Y= None

Code 75= Expansion Device A= Thermal Exp. Valve Thermal Bulb & Equalizer Tube

Code 76= Alarm Relay A= Alarm Relay (Dry Contacts) Y= None

Code 77= Dirty Filter Sensor Y= None

Code 78= Reversing Valve C= Normally Open in Cooling Mode

Code 79= Outside Air Control Y= None

Code 80= Always Y

Code 81= Boilerless Electric Heat Setpoint GL= Glycol 28F WA= Water 55F YY= None

Code 82= Freeze Fault Protection FF= Freeze Fault Protection YY= None

Code 83= Occupied Setpoint Differential (1-5F) ST= Setpoint (1˚F)

Code 84= Unoccupied Setpoint Differential (2-10F) ST= Setpoint (2˚F)

Code 85= Hydronic Heating on Setpoint (70-90F) YY= None

Code 86= BACnet Address YYY= None

Code 87= Always Y

Code 88= Agency C= ETL, CETL, ARI

Code 89= Conformance Y= None

Code 90= Always Y

Code 91= Extended Warranty

Code 92= Product Style

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 6

Electrical Legend

AN1, 2 ........................ LED/Annunciator Circuit 1, 2

C01 - 04 ..................... Fan Motor, Capacitor 1-4

C11 - 12 ..................... Capacitor, Compressor

CP1, 2 ........................ Compressor 1, 2

COS ........................... Condensate Overﬂow Sensor

DAT ............................ Discharge Air Temp Sensor

EWT ........................... Entering Water Temp Sensor

HP1, 2 ........................ High Pressure Switch 1, 2

ISO ............................ Water Flow Isolation Valve Actuator

LT1, 2 ......................... Suction Line Temp Sensor 1, 2

LWT ........................... Leaving Water Temp Sensor

MCB ........................... Main Control Board

NCB ........................... Network Control Board

RAT ............................ Return Air Temp Sensor

RV1, 2 ........................Reversing Valve 1, 2

TR1 ............................ Transformer, Control

TR2 ............................ Transformer, Fan Motor

TR3 ............................ Transformer, Loop Pump

WSE .......................... Water Side Economizer Actuator

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 7

Typical Refrigeration Cycles

Cooling Refrigeration Cycle (single circuit only shown)

Return Air

Thermal

Expansion Valve

Co-Axial Heat

Exchanger

Coil- Air to Refrigerant

Heat Exchanger

Blower

Heating Refrigeration Cycle (single circuit only shown)

Conditioned Air (Cooling)

Return Air

Thermal

Expansion Valve

Water In

Water Out

Sensing Bulb &

Capillary Tube

Compressor

Reversing Valve

Co-Axial Heat

Exchanger

Coil- Air to Refrigerant

Heat Exchanger

Blower

Reversing Valve

Conditioned Air (Heating)

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 8

Water In

Water Out

Sensing Bulb &

Capillary Tube

Compressor

Blower Fan Assembly

370

350

Ref. Part No. Description Number 015 019

300 ECM Motor, 208-230/60/1 *

1/3 HP 910126479 1 1/3 HP 910126478 1

300 ECM Motor, 265/60/1 * 1/3 HP 910126504 1

350 Blower Housing & Wheel Assy 667838701 1 1

365 Band- Motor Mount 802009140 1 1 370 Arm- Motor Mount 668405401 1 1

* Check the name plate to verify program. Fan motors are shipped programmed.

365

300

Unit Sizes

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 9

Refrigeration Circuit

Components

Ref. Part No. Description Number 015 019

Unit Sizes

N/S Hex Nut, Compr. Mounting 802012035 3 3

N/S Grommet, Compr. Mounting 668955401 3 3 N/S Sleeve, Compr. Mounting 668955501 3 3 N/S Compressor, 12000 BTUH 208-230/60/1 668951601 1 Compressor, 15000 BTUH 208-230/60/1 669660602 1 Compressor, 12000 BTUH 265/60/1 668951603 1 Compressor, 15000 BTUH 265/60/1 669660603 1 N/S Overload Protector 208-230/60/1 668015808 1 Overload Protector 208-230/60/1 668015811 1 Overload Protector 265/60/1 668015810 1 1

N/S Compressor Terminal Components Terminal Cover 668382801 1 1 Gasket 668382701 1 1 Gasket 668382901 1 1 Nut 668383001 1 1

N/S Condenser Cupro-Nickel Inner Tube (C15=S) 667718401 1 1 N/S Adapter .500 x .625 ODS 106474901 1 1 N/S Evaporator Coil LH RTN 669952029 1 1 Evaporator Coil RH RTN 669952027 1 1 Evaporator Coil, E-Coat RH RTN 669951703 1 1 N/S Reversing Valve 2T 910124938 1 Reversing Valve 2T 106694112 1 N/S Solenoid- Reversing Valve 106694207 1 1 N/S High Pressure Switch 910117560 1 1 N/S Low Pressure Switch 107225101 1 1 N/S Seat, Fitting 668188801 1 1 N/S Core, Valve 668188701 1 1 N/S Cap, Valve 668189501 1 1 N/S Fusible Plug Assy 850008345 1 1 Plug Only 283° F 106057401 1 1

N/S Thermal Expansion Valve, TXV 1T 910114773 1 Thermal Expansion Valve, TXV 1.5T 910117595 1

N/S HGRH Coil LH 669949306 1 1 HGRH Coil RH 669949307 1 1 HGRH Coil, E-Coat RH 669949002 1 1 N/S Valve, Check 1/2 ODS 910115254 1 1 N/S 3-Way Valve, HGRH, .625" 910114188 1 1 N/S Solenoid, HGRH 910125395 1 1 N/S Mounting Bracket 668119845 2 2 Mounting Bracket 668119843 2 2 N/S Condensate Pan, SSTL Horizontal 669972219 1 1 Condensate Pan, SSTL Vertical 669972204 1 1

N/S= Not shown on diagram.

1

State base pan color if different from speciﬁed.

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 10

Refrigeration Circuit

Components

Base Pan

Ref. Description Char Bronze Off White No. Textured Pwd Pwd Galv.

N/S Base Pan, Horizontal LH 669942512 669942211 RH 669942513 669942521 669942201

N/S Base Pan, Vertical 669942502 669942208

Water Flow Control

Ref. Description Part No. Qty. No.

N/S Auto Flow Control Valve, .625" COP 3.0 GPM 669648903 1 Auto Flow Control Valve, .875" COP 4.0 GPM 669648914 1 Auto Flow Control Valve, .875" COP 4.5 GPM 669648905 1 Auto Flow Control Valve, .875" COP 5.0 GPM 669648906 1

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 11

Control Box

Components

Ref. Part No. Description Number 015 019

Unit Sizes

N/S Bracket, Capacitor 850010570 1 1

Capacitor, 208-230/60/1 35MFD 440VAC 910120050 1 1

N/S MicroTech III Control Board, Series 2 250806500 1 1 N/S I/O Expansion Board Assy, Series 2 250806601 1 1

N/S Fan Speed Selection Board Assy 668917201 1 1

N/S LED Annunciator Assy 668395201 1 1

N/S LonWorks Comm. Card with Software 250806801 1 1 N/S BACnet Comm. Card with Software 250806701 1 1 N/S Transformer (BACnet) 265V-115V 668917705 1 1 N/S Stand Off PC Board 802028115 8 8 Edge- Holders Comm. Card only 910105356 5 5

N/S H1 Connector, 2-Pin (24V Power) 4EGA9159 1 1 N/S H2 Connector, 2-Pin/1-Blank (Fan Output) 4EGA9160 1 1 N/S H3 Connector, 2-Pin (Hi Pressure Switch) 668302122 1 1 N/S H4 Connector, 4-Pin (Dis Air/Leaving H

O Temp Sensor) 668302122 3 3

2

N/S H6 Connector, 7-Pin (Cond OF/Low P/Low T/Rev Vlv) 4EGA9164 1 1 N/S H8 Connector, 3-Pin (Motorized & Iso Vlvs/Pump Relay) 4EGA9160 1 1 N/S H9 Connector, 2-Pin (RA Temp Sensor) 4EGA9160 1 1

N/S Suction Line Temp Sensor (LT)- .87" 910121231 1 1 N/S Rocker Switch 061350601 1 1 N/S Contactor, Compressor 24V 2PDT 073300101 1 1

N/S Disconnect Switch, 3P, 63A 910123457 1 1

N/S Transformer, 50VA 208/230V 910116202 1 1 N/S Transformer, 75VA 208/230V 910116213 1 1 N/S Transformer, 50VA 265V 910116203 1 1 N/S Transformer, 75VA 265V 910116209 1 1

N/S Sensor, Temp, Discharge Air (DAT) 10K/72” 910106325 1 1 N/S Sensor, Temp, Return Air (RAT) 10K/72” 910106325 1 1

N/S Sensor, Temp, Entering Water (EWT), .87" 10K/80” 910121231 1 1

N/S Sensor, Temp, Leaving Water (LWT), .87" 10K/80” 910121231 1 1 N/S Sensor, Temp, Entering Water (EWT), 1.12" 10K/80” 107201601 1 1 N/S Sensor, Temp, Leaving Water (LWT), 1.12" 10K/80” 107201601 1 1

N/S= Not shown on diagram. * Used on any unit with the following applications: 2 Compressors/Stages, Supplemental Electric Heat, Multi-speed ECM Motors, and Hot Gas Bypass. ** Field-upgrading requires a Service Tool for com. card programming, com-card stand-off & main PCB jumper change.

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 12

Field Installed Accessories

Filters

Description Horizontal Vertical

Kit, Filter, 2" Throwaway 18 X 24 X 2" 060687120 060687120

12 Pack of 2" Throwaway 910129098 910129098

Kit, Filter, 2" MERV 8 Throwaway 18 X 24 X 2" 910123769 910123769 12 Pack of 2"MERV 8 Throwaway 910129109 910129109

Kit, Filter, 4" MERV 13 Throwaway 18 X 24 X 4" 910127260 910127260 6 Pack of 4" MERV 13 Throwaway 910129125 910129125

Unit Hanger

Description

Unit Hanger Kit 1 Unit Sizes 026-072 669997601

1

Kit includes four (4) brackets (p/n 669823200), four (4) grommets (p/n 802003334), and hardware.

Part Number

Thermostat Accessory Kits

Description T'Stat Guard 105571101

10 Pack 105571110

Wall Plate 107096101

Part Number

MTIII Communication Module Kits

Description LonWorks Comm Module 910128888

BacNet Comm Module 910128889 Wire Harness Assy Kit for MicroTech III (H8, ISO Valve, & Actuator) 910107989

Part Number

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 13

Field Installed Accessories

Ball Valves

Description Combination Shutoff/Balancing Valve with Memory Stop (2/unit)

Ball Valve, 3/4" FPT 802026098 106065202 106065210

Motorized Water Valve

Description Kit Actuator Body Motorized Valve Kit, 3/4” Sweat, Normally Closed (NC) 10.3Cv 910131360 910129596 910129294 Motorized Valve Kit, 3/4” NPT, Normally Closed (NC) 10.3Cv 910131354 910129596 910129297 Motorized Valve Kit, 3/4” Sweat, Normally Open (NO) 10.3Cv 910131357 910129599 910129294 Motorized Valve Kit, 3/4” NPT, Normally Open (NO) 10.3Cv 910128987 910129599 910129297

Part No.

2 Pack 10 Pack

Waterside Economizer

Description Part Number

3-Way Valve, 3/4” 910128662

Actuator 107179809 Valve, Air Manual 107264801

Thermostats

Description Part Number

Programmable TStat - 3 Cool-4 Heat, built-in humidity sensing, ACO and 7-day. 910121750

Remote Room Sensor, Indoor (Used with T'Stat 910121750) 910129095 Remote Room Sensor, Outdoor (Used with T'Stat 910121750) 910129096 Non-Programmable TStat - 2 Cool-2 Heat, ACO & MCO. 910121746

Programmable TStat - 2 Cool-2 Heat, ACO & MCO and 7-day. 910121748 Remote Room Sensor, Indoor (Used with T'Stat 910121746 & 910121748) 667720401

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 14

Field Installed Accessories

Hoses

Description Speciﬁcation Part Number

Hose Assy, Fire Rated Condensate 3/4" NPT X 2' 106063801 3/4" NPT X 3' 106063901 Hose Assy, Fire Rated Supply/Return (2 Pack) 1/2" NPT X 2' 106062801 1/2" NPT X 3' 106063101 3/4" NPT X 2' 106062901 3/4" NPT X 3' 106063201 1" NPT X 2' 106063401 1" NPT X 3' 106063501

Hose Assy, Plastic Condensate 3/4" NPT X 30" 106063701

3/4" NPT X 36" 106665101 1/2" Flow Control Hose Kit, Fire Rated Supply/Return 0.5 GPM 106582901 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 1.0 GPM 106582902 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose. 1.5 GPM 106582903

2.0 GPM 106582904

2.5 GPM 106582905

3.0 GPM 106582906

3.5 GPM 106582907

4.0 GPM 106582908

4.5 GPM 106582909

5.0 GPM 106582910

3/4" Flow Control Hose Kit, Fire Rated Supply/Return 3.0 GPM 106582913 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 3.5 GPM 106582914 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose.

4.5 GPM 106582916

5.0 GPM 106582917

5.5 GPM 106582918

6.0 GPM 106582919

6.5 GPM 106582920

7.0 GPM 106582921

7.5 GPM 106582922

8.0 GPM 106582923

9.0 GPM 106582924

10.0 GPM 106582925

11.0 GPM 106582926

12.0 GPM 106582927

13.0 GPM 106582928

15.0 GPM 106582929 1" Flow Control Hose Kit, Fire Rated Supply/Return 8.0 GPM 106582932 Includes: Supply Ball Valve, Y-Strainer, and 24" Stainless Steel Hose. 9.0 GPM 106582933 Return Flow Controller, Ball Valve, (2) P/T, 24" Stainless Steel Hose.

11.0 GPM 106582935

12.0 GPM 106582936

13.0 GPM 106582937

15.0 GPM 106582936

18.0 GPM 106582937

5.5 GPM 106582911

6.0 GPM 106582912

4.0 GPM 106582915

10.0 GPM 106582934

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 15

Field Installed Accessories

Continued

MicroTech III Temperature Sensors

Part No. Tenant Override Set Point Adjustment Status LED Fan & Mode Switches

669529001 Yes No No No 669529101 Yes 55˚ to 95˚F (12˚ to 35˚C) Yes Yes 669529201 Yes -3˚ to +3˚F (-1.5˚ to 1.5˚C) No Yes

Note: Can only be used in conjunction with a communication (Comm.) card. See OM 931 for required jumper settings.

MicroTech III Unit Control Accessories

Description Part Number

** Multiple Unit Control Panel:

Allows a master unit controlled by a T'Stat, to operate up to 3 secondary units Not Recommended for use with a Boilerless System Kit

Boilerless System Kit 0062522201 Boilerless System Kit with I/O Expansion Board 910110355 Boilerless System Kit without I/O Expansion Board 910110353 Programmmable Sensor for BACnet/LON- 3 Cool-4 Heat w/ built-in humidity sensing 910121754 Sensor for BACnet/LON- 2 Cool-2 Heat w/Warm-Cooler Temp Adj. 910121753

** Kit components listed below

056794201

Multiple Unit Control Panel Kit

310

WSHP; WGSH/WGSV 015, 019 Design 1 New 8/12 RPL 700024800 / Page 16

311

313

Ref. Description Part No. Qty.

No.

310 Cover, Control Box 106436101 1 311 Circuit Board 056794001 1 312 Stand Off, Circuit Board 802028090 6 313 Box 850007827 1

312

Critical Daikin McQuay OEM Parts Are What Your

Daikin McQuay HVAC Unit Needs!

SmartSourceTM Single Stage WSHP

WGSH, WGSV

Sizes 015, 019

Design 1

CRITICAL PART COMPONENTS MODEL UNIT SIZE VOLTAGE NUMBER CONTROLS

MicroTech III Control Board, Series 2 ALL ALL N/A 250806500 I/O Expansion Board Assy, Series 2 ALL ALL N/A 250806601 LonWorks Comm. Card & Software ALL ALL N/A 250806801 BACnet Comm. Card & Software ALL ALL N/A 250806701

COMPRESSOR

12100 BTUH ALL 015 208-230/60/1 668951601

9800 BTUH ALL 019 208-230/60/1 668951602

12100 BTUH ALL 015 265/60/1 668951603 14200 BTUH ALL 019 265/60/1 669660603

BLOWER FAN MOTOR

1/3HP ALL 015 208-230/60/1 910126479 1/3HP ALL 019 208-230/60/1 910126478 1/10HP ALL 019 265/60/1 910126504

BLOWER FAN ASSY Blower Housing Assy ALL ALL ALL 667838701

REFRIGERATION CIRCUIT

Reversing Valve ALL 015 N/A 910124938 Reversing Valve ALL 019 N/A 106694112 Solenoid-Reversing Valve ALL ALL N/A 106694207 Thermal Expansion Valve 1 Ton ALL 015 N/A 910114773 Thermal Expansion Valve 1.5 Ton ALL 019 N/A 910117595

SENSOR

Discharge Air Sensor (DAT) 10K/72" ALL ALL N/A 910106325 Return Air Sensor (RAT) 10K/72" ALL ALL N/A 910106325 Entering Water Sensor (EWT), .87" 10K/80" ALL ALL N/A 910121231 Leaving Water Sensor (LWT), .87 10K/80" ALL ALL N/A 910121231 Entering Water Sensor (EWT), 1.12" 10K/80" ALL ALL N/A 107201601 Leaving Water Sensor (LWT), 1.12" 10K/80" ALL ALL N/A 107201601

Call Your Local Daikin McQuay Parts Distributor For All Your Parts Needs.

To Locate A Distributor, Go To www.DaikinMcQuay.com or Call 1-800-37PARTS

7000248 New 8/2012 CPL Page 1 of 1

McQuay WGSH015 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
