McQuay RCS080 Parts List

Replacement Parts List No. 700010800

Revision Y 07/12

RoofPak

Applied Rooftop Units

RPS, RFS, RDT, RCS

Sizes 080 - 140 Tons

Vintage D

R410a

To ﬁnd your Daikin McQuay Parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Contents

Parts List Revision History .................................................................................................................................................. 5- 6

Nomenclature ...................................................................................................................................................................... 7- 14

Electrical Legend .............................................................................................................................................................. 15- 18

Section A- Outdoor/Return Air Section

Notes ...............................................................................................................................................................................19

100% Outside Air Damper with Hood w/ACT3- No Return Air Plenum ............................................................................20

100% Outside Air Damper Detail .....................................................................................................................................21

0 - 30% Outside Air Section w/ ACT3 ..............................................................................................................................22

0- 100% Economizer Section with Barometric Exhaust Damper- Units without Return Air Fans ....................................23

0- 100% Economizer Section with Barometric Exhaust Damper- Units with 44” Return Air Fans ...................................24

0- 100% Economizer Section with Prop Exhaust Fan & Damper .....................................................................................25

0 - 100% Economizer Damper Detail ...............................................................................................................................26

0 - 100% Economizer Damper w/ ACT3 ..........................................................................................................................27

Return Air Plenum Isolation Damper w/ Actuator ACT6 ...................................................................................................28

Prop Exhaust Fan & Damper Detail .................................................................................................................................29

Prop Exhaust Fan Inverter and Control Box .....................................................................................................................30

Ebtron Sensor Detail ........................................................................................................................................................30

Design Flow Detail ...........................................................................................................................................................31

Return Air Fan Detail- Fan Mounts ...................................................................................................................................32

Return Air Fan Detail ........................................................................................................................................................33

Return Air Fan Motors ......................................................................................................................................................34

Section Mounted Controls- OAE, RAE, LT11, S11, REC11 .............................................................................................35

Section B- Draw-Thru Filter/Blank Section

Notes ...............................................................................................................................................................................36

Section Mounted Controls- PC5, LT13, S13, REC13 .......................................................................................................36

Filters .........................................................................................................................................................................37, 38

Section C- Draw-Thru Blank Access Section or Separate Inverter Section

Notes ...............................................................................................................................................................................39

Section D- Draw-Thru Cooling Section

Notes ...............................................................................................................................................................................40

Small Face DX Coils (Code 03= S) ..................................................................................................................................41

Large Face DX Evaporator Coils (Code 03= L) ...............................................................................................................42

Section E- 48” Spacer Section or Section E- Draw-Thru Heat Section (RDT)

Notes ...............................................................................................................................................................................43

Section Mounted Controls- LT18, REC18, S18 ................................................................................................................43

Hot Water or Steam Coil Heat, Mixing Valves and Actuator (VM1) .................................................................................44

Section F- Supply Air Section

Notes ...............................................................................................................................................................................45

Air Foil Fan- Double Width ...............................................................................................................................................46

Air Foil Fan- Single Width- RDT (Draw-Thru/No Heat) Units ...........................................................................................47

Fan Mounts- 33” Airfoil Double Width Fan .......................................................................................................................48

Fan Mounts- 36” Airfoil Double Width Fan .......................................................................................................................49

Fan Mounts- 40” Airfoil Double Width Fan .......................................................................................................................50

Fan Mounts- 44” AFSW- Draw-Thru/No Heat Units .........................................................................................................51

Fan Mounts- 49” AFSW- RDT Units .................................................................................................................................52

Supply Air Fan Motors ......................................................................................................................................................53

Belt Guard ........................................................................................................................................................................54

Inverters & Inverter Bypass Control Box

Motor HP 5 ..................................................................................................................................................................55

Motor HP 7.5 - 25 ..................................................................................................................................................56, 57

Motor HP 30 - 75 ...................................................................................................................................................58, 59

Inverters .................................................................................................................................................................... 60- 63

Line Reactors ...................................................................................................................................................................64

Section Mounted Controls- PC7, HL22, LT10, S10, REC10, UV Lights ..........................................................................65

Section Mounted Controls- MATS, EFTS, SATS, DATS, OATS, SD1 .............................................................................66

Section Mounted Controls- SCB- TB25,TB27,TB28,PB10,PB9,PB20,PB19 ...................................................................67

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 2

Contents

Continued

Section G- Blow-Thru Heat Section

Notes ...............................................................................................................................................................................68

Unit Mounted Controls- LT12, S12, REC12 .....................................................................................................................68

Section G- Blow-Thru Heat Section, Continued

Option 1: Blank Compartment

Diffuser ........................................................................................................................................................................68

Option 2: Hot Water or Steam Coil Heat

Mixing Valves and Actuator (VM1) .............................................................................................................................69

Option 3: Electric Heat

Heaters, Hi Limit Cutouts, Diffusers ......................................................................................................................70, 71

Electric Heat Control Box ..................................................................................................................................... 72- 76

Option 4- Gas Heat Code 04= A

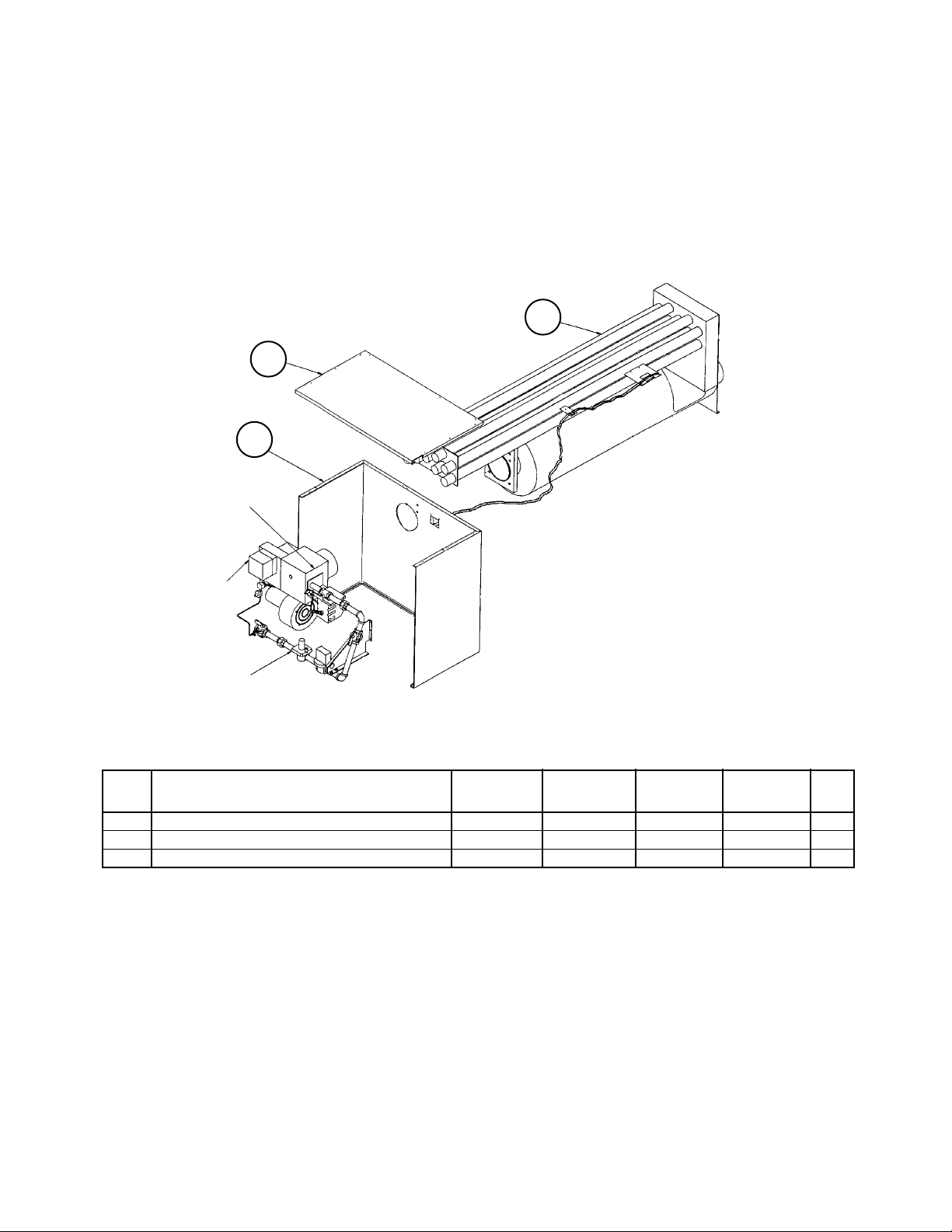

Vestibules, Heat Exchangers and Primary Components- 500, 640, 650, 790, 800, 1000, 1100, 1400 ......................77

Vestibules, Heat Exchangers and Primary Components- 1500, 2000 ........................................................................78

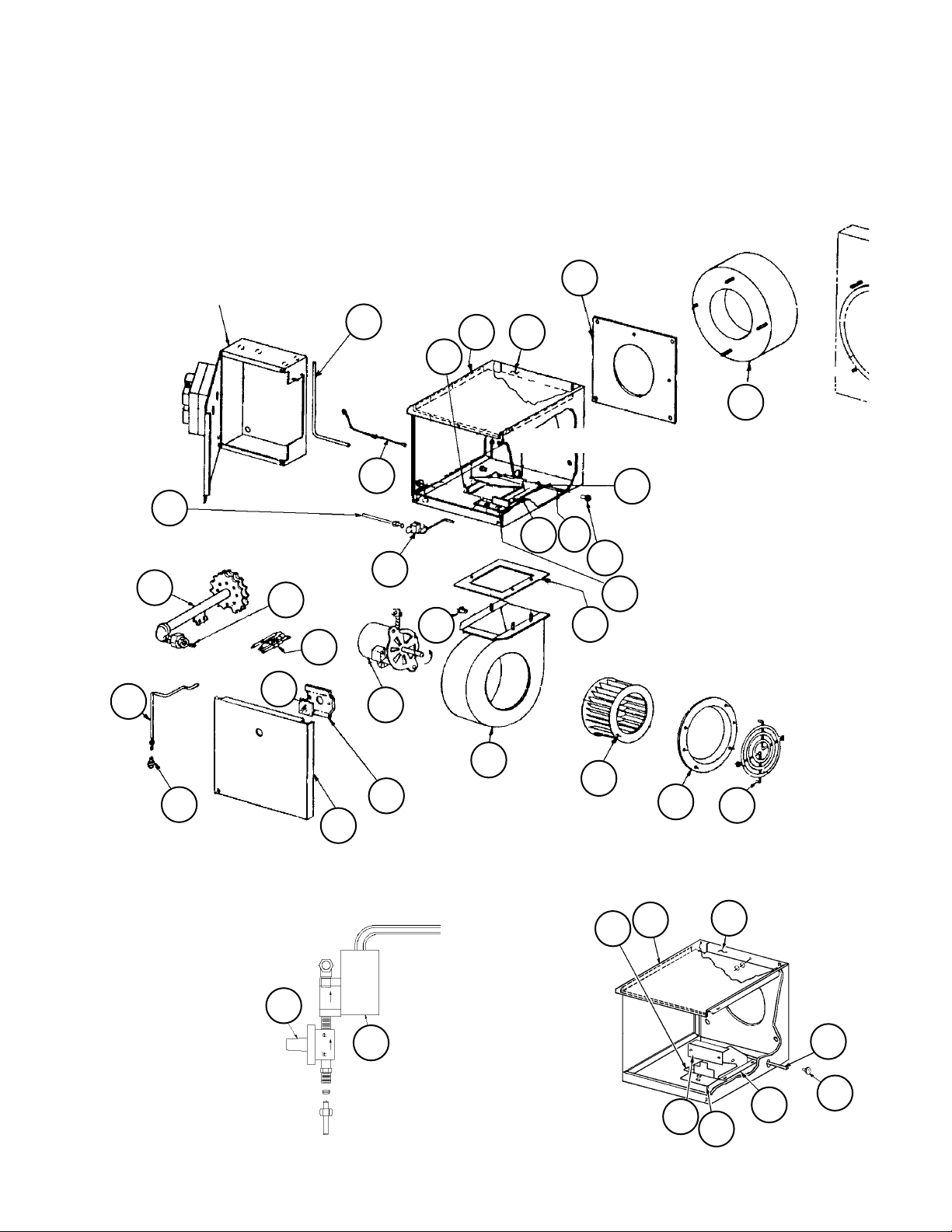

Modulating Burner ..................................................................................................................................................... 79- 82

Hi Turn Down Burner ................................................................................................................................................. 83- 86

Modulating Burner Controls

MicroTech II or No Controls Diagram ..........................................................................................................................87

MicroTech II or No Controls Components ...................................................................................................................88

MicroTech III Controls .................................................................................................................................................89

Hi Turn Down Burner Controls

MicroTech II or No Controls Diagram ..........................................................................................................................90

MicroTech II or No Controls Components ...................................................................................................................91

MicroTech III Controls .................................................................................................................................................92

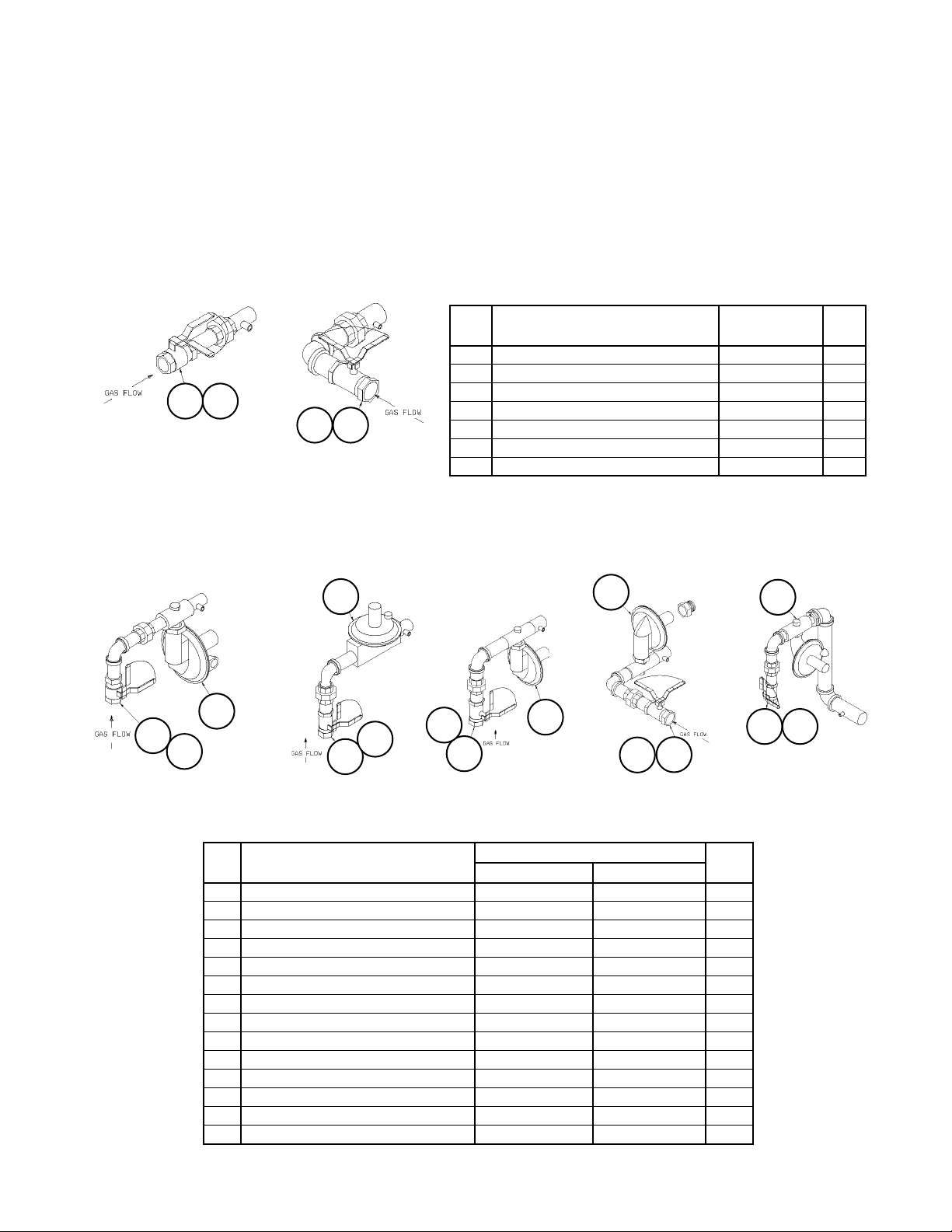

Gas Train- Inlet ..................................................................................................................................................... 93- 95

Gas Train- Controls: GV1, GV2, GV4, GV5, GV6, GV7, GV8, GV9, VM1 ........................................................... 96- 99

Gas Train- Outlet .......................................................................................................................................................100

Gas Train- Damper Linkage ......................................................................................................................................101

Cabinet Doors, Gasketing, Hardware, and Flue Box Mounting .........................................................................102, 103

Section H- Blow-Thru Heat Blank Access Section or Sound Attenuator

Notes .............................................................................................................................................................................104

Sound Attenuator ...........................................................................................................................................................104

Section Mounted Controls- LT19, REC19, S19 ..............................................................................................................104

Section I- Blow-Thru Cooling Section

Notes .............................................................................................................................................................................105

Section Mounted Controls- LT16, S16, REC16 ..............................................................................................................105

Section J- Final Filter Section

Notes .............................................................................................................................................................................106

Section Mounted Controls- HL23, PC6 ..........................................................................................................................106

Filters .............................................................................................................................................................................107

Section K- Discharge Plenum Section- RPS, RFS

Notes .............................................................................................................................................................................108

Section Mounted Control- OATS, DATS, SD1 ...............................................................................................................108

Damper Assembly- w/ Actuator ACT5 ............................................................................................................................109

Section L- Out-of-Airstream Blank Access Section

Notes .............................................................................................................................................................................110

Section Mounted Controls- LT20, REC20, S20 ..............................................................................................................110

Section M- Condenser Section

Notes .............................................................................................................................................................................111

Condenser Fan Deck Assembly- 080D thru 105D ................................................................................................112, 113

Condenser Fan Deck Assembly- 110D thru 140D .................................................................................................114, 115

Quiet Fan Assembly .......................................................................................................................................................116

Compressors & Compressor Components

Unit Size 080 thru 091 ...............................................................................................................................................117

Unit Size 100, 101 .....................................................................................................................................................118

Unit Size 105, 110 .....................................................................................................................................................119

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 3

Contents

Continued

Section M- Condenser Section, Continued Compressors & Compressor Components, Continued

Unit Size 120 .....................................................................................................................................................120, 121

Unit Size 125, 130 .....................................................................................................................................................122

Unit Size 140 .............................................................................................................................................................123

MicroTech II or No Controls- RCS Control Box ..................................................................................................... 124- 127

T1 Transformer and Fusing ............................................................................................................................................127

MicroTech III- RCS Control Box ............................................................................................................................ 128- 130

RCS Pressure Manifolds- PC13, PC23, HP1, HP2, LP1, LP2, SPTRL .........................................................................131

RPS/RDT Pressure Controls Box- AFD11, AFD21, LR11, LR21, LP1, LP2, HP1, HP2, PC13, PC23 ..........................132

McQuay Supplied Line Voltage Box-T6, DS6, FU6A, FU6B, FU6C ...............................................................................133

Section N- Main Control Box

Notes .............................................................................................................................................................................134

MicroTech II or No Controls- Control Panel .......................................................................................................... 135- 138

MicroTech III Controls- Control Panel ................................................................................................................... 139- 141

Power Panel .......................................................................................................................................................... 142- 155

Control Box ............................................................................................................................................................ 156- 164

Section O- Refrigeration Tubing

Notes .............................................................................................................................................................................165

Refrigeration Tubing Diagram ........................................................................................................................................165

Valves, Filter Driers, Sight Glasses ........................................................................................................................166, 167

Hot Gas Reheat ..............................................................................................................................................................168

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 4

Parts List Revision History

Revision Date Description

A, B 12/11 Archived Revisions A & B. C 6/09 Page 8-12 Arrange Code Index into numerical order. Page 34- Ref #7 change RAT Sensor p/n from 193414600 to 193414602. Page 65 Ref #5 change MAT or EFT Sensor p/ns from 193414600 to 193414602. Ref #8 change SAT or DAT Sensor p/ns from 193414600 to 193414602. Ref #7 change OAT Sensor p/n from 193414600 to 193414602. Page 105 Ref #7 change OAT Sensor p/n from 193414600 to 193414602. Ref #8 change DAT Sensor p/n from 193414600 to 193414602. Page 137 Change Sensor p/ns for DAT, EFT, OAT, RAT, EAT, LAT from 193414600 to 193414602. D 10/09 Page 113 Changed part number 113072101 to 500429201. E 10/09 Page 12- Added Hot Gas/Seismic options to Code 48 and updated notes as required. Page 163- Added Hot Gas Reheat Section. F 11/09 Page 26- Added Microtech III (p/n 113139501) and No Controls option (p/n 059999804) to Ref# 22. G 03/10 Page 2 thru 4- Updated TOC with new pages, and repaginated document. Added page entry for missing Power Panel section pgs. 141- 154 and Hot Gas Reheat option pg. 166. Page 6- Added new page for additional Document Revisions. Page 19 & 45- Clariﬁed note regarding drive information. Removed comment regarding Rapid CD and added note to use online Drive Cross Reference form instead. Page 72- Updated 600A disconnect p/ns 349935326 to 193438206, 349961205 to 193455001, & 349962214 to 349962243. Updated footnotes as required. Page 87, 89 (old), 87, 88, 90, 91 (New)- Split diagram and table into two pages due to lack of additional room. Updated Gas Heat relays R20- R23B. Page 124 & 126 (old) 126 & 128 (New)- Replaced obsolete 600A disconnect switch p/n 349935332 w/ 193438002, handle p/n 349935631 w/ 193437901, and shaft p/n 349962301 w/ 349962223. Updated footnotes as required. Page 143, 144 (old) 145, 146 (New)- Replaced obsolete 600A disconnect switch p/n 349935332 w/ 193438002, handle p/n 349935631 w/ 193437901, and shaft p/n 349962303 w/ 349962241. Replaced obsolete 800A disconnect switch p/n 349935425 w/ 193438201, mechanism p/n 349961205 w/ 193455001 & shaft mod p/n 349962207 w/ 349962242. Replaced obsolete 1000A mechanism 349961205 w/ 193455001 & Shaft Mod 349962207 w/ 349962242. Updated footnotes as required. H 05/10 Page 125, 128- Changed invalid p/n 034937502 to 349937502. Page 145, 146- Changed 1000A Disconnect Switch p/n 349935426 to 193438206. I 06/10 Page 80, 84- Removed Complete Burner Assembly p/ns. Page 88, 91- Changed p/n 026217000 to 061019403. J 07/10 Page 31- Deleted Ref #110 p/n 098662800 and added footnote #2: “P/N is unit speciﬁc. Contact

McQuay Parts with overall length and bolt hole spacing so that the correct part can be identiﬁed.”

Page 113- Added Vandal Guard Kit p/n: 403909506 & 403909507. Page 115- Added Vandal Guard Kit p/n: 403909508 & 403909515. Page 125, 137- Changed TD1, TD2 p/n 028210144 to 193464401. Added footnote. Page 136- Changed Battery p/n from RB2325 to 049754501. K 09/10 Corrected various formatting/spelling issues. Added in Large Condenser sizes and p/ns on various pages. Updated TOC, page headers, and parts tables with new sizes. New RPS size units include: 081, 091 & 101. P/Ns ref: EPS_5229 Rev J. Page 3, 4- Added missing header items in Section M of TOC. Page 5- Updated logo to current design. Page 13- Added Quiet Fan options to Code 47. Page 63- Changed 575V p/ns: 349956741 to 193456304, 349956742 to 193456305, 349956743 to 193456306, 349956744 to 193456307, & 349956745 to 193456308. Page 111- Added Quiet Fan option (Code 47= 3 or 4) to Notes. Page 113- Deleted invalid Prop p/n 060013101. Added missing qty. of 9 to Ref #111 Size 100 575V. Added “Code 47= 1, 2” to page header. Page 115- Deleted invalid Prop p/n 060013101. Added missing qty. of 12 to Ref #111 Size 100 575V. Added “Code 47= 1, 2” to page header. Deleted RCS Vandal Guard p/n 403909515. Added Electro Fin coated Condenser Coil p/n 258957002. Added footnote #1 regarding Code 43. Page 116 (New)- Added page with “Quiet Fan Assembly” p/ns & instruction drawing. Repaginated document and updated TOC. Page 164 (Old) 165 (New)- Added Code 48 information to Notes. Page 167 (New)- Added new page to accommodate Large Condenser size p/ns. Page 166 (Old) 168 (New)- Added instruction drawing and assigned bubble numbers to p/n table. Updated p/n table with Large Condenser sizes. Added footnote #1 regarding HGRH located on Circuit #2.

McQuay International, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 5

Parts List Revision History, Continued

Revision Date Description

L 11/10 Page 140- Replaced COM p/ns: 193408101 with 090016709; 193408201 with 090016711; 193408202 with 090016712, & 193408301 with 090016710. M 1/11 Page 121- 123 - Added After 12/10 Ref # 320 p/n: 111054701. Page 140 - LonWorks DAC & SCC p/ns were reversed. DAC= 090016712, SCC= 090016711. N 2/11 Page 140- Changed Terminal block p/ns: 193410402 to 193410302, 193410403 to 193410303, 193410405 to 193410305, 193410406 to 193410306, 193410407 to 193410307 & 193410408 to

193410308. P 6/11 Page 29: Re-arranged/updated Ref #6 Bub & P/ns. Added 6B Blade p/n 300044027, 6C Shaft p/n 300044028, 6D bearing p/n 300044029, 6F Bushing p/n 000804000. Changed 6I motor p/ns from 065820200 & 046514600 to 300046887 & 300046251. Page 46: Added box to clarify fan position diagram. Q 7/11 Page 46: Changed Ref #2 40” Inlet Funnel p/n 031940906 to 031940905. R 7/11 Page 113, 115: Added new Ref #111 Condenser Motor p/n 500552601 and updated descriptions. Added footnotes #2 & 3. S 9/11 Page 113: Clariﬁed Bub #s 5 & 6 descriptions. T 12/11 Page 113: Corrected Vandal Guard p/ns per unit sizes. Page 115: Added Vandal Guard p/n 403909509 to RCS110- 140. Corrected Vandal Guard p/ns per unit sizes. Page 140: Changed SPS1-3 p/ns 049545012 to 910124529 & 049545013 to 910124528. Added footnote #2. Page 168: Added MGHRH p/ns-Valve 404031101 & Coil 404031101. U 01/12 Page 140: Added After 9/11 SPS1, 2 p/ns 910117463 & 910117462. Deleted unused sensor SPS3- Code 13= 8 is invalid. V 3/12 Cover, Pg. 6: Updated to current Daikin McQuay logo format. Page 91: Deleted duplicate Ref #61& 63 p/ns. W 6/12 Various: Changed “McQuay Parts” to “Daikin Mcquay Parts.” Various: Changed Sensor p/n “193414601” to “193414602”. Page 34, 53: Added motor codes to table. Page 77: Changed header from “500/650” to “500/640”. Page 116: Updated footnote. Page 166, 176: Added RCS HGBP kit 193330712. Y 7/12 Page 65: Changed PC7 from 060015801 to Switch 910115489 & retroﬁt kit 910122413. Changed Fitting p/n from 049763002 to 910122414. Added tootnote #1 & updated drawing.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 6

Nomenclature

Model Number- Dataplate

R PS 090 D S S

R = RoofPak

PS = Heating, Mechanical Cooling; Single Zone Unit

FS = Heating, Future Mechanical Cooling; Single Zone Unit

CS = Condensing Section Only; Single Zone Unit DT = Draw Through Heating, Mechanical Cooling

Unit Conﬁguration

Nominal Capacity (tons)

Design Vintage

Heat Medium

A = Natural Gas

E = Electric

S = Steam

W = Hot Water

Y = None (Cooling Only)

Cooling Coil Size

S = Standard (Low Airﬂow)

L = Large (High Airﬂow)

Nomenclature

Serial Number

FBO U 08 08 04810

Plant Identiﬁcation

FBO = Faribault

U= Unit

Year of

Manufacture

08= 2008 09= 2009 10= 2010

etc.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 7

Serial Number (build sequence)

Month of Manufacture

01= January 02= February 03= March 04= April 05= May 06= June 07= July 08= August 09= September 10= October 11= November 12= December

Nomenclature

Continued

Unit Model Number- Complete

RPS 090D S A Y 1 EU D 27 AL P1 LD 1 5 S 1 CH U120 BY FE 44B1 NJY 1250A Y AB Y CYYS 4Z104D

Code 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

YYYYYY BBBBBB 36A1 QJY 1250A 110SSB YYYY YYYYYY YYYYYY B B BB Y 6 MY R 1 1 1 Y D YY1AAA

29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50-54

Unit Section Layout Examples

A=

Return Air/Outside Air/

Heat Recovery/Prop Exhaust

Section

B C F G

A

Prop Exhaust Draw Thru

A

Heat Recovery Draw Thru Heat Recovery Blow Thru

A

B, C, D, E=

Draw-Thru Section

D

B C F G

D

H J

RFS RCS

B C F G

D

F=

Supply Fan

Section

K M

L

K M

H

J K

G, H, I=

Blow-Thru Section

RPS

J=

Final

Filter

B C F G

A

D

Return Air Fan Draw Thru

A

K=

Discharge

Plenum

B C F

L=

Out-of Air-

Stream

Blank Ac-

cess

H

H J

G

Condenser Section

J K M

I

M

M=

K M

Return Air Fan Draw Thru

RDT

A

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 8

B C F

With Prop Exhaust With Return Air Fan

D

E

M

A

B C F

D

E

M

Nomenclature

Continued

General Options

Unit Model Codes that Pertain: 06, 07, 51- 54

Section A Return/Outside Air/Heat Recovery Options

Unit Model Codes that Pertain: 14, 15, 19, 20, 21, 22, 23, 24, 49

Sections B, C, D, E Draw-Thru Cooling Sections

Section B- Filter

Unit Model Codes that Pertain: 25

Section C- Draw-Thru Blank Access

Unit Model Codes that Pertain: 26

Section D- Draw-Thru Cooling Section

Unit Model Codes that Pertain: 27, 28

Section E- Draw-Thru Heating/Blank Section

Unit Model Codes that Pertain: 30

Section F- Supply Fan Options

Unit Model Codes that Pertain: 14, 15, 31, 32, 33, 49

Sections G, H, I Blow-Thru Options (N/A RDT)

Section G= Blow-Thru Heat/Blank

Unit Model Codes that Pertain: 04, 34

Section H= Blow-Thru Blank Access or Sound Attenuator

Unit Model Codes that Pertain: 38

Section I- Blow-Thru Coil Sections

Unit Model Codes that Pertain: 35, 36, 37

Section J- Final Filter Section

Unit Model Codes that Pertain: 39

Section K- Discharge Plenum Section

Unit Model Codes that Pertain: 40

Section L- Blank Compartment Section- Out of Airstream

Unit Model Codes that Pertain: 41

Section M- Condenser Section

Unit Model Codes that Pertain: 42, 43, 44, 45, 47

Section N- Main Control Panel

Unit Model Codes that Pertain: 08, 09, 10, 11, 12, 18

Prop Exhaust

(not shown)

Inverters, Line Reactors

& Manual Bypass

Electric Heat Contol Panel

Main Control Panel

N

Auxiliary Controls/ Remote Sensors

Unit Model Codes that Pertain: 13, 16, 17

Supply Air Section

Condenser Section

120V

Line Box

Condenser Control Panel

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 9

Nomenclature

Continued

Code 04= Heat Section- Type of Heat

Y= No Heat A= Natural Gas Heat E= Electric Heat S= Steam Heat W= Hot Water Heat

Code 05= Split Unit -Always Y

Code 06= Insulation and Liners

1= 1”, 3/4# with liners on doors 2= 1½”, 1.5# with galvanized solid liners on doors & ceilings 3= 1½”, 1.5# with galv. perforated liners in plenums, solid elsewhere 4= 1½”, 1.5# with galvanized solid liners on doors, ceilings and ﬂoors 5= 1½”, 1.5# with galv. perforated liners in plenums, solid elsewhere 6= 1½”, 1.5# with Stainless solid liners on doors, ceilings and ﬂoors

Code 07= Approval Agency Listing

YY= None EY= ETL/MEA-USA CY= ETL-Canada

Code 08= Main Control Box Location

D= Discharge Plenum F= Supply Fan (RDT)

Code 09= Unit Voltage

12= 208/60/3 27= 460/60/3 29= 230/60/3 37= 575/60/3

Code 10= Starting Option

AL= Across-the-Line

Code 11= Field Power Connection and Disconnect

P1= Single Power Block: Complete Unit Q1= Two Power Blocks: EH/Balance of Unit R1= Two Power Blocks: Fans/Balance of Unit A2= One thru door Disconnect: Complete Unit C2= Two thru door Disconnects: Fans & CB/Balance of Unit B2= Two thru door Disconnects: EHB/Balance of Unit D2= Three thru door Disconnects: EH/Fans & CB/Balance of Unit

Code 12= Temperature Controls

MicroTech II

LD= LonMark w/ Discharge Air Temp. Ctl. LS= LonMark w/ Space or Zone Ctl. BD= BACNet w/MSTP w/ Discharge Air Temp. Ctl. BS= BACNet w/MSTP w/ Space or Zone Ctl. ED= BACNet w/Ethernet w/ Discharge Air Temp. Ctl. ES= BACNet w/Ethernet w/ Space or Zone Ctl. SD= Standalone w/ Discharge Air Temp. Ctl. SS= Standalone w/ Space or Zone Ctl.

MicroTech III

LE= LonMark w/ Discharge Air Temp. Ctl. LF= LonMark w/ Space or Zone Ctl. BE= BACNet w/MSTP w/ Discharge Air Temp. Ctl. BF= BACNet w/MSTP w/ Space or Zone Ctl. EE= BACNet w/Ethernet w/ Discharge Air Temp. Ctl. EF= BACNet w/Ethernet w/ Space or Zone Ctl. SE= Standalone w/ Discharge Air Temp. Ctl. SF= Standalone w/ Space or Zone Ctl.

No Controls

YM= No Temperature Controls YC= No Temp. Ctls. w/6 to 9 volt DC modulating gas heat actuator

Code 13= Air Flow Controls

Y= None 1= 1 duct sensor 2= 2 duct sensors 3= 1 duct and 1 space sensor 4= 1 space sensor 5= Duct Hi Limit (DHL) sensor

Code 14= Inverters

Y= None

Separate Section

1= SA Fan only w/bypass 2= SA & RA Fans w/bypass 4= RA only w/bypass

No Separate Section

3= SA Fan only w/bypass 5= SA & RA Fans w/bypass 6= SA Fan only no bypass 7= SA & RA Fans no bypass 8= RA Fan only w/bypass 9= RA Fan only no bypass

Code 15= Inlet Vane/Damper Actuators or Inverter Type

Y= None A= ABB Inverter G= Graham Inverter R= Reliance Inverter S= McQuay MD2, MD3, MD6 Inverter F= Field Installed Inverter controlled by MTech II or III

Code 16= Smoke Detectors

Y= None 1= Supply Air Smoke Detector 2= Return Air Smoke Detector 3= 1+ 2

Code 17= Misc. Aux. Controls

C G

Y= None F= Freezestat (Steam or HW Heat only) P= Phase Failure G= Ground Fault Protection L= Line Reactors (Inverter w/ separate section only) A= Freezestat & Phase Failure (Steam or HW Heat only) B= Freezestat & Ground Fault (Steam or HW Heat only) C= Phase Failure & Ground Fault D= Freezestat, Phase Failure & Ground Fault (Steam or HW Heat only) E= Freezestat & Line Reactors (Steam or HW Heat & Inverter w/ separate section only) H= Phase Failure & LIne Reactors (Inverter w/ separate section only) J= Freezestat, P.F. & Line Reactors (ST or HW Heat & Inverter w/ separate section only) K= Ground Fault, Phase Failure & Line Reactors (Inverter w/ separate section only) 1= UV Lights 2= UV Lights & Freezestat (Steam or HW Heat only) 3= UV Lights & Phase Failure 4= UV Lights & Line Reactors (Inverter w/ separate section only) 5= UV Lights, Freezestat & Phase Failure

(Steam or HW Heat only)

6= UV Lights, Freezestat & Line Reactors

(ST or HW Heat & Inv. w/ sep. section only) 7= UV Lights, Phase Failure & Line Reactors (Inverter w/ separate section only) 8= UV Lights, Freezestat, Phase Failure & Line Reactors (ST or HW Heat & Inv. w/ separate section only)

C= Differential Enthalpy Y= None (includes mechanical enthalpy)

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 10

Nomenclature

Continued

Code 18= Misc. Controls/ Unit Length

YYYY= None K___= Remote Keypad (___= Air Handler Length [in.]) R___= Remote Keypad (___= Air Handler Length [in.]) U___= Unit Powered Receptacle (___= Air Handler Length [in.]) V= K + U

Code 19= Return Air Plenum

YY= None (No return air section) BY= Bottom Return HY= Back Return LY= Left Side (opp. drive) Return RY= Right Side (drive side) Return BE= Bottom Return w/ISO. Damper w/ Actuator BB= Bottom Return w/Burglar Bars TY= Top Return

Code 20= Outdoor Air Options

YY= None AE= 100% Outside air damper w/hood & actuator AY= 100% Outside air damper w/hood/no actuator BE= 0- 30% Outdoor air section w/actuator BY= 0- 30% Outdoor air section w/o actuator DE= 0- 100% Econ. w/barometric exhaust damper w/act. DY= 0- 100% Econ. w/barometric exhaust damper w/o act. EE= 0- 100% Econ. w/power closure exhaust damper w/act. EY= 0- 100% Econ. w/power closure exhaust damper w/o act. HE= 0- 100% Econ. w/prop exhaust damper w/act. HY= 0- 100% Econ. w/prop exhaust damper w/o act. FE= same as DE + Design Flow FY= same as DY + Design Flow GE= same as EE + Design Flow GY= same as EY + Design Flow JE= same as HE + Design Flow JY= same as HY + Design Flow KE= same as DE + Ebtron Sensor KY= same as DY + Ebtron Sensor LE= same as EE + Ebtron Sensor LY= same as EY + Ebtron Sensor ME= same as HE + Ebtron Sensor MY= same as HY + Ebtron Sensor

Code 21= Return Air Fan

YYYY= No Return Air Fan 44B()= 44” Airfoil Single Width ()= isolator type: 1= rubber in-shear 2= spring 3= spring w/seismic restraints

Code 23= Return Air Fan Drive Selection

YYYY= No Return Air Fan _ _ _ _ A

Service Factor/Pitch Type

A= Std. SF/Fixed Pitch

Required

RPM

B= 150% SF/Fixed Pitch

C= Std. SF/Variable Pitch

D= 150% SF/Variable Pitch

Code 24= Exhaust Fans

Y= None 2= 2 Prop Exhaust Fan w/ Hood 3= 3 Prop Exhaust Fans + Hood

Code 25= Draw-Thru Filter Section

AB= Angular/30% Throwaway AC= Angular/30%/Intersept AY= Angular/No Media DB= Angular w/LO CFM Blender/30% Throwaway DC= Angular w/LO CFM Blender/30%/Intersept DY= Angular w/LO CFM Blender/No Media EB= Angular w/HI CFM Blender/30% Throwaway EC= Angular w/HI CFM Blender/30%/Intersept EY= Angular w/HI CFM Blender/No Media FA= Low Flat/ 30%Throwaway FB= Low Flat/30%/Intersept FD= Low Flow Flat/65% Cartridge FE= Low Flow Flat/95% Cartridge FG= Low Flow Flat/95% Cartridge/Intersept FY= Low Flow Flat/Rack Only HA= Low Flow Flat w/HI CFM Blender/30%Throwaway HB= Low Flow Flat w/HI CFM Blender/30%/Intersept HD= Low Flow Flat w/HI CFM Blender/65% Cartridge HE= Low Flow Flat w/HI CFM Blender/95% Cartridge HG= Low Flow Flat w/HI CFM Blender/95% Cartridge/ Intersept HY= Low Flow Flat w/HI CFM Blender/Rack Only LD= Large Staggered/65% Cartridge LE= Large Staggered/95% Cartridge LG= Large Staggered/95% Cartridge/Intersept LY= Large Staggered/Rack Only SD= Staggered/65% Cartridge SE= Staggered/95% Cartridge SG= Staggered/95% Cartridge/Intersept SY= Staggered/Rack Only VD= Staggered w/HI CFM Blender/65% Cartridge VE= Staggered w/HI CFM Blender/95% Cartridge VG= Staggered w/HI CFM Blender/95% Cartridge/Intersept VY= Staggered w/HI CFM Blender/Rack Only BY= Blank 24” Section- less ﬁlters and rack CY= Blank 48” Section- less ﬁlters and rack

Code 22= Return Air Fan Motor

YYY= No Return Fan J K Y

Always Y

E= High Eff. ODP motor H= High Eff. Totally-Enclosed J= Premium Eff. ODP K= Premium Eff. Totally- Encl.

J= 5.0 HP P= 25.0 HP K= 7.5 HP Q= 30.0 HP L= 10.0 HP R= 40.0 HP M= 15.0 HP S= 50.0 HP N= 20.0 HP T= 75.0 HP

(prop exhaust option is always J [5.0 HP])

Code 26= Blank Draw-thru Section

Y= None S= Blank 48” Section

Code 27= Draw-Thru Drain Pan/Cooling Coil Section

YYYY= None CYYS= Cooling coil section w/stainless steel sloped drain pan CYYY= Cooling coil section w/galvanized steel sloped drain pan DYYS= Drain Pan only section w/stainless steel sloped drain pan DYYY= Drain Pan only w/galvanized steel sloped drain pan GYYS= Cooling coil w/ Hot Gas Reheat & w/stainless steel sloped drain pan GYYY= Cooling coil w/ Hot Gas Reheat & w//galvanized steel sloped drain pan

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 11

Nomenclature

Continued

Code 28= Draw-Thru Cooling Coil

YYYYYY= No Cooling Coil 4Z 08 3 D

D= Lanced Aluminum

3= 3 Row 4= 4 Row 5= 5 Row

08= 8 Fins-per-inch 10= 10 Fins-per-inch 12= 12 Fins-per-inch

4Z= Type 4EZ

Code 29= Draw-Thru Heating Coil

YYYYYY= No Heating Coil (always)

Code 30= Draw-Thru Heating Section (RDT only) or Blank Spacer Section

YYYYYY= No Heating Section BBBBBB= Blank 48” Section

Hydronic Heat (RDT only)

W22 J 3 E

E= Electric Actuator Y= Less Actuator

2= 2 Way Steam Valve 3= 3 Way HW Valve Y= No Valve

F= 1½” Valve Pkg. H= 2½” Valve Pkg. J= 3.0” Valve Pkg. G= 2.0” Valve Pkg. Y= No Valve Pkg.

S11= 5JA0601H (6FPI, 1 Row 5J Steam Coil) S12= 5JA1201H (12FPI, 1 Row 5J Steam Coil) S13= 5JA0602C (6FPI, 2 Row 5J Steam Coil) S14= 5JA1202C (12FPI, 2 Row 5J Steam Coil) W11= 5WH0901H (9FPI, 1 Row 5WH HW Coil) W22= 5WS0902C (9FPI, 2 Row 5 WS HW Coil)

Code 31= Supply Air Fan

33A()= 33” Airfoil Double Width 36A()= 36” Airfoil Double Width 40A()= 40” Airfoil Double Width 44B()= 44” Airfoil Single Width (RDT only) 49B()= 49” Airfoil Single Width (RDT only) ()= Fan Isolators: 1= RIS 2= Spring 3= 2 + Seismic Snubbers

Code 32= Supply Air Fan Motor

K E Y

Always Y

E= High Eff. ODP Motor H= High Eff. Totally-Enclosed J= Premium Eff. ODP Motor K= Premium Eff. Totally-Enclosed

J= 5.0 HP N= 20.0 HP S= 50.0 HP K= 7.5 HP P= 25.0 HP T= 60.0 HP L= 10.0 HP Q= 30.0 HP U= 75.0 HP M= 15.0 HP R= 40.0 HP

Code 33= Supply Air Fan Drive Selection

_ _ _ _ A

Service Factor/Pitch Type A= Std. SF/Fixed Pitch

Required

RPM

B= 150% SF/Fixed Pitch C= Std. SF/Variable Pitch D= 150% SF/Variable Pitch

Code 34= Blow Thru Heat Section

YYYYYY= No section, cooling only BBBBBB= Blank 48” section, no heat, cooling only

Gas Heat Breakdown:

079 S S C

A= Low CFM Bafﬂe Position B= Medium CFM Bafﬂe Position C= High CFM Bafﬂe Position

E= Modulating Burner/Maximum gas pressure= 0.5 psi R= Modulating Burner/with H.P. Regulator Range= 2- 3 psi S= Modulating Burner/with H.P. Regulator Range= 5- 10 psi H= Hi Turn Down Burner 20:1 T= Hi Turn Down Burner 20:1/with H.P. Regulator Range= 2- 3 psi U= Hi Turn Down Burner 20:1/with H.P. Regulator Range= 5- 10 psi

S= Stainless Steel Heat Exchanger

MBH (in 10’s) ex. 065= 650 MBH [050,064,065,079,080,100110,140,150,200]

Hydronic Heat Breakdown:

W22 J 3 E

E= Electric Actuator Y= Less Actuator

2= 2 Way Steam Valve 3= 3 Way HW Valve Y= No Valve

F= 1½” Valve Pkg. H= 2½” Valve Pkg. G= 2.0” Valve Pkg. J= 3.0” Valve Pkg. Y= No Valve Pkg.

S11= 5JA0601H (6FPI, 1 Row 5J Steam Coil) S12= 5JA1201H (12FPI, 1 Row 5J Steam Coil) S13= 5JA0602C (6FPI, 2 Row 5J Steam Coil) S14= 5JA1202C (12FPI, 2 Row 5J Steam Coil) W11= 5WH0901H (9FPI, 1 Row 5WH HW Coil) W22= 5WS0902C (9FPI, 2 Row 5 WS HW Coil)

Electric Heat Breakdown:

E020 1 Y

Always Y

1= 1 Stage 2= 2 Stages 4= 4 Stages 6= 6 Stages

E020= 20 KW Heater E200= 200 KW Heater E040= 40 KW Heater E240= 240 KW Heater E060= 60 KW Heater E280= 280 KW Heater E080= 80 KW Heater E320= 320 KW Heater E100= 100 KW Heater E120= 120 KW Heater E160= 160 KW Heater

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 12

Nomenclature

Continued

Code 35= Blow-Thru Drain Pan/Cooling/Heating Coil Section

YYYY= None CYYS= Cooling coil section w/stainless steel drain pan CYYY= Cooling coil section w/galvanized steel drain pan DYYS= Stainless Steel Drain pan only (48” blank section) DYYY= Galvanized Steel Drain pan only (48” blank section) GYYS= Stainless Steel Drain pan w/ HG Reheat (48” blank section) GYYY= Galvanized Steel Drain pan w/ HG Reheat (48” blank section)

Code 36= Draw-Thru Cooling Coil YYYYYY= No Cooling Coil 4Z 08 3 D

D= Lanced Aluminum

3= 3 Row 4= 4 Row 5= 5 Row

08= 8 Fins-per-inch 10= 10 Fins-per-inch 12= 12 Fins-per-inch

4Z= Type 4EZ

Code 37= Draw-Thru Heating Coil

YYYYYY= No Heating Coil (always)

Code 38= Blow-Thru Blank Access Section

Y= None- no section B= Blank Section after Heat Section- 48” section G= 36” Straight Attenuator- 48” Section K= 36” Straight Attenuator- 48” Section w/Tedlar Coating H= 60” Straight Attenuator- 24”/48” Section L= 60” Straight Attenuator- 24”/48” Section w/Tedlar Coating

Code 39= Final Filter Section

Y= None A= Flat ﬁlter section, 95% cartridge, 24”/24” B= Flat ﬁlter section, 95% cartridge, 24”/48” C= Blank- 24”/24” section D= Blank- 48”/48” section E= Flat ﬁlter section, 95% cartridge, 24”/24” with Intersept F= Flat ﬁlter section, 95% cartridge, 24”/48” with Intersept G= Flat ﬁlter section, 95% HEPA, 24”/24” H= Flat ﬁlter section, 95% HEPA, 24”/48” J= Flat ﬁlter section, 95% cartridge, 24” K= Flat ﬁlter section, 95% cartridge, 48” L= Flat ﬁlter section, 95% cartridge, 24” with Intersept M= Flat ﬁlter section, 95% cartridge, 48” with Intersept N= Flat ﬁlter section, 95% HEPA, 48” C or Q= Blank- 24”/24” section D or R= Blank- 24”/48” section S= Blank- 24” section T= Blank- 48” section

Code 40= Discharge Plenum

BY= Bottom Discharge BB= Bottom Discharge w/Burglar Bars BE= Bottom Discharge w/Discharge Damper (VAV) GY= Bottom Discharge (RDT) GB= Bottom Discharge w/Burglar Bars (RDT) FY= Front Discharge (RFS only) SY = LH Side Discharge TY= Top Discharge

Code 41= Blank Compartment Section- Out of Airstream

Y= None- no selection required 1= 48/24” Blank Section only- out of airstream with light 2= 48” Blank Section only- out of airstream with light

Code 42= Compressor Capacity Control

6= 6 steps

Code 43= Condenser Options

MG= Microchannel Coil w/ Coil Guards MS= Microchannel Coil w/ Seal Tite Conduits MB= Alum. Fin Coil w/ Coil Guards & STC

Code 44= Compressor Type

R= Scroll R410A

Code 45= Compressor Isolation

1= Resilient rubber-in-shear

Code 46= Piping Options

1= Hot Gas Bypass, circuit #1 only 2= Hot Gas Bypass, circuits 1 & 2 3= Replaceable Filter Drier Core 4= 1 + 3 5= 2 + 3 Y= None

Code 47= Low Ambient Operation

1= Fantrol 2= Speedtrol 3= Quiet Fan + Fantrol 4= Quiet Fan + Speedtrol

Code 48= IBC Seismic Construction

H= Modulating Hot Gas Reheat I= Seismic Construction - Code 21 and/or 31 must be ***1 or ***3 K= Modulating Hot Gas Reheat and Seismic Construction Y= None

Code 49= Supply and Return Fan Options

Y= None A= SA fan belt guard B= SA fan section light C= A + B D= SA & RA fan belt guard E= SA & RA section light F= D + E

Code 50= Misc.

Code 51= Packaging

Code 52= Parts Warranty

Code 53= Compressor Warranty

Code 54= Heat Exchanger Warranty

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 13

Nomenclature

Continued

Control Locations

PC7 (located in Supply Air Section) is not shown.

RPS, RFS

RDT

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 14

Electrical Legend

Schematic Sym. Description Location

ACT3, 4 Actuator Motors, Economizer Dampers Economizer Section ACT5 Actuator Motor, Discharge Isolation Damper Discharge Section ACT6 Actuator Motor, Return Air Isolation Damper Return Air Section ACT7 Actuator Motor, Heat Face/Bypass Coil Section, Heat ACT8 Actuator Motor, Cool Face/Bypass Coil Section, Cool ACT 10, 11 Actuator Motors, Exhaust Dampers Return Air Section AFD10 Inverter, Supply Fan AFD or Supply Fan Sect. AFD11 Inverter, Speedtrol Motor Condenser Section AFD20 Inverter, Return Fan AFD or Supply Fan Sect. AFD21 Inverter, Speedtrol Motor Condenser Section AS Blower Air Switch Furnace Section BM Burner Blower Motor Furnace Section C10 Power Factor Capacitors, Supply Fan Supply Air Section C20 Power Factor Capacitors, Return Fan Return Air Fan CB10 Circuit Breaker, Supply Fan Main Control Box CB20 Circuit Breaker, Return Fan Main Control Box CCB1, 2 Compressor Control Boards Main or Cond. Ctl. Box COMPR.1-6 Compressors Condenser Section CS1, 2 Control Switches, Refrigerant Circuits Condenser Control Box DAT Discharge Air Temperature Sensor Discharge section DFLH Design Flow Sensor, Left Hand Return Section DFRH Design Flow Sensor, Right Hand Return Section DHL Duct High Limit Main Control Box DS1 Disconnect, Total Unit or Condenser/Heat Main Control Box DS2 Disconnect, SAF/RAF/Controls Main Control Box DS3 Disconnect, Electric Heat Electric Heat Section DS4 Disconnect, Condenser Cond. Control Box DS6 Disconnect- Unit Supplied Line Voltage Condenser Section EFT Entering Air Temperature Sensor Supply Fan Section EHB1 Staged Electric Heat Board Main Control Box ECB1 Ebtron Sensor Return Air Section EXPA, B, D Expansion Board Main Expansion Board F1, 1A Fuse, Control Circuit, T1 Primary Main Control Box F1C Fuse, Control Circuit, T1 Secondary Main Control Box F2 Fuse, Control Circuit Condenser Control Box F3 Fuse, Burner Motor Main Control Box F4 Fuse, T4 Transformer Main Control Box F6A, B, C Fuse, Unit Supplied Line Voltage Condenser Section F11 Fuse, Speedtrol Motor Main Control Box F21 Fuse, 208V Speedtrol Motor Main Control Box FB8 Fuseblock, Main Transformer Main Control Box FB31-40 Fuseblocks, Electric Heat (Top Bank) Electric Heat Section FB41-50 Fuseblocks, Electric Heat (Bottom Bank) Electric Heat Section FD Flame Detector Furnace Section FLC Fan Limit Control Furnace Section FS1 Freezestat Coil Section, Heat/Cool FSG Flame Safeguard Furnace Section GCB1 Generic Condenser Board Main Control Box GFS1/GFR1 Ground Fault Sensor/Relay, RPS Unit Main Control Box GFS4/GFR4 Ground Fault Sensor/Relay, RCS Unit Cond. Control Box GRD Ground All Control Boxes GV1 Gas Valve, Pilot Furnace Section GV2, 3 Gas Valves, Main Furnace Section GV4-8 Gas Valve, Hi-Turn Down Furnace Section

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 15

Electrical Legend

Continued

Schematic Sym. Description Location HL 1-10 High Limits, Elec. Heaters (Top Bank) Electric Heat Section

HL 11-20 High Limits, Elec. Heaters (Bottom Bank) Electric Heat Section HL22 High Limit, Gas Heat (Preﬁlters) Supply Air Section HL23 High Limit, Gas Heat (Final Filter) Final Filter Section HL31-40 High Limits, Elec. Heaters (Top Bank) Electric Heat Section HL41-50 High Limits, Elec. Heaters (Bottom Bank) Electric Heat Section HP1, 2 High Pressure Controls Condenser Manifold HP5 High Pressure Control, Gas Furnace Section HS1 Heat Switch, Electric, Shutdown Main Control Box HTR1-6 Crankcase Heaters On Compressors IT Ignition Transformer Furnace Section LP1,2 Low Pressure Controls, Refrigerant Condenser Manifold LP5 Low Pressure Control, Gas Furnace Section LT2 Light, Furnace On Furnace Section LT3 Light, Pilot Gas Valve On Furnace Section LT4 Light, Main Gas Valve On Furnace Section LT10 Light, Supply Fan Supply Air Section LT11 Light, Return Fan Return Air Section LT12 Light, Heat Section Heat Section LT13 Light, Filter Section Filter Section LT14 Light, Final Filter Section Final Filter Section LT15 Light, Discharge Section Discharge Section LT16 Light, Blow-through Coil Section Blow-thru Coil Section LT17 Light, Evaporator Coil Section Evaporator Coil Section LT18 Light, Preheat Section Preheat Section LT19 Light, Blank Section Blank Section LT20 Light, Blank Compartment Blank Compartment LT22 Light, Condenser Section Condenser Section M1-6 Contactors, Compressors Main/Cond. Control Box M10 Contactors, Supply Fan Main Control Box M11-15 Contactors, Condenser Fans, Circuit #1 Cond. Control Box M20 Contactors, Return Fan Main Control Box M21-25 Contactors, Condenser Fans, Circuit #2 Cond. Control Box M29 Contactor, Burner Motor Furnace Section M30 Contactor, Supply Fan Inverter Inverter Bypass Box M31-39 Contactors, Elec. Heaters (Top Bank) Electric Heat Section M40 Contactor, Return Fan Inverter Inverter Bypass Box M41-50 Contactors, Elec. Heaters (Bottom Bank) Electric Heat Section M51, 52, 53 Contactor, Prop Exhaust Fan Motor Return Air Section MCB1 Microprocessor Control Board Main Control Box MJ Mechanical Jumpers Terminal Blocks MMP1-6 Manual Motor Protectors, Compressors Main/Cond. Control Box MMP10 Manual Motor Protector, Supply Fan Main Control Box MMP11- 14 Manual Motor Protectors, Cond. Fans Ckt. 1 Main/Cond. Control Box MMP20 Manual Motor Protector, Return Fan Main Control Box MMP21- 25 Manual Motor Protectors, Cond. Fans Ckt. 2 Main/Cond. Control Box MMP51, 52, 53 Manual Motor Protectors, Prop Exhaust Return Air Section MP1-6 Motor Protectors, Compressors On Compressors NB1, 2 Neutral Blocks Main Control Box NB3 Neutral Block Cond. Control Box OAE Outside Air Enthalpy Control Economizer Section OAT Outside Air Temperature Sensor Discharge Bulkhead

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 16

Electrical Legend

Continued

Schematic Sym. Description Location OL10 Overload Relays, Supply Fan Main Control Box OL20 Overload Relays, Return Fan Main Control Box OL 51,52, 53 Overload Relays, Prop Exhaust Fan Return Air Section PB1 Powerblock, Total Unit or Cond./Heat Main Control Box PB2 Powerblock, SAF/RAF/Controls Main Control Box PB3 Powerblock, Electric Heat Electric Heat Section PB4 Powerblock, Condenser Cond. Control Box PB9, 10 Powerblock, Supply Fan Unit Split Junction Box PB19, 20 Powerblock, Return Fan Unit Split Junction Box PB31 Power Block, DS3 Power Distribution Electric Heat Control Box PB41 Power Block, Power Distribution RCS Control Box PC5 Pressure Control, Clogged Filter Filter Section PC6 Pressure Control, Clogged Final Filter Final Filter Section PC7 Pressure Control, Proof of Airﬂow Supply Air Filter PC8 Pressure Control, Minimum Airﬂow Evaporator Coil Section PC12, 22 Pressure Control, FanTrol Cond. Bulkhead PC13, 23 Pressure Control, Fan Condenser Section PS1, 2 Pumpdown Switches, Refrigerant Circuits Cond. Control Box PS3 Pumpdown Switch, Unit Main Control Box PVM1 Phase Voltage Monitor, RPS Unit Main Control Box PVM4 Phase Voltage Monitor, RCS Unit Cond./Fuse Ctrl Box R1, 2 Relays, High Pressure Reset Main/Cond. Control Box R5.1- 8.1 Relays, Compressor, Safety/Cool Fail Main/Cond. Control Box R9, 10 Relays, Compressor Lockout Main/Cond. Control Box R11, 12 Relays, Low Ambient Main/Cond. Control Box R13.1, 14.1 Relays, Compressor, Safety/Cool Fail Main/Cond. Control Box R12, 13, 14 Relays, Condenser Fans R18, 19 Relays, Cool Failure Indicator Main Control Box R20 Relay, HW, Steam or Electric Heat Main Control Box R20, 21, 22 Relays, Gas Heat Furnace Section R23 Relay, Gas Heat Valve or Electric Heat Furnace or Elec. Ht. CB R24 Relay, Gas Heat Alarm Main Control Box R25 Relay, Gas Heat Start, Supply Fan Inverter Main Control Box R26 Relay, Occupied/Unoccupied Main Control Box R27 Relay, Exhaust Dampers Main Control Box R28 Relay, Isolation Dampers Main Control Box R29 Relay, Remote Fire Alarm Main Control Box R30 Relay, Cool Valve w/ F&B Main Control Box R45 Relay, UV Lights Main Control Box R46_47 Relay, Supply Fan Inverter increase/decrease Main Control Box R48_49 Relay, Return Fan Inverter increase/decrease Main Control Box R62 Relay, Special Main Control Box R63 Return Air Inverter Main Control Box R66 Relay, RA Smoke Detector Main Control Box R67 Relay, Supply Fan Enable Main Control Box R68 Relay, Return Fan Enable Main Control Box R69 Relay, Inverter Bypass VAV Box Interlock Main Control Box R81- 88 Relays, Smoke Main Control Box RAE Return Air Enthalpy Sensor Return Air Section RAT Return Air Temperature Sensor Return Air Section REC1 Receptacle, Main Box Main Control Box REC2 Receptacle, Condenser Box Cond. Control Box

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 17

Electrical Legend

Continued

Schematic Sym. Description Location REC3 Receptacle, Field Power, 115V Discharge Bulkhead REC10-23 Receptacles, Cabinet Section Cabinet Sections S1 Switch, System On/Off, RPS Unit Main Control Box S2 Switch, System On/Off, RCS Unit Cond. Control Box S3 Switch, Furnace On/Off Furnace Section S4 Switch, Inverter Bypass On/Off Main Control Box S6 Switch, Return Fan Vanes Adjustment Main Control Box S7 Switch, Local On/Off/Auto to Controller Main Control Box S10-22 Switches, Cabinet Section Lights Cabinet Sections S40-45 Switches, Door Interlock, UV Lights Cabinet Sections SD1 Smoke Detector, Supply Air Discharge Section SD2 Smoke Detector, Return Air Return Air Section SPS1, 2, 3 Static Pressure Sensors, Duct or Building Main Control Box SPTRL Switch Speedtrol Pressure Condenser Section SR1-3 Sequence Relays, Electric Heat Electric Heat Section SV1-4 Solenoid Valves, Liquid Discharge Bulkhead SV5-8 Solenoid Valves, Hot Gas Discharge Bulkhead T1 Transformer, Main Control Main Control Box T2 Transformer, Unit 24V Main Control Box T3 Transformer, Controller, 18V Main Control Box T4 Transformer, Exhaust Dampers Main Control Box T5 Transformer, Electric Heat Electric Heat Section T6 Transformer, Unit Supplied 120V Power Condenser Section T7 Transformer, Gas Pilot Valve Furnace Section T8 Transformer, Gas Main Valve Furnace Section T9 Transformer, 24V Refrigerant Circuit Main Control Box T11 Transformer, Speedtrol, 230V Cond. Control Section TB1 Terminal Block, 115V, Field Main/Cond. Control Box TB2 Terminal Block, 24V, Field Main/Cond. Control Box TB3,4 Terminal Blocks, Condenser Cond. Control Box TB5 Terminal Block, 115V, Factory Main/Cond. Control Box TB6 Terminal Block, 115V/24V, Factory Main Control Box TB7, 8 Terminal Block, 24V, Factory Main Control Box TB10 Terminal Block, Heating Main Control Box TB11 Terminal Block, Heating Electric Heat Section TB12, 13 Terminal Blocks, Electric Heat, Power Electric Heat Section TB25 Terminal 115V Factory Unit Split Junction Box TB27, 28 Terminal 24V Factory Unit Split Junction Box TC1, 2 Temperature Controls, FanTrol Cond. Control Box TC12, 14 Temperature Control, Fantrol Cond. Control Box TD1, 2 Time Delays, Compressor Lockout Main/Cond. Control Box TD10 Time Delay, Hi-Turn Down Burner Furnace Section TD20 Time Delay, Duct Hi Limit Main Control Box TR1, 2 Transducer, Pressure Main Control Box VM1 Valve Motor, Heating Heating Section VM5 Valve Motor, Cooling Coil Section, Cool VV1 Vent Valve Furnace Section ZNT1 Zone Temperature Sensor, Control Field Installed

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 18

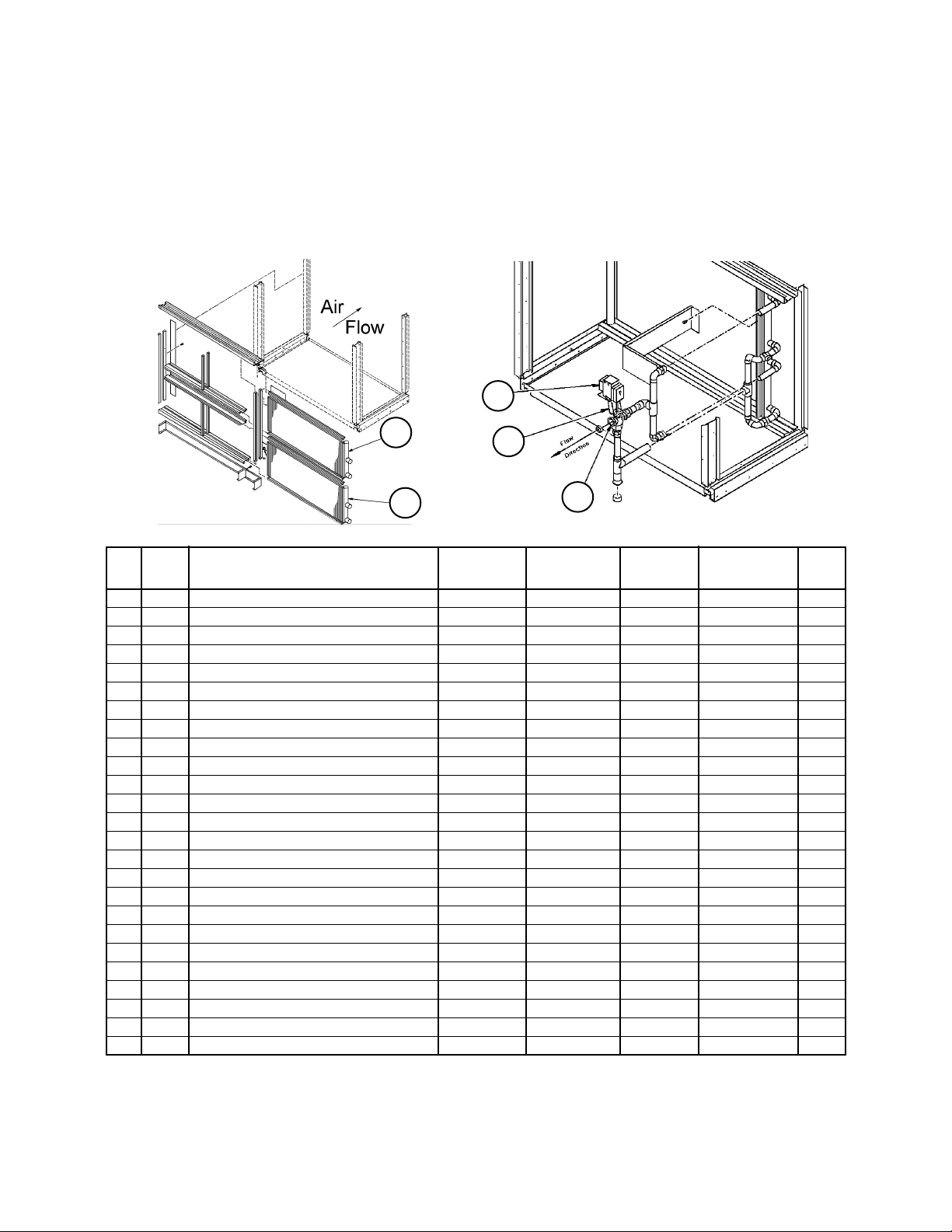

Section A- Outdoor/Return Air Section

Notes

➩

Primary Codes that pertain: 19, 20, 21, 22, 23, 24 Additional Codes that pertain: 06, 09, 12, 14, 15, 16, 17, 49

Codes 19 and 20 determine the base section. Code 19 is the Return Air Plenum, and determines if the unit has back (a.k.a. horizontal) return air, bottom return air, Top return air or side return air. The plenum is required for any outdoor air application with an economizer (Code 20= BE, BY, DE, DY, EE, EY, FE, FY, GE, GY, HE, HY, JE or JY). The only case in which a plenum is not required is when a 100% outdoor air damper and hood are ordered (C20= AE, AY).

Codes 21, 22, 23 determine the return air fan, motor and drives. These codes only pertain to units with a 0-100% economizer (C20= DE, DY, EE, EY, FE, FY, GE, GY, HE, HY, KE, KY, LE, LY, ME, MY, JE or JY). The fan section parts, the fans, and the motors are listed in this section. The drive components (fan sheave, motor sheave, belt,

and fan bushing) are not listed as they are unique to the unit. If a drive component is required you may use the number from the part and cross reference it with the Drive Components Cross Reference form number: 571006, or contact Daikin McQuay Parts to ensure that the needed part(s) are correctly identiﬁed.

Code 24 determines if there is a prop exhaust fan and if so, whether it is a 2-fan or 3-fan arrangement.

Code 06 determines the panels used in ﬁnal cabinet assembly (return air units only). For sheet metal components

that make up the Outdoor/Return Air Section, contact Daikin McQuay Parts to insure correct liners, insulation and hardware are ordered.

Code 09, the voltage, is part of the motor part number identiﬁcation.

Code 12, the control system comes into play when an economizer is present. The economizer comes with an actuator motor on any MicroTech unit (C12= L*, B*, E* or S*]), but may not have a motor if the unit has controls by others (C12= YC or YM).

Code 14 determines if the return fan has an inverter, or variable frequency drive. If code 14 equals 1-9 , then the unit has inverters.

Code 15, determines the inverter type.

Code 16 determines if a smoke detector is located in the return air cabinet. If C16= 1 or 3, a smoke detector (SD2) is present.

Code 17 determines the Enthalpy Control. If C17= Y* and the unit has an economizer there is a mechanical enthalpy control (OAE). If C17= C*, there is a differential enthalpy control (OAE + RAE).

Code 49 determines if the return air cabinet has a light, switch and receptacle (C49= B), fan belt guards (C49= D) or both (C49= F).

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 19

Section A- Outdoor/Return Air Section

100% Outside Air Damper with Hood w/ACT3

C20= AE or AY and C19= YY

No Return Air Plenum

Air

Flow

11

15

14

13

12

9

4

SectionB

9

10

15

Ref. Part Actuator Qty.

No. Description C20= AE C20= AY

4 Damper Assy Damper Only 098313801 039813801 1 9 Liner 056132701 056132701 2 10 Panel- Hood Side 056132203 056132203 1 11 Panel- Hood Side 056132204 056132204 1 12 Panel- Hood Top 056131802 056131802 1 13 Louver 056132002 056132002 5 14 Channel- Support 056132403 056132403 2 15 Channel- Support 056132102 056132102 2

1

Complete assy includes the damper assy and linkage (no actuator) or actuator assy. For Damper components see the following page. Note: The outdoor air damper with actuator (C20= AE) must have MicroTech controls. Dampers without actuators (C20= AY) must have controls by others (12= YM, YC).

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 20

1

055979603 055979602 1

Section A- Outdoor/Return Air Section

100% Outside Air Damper Detail

C20= AE or AY and C19= YY

23

29

26

16

Damper Assy Detail

28

14

24

13

25

27

Motorized Linkage

Detail:

C20= AE

22

21

4

Manual Linkage Detail:

17

23

5

7

21

20

6

C20= AY

40

21

10

22

17

4

20

40

Ref. Part Actuator Qty. No. Description C20= AE C20= AY 4 Shaft- Linkage 055979701 not used 2

5 Shaft Assy not used 056081001 1 6 Adapter Plate- CrankArm 055542001 not used 1 7 Shaft- Linkage not used 055536609 2 10 Channel- Support not used 056080601 1 13 Blade- Damper 044195103 044195103 13 14 Grille 055982601 055982601 2 16 Stop/Anti- Rotate- Damper 065779801 065779801 2 17 Support- Damper Motor 055982001 not used 1 Support- Damper not used 056080701 1 20 Crank Arm- Damper 032279200 not used 1 Crank Arm- Adjustable not used 025072600 1 21 Ball Joint- Damper 000887000 000887000 4 22 Actuator- Motorized ACT3 059999804 not used 1 23 Bushing- Linkage Bar, Nylon 046098300 046098300 12 24 Bushing- Damper Blade, Nylon 043730400 043730400 24 25 Gasket- Vinyl 044193116 044193116 12 26 Gasket- Vinyl 045655716 045655716 1 27 Plug- Damper End 041003501 041003501 12 28 Plug- Damper End 041003502 041003502 6 29 Plug- Damper End 041003503 041003503 6 40 Bearing- Sleeve not used 047138504 2

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 21

Section A- Outdoor/Return Air Section

0 - 30% Outside Air Section w/ ACT3

C20= BE or BY and C19= BE, BY, or HY

11

26

14

30

9

Damper Detail

10

12

13

15

33

31

13

Linkage

Detail:

Without Actuator C20= BY

8

34

32

Linkage

Detail:

With Actuator C20= BE

15

13

34

35

36

35

Ref. Part

Actuator

Qty. No. Description C20= BE C20= BY,HY Damper Assembly- Complete 1 055608703 055608702 1

Damper Assembly

2

098314001 098314001 1

8 Blade- Damper 044193212 044193212 5 9 Gasket- Vinyl 055940203 055940203 1 10 Gasket- Vinyl 044193124 044193124 5 11 Seal- End 055942501 055942501 2 12 Grille 055942601 055942601 1 13 Support- Motor 055595701 not used 1 Rod- Support Angle not used 055608601 1 14 Bar- Linkage 055942701 055942701 2 15 Shaft- Linkage 055536608 055536608 1 26 Louver 055593202 055593202 6 30 Plug- End 041003505 041003505 5 31 Plug- End 041003506 041003506 5 32 Bushing- Damper Blade 043730400 043730400 10 33 Bushing- Linkage Bar, Nylon 046098300 046098300 10 34 Ball Joint- Damper 000887000 not used 2 35 Actuator- Motorized, 120V ACT3 059999804 not used 1 36 Crank Arm- Damper 032279200 not used 1 N/S Isolation Damper C19= BE only 3 055942906 055942906 1

N/S= Not Shown on Diagram.

1

Complete assy includes the damper assy and linkage (no actuator) or actuator assy.

2

Damper only, no linkage or actuator components.

3

Details follow exhaust damper section.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 22

Section A- Outdoor/Return Air Section

0- 100% Economizer Section with Barometric Exhaust Damper

Units without Return Air Fans

C20= DE, DY, EE, EY, FE, FY, GE, GY, KE or KY and C21= YYYY

12

Back Return (C19= HY) shown.

11

Ref Part Part Qty.

No. Description Number

11 Economizer Damper 1 w/Act.(C20= DE, EE, FE, GE) 055941103 1 w/o Act. (C20= DY, EY, FY, GY) 055941102 1 12 Exhaust Damper Assy Powered (C20= EE, EY, GE, GY) 112040401 1 Barometric (C20= DE, DY, FE, FY) 112039601 1

N/S Isolation Damper C19= BE only 3 055942906 1

N/S= Not Shown on diagram.

1

Economizer with actuator (C20= DE, FE, GE, HE) requires MicroTech Controls. Without actuator (C20= DY, FY,

GY, HY), requires controls by others (C12= YM, YC). Economizer detail two pages after next.

3

Details follow exhaust damper section.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 23

Section A- Outdoor/Return Air Section

0- 100% Economizer Section with Barometric Exhaust Damper

Units with 44” Return Air Fans

C20= DE, DY, EE, EY, FE, FY, GE, GY, KE, KY and C21= 44B*

12

124

57

(see Return Fan Detail)

54

16

(see Return

Fan Detail)

124

16

57

126

125

54

Bottom Return

(C19= BY, BE, BD,

BE) shown.

56

55

11

Ref Part Part Qty.

No. Description Number

11 Economizer Damper 1 w/Actuator C20= DE, EE, FE, GE 055941103 1 w/o Actuator C20= DY, EY, FY, GY 055941102 1 12 Exhaust Damper Assy Powered C20= EE, EY, GE, GY 112040401 1 Barometric C20= DE, DY, FE, FY 112039601 1 N/S Isolation Damper C19= BE only 3 055942906 1

16 Gasket .125 x 2.00 055582601 20 54 Gasket 055921404 2 55 Gasket 055921415 2 56 Gasket 055921406 2 57 Gasket 055921407 2 124 Fan Guard 055957610 3 125 Fan Guard 055957611 1 126 Fan Guard 055957612 1

N/S= Not Shown on diagram.

1

Economizer with actuator (C20= DE, FE, GE, HE) requires MicroTech Controls. Without actuator (C20= DY, FY, GY, HY),

requires controls by others (C12= YM, YC). Economizer detail on page after next.

3

Details follow exhaust damper section.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 24

Section A- Outdoor/Return Air Section

0- 100% Economizer Section with Prop Exhaust Fan & Damper

C20= HE, HY, JE, JY, ME or MY and C24= 2 or 3

Diagrams

Section Assembly Detail

20

Fan Guard

-2 fan arrangement shown(C24= 2)

6

41

6

Ref. Part Part Qty.* No. Description Number

N/S Isolation Damper w/ actuator C19= BE only 1 055942906 1 N/S Economizer Damper

2

w/Act.(C20= HE, JE) 055941103 1 w/o Act. (C20= HY, JY) 055941102 1

15

6 Fan Assembly 3 208/230/460V 111056601 Fan Assembly 3 575V 111056602 15 Fan Guard 111181901 1 20 Panel- Weather Hood 111173101 1 41 Hood- Prop Exhaust 111182301 1 Grille Only- Prop Exhaust Hood 111182101 1

N/S= Not Shown on diagram. * Quantity is PER fan.

1

See detail following Exhaust Damper Detail.

2

Economizer with actuator (C20= DE, FE, GE, HE) requires MicroTech Controls. Without actuator (C20= DY, FY, GY, HY),

requires controls by others (C12= YM, YC). Economizer detail two pages after next.

3

See detail following Isolation Damper Detail.

4

Quantity may be two (Code 24= 2) or three (C24= 3).

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 25

4

Section A- Outdoor/Return Air Section

0 - 100% Economizer Damper Detail

C20 ﬁrst digit= D, E, F, G, H, J, K, L, M

Diagrams

24

26

23

Damper Detail

28

18

19

16

24

29

13

27

25

Linkage

Detail:

With

Actuator

C20= *E

7

21

20

21

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 26

6

22

Detail

19

17

40

21

4

* D, E, F, G, H, J

21

7

21

Linkage

Detail:

Without

Actuator

C20= *Y

17

5

6

11

20

Section A- Outdoor/Return Air Section

0 - 100% Economizer Damper w/ ACT3

C20 ﬁrst digit= D, E, F, G, H, J, K, L, M

Components

Ref. Part Actuator Qty. No. Description C20= *E C20= *Y Damper Assy- Complete

Damper Assembly 2 098313301 098313301 1 4 Shaft Assembly 058390001 not used 1 5 Shaft Assembly not used 056081001 1 6 Plate- Crank Arm 055542001 not used 1 Shaft Assembly not used 055536603 1 7 Shaft- Linkage 058389901 058389901 1 11 Channel- Support not used 111087501 1 13 Blade- Damper 044195103 044195103 12 16 Stop/Anti-Rotate- Damper 065779801 065779801 4 17 Support- Damper Motor 055546601 not used 1 Channel- Support not used 111087502 1 18 Bar- Linkage 044194800 044194800 2 19 Drive Tab- Linkage Bar 044194900 044194900 2 20 Crank Arm- Damper 032279200 not used 1 Crank Arm- Adjustable not used 025072600 1 21 Ball Joint- Damper 000887000 000887000 4 22 Actuator- ACT3 Microtech II Controls (120VAC) 059999804 not used 1 Microtech III Controls (24VAC) 113139501 not used 1 No Controls (120VAC) 059999804 not used 1 23 Bushing- Linkage Bar 046098300 046098300 12 24 Bushing- Damper Blade 043730400 043730400 24 25 Gasket- Vinyl 044193116 044193116 12 26 Gasket- Vinyl 045655716 045655716 2 27 End Plug- Damper 041003501 041003501 12 28 End Plug- Damper 041003502 041003502 6 29 End Plug- Damper 041003503 041003503 6 40 Bearing- Sleeve not used 047138504 2 N/S Gasket- Neoprene 3 056003501 056003501 4

N/S= Not Shown on Diagram.

1

Complete assy includes the damper assy and linkage (C20= *E) or the damper assembly with linkage but without an

actuator motor. Assembly 055941103 contains the 120VAC actuator for Microtech II controls ONLY.

2

Damper only, no linkage or actuator components.

3

Applied from outer edge of assembly to inside edge of center support and ﬂush with edge of the bottom channel.

1

055941103 055941102 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 27

Section A- Outdoor/Return Air Section

Return Air Plenum Isolation Damper w/ Actuator ACT6

C19= BE

Damper Detail

16

15

424

23

20

19

17

21

18

22

15

ACT6 Motorized Actuator

3

22

20

22

View A-A

Ref. Part Part Qty. No. Description Number

Isolation Damper Assy- Motorized 055921126 1 3 Motor Mount Assembly 055921201 1 4 Blade Assembly- Return, 4” 055921302 15 15 Angle- Linkage 055917902 3 16 Angle- Blade 055638101 45 17 Shaft- Damper Blade 055637801 30 18 Shaft- Linkage 055536601 1 19 Bearing- Flange, Nylon 001113500 30 20 Actuator- Motorized- SPDT ACT6 059999804 1 21 Crank Arm- Damper 032279200 1 22 Ball Joint 000887000 2 23 Bearing- Sleeve 047138507 45 24 Gasket- Vinyl 030051985 16

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 28

Section A- Outdoor/Return Air Section

Prop Exhaust Fan & Damper Detail C20= HE, HY, JE or JY, C24= 2 or 3

6

Fan Assembly Components

- 2 Fan Arrangement Shown-

6C

6B

Code 24= 2

6E

1B

6H

6I

460V

6G

575V

1A

54

Lube Line Detail

6A

51

53

1

Control Box

(see following page

Voltage

Ref. Sch. Part Part

208V

No. Sym. Description Number

230V

1 AFD20 Inverter see charts below 1A Resistor- Inverter 044690105 1 1 1 1 1B Jumper- Inverter

1

055719731 3 3 3 3 6 Fan Assembly- Complete 111056601 Fan Assembly- Complete 111056602 6A Damper- Backdraft 6B Fan Prop- 36” 300044027 14 14 14 1 6C Fan Shaft 300044028 14 14 14 1 6D Bearing 300044029 24 24 24 2 6E Fan Sheave 019291400 14 14 14 1 6F Bushing- Fan Sheave 000804000 14 14 14 1 6G Belt 049260805 24 24 24 2 6H Motor Sheave 000607600 14 14 14 1 6I Motor 300046887 14 14 1 Motor 300046251 1

3

4

51 Tube- Plastic 2 020954800 8’ 8’ 8’ 8’ 53 Coupling- Tube 54 Fitting- Grease

1

Quantity= 2 when Inverter model 3500 (Code 15= G) is used.

2

Quantity shown are for 2 fans. Quantities for 3 fan units: Ref. 51= 32’; Ref. 53= 6; Ref. 54= 6.

3

Contact Daikin McQuay Parts.

4

Quantity is PER fan.

2

.25 x .125 FPT 021213800 2 2 2 2

2

000109800 2 2 2 2

6D

6F

Inverter- 2 Fan Units (Code 24= 2)

Voltage Code Inverter Model Part

208V

230V

15= Number

A 550 112046017 1 1 550 112046004 1 G 3500 098656918 1 3500 098656928 1 3500 098656905 1 R VTAC9 111046870 1 1 VTAC9 111046856 1 S MD2 349956611 1 1 MD2 349956627 1

460V

Inverter- 3 Fan Units (Code 24= 3)

Voltage Code Inverter Model Part 15= Number

575V

A 550 112046018 1 1 550 112046005 1 G 3500 098656919 1 3500 098656929 1 3500 098656906 1 3500 098656946 1 R VTAC9 111046871 1 1 VTAC9 111046857 1 S MD2 349956612 1 1

208V

230V

MD2 349956628 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 29

460V

575V

OL51

M51 M52

2 Fan Units

Shown

Section A- Outdoor/Return Air Section

Prop Exhaust Fan Inverter and Control Box

Voltage Ref. Sch. Part Part

OL52

220

Contactors &

Overloads

Detail

230

No. Sym. Description Number

220 OL51,52,53 Overload 349934663 1 Overload 349934662 1 Overload 349934660 1 Overload 349934659 1 230 M51,52,53 Contactor 349932123 1 1 Contactor 349932121 1 1

NOTE: All quantities listed are PER fan.

208V

230V

460V

575V

Section A- Outdoor/Return Air Section

Ebtron Sensor Detail

Code 20= KE, KY, LE, LY, ME, MY

Ref. Part Part No. Description Number Qty.

394 Ebtron Sensor 111055303 1 1

1

This is the standard Ebtron ‘Silver’ sensor. Some unit specials will use an

Ebtron “gold” sensor p/n 111055307.

394

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 30

Section A- Outdoor/Return Air Section

LH Louvered Door Assy

Section Final

Assembly

Design Flow Detail

Code 20= FE, FY, GE, GY

4

Louvered Door

Assembly Detail

➤

3

2

RH Louvered Door Assy

1

105

9

127

➤

12

110

104

106

Design Flow Vane and

Vane Bearings Detail

Ref Part Part Qty. No. Description Number

1 Louver Panel Left Hand Door 059595204 15 Louver Panel Right Hand Door 059595203 15 2 Grille 055541401 2 3 Gasket 055921403 1 4 Gasket 055921401 1 9 Potentiometer 098663701 1 12 O’Ring- Potentiometer 098663801 1 104 Panel- Vane 098661803 1 105 Shaft- Upper 098662601 1 106 Bearing- Lower 091634501 1 109 Crank Arm Assy Left Hand Door 091658802 1 Crank Arm Assy Right Hand Door 091658801 1 110 Link Arm 120 Bearing 060014201 1 127 Bearing 047138535 1 130 Spring- Main 098664701 1 131 Spring- Secondary 098664901 1 N/S Leveling Kit- Design Flow 091659301 1

1

Quantity is PER door.

2

P/N is unit speciﬁc. Contact Daikin McQuay Parts with overall length and bolt hole spacing so that the correct part

can be identiﬁed

120

Adjuster Control Assy

Detail

109 104

130

2

1

131

Spring

Detail

1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 31

Section A- Outdoor/Return Air Section

Return Air Fan Detail- Fan Mounts

163

92

93

89

81

Rubber Mounts

161

or

61

63

or

188

189

181

Spring Mounts

91

or

164

121

161 162

163

91

61 62

63

21

162

or

62

64

164

Rubber Mounts (Code 15= 44B1 or 44W1)

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 055512101 4 61 5 - 40 Rubber Mount- Red 021639701 1

64

50, 60 Rubber Mount- Black 021639704 1 62 5 - 40 Rubber Mount- Red 021639701 1 50, 60 Rubber Mount- Black 021639704 1 63 All Rubber Mount- Red 021639701 1 64 All Rubber Mount- Red 021639701 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 040500310 8

Mounting

Diagram

Spring Mounts (Code 15= 44*2) & Seismic Spring (44*3)

Ref. Fan Motor Part Part Qty. No. HP Description Number

121 All Mount Spring (C15= 40*2) 251783201 4 Seismic (C15= 40*3) 251783301 4 161 5 - 10 Spring Mount- Brown 251784801 1 15 - 30 Spring Mount- Red 251784901 1 40 - 60 Spring Mount- Red/Black 251785001 1 162 5 - 10 Spring Mount- Brown 251784801 1 15 - 60 Spring Mount- Red 251784901 1 163 5 - 10 Spring Mount- Brown 251784801 1 15 - 30 Spring Mount- Red 251784901 1 40 - 60 Spring Mount- Red/Black 251785001 1 164 5 - 10 Spring Mount- Brown 251784801 1 15 - 60 Spring Mount- Red 251784901 1 181 All Nut Spring (C15= 40*2) 059992201 12 Seismic (C15= 40*3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C15= 40*2) 112047201 12 Seismic (C15= 40*3) 112047201 20

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 32

Section A- Outdoor/Return Air Section

Return Air Fan Detail (Code 21= 44B1, 44B2, 44B3)

19

17

18

23

24

5

11

12

21

35

27

26

37

13

1

4

48

63

36

Ref. Motor Part Part No. HP Description Number Qty.

1 Motor see following page 4 All Mount- Motor 056234101 1 5 All Channel Assembly 056234201 1 11 All Clamp- Motor Channel 056230203 1 12 All Clamp- Motor Channel 056230203 1 13 All Shaft- Fan 2.438” dia. 056255103 1 17 All Tubing- Plastic 021136745 2 18 All Coupling 027674000 2 19 All Coupling 021213800 2 21 All Fitting- Grease 1/8” MPS 000109800 2 23 All Bearing- 2.437” Opposite Drive End 020649905 1 24 All Bearing- 2.437” Drive End 049547014 1 26 All Key- Wheel 5/8” X 6½” 023221610 1 27 All Key- Fan Sheave 5/8” x 5½” 023221607 1 35 All Wheel- SISW 111041201 1 36 All Funnel- Inlet 110941810 1 37 All Lock Collar 2.437” 049115912 1 48 All Lock Washer 048164814 2 63 All Cap Screw 040499501 2

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 33

Section A- Outdoor/Return Air Section

Return Air Fan Motors

H.P. Motor HP Unit ODP HiEff ODP PrEff. TEFC HiEff TEFC PrEff C22=**Y Voltage C22= *EY C22= *JY C22= *GY C22= *KY

C09= 12 5 J*Y 208/60/3 039447600 065817200 049186800 065819500

7.5 K*Y 208/60/3 037530300 065817300 047665900 065819600 10 L*Y 208/60/3 038999000 065817400 047666100 065819700 15 M*Y 208/60/3 039896200 065817500 049186900 065819800 20 N*Y 208/60/3 039895800 065817600 049187000 065819900 25 P*Y 208/60/3 039448900 065817700 049187100 065820000 30 Q*Y 208/60/3 041775200 205066500 049187200 205066800 40 R*Y 208/60/3 041775300 205067100 049187300 205070700 50 S*Y 208/60/3 041775400 205067500 049187400 205091600 60 T*Y 208/60/3 041775800 205067700 049187500 C09= 29 5 J*Y 230/60/3 039442500 065818200 040161200 065820200

7.5 K*Y 230/60/3 039448700 065818300 049100500 065820300 10 L*Y 230/60/3 039446500 065818400 044691100 065820400 15 M*Y 230/60/3 039446600 065818500 038689700 065820500 20 N*Y 230/60/3 039448800 065818600 040161300 065820600 25 P*Y 230/60/3 039896100 065818700 040161400 065820700 30 Q*Y 230/60/3 040626800 205066600 049025300 205066900 40 R*Y 230/60/3 041770000 205067200 048448000 205069200 50 S*Y 230/60/3 039899200 205067600 040161600 205069400 60 T*Y 230/60/3 041775500 065819100 046748300 205069600 C09= 27 5 J*Y 460/60/3 039442500 065818200 040161200 065820200

7.5 K*Y 460/60/3 039448700 065818300 049100500 065820300 10 L*Y 460/60/3 039446500 065818400 044691100 065820400 15 M*Y 460/60/3 039446600 065818500 038689700 065820500 20 N*Y 460/60/3 039448800 065818600 040161300 065820600 25 P*Y 460/60/3 039896100 065818700 040161400 065820700 30 Q*Y 460/60/3 040626800 205066600 049025300 205066900 40 R*Y 460/60/3 041770000 205067200 048448000 205069200 50 S*Y 460/60/3 039899200 205067600 040161600 205069400 60 T*Y 460/60/3 041775500 065819100 046748300 205069600 C09= 37 5 J*Y 575/60/3 046741900 205168900 049188400 046514600

7.5 K*Y 575/60/3 047443300 205168800 049188500 046514700 10 L*Y 575/60/3 047443400 205168600 049188600 065821400 15 M*Y 575/60/3 047443500 205166600 049185200 065821500 20 N*Y 575/60/3 049181100 205166800 049188700 065821600 25 P*Y 575/60/3 049181200 205166900 049188800 065821700 30 Q*Y 575/60/3 049181300 205066700 049188900 205067000 40 R*Y 575/60/3 049181400 205067300 049189000 205069300 50 S*Y 575/60/3 049181500 205091800 049189100 205069500 60 T*Y 575/60/3 049181600 205069000 049189200 205069800

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 34

Section A- Outdoor/Return Air Section

Section Mounted Controls

OAE, RAE, LT11, S11, REC11

Bottom Return

Shown

C19= BY or BE

Economizer

43

40

OAE- Mechanical Enthalpy (Code 17= Y*)

Ref Part Part No. Description Number Qty.

40 Mount- OAE Enthalpy 055800101 1

41

41 Enthalpy Assembly (knob & Control) 055740691 1 Knob only 026215500 1 Control OAE only 030706702 1

40

OAE & RAE Differential Enthalpy (Code 17= C*)

Ref Part Part No. Description Number Qty.

41

40 Mount- OAE Enthalpy 059328901 1 41 Control- OAE 049262201 1 43 Control- RAE 049262202 1

RAT- Outdoor Air Temperature Sensor

Ref Part Part No. Description Number Qty.

7 Return Air Temp.

7

Sensor- RAT 1934146021 1

1

P/N is for MicroTech III Controls. For MicroTech II controls (C12=

_D or _S) use p/n 060004705.

30

SD2- Return Air Smoke Detector C16= 1 or 3

Back Return

C19= HY

Return Air Opening

Return Air

Opening

Bottom Return C19= BY or BE

Ref Part Part No. Description Number Qty.

30 Smoke Detector SD2 098873101 1

LT11- Return Fan Light/S11- Return Fan Light Switch/ REC11- Return Fan Light Receptacle

84 85

88 89

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 35

C49= E or F

Ref Part Part No. Description Number Qty.

84 Light Fixture 042229500 1 85 Bulb- LT11 065492402 1 88 Light Switch- S11 065492201 1 89 Receptacle- REC11 030187000 1

Section B- Draw-Thru Filter/Blank Section

➩

Primary Codes that pertain: 25 Additional Codes that pertain: 06, 19, 20

Code 25 determines all of the section characteristics. If the ﬁrst digit of Code 25= A,D or E the ﬁlters are in an angular rack, if the ﬁrst digit= F, G or H the ﬁlters are in a ﬂat rack, if the ﬁrst digit= S, T or V the ﬁlters are in a staggered rack, if the ﬁrst digit is L the ﬁlters are in a large staggered rack, and If the ﬁrst digit= B or C there is a blank section. If the second digit= Y there are no ﬁlters, if the second digit= A there are throwaway ﬁlters, if the second digit= B there are 30% eff. ﬁlters and if the second digit= C there are 30% eff. ﬁlters with antimicrobial Intersept. If the second digit= D there are 65% eff. ﬁlters, if the second digit= E there are 95% eff. ﬁlters and if the second digit= G there are 95% eff. ﬁlters with antimicrobial Intersept.

Code 06 determines the ﬁnal assembly panel part numbers.

Codes 19 and 20 determine the Return Air section which has an effect on the ﬁnal assembly panels.

Notes

Section Mounted Controls

PC5, LT13, S13, REC13

Controls PC5

65

84 85

88 89

Ref. Part Part Qty.

No. Description Number

65 PC5 Pressure Ctl 065493801 1

LT13- Filter Section Light/S13- Filter Section Light Switch/ REC13- Filter Section Receptacle C49= E or F

Ref Part Part

No. Description Number Qty.

84 Light Fixture 055737501 1 85 Bulb- LT13 065492402 1 88 Light Switch- S13 065492201 1 89 Receptacle- REC13 030187000 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 36

Section B- Draw-Thru Filter/Blank Section

Filters

Angular Filter Rack- Code 25= AA, AB, AC, DB, DC, EB, EC

Air

Flow

4

14

Ref. Part Code Part Qty. No. Description 25= Number

4 Filter- Throwaway 1 AA 000016100 33 Filter- 30% Eff. Throwaway 1 *B 031298002 33

4

8

Filter- 30% Eff w/Intersept 1 *C 111046306 33 5 Filter- Throwaway 2 AA 000011700 11 Filter- 30% Eff. Throwaway 2 *B 031298001 11

5

Filter- 30% Eff w/Intersept 2 *C 111046305 11 8 Stop, Filter 011484101 11 14 Angle Assembly 3 056077301 33

* First digit of code, may be A, D or E.

1

Filter size= 16 x 25 x 2.

2

Filter size= 16 x 20 x 2.

3

Optional- angle is mounted on leaving air side.

Flat Filter Rack- Code 25= FD, FE, FG, GD, GE, GG, HD, HE, HG

107A

106A

107

106

105A

105

104

Ref. Part Code Part Qty. No. Description 25= Number

104 Filter- 65% Eff. Cartridge 4 *D 065810704 12 Filter- 95% Eff Cartridge 4 *E 065810702 12 104A Gasket- Filter 021768924 12 105 Filter- 65% Eff. Cartridge 5 *D 065810703 4 Filter- 95% Eff Cartridge 5 *E 065810701 4 105A Gasket- Filter 021768912 4 106 Pre Filter 6 *D or *E 111046101 12 106A Gasket- Pre Filter 111051900 24ft 107 Pre Filter 7 *D or *E 111046103 4

104A

107A Gasket- Pre Filter 111051900 8 ft

* First digit of code, may be F, G or H.

4

Filter size= 24 x 24 x 12. 5 Filter size= 12 x 24 x 12.

6

Filter size= 24 x 24 x 2.

7

Filter size= 12 x 24 x 2.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 37

Section B- Draw-Thru Filter/Blank Section

Filters, Continued

Staggered Filter Rack- Code 25= SD, SE, SG, TD, TE, TG, VD, VE, VG

204A

204

Ref. Part Code Part Qty. No. Description 25= Number

204 Filter- 65% Eff. Cartridge 4 *D 065810704 16 Filter- 95% Eff Cartridge 4 *E 065810702 16 204A Gasket- Filter 021768924 16 206 Pre Filter 5 *D or *E 111046101 16 206A Gasket- Pre Filter 111051900 32ft

* First digit of code, may be S, T or V.

4

Filter size= 24 x 24 x 12.

5

206

206A

Large Staggered Filter Rack- Code 25= LD, LE, LG

Filter size= 24 x 24 x 2.

204A

204

207

204A

205A

207A

205

205A

207

204

204A

207A

206

206A

Air Blender Section Parts (C25= EE, EC, HD, HE, HG, VD, VE, VG)

Ref. Part Code Part Qty. No. Description 25= Number

204 Filter- 65% Eff. Cartridge 4 LD 065810704 16

205

Filter- 95% Eff Cartridge 4 LE 065810702 16 204A Gasket- Filter 021768924 16 205 Filter- 65% Eff. Cartridge 5 LD 065810703 8 Filter- 95% Eff Cartridge 5 LE 065810701 8 205A Gasket- Filter 021768912 8 206 Pre Filter 6 LD/LE 111046101 16 206A Gasket- Pre Filter 111051900 32ft 207 Pre Filter 7 LD/LE 111046103 8 207A Gasket- Pre Filter 111051900 16ft

4

Filter size= 24 x 24 x 12. 5 Filter size= 12 x 24 x 12.

6

Filter size= 24 x 24 x 2.

7

Filter size= 12 x 24 x 2.

Ref. Part Part Qty.

No. Description Number 65 Panel- Access 251802801 2

68 Air Blender 205139546 2 75 Plate- Economizer Linkage Access 059384601 1

75

68

65

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 38

Section C- Draw-Thru Blank Access Section

or Separate Inverter Section

Notes

➩

Primary Codes that pertain: 26, 14, 15 Additional Codes that pertain: 06

Code 26 determines if a section is installed and if so, the size of the section. If Code 26= S there is a 48” blank section. If Code 26= Y, there is no section.

Code 06 determines the liners and insulation, and will affect the ﬁnal assembly panels. For sheet metal components

that make up the Blank compartment, contact Daikin McQuay Parts to insure correct liners, insulation and hardware are ordered.

Codes 14 & 15 determine if the unit has inverter(s) and if so where they are installed. If Code 14= 1, 2 or 4 AND Code 26= S, there is a separate inverter section. If Code 14= 3, 5, 6, 7, 8 or 9, the inverter(s) are installed in the Supply Air Section. If Code 14= Y, there are no inverters. Code 15 determines the inverter type. The Inverter with Bypass is shown below. All components pertaining to the Inverter are listed in the Supply Air Section (Section F).

This section pertains to the RPS, RFS or the RDT, but not the RCS.

Return Air Inverter

(AFD20)

Overload

(OL10- Supply Air)

(OL20- Return Air)

Power Block

(PB10- Supply Air)

(PB20- Return Air)

84 85

88 89

Supply Air Inverter

(AFD10)

Contactor (M30A/M30B- Supply Air) (M40A/M40B- Return Air)

LT17- Filter Section Light/S17- Filter Section Light Switch/ REC17- Filter Section Receptacle

Ref Part Part No. Description Number Qty.

84 Light Fixture 042229500 1 85 Bulb- LT17 065492402 1 88 Light Switch- S17 065492201 1 89 Receptacle- REC17 030187000 1

NOTE: Some RPS/RFS/RDT units may have a draw-thru “Preheat” Coil. This is a hydronic heating coil that sits between the ﬁlter and the cooling coil. The preheat coils used in this position are the same as those used in Section E (RDT draw-thru heat section).

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 39

Section D- Draw-Thru Cooling Section

Notes

➩

Primary Codes that pertain: 03, 27, 28 Additional Codes that pertain: 06

Code 03 determines the DX cooling coil size. If Code 03= S there is a small face area coil (24” section for unit sizes 080- 090 or 48” section for unit sizes 100- 120), and if Code 03= L it is a large face area coil (48” section for unit sizes 080- 090 or 24/48” for unit sizes 100- 140). Code 03 is always “L” on unit sizes 125-140.

Code 27 determines if there is a Section D. If Code 27= YYYY, then there is no section (for RPS or RFS units this indicates that the cooling coil is in the Blow-Thru position, RDT units always have a section D). If the code is CYYY or CYYS then there is a unit cooling coil and drain pan (the “S” means the drain pan is stainless steel, a “Y” in the fourth position indicates that the pan is galvanized). If Code 27= DYYY, DYYS, GYYY or GYYS, then the section contains only a drain pan (not an option for RDT units).

Code 28 will apply only if Code 27= CYYY or CYYS, and determines the coil characteristics.

Code 06 determines the liners and insulation, and will affect the ﬁnal assembly panels. For sheet metal components

that make up the Draw-Thru Cooling section, contact Daikin McQuay Parts to insure correct liners, insulation and hardware are ordered.

NOTE: The drawings and components listed in this section also apply to Section I— Blow-Thru Cooling Section- RPS or RFS units.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 40

Section D- Draw-Thru Cooling Section

Evaporator Coils, Drain Pans, Gasketing

Small Face Area Coil 24” Section Code 03= S Unit Sizes 080, 085, 090

3

Small Face DX Coils (Code 03= S)

Ref. Part Part Qty. No. Description Number

39

43

13

10

3 Coil 1 10 Drain Pan Galvanized C27= CYYY 056267751 1 Stainless C27= CYYS 056267752 1 13 Pan- Auxiliary Galvanized C27= CYYY 055926503 1 Stainless C27= CYYS 057356801 1 39 Gasket 049263200 8’ 43 Gasket 021911422 2

1

Contact Daikin McQuay Parts with unit GO and/or serial number.

Small Face Area Coil 48” Section Code 03= S Unit Sizes 100, 105, 110, 120

4

3

37

10

13

43

11

12

Ref. Part Part Qty.

No. Description Number

3 Coil- Upper 4 Coil- Lower 10 Drain Pan Galvanized C27= CYYY 056267755 1 Stainless C27= CYYS 056267756 1

39

11 Drain Pan Galvanized C27= CYYY 096235001 1 Stainless C27= CYYS 055531354 1

39

12 Pan- Liner 055531202 1 13 Pan- Auxiliary 056271401 1 37 Gasket 056003501 144 39 Gasket 049263200 10’ 43 Gasket 021911422 4

2

Contact Daikin McQuay Parts with unit GO and/or serial number.

2

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 41

Section D- Draw-Thru Cooling Section

Large Face DX Evaporator Coils (Code 03= L)

4

3

43

11

Large Face Area Coil 48” Section (unit sizes 080- 090) 24/48” Section (unit sizes 100- 140) Code 03= L (080- 090 shown)

37

48” Section- 080- 090

Ref. Part Part Qty. No. Description Number

3 Coil- Lower 4 Coil- Upper 10 Drain Pan Galvanized C27= CYYY 056267755 1 Stainless C27= CYYS 056267756 1 11 Drain Pan Galvanized C27= CYYY 096235001 1 Stainless C27= CYYS 055531354 1 12 Pan- Liner 055531202 1 13 Pan- Auxiliary 056271401 1 37 Gasket 056003501 144 39 Gasket 049263200 10’ 43 Gasket 021911422 4

1

Contact Daikin McQuay Parts with unit GO and/or serial number.

1

12

39

13

39

Base- 080, 090

10

Base- 100- 140

24/48” Section- 100- 140

Ref. Part Part Qty. No. Description Number

3 Coil- Lower 4 Coil- Upper 10 Drain Pan Galvanized C27= CYYY 056267751 1 Stainless C27= CYYS 056267752 1 11 Drain Pan Galvanized C27= CYYY 096235001 1 Stainless C27= CYYS 055531354 1 12 Pan- Liner 055531202 1 13 Pan- Auxiliary 056271401 1 37 Gasket 056003501 168 39 Gasket 049263200 11’ 43 Gasket 021911422 4

2

Contact Daikin McQuay Parts with unit GO and/or serial number.

2

39

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 42

Section E- 48” Spacer Section

Notes

➩

Primary Codes that pertain: 30 Additional Codes that pertain: 06

Code 30 determines all of the section characteristics. If Code 26= BBBBBB there is a 48” blank section. If Code 30= YYYYYY, there is no section.

Code 06 determines the liners and insulation, and will affect the ﬁnal assembly panels. For sheet metal components

that make up the Spacer Section, contact Daikin McQuay Parts to insure correct liners, insulation and hardware are ordered.

Section E- Draw-Thru Heat Section (RDT)

Notes

➩

Primary Codes that pertain: 04, 30 (RDT) Additional Codes that pertain:

Code 04 determines what type of heat. Draw- Thru Heat units are hydronic heat only, Steam (C04=S) or Hot Water (C04= H). NOTE: There are some Draw-Thru Electric Heat RDT units; see Section G [Blow Thru Heat] for all

Electric Heat components).

Code 30 determines the coil and associated valve characteristics.

Section Mounted Controls

LT18, REC18, S18- Section Mounted Light

LT18- Return Fan Light/S18- Return Fan Light

284 285

288 289

Switch/ REC18- Return Fan Light Receptacle

Ref Part Part No. Description Number Qty.

284 Light Fixture 042229500 1 285 Bulb- LT18 065492402 1 288 Light Switch- S18 065492201 1 289 Receptacle- REC18 030187000 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 43

Section E- Draw-Thru Heat Section

Hot Water or Steam Coil Heat, Mixing Valves and Actuator (VM1)

RDT Code 30 ﬁrst 3 digits = S11, S12, S13, S14, W11, W12, W22

Coil Location

3

2

Ref Sch. Part Code Coil Coil Part

No. Sym. Description 30 or 51= Type Height Number Qty.

2 Steam Heat Coil- Bottom S11*** 5JA0601H 42” 056053061 1 Steam Heat Coil- Bottom S12*** 5JA1201H 42” 056053062 1 Steam Heat Coil- Bottom S13*** 5JA0602C 42” 056053063 1 Steam Heat Coil- Bottom S14*** 5JA1202C 42” 056053064 1 Hot Water Heat Coil- Bottom W11*** 5WH0901H 42” 056053065 1 Hot Water Heat Coil- Bottom W22*** 5WS0902C 42” 056053066 1 3 Steam Heat Coil- Top S11*** 5JA0601H 39” 056053041 1 Steam Heat Coil- Top S12*** 5JA1201H 39” 056053042 1 Steam Heat Coil- Top S13*** 5JA0602C 39” 056053043 1 Steam Heat Coil- Top S14*** 5JA1202C 39” 056053044 1 Hot Water Heat Coil- Top W11*** 5WH0901H 39” 056053045 1 Hot Water Heat Coil- Top W22*** 5WS0902C 39” 056053046 1 63 VM1 Actuator- 120V *****E All All 059999804 1 64 Linkage- 1.50” or 2.00” Valve *****E All All 049762401 1 Linkage- 2.50” or 3.00” Valve *****E All All 049762403 1 65 Valve, 2 Way— Steam Heat

1.50” S**F2* 5JA All 049762503 1

2.00” S**G2* 5JA All 049762504 1

2.50” S**H2* 5JA All 049762505 1

3.00” 1 S**J2* 5JA All 049762506 1 Valve, 3 Way— Hot Water Heat

1.50” W**F3* 5WH, 5WS All 047936501 1

2.00” W**G3* 5WH, 5WS All 047936502 1

2.50” W**H3* 5WH, 5WS All 047936506 1

3.00” 2 W**J3* 5WH, 5WS All 047936503 1

1

Steam Heat 3.00” valve has a ﬂange gasket p/n: 031315900.

2

Hot Water Heat 3.00” valve has a ﬂange gasket p/n: 031316000.

Mixing Valve Detail

63

64

65

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 44

Section F- Supply Air Section

Notes

➩

Primary Codes that pertain: 31, 32, 33, 12, 14, 15, 40 Additional Codes that pertain: 04, 06, 34

Code 31 determines the fan size and type, Code 32 determines the motor horsepower and type, and Code 33 determines the drive selection. The drive components (fan sheave, motor sheave, belt, and fan bushing) are

not listed as they are unique to the unit. If a drive component is required you may use the number from the part and cross reference it with the Drive Components Cross Reference form number: 571006, or contact Daikin McQuay Parts to ensure that the needed part(s) are correctly identiﬁed.

Code 04 and Code 34 determine the heat type, which can affect the ﬁnal assembly part numbers, the location of the discharge plenum, as well as the section- installed controls.

Code 06 determines the liners and insulation, and will affect the ﬁnal assembly panels. For sheet metal components

that make up the Supply Air Section, contact Daikin McQuay Parts to insure correct liners, insulation and hardware are ordered.

Code 12 determines the location of the unit’s main control box. RDT units with no blow thru section have main control boxes in the Supply Air section.

Code 40 determines the discharge plenum conﬁguration. The discharge plenum is located in Section F when the section is bolted directly to the condenser (Section M). RDT units always have the discharge plenum located in Section F. If Code 40= BE, there is an isolation damper with actuator ACT5. The damper is detailed in Section K.

Codes 14 & 15 determine if the unit has inverter(s) and if so where they are installed. If Code 14= 3, 5, 6, 7, 8 or 9, the inverter(s) are installed in the Supply Air Section. If Code 14= 1, 2 or 4 AND Code 25= S, there is a separate inverter section. If Code 14= Y, there are no inverters. Code 15 determines the inverter type. All components

pertaining to the Inverter are listed in this section.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 45

Section F- Supply Air Section

Air Foil Fan- Double Width

Code 31= 33A1, 33A2, 33A3, 36A1, 36A2, 36A3, 40A1, 40A2, 40A3

2

View facing Discharge

17

opening

17

15

1

Ref. Part Part Fan Size No Description Number 33” 36” 40”

1 Motor- see listings at end of section F 2 Housing Assy- Blower 055527704 1 Inlet Funnel Only 031940903 2 Housing Assy- Blower 055527705 1 Inlet Funnel Only 031940904 2 Housing Assy- Blower 055527706 1 Inlet Funnel Only 031940905 2 3 Wheel, Fan- Single Inlet Single Width CW 066543205 1 Wheel, Fan- Single Inlet Single Width CW 066543207 1 Wheel, Fan- Single Inlet Single Width CW 066543209 1 4 Wheel, Fan- Single Inlet Single Width CCW 066543206 1 Wheel, Fan- Single Inlet Single Width CCW 066543208 1 Wheel, Fan- Single Inlet Single Width CCW 066543210 1 5 Screw Adjust Assembly 055528202 2 2 2 11 Shaft- 2.438” Diameter 055515702 1 Shaft- 2.688” Diameter 055667303 1 Shaft- 2.938” Diameter 055642402 1 15 Motor Mount Assembly 056104501 1 1 1 16 Angle- Motor Mount 055514201 1 1 1 17 Holddown 041272900 1 2 2 18 Angle, Clamping 055576601 1 21 Key- Fan 4.75” Long X 5/8” Diameter 023221617 2 Key- Fan 10.00” Long X 5/8” Diameter 023221613 1 Key- Fan 5.50” Long X 3/4” Diameter 023221702 2 22 Key- Sheave 6.50” Long X 1/2” Diameter 023221610 1 1 Key- Sheave 5.50” Long X 3/4” Diameter 023221702 1 25 Bearing- Ball 2.437” Bore 020648605 2 Bearing- Ball 2.688” Bore 020648608 2 Bearing- Ball 2.937” Bore 020648609 2

18

16

321 4

11

25

22

5

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 46

Section F- Supply Air Section

Air Foil Fan- Single Width- RDT (Draw-Thru/No Heat) Units

Code 31= 44B1, 44B2, 44B3, 49B1, 49B2, 49B3

Diagram & Components

24

25

26

1

27

38

21

3

4

11

22

15

16

5

17

Ref. Part Part Fan Size No. Description Number 44” 49”

1 Motor- see table at end of Section F 3 Wheel, Fan- Single Inlet/Single Width 110942010 1 Wheel, Fan- Single Inlet/Single Width 110942011 1 4 Inlet Funnel Assembly 110941810 1 Inlet Funnel Assembly 110941811 1 5 Screw Adjust Assembly 055528203 2 2 11 Shaft- 2.438” Diameter 055534702 1 Shaft- 2.188” Diameter 056079802 1 15 Mount Assembly-Motor 056104501 1 1 16 Angle -Motor Mount 055514201 1 1 17 Angle, Clamping 055512701 2 2 21 Key- Fan, 6.50” Long X 5/8” Diameter 023221610 1 Key- Fan, 6.00” Long X 1/2” Diameter 023221520 2 22 Key- Fan, 5.50” Long X 5/8” Diameter 023221607 1 Key- Fan, 6.00” Long X 1/2” Diameter 023221520 1 24 Tubing- Plastic 021136795 1 Tubing- Plastic 021136798 1 25 Bearing- Ball, 2.437” Bore 020648605 1 Bearing- Ball, 2.188” Bore 020648604 1 26 Fitting- 1/4” OD X 1/8” MPT 027674000 1 1 27 Fitting- 1/4” OD X 1/8” FPT 027674100 1 1 38 Bearing- Ball, 2.437” Bore 020648605 1 Bearing- Ball, 2.188” Bore 049541108 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 47

Section F- Supply Air Section

Fan Mounts- 33” Airfoil Double Width Fan

Code 31= 33A1, 33A2, 33A3

92

93

89

81

Rubber Mounts

91

61 62

63

21

91

64

or

61161

or

63163

Mount Locations

or

16262

or

16464

Rubber Mounts (Code 31= 33A1)

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 098316001 4 61 5, 7.5 Rubber Mount- Black 021639704 1 10 - 50 Rubber Mount- Red 021639701 1 62 All Rubber Mount- Black 021639704 1 63 5 - 25 Rubber Mount- Red 021639701 1 30 - 50 Rubber Mount- Green 021639703 1 64 5 - 25 Rubber Mount- Black 021639704 1 30 - 50 Rubber Mount- Red 021639701 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 048164812 8

Spring Mounts (Code 31= 33A2) and Seismic Spring (Code 31= 33A3)

Ref. Fan Motor Part Part Qty.

188

189

181

121

161 162

163

164

Spring Mounts

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 48

No. HP Description Number

121 All Mount Spring (C31= 33*2) 251783201 4 Seismic (C31= 33*3) 251783301 4 161 5 , 7.5 Spring Mount- Purple 251784701 1 10 - 30 Spring Mount- Brown 251784801 1 40, 50 Spring Mount- Red 251784901 1 162 All Spring Mount- Brown 251784801 1 163 5, 7.5 Spring Mount- Brown 251784801 1 10 - 30 Spring Mount- Red 251784901 1 40, 50 Spring Mount- Red/Black 251785001 1 164 All Spring Mount- Red 251784901 1 181 All Nut Spring (C31= 33A2) 059992201 12 Seismic (C31= 33A3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C31= 33A2) 112047201 12 Seismic (C31= 33A3) 112047201 20

161

or

61

92

93

89

81

Rubber Mounts

Section F- Supply Air Section

Fan Mounts- 36” Airfoil Double Width Fan

Code 31= 36A1, 36A2, 36A3

Rubber Mounts (Code 31= 36A1)

91

61 62

63

64

21

91

Mount Locations

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 098316001 4 61 All Rubber Mount- Red 021639701 1 62 10, 30 - 50 Rubber Mount- Red 021639701 1 20, 60, 75 Rubber Mount- Black 021639704 1 63 10 - 25 Rubber Mount- Red 021639701 1 30 - 50 Rubber Mount- Green 021639703 1 60, 75 Rubber Mount- Gray 021639705 1 64 All Rubber Mount- Red 021639701 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 048164812 8

63

or

163

188

189

181

Spring Mounts

62

64

121

161 162

163

or

164

162

164

Spring Mounts (Code 31= 36A2) and Seismic Spring (Code 31= 36A3)

Ref. Fan Motor Part Part Qty. No. HP Description Number

121 All Mount Spring (C31= 36A2) 251783201 4 Seismic (C31= 36A3) 251783301 4 161 10 , 15 Spring Mount- Brown 251784801 1 20 - 50 Spring Mount- Red 251784901 1 60, 75 Spring Mount- Red/Black 251785001 1 162 All Spring Mount- Brown 251784801 1 163 10, 15 Spring Mount- Red 251784901 1 20 - 50 Spring Mount- Red/Black 251785001 1 60, 75 Spring Mount- Red/Green 251785101 1 164 10 - 20 Spring Mount- Red 251784901 1 25 - 75 Spring Mount- Red/Black 251785001 1 181 All Nut Spring (C31= 36A2) 059992201 12 Seismic (C31= 36A3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C31= 36A2) 112047201 12 Seismic (C31= 36A3) 112047201 20

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 49

161

or

61

92

93

89

81

Rubber Mounts

Section F- Supply Air Section

Fan Mounts- 40” Airfoil Double Width Fan

Code 31= 40A1, 40A2, 40A3

Rubber Mounts (Code 31= 40A1)

91

61 62

63

64

21

91

Mount Locations

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 098316001 4 61 10 - 50 Rubber Mount- Red 021639701 1 60, 75 Rubber Mount- Green 021639703 1 62 10 - 30 Rubber Mount- Red 021639701 1 40 - 75 Rubber Mount- Black 021639704 1 63 10, 15 Rubber Mount- Red 021639701 1 20 - 50 Rubber Mount- Green 021639703 1 60, 75 Rubber Mount- Gray 021639705 1 64 All Rubber Mount- Red 021639701 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 048164812 8

63

or

163

188

189

181

Spring Mounts

62

64

121

161 162

163

or

164

162

164

Spring Mounts (Code 31= 40A2) and Seismic Spring (Code 31= 40A3)

Ref. Fan Motor Part Part Qty. No. HP Description Number

121 All Mount Spring (C31= 40A2) 251783201 4 Seismic (C31= 40A3) 251783301 4 161 10 Spring Mount- Brown 251784801 1 15 - 30 Spring Mount- Red 251784901 1 40 - 75 Spring Mount- Red/Black 251785001 1 162 All Spring Mount- Brown 251784801 1 163 10 Spring Mount- Red 251784901 1 15 - 30 Spring Mount- Red/Black 251785001 1 40 - 75 Spring Mount- Red/Green 251785101 1 164 10 - 20 Spring Mount- Red 251784901 1 25 - 75 Spring Mount- Red/Black 251785001 1 181 All Nut Spring (C31= 40A2) 059992201 12 Seismic (C31= 40A3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C31= 40A2) 112047201 12 Seismic (C31= 40A3) 112047201 20

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 50

Section F- Supply Air Section

Fan Mounts- 44” AFSW- Draw-Thru/No Heat Units

Code 31= 44B1, 44B2, 44B3

Mount Locations

162

or

62

or

61161

or

63163

64

164

or

92

93

89

81

Rubber Mounts

188

189

181

Spring Mounts

91

61 62

91

121

161 162

163

63

164

21

64

Rubber Mounts (Code 31= 44B1)

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 098316001 4 61 7.5 - 25 Rubber Mount- Black 021639704 1 30 - 60 Rubber Mount- Red 021639701 1 62 All Rubber Mount- Red 021639701 1 63 7.5, 10 Rubber Mount- Black 021639704 1 15 - 50 Rubber Mount- Red 021639701 1 60 Rubber Mount- Green 021639703 1 64 All Rubber Mount- Red 021639701 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 048164812 8

Spring Mounts (Code 31= 44B2) and Seismic Spring (Code 31= 44B3)

Ref. Fan Motor Part Part Qty. No. HP Description Number

121 All Mount Spring (C31= 44A2) 251783201 4 Seismic (C31= 44A3) 251783301 4 161 7.5 - 20 Spring Mount- Purple 251784701 1 25 - 50 Spring Mount- Brown 251784801 1 60 Spring Mount- Red 251784901 1 162 All Spring Mount- Brown 251784801 1 163 7.5 - 25 Spring Mount- Brown 251784801 1 30 - 50 Spring Mount- Red 251784901 1 60 Spring Mount- Red/Black 251785001 1 164 All Spring Mount- Red 251784901 1 181 All Nut Spring (C31= 44A2) 059992201 12 Seismic (C31= 44A3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C31= 44A2) 112047201 12 Seismic (C31= 44A3) 112047201 20

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 51

Section F- Supply Air Section

Fan Mounts- 49” AFSW- RDT Units

Code 31= 49B1, 49B2, 49B3

or

16262

92

93

89

81

Rubber Mounts

91

61 62

63

21

91

64

or

61161

or

63163

or

16464

Rubber Mounts (Code 31= 49B1)

Ref. Fan Motor Part Part Qty. No. HP Description Number

21 All Channel- Mount Support 098316001 4 61 All Rubber Mount- Red 021639701 1 62 All Rubber Mount- Red 021639701 1 63 7.5 - 30 Rubber Mount- Red 021639701 1 40 - 75 Rubber Mount- Green 021639703 1 64 7.5 - 30 Rubber Mount- Red 021639701 1 40 - 75 Rubber Mount- Green 021639703 1 81 All Nut 059992201 8 89 All Screw 112047201 8 91 All Nut- 1/2-13 032333305 12 92 All Screw- Cap, 1/2-13 X 1” 040499501 8 93 All Washer- Plain, 1/2” 048164812 8

Spring Mounts (Code 31= 49B2) and Seismic Spring (Code 31= 49B3)

Ref. Fan Motor Part Part Qty.

188

189

181

121

161 162

163

164

Spring Mounts

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 52

No. HP Description Number

121 All Mount Spring (C31= 44A2) 251783201 4 Seismic (C31= 44A3) 251783301 4 161 7.5 - 30 Spring Mount- Red 251784901 1 40, 50 Spring Mount- Red/Black 251785001 1 60, 75 Spring Mount- Red/Green 251785101 1 162 All Spring Mount- Red/Black 251785001 1 163 7.5 - 20 Spring Mount- Red 251784901 1 25 - 75 Spring Mount- Red/Black 251785001 1 164 All Spring Mount- Red/Black 251785001 1 181 All Nut Spring (C31= 44A2) 059992201 12 Seismic (C31= 44A3) 111056301 20 188 All Nut 040500002 4 189 All Screw Spring (C31= 44A2) 112047201 12 Seismic (C31= 44A3) 112047201 20

Section F- Supply Air Section

Supply Air Fan Motors

H.P. Motor HP Unit ODP HiEff ODP PrEff. TEFC HiEff TEFC PrEff C32=**Y Voltage C32= *EY C32= *JY C32= *GY C32= *KY

C09= 12 5 J*Y 208/60/3 039447600 065817200 049186800 065819500

7.5 K*Y 208/60/3 037530300 065817300 047665900 065819600 10 L*Y 208/60/3 038999000 065817400 047666100 065819700 15 M*Y 208/60/3 039896200 065817500 049186900 065819800 20 N*Y 208/60/3 039895800 065817600 049187000 065819900 25 P*Y 208/60/3 039448900 065817700 049187100 065820000 30 Q*Y 208/60/3 041775200 205066500 049187200 205066800 40 R*Y 208/60/3 041775300 205067100 049187300 205070700 50 S*Y 208/60/3 041775400 205067500 049187400 205091600 60 T*Y 208/60/3 041775800 205067700 049187500 75 U*Y 208/60/3 041775700 205069100 049187600 C09= 29 5 J*Y 230/60/3 039442500 065818200 040161200 065820200

7.5 K*Y 230/60/3 039448700 065818300 049100500 065820300 10 L*Y 230/60/3 039446500 065818400 044691100 065820400 15 M*Y 230/60/3 039446600 065818500 038689700 065820500 20 N*Y 230/60/3 039448800 065818600 040161300 065820600 25 P*Y 230/60/3 039896100 065818700 040161400 065820700 30 Q*Y 230/60/3 040626800 205066600 049025300 205066900 40 R*Y 230/60/3 041770000 205067200 048448000 205069200 50 S*Y 230/60/3 039899200 205067600 040161600 205069400 60 T*Y 230/60/3 041775500 065819100 046748300 205069600 75 U*Y 230/60/3 041775600 205070300 049187800 205069900 C09= 27 5 J*Y 460/60/3 039442500 065818200 040161200 065820200

7.5 K*Y 460/60/3 039448700 065818300 049100500 065820300 10 L*Y 460/60/3 039446500 065818400 044691100 065820400 15 M*Y 460/60/3 039446600 065818500 038689700 065820500 20 N*Y 460/60/3 039448800 065818600 040161300 065820600 25 P*Y 460/60/3 039896100 065818700 040161400 065820700 30 Q*Y 460/60/3 040626800 205066600 049025300 205066900 40 R*Y 460/60/3 041770000 205067200 048448000 205069200 50 S*Y 460/60/3 039899200 205067600 040161600 205069400 60 T*Y 460/60/3 041775500 065819100 046748300 205069600 75 U*Y 460/60/3 041775600 205070300 049187800 205069900 C09= 37 5 J*Y 575/60/3 046741900 205168900 049188400 046514600

7.5 K*Y 575/60/3 047443300 205168800 049188500 046514700 10 L*Y 575/60/3 047443400 205168600 049188600 065821400 15 M*Y 575/60/3 047443500 205166600 049185200 065821500 20 N*Y 575/60/3 049181100 205166800 049188700 065821600 25 P*Y 575/60/3 049181200 205166900 049188800 065821700 30 Q*Y 575/60/3 049181300 205066700 049188900 205067000 40 R*Y 575/60/3 049181400 205067300 049189000 205069300 50 S*Y 575/60/3 049181500 205091800 049189100 205069500 60 T*Y 575/60/3 049181600 205069000 049189200 205069800 75 U*Y 575/60/3 049181800 205070400 049189300 205070000

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 53

41

40

Section F- Supply Air Section

Belt Guard

Code 49= A, C, D or F

Air Foil Double Width (AFDW)

Ref. Part Part Fan Size No. Description Number 33” 36” 40”

40 Grille Assembly 055606004 1 Grille Assembly 055606005 1 Grille Assembly 055606006 1 41 Belt Guard Assembly 055606014 1 Belt Guard Assembly 055606015 1 Belt Guard Assembly 055606016 1

Air Foil Single Width (AFSW) with

Side Discharge (C40= H),

Main Control Box (C08= S or F)

The main control box is mounted in this section on RDT units (the supply air section is mounted directly to the condenser section).

81

80

Air Foil Single Width (AFSW) with

Bottom Discharge (C40= G),

Main Control Box (C08= S or F)

The main control box is mounted in this section on RDT units (the supply air section is mounted directly to the condenser section).

83

Air Foil Single Width (AFSW) with

Side Discharge (C40= S),

No Control Box (C08= P or D)

RPS units (Main Control Box is mounted in the Discharge Plenum Section K).

82

81

80

Air Foil Single Width (AFSW) with

Bottom Discharge (C40= B),

No Control Box (C08= P or D or Y)

RPS units (Main Control Box is mounted in the Discharge Plenum Section K).

83

82

81

80

Ref. Part Part Fan Size No. Description Number 44” 49”

80 Grille Assy 056259211 1 Grille Assy 056259221 1 81 Grille Assy 056259212 1 Grille Assy 056259222 1 82 Grille Assy 056259213 1 1 83 Grille Assy 056259214 1 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 54

80

Section F- Supply Air Section

Inverters & Inverter Bypass Control Box Motor HP 5 (Code 22= J; or Code 32= J)

71

LR10 (Supply) LR20 (Return)

40

50

Supply Air or Return Air Fan Inverter

w/ Bypass Control Box.

(Code 14= 3, 5, 8)

Two boxes installed if Code 14= 5

40

Supply Air and Re-

turn Air Fan Inverter

without Bypass.

(Code 14= 7)

MMP30 (Supply)

MMP40 (Return)

40

Supply Air or

Return Air Fan

Inverter without

Bypass.

(Code 14= 6, 7, 9)

70

Bypass Controls Detail

72

M30B/M30I (Supply) M40B/M40I (Return)

70

73

74

72

MMP & Contactor

Link Detail

Motor HP 5

Ref Sch. Part Part

No. Sym. Description Number

208V

230V

460V

575V

40 AFD10,20 Inverter- see 4 pages after next 50 Gasket 055940207 1 1 1 1 70 MMP30,40 Motor Control 349934049 1 349934050 1 349934052 1 1 71 LR10,20 Line Reactor- see page following inverters 72 M30B,I Contactor 349933121 1 1 M40B,I 349933123 1 1 73 Contact- Auxiliary 1 349933821 1 1 1 1 74 Link 349932922 1 1 1 1

1

Front Mounted, 1 NO or NC.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 55

Motor HP 7.5 - 25 (Code 22 or Code 32= K, L, M, N or P)

40

Supply Air or

Return Air Fan

Inverter without

Bypass.

(Code 14= 6, 7, 9)

40

Supply Air and Re-

turn Air Fan Inverter

without Bypass.

(Code 14= 7)

Section F- Supply Air Section

Inverters & Inverter Bypass Control Box

Diagrams

40

50

MMP30 (Supply) MMP40 (Return)

Supply Air or Return Air Fan

Inverter w/Bypass Control

Box.

(Code 14= 3, 5, 8)

Two boxes installed if C14= 5

70

LR10 (Supply)

71

LR20 (Return)

M30B/M30I (Supply)

72

M40B/M40I (Return)

Bypass Controls Detail

70

73

74

72

MMP & Contactor Link Detail

MMP p/n 3499340xx

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 56

MMP & Contactor Link Detail

MMP p/n 349934147, 48, 49

70

73

MMP & Contactor Link Detail

77

70

76

72

MMP p/n 349938606

Section F- Supply Air Section

Inverters & Inverter Bypass Control Box

Motor HP 7.5- 25 (Code 22 or Code 32= K, L, M, N or P)

Components

Motor Horsepower

7.5 10 15 20 25

Ref Sch. Part Part

No. Sym. Description Number

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

40 AFD10,20 Inverter- see 2 pages after next

50 Gasket 055940207 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

70 MMP30,40 Motor Control 349934050 1 349934051 1 1 349934052 1 1 349934053 1 1 1 349934054 1 1 349934055 1 1 1 349934147 1 349934148 1 1 1 349934149 1 1 349938606 1 71 LR10, 20 Line Reactor- see page after inverters

72 M30B,I Contactor 349933121 1

M40B,I 349933122 1 1 349933123 1 1 349933321 1 1 1 1 349933322 1 1 1 349933521 1 1 349933522 1 1 349933523 1 1 349933621 1 1

575V

73 Contact- Auxiliary 1 349933821 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

74 Link 349932922 1 1 1 1 1 1 1 1 1 1 1 1 1

76 Interlock- Trip 349938701 1

77 Lug Kit (3 per kit) 349938801 2

1

Front Mounted, 1 NO or NC.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 57

Section F- Supply Air Section

Inverters & Inverter Bypass Control Box

Motor HP 30 - 75 (Code 22= Q, R, S, T; Code 32= Q, R, S, T or U)

Diagrams

LR10 (Supply)

71

LR20 (Return)

70

40

50

Supply Air or Return Air Fan Inverter

w/ Bypass Control Box.

(Code 14= 3, 5, 8)

Two boxes installed if C14= 5

MMP30 (Supply) MMP40 (Return)

70

M30B/M30I (Supply)

72

M40B/M40I (Return)

Bypass Controls Detail

70

73

74

MMP & Contactor Link Detail

77

70

76

72

MMP & Contactor Link Detail

MMP p/n 349938606

73

72

MMP p/n 349934055

77

70

76

72

MMP & Contactor Link Detail

MMP p/n 349938607

72

MMP & Contactor Link Detail

MMP p/n 349934147, 48, 49

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 58

Section F- Supply Air Section

Inverters & Inverter Bypass Control Box

Motor HP 30 - 75 (Code 22= Q, R, S, T; Code 32= Q, R, S, T or U)

Components

Motor Horsepower 30 40 50 60 75

Ref Sch. Part Part

No. Sym. Description Number

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

40 AFD10,20 Inverter- see next page

50 Gasket 055940207 1 1 1 1 1 1 1 1 1 1 1 1 1

70 MMP30 Motor Control 349934055 1 MMP40 349934107 1 349934108 1 1 349934109 1 1 1 349938606 1 1 1 1 349938607 1 1

71 LR10,20 Line Reactor- see page after inverters

72 M30B,I Contactor 349933322 1 M40B,I 349933521 1 349933522 1 349933523 1 1 1 349933621 1 1 1 349933721 1 1 1 349933722 1

73 Contact- Auxiliary 1 349933821 1 1 1 1 1 1 1

74 Link 349932922 1

575V

76 Interlock- Trip 349938701 1 1 1 1 1 1

77 Lug Kit (3 per kit) 349938801 2 2 12 12 2 2

1

Front Mounted, 1 NO or NC.

2

Also requires 3 ring terminals.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 59

Section F- Supply Air Section

Inverters

Code 15= R Model VTAC9

Motor Horsepower 5 7.5 10 15 20 25 30 40 50 60 75

Part Number 098861454 1

098861455 1 098861456 1 098861457 1 098861458 1 098861459 1 098861460 1 098861461 1 098861462 1 098861463 1 098861464 1 098861468 1 098861469 1 098861470 1

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

208/230V

460V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 60

Section F- Supply Air Section

Inverters, Continued

Code 15= A Model 550

Motor Horsepower 5 7.5 10 15 20 25 30 40 50 60 75

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

460V

Part

208/230V

Number 112046002 1

112046003 1 112046004 1 112046005 1 112046006 1 112046007 1 112046008 1 112046009 1 112046010 1 112046011 1 112046012 1 112046015 1 112046016 1 112046017 1 112046018 1 112046019 1 112046020 1 112046021 1 112046022 1 112046023 1 112046024 1 112046025 1 112046027 1 112046028 1 112046029 1 112046030 1 112046031 1 112046032 1 112046033 1 112046034 1 112046035 1 112046036 1

208/230V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 61

Section F- Supply Air Section

Inverters, Continued

Code 15= G Model 3500

Motor Horsepower 5 7.5 10 15 20 25 Part Number 098656903 1

098656904 1 098656905 1 098656906 1 098656907 1 098656908 1 098656916 1 098656917 1 098656918 1 098656919 1 098656920 1 098656921 1 098656926 1 098656927 1 098656928 1 098656929 1 098656930 1 098656931 1 098656943 1 098656944 1 098656945 1 098656946 1 098656947 1 098656948 1

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

Motor Horsepower

30 40 50 60 75

Part Number

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

098656909 1 098656910 1 098656911 1 098656912 1 098656913 1 098656922 1 098656923 1 098656940 1 098656932 1 098656933 1 098656953 1 098656951 1 098656954 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 62

Section F- Supply Air Section

Inverters, Continued

Code 15= S McQuay MD2, MD3, MD6

Motor Horsepower 5 7.5 10 15 20 25 30 40 50 60 75

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

349956609 2 1 349956610 2 1 349956611 2 1 349956612 2 1 349956613 2 1 349956614 2 1 349956615 2 1 349956616 2 1 349956625 2 1 349956626 2 1 349956627 2 1 349956628 2 1 349956629 2 1 349956630 2 1 349956631 2 1 349956632 2 1 349956683 2 1 349956684 2 1 349956685 3 1 193456304 193456305 193456306 193456307 193456308

3,5

1

3,5

1

3,5

1

349956647 4 1 349956648 4 1 349956649 4 1 349956650 4 1 349956651 4 1 349956652 4 1

2

MD2. Remote Keypad p/n is 349958801.

3

MD3. Remote Keypad p/n is 349958802.

4

MD6. Remote Keypad p/n is 349958805 + Mount p/n 349958803.

5

For 575V units with an MD3 Inverter and motor under 25 HP a line reactor will be installed regardless of whether one is speciﬁed in Code

17 (see nomenclature page). See following page for line reactor part numbers.

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 63

Section F- Supply Air Section

Line Reactors

1

Line Reactors used when: Code 17= CL, CE, CH, CJ, CK, C4, C6, C7, C8, YL, YE, YH, YJ, YK, Y4, Y6, Y7, Y8.

Motor Horsepower 5 7.5 10 15 20 25 30 40 50 60 75

Part Number 073323503 1

073323504 1 073323505 1 073323506 1 073323507 1 073323508 1 073323509 1 073323510 1 073323511 1 073323512 1 073323518 1 073323519 1 073323520 1 073323521 1 073323522 1 073323523 1 073323534 1 073323535 1 073323536 1 073323557 1 073323558 1 3499649262 1 3499649272 1 3499649292 1 3499649302 1 3499649312 1 3499649322 1 3499649542 1 3499649552 1 349964956

2

These are 5% impedance line reactors. Some units may have 3% impedance line reactors, the 5% may be used in their place (there are

dimensional differences).

(except for McQuay 575V inverters 2- 20 HP. These will always have a line reactor regardless of Code 17).

460V

575V

460V

575V

460V

575V

460V

575V

460V

208V/230V

2

1

208V/230V

575V

208V/230V

1

460V

208V/230V

575V

460V

208V/230V

575V

460V

208V/230V

575V

460V

208V/230V

575V

460V

208V/230V

575V

460V

208V/230V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 64

Section F- Supply Air Section

Section Mounted Controls

PC7, HL22, LT10, S10, REC10, UV Lights

20

15

67

19

PC7- Proof of Airﬂow Pressure Control

Ref Part Part No. Description Number Qty.

15 Bracket 19 Pressure Control- PC7 20 Pneumatic Fitting

1

During May & June of 2012 PC7 was changed to p/n 910115489

using Pneumatic Fitting 910122414. Units built May & June of 2012 and earlier with the old PC7 Switch require Retroﬁt Kit 910122413 as the old and new parts are NOT interchangeable. For units built during May & June of 2012, contact Daikin McQuay parts to ensure that the required part(s) are ordered.

1

HL22- Gas Heat Hi Limit Switch C04= A

Ref Part Part No. Description Number Qty.

67 T-stat- HL22 Hi Limit 047938801 1

98

99

84 85

86 87

88 89

LT10- Return Fan Light/S10- Return Fan Light Switch/ REC10- Return Fan Light Receptacle C49= B or E

Ref Part Part No. Description Number Qty.

84 Light Fixture 042229500 1 85 Bulb- LT10 065492402 1 86 Junction Box 065491901 1 87 Junction Box Cover 065492001 1 88 Light Switch- S10 065492201 1 89 Receptacle- REC10 030187000 1

UV Lights Code 17= C1 thru C8, Y1 thru Y8

Ref Part Part No. Description Number Qty.

98 Lamp Holder- 18” 205484001 1 Lamp Holder- 24” 205484101 1 Lamp Holder- 36” 205484201 1 99 Lamp- 18” 205484501 1 Lamp- 24” 205484601 1 Lamp- 36” 205484701 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 65

Section F- Supply Air Section

Section Mounted Controls

MATS, EFTS, SATS, DATS, OATS, SD1

Mixed Air Temperature Sensor- MAT or

5

EFTS

Entering Fan Temperature Sensor- EFT

Ref Part Part Qty. No. Description Number

5 MA Temp. Sensor- MAT EF Temp. Sensor- EFT 1934146021 1

1

P/N is for MicroTech III Controls. For MicroTech II controls (C12=

_D or _S) use p/n 060004705.

Supply Air Temperature Sensor- SAT or Discharge Air Temperature Sensor- DAT

8

DATS

OATS

51

Ref Part Part Qty.

No. Description Number

8 SA Temp. Sensor- SAT DA Temp. Sensor- DAT 1934146021 1

1

P/N is for MicroTech III Controls. For MicroTech II controls (C12=

_D or _S) use p/n 060004705.

Outdoor Air Temperature Sensor- OAT

7

Ref Part Part Qty.

No. Description Number

7 OA Temp. Sensor- OAT 1934146021 1

1

P/N is for MicroTech III Controls. For MicroTech II controls (C12=

_D or _S) use p/n 060004705.

Smoke Detector- SD1

Smoke

Detector

Detail

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 66

50

Ref Part Part Qty.

No. Description Number

50 Smoke Detector- SD1 098873101 1 51 Sensing Tube 049025002 1

Section F- Supply Air Section

Section Mounted Controls

SCB- Split Junction Box (Code 05= F)- TB25,TB27,TB28,PB10,PB9,PB20,PB19

TB28 TB27 TB25

PB 19 PB 20 PB 9 PB 10

Motor HP 2 - 25 30 40, 50 60 - 75

Sch. Part Part Sym. Description Number

Terminal Blocks TB25 Terminal Block- SCB 015998124 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 TB27 Terminal Block- SCB 015998130 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 TB28 1 Terminal Block- SCB 015998124 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 PB10 Power Block- Supply Fan 95A, 600V, 3P 030372707 1 1 1 1 1 1 1 1 1 1 1 1 1 1 175A, 600V, 3P 030372710 1 1 PB9 Power Block- Supply Fan 95A, 600V, 3P 030372707 1 1 1 PB20 Power Block- Return Fan 95A, 600V, 3P 030372707 1 1 1 1 1 1 1 1 1 1 1 1 PB19 Power Block- Return Fan 95A, 600V, 3P 030372707 1

1

Only used when unit has a Supply Fan inverter or power exhaust damper.

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 67

Section G- Blow-Thru Heat Section

Notes

➩

Primary Codes that pertain: 04, 34 Additional Codes that pertain: 06, 07, 09, 12, 31

Code 04 determines what type of heat, if any, the unit employs, and code 34 deﬁnes the speciﬁc heat’s characteristics. If Code 04= Y, and Code 34= YYYYYY there is no section. If Code 04= Y and Code 34= BBBBBB, then there is a 48” Blank Access Section installed. Otherwise, see the nomenclature page for speciﬁc heat section deﬁnition. This section is divided into four subsections: 1. Blank Access; 2. HW/Steam Heat; 3. Electric Heat; and 4. Gas Heat.

Code 07 is the Gas Heat Burner Approval Code and affects many of the parts in the gas heat section depending on whether the unit is UL approved (USA) or CSA approved (Canada).

Code 09 determines the Unit Voltage, which will have an effect on the electric heaters and their controls. Code 12 determines the Control type and will affect the gas heat actuator motor. Code 31 is the supply fan size, and affects the heat section’s diffusers.

Code 06 determines the insulation and liners and will affect the Top Panel, Uprights, and Door Assembly part numbers. For sheet metal components that make up the Blow-Thru Heat Section, contact Daikin McQuay

Parts to insure correct liners, insulation and hardware are ordered.

This section pertains to the RPS and the RFS, but not the RCS or RDT.

Unit Mounted Controls

LT12- BT Heat Section Light/S12- Filter Section

84 85

88 89

Light Switch/ REC12- Filter Section Receptacle

Ref Part Part No. Description Number Qty.

84 Light Fixture 042229500 1 85 Bulb- LT12 065492402 1 88 Light Switch- S12 065492201 1 89 Receptacle- REC12 030187000 1

Option 1: Blank Compartment

Code 34= BBBBBB and Code 04= Y

Diffuser

12

The drawing shows a diffuser factory mounted on a unit split at the condenser (Code 05= C), or not split (Code 05=Y). If the unit is split at the Supply Fan (Section F) and Heat (Section G) the diffuser is ﬁeld mounted. The part number is the same in either case.

Ref Part Part

No. Description Number Qty.

12 Diffuser C31= 33**, 36**, 40** 055988001 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 68

Section G- Blow-Thru Heat Section

Option 2: Hot Water or Steam Coil Heat, Mixing Valves and Actuator (VM1)

Code 34 ﬁrst 3 digits = S11, S12, S13, S14, W11, W12, W22

Diffuser

12

Ref Sch. Part Code Coil Coil Part

No. Sym. Description 34= Type Height Number Qty.

2 Steam Heat Coil- Bottom S11*** 5JA0601H 42” 056053061 1 Steam Heat Coil- Bottom S12*** 5JA1201H 42” 056053062 1 Steam Heat Coil- Bottom S13*** 5JA0602C 42” 056053063 1 Steam Heat Coil- Bottom S14*** 5JA1202C 42” 056053064 1 Hot Water Heat Coil- Bottom W11*** 5WH0901H 42” 056053065 1 Hot Water Heat Coil- Bottom W22*** 5WS0902C 42” 056053066 1 3 Steam Heat Coil- Top S11*** 5JA0601H 39” 056053041 1 Steam Heat Coil- Top S12*** 5JA1201H 39” 056053042 1 Steam Heat Coil- Top S13*** 5JA0602C 39” 056053043 1 Steam Heat Coil- Top S14*** 5JA1202C 39” 056053044 1 Hot Water Heat Coil- Top W11*** 5WH0901H 39” 056053045 1 Hot Water Heat Coil- Top W22*** 5WS0902C 39” 056053046 1 12 Diffuser- 33” Supply Fan 055988003 1 Diffuser- 36” Supply Fan 055988004 1 Diffuser- 40” Supply Fan 055988005 1 63 VM1 Actuator- 120V *****E All All 059999804 1 64 Linkage- 1.50” or 2.00” Valve *****E All All 049762401 1 Linkage- 2.50” or 3.00” Valve *****E All All 049762403 1 65 Valve, 2 Way— Steam Heat

1.50” S**F2* 5JA All 049762503 1

2.00” S**G2* 5JA All 049762504 1

2.50” S**H2* 5JA All 049762505 1

3.00” 1 S**J2* 5JA All 049762506 1 Valve, 3 Way— Hot Water Heat

1.50” W**F3* 5WH, 5WS All 047936501 1

2.00” W**G3* 5WH, 5WS All 047936502 1

2.50” W**H3* 5WH, 5WS All 047936506 1

3.00” 2 W**J3* 5WH, 5WS All 047936503 1

1

Steam Heat 3.00” valve has a ﬂange gasket p/n: 031315900.

2

Hot Water Heat 3.00” valve has a ﬂange gasket p/n: 031316000.

Coil Location

3

2

Mixing Valve Detail

63

64

65

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 69

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Heaters, Hi Limit Cutouts, Diffusers

Diagram & Components

5

12

Air

Flow

7

7A

6

Hi Limit Cutout Unit with with Voltage Auto and Auto Ref Sch. Part Total Code Heater Manual Cutout No. Sym. Description KW 34= KW Cutout 1 Only

2

5 Heater Assy- Top 80 E080 80 049269206 049269215 1 Heater Assy- Top 80 E080 80 049269224 049269233 1

Heater Assy- Top 80 E080 80 N/A 049269242 1 Heater Assy- Top 100 E100 100 049269205 049269214 1 Heater Assy- Top 100 E100 100 049269223 049269232 1 Heater Assy- Top 100 E100 100 N/A 049269241 1 Heater Assy- Top 120 E120 120 049269204 049269213 1 Heater Assy- Top 120 E120 120 049269222 049269231 1 Heater Assy- Top 120 E120 120 N/A 049269240 1 Heater Assy- Top 160 E160 160 049269203 049269212 1 Heater Assy- Top 160 E160 160 049269221 049269230 1 Heater Assy- Top 160 E160 160 N/A 049269239 1 Heater Assy- Top 200 E200 120 049269204 049269213 1 Heater Assy- Top 200 E200 120 049269222 049269231 1 Heater Assy- Top 200 E200 120 N/A 049269240 1 Heater Assy- Top 240 E240 120 049269204 049269213 1 Heater Assy- Top 240 E240 120 049269222 049269231 1 Heater Assy- Top 240 E240 120 N/A 049269240 1 Heater Assy- Top 280 E280 160 049269203 049269212 1 Heater Assy- Top 280 E280 160 049269221 049269230 1 Heater Assy- Top 280 E280 160 N/A 049269239 1 Heater Assy- Top 320 E320 160 049269203 049269212 1 Heater Assy- Top 320 E320 160 049269221 049269230 1 Heater Assy- Top 320 E320 160 N/A 049269239 1

N/A= Not Applicable.

1

Units ETL/MEA approval (Code 07= EY) or no approval (Code 07= YY). Heater assy includes Hi Limit auto and manual reset switches.

2

Units CSA approval (Code 07= CY). Heater assy includes Hi Limit auto reset switches.

460V

208/230V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 70

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Heaters, Hi Limit Cutouts, Diffusers

Components, Continued

Hi Limit Cutout Unit

with with Voltage

Auto and Auto

Ref Sch. Part Total Code Heater Manual Cutout

No. Sym. Description KW 34= KW Cutout 1 Only

2

6 Blank Assy- Bottom 80- 160 E/080- 160 055923602 055923602 1 1 1

Heater Assy- Bottom 200 E200 80 049269206 049269215 1

Heater Assy- Bottom 200 E200 80 049269224 049269233 1

Heater Assy- Bottom 200 E200 80 N/A 049269242 1

Heater Assy- Bottom 240 E240 120 049269204 049269213 1

Heater Assy- Bottom 240 E240 120 049269222 049269231 1

Heater Assy- Bottom 240 E240 120 N/A 049269240 1

Heater Assy- Bottom 280 E280 120 049269204 049269213 1

Heater Assy- Bottom 280 E280 120 049269222 049269231 1

Heater Assy- Bottom 280 E280 120 N/A 049269240 1

Heater Assy- Bottom 320 E320 160 049269203 049269212 1

Heater Assy- Bottom 320 E320 160 049269221 049269230 1

Heater Assy- Bottom 320 E320 160 N/A 049269239 1

7 HL1-20 Hi Limit- Manual Cutout All All All 065496201 N/A 1 1 1

7A HL31-50 Hi Limit- Auto Cutout All All All 065824501 065824501 1 1 1

12 Diffuser All All All 055658401 055658401 2 2 2

N/A= Not Applicable.

1

Units ETL/MEA approval (Code 07= EY) or no approval (Code 07= YY). Heater assy includes Hi Limit auto and manual reset switches.

2

Units CSA approval (Code 07= CY). Heater assy includes Hi Limit auto reset switches.

460V

208/230V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 71

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Electric Heat Control Box

Diagram & Components

FB33

M33

FB32 FB31

M32 M31

FB33 FB32FB36FB31FB35

M33

M32

M36

FB34

M34

M31 M35

H S

T B

11

208/230V

20KW- 120KW

PB31

DS3

or

PB3

DS3- Disconnect Switch

FB33 FB32

M33

3

460/575V

20KW- 160KW

DS3

or

PB3

1

FB31

M32 M31

FB34

M34

PB31

FB34

FB44

M34

M44

H S 3

T B

11

FB43

FB42 FB41

M42 M41M43

H S

3

T

B

11

460/575V

200KW- 320KW

PB31

DS3

or

PB3

Sch. Part Disconnect Switch Component Sym. Description Amps Switch Handle 2 Shaft Ground Lug DS3 Disconnect Switch 100 Amp 349935125 349935523 349962211 349938001

Disconnect Switch 150 Amp 349935126 349935533 349962212 349938001 Disconnect Switch 250 Amp 349935226 349935533 349962212 349938001 Disconnect Switch 400 Amp 349935325 349935622 349962213 349938002 Disconnect Switch 600 Amp 193438206 3

1

Disconnects are sized according to various unit speciﬁcations. Check installed switch to verify the correct DS3 size.

2

Includes mechanism (except 600A switch, see footnote 4).

3

The original “M” frame disconnect is obsolete and replaced with a “P” frame switch. Due to dimensional differences minor ﬁeld

modiﬁcations may be required for proper installation.

4

Handle only p/n 349961102; Mechanism only p/n 193455001; Shaft p/n 349961403.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 72

4

349962243 349938002

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Electric Heat Control Box

20- 120KW Components, Continued

Heater KW= 20 40 60 80 100 120 Sch. Part Part Sym. Description Number

PB3 Power Block 030372777 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Power Block 030372785 1 1 1 1 1 1 1 1

PB31 Power Block 4 used w/100A, 150A DS3 030372777 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 used w/250A DS3 030372783 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 used w/400A DS3 030372785 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 used w/600A DS3 030372721

208V

230V

460V

575V

230V

460V

575V

230V

460V

575V

230V

460V

575V

230V

460V

575V

208V

3

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

208V

230V

460V

575V

DS3 Disconnect Switch

2

HS3 Switch 033696300 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

TB11 Terminal Block 349930641

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

M31 Contactor 349932321 1 1 1 1 1 1 Contactor 349932322 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 M32 Contactor 349932322 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Contactor 349932321 1 1 1 1 1 1 M33 Contactor 349932322 1 1 1 1 1 1 1 1 Contactor 349932321 1 1 1 1 1 1 M34 Contactor 349932322 1 1 1 1 1 1 1 1 Contactor 349932321 1 1 1 1 1 1 M35 Contactor 349932322 1 1 1 1 M36 Contactor 349932322 1 1

FB31 Fuse Block 023780229 1 1 1 1 1 1 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 1 1 Fuse Block 023780230 1 1 1 1 1 1 FB32 Fuse Block 023780229 1 1 1 1 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 1 1 Fuse Block 023780230 1 1 1 1 FB33 Fuse Block 023780229 1 1 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 1 1 FB34 Fuse Block 023780229 1 1 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 1 1 FB35 Fuse Block 023780229 1 1 1 1 FB36 Fuse Block 023780229 1 1

1

Part number is for one section. The number of sections used is determined by the options installed.

2

See charts on previous page.

3

Cover— PB31 used with 600A DS3= p/n 349938345.

4

Not used when PB3 power block connection is present.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 73

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Electric Heat Control Box

20- 120KW Components, Continued

Heater KW= 20 40 60 80 100 120 Sch. Part Part Sym. Description Number

F31 Fuse 025860514 3 3 3 3 Fuse 025860511 3 Fuse 025860512 3 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3 Fuse 025860412 3 Fuse 025860411 3 Fuse 025860514 3 3 3 3 3 3 Fuse 025860414 3 3 Fuse 025860413 3 3

F32 Fuse 025860514 3 3 Fuse 025860511 3 Fuse 025860512 3 Fuse 025860514 3 3 3 3 3 3 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3 Fuse 025860412 3 Fuse 025860411 3 Fuse 025860414 3 Fuse 025860413 3

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

208V

230V

460V

575V

F33 Fuse 025860511 3 Fuse 025860512 3 Fuse 025860514 3 3 3 3 3 3 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3 Fuse 025860412 3 Fuse 025860411 3

F34 Fuse 025860511 3 Fuse 025860512 3 Fuse 025860514 3 3 3 3 3 3 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3

F35 Fuse 025860514 3 3 3 3

F36 Fuse 025860514 3 3

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 74

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Electric Heat Control Box

160- 320KW Components

Heater KW= 160 200 240 280 320 Sch. Part Part Sym. Description Number

PB3 Power Block 030372785 1 1 1 1 1 1 1 1 1 1 PB31 Power Block 4 used w/100A, 150A DS3 030372777 1 1 1 1 1 1 1 1 1 1 used w/250A DS3 030372783 1 1 1 1 1 1 1 1 1 1 used w/400A DS3 030372785 1 1 1 1 1 1 1 1 1 1 used w/600A DS3 030372721 3 1 1 1 1 1 1 1 1 1 1 DS3 Disconnect Switch

2

HS3 Switch 033696300 1 1 1 1 1 1 1 1 1 1 TB11 Terminal Block 349930641 1 1 1 1 1 1 1

M31 Contactor 349932322 1 1 1 1 1 1 1 1 1 1 M32 Contactor 349932322 1 1 1 1 1 1 1 1 1 1 M33 Contactor 349932322 1 1 1 1 1 1 Contactor 349932221 1 1 1 1 M34 Contactor 349932322 1 1 1 1 1 1 Contactor 349932221 1 1 1 1 M41 Contactor 349932322 1 1 Contactor 349932321 1 1 1 1 1 1 M42 Contactor 349932322 1 1 Contactor 349932321 1 1 1 1 1 1 M43 Contactor 349932322 1 1 1 1 1 1 Contactor 349932321 1 1 M44 Contactor 349932322 1 1 1 1 1 1 Contactor 349932321 1 1

460V

575V

460V

575V

460V

575V

460V

1 1 1

460V

575V

FB31 Fuse Block 023780230 1 1 1 1 1 1 1 1 1 1 FB32 Fuse Block 023780230 1 1 1 1 1 1 1 1 1 1 FB33 Fuse Block 023780230 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 FB34 Fuse Block 023780230 1 1 1 1 1 1 Fuse Block 023780225 1 1 1 1 FB41 Fuse Block 023780230 1 1 Fuse Block 023780225 1 1 1 1 1 1 FB42 Fuse Block 023780230 1 1 Fuse Block 023780225 1 1 1 1 1 1 FB43 Fuse Block 023780230 1 1 1 1 1 1 Fuse Block 023780225 1 1 FB44 Fuse Block 023780230 1 1 1 1 1 1 Fuse Block 023780225 1 1

1

Part number is for one section. The number of sections used is determined by the options installed.

2

See chart 3 pages prior.

3

Cover— PB31 used with 600A DS3= p/n 349938345.

4

Not used when PB3 power block connection is present.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 75

Section G- Blow-Thru Heat Section

Option 3: Electric Heat— Code 34 ﬁrst digit = E

Electric Heat Control Box

160- 320KW Components, Continued

Heater KW= 160 200 240 280 320 Sch. Part Part Sym. Description Number

F31 Fuse 025860414 3 3 3 3 3 Fuse 025860413 3 3 3 3 3 F32 Fuse 025860414 3 3 3 3 3 Fuse 025860413 3 3 3 3 3 F33 Fuse 025860414 3 3 3 Fuse 025860413 3 3 3 Fuse 025860409 3 3 Fuse 025860408 3 3 F34 Fuse 025860414 3 3 3 Fuse 025860413 3 3 3 Fuse 025860409 3 3 Fuse 025860408 3 3 F41 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3 Fuse 025860414 3 Fuse 025860413 3 F42 Fuse 025860409 3 3 3 Fuse 025860408 3 3 3 Fuse 025860414 3 Fuse 025860413 3 F43 Fuse 025860409 3 Fuse 025860408 3 Fuse 025860414 3 3 3 Fuse 025860413 3 3 3 F44 Fuse 025860409 3 Fuse 025860408 3 Fuse 025860414 3 3 3 Fuse 025860413 3 3 3

460V

575V

460V

575V

460V

575V

460V

575V

460V

575V

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 76

Section G- Blow-Thru Heat Section

Option 4- Gas Heat Code 04= A

Vestibules, Heat Exchangers and Primary Components

500, 640, 650, 790, 800, 1000, 1100, 1400

Code 34= 050**, 064**, 065**, 079**, 080**, 100**, 110**, 140**

Heat

Exchanger

21

22

1

Burner

1

Burner

Control

2

Box

Gas Train

Ref Part 500/650 640/790 800/1000 1100/1400 Qty. No. Description MBH MBH MBH MBH

1 Heat Exchanger- S.S. Sec. C34= ***S** 098320656 098320658 098320660 098320662 1 21 Vestibule 055636326 055636326 055636326 055636326 1 22 Vestibule 055636322 055636323 055636324 055636325 1

1

Parts detail follows this section.

2

Parts detail follows Burner section.

3

Parts detail follows Burner Control Box section.

3

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 77

Section G- Blow-Thru Heat Section

Option 4- Gas Heat Code 04= A

Vestibules, Heat Exchangers and Primary Components

1500, 2000

Code 34= 150***, 200***

Heat

1

Burner

Exchanger

1

Burner

Control

2

Box

Gas Train

Ref Part 1500/2000 Qty. No. Description MBH

1 Heat Exchanger- Stainless Steel Secondary C34= ***S** 098320664 1

1

Parts detail follows this section.

2

Parts detail follows Burner section.

3

Parts detail follows Burner Control Box section.

3

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 78

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner:

Code 34= ****E*, ****R*, ****S*

Diagrams

126

Burner Control

Box

130

106

122

120

111

125

119

110

105

115

123

113

149102

500- 1000 mbh burners

147

112

114

124

116

117

109

103

104

127

121

118

107

108

Housing Detail:1100- 2000 mbh

Burners

149

Pilot Valve/ Pressure

160

162

115

102

Regulator Assy Detail

150

116

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 79

114

112

124

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner:

Code 34= ****E*, ****R*, ****S*

Components

Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

102 Burner Housing 500- 1000 MBH Furnace 059362302 059362302 1 1100- 2000 MBH Furnace 066673702 066673702 1 103 Scroll 500- 1000 MBH Furnace 035740701 035740701 1 1100- 2000 MBH Furnace 035740901 035740901 1 104 Wheel- .5” bore, CCW 500- 1000 MBH Furnace 034861102 034861102 1 1100- 1500 MBH Furnace 034249005 034249005 1 2000 MBH Furnace 034249004 034249004 1 105 Motor 500- 1000 MBH Furnace 034249200 034249200 1 1100- 1500 MBH Furnace 032248600 032248600 1 2000 MBH Furnace 032248400 032248400 1 106 Gun Assembly: 500 MBH Furnace 034880001 034880001 1 640, 650 MBH Furnace 034880002 034880002 1 790, 800 MBH Furnace 034880003 034880003 1 1000 MBH Furnace 034880004 034880004 1 1100 MBH Furnace 035721001 035721001 1 1400 MBH Furnace 035721002 035721002 1 1500 MBH Furnace 035721003 035721003 1 2000 MBH Furnace 036235700 036235700 1 107 Inlet Funnel 500- 1000 MBH Furnace 034743101 034743101 1 1100- 2000 MBH Furnace 034743102 034743102 1 108 Fan Guard 034742800 034742800 1 109 Blast Tube: 500 - 650 MBH Furnace 034101703 034101703 1 790 - 1000 MBH Furnace 034101707 034101707 1 1100, 1400 MBH Furnace 034101706 034101706 1 1500, 2000 MBH Furnace 035164701 035164701 1

Burner Approval Code

Qty.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 80

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner:

Code 34= ****E*, ****R*, ****S*

Components, Continued

Burner Approval Code Qty. Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

110 Pilot Mixer 500 - 1000 MBH Furnace 036516401 036516401 1 1100 - 2000 MBH Furnace 036516402 036516402 1 111 Pilot Assembly 035019600 035019600 1 112 Damper Assembly 500 - 1000 MBH Furnace 035721501 048791401 1 1100 - 2000 MBH Furnace 035721502 048791402 1 113 Blast Tube Gasket 500 - 1000 MBH Furnace 034102000 034102000 1 1100, 1400 MBH Furnace 034101900 034101900 1 1500, 2000 MBH Furnace 034101900 034101900 2 114 Right Side Damper: 500 MBH Furnace 058594301 058594301 1 640 MBH Furnace 058595201 058595201 1 650 - 1000 MBH Furnace 058594501 058594501 1 1100 MBH Furnace 059366301 059366301 1 1400 MBH Furnace 059366201 059366201 1 1500, 2000 MBH Furnace 059365501 059365501 1 115 Left Side Damper: 500, 640 MBH Furnace 058595001 058595001 1 650 - 1000 MBH Furnace 058594401 058594401 1 1100 MBH Furnace 059366501 059366501 1 1400 MBH Furnace 059366401 059366401 1 1500, 2000 MBH Furnace 059365101 059365101 1 116 Slide Damper: 500 MBH Furnace 058594805 058594815 1 640 MBH Furnace 058594806 058594816 1 650 MBH Furnace 058594807 058594817 1 790 MBH Furnace 058594808 058594818 1 800 MBH Furnace 058594809 058594819 1 1000 MBH Furnace 058594810 058594820 1 1100 MBH Furnace 058594831 058594831 1 1400 MBH Furnace 058594837 058594837 1 1500 MBH Furnace 058594843 058594843 1 2000 MBH Furnace 058594849 058594849 1 117 Blower Gasket 035019500 035019500 1 118 Burner Cover 500- 1000 MBH Furnace 033972100 033972100 1 1100- 2000 MBH Furnace 033973101 033973101 1 119 Ignition Assembly 500- 1000 MBH Furnace 034742900 034742900 1 1100- 2000 MBH Furnace 036518500 036518500 1 120 Glass Cover 036557000 036557000 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 81

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner:

Code 34= ****E*, ****R*, ****S*

Components, Continued

Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

121 Glass Cover Support 036009600 036009600 1 122 Oriﬁce: 500 MBH Furnace 058599101 058599101 1 640 MBH Furnace 058599102 058599102 1 650 MBH Furnace 058599103 058599103 1 790 MBH Furnace 058599104 058599104 1 800 MBH Furnace 058599104 058599104 1 1000 MBH Furnace 058599201 058599201 1 1100 MBH Furnace 059364601 059364601 1 1400 MBH Furnace 059364602 059364602 1 1500 MBH Furnace 059364603 059364603 1 123 Clip 034919400 034919400 1 124 Flange Bearing 034252000 034252000 2 125 Air Switch Tube 500- 1000 MBH Furnace 034102801 034102801 1 1100- 2000 MBH Furnace 034102701 034102701 1 126 Pilot Burner Tube: 500 - 1000 MBH Furnace 036236100 036236100 1 1100, 1400 MBH Furnace 036236200 036236200 1 1500, 2000 MBH Furnace 036519900 036519900 1 127 Compression Fitting 034097500 034097500 1 130 Pilot Tube 034102601 034102601 1 147 Torsion Spring not used 037528600 1 149 Burner Box Bafﬂe: 500 - 1000 MBH Furnace 058597902 058597902 1 1100- 2000 MBH Furnace 059365801 059365801 1 150 Damper, Slide- Top 1100 MBH Furnace 058594830 not used 1 1400 MBH Furnace 058594836 not used 1 1500 MBH Furnace 058594842 not used 1 2000 MBH Furnace 058594848 not used 1 160 Valve- Pressure Regulator 034077600 034077600 1 162 Valve- Solenoid 034488400 034488400 1

Burner Approval Code

Qty.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 82

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Diagrams

118

120

121

106

110

105

119

358

328

358

114

102

109

113

116

295

300

310

318

145

117

144

103

104

Detail: Oriﬁce, Control Rod, Control Arm, Linkage, Plate

107

Detail

108

375

322

297

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 83

324

325

321

323

320

299

110

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Components

Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

102 Burner Housing 500- 1000 MBH Furnace 059862103 059862103 1 1100- 2000 MBH Furnace 059862133 059862133 1 103 Scroll 500 thru 800 MBH Furnace 096434806 096434806 1 1000- 2000 MBH Furnace 059862136 059862136 1 104 Wheel- .5” bore, CCW 500- 800 MBH Furnace 034861102 034861102 1 1000- 1500 MBH Furnace 034249005 034249005 1 2000 MBH Furnace 034249004 034249004 1 105 Motor- .25 HP, 115/60/1 500- 800 MBH Furnace 034249200 034249200 1 1000- 1500 MBH Furnace 032248600 032248600 1 2000 MBH Furnace 032248400 032248400 1 106 Gun Assembly: 500 MBH Furnace 096414805 096414805 1 640, 650 MBH Furnace 096414806 096414806 1 790, 800 MBH Furnace 096414808 096414808 1 1000 MBH Furnace 096414810 096414810 1 1100 MBH Furnace 096414811 096414811 1 1400 MBH Furnace 096414812 096414812 1 1500 MBH Furnace 096414813 096414813 1 2000 MBH Furnace 096414814 096414814 1 107 Inlet Funnel 500- 800 MBH Furnace 034743101 034743101 1 1000- 2000 MBH Furnace 034743102 034743102 1 108 Fan Guard 034742800 034742800 1 109 Blast Tube: 500, 640 MBH Furnace 034101703 034101707 1 650 - 1000 MBH Furnace 034101707 034101707 1 1100, 4000 MBH Furnace 034101706 034101706 1 1500, 2000 MBH Furnace 035164701 035164701 1

Burner Approval Code

Qty.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 84

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Components, Continued

Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

110 Oriﬁce Assembly 500 MBH Furnace 096414705 096414725 1 640 MBH Furnace 096414706 096414726 1 650 MBH Furnace 096414707 096414727 1 790 & 800 MBH Furnace 096414708 096414728 1 1000 MBH Furnace 096414710 096414730 1 1100 MBH Furnace 096414711 096414731 1 1400 MBH Furnace 096414712 096414732 1 1500 MBH Furnace 096414712 096414733 1 2000 MBH Furnace 096414714 096414734 1 113 Gasket- Blast Tube 500- 1000 MBH Furnace 034102000 034102000 1 1100- 2000 MBH Furnace 034101900 034101900 1 114 Air Box Assy 500- 1000 MBH Furnace 059862112 059862112 1 1100- 2000 MBH Furnace 059862142 059862142 1 116 Plate- Actuator Scale 059645001 059645001 1 117 Gasket- Blower 035019500 035019500 1 118 Panel- Burner Box Cover 500- 1000 MBH Furnace 059388501 059388501 1 1100- 2000 MBH Furnace 059649401 059649401 1 119 Ignition Wire Assy 500- 1000 MBH Furnace 034742902 034742902 1 1100- 2000 MBH Furnace 036518500 036518500 1 120 Glass Cover- Burner 036557000 036557000 1 121 Support- Glass Cover 036009600 036009600 1 144 Grommet- Flat 060017701 060017701 1 145 Box- Conduit (500- 800 MBH only) 036558800 036558800 1 295 Motor- Actuator 111047701 111047701 1 297 Control Arm 500- 1000 MBH Furnace 059862114 059862114 1 1100- 2000 MBH Furnace 059862144 059862144 1 299 Control Rod 500- 1000 MBH Furnace 059861101 059861101 1 1100- 2000 MBH Furnace 059650501 059650501 1 300 Crank Arm 500- 1000 MBH Furnace 059645101 059645101 1 1100- 2000 MBH Furnace 023463200 023463200 1

Burner Approval Code

Qty.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 85

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner

Code 34= ****H*, ****T*, ****U*

Components, Continued

Ref Part C07=EU, EF, EI C07= CC, CD No. Description UL/ETL CSA

310 Extension- Crank Arm 059862110 059862110 1 318 Bushing- Control Rod 059861301 059861301 1 320 Linkage 096414901 096414901 1 321 Plate- Adjustable 500 MBH Furnace 060086401 096422901 1 640 MBH Furnace 096417701 096417801 1 650 MBH Furnace 096416301 096416301 1 790 MBH Furnace 060097101 060097101 1 800 MBH Furnace 060097101 096422701 1 1000 MBH Furnace 060092401 060097301 1 1100 MBH Furnace 096422501 096422501 1 1400 MBH Furnace 096420201 096420201 1 1500 MBH Furnace 096420201 096420201 1 2000 MBH Furnace 096420301 096420301 1 322 Plate- Proﬁle 500 MBH Furnace 060086101 060086101 1 640 MBH Furnace 096417901 096417901 1 650 MBH Furnace 096415301 096418001 1 790 MBH Furnace 096416501 096416501 1 800 MBH Furnace 060096901 060097001 1 1000 MBH Furnace 060092601 060097201 1 1100 MBH Furnace 059648801 096422401 1 1400 MBH Furnace 096422201 096422301 1 1500 MBH Furnace 096419801 096419901 1 2000 MBH Furnace 096419701 096420001 1 323 Plate- Slide Damper 500 MBH Furnace 060086301 060086301 1 640, 650 MBH Furnace 096417601 096417601 1 790, 800, 1000 MBH Furnace 060092501 060092501 1 1100, 1400, 1500 MBH Furnace 059649201 059649201 1 2000 MBH Furnace 096420401 096420501 1 324 Box- Air 500- 1000 MBH Furnace 060092201 060092201 1 1100- 2000 Furnace 060092202 060092202 1 325 Gasket- Air Box 500- 1000 MBH Furnace 060092301 060092301 1 1100- 2000 Furnace 096421701 096421701 1 328 Grommet 000498100 000498100 1 358 Bearing- Sleeve 046761000 046761000 2 375 Grommet 500- 1000 MBH Furnace 059988700 059988700 1 1100- 2000 Furnace 059988800 059988800 1

Burner Approval Code

Qty.

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 86

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner Controls: Code 34= ****E*, ****R*, ****S*

MicroTech II or No Controls

Diagram

25

26

FSG Detail

25

27

22

24

63

61

29

62

31

30

41

39

32

34

Gas

Control

Box

11

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 87

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner Controls: Code 34= ****E*, ****R*, ****S*

MicroTech II or No Controls

Components

Ref Sch. Part Furnace MBH: No. Sym. Description 500- 1000 1100- 2000 Qty.

11 GV1 Pressure Reg. Assy 039742000 039742000 1 Valve Only 034077600 034077600 1 Solenoid Valve 034488400 034488400 1 22 Support 059388701 059388701 1 24 Flame Safeguard Subbase 073300702 073300702 1 25 FSG Flame Safeguard 073300803 073300803 1 26 Ampliﬁer 073300901 073300901 1 27 Flame Safeguard T.D. 90 Sec. UL Units 073301002 073301002 1 Flame Safeguard T.D. 30 Sec. CSA Units 073301001 073301001 1 29 S3 Toggle Switch- 4PST: S3 033536700 033536700 1 30 IT Ignition Transformer 034482600 034482600 1 31 Air Switch- Gas Burner 033003800 033003800 1 32 FLC Fan Limit Control 073337102 073337102 1 34 TB11 Terminal Block- 14 Pole 015998114 015998114 1 39 Fitting 067297701 067297701 1 41 Bushing 001242600 001242600 3 61 R20 Relay- SPDT C12= *D, *S 026213000 026213000 1 61 R20 Relay (Before 1/10) C12= YM, YC 061019403 061019403 1 N/S R20A Relay (After 1/10) C12= YM, YC 349934764 349934764 1 N/S Relay Socket 349964702 349964702 1 63 R23 Relay (Before 1/10) C12= YM, YC 019643000 019643000 1 N/S R23A Pilot Relay (After 1/10, ETL only) C12= YM, YC 349934764 349934764 1 N/S Mounting Adapter 349964702 349964702 1 N/S R23B Pilot Relay (After 1/10) C12= YM, YC 193454702 193454702 1 N/S Relay Socket 193454801 193454801 1 62 M29 Contactor- Motor not used 027400700 1 63 R23 Pilot Relay- DPDT 019643000 019643000 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 88

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner Controls: Code 34= ****E*, ****R*, ****S*

MicroTech III Controls (Code 12= LE, LF, BE, BF, EE, EF, SE, SF)

25

26

FSG Detail

27

R23B

R23A

R20A

24

M29

63

61

62

31

64

30

34

29

25

IT

TB11

S3

FSG See Detail

FLC

32

11

Gas Valve Detail

Gas

Control

Box

Ref Sch. Part Furnace MBH:

No. Sym. Description 500- 1000 1100- 2000 Qty.

11 GV1 Pressure Reg. Assy 039742000 039742000 1 Valve Only 034077600 034077600 1 Solenoid Valve 034488400 034488400 1 24 Flame Safeguard Subbase 073300702 073300702 1 25 FSG Flame Safeguard 073300803 073300803 1 26 Ampliﬁer 073300901 073300901 1 27 Flame Safeguard T.D. 90 Sec. UL Units 073301002 073301002 1 Flame Safeguard T.D. 30 Sec. CSA Units 073301001 073301001 1 29 S3 Toggle Switch- 4PST: S3 033536700 033536700 1 30 IT Ignition Transformer 034482600 034482600 1 31 AS Air Switch- Gas Burner 033003800 033003800 1 32 FLC Fan Limit Control 193423703 193423703 1 34 TB11 Terminal Block- 14 Pole 015998114 015998114 1 Jumper- Terminal Block 001354100 001354100 1 61 R20A Relay- High Amp DPDT/120V 349934764 349934764 1 62 R23A Relay- High Amp DPDT/120V 349934764 349934764 1 63 R23B Relay- Low Amp DPDT/120V 193424341 193424341 1 64 M29 Contactor- Motor DPDT/120V not used 349934764 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 89

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner Controls: Code 34= ****H*, ****T*, ****U*

MicroTech II or No Controls

Diagram

25

26

FSG Detail

See Detail

22

27

R20

24

TB11

61

29

34

TD10

63

R23

64

66

R21

33

R22

65

41

42

30

23

39

31

32

62

1100- 2000 MBH

Panel Detail

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 90

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner Controls: Code 34= ****H*, ****T*, ****U*

MicroTech II or No Controls

Components

Ref Sch. Part Furnace MBH Qty. No. Sym. Description 500- 1000 1100- 2000

22 Support 059388701 059388701 1 23 Support 059388601 059649701 1 24 Subbase- Flame Safeguard 073300702 073300702 1 25 FSG Control- Flame Safeguard 073300803 073300803 1 26 Ampliﬁer 073300901 073300901 1 27 Time Delay- Flame Safeguard 073301003 073301003 1 29 S3 Switch- Toggle 033536700 033536700 1 30 IT Transformer- Ignition 034482600 034482600 1 31 AS Switch- Air 033003800 033003800 1 32 FLC Control- Fan Limit 073337102 073337102 1 33 LS1/LS2 Switch- Limit 059975301 059975301 2 34 TB11 Terminal Block 015998114 015998114 1 39 Fitting 067297701 067297701 1 41 Bushing 001242600 001242600 1 42 Bushing 049751901 049751901 1 61 R20 Relay C12= *D, *S 016508002 016508002 1 R20 Relay (Before 1/10) C12= YC 073340001 073340001 1 R20 Relay (Before 1/10) C12= YM 027400700 027400700 1 N/S R20A Relay (After 1/10) 349934764 349934764 1 N/S Relay Socket 349964702 349964702 1 N/S R23A Pilot Relay (After 1/10, ETL only) 349934764 349934764 1 N/S Mounting Adapter 349964702 349964702 1 N/S R23B Pilot Relay (After 1/10) 193454702 193454702 1 N/S Relay Socket 193454801 193454801 1 62 M29 Contactor- Motor not used 027400700 1 63 R23 Relay- 120V/DPDT 019643000 019643000 1 64 R21 Relay- 120V/DPDT (Before 1/10) 019643000 019643000 1 N/S R21 Relay- 120V/DPDT (After 1/10) 193454703 193454703 1 N/S Mounting adapter 193454802 193454802 1 65 R22 Relay- 120VSPST 027400700 027400700 1 66 TD10 Relay- Time Delay 20.0 Sec. 028210106 028210106 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 91

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner Controls: Code 34= ****H*, ****T*, ****U*

MicroTech III Controls (C12= _E, _F)

IT

30

R23B

M29

65

66

25

26

FSG Detail

27

24

R23A

R20B

R20A

AS

FSG

See Detail

R21

62

61

31

25

64

63

LS1

LS2

29

33

34

LS_

S3

TB11

32

FLC

Ref Sch. Part Furnace MBH Qty.

No. Sym. Description 500- 1000 1100- 2000

24 Subbase- Flame Safeguard 073300702 073300702 1 25 FSG Control- Flame Safeguard 073300801 073300801 1 26 Ampliﬁer 073300901 073300901 1 27 Time Delay- Flame Safeguard 073301002 073301002 1 29 S3 Switch- Toggle 033536700 033536700 1 30 IT Transformer- Ignition 034482600 034482600 1 31 AS Switch- Air 033003800 033003800 1 32 FLC Control- Fan Limit 193423703 193423703 1 33 LS1/LS2 Switch- Limit 059975301 059975301 2 34 TB11 Terminal Block 015998114 015998114 1 Jumper- Terminal Block 001354100 001354100 1 61 R20A Relay- High Amp DPDT/120V 349934764 349934764 1 62 R20B Relay- Low Amp DPDT/120V 193424341 193424341 1 63 R21 Relay- Low Amp DPDT/120V 193424341 193424341 1 64 R23A Relay- High Amp DPDT/120V not used 349934764 1 65 R23B Relay- Low Amp DPDT/120V not used 193424341 1 66 M29 Relay- High Amp DPDT/120V not used 349934764 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 92

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner:

Code 34= ****E*, ****R*, ****S*

Units without Pressure Regulator Valve:

234

205

234205

500- 1500 MBH 2000 MBH

Units with Pressure Regulator Valve:

Gas Train- Inlet

C34= ****E*

Ref Part Part No. Description Number Qty.

205 Shutoff Valve 500 - 2000 MBH 034077300 1 234 Gas Valve 500 MBH 059468802 1 640- 1000 MBH 059468803 1 1100- 1500 MBH 059468804 1 2000 MBH 059468805 1

C34= ****R* or ****S*

228

234

205

500, 640, 650 or 800

MBH Furnaces

Ref Part Pressure Regulator Qty. No. Description 2 - 3 PSI 5 - 10 PSI

205 Shutoff Valve 034077300 034077300 1 228 Pressure Regulator 500 MBH 036619914 036619915 1 640, 650 MBH 036619923 036619925 1 790, 800 MBH 036619922 036619924 1 1000 MBH 073387201 036619923 1 1100 MBH 073387302 036619923 1 1400 MBH 073387301 073387303 1 1500 MBH 073387301 073387302 1 2000 MBH 073387306 073387301 1 234 Gas Valve 500 MBH 073387402 073387402 1 640- 1500 MBH 073387403 073387403 1 2000 MBH 073387404 073387403 1

228

205

234

1000 MBH

Furnaces

205

234

1100, 1400 MBH

Furnaces

228

205

1500 MBH

Furnaces

228

234 205

234

2000 MBH

Furnaces

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 93

226

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Gas Train- Inlet

CSA Units— Code 07= CC or CD

Units without Pressure Regulator Valve: C34= ****H*

Back Wall of

Vestibule

Ref Part Part No. Description Number Qty.

292

Combination

Valve Detail

226 Gas Valve 500 MBH 059468802 1 640- 1000 MBH 059468803 1 1100- 1500 MBH 059468804 1 2000 MBH 059468805 1 292 Combination Valve 073336504 1

Units with Pressure Regulator Valve: C34= ****T* or ****U*

Back Wall of

232

226

Combination

Valve Detail

Ref Part Pressure Regulator Qty. No. Description 2 - 3 PSI 5 - 10 PSI

226 Shutoff Valve 500 MBH 073387402 073387402 1 640- 1500 MBH 073387403 073387403 1 2000 MBH 073387404 073387403 1 232 Pressure Regulator 500 MBH 036619914 036619915 1 640, 650 MBH 036619923 036619925 1 790, 800 MBH 036619922 036619924 1 1000 MBH 073387201 036619923 1 1100 MBH 073387202 036619923 1 1400 MBH 073387301 073387303 1 1500 MBH 073387301 073387302 1 2000 MBH 073387306 073387301 1 292 Valve- Combination 073336504 073336504 1

Vestibule

292

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 94

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Gas Train- Inlet

UL Units— Code 07= EU

Units without Pressure Regulator Valve:

C34= ****H*

226

Ref Part Part

No. Description Number Qty.

226 Gas Valve 400/500 MBH 059468802 1 640- 1000 MBH 059468803 1 1100- 1500 MBH 059468804 1 2000 MBH 059468805 1

Units with Pressure Regulator Valve:

C34= ****T* or ****U*

232

226

Ref Part

No. Description 2 - 3 PSI 5 - 10 PSI

226 Shutoff Valve 500 MBH 073387402 073387402 1 640- 1500 MBH 073387403 073387403 1 2000 MBH 073387404 073387403 1 232 Pressure Regulator 500 MBH 036619914 036619915 1 640, 650 MBH 036619923 036619925 1 790, 800 MBH 036619922 036619924 1 1000 MBH 073387201 036619923 1 1100 MBH 073387202 036619923 1 1400 MBH 073387301 073387303 1 1500 MBH 073387301 073387302 1 2000 MBH 073387306 073387301 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 95

Pressure Regulator

Qty.

500 - 2000 MBH

Furnaces

UL Approved

(C07= EU, YU)

253

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Modulating Burner: Code 34= ****E*, ****R*, ****S*

Gas Train- Controls: GV2, GV3

UL Units— Code 07= EU, YU

Gas Controls: 500 - 2000 MBH Furnace UL Approved

Ref Part Part No. Description Number Qty.

248 Gas Valve- GV2, GV3 500 MBH 073387801 2 640 - 1000 MBH 073387802 2 1100- 1500 MBH 073387803 2 2000 MBH 073387804 2 253 Pressure Regulator 500 MBH 034078100 1 640 - 1000 MBH 034077804 1 1100- 1500 MBH 034077802 1 2000 MBH 034077803 1 255 Junction Box 020766100 1 256 Junction Box Cover 000127300 1 261 Gas Pipe Modulating Burner 500 MBH 055964002 1 640 MBH 055964108 1 650, 790 MBH 055964103 1 800, 1000 MBH 055964102 1 1100, 1400 MBH 031326400 1 1500 MBH 056010902 1 2000 MBH 056011208 1 Single Stage Burner 500 MBH 055964003 1 640 MBH 055964104 1 650, 790 MBH 055964117 1 800 MBH 055964107 1 1000 MBH 055964108 1 1100, 1400 MBH 056010902 1 1500 MBH 056010903 1 2000 MBH 056011002 1

256

GV2 GV3

248

261

255

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 96

Modulating Burner: Code 34= ****E*, ****R*, ****S*

500 - 2000 MBH

Furnaces

CSA Approved

(C07= CC or CD)

253

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Gas Train- Controls: GV2, VM1

CSA Units— Code 07= CC or CD

Gas Controls: 500 - 2000 MBH Furnace CSA Approved

Ref Part Part No. Description Number Qty.

248 Gas Valve Body- GV2 500 MBH 041768902 1 640 - 1000 MBH 041768903 1 1100- 2000 MBH 041768905 1 249 Actuator- VM1 034490101 1

249

248

261

GV2

253 Pressure Regulator 500 MBH 034078100 1 640 - 1000 MBH 034077804 1 1100- 1500 MBH 034077802 1 2000 MBH 034077803 1 261 Gas Pipe Modulating Burner 500 MBH 055964202 1 640 MBH 055964308 1 650, 790 MBH 055964302 1 800, 1000 MBH 056011101 1 1100, 1400 MBH 056011104 1 1500 MBH 056011105 1 2000 MBH 056011207 1 Single Stage Burner 500 MBH 055964203 1 640 MBH 055964303 1 650, 790 MBH 055964307 1 800, 1000 MBH 055964306 1 1100, 1400 MBH 056011105 1 1500 MBH 056011106 1 2000 MBH 056011205 1

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 97

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Gas Train- Controls: GV1, GV4, GV5, GV6, GV7, GV8

UL Units— Code 07= EU, YU

500 - 650 MBH

Furnaces

UL (C07= EU, YU)

GV4

254

GV1

1400, 1500 MBH

Furnaces

UL (C07= EU, YU)

GV7

254

GV6

GV5

GV1

254

GV4

790 - 1000 MBH

Furnaces

UL (C07= EU, YU)

GV5

GV4

254

GV1

UL (C07= EU, YU)

2000 MBH

Furnaces

254

GV8

254

GV6

GV5

GV7

1100 MBH

Furnaces

UL (C07= EU, YU)

GV4

GV1

254

GV6

254

GV5

254

GV4

254

GV1

254

Ref Part Part

No. Description Number Qty.

254 Gas Valve- GV1, GV4 400- 650 MBH 073336504 2 Gas Valve- GV1, GV4, GV5 790 - 1000 MBH 073336504 3 Gas Valve- GV1, GV4, GV5, GV6 1100 MBH 073336504 4 Gas Valve- GV1, GV4, GV5, GV6, GV7 1400, 1500 MBH 073336504 5 Gas Valve- GV1, GV4, GV5, GV6, GV7, GV8 2000 MBH 073336504 6

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 98

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Hi Turn Down Burner: Code 34= ****H*, ****T*, ****U*

Gas Train- Controls: GV2, GV4, GV5, GV6, GV7, GV8, GV9, VM1

CSA Units— Code 07= CC, CD

500 - 650 MBH Furnaces

CSA (C07= CC or CD)

GV4

246

254

GV5

247

GV2

1400, 1500 MBH Furnaces

CSA (C07= CC or CD)

GV8

254

GV7

254

GV2

247

246

254

GV6

GV5

GV4

790 - 1000 MBH Furnaces

CSA (C07= CC or CD)

254

GV6

GV5

254

GV2

247

254

GV4

246

1100 MBH Furnaces

CSA (C07= CC or CD)

254

247

246

2000 MBH Furnaces

CSA (C07= CC or CD)

GV8

254

GV9

GV2

247

246

GV7

GV6

GV2

254

GV7

254

GV6

GV5

GV4

254

GV5

GV4

254

Ref Part Furnace Part

No. Description Size Number Qty.

246 Gas Valve Body- GV2 400, 500 MBH 041768902 1 Gas Valve Body- GV2 640 - 1000 MBH 041768903 1 Gas Valve Body- GV2 1100- 2000 MBH 041768905 1 247 Actuator- VM1 111047401 1 254 Gas Valve- GV4, GV5 400- 650 MBH 073336504 2 Gas Valve- GV4,GV5,GV6 790 - 1000 MBH 073336504 3 Gas Valve- GV4,GV5,GV6,GV7 1100 MBH 073336504 4 Gas Valve- GV4,GV5,GV6,GV7,GV8 1400, 1500 MBH 073336504 5 Gas Valve- GV4,GV5,GV6,GV7,GV8,GV9 2000 MBH 073336504 6

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 99

Section G- Blow-Thru Heat Section

Option 4- Gas Heat: Code 04= A

Gas Train- Outlet

500, 640 MBH

Actuator & Linkage-

See next page

650 - 2000 MBH

Actuator & Linkage-

See next page

Modulating Burners

C34= ****E*, ****R* or ****S*

275

277

283

277

283

275

Ref Part Part

No. Description Number Qty.

275 Pipe w/ Valve Mount 500 MBH 035019800 1 640 - 1000 MBH 036235500 1 1100, 1400 MBH 035019900 1 1500, 2000 MBH 036235600 1 277 Butterﬂy Valve 500 MBH 034488303 1 640 - 1400 MBH 034488304 1 1500, 2000 MBH 034488305 1 283 Shutoff Valve 500 MBH 059468802 1 640 - 800 MBH 059468803 1 1000 MBH UL 058968804 1 1000 MBH CSA 059468803 1 1100 - 1500 MBH 059468804 1 2000 MBH 059468805 1

1

Hi Turn Down Burners

C34= ****H*, ****T* or ****U*

650, 2000

MBH

275

500, 640

MBH

RoofPak Singlezone; RCS,RDT,RFS,RPS 080-140 “D” Rev. Y 07/12 RPL 700010800 / Page 100

275

790- 1500

MBH

275

Ref Part Part

No. Description Number Qty.

275 Gas Valve 500 MBH 059468802 1 640 - 1000 MBH 059468803 1 1100 - 1500 MBH 059468804 1 2000 MBH 059468805 1

McQuay RCS080 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
