McCulloch MC500S User Manual
The Manufacturer warrants to the original consumer purchaser that this product as
manufactured is free from defects in materials and workmanship. For a period of
two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing
parts, any part which we fi nd to be defective due to materials or work man ship. This
Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components,
battery (except as noted below) or com po nents parts thereof. Please refer to the
applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or at tach ment are the responsibility of the purchaser. Transportation charges for any
parts sub mit ted for replacement under this warranty must be paid by the purchaser unless such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without
charge to you, any battery which we fi nd to be defective in manufacture, during
the fi rst ninety (90) days of ownership. After ninety (90) days, we will exchange
the Battery, charging you 1/12 of the price of a new Battery for each full month
from the date of the original sale. Battery must be maintained in accordance with
the in struc tions furnished.
4. The Warranty period for any products used for rental or commercial purposes is
limited to 45 days from the date of original purchase.
5. This Warranty applies only to products which have been properly assembled,
adjusted, operated, and maintained in accordance with the instructions fur nished.
This Warranty does not apply to any product which has been subjected to al ter ation, misuse, abuse, improper assembly or installation, delivery damage, or to
normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to
an authorized service dealer.
LIMITED WARRANTY
Should you have any unanswered questions concerning this Warranty, contact:
HOP
Customer Service Department
1030 Stevens Creek Road
Augusta, GA 30907 USA
giving the model number, serial number and date of purchase of your product and
the name and address of the au tho rized dealer from whom it was pur chased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WAR RAN TIES ARE LIMITED TO THE SAME
TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES.
Some areas do not allow the limitation of consequential damages or lim i ta tions
of how long an implied Warranty may last, so the above lim i ta tions or exclusions
may not apply to you. This Warranty gives you specifi c legal rights, and you may
have other rights which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defi ned in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
Customer Service Department
5855 Terry Fox Way
Mississauga, Ontario L5V 3E4
www.mcculloch.biz

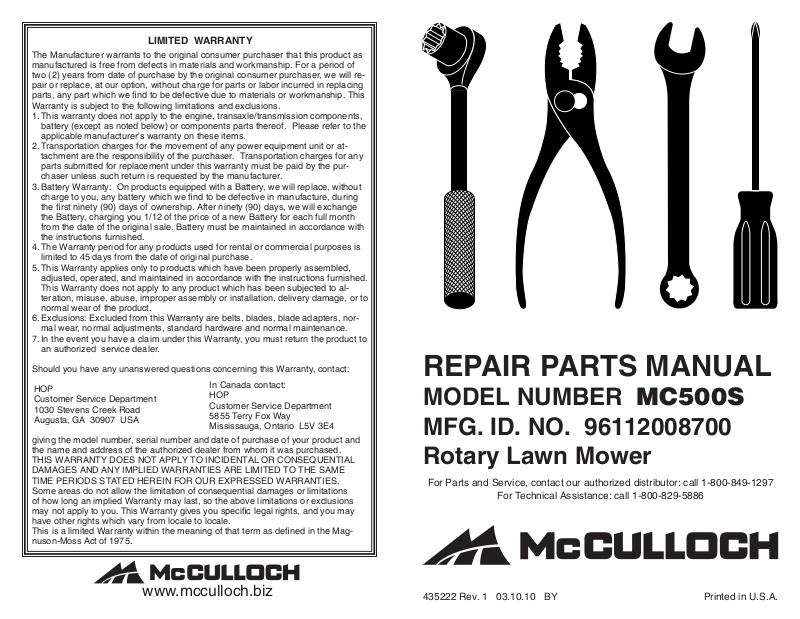

REPAIR PARTS MANUAL
MODEL NUMBER MC500S
MFG. ID. NO. 96112008700
Rotary Lawn Mower
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
For Technical Assistance: call 1-800-829-5886
435222 Rev. 1 03.10.10 BY Printed in U.S.A.
26
46
40
45
44
61
18
39
43
45
34
33
46
40
44
61
39
15
36
43
28
25
29
30
36
31
32
41
5
4
ROTARY LAWN MOWER - MODEL NUMBER MC500S (MFG. ID. NUMBER 96112008700)
37
61
44
45
46
39
23
ROTARY LAWN MOWER - MODEL NUMBER MC500S (MFG. ID. NUMBER 96112008700)
43
45
18
40
39
15
61
44
46
27
53
22
7
16
2
11
12
13
19
20
10
38
1
6
21
16
3
40
8
33
35
43
2
27 408585 Torsion Spring
28 851514 Blade Adapter
29 406713 22" Blade
30 851074 Hardened Washer
31 850263 Helical Lockwasher 3/8
32 851084 Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8
33 73930500 Nut, Hex, Flangelock 5/16-18
34 400781X479 Wheel Bracket Support (Left)
KEY PART
NO. NO. DESCRIPTION
1 403018 Kit, Housing (Includes Key Number 38)
2 194177X428 Control Bar
3 194788 Rope Guide
4 194179X479 Upper Handle
KEY PART
NO. NO. DESCRIPTION
5 169708X479 Lower Handle
35 400782X479 Wheel Bracket Support (Right)
6 192301X004 Bracket, Rear Skirt
7 191574 Handle Bolt 5/16-18
8 161622 Clip, Closeout
10 132004 Locknut, Hex 1/4-20
36 407494X005 Wheel Bracket Adjuster
37 160833 Hinge Rod
38 404763 Danger Decal
39 401621X004 Selector Spring
40 87877 Selector Knob
41 150406 Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
43 401629 Spacer
44 401638 Shoulder Bolt 5/16-18 x .33
45 193850X421 Wheel & Tire Assembly
11 183281 Engine Zone Control Cable
12 750634 Screw, Hex Head, Threaded, Rolled
#10-24 x 1/2
13 429930X004 Up-Stop Bracket
15 401174X004 Axle Arm Assembly, Left Front & Right Rear
16 189713X428 Handle Knob
18 401175X004 Axle Arm Assembly, Right Front & Left Rear
19 51793 Hairpin Cotter
20 750097 Screw, Tapping, Hex Washer Head #10-24
3
46 409148 Nut, Hex, Flangelock 3/8-16
53 197991 Clip, Cable
61 401630 Washer, Curved, Cylindrical
- - 404764 Warning Decal (not shown)
- - 193732 Operator's Manual, English
- - 193734 Operator's Manual, French
- - 435222 Repair Parts Manual
parts, call Briggs & Stratton at 1-800-233-3723)
21 413160 Rear Skirt
22 66426 Wire Tie
23 160831 Discharge Guard
25 426589 Nut, Hex, Flangelock 5/16-18
26 - - - Engine, Briggs & Stratton, Model Number 10T502-
1316-ED (For engine service and replacement
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
