Mcculloch ELECTRAMAC 416 CH schematics
ELECTROLUX OUTDOOR PRODUCTS
brand
Model Prefix Product numb er
ELECTRAMAC 416 CH
MC CULLOCH
01
date MAR/03
953900422
SHEET 1/4

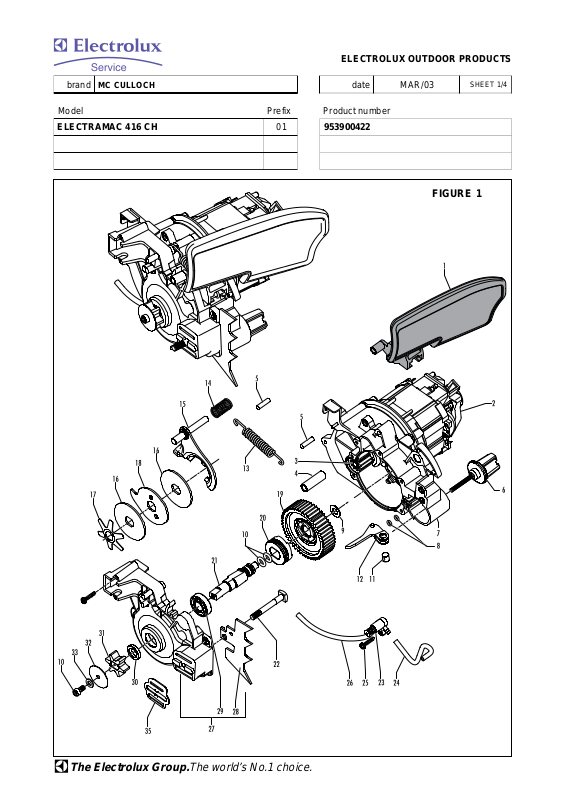

FIGURE 1
The Electrolux Group.The world’s No.1 choice.
ELECTROLUX OUTDOOR PRODUCTS
brand
MC CULLOCH
date MAR/03
Model Prefix Product numb er
ELECTRAMAC 416 CH
FIGURE 1
[
pos P/N McC P/N ELX
1 5339 538005339
2 5306 538005306
3 5307 5 38005307
4 5372 538005372
5 5341 538005341
C 6 5327 538005327
7 5308 5380 05308
B 8 5355 538005355
9 5322 538005322
10 5381 538 005381
C 11 5328 538005328
C 12 5329 538005329
13 5340 538005340
14 5326 538005326
15 5323 538005323
16 5314 538005314
17 5311 538005311
18 5313 538005313
C 19 5320 538005320
C 20 5315 538005315
21 5316 538005316
22 241035 538241035
A 23 5357 538005357
24 5334 538005334
25 240862 538240862
26 5333 538005333
27 5310 538005310
●
28
B29
30 5317 538005317
B 31 5318 538005318
32 5319 538005319
33 236529 538236529
34 5354 538005354
35 5380 538005380
5338 538005338
●
5362 538005362
[
Q.ty
DESCRIPTION
1
BRAKE LEVER
1
MOTOR ASS’Y
1
PINION
1
BUSH D. 5, 5X9X23
2
PIN
1
LOCK ING NU T
1
MOTOR MOUNTING
2
OR 2015
1
WASHER
2
OR 3030
CHAIN TENSIONER
1
NUT
CHAIN TENSIONER
1
ASS’Y
1
BRAKE SPRING
1
SPRING
ROCKING LEVER
1
ASS’Y
2
DRIVEN PLATE
1
BELLEVILLE WASHER
1
PLATE
1
GEAR
1
COUPLING
1
SHAFT
1
STUD BOLT
1
OIL PUMP ASS’Y
1
HOSE
1
SCREW M4X18
1
SUCTION HOSE
CHAIN BRAK E
1
COVER A S S ’Y
1
SPIKE
BEARING 6001 ZZ V2
1
LDS 18
1
PINION SPACER
1
PINION
1
WASHER
1
GROWER D.5
1
SCREW M5X10
1
PLATE
01
953900422
SHEET 2/4
A= ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROßE NACHFRAGE
B=MEDIA ROTAZIONE B=M ED IUM MOVING B=MOYENNE DEMANDE B=MITTELMAEßIG E
C=BASSA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE
The Electrolux Group.The world’s No.1 choice.
