Mcculloch BA17107B REPAIR PARTS MANUAL
REPAIR PARTS MANUAL
MODEL NO. 17107 (BA17107B)
Lawn Tractor
532 19 05-61 Rev. 2 12.10.04 TR/rad/TR
Printed in U.S.A.
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• Model Number -
• Part Number
• Part Description
17107 (BA17107B)
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................3
ELECTRICAL............................................................................................................4-5
CHASSIS...................................................................................................................6-7

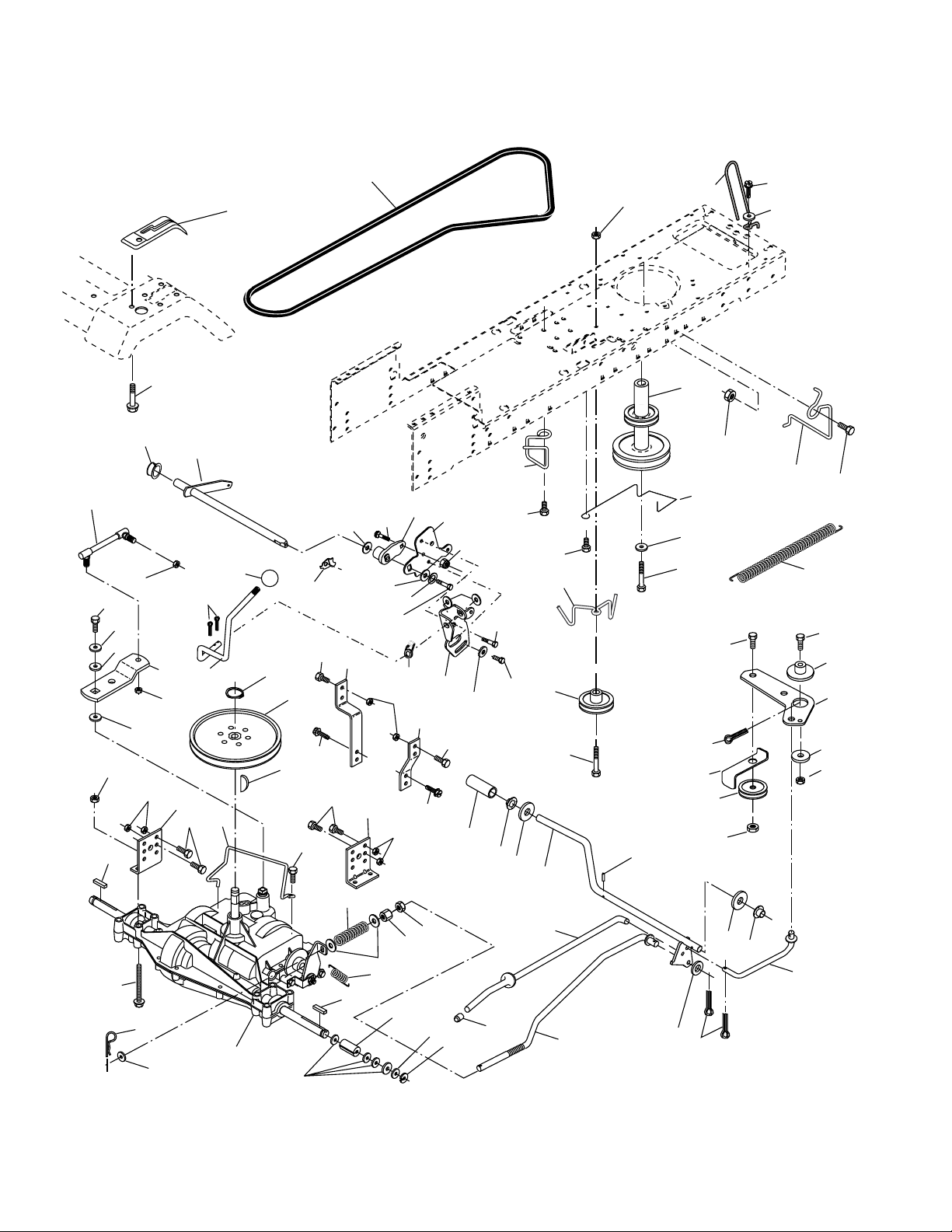

DRIVE........................................................................................................................8-9

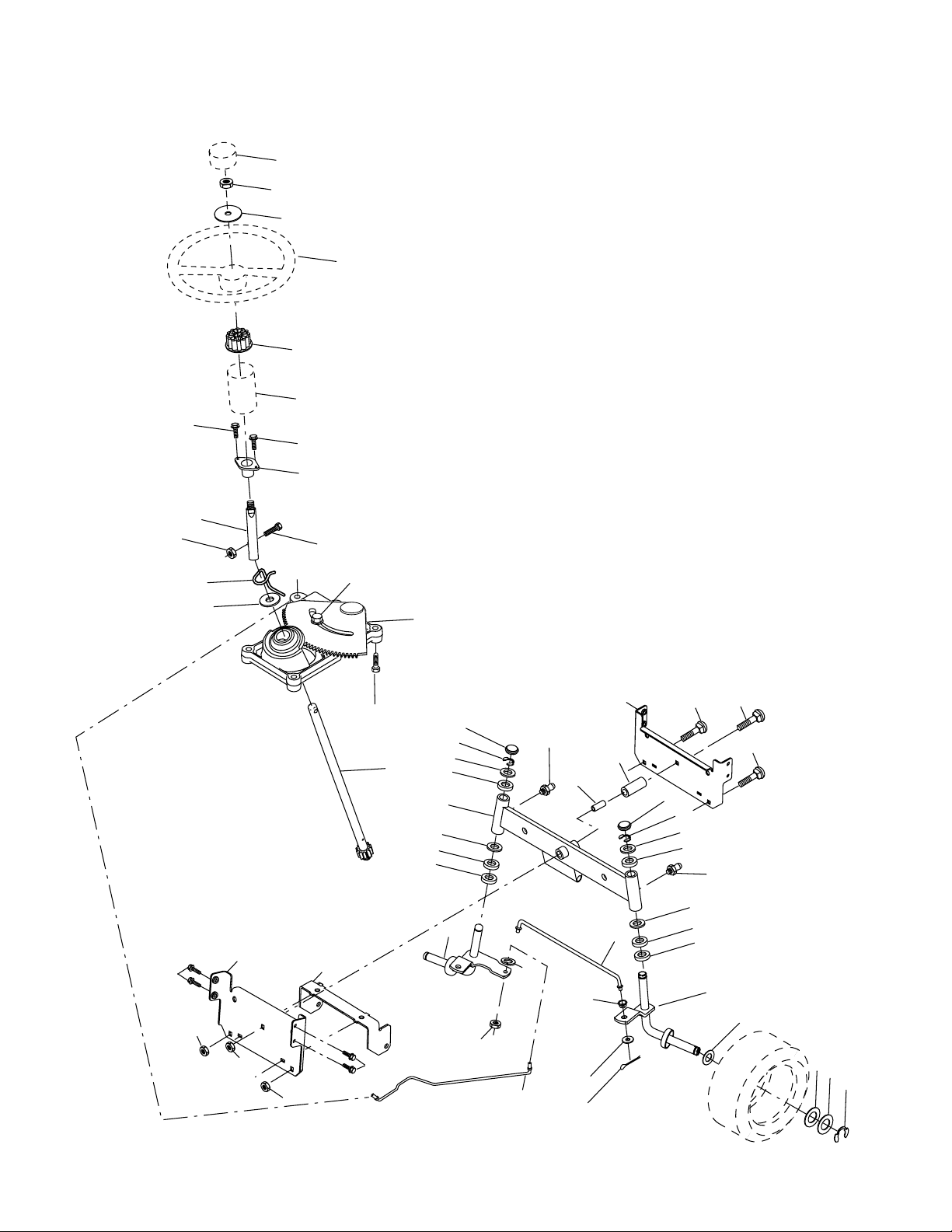

STEERING ............................................................................................................10-11

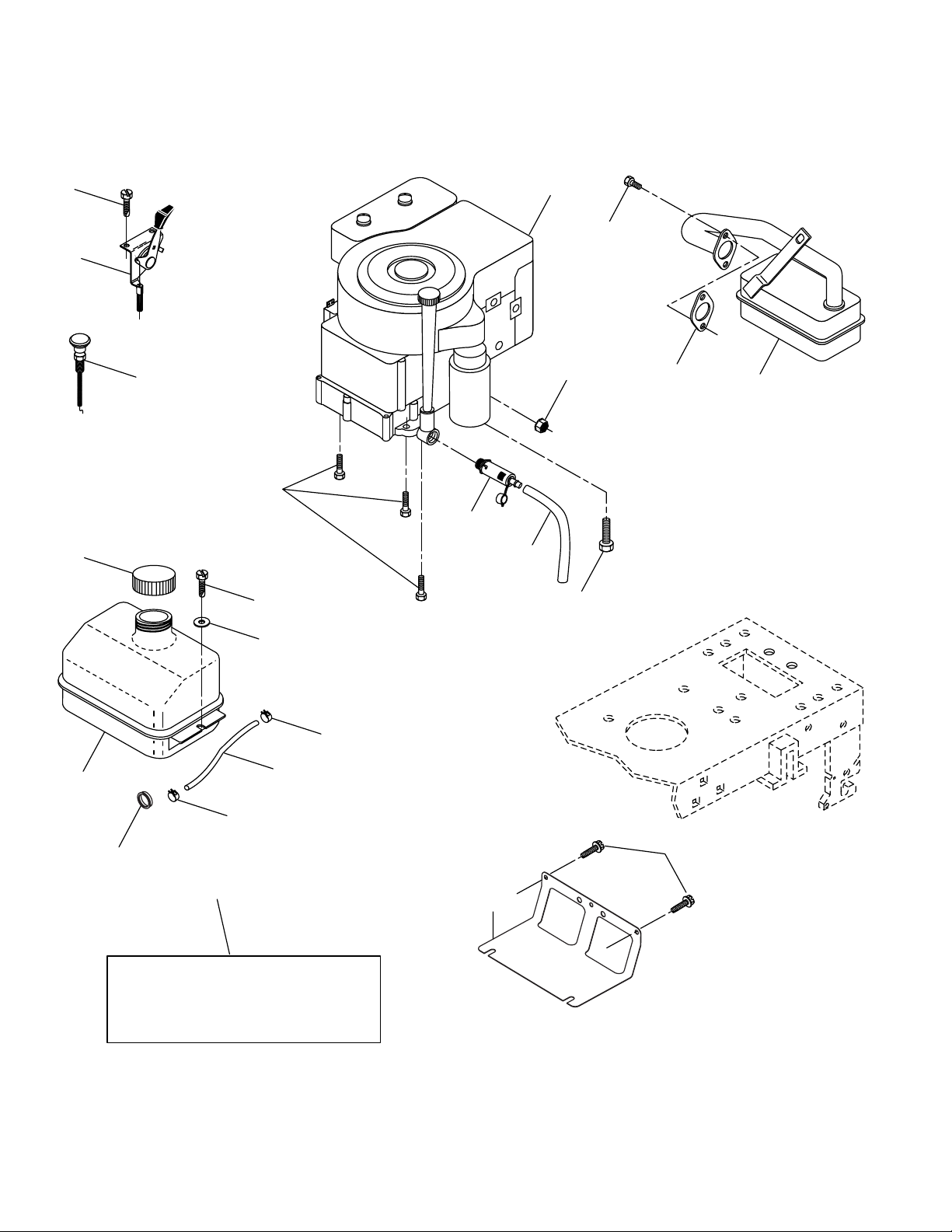

ENGINE.................................................................................................................12-13

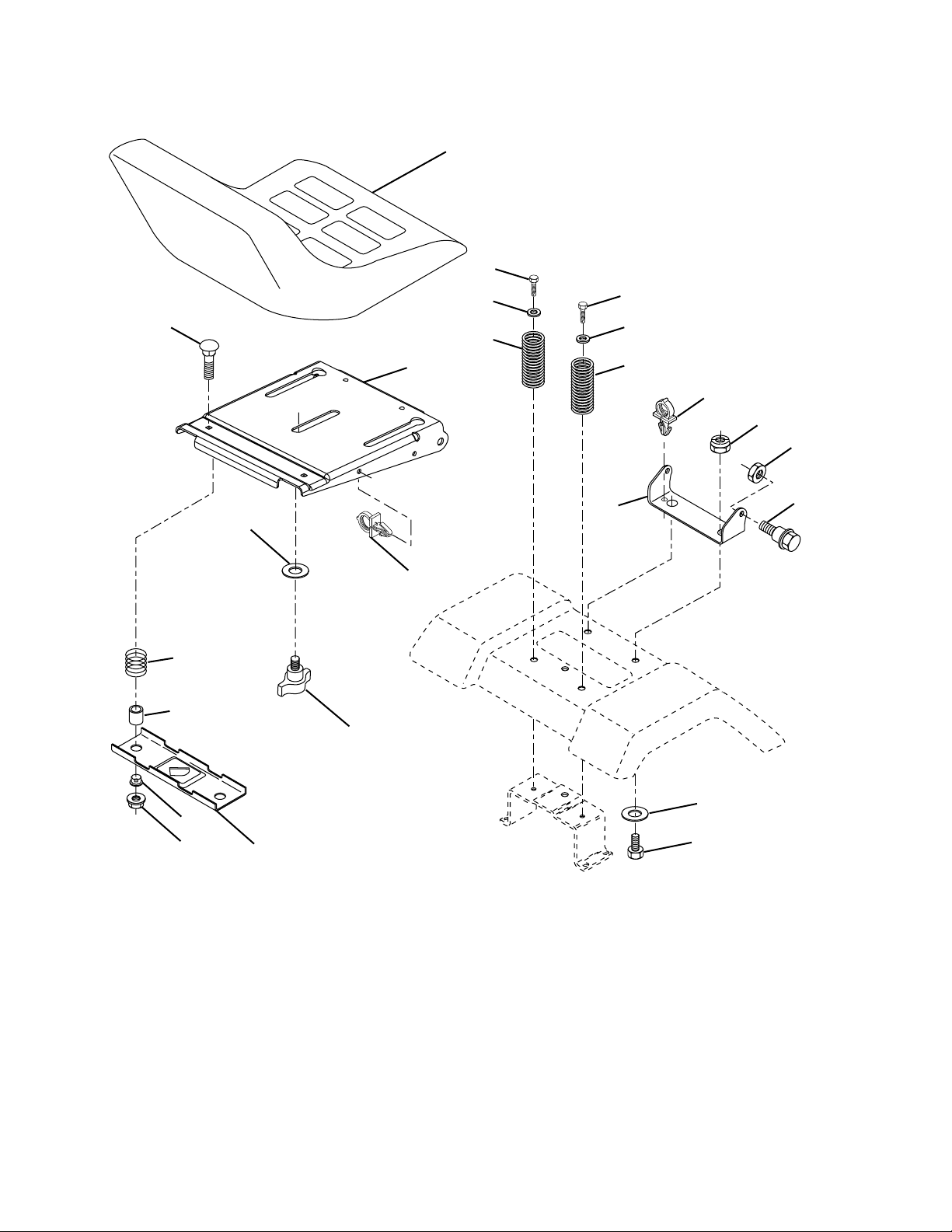

SEAT ..........................................................................................................................14
DECALS.....................................................................................................................15

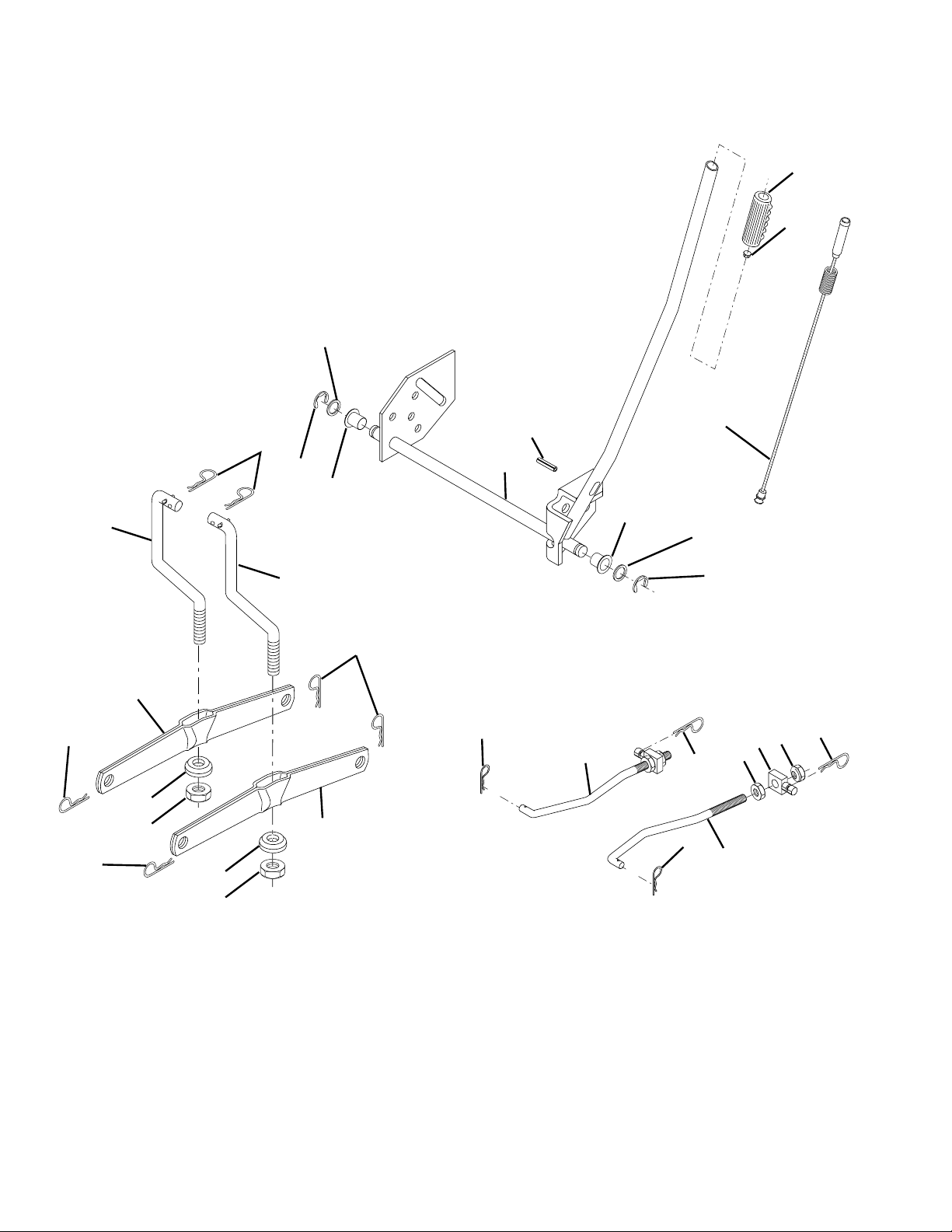

MOWER LIFT........................................................................................................16-17

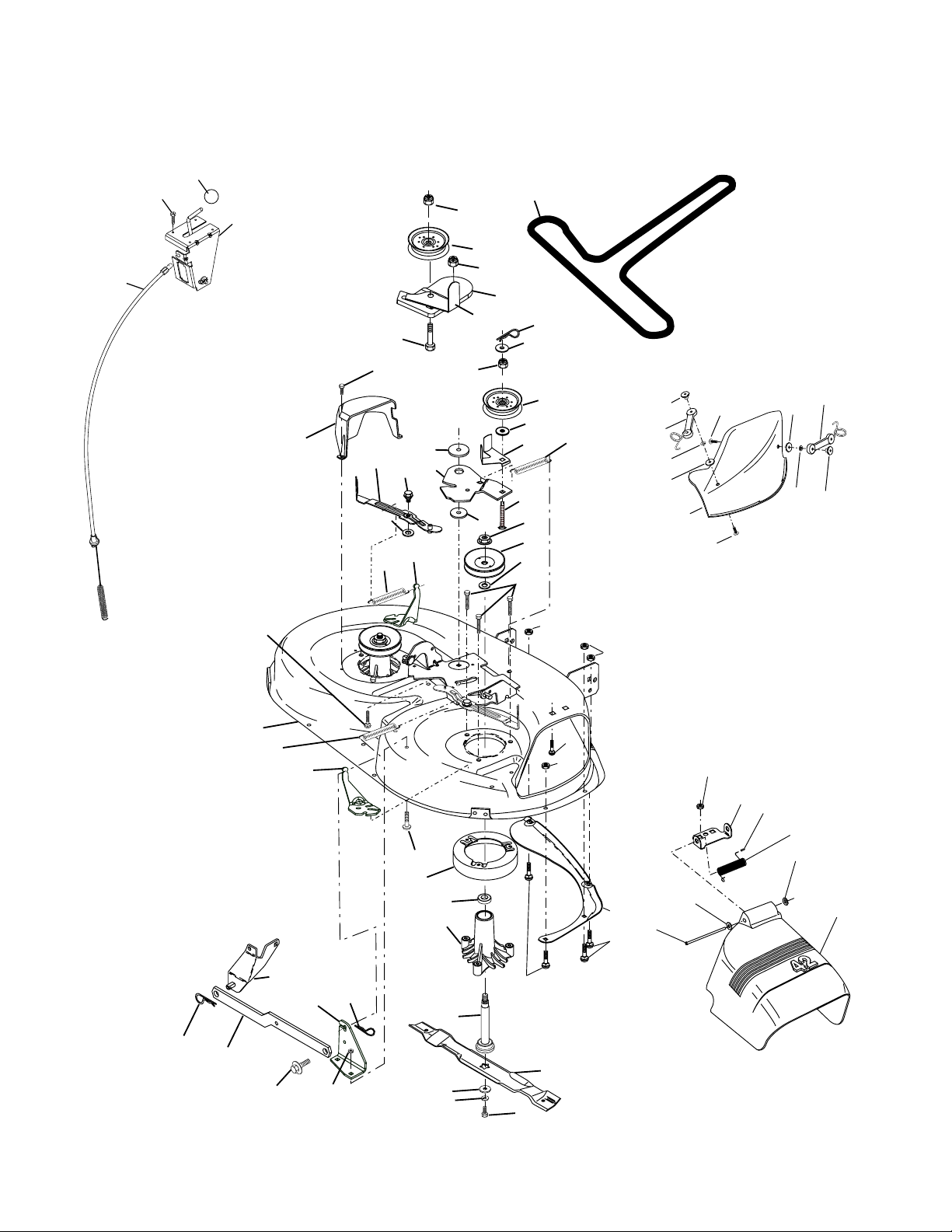

MOWER DECK .....................................................................................................18-19
2
TRACTOR - - MODEL NO. 17107 (BA17107B), PRODUCT NO. 964 77 33-02
SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
BLACK
GROUNDING
CONNECTOR
SPARK
PLUG
(2 PLUGS ON
TWIN CYL. ENGINES)
BLACK
GAP
BLUE
BLACK
BLACK
HOUR
METER
(OPTIONAL)
FUEL
LINE
BLACK
WHITE
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
IGNITION
UNIT
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
3
REPAIR PARTS
TRACTOR - - MODEL NO. 17107 (BA17107B), PRODUCT NO. 964 77 33-02
ELECTRICAL
22
21
42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
D
.
C
.
A
M
P
E
R
E
8
S
45
27
52
29
28
2
1
90
4
REPAIR PARTS
TRACTOR - - MODEL NO. 17107 (BA17107B), PRODUCT NO. 964 77 33-02
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery 12 Volt 25 Amp
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 17 66-89 Case Battery Mech Hinge
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga. 11"red
25 532 14 61-47 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga. 12"black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign
40 532 17 97-20 Harness Ign
41 871 11 04-08 Bolt Blk Fin Hex 1/4-20
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 14-33 Ammeter
52 532 14 19-40 Protection Wire Loop
90 532 18 04-49 Cover Terminal Battery
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm.
5
REPAIR PARTS
TRACTOR - - MODEL NO. 17107 (BA17107B), PRODUCT NO. 964 77 33-02

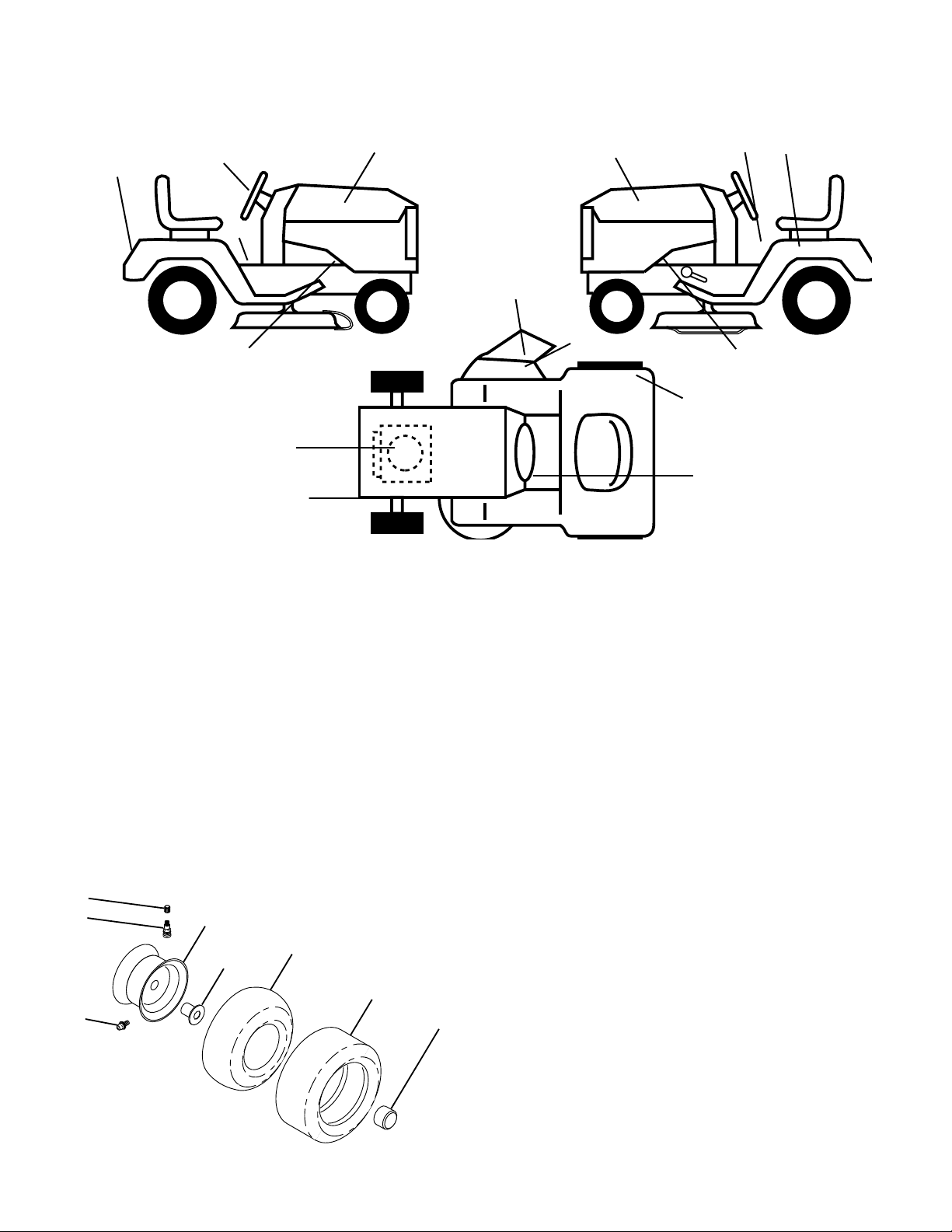

CHASSIS
29
212
17
208
26
30
25
31
11
209
209
159
9
207
24
18
26
28
39
24
166
25
5
5
209
208
206
26
209
209
2
33
142
209
35
10
142
14
38
209
14
64
209
35
37
34
145
37
26
1
13
208
chassis_elite value_stlt_3
