A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 1 of 35
www.ktoutdoor.com

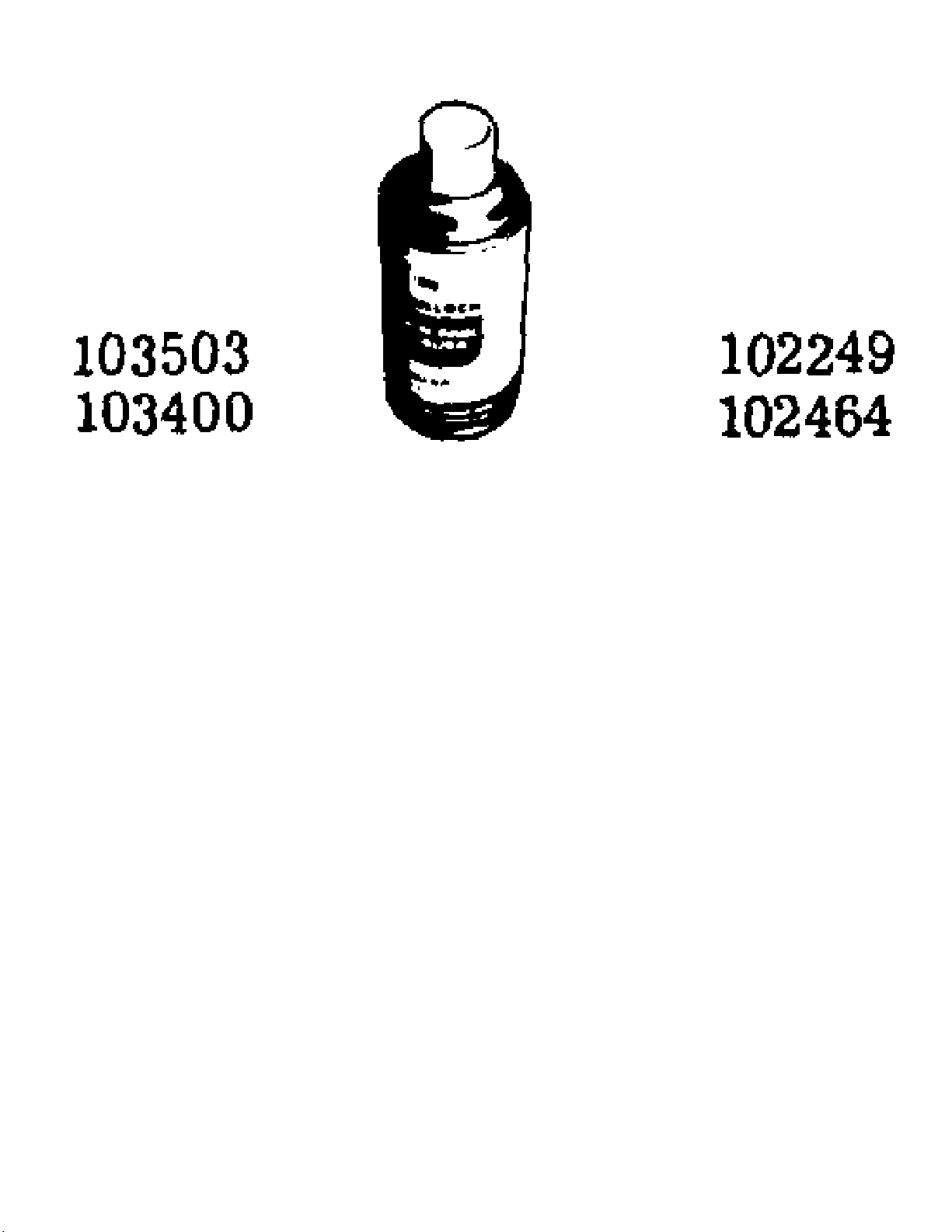

40:1 Two-Cycle Motor Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 2 of 35
www.ktoutdoor.com
40:1 Two-Cycle Motor Oil
Ref # Part Number DescriptionQty
78960 78960 40:1 Two-Cycle Motor Oil - 6oz. can
78961 78961 40:1 Two-Cycle Motor Oil - 6-pack (6oz. can)
78963 78963 40:1 Two-Cycle Motor Oil - 16oz. can
78964 78964 40:1 Two-Cycle Motor Oil - 6-pack (16oz.can)
110626 110626 40:1 Two-Cycle Motor Oil - 1 qt. bottle
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 3 of 35
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 4 of 35
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
63341A Kit - Spike
69058 Kit - Wrap-around frame
69191 Kit - Pressure test adaptor
63432 Spark Plug - AC CS42T
65778 Spark Plug - AC CS41T
65712 Guide - Timing
65325 Baffle - Spark arrester
63746 Scrench
62827 Wrench - Screwdriver
68965 Manual - Owners
83434 Manual - Owners
84220 Manual - Owners
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 5 of 35
www.ktoutdoor.com
Chain, Bar, & Sprocket Oil
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 6 of 35
www.ktoutdoor.com
Chain, Bar, & Sprocket Oil
Ref # Part Number DescriptionQty
110631 110631 Chain, Bar, and Sprocket Oil - 1qt. bottle
110632 110632 Chain, Bar, and Sprocket Oil - Case of 24 (1qt.
Bottles)
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 7 of 35
www.ktoutdoor.com
Bar Guards
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 8 of 35
www.ktoutdoor.com
Bar Guards
Ref # Part Number DescriptionQty
A 56927 Bar Guard - For wide bars Black Polyvinylchloride
B 64930 Bar Guard - Narrow bars Black Polyvinylchloride
C 66544 Bar Guard - MAC 10 - 16, 20" Rigid Yellow Plastic
D 83124 Bar Guard - PM 6 - 12, 16" Rigid Yellow Plastic
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 9 of 35
www.ktoutdoor.com
Carburetor Assembly (SDC 18)
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 10 of 35
www.ktoutdoor.com
Carburetor Assembly (SDC 18)
Ref # Part Number DescriptionQty
1 69942 Carburetor Assy (McCulloch SDC 18)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke friction1
14 68104 Needle - High speed1
15 68105 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Inlet1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 83759 Body Assy - Carburetor1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Assy1
30 67507 Screen - Fuel1
67482 Gasket Set
83764 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 11 of 35
www.ktoutdoor.com
Carburetor Assembly (SDC 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 12 of 35
www.ktoutdoor.com
Carburetor Assembly (SDC 2)
Ref # Part Number DescriptionQty
67379 Carburetor Assy (McCulloch SDC 2)1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 67487 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke friction1
14 67506 Needle - High speed1
15 67505 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Inlet1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 67483 Body Assy - Carburetor1
27 71690 Plug - 3/81
28 69506 Plug - 5/161
29 83758 Kit - Valve & Seat Assy1
30 67507 Screen - Fuel1
67482 Gasket Set
67481 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 13 of 35
www.ktoutdoor.com
Chain Braker
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 14 of 35
www.ktoutdoor.com
Chain Braker
Ref # Part Number DescriptionQty
61753 61753 "Break All" Chain Breaker Required when repairing
chain; Instructions included.
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 15 of 35
www.ktoutdoor.com
Chain Sharpening Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 16 of 35
www.ktoutdoor.com
Chain Sharpening Tools
Ref # Part Number DescriptionQty
File 1/8" round Used on model S-25
File 5/32" round Used on models S-25 & SM-57
File 3/16" round Used on model SM-57
File 7/32" round Used on model S-40
File 1/4" round Used on model S-80
File 9/32" round Used on model S-90
File 8" flat Used on all models
File 6" flat safety Used on all models
67750 67750 File Guide and File - 1/8" round Used on model S-25
60950 60950 File Guide & File - 7/32" round Also holds 3/16 and
1/4" round; Used on model S-40 (7/32" round); Models
SM-57 & S-80 (3/16" and 1/4" round).
56241 56241 Depth Gauge Tool - .045-.060" Used on models S-40,
S-80, & S-90
64198 64198 Depth Gauge Tool - .035-.060" Used on model
SM-57, S-40, S-80, S-90
64359 64359 Depth Gauge Tool - .045-.050" Used on model SM-57
67688 67688 Depth Gauge Tool - .015-.020" Used on model S-25
67680 67680 Depth Gauge Tool - .025-.030" Used on all models
61034 61034 File-N-Joint Assures correct filing angle, height; Used
on all models.
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 17 of 35
www.ktoutdoor.com
Clutch Guard And Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 18 of 35
www.ktoutdoor.com
Clutch Guard And Starter Assembly
Ref # Part Number DescriptionQty
83850 Clutch Guard Assy1
1 102144 Screw - Bar adjusting1
2 102067 Nut - Hex 10-241
3 110387 Washer - Wave1
4 61705 Nut - Bar adjusting1
5 110264 Washer - #101
6 67205 Retainer - Shield1
7 63985 Shield - Dust1
8 63986 Washer - Thrust1
9 83651 Drum - Starter1
10 110470 Rivet - Rope1
11 62191A Insert - Handle1
12 62190A Handle - Starter1
13 69964 Rope - Starter1
14 68626 Spring - Rewind1
83334 Spring - Rewind1
15 63987 Shield - Starter spring1
16 61635A Bushing - Nyliner1
17 67207 Guard - Clutch1
83569 Guard - Clutch1
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 19 of 35
www.ktoutdoor.com
Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 20 of 35
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 68683 Fuel Tank Assy1
84183 Fuel Tank Assy1
2 64872 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 68517 Button - Choke1
69041 Button - Choke1
5 101056 "O" Ring1
6 64871 Button & Rod Assy1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 65734 Spring - Throttle return1
10 67224 Trigger1
11 110537 Screw - Trigger adjustment1
12 105249 Screw - Rd hd 8-32 x 3/82
13 64721 Bracket - Lever Assy1
14 69687 Spring - DSP valve1
15 69811 Lever Assy - DSP1
16 110469 Screw - Pan hd 8-32 x 5/16 s/t1
110385 Screw - Pan hd 8-32 x 5/161
17 65873 Wire Assy - Stop switch1
18 67209 Button - Control1
19 68170 Rod - Throttle1
20 67355 Rod - Choke1
69042 Rod - Choke1
21 69043 Snubber - Control rod1
22 67271 Screw - Idle speed adjustment1
23 69564 Seal - AirboxA/R
24 68102 Extension Assy - High speed1
25 110512 Ring - Retaining1
26 67363 Spring - Extension1
27 110509 Pin - Groove1
28 68101 Extension Assy - Idle1
29 110512 Ring - Retaining1
30 67363 Spring - Extension1
31 110509 Pin - Groove1
32 67292 Washer - Special2
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 21 of 35
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 22 of 35
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 Clutch Guard Assy See "Clutch Guard Assembly"
illustration and parts list
4 Bar & Chain Assys
5 64325 Plate - Bar protector2
6 102761 Screw - Hex hd 10-24 x 7/82
7 100352 Washer - #102
8 61678 Plug - Nut retainer1
9 101326 Nut - Hex 10-242
10 102130 Screw - Hex hd 1/4-20 x 1-1/21
11 100153 Lockwasher - 1/41
12 63484 Clamp - Frame1
13 69054 Frame & Grip Assy1
14 103746 Nut - Hex 3/8-241
110594 Nut - Hex 3/8-241
15 67148 Clutch Assy1
83224 Clutch Assy1
83655 Clutch Assy1
16 64583 Retainer2
17 66384 Spring2
83223 Spring2
18 67233 Shoe - Clutch2
19 67149 Rotor Assy - Clutch1
83671 Rotor Assy - Clutch1
20 68837 Spring - Pawl2
83654 Spring - Pawl2
21 67112 Rivet - Pawl2
83653 Rivet - Pawl2
22 64857 Pawl2
24093 Pawl2
23 65473 Washer - Special2
24 65370 Kit - Sprocket1
25 61692 Shim2
26 110330 Bearing - Sprocket1
27 103879 Key - Woodruff1
28 68530 Cover Assy - Air cleaner1
29 68529 Knob - Cover1
30 110565 Ring - Retaining1
31 68698 Nameplate1
32 68520 Filter Assy - Air1
83230 Filter Assy - Air1
33 68528 Grommet1
32 69922 Filter - Air1
34 62978 Screw - Special3
35 102762 Screw - Hex hd 10-24 x 1/21
36 69890 Lockplate1
37 83521 Kit - Fan housing1
38 55615 Guard - Flywheel1
39 68531 Cap Assy - Fuel1
40 68533 Plug1
41 63041 Valve1
42 62316 Guide1
43 63040 Spring1
44 69767 Gasket1
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 23 of 35
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
45 84253 Boot - Carburetor adjustment1
46 110402 Screw - Oval hd 12-24 x 2-3/81
47 103579 Screw - Fl hd 10-24 x 12
48 69686 Spacer - Screw1
49 69679 Cover - Fuel tank1
84252 Cover - Fuel tank1
50 69345 Gasket - Cover1
51 64848 Hose Assy - Fuel1
52 63932 Filter - Fuel1
53 100440 Washer1
54 67944 Spring - Hose1
55 83204 Bracket Assy1
56 103357 Screw - Hex hd 10-24 x 2-1/42
57 Carburetor Assy See "Carburetor Assembly Part 1 &
Carburetor Assembly Part 2" illustration and parts list
58 68132 Gasket - Carburetor1
83059 Gasket - Carburetor1
59 66678 Spacer - Carburetor1
84078 Spacer - Carburetor1
60 68131 Gasket - Spacer1
84081 Gasket - Spacer1
61 110553 Screw - Hex hd 10-24 x 1-3/82
110570 Screw - Hex hd 12-24 x 1-3/82
62 68582 Lockplate1
63 102115 Washer - #122
64 110516 Screw - Hex hd 10-24 x 1-1/81
110568 Screw - Hex hd 12-24 x 1-1/81
65 64856 Washer - Special1
66 68523 Lockplate1
69516 Lockplate1
67 102660 Screw - Skt hd 10-24 x 7/81
68 100003 Washer - #101
69 68219 Spacer - Fuel tank1
69772 Spacer - Fuel tank1
70 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list
71 68130 Gasket - Fuel tank1
68580 Gasket - Fuel tank1
84082 Gasket - Fuel tank1
72 66659 Insulator - Fuel tank1
68614 Insulator - Fuel tank1
84079 Insulator - Fuel tank1
73 68130 Gasket - Insulator1
68580 Gasket - Insulator1
84082 Gasket - Insulator1
74 110353 Screw - Oval hd 10-24 x 3/81
106078 Screw - Pan hd 10-24 x 7/16 (SEMS)1
75 102289 Screw - Hex hd 10-24 x 3/41
110566 Screw - Hex hd 12-24 x 5/81
76 68508 Lockplate1
77 69838 Brace - Handle1
78 110473 Screw - Skt hd 10-24 x 1-5/82
104560 Screw - Skt hd 10-24 x 1-1/22
65532 Cover & Valve Assy1
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 24 of 35
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
79 110472 Screw - Skt hd 8-32 x 5/163
80 83069 Stop - Reed valve1
81 64785 Valve - Reed1
82 65419 Cover Assy1
83 110529 Screw - Hex hd 10-24 x 1/21
84 110529 Screw - Hex hd 10-24 x 1/21
110506 Screw - Hex hd 10-24 x 5/81
85 67922 Lockplate1
86 83106 Body & Duct Assy1
87 68187 Screw - Special1
88 68149 Gasket - Spark arrester1
84007 Gasket - Spark arrestor See "Powerhead Assembly"
89 68581 Insulator - Shroud2
90 67377 Shroud1
91 Powerhead Assy See "Powerhead Assembly"
1
illustration and parts list.
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 25 of 35
www.ktoutdoor.com
Locquic & Loctite
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 26 of 35
www.ktoutdoor.com
Locquic & Loctite
Ref # Part Number DescriptionQty
67537 67537 Loctite - 10cc plastic bottle
69794 69794 Locquic - 7-1/2 oz. spray can
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 27 of 35
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 28 of 35
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110594 Nut - Hex 3/8-24
2 61737A Flywheel Assy
3 103879 Key - Woodruff
4 67057 Washer - Thrust
5 67056 Seal
6 67054 Washer - Thrust
7 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)
8 100003 Washer - #10
9 51253 Retainer - Coil
10 68164 Lamination Assy
11 62819 Wire Assy - Ground
12 69344 Wire Assy - Primary
13 69798 Coil & Terminal Assy
14 69966 Wire & Sleeve Assy - Spark plug
15 67127 Sleeve
16 62932 Connector
17 62926 Boot
18 63097 Spark Plug - AC CS45T
19 110349 Screw - Rd hd 8-32 x 3/4
20 62362 Cover - Breaker box
21 100298 Nut - Hex 6-32
22 62365 Spacer - Breaker screw
23 105249 Screw - Rd hd 8-32 x 3/8 (SEMS)
110623 Screw - Fil hd 8-32 x 1/2 (SEMS)
103672 Screw - Fil hd 8-32 x 1/2
24 100080 Washer - #8
25 61650 Condenser
26 110346 Screw - Hex hd 6-32 x 3/4
27 110489 Screw - Pan hd 6-32 x 7/16 s/t
28 83126 Strap - Conductor
29 100934 Screw - Rd hd 8-32 x 3/8
30 100934 Screw - Rd hd 8-32 x 3/8
110445 Screw - Truss hd 8-32 x 3/8
31 105976 Washer - #8
32 62363 Breaker Assy
66231 Breaker Assy
33 54184 Wiper - Cam
34 62361 Box - Breaker
83125 Box - Breaker
35 67051 Seal - Box
36 110623 Screw - Hex hd 8-32 x 1/2
37 100955 Nut - Hex 8-32
38 62261A Housing - Pump
39 62262 Cap - Housing
40 62266 Plunger - Pump
41 101056 "O" Ring
42 66687 Spring - Plunger
43 62230 Gasket - Pump
44 62909 Valve - Pump
45 110291 Screw - Pan hd 10-24 x 2-5/8
46 63072 Cover - Oil tank
47 62116 Gasket - Cover
48 57129A Cap - Oil tank
68809 Cap - Oil tank
49 101148 "O" Ring
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 29 of 35
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
50 62123B Hose Assy - Oil
51 51506 Screen - Hose1
52 110333 Screw - Oval hd 8-32 x 1/23
53 102660 Screw - Skt hd 10-24 x 7/81
54 24236 Washer - Special1
55 62274 Gasket - Pulse pump1
83790 Gasket - Pulse pump1
56 83134 Pump Assy - Pulse1
83786 Pump Assy - Pulse1
57 60260A Piston Assy - Pump1
58 104001 "O" Ring1
59 60263 Ring - Pump piston1
60 60937 Washer - Teflon1
61 60259 Spring - Piston1
62 62227 Sleeve - Adjustment1
63 110386 Screw - Hex hd 8-32 x 11
64 100251 Nut - Hex 8-321
65 62407 Cover - Outlet valve1
66 106104 "O" Ring1
67 62885A Spring - Outlet valve1
68 102809 Ball1
69 83128 Body Assy - Pump1
83787 Body Assy - Pump1
70 110643 Screw - Set 8-32 x 7/161
71 62105 Screw Assy - Sealing4
72 62842 Washer - Sealing4
73 110288 Screw - Hex hd 8-32 x 3/41
74 69779 Crankcase Assy1
84103 Crankcase Assy1
75 110288 Screw - Hex hd 8-32 x 3/42
76 110618 Screw - Hex hd 8-32 x 1-3/81
77 62065 Bolt - Bar mounting2
78 69772 Spacer - Fuel tank1
79 84007 Gasket - Muffler1
80 84217 Valve - DSP1
83166 Valve - DSP1
81 61649 Pin - Piston1
82 69212 Piston Assy1
83 62814 Ring Set - Piston1
84 103512 Bearing - Needle2
103085 Bearing - Needle2
85 65401 Connecting Rod Assy1
86 61627A Screw - Skt hd special2
87 63225 Roller - Needle (set of 20)1
88 65746 Seal - Oil1
67906 Seal - Oil1
89 63464 Ring - Snap1
90 63429B Bearing - Ball1
67905 Bearing - Ball1
91 65747 Seal - Oil1
110260 Seal - Oil1
92 104357 Bearing - Needle1
93 63336 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 30 of 35
www.ktoutdoor.com
Pressure Test Tool
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 31 of 35
www.ktoutdoor.com
Pressure Test Tool
Ref # Part Number DescriptionQty
62849 62849 Pressure Test Tool, Basic Unit For leakage check of
crankcase, fuel system.
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 32 of 35
www.ktoutdoor.com
Spray Paint
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 33 of 35
www.ktoutdoor.com
Spray Paint
Ref # Part Number DescriptionQty
103503 103503 12 oz. can - Black
103400 103400 Case of 12 (12 oz. cans) - Black
102249 102249 12 oz. can - Yellow
102464 102464 Case of 12 (12 oz. cans) - Yellow
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 34 of 35
www.ktoutdoor.com
Starter Rope
K&T Saw Shop 606-678-9623 or 606-561-4983
A15-600025 SUPER 2-10A 06/68 to 04/73 IPL 84289 Page 35 of 35
www.ktoutdoor.com
Starter Rope
Ref # Part Number DescriptionQty
36825 36825 Starter Rope, 100' Spool Solid, braided nylon
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
