Page 1
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 1 of 18
www.ktoutdoor.com
Bar & Chain Information
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 2 of 18
www.ktoutdoor.com
Bar & Chain Information
Ref # Part Number DescriptionQty
21423333 10" Bar
21423433 12" Bar
21423533 14" Bar
21423633 16" Bar
21492333 10" Chain MPG370GLX38cl
21492133 12" Chain MPG370GLX44cl
21491933 14" Chain MPG370GLX49cl
21492533 16" Chain MPG370GLX54cl
30199233 File & Guide (5/32) Service Tool
21421733 File (5/32) Service Tool
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 3 of 18
www.ktoutdoor.com

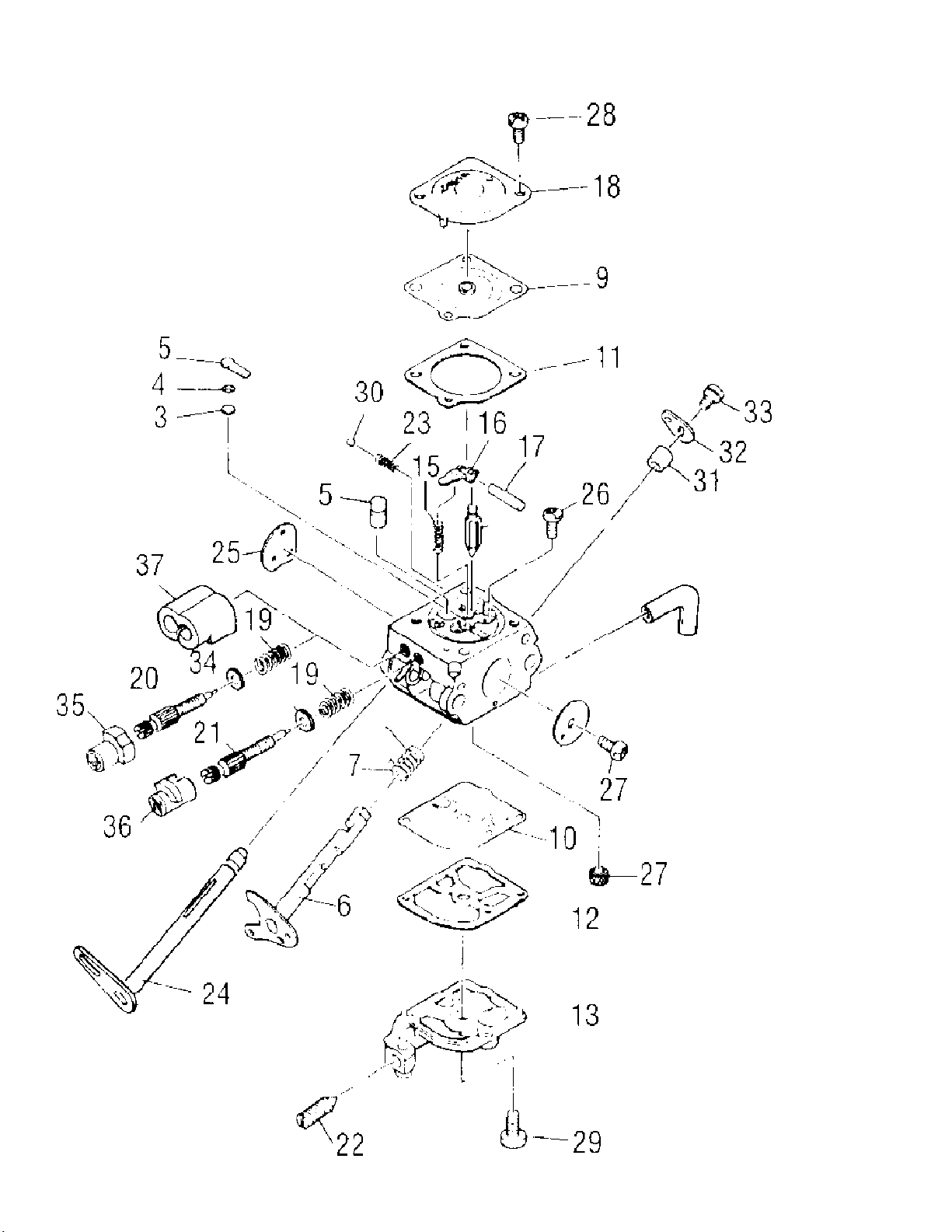

Carburetor Assembly (Walbro)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 4 of 18
www.ktoutdoor.com
Carburetor Assembly (Walbro)
Ref # Part Number DescriptionQty
323653-03 Carburetor, Walbro WT 438
1 Strainer1
2 Plug, Welch1
3 Valve, Check (Not Included Individually)1
4 Retainer, Check Valve (Not Included Individually)1
5 Nozzle Assembly, Check Valve (Not Included
6 Shaft Assembly, Throttle (Not Included Individually)1
7 Spring, Throttle Return (Not Included Individually)1
8 Valve, Throttle (Not Included Individually)1
9 Diaphragm Assembly, Metering (Not Included
10 Diaphragm, Pump (Not Included Individually)1
11 Gasket, Metering Chamber (Not Included Individually)1
12 Gasket, Pump (Not Included Individually)1
13 Cover, Pump (Not Included Individually)1
14 Valve, Inlet Needle (Not Included Individually)1
15 Spring, Metering Lever (Not Included Individually)1
16 Lever, Metering (Not Included Individually)1
17 Pin (Not Included Individually)1
18 Cover, Metering Chamber (Not Included Individually)1
19 Spring, Adjust Screw (Not Included Individually)1
20 Screw, Main Mixture (Not Included Individually)1
21 Screw, Idle Mixture (Not Included Individually)1
22 Screw, Throttle Adjust (Not Included Individually)1
23 Spring, Friction (Not Included Individually)1
24 Shaft Assembly, Choke (Not Included Individually)1
25 Valve, Choke (Not Included Individually)1
26 Screw, Pin (Not Included Individually)1
27 Screw, Throttle/Choke Valve (Not Included
1
Individually)
1
Individually)
1
Individually)
28 Screw, Metering Chamber (Not Included Individually)2
29 Screw, Pump Cover (Not Included Individually)1
30 Ball, Steel (Not Included Individually)1
31 Collar (Not Included Individually)1
32 Lever, Throttle (Not Included Individually)1
33 Screw, Throttle Lever (Not Included Individually)1
34 Washer, Limiter (Not Included Individually)2
35 111216 Cap, Limiter, Hi2
36 111217 Cap, Limiter, Lo1
37 Retainer Limiter (Not Included Individually)1
324013 Carburetor Kit Repair A1128WT
324009 Gasket/Diaphragm B1110WT
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 5 of 18
www.ktoutdoor.com
Carburetor Assembly (Zama)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly (Zama)
Ref # Part Number DescriptionQty
323653-03 Carburetor, Zama CU1M28C
324947-01 Carburetor, Zama C1QM36
1 Strainer (Not Included Individually)1
2 Plug, Welch (Not Included Individually)1
3 Valve, Check (Not Included Individually)1
4 Retainer, Check Valve (Not Included Individually)1
5 Nozzle Assembly, Check Valve (Not Included
6 Shaft Assembly, Throttle (Not Included Individually)1
7 Spring, Throttle Return (Not Included Individually)1
8 Valve, Throttle (Not Included Individually)1
9 Diaphragm Assembly, Metering (Not Included
10 Diaphragm, Pump (Not Included Individually)1
11 Gasket, Metering Chamber (Not Included Individually)1
12 Gasket, Pump (Not Included Individually)1
13 Cover, Pump (Not Included Individually)1
14 Valve, Inlet Needle (Not Included Individually)1
15 Spring, Metering Lever (Not Included Individually)1
16 Lever, Metering (Not Included Individually)1
17 Pin (Not Included Individually)1
18 Cover, Metering Chamber (Not Included Individually)1
19 Spring, Adjust Screw (Not Included Individually)1
20 Screw, Main Mixture (Not Included Individually)1
21 Screw, Idle Mixture (Not Included Individually)1
22 Screw, Throttle Adjust (Not Included Individually)1
23 Spring, Friction (Not Included Individually)1
24 Shaft Assembly, Choke (Not Included Individually)1
25 Valve, Choke (Not Included Individually)1
26 Screw, Pin (Not Included Individually)1
27 Screw, Throttle/Choke Valve (Not Included
1
Individually)
1
Individually)
1
Individually)
28 Screw, Metering Chamber (Not Included Individually)2
29 Screw, Pump Cover (Not Included Individually)1
30 Ball, Steel (Not Included Individually)1
31 Collar (Not Included Individually)1
32 Lever, Throttle (Not Included Individually)1
33 Screw, Throttle Lever (Not Included Individually)1
34 Washer, Limiter (Not Included Individually)2
35 111216 Cap, Limiter, Hi2
36 111217 Cap, Limiter, Lo1
37 Retainer Limiter (Not Included Individually)1
301041 Carburetor Kit Repair RB-39
301042 Gasket/Diaphragm GND-35
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 7 of 18
www.ktoutdoor.com

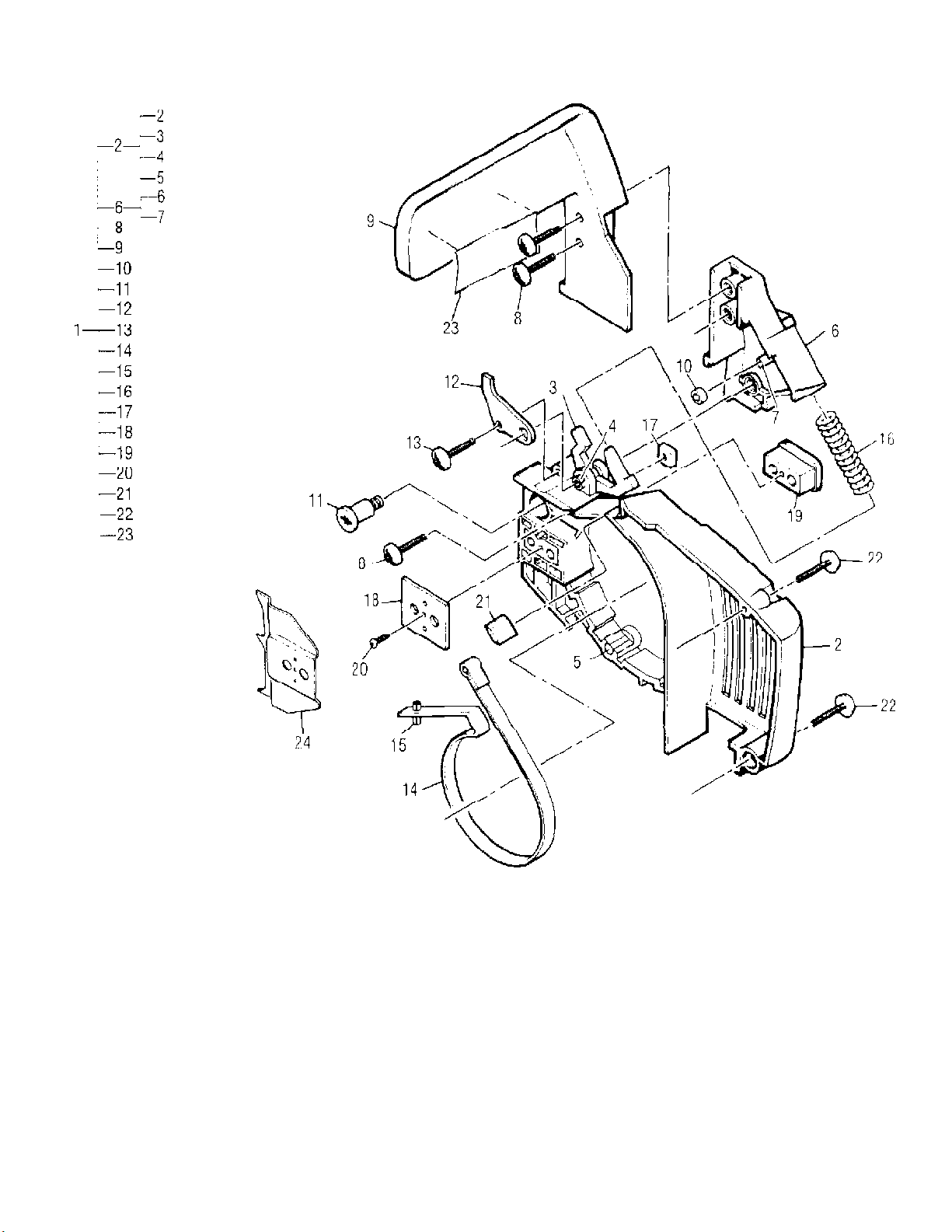

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 8 of 18
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
1 224700 Brake Kit Asy, Grey (Choose appropriate color)1
1 301558 Brake Kit Asy, Yellow (Choose appropriate color)1
1 301557 Brake Kit Asy, Black (Choose appropriate color)1
2 301650 Housing Kit Asy, Grey (Choose appropriate color)1
2 301559 Housing Kit Asy, Yellow (Choose appropriate color)1
2 301560 Housing Kit Asy, Black (Choose appropriate color)1
3 216755 Latch, Chain Brake1
4 Dowel, Spring1
5 Pin, Dowel2
6 301038 Lever, Brake Asy2
7 Pin, Dowel1
8 111226 Screw, 10-24 x .62 Tr H1
9 323082 Guard, Hand Torx 33
10 224849 Roller1
11 224847 Screw, Shoulder1
12 224848 Stop, Brake1
13 300294 Screw, 8-16 x .75 Tr Hd Plastite1
14 301037 Band. Brake1
15 Pin Spring (.125 x .50)1
16 322204 Spring. Compression1
17 218005 Nut, Square 10-241
18 300275 Shield1
19 300271 Spacer Bar Pad1
20 111101 Screw. 4-40 x 5/16 Taptite1
21 322194 Seal, Foam1
22 300299 Screw 8-16 x 1.0 Tr Hd Plastite2
23 46703-41 Label Safety1
24 322181 Spike Bucking (Optional accessory)1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 9 of 18
www.ktoutdoor.com

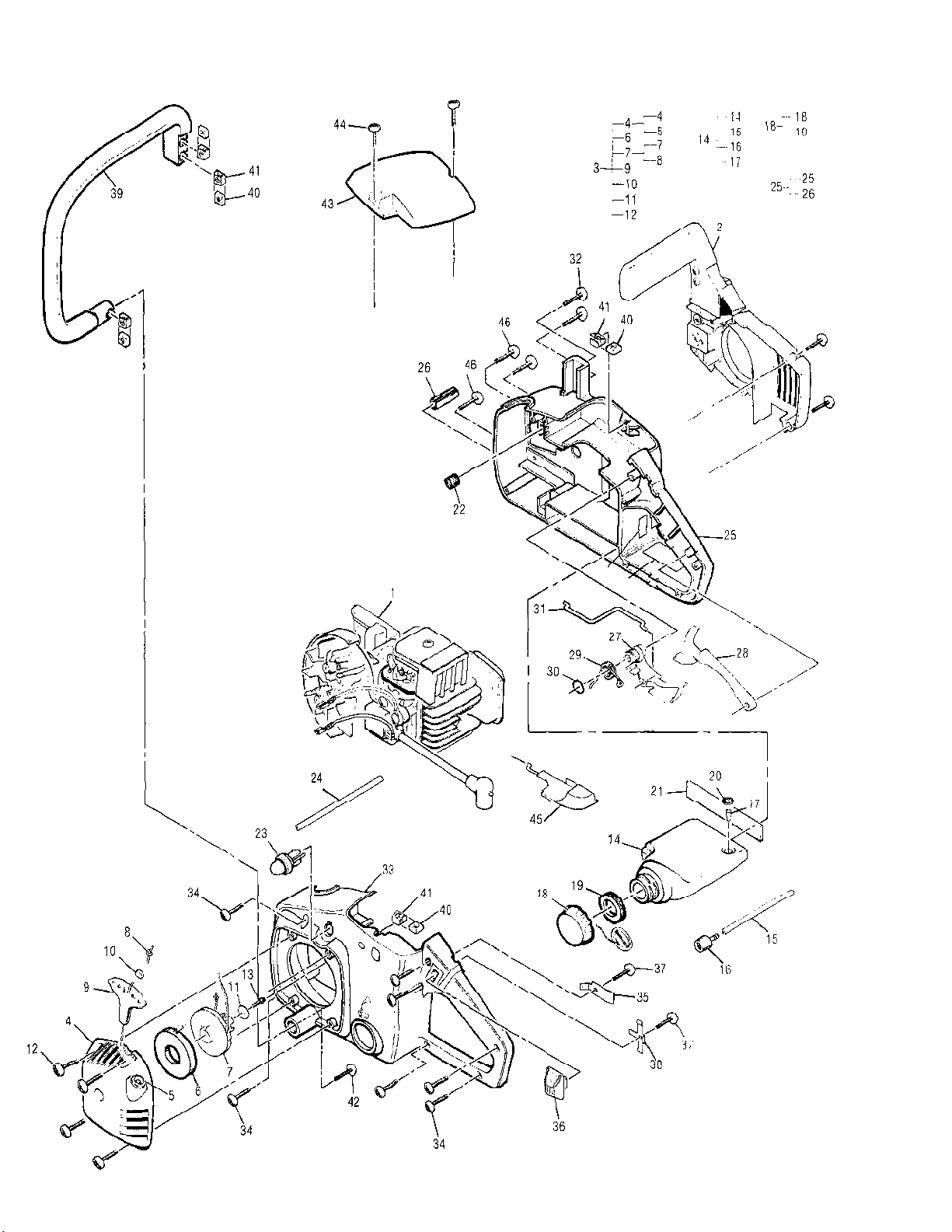

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 10 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 Powerhead Asy (See "Powerhead Assembly"
illustration and parts list)
2 Chain Brake Asy (See "Chain Brake Assembly"
illustration and parts list)
3 300858 Starter Housing Asy, Grey (Choose appropriate
3 300264 Starter Housing Asy, Yellow (Choose appropriate
3 301078 Starter Housing Asy, Black (Choose appropriate
4 301651 Housing/Rope Guide Asy, Grey (Choose appropriate
4 301044 Housing/Rope Guide Asy, Yellow (Choose
4 301654 Housing/Rope Guide Asy, Black (Choose appropriate
5 Rope Guide (Not available individually)1
6 300475 Spring, Starter Rewind1
7 301043 Rope/Drum Asy (32cc)1
8 300300 Rope, Starter1
9 87851 Handle, Starter1
10 223944 Bushing, Starter1
11 300297 Washer, .19 ID x .68 OD1
12 300294 Screw, 8-16 x .75 Torx Hd Plast1
13 300294 Screw, 8-16 x .75 Torx Hd Plastite4
14 300260 Oil Tank Asy1
15 300289 Hose, Oil Pick-up1
16 225062 Pickup, Oil1
17 300256 Valve, Duckbill1
18 300565 Oil Cap Asy w/Retainer1
19 300269 Gasket, Oil Cap1
20 300259 Filter, Foam1
21 322195 Spacer, Oil Tank1
22 300259 Filter, Foam1
23 224242-02 Primer, Remote1
24 300298 Hose1
25 301049 Housing/Pin Asy, Right1
26 111098 Pin. Roll 1/4 x 1.0 L1
27 224821 Trigger Throttle1
28 224822 Latch Throttle1
29 224823 Spring, Torsional1
30 111128 "O" Ring1
31 224827 Rod, Throttle1
32 111226 Screw 10-24 x .62 Tr Hd Torx Torque to 40-50
1
color)
1
color)
1
color)
1
color)
1
appropriate color)
1
color)
2
IN/LBS Loctite 262 required.
33 32394561 Engine Housing, Left, Blk1
34 300294 Screw 8-16 x .75 Tr Hd. Plastite7
35 224845 Contact, Ground1
36 68846 Button, Stop Switch1
37 223357 Screw 8-16 Plastite2
38 224844 Contact, Ignition1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 11 of 18
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
39 22483601 Handle, Front1
40 218005 Nut, Square 10-245
41 300292 Retainer Nut5
42 217936 Screw 10-24 x .75 Tr Torx1
43 224830 Cover, Air Filter (Choose appropriate color)1
43 322834 Cover, Air Filter, Grey (Choose appropriate color)1
44 111099 Screw 10-24 x .625 Pn Hd Torx2
45 22482601 Slide Choke1
46 111226 Screw, 10-24 x .62 Tr Hd Torx4
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 12 of 18
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 13 of 18
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235-02 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239-01 BLACK MAX ADHESIVE 380 (1 oz)
323749 THREAD LOCKER 262 (10 ml)
323762 Anti-Seize Lubricant 767 (30 ml)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 14 of 18
www.ktoutdoor.com

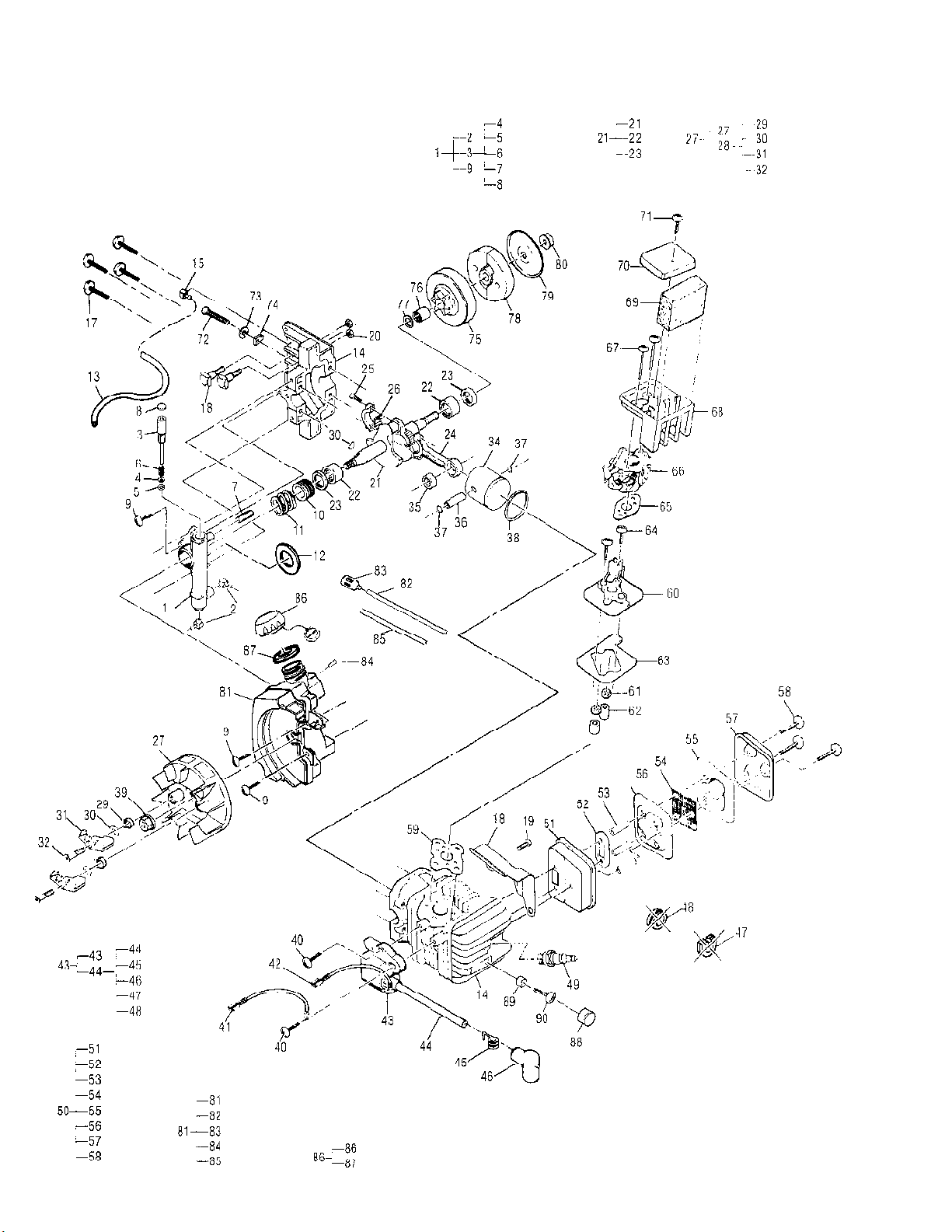

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 15 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 301304 Oil Pump Asy1
2 322182 Fitting2
3 301084 Kit, Gear/Plunger Asy1
4 110582 Washer1
5 O-Ring (Not Available Individually)1
6 Spring (Not Available Individually)1
7 Pin, Dowel (Not Available Individually)1
8 322187 Plug, Oil Pump Distributer Stocked. Medium to slow
1
moving part.
9 111226 Screw, 10-24 x .62 Tr Hd Torx Torque to 30-40
10 224814 Worm Gear1
11 224840 Spring, Compression1
12 300295 Seal, Foam, Oil Pump1
13 300288 Connecting Hose1
14 Cyl/C'case/Bar Bolt Asy, 38cc (Not Available
15 83856-01 Bolt, Bar2
16 300257 Fitting1
17 111083 Screw, 12-24 x 1.0 Hx Wshr Hd4
18 323923 Baffle, Air1
19 111054 Screw, 10-24 x .6251
20 110676 Nut, Hx 1/4-28 Flange2
21 302140 Crankshaft/Bearing Asy1
22 213282 Bearing, C'shaft2
23 83859 Seal, C'shaft Oil2
24 Connecting Rod/Bearing (Not Available Individually)1
25 94654 Screw, Conn Rod2
26 68095 Set, Roller Pins1
27 302220 Flywheel/Pawl Asy1
28 300763-01 Kit, Flywheel Pawls2
29 216982 Spring, Starter Pawl2
30 111131 Washer, Sp .469 OD x .222 ID2
31 Pawls (Not Available Individually)2
32 322721 Pin, Starter Pawl2
33 102164 Key, Flywheel (Dealer stocked. Fast to medium
2
IN/LBS Loctite 262 required.
1
Individually)
1
moving part.)
34 Piston (Not Available Individually)1
35 Bearing, Needle-Drawn Cup (Not Available
36 323943 Pin, Piston1
37 111026 Ring, Snap2
38 Piston, Ring (Not Available Individually)1
39 110961 Nut, Hx 5/16-24 Torque to 180 IN/LBS1
40 217936 Screw, Tr 10-24 x .75 Torx2
41 300555 Wire Asy, Ground1
42 300556 Wire Asy, Stop Switch1
43 302138 Ignition Asy1
44 223884 Kit, Plug Wire1
45 102556 Connector1
46 95266 Boot1
47 110995 Grommet1
48 215533-01 Grommet1
1
Individually)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 16 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
49 322208 Spark Plug RDJ7Y Torque to 150 IN/LBS1
50 301045 Muffler Asy1
51 300280 Body1
52 300281 Plate, Reinforcing1
53 300284 Spacer3
54 300282 Baffle, Inner Muffler1
55 300286 Screen, Spark Arrester1
56 300283 Baffle, Outer1
57 323637 Cover, Muffler1
58 111093 Screw, 10-24 x 1.75 Tr Hd Torx Torque to 50 IN/LBS3
59 300265 Gasket, Insulator1
60 224820 Insulator, Carburetor1
61 218315 Nut. Hx 10-242
62 322188 Spacer, Rubber2
63 224850 Seal, Foam1
64 217937 Screw Tr 10-24 x 1.00 Torx Torque to 30-40 IN/LBS
2
Loctite 262 required.
65 300293 Gasket, Carburetor1
66 Carburetor/Choke Asy (Not Available Individually),
67 218083 Screw Tr 10-24 x 2.0 Torx Torque to 30-40 IN/LBS
68 224824 Box. Air Filter1
69 224831 Filter, Air1
70 224825 Shield Carburetor1
71 111055 Screw 10-14 x .625 Plastite1
72 223088 Screw, Adjusting1
73 110907 Ring, Retaining1
74 68656 Nut, Bar Adjusting1
75 302768 Drum/Sprocket/Bearing Asy1
76 91117 Bearing1
77 215259 Washer Sprocket1
78 301463 Kit, Clutch Asy1
79 300276 Plate, Dust1
80 111079 Nut, Clutch, 5/16-24 LH Torque to 180 IN/LBS1
81 301834 Fuel Tank Asy1
82 300289 Hose Fuel Pickup1
83 216985 Filter Fuel1
84 322199 Valve Duckbill1
85 300290 Hose. Primer Retain1
86 300564 Cap. Fuel Asy. w/Retainer1
87 300267 Gasket. Fuel Cap1
88 322200 Cover Cylinder1
89 322201 Cover. Spacer1
90 217936 Screw 10-24 x .75 Tr Torx1
301284 38cc Shortblock Asy.
1
See "Carburetor Assembly" illustration and parts list.
2
Loctite 262 required.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 17 of 18
www.ktoutdoor.com

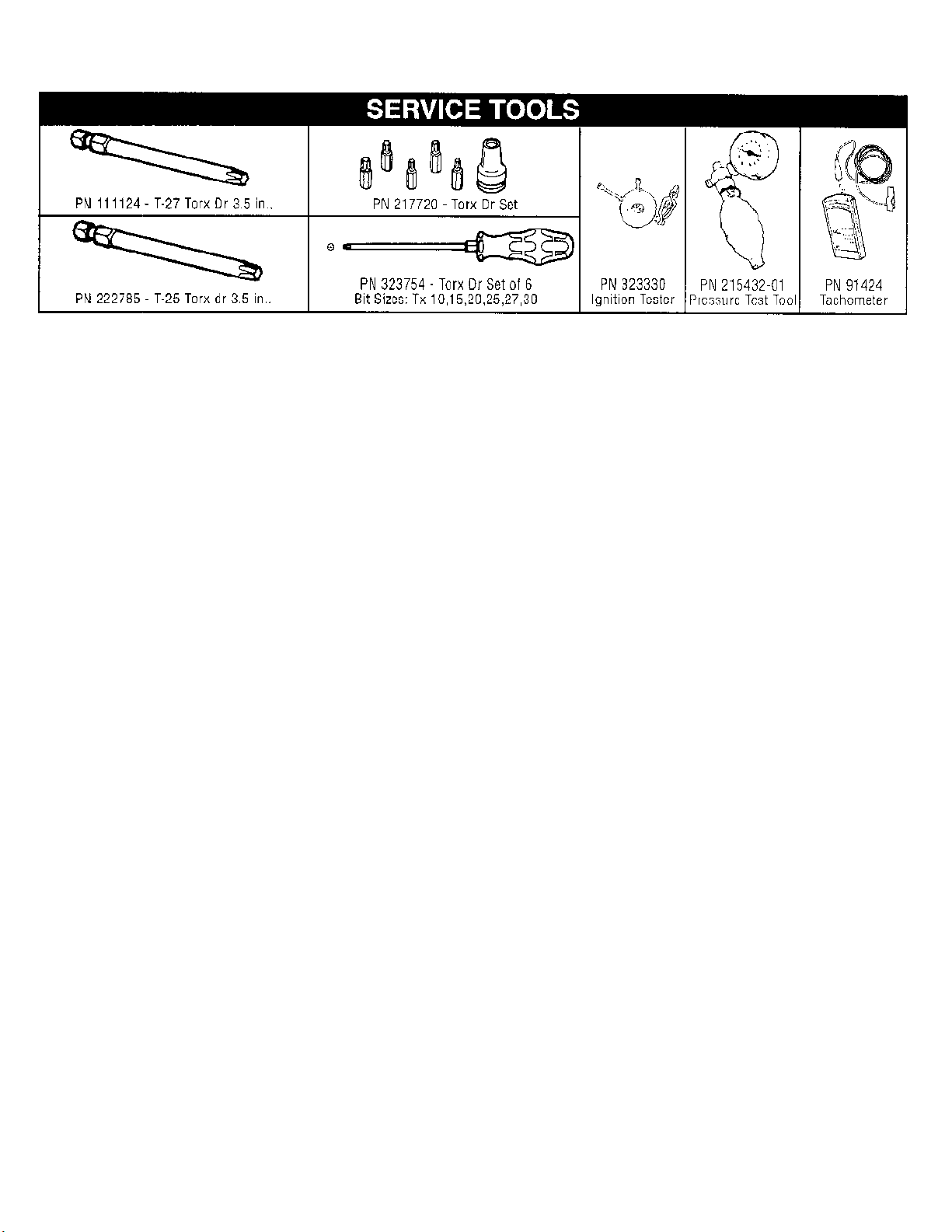

Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600032-11 Eager Beaver 2010 07/93 to 05/96 IPL 211229 Page 18 of 18
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
111124 111124 T-27 Torx Dr., 3.5 in.1
222785 222785 T-25 Torx Dr., 3.5 in.1
217720 217720 Torx Dr Set1
323754 323754 Torx Dr Set of 6 (Bit Sizes: Tx 10, 15, 20, 25, 27, 30)11
323330 323330 Ignition Tester1
21543201 215432-01 Pressure Test Tool1
91424 91424 Tachometer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
