11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 1 of 20
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 2 of 20
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
84453 Kit - Piston tool
69191 Kit - Pressure test adaptor
84922 Kit - Baffle
86419 Guide - Timing
85933 Kit - Spark arrester screen
63097 Spark Plug (Standard)
63432 Spark Plug (Cooler)
62827 Wrench/Screwdriver
65370 Kit - Spkt 7T .354 P
63746 Scrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 3 of 20
www.ktoutdoor.com

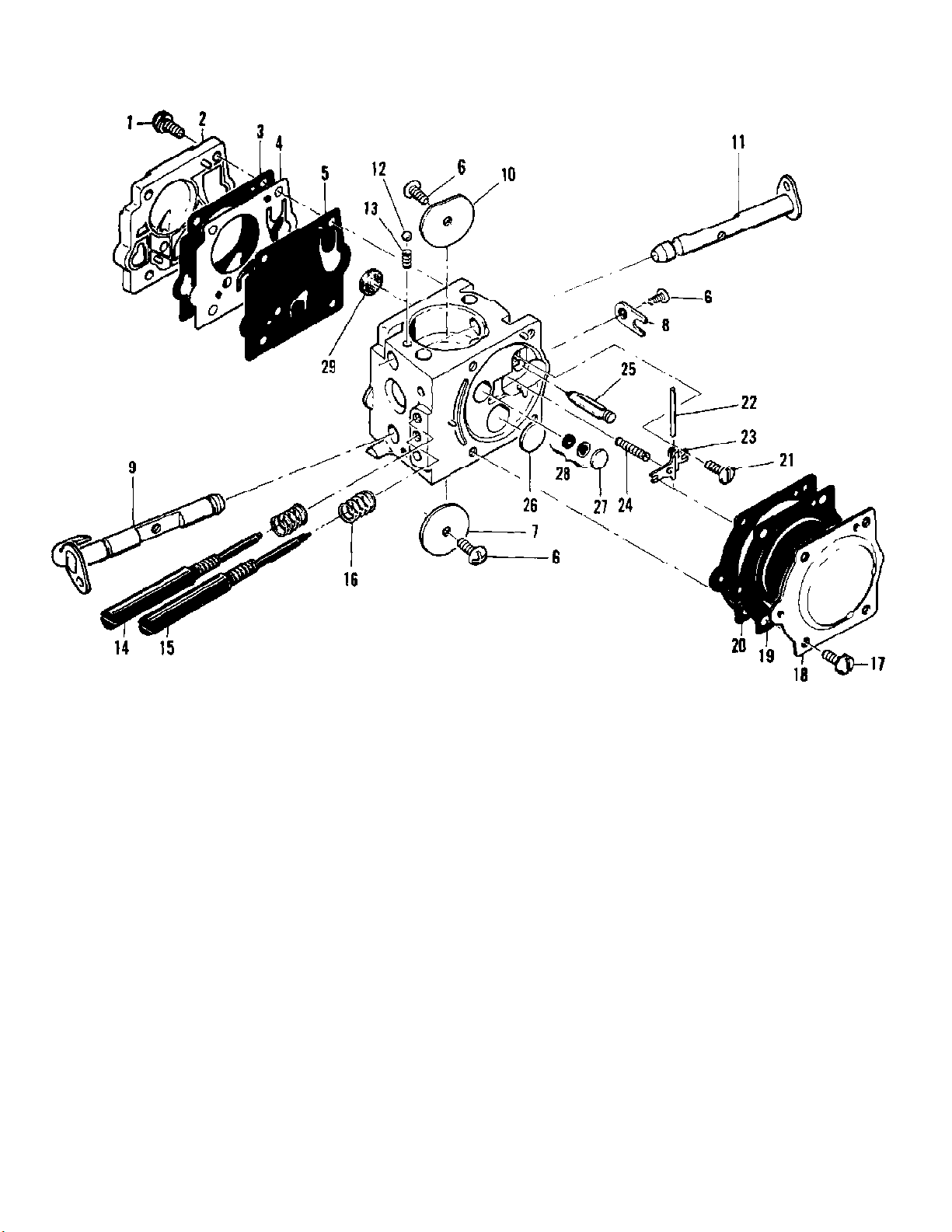

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 4 of 20
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 Carburetor Asy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Asy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Asy1
29 67507 Screen - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 5 of 20
www.ktoutdoor.com

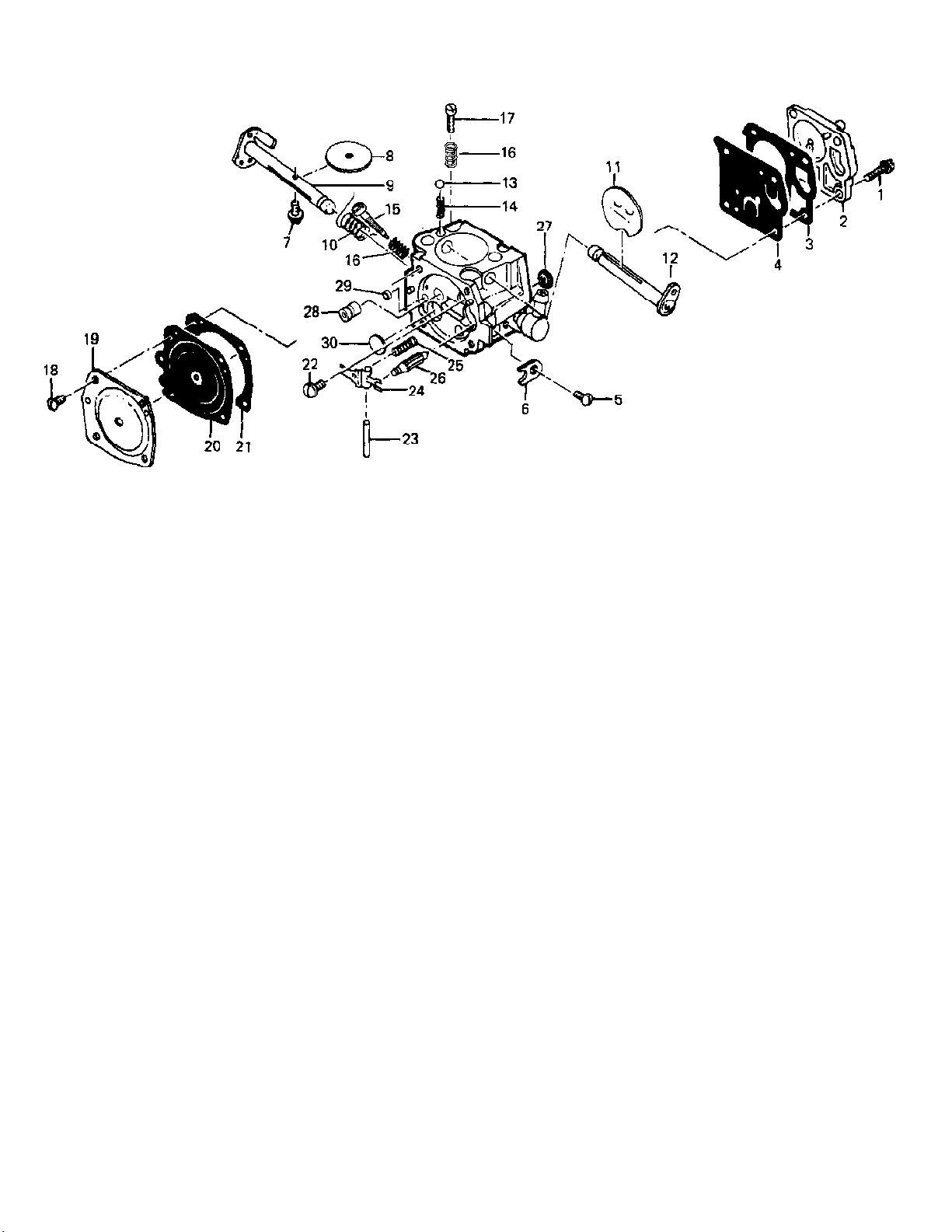

Carburetor Assembly (HS)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 6 of 20
www.ktoutdoor.com
Carburetor Assembly (HS)
Ref # Part Number DescriptionQty
91121 Carburetor Asy - HS1
1 52933 Screw - Pump cover4
2 66628 Cover - Pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 87922 Shaft Asy - Throttle1
10 67136 Spring - Throttle shaft1
11 65856 Plate - Choke1
12 83725 Shaft Asy - Choke1
13 100071 Ball - Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Idle mixture1
16 66626 Spring - Idle2
17 66625 Screw - Idle speed adjust1
18 51721 Screw - Diaphragm cover4
19 83724 Cover - Diaphragm1
20 66632 Diaphragm - Metering1
21 66633 Gasket - Diaphragm1
22 66644 Screw - Inlet lever pin1
23 66636 Pin - Inlet lever1
24 66638 Lever - Inlet1
25 66404 Spring Inlet lever1
26 66637 Needle - Inlet1
27 66623 Screen - Fuel inlet1
28 88771 Jet - H/S fuel (029)1
88772 Jet - H/S fuel (028) Alt.
88781 Jet - H/S fuel (027) Alt.
29 52928 Plug - Cup1
30 66622 Plug - Welch1
88774 Set - Gasket
88775 Kit - Repair
88776 Set - Gasket Diaphragm
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 7 of 20
www.ktoutdoor.com

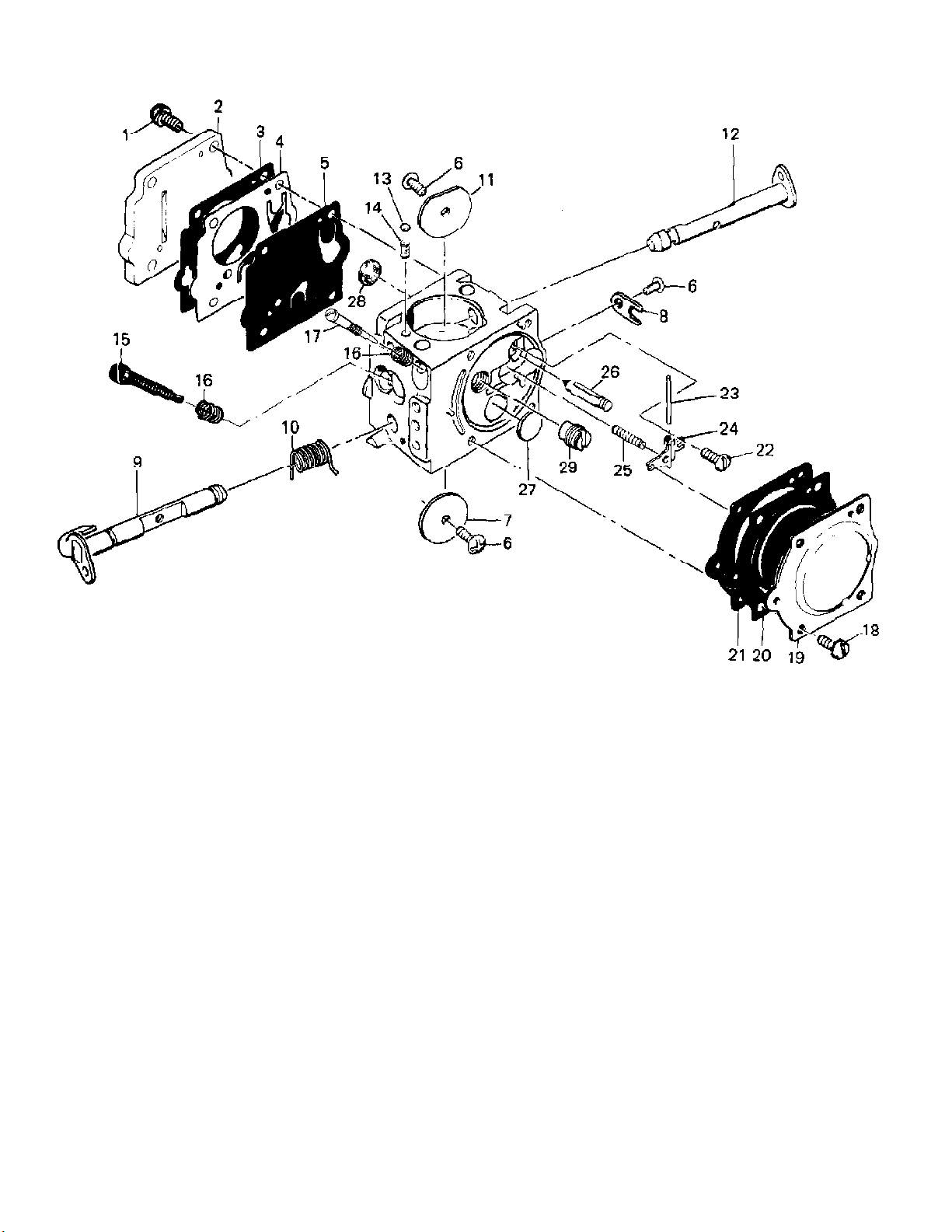

Carburetor Assembly (SDC)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 8 of 20
www.ktoutdoor.com
Carburetor Assembly (SDC)
Ref # Part Number DescriptionQty
89324 Carburetor Asy - SDC1
91275 Carburetor Asy - SDC1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90346 Jet - High speed (032) (std)1
90347 Jet - H/S (033) Alt.
90348 Jet - H/S (031) Alt.
90349 Jet - H/S (029) Alt.
90350 Jet - H/S (028) Alt.
90351 Jet - H/S (026) Alt.
90350 Jet - High speed (028) (std)1
88620 Kit - Repair
88619 Set - Gasket
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 9 of 20
www.ktoutdoor.com

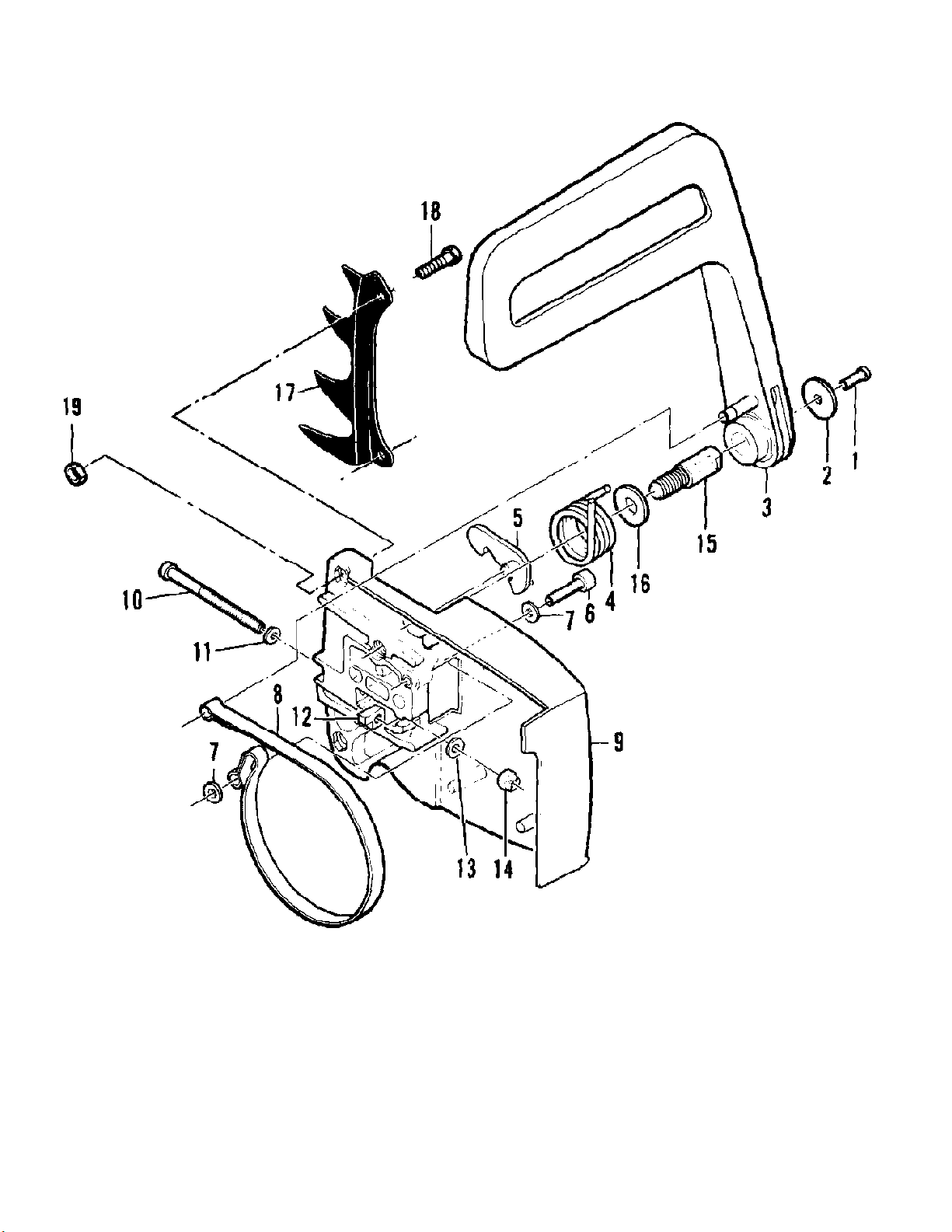

Chain Brake & Spike Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 10 of 20
www.ktoutdoor.com
Chain Brake & Spike Assemblies
Ref # Part Number DescriptionQty
91278 CHAIN BRAKE Asy1
1 102500 Screw - Pan hd 10-24 x 1/21
2 91273 Washer - Special1
3 91251 Lever Asy1
4 91239 Spring1
5 91235A Latch Asy1
6 105738 Screw - Skt hd 1/4-20 x 7/81
7 91274 Washer - Special2
8 91238 Band1
9 91249 Housing Asy1
10 110527 Screw - Fil hd 10-24 x 2-3/41
11 110264 Washer - #101
12 61705 Nut - Bar adjusting1
13 100002 Washer - #101
14 102067 Nut - Hx 10-241
15 91246 Pin - Lever pivot1
16 91245 Washer - Thrust1
17 86330 Kit - Spike1
18 102388 Screw - Hx hd 10-24 x 5/82
19 101191 Nut - Hx 10-242
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 11 of 20
www.ktoutdoor.com

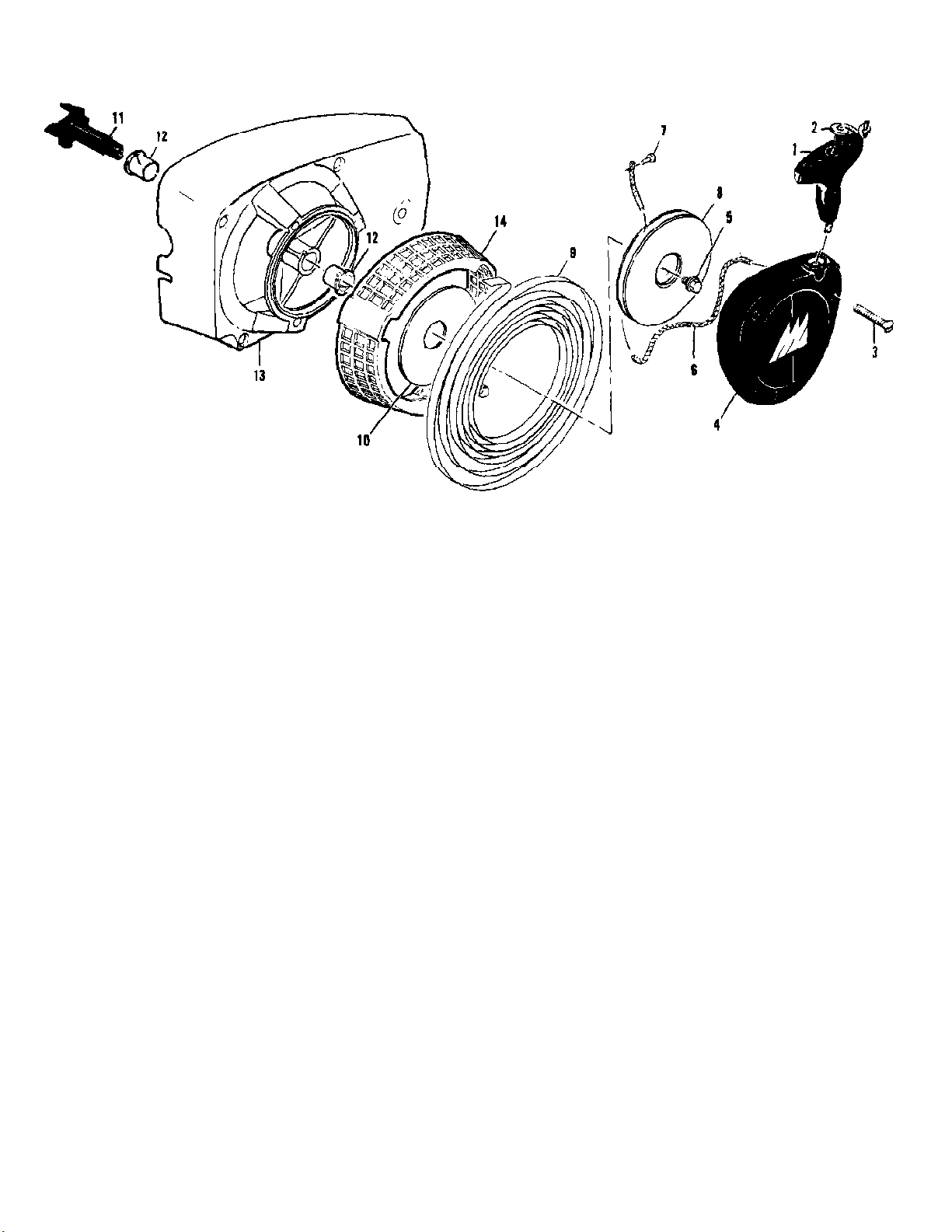

Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 12 of 20
www.ktoutdoor.com
Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
1 91255 Kit - Starter handle1
2 105490 Washer - Starter handle1
87667 Fan Housing & Starter Asy1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope-Starter1
7 110470 Rivet-Rope1
8 85122 Drum-Starter1
9 87680 Spring-Rewind1
10 86053 Shield-Spring1
11 83748 Shaft-Starter1
12 57535 Bushing - Starter2
13 87693 Kit-Fan Housing1
14 87674 Guard-Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 13 of 20
www.ktoutdoor.com

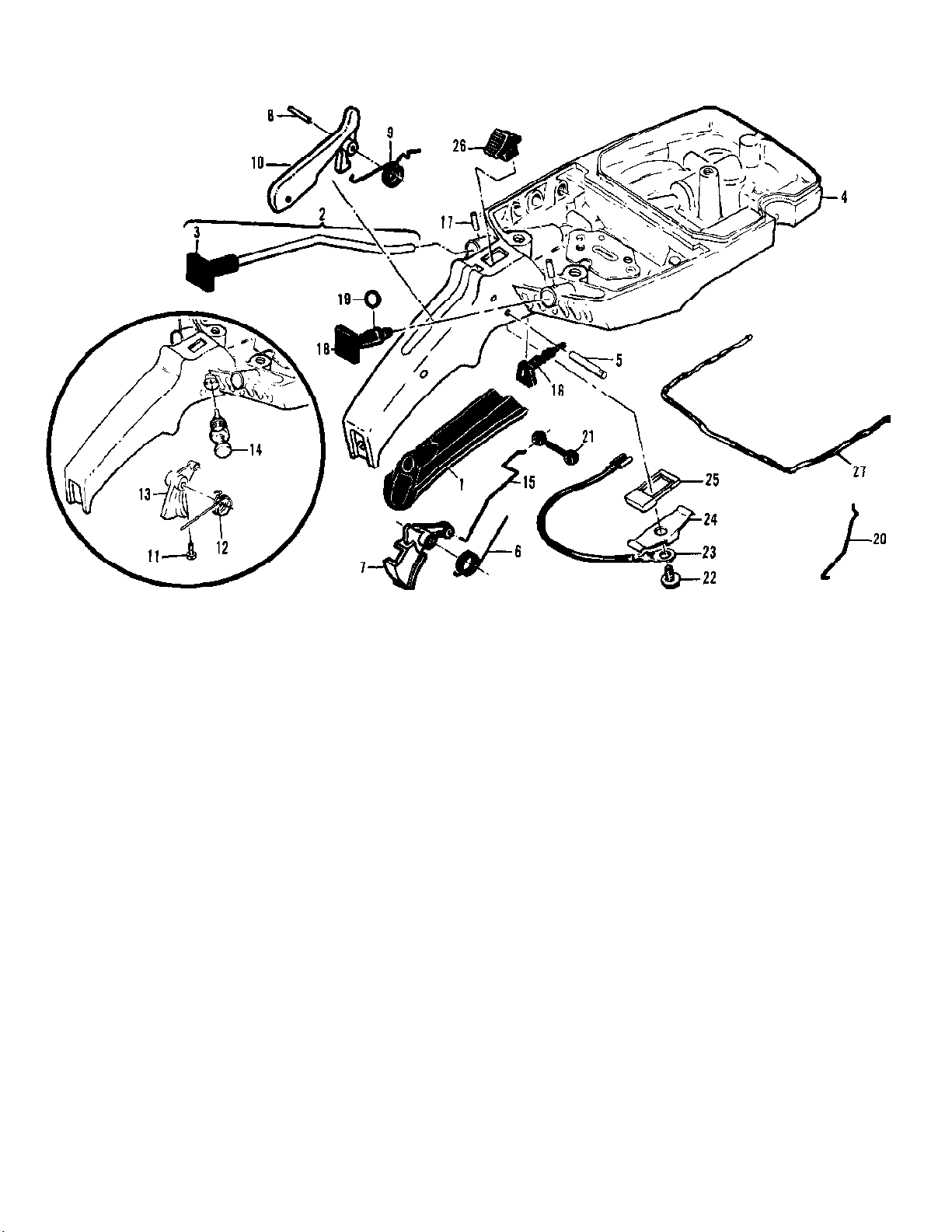

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 14 of 20
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 64871 Button & Rod Assembly1
3 63044 Button - Oiler1
4 84183A Kit - Fuel Tank/Control1
5 110378 Pin - Roll 3/16 x 15/161
6 92152 Spring - Trigger1
7 92151 Trigger - Throttle1
8 105654 Pin - Roll 1/8 x 7/81
9 92154 Spring - Trigger release1
10 92153A Release - Trigger1
11 110668 Screw - Fil hd 8-36 x 5/81
12 87178 Spring - Throttle return1
13 88796 Trigger1
14 85451 Latch Asy - Throttle1
15 85107 Rod - Throttle1
16 68522A Seal - Throttle rod1
17 105673 Pin - Roll 3/32 x 9/162
18 69041 Button - Choke1
19 105614 "O" Ring1
20 69042 Rod - Choke1
21 69043 Snubber - Rod1
22 110706 Screw - Fil hd 8-18 x 1/21
23 62973A Wire Asy - Stop switch1
24 62451 Control - Switch1
25 62950A Base - Switch1
26 68846 Button - Switch1
27 69564 Seal - Airbox1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 15 of 20
www.ktoutdoor.com

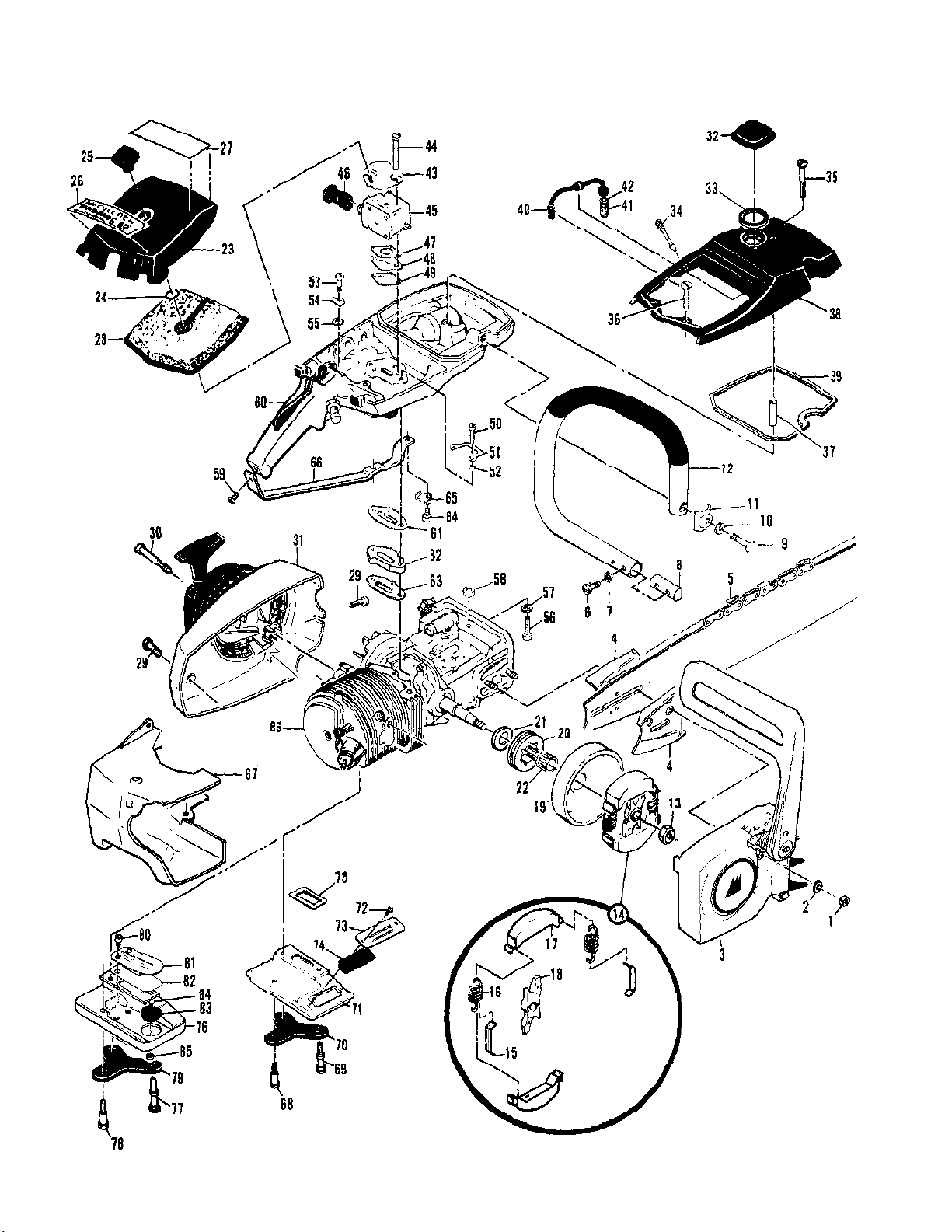

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 16 of 20
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110454 Nut - Hx 5/16 - 242
2 100440 Washer - 5/162
3 CHAIN BRAKE & Spike Asys See "Chain Brake &
Spike Assembly" illustration and parts list.
4 64330 Set - Bar plates1
5 Bar & Chain
6 110865 Screw - Hx hd 10-24 x 7/82
7 100352 Washer - #102
8 89727 Retainer - Frame1
9 102130 Screw - Hx hd 1/4 - 20 x 1-1/21
10 100153 Washer - Lock 1/41
11 63484 Clamp - Frame1
12 87686A Frame & Grip Asy1
13 86113 Nut - Hx 3/8 - 24 (L.H.)1
14 87675 Clutch Asy1
15 64583 Retainer - Spring2
16 83223 Spring - Clutch2
17 67233 Shoe - Clutch2
18 89438 Rotor Asy1
19 86946 Drum/Spkt Asy - 7T .375P1
19 86942 Drum/Spkt Asy - 7T .375P (A)1
20 86951 Sprocket - 7T .375P1
20 86344 Sprocket - 7T .375P (A)1
21 86958 Washer - Shim1
21 86958 Washer - Shim (A)1
22 110330 Bearing - Sprocket1
23 68530A Cover Asy - Air cleaner1
24 110565 Ring - Retainer1
25 68529 Knob - Cover1
26 91548 Plate - Instruction1
27 91546 Plate - Name1
28 69922 Filter - Air1
29 110741 Screw - Pan hd 10-24 x 1/22
30 87871 Screw - Special3
31 Fan Housing & Starter Asy See "Fan Housing &
Starter Assembly" illustration and parts list.
32 89322 Cap Asy - Fuel1
33 69767 Gasket - Fuel cap1
34 87932 Screw - Idle adjustment See "Carburetor Assembly"
35 110402 Screw - Oval hd 10-24 x 2-3/81
36 103579 Screw - Fil hd 10-24 x 12
37 87840 Spacer1
38 69679 Cover - Fuel Tank See "Carburetor Assembly - SDC"
38 88650 Cover - Fuel Tank1
39 69345 Gasket - Fuel tank cover1
40 64848 Hose Asy - Fuel1
41 63932 Filter - Fuel1
42 100440 Washer - 5/161
43 83204 Kit - Air cleaner bracket1
44 103357 Bolt - Hx hd 10 - 24 x 2-1/42
1
illustration and parts list.
1
illustration and parts list and "Carburetor Assembly HS" illustration & parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 17 of 20
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
45 Carburetor Asy
46 87665 Boot Carburetor adj.1
47 86189 Gasket - Carburetor1
48 84078 Spacer - Carburetor1
49 84081 Gasket - Spacer1
50 110570 Screw - Hx hd 12-24 x 1-3/82
51 68582 Plate - Lock1
52 102115 Washer - #122
53 110568 Screw - Hx hd 12-24 x 1- 1/81
54 69516 Plate - Lock1
55 64856 Washer - Special1
56 110713 Screw - Skt hd 10-24 x 7/81
57 100003 Washer - #101
58 69772 Spacer - Fuel tank1
59 110910 Screw - Hx hd 10-24 x 1-1/41
60 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
61 84082 Gasket - Fuel tank1
62 84079 Insulator - Fuel tank1
63 84082 Gasket - Fuel tank1
64 110566 Screw - Hx hd 10-24 x 5/81
65 68508 Plate - Lock1
66 85007 Brace - Handle1
67 85731A Shroud - Cylinder1
68 67837 Screw - Muffler short1
69 67838 Screw - Muffler long2
70 83993 Plate - Lock1
71 95318 Muffler Asy1
72 110662 Screw - Pan hd 6-32 x 3/82
73 95320 Cover - Screen1
74 89431 Screen - Spark arrester1
75 84007 Gasket - Muffler1
76 68863 Kit - Pancake Reed Muffler1
77 67838 Screw - Muffler long2
78 67837 Screw - Muffler short1
79 83993 Plate - Lock1
80 110563 Screw - Skt hd 8-32 x 1/42
81 84780 Stop - Reed1
82 84779 Valve - Spark arrester1
83 85933 Kit - Spark Arrester Screen (A)1
84 101987 Screw - Rd hd 6-32 x 1/4 (A)1
85 100796 Nut - Hx 6-32 (A)1
86 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
87666 Carburetor Asy
89324 Carburetor Asy - SDC
91275 Carburetor Asy - SDC
91121 Carburetor Asy - HS
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 18 of 20
www.ktoutdoor.com
Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 19 of 20
www.ktoutdoor.com

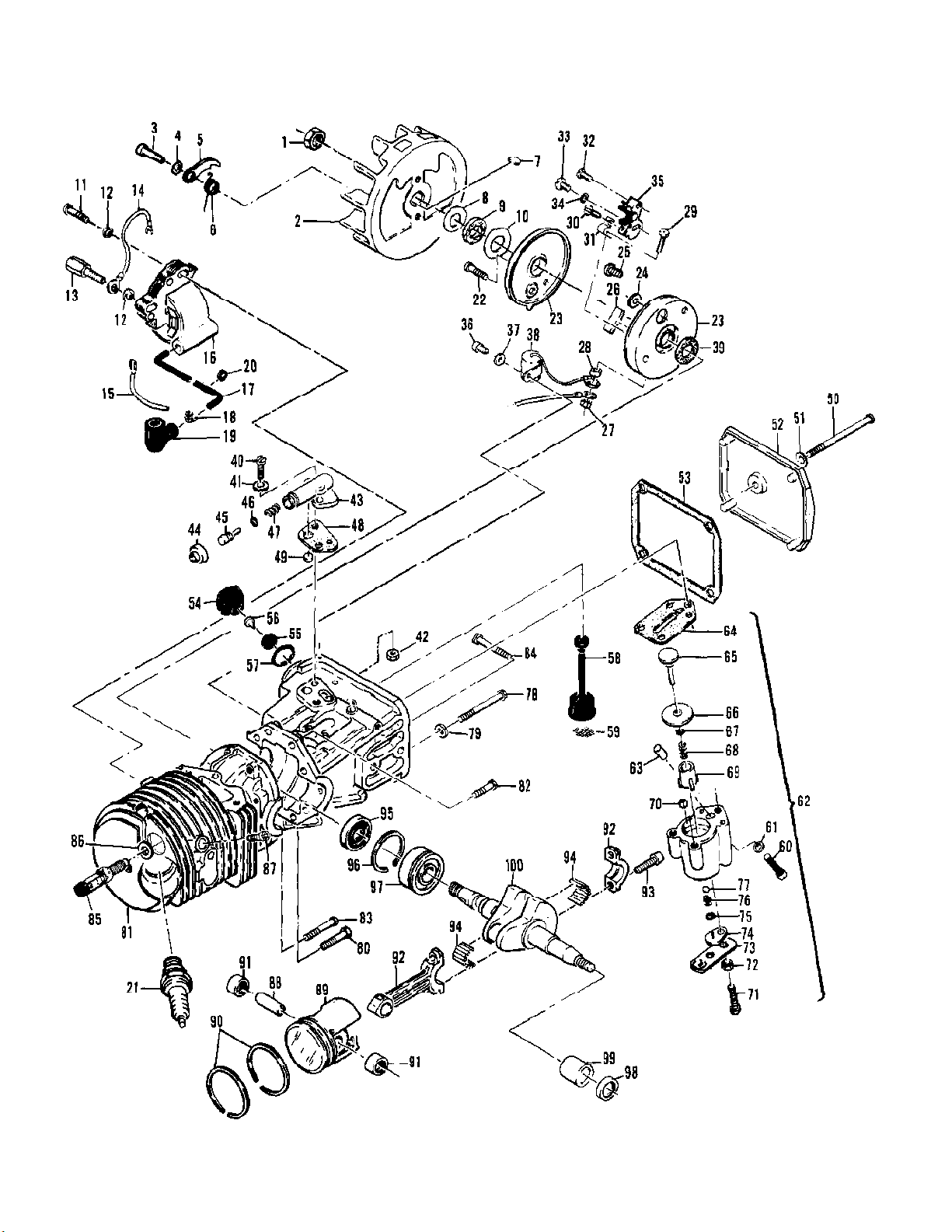

Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 86068 Flywheel1
3 88804 Screw - Pawl pivot2
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 100106 Key - Woodruff1
8 67057 Washer - Thrust1
9 67056 Seal - Breaker box cover1
10 67054 Washer - Thrust1
11 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
12 100002 Washer - #102
13 83512 Stud - Special1
14 84686 Wire Asy - Ground1
15 69344 Wire Asy - Primary1
16 87246A Coil & Lamination Asy1
17 50120 Wire Asy - Spark plug1
18 55061 Connector1
19 85758 Boot1
20 100268 Grommet1
21 63097 Spark Plug1
21 93018 Spark Plug1
22 110584 Screw - Pan hd 8-32 x 3/41
23 91852 Kit - Breaker box & cover1
24 91838 Washer1
25 110489 Screw - Pan hd 6-32 x 7/161
26 54184 Wiper - Cam1
27 100298 Nut - Hx 6-321
28 62365 Spacer - Breaker1
29 110346 Screw - Hx hd 6-32 x 3/41
30 110706 Screw - Pan hd 8-18 x 1/21
31 83126 Strap - Conduction1
32 110811 Screw - Pan hd 8-32 x 3/81
33 110969 Screw - Hx hd 8-32 x 1/21
34 105976 Washer - #81
35 88808 Breaker Asy1
36 110623 Screw - Fil hd 8-32 x 1/21
37 100080 Washer - #81
38 85358 Condenser1
39 67051 Seal - Breaker box1
40 110338 Screw - Fil hd 8-32 x 9/162
41 110613 Washer - 182
42 100955 Nut - Hx 8-321
43 84156 Housing - Pump1
44 62262 Cap - Housing1
45 62266 Plunger - Pump1
46 105614 "O" Ring1
47 66687 Spring - Pump1
48 91669 Gasket - Pump1
49 91668 Valve - Pump1
50 110291 Screw - Pan hd 10-24 x 2-5/81
51 110921 Washer - Sealing1
52 86304 Cover - Oil tank1
53 86306 Gasket - Cover1
54 87270 Cap - Oil tank1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600031D PRO MAC 55 08/73 to 03/77 IPL 92384A-R1 Page 20 of 20
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
55 87269 Retainer - Valve1
56 86402 Valve - Check1
57 101148 "O" Ring1
58 91672 Hose Asy - Oil1
59 51506 Screen - Hose1
60 110865 Screw - Hx hd 10-24 x 7/81
61 100003 Washer - #101
62 89115A Pump Asy - Pulse1
63 91774 Sleeve1
64 92818 Seal - Pulse pump1
65 60260A Piston Asy - Pump1
66 86182 Ring - Piston1
67 105603 "O" Ring1
68 60259 Spring - Piston1
69 62227 Sleeve - Adjustment1
70 91259 Pad - Oil pump1
71 110386 Screw - Hx hd 8-32 x 11
72 100251 Nut - Hx 8-321
73 89114 Clamp - Pump1
74 62407 Cover - Outlet valve1
75 106104 "O" Ring1
76 92844 Spring - Outlet valve1
77 102809 Ball1
78 62105 Screw Asy - Sealing4
79 62842 Washer - Sealing4
80 110288 Screw - Hx hd 8-32 x 3/41
81 89435A Crankcase Asy1
82 110288 Screw - Hx hd 8-32 x 3/42
83 110618 Screw - Hx hd 8-32 x 1-3/81
84 62065 Bolt - Bar mounting2
85 94272 Valve - Comp. rel.1
86 85505 Washer - Valve1
87 110681 Screw - Skt hd 10-24 x 1/41
88 87710 Pin - Piston1
89 89783A Piston Asy1
90 92517 Ring Set - Piston1
91 110590 Bearing - Needle2
92 85352 Connecting Rod Asy1
93 61627A Screw - Skt hd special2
94 63225 Roller - Needle (Set of 20)1
95 67906 Seal - Oil1
96 63464 Ring - Snap1
97 67905 Bearing - Ball1
98 110260 Seal - Oil1
99 104357 Bearing - Needle1
100 87699 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
