11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 1 of 16
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 2 of 16
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
69210 Piston Assy - 0.020 in. oversize
62813 Ring Set - Piston 0.020 in. oversize
69211 Piston Assy - 0.030 in. oversize
62812 Ring Set - Piston 0.030 in. oversize
63341A Kit - Spike
69191 Kit - Pressure test adaptor
84453 Kit - Piston tool
84972 Kit - Coil
65408 Spark Plug - Ch. CJ8
65409 Spark Plug - Ch. CJ6
65551 Spark Plug - Ch. CJ4
84922 Baffle - Spark arrestor
86419 Guide - Timing
62827 Wrench - Screwdriver
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 3 of 16
www.ktoutdoor.com

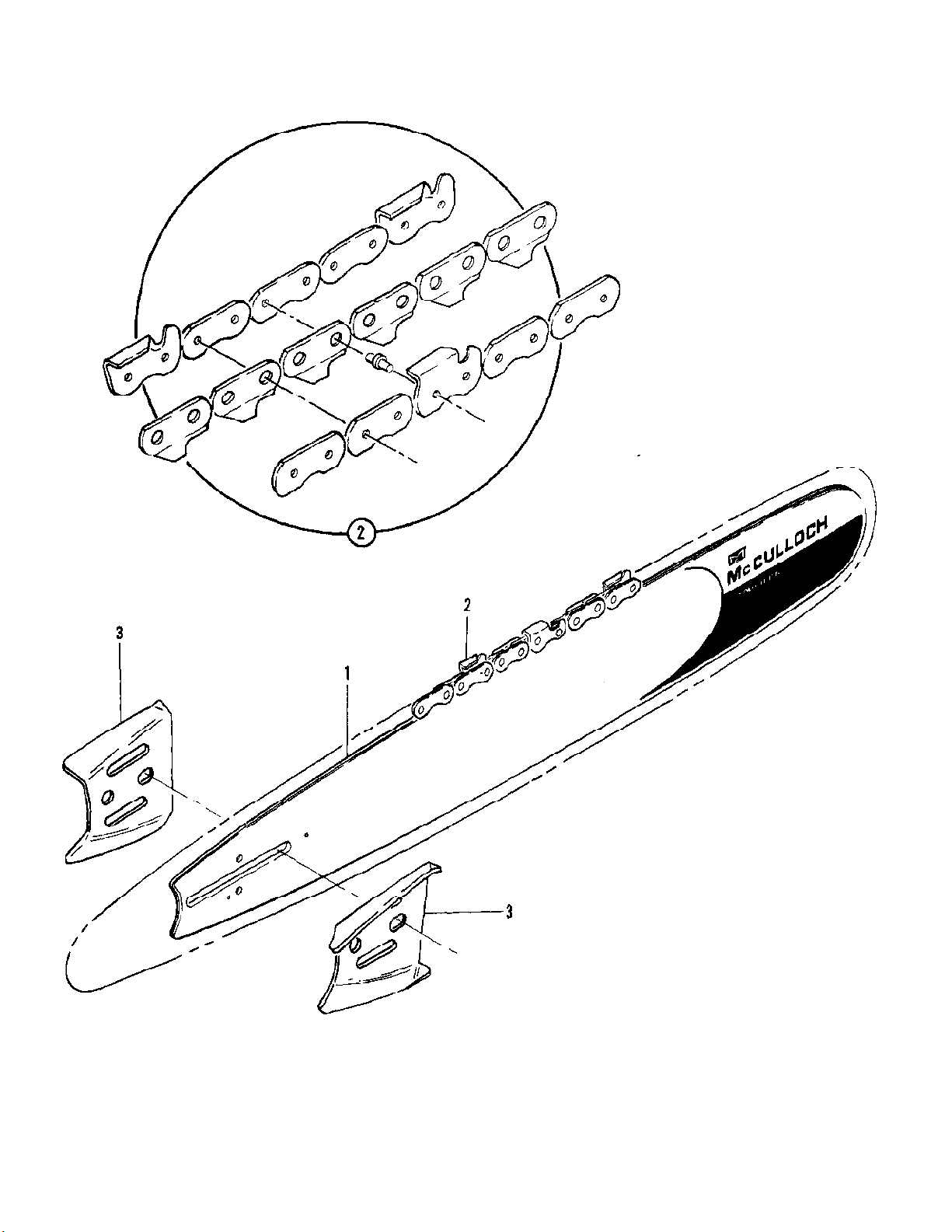

Bar And Chain Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 4 of 16
www.ktoutdoor.com
Bar And Chain Assemblies
Ref # Part Number DescriptionQty
1 Bar
2 Chain Assy
64330 Set - Bar Plate1
3 64325 Plate - Bar2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 5 of 16
www.ktoutdoor.com

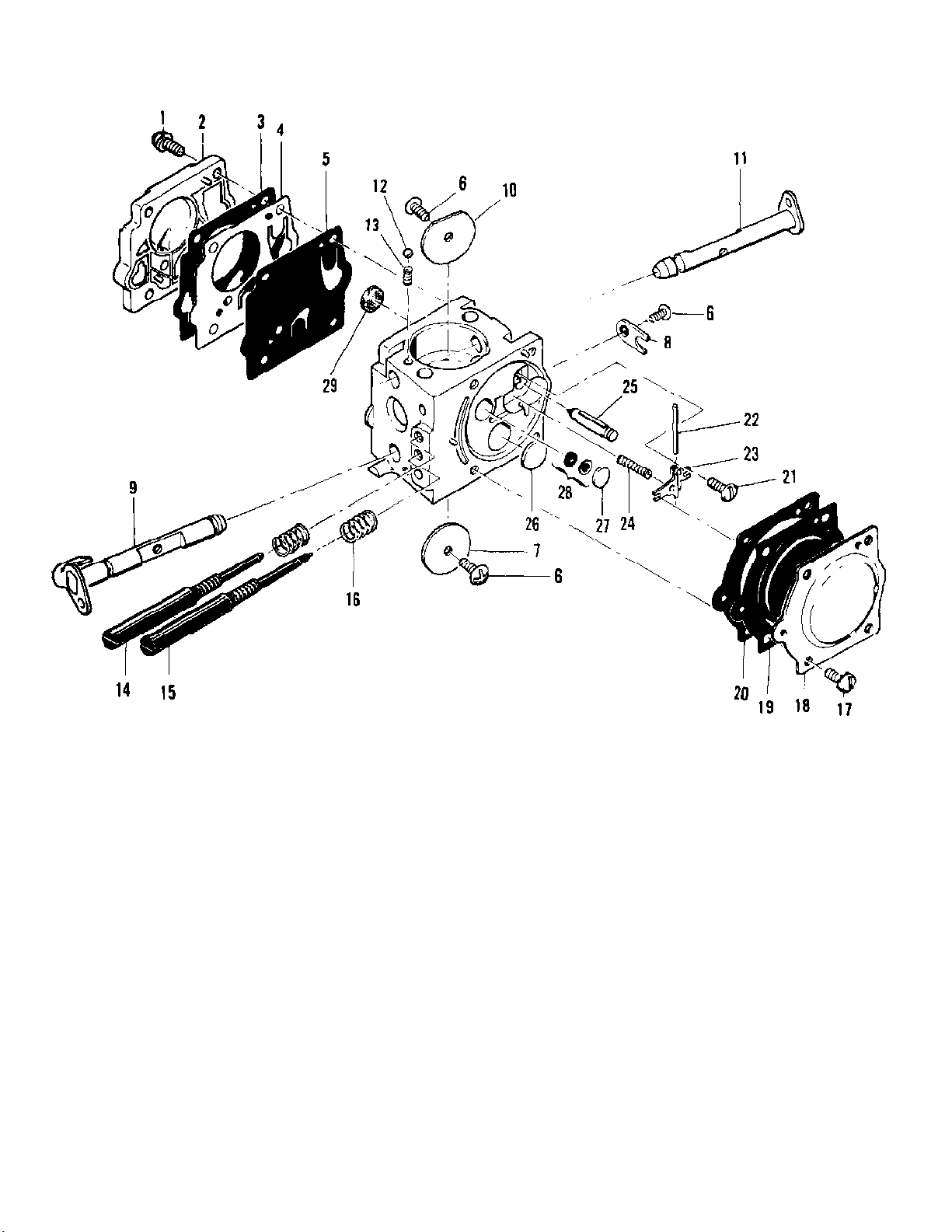

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 6 of 16
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
87666 Carburetor Assy1
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Assy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Assy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Assy1
29 67507 Screen - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 7 of 16
www.ktoutdoor.com

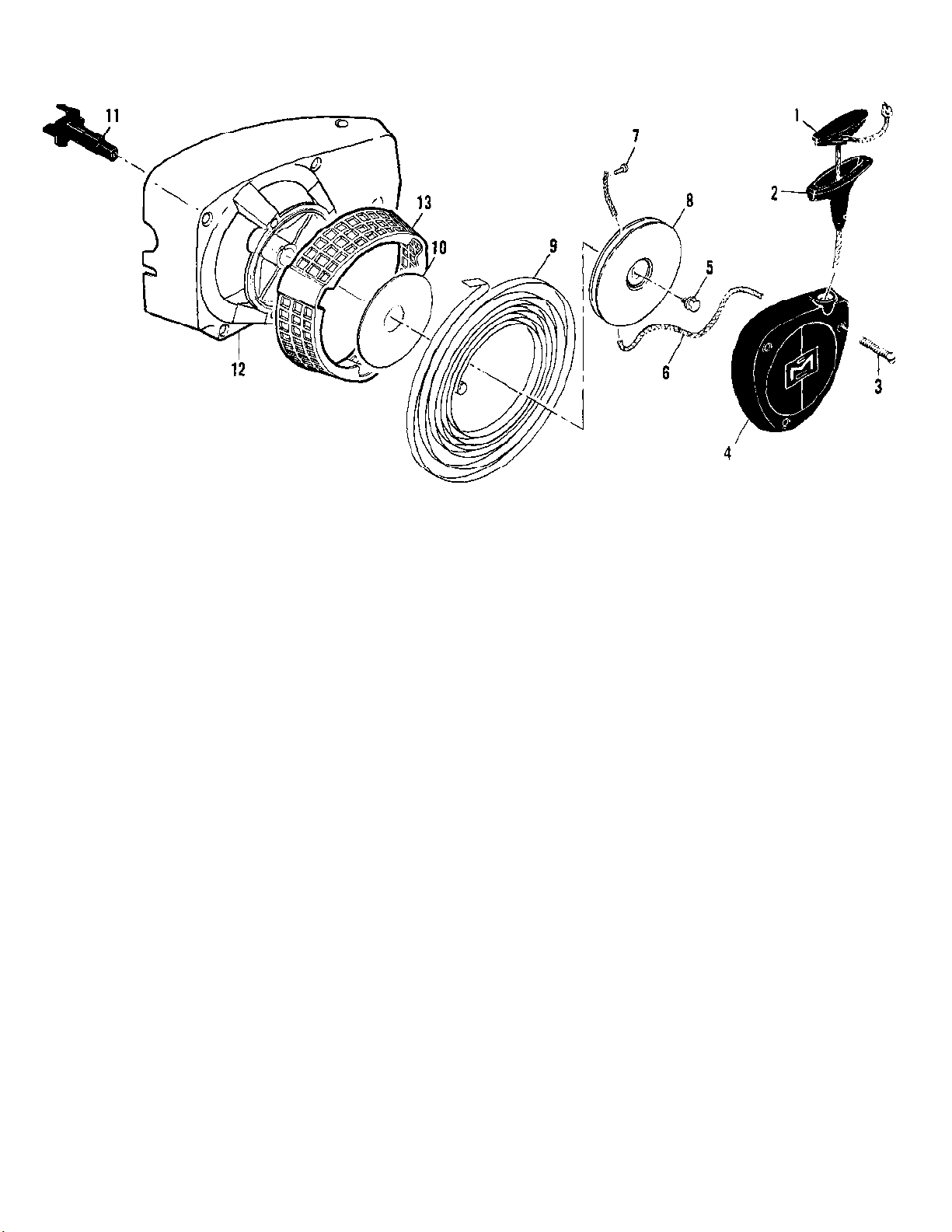

Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 8 of 16
www.ktoutdoor.com
Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
1 62191A Insert - Starter handle1
2 62190A Handle - Starter1
3 110646 Screw - Oval hd 8-32 x 1-1/23
4 87672 Cover - Starter1
5 110341 Screw - Hex hd 10-24 x 1/21
6 69964 Rope - Starter1
7 110470 Rivet - Rope1
8 83597 Drum - Starter1
9 87668 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 87693 Kit - Fan housing1
13 87694 Guard - Sawdust1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 9 of 16
www.ktoutdoor.com

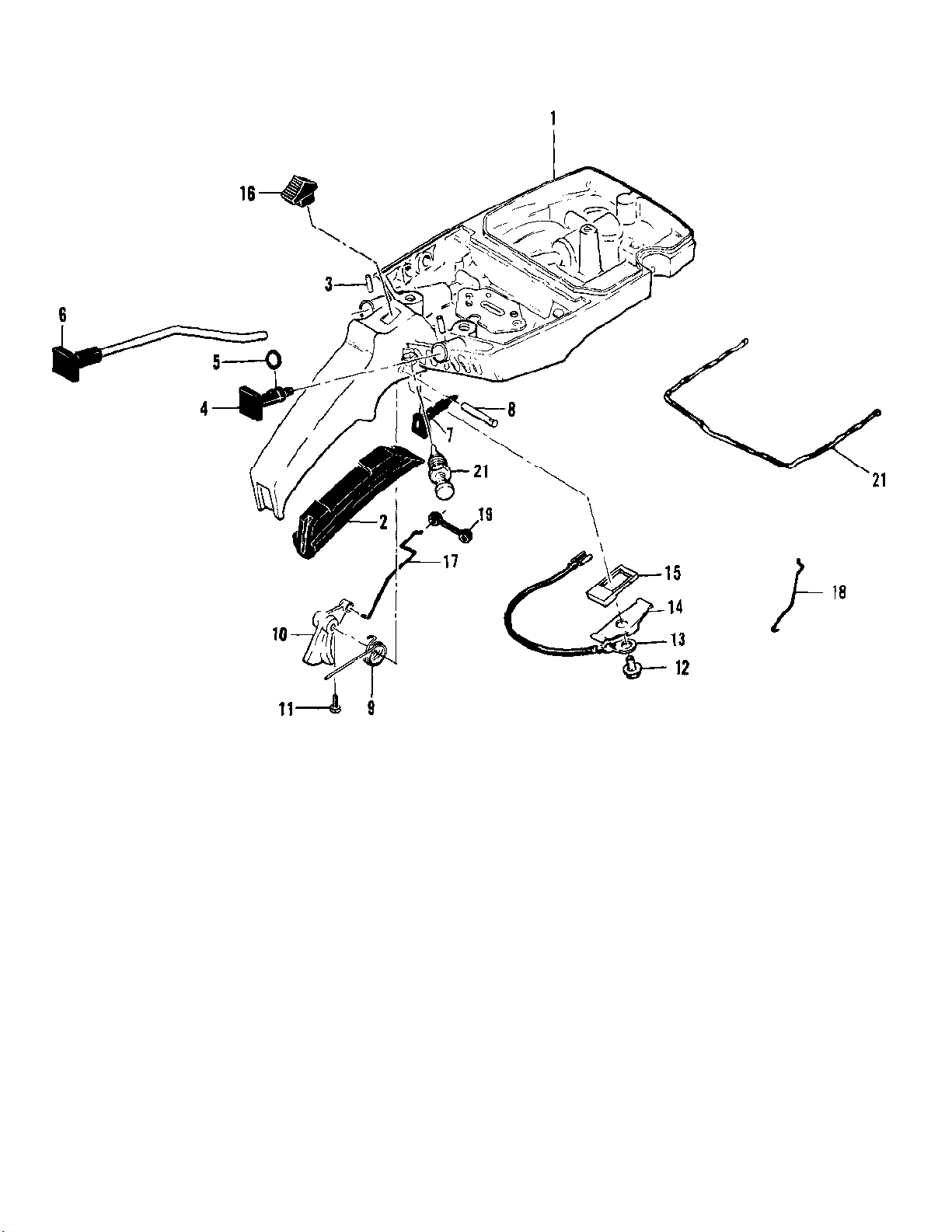

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 10 of 16
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 87685 Fuel Tank1
2 87883 Grip - Handle1
3 105673 Pin - Roll 3/32 x 9/162
4 69041 Button - Choke1
5 101056 "O" Ring1
6 64871 Button & Rod Assy1
7 68522 Seal - Throttle rod1
8 110378 Pin - Roll 3/16 x 15/161
9 87178 Spring - Throttle return1
10 86450 Trigger1
11 110668 Screw - Fil hd 8-36 x 5/81
12 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
13 62973A Wire Assy - Stop switch1
14 62451 Contact - Switch1
15 62950A Base - Switch1
16 68846 Button - Switch1
17 85107 Rod - Throttle1
18 69042 Rod - Choke1
19 69043 Snubber - Rod1
20 85451 Latch Assy - Throttle1
21 69564 Seal - AirboxAR
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 11 of 16
www.ktoutdoor.com

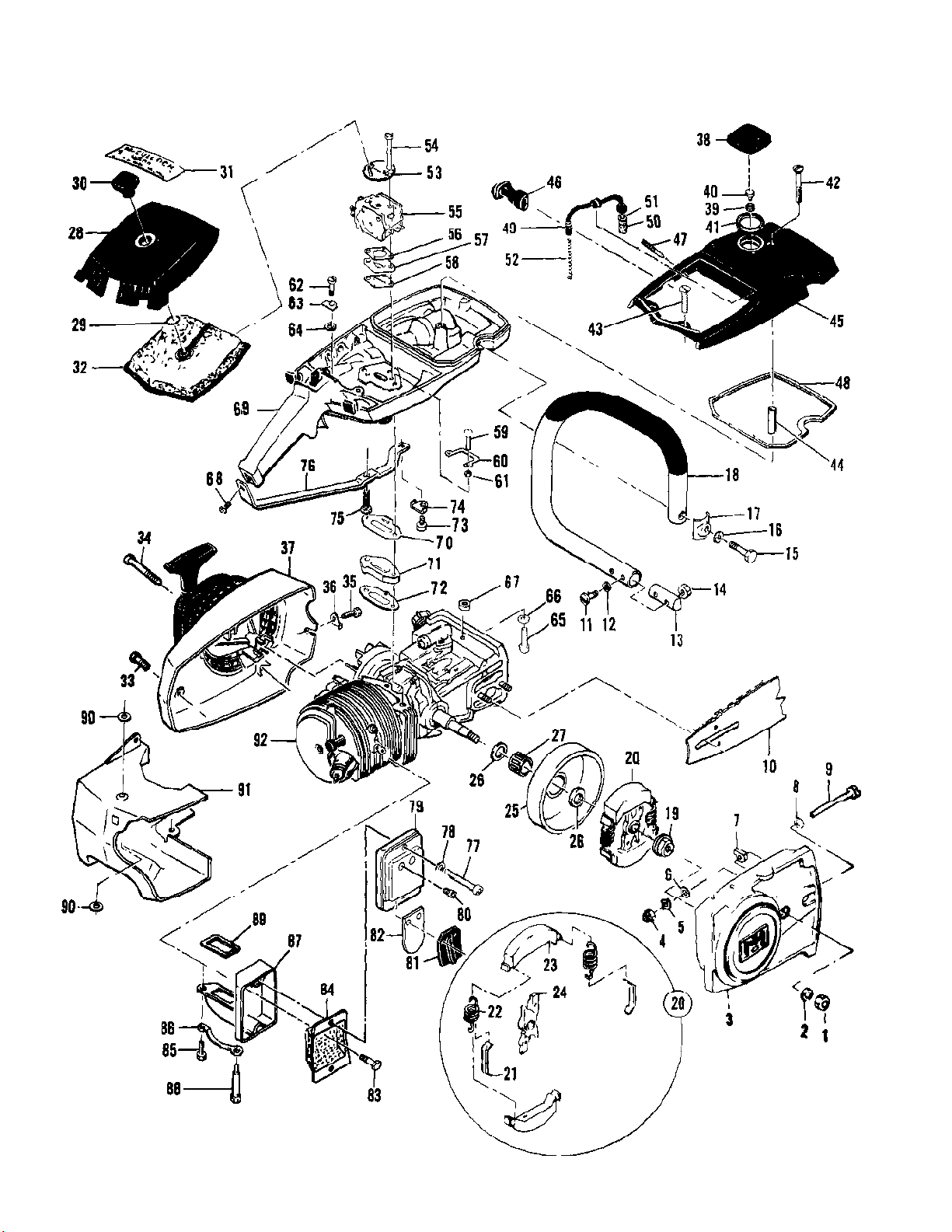

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 12 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 110454 Nut - Hex 5/16-242
2 100440 Washer - 5/162
3 88581 Clutch Guard Assy1
4 102067 Nut - Hex 10-241
5 110387 Washer - Wavey1
6 100002 Washer - #101
7 61705 Nut - Bar adjustment1
8 110264 Washer - #101
9 102144 Screw - Bar adjustment1
10 Bar & Chain Assy See "Bar & Chain Assemblies"
illustration and parts list.
11 102761 Screw - Hex hd 10-24 x 7/82
12 100352 Washer - #102
13 61678 Plug - Nut retainer1
14 101326 Nut - Hex 10-242
15 102130 Screw - Hex hd 1/4-20 x 1-1/21
16 100153 Lockwasher - 1/41
17 63484 Clamp - Frame1
18 87686 Frame & Grip Assy1
19 86113 Nut - Hex 3/8-24 (L. H.)1
20 87675 Clutch Assy1
21 64583 Retainer - Spring2
22 83223 Spring - Clutch2
23 67233 Shoe - Clutch2
24 87676 Rotor Assy1
25 65370 Kit - Sprocket & Drum1
26 61692 Shim2
27 110330 Bearing1
28 68530 Cover Assy - Air cleaner1
29 110565 Ring - Retaining1
30 68529 Knob - Cover1
31 85823 Nameplate1
32 69922 Filter Assy - Air1
33 110741 Screw - Pan hd 10-24 x 1/21
34 62978 Screw - Special3
35 102762 Screw - Hex hd 10-24 x 1/21
36 69890 Lockplate1
37 Fan Housing & Starter Assy See "Fan Housing &
Starter Assemblies" illustration and parts list.
38 86451 Cap Assy - Fuel1
39 86453 Plug - Cap1
40 53766A Valve1
41 69767 Gasket1
42 110402 Screw - Oval hd 12-24 x 2 - 3/81
43 103579 Screw - Fl hd 10-24 x 12
44 87840 Spacer1
45 88650 Cover - Fuel tank1
46 87665 Boot - Carburetor1
47 87932 Screw - Idle adjustment1
48 69345 Gasket - Cover1
49 64848 Hose Assy - Fuel
50 63932 Filter - Fuel1
51 100440 Washer1
52 67944 Spring - Hose1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 13 of 16
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
53 83204 Bracket Assy1
54 103357 Screw - Hex hd 10-24 x 2-1/42
55 Carburetor Assy See "Carburetor Assembly"
illustration and parts list.
56 86189 Gasket - Carburetor
57 84078 Spacer - Carburetor1
58 84081 Gasket - Spacer1
59 110567 Screw - Hex hd 12-24 x 1-1/42
60 68582 Lockplate1
61 102115 Washer - #122
62 110568 Screw - Hex hd 12-24 x 1-1/81
63 69516 Lockplate1
64 64856 Washer - Special1
65 110713 Screw - Skt hd 10-24 x 7/81
66 100003 Washer - #101
67 69772 Spacer - Fuel tank1
68 106078 Screw - Pan hd 10-24 x 7/161
69 Fuel Tank Assy See "Fuel Tank Assembly" illustration
and parts list.
70 84082 Gasket - Fuel tank1
71 84079 Insulator - Fuel tank1
72 84082 Gasket - Insulator1
73 110566 Screw - Hex hd 12-24 x 5/81
74 68508 Lockplate1
75 110682 Screw - Hex hd 10-24 x 5 81
76 85007 Brace - Handle1
77 101563 Screw - Skt hd 10-24 x 1-1/42
78 24236 Washer - Special2
79 87683 Cover & Valve Assy1
80 110472 Screw - Skt hd 8-32 x 5/162
81 87286 Stop - Reed1
82 87682 Reed1
83 84776 Screw - Special1
84 85152 Baffle - Muffler1
85 110529 Screw - Hex hd 10-24 x 1/21
86 67922 Lockplate1
87 83106 Body & Duct Assy1
88 68187 Screw - Special1
89 85007 Gasket - Muffler1
90 68581 Insulator - Shroud2
91 85806 Shroud1
92 Powerhead Assy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 14 of 16
www.ktoutdoor.com

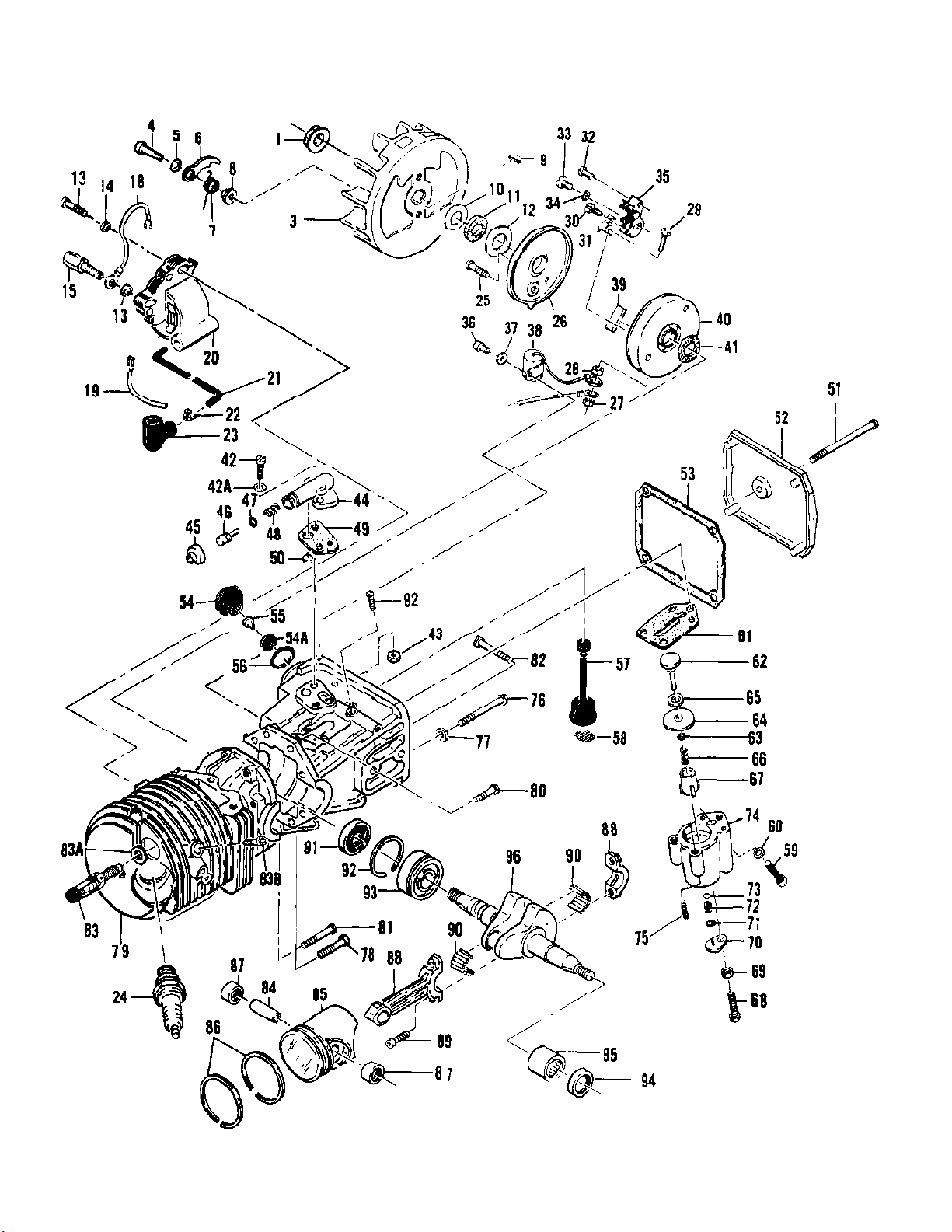

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 15 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hex 3/8-24 flange1
3 86068 Flywheel1
4 110713 Screw - Skt hd 10-24 x 7/82
5 83241 Washer - Special2
6 67546 Pawl - Starter2
7 67545 Spring - Pawl2
8 67547 Pivot - Pawl2
9 103879 Key - Woodruff1
10 67057 Washer - Thrust1
11 67056 Seal - Breaker box cover1
12 67054 Washer - Thrust1
13 110127 Screw - Hex hd 10-24 x 7/8 (SEMS)1
14 100002 Washer - #102
15 83512 Stud - Special1
18 84686 Wire Assy - Ground1
19 69344 Wire Assy - Primary1
20 87246 Coil & Lamination Assy1
21 50120 Wire Assy - Spark plug1
22 55061 Connector1
23 85758 Boot1
24 63432 Spark Plug - AC CS 42T1
25 110584 Screw - Rd hd 8/32 x 3/41
26 62362 Cover - Breaker box1
27 100298 Nut - Hex 6-321
28 62365 Spacer - Breaker1
29 110346 Screw - Hex hd 6-32 x 3/41
30 110706 Screw - Pan hd 8-18 x 1/2 s/t1
31 83126 Strap - Conduction1
32 110811 Screw -Pan hd 8-32 x 3/81
33 110445 Screw - Truss hd 8-32 x 3/81
34 105976 Washer - 481
35 66231 Breaker Assy1
36 103672 Screw - Fil hd 8-32 x 1/2 (SEMS)1
37 100080 Washer - 481
38 85358 Condenser1
39 54184 Wiper - Cam1
40 84329 Box - Breaker1
41 67051 Seal - Breaker box1
42 110623 Screw - Fil hd 8-32 x 1/22
42A 105976 Washer - #82
43 100955 Nut - Hex 8-321
44 84156 Housing - Pump1
45 62262 Cap - Housing1
46 62266 Plunger - Pump1
47 101056 "O" Ring1
48 66687 Spring - Pump1
49 62230 Gasket - Pump1
50 62909 Valve - Pump1
51 110291 Screw - Pan hd 10-24 x 2-5/81
52 86304 Cover - Oil tank1
53 86306 Gasket - Cover1
54 87270 Cap - Oil tank1
54A 87269 Retainer1
55 86402 Valve1
56 101148 "O" Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600026 SUPER 2-10A 06/68 to 04/73 IPL 85808 Page 16 of 16
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
57 62123B Hose Assy - Oil1
58 51506 Screen - Hose1
59 110713 Screw - Skt hd 10-24 x 7/81
60 24236 Washer - Special1
61 86188 Gasket - Pulse pump1
83786 Pump Assy - Pulse1
62 60260A Piston Assy - Pump1
63 104001 "O" Ring1
64 86182 Ring - Piston1
65 60937 Washer - Teflon1
66 60259 Spring - Piston1
67 62227 Sleeve - Adjustment1
68 110386 Screw - Hex hd 8-32 x 11
69 100251 Nut - Hex 8-321
70 62407 Cover - Outlet valve1
71 106104 "O" Ring1
72 62885A Spring - Outlet valve1
73 102809 Ball1
74 83787 Body Assy - Pump1
75 88645 Screw - Set1
76 62105 Screw Assy - Sealing4
77 62842 Washer - Sealing4
78 110288 Screw Assy - Hex 8-32 x 3/41
79 85809 Crankcase Assy1
80 110288 Screw Assy - Hex 8-32 x 3/42
81 110618 Screw Assy - Hex 8-32 x 1-3/81
82 62065 Bolt - Bar mounting2
83 87866 Valve - Comp. rel.1
83A 85505 Washer - Valve1
83B 110681 Screw - Skt hd 10-24 x 1/41
84 61649 Pin - Piston1
85 69212 Piston Assy1
86 62814 Ring Set - Piston1
87 103085 Bearing - Needle2
88 85352 Connecting Rod Assy1
89 61627A Screw - Skt hd special2
90 63225 Roller - Needle (set of 20)1
91 67906 Seal - Oil1
92 63464 Ring - Snap1
93 67905 Bearing - Ball1
94 110260 Seal - Oil1
95 104357 Bearing - Needle1
96 87728 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
