11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 1 of 14
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 2 of 14
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
93090 Guide - Timing
214215 Guide - File
90256 Kit - Tune-up
68915A Kit - Piston tool
91485 Wrench - Socket
85687 Wrench - Screwdriver
214211 Kit - Tool Maintenance
93900 Kit - Pressure Test
215432 Tool - Pressure Test
501334 Tester - Ignition
214194 Lubri-Gun
88755 Scrench
214204 Kit - Spark arrester screen
93282 Case - Carrying (14" Guard)
92977 Guard - Bar, 14"
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
85702 Lubricant - Custom 6 oz. can
85703 Lubricant - Custom 6 oz. cans, 6 pack
214656N Chain - AS 370G
214235 Bar - 14" Mini Pro
214916N Chain - AS 370G
214234 Bar - 12" Mini Pro
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 3 of 14
www.ktoutdoor.com

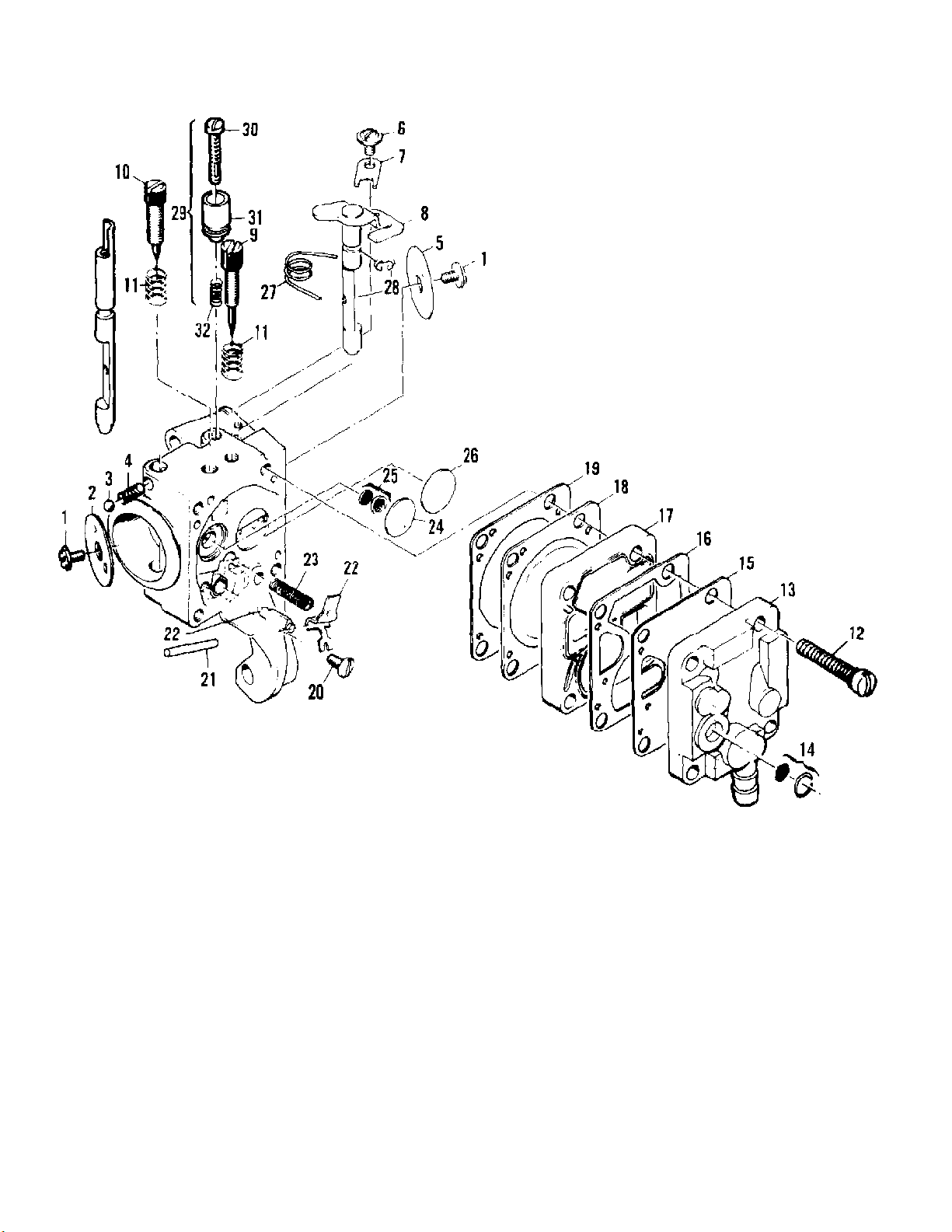

Carburetor Assembly (Walbro MDC 15)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 4 of 14
www.ktoutdoor.com
Carburetor Assembly (Walbro MDC 15)
Ref # Part Number DescriptionQty
214082 Carburetor Asy - Walbro MDC 151
1 Screw - Plate Not available separately.2
2 Plate - Choke Not available separately.1
3 Ball - Choke friction Not available separately.1
4 Spring - Choke friction Not available separately.1
5 Plate - Throttle Not available separately.1
6 Screw - Clip Not available separately.1
7 Clip - Throttle shaft Not available separately.1
8 Shaft Asy - Throttle Not available separately.1
9 86446 Needle - Idle1
10 86447 Needle - High speed1
11 67502 Spring - Needle2
12 68564 Screw Asy - Body4
13 91347 Cover Asy - Pump1
14 85629 Kit - Vent screen1
15 68563 Diaphragm - Fuel pump1
16 85035 Gasket - Pump diaphragm1
17 Body - Fuel pump Not available separately.1
18 85034 Diaphragm - Metering1
19 85034 Gasket - Diaphragm1
20 67500 Screw - Lever pin1
21 67508 Pin - Lever1
22 85059 Kit - Needle & Lever1
23 68567 Spring - Lever1
24 68559 Plug - Welsh 7/161
25 83758 Kit - Check valve1
26 68560 Plug - Welsh 1/21
27 Spring - Throttle return Not available separately.1
28 Ring - Retaining Not available separately.1
29 93437 Latch Asy - Throttle1
30 Screw - Long lock1
31 Latch - Throttle Not available separately.1
32 Spring - Compression Not available separately.1
86463 Repair Kit1
216731 Repair Kit
216727 Repair Kit
216725 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 5 of 14
www.ktoutdoor.com

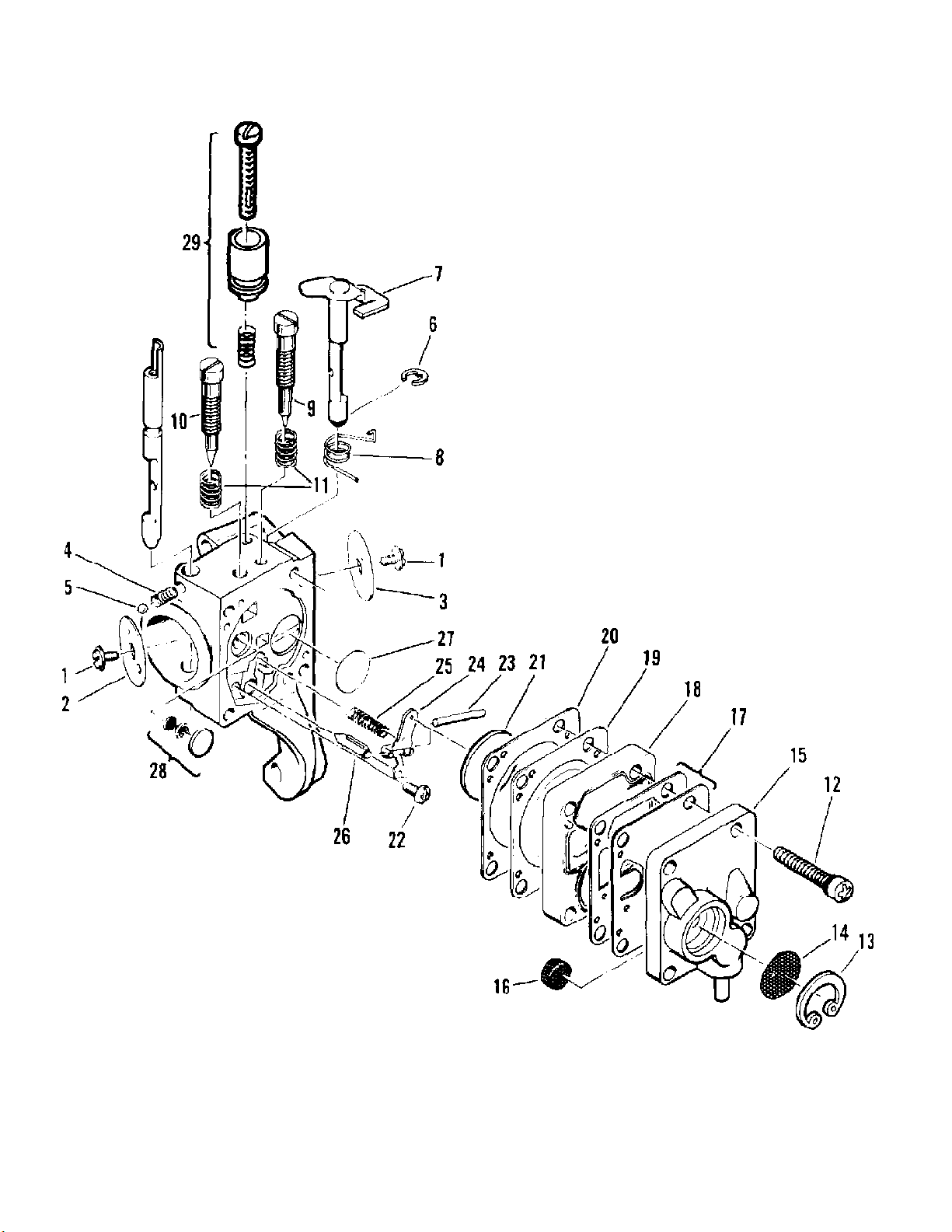

Carburetor Assembly (Zama M1-M7)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 6 of 14
www.ktoutdoor.com
Carburetor Assembly (Zama M1-M7)
Ref # Part Number DescriptionQty
214082 Carburetor Asy - Zama M1-M71
1 Screw - Plate Not available separately.2
2 Valve - Choke Not available separately.1
3 Valve - Throttle Not available separately.1
4 Spring - Choke Not available separately.1
5 Ball - Friction Not available separately.1
6 "E" Ring Not available separately.1
7 Shaft Assembly - Throttle Not available separately.1
8 Spring - Throttle return Not available separately.1
9 215275 Screw - Idle adjustment1
10 215276 Screw - Main adjustment1
11 91819 Spring - Screw2
12 Screw - Cover Not available separately.4
13 215283 "C" Ring1
14 215284 Strainer1
15 Cover - Pump Not available separately.1
16 91820 Screen1
17 Kit - Pump diaphragm1
18 215281 Body - Pump1
19 215282 Diaphragm - Main1
20 215280 Gasket - Main1
21 215277 Disk1
22 91814 Screw1
23 91813 Pin - Arm1
24 215278 Arm - Needle valve1
25 91811 Spring - Arm1
26 91810 Valve - Needle1
27 93951 Plug - Welsh1
28 215287 Valve Asy - Main nozzle1
29 93437 Latch Assembly - Throttle1
216721 Repair Kit
216722 Repair Kit
216734 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 7 of 14
www.ktoutdoor.com

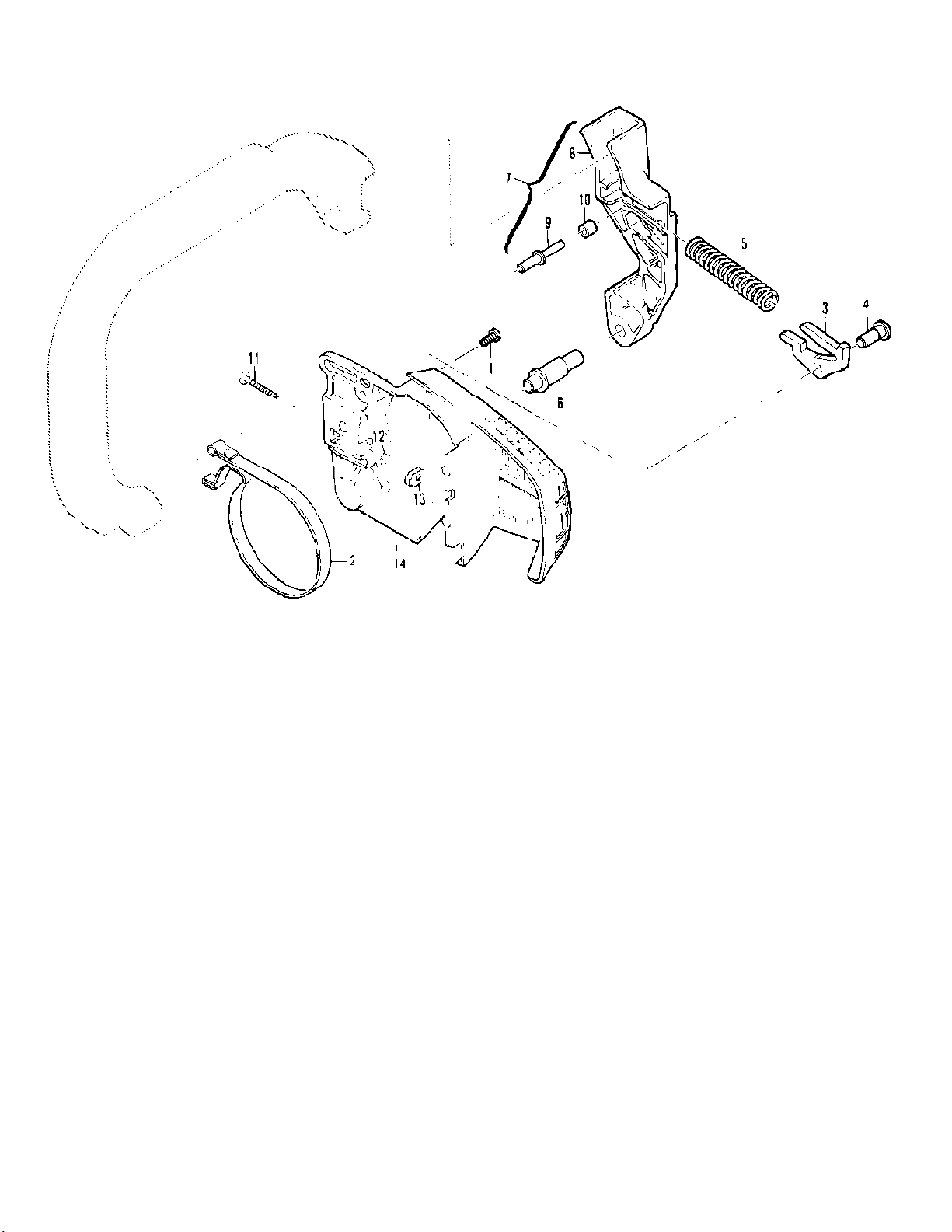

Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 8 of 14
www.ktoutdoor.com
Chain Brake Assembly
Ref # Part Number DescriptionQty
214376 CHAIN BRAKE Assembly1
1 111047 Screw-Pan hd 8-32 x 5/81
2 94709 Band-Brake1
3 94006 Latch1
3 215758 Latch1
4 93602 Pivot-Latch1
5 94007 Spring-Compression1
5 93140 Spring-Compression1
6 92482 Pivot-Lever1
7 214375 Lever Assembly-Actuating1
8 92867 Lever1
9 213907 Pin-Roller1
10 214368 Bearing-Roller1
11 90658 Screw-Adjusting1
12 110907 Ring-Retaining1
13 84929 Nut-Bar adjusting1
14 94175 Housing-Brake1
14 94180 Housing-Brake1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 9 of 14
www.ktoutdoor.com

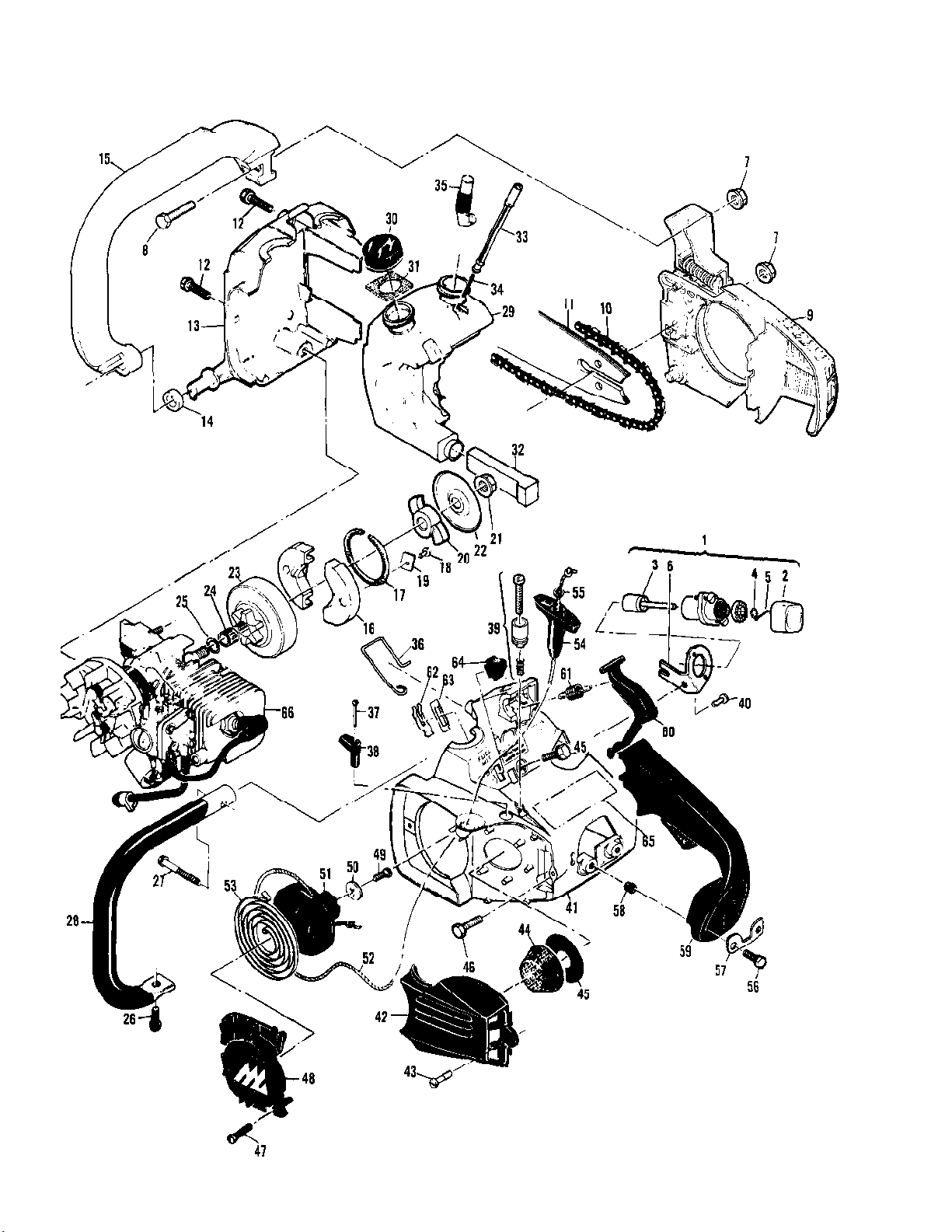

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 10 of 14
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 215664 Grinder Asy-AUTO-SHARP1
2 215447 Knob1
3 216707 Wheel Assembly-Grinding1
4 216134 Washer1
5 216133 Pin-Cotter1
6 215209 Bracket-AUTO-SHARP1
7 110676 Nut-Hx 1/4-282
8 110972 Screw-Hx 1/4-28 x 3/41
9 CHAIN BRAKE Assembly Not available separately.
See "Chain Brake Assembly" illustrations and parts
list.
10 Chain Assembly Not available separately. See "Tools
11 Bar Assembly Not available separately. See "Tools &
12 110639 Screw-Hx hd 12-24 x 12
13 214718 Cover-Fuel & Oil tank1
14 93194A Washer-Rubber1
15 92479 Lever-Handguard1
16 213278 Kit-Clutch1
17 93608 Spring Assembly1
18 110957 Rivet2
19 85064 Plate2
20 94247 Kit-Rotor1
21 94244 Nut-Clutch1
22 94243 Plate-Dust1
23 214390 Drum/Sprocket/Bearing Asy1
24 91222 Kit-Needle bearing1
25 215259 Washer1
26 110953 Screw-Hx hd 12-24 x 5/81
27 110686 Screw-Hx hd 13-16 x 21
28 214505 Frame & Grip Assembly1
29 91454A Kit-Fuel & Oil Tank1
30 91283 Cap-Fuel & Oil (unvented)2
31 91148 Seal-Fuel vent1
32 84956 Pickup-Fuel1
33 213906 Piston-Manual oiler1
34 83946 Spring-Piston1
35 85557 Body-Oiler1
36 84611 Rod-Manual oiler1
37 110672 Screw-Oval hd 4-40 x 11
38 83870 Knob-Choke1
39 Throttle Latch Asy Not available separately. See
1
& Accessories" illustrations and parts list.
1
Accessories" illustrations and parts list.
"Carburetor Assembly" illustrations and parts list.
40 110583 Screw-Pan hd 8-32 x 1/2 (SEMS)2
41 214271 Shroud1
42 91853 Cover-Air cleaner1
43 91796 Screw-Air cleaner1
44 91460 Filter-Air1
45 84918 Washer-Air seal1
46 110953 Screw-Hx hd 12-24 x 5/83
47 110959 Screw-Hx hd 8-32 x 1/23
48 90425 Cover-Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 11 of 14
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
49 110041 Screw-Pan hd 8-32 x 1/21
50 68497 Washer-Special1
51 213261 Drum/Rope Assembly1
52 83203 Rope-Starter1
53 83078 Spring-Rewind1
54 91255 Kit-Starter handle1
55 105490 Washer-Starter handle1
56 110953 Screw-Hx hd 12-24 x 5/82
57 84520A Plate-Washer1
58 84519 Sleeve-Handle2
59 93810 Kit-Handle1
60 93869 Trigger1
61 83940 Spring-Trigger1
62 83935 Contact-Switch1
63 83936 Protector-Switch1
64 83934 Button-Switch1
65 95769 Plate-Name1
65 93730 Plate-Name, French1
66 Powerhead Assembly Not available separately. See
"Powerhead Assembly" illustrations and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 12 of 14
www.ktoutdoor.com

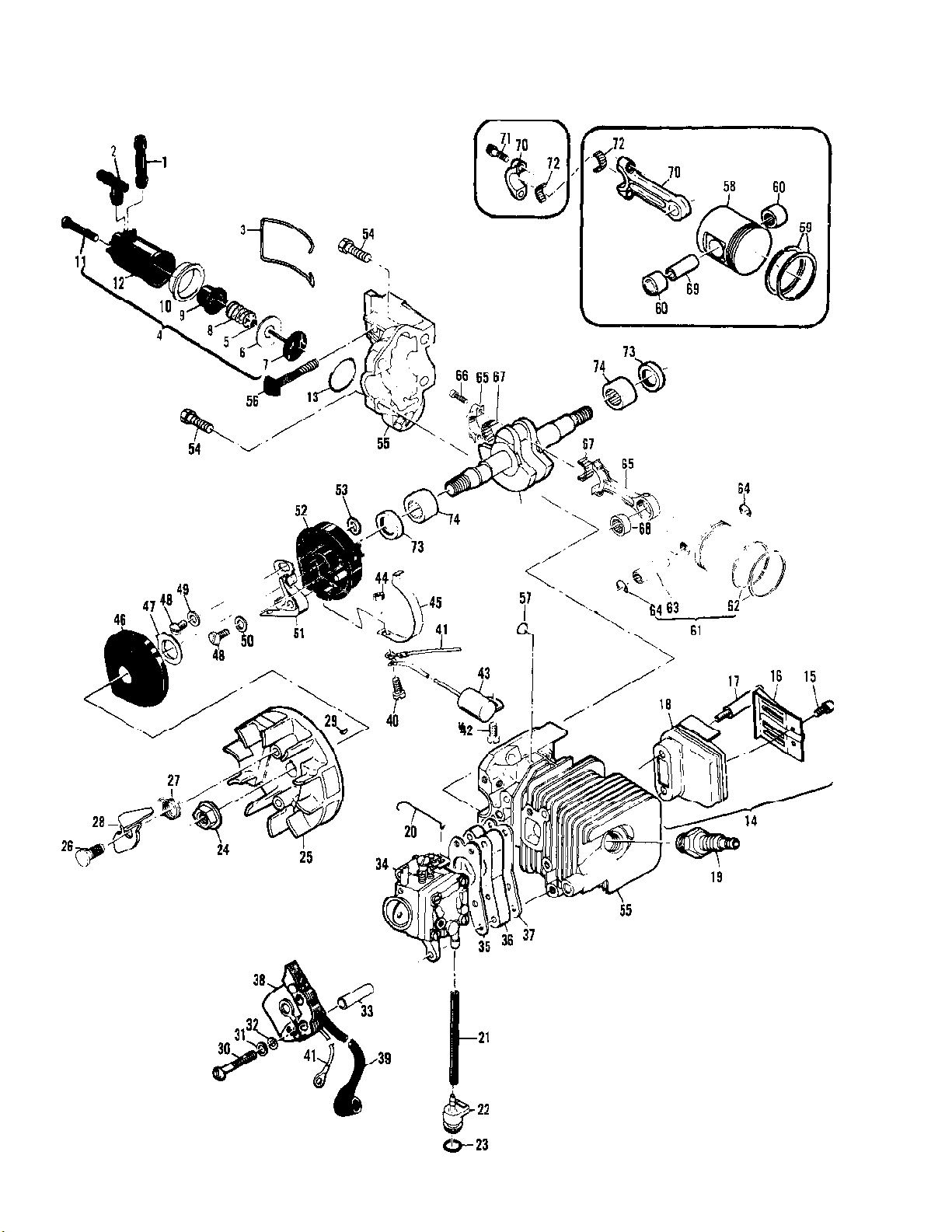

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 13 of 14
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector-Outlet1
2 84613 Connector-Pump1
3 83896 Bail-Mounting1
4 215739 Pump Assembly1
5 "O" Ring Not available separately.1
6 Ring-Pump piston Not available separately.1
7 Piston Assembly-Pump Not available separately.1
8 83891 Spring-Pump1
9 Sleeve-Pump Not available separately.1
10 Eyelet Not available separately.1
11 110651 Screw-Adjustment1
12 Body Assembly-Pump Not available separately.1
13 110653 "O" Ring1
14 215411 Kit-Muffler1
15 110681 Screw-Skt hd 10-24 x 1/42
16 92961 Deflector-Exhaust1
17 213327 Screw-Special2
18 215397 Body-Cover Not available separately.1
14 215412 Kit-Muffler Not available separately.1
15 110681 Screw-Skt hd 10-24 x 1/42
16 92961 Deflector-Exhaust1
17 93036 Screw-Special2
18 93655 Body-Cover1
19 214223 Spark Plug Not available separately.1
19 93018 Spark Plug1
20 89274 Rod-Throttle1
21 89059 Hose-Fuel Not available separately.1
22 90660 Adaptor-Fuel hose1
23 110908 "O" Ring1
24 110961 Nut-Hx 5/16-241
25 94513 Flywheel-Pawl Assembly1
26 68796 Pin-Pawl2
27 67814 Spring-Pawl2
28 94493 Pawl-Starter2
25 94737 Flywheel/Pawl Assembly1
26 68796 Pin-Pawl2
27 67814 Spring-Pawl2
28 213261 Pawl-Starter2
29 102164 Key-Woodruff1
30 110586 Screw-Pan hd 8-32 x 1-3/43
31 105976 Washer-#83
32 67177 Washer-Insulating3
33 68198 Tube-Insulating3
34 Carburetor Assembly
35 68197 Gasket-Carburetor1
36 214349 Insulator-Carburetor1
37 90714 Gasket-Insulator1
38 84957 Coil & Lamination Assembly1
39 50120 Wire Assembly-Spark plug1
40 110617 Screw-Pan hd 6-12 x 5/81
41 69344 Wire Assembly-Coil1
42 110041 Screw-Pan hd 8-32 x 1/2 s/t1
43 85358 Condenser1
44 100035 Nut-Hx 6-321
45 84502 Connector-Stop switch1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600022K MAC 140 01/81 to 03/83 IPL 215273-R1 Page 14 of 14
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
46 67841 Cover-Breaker box1
47 69323 Seal-Breaker box1
48 110969 Screw-Hx hd 8-32 x 1/22
49 69322 Washer-Special1
50 105976 Washer-#81
51 88811 Breaker Assembly1
52 84505A Kit-Breaker box1
53 92037 Washer1
54 110639 Screw-Hx hd 12-24 x 14
55 214157 Kit-Cyl/C'case Assembly1
56 83856 Bolt-Bar mounting1
57 110914 Plug-Cup4
55 214164 Cyl/C'case Assembly1
56 83856 Bolt-Bar mounting1
57 110914 Plug-Cup4
58 68098 Piston Assembly1
59 87165 Set-Piston rings1
60 110538 Bearing-Needle2
61 94662 Piston Assembly1
62 95143 Set-Piston rings1
63 92836 Pin-Piston1
64 111026 Ring-Snap2
65 94135 Connecting Rod Assembly1
66 94654 Screw-Connecting rod2
67 68095 Roller-Needle (Set of 20)1
68 110984 Bearing-Needle1
69 66867 Pin-Piston1
70 68097 Connecting Rod Assembly1
71 94654 Screw-Special2
72 68095 Roller-Needle (Set of 20)1
73 83859 Seal-Oil2
74 213282 Bearing-Crankshaft2
75 91932 Crankshaft1
