11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 1 of 20
www.ktoutdoor.com
Tools & Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 2 of 20
www.ktoutdoor.com
Tools & Accessories
Ref # Part Number DescriptionQty
91735 Kit - Spike
110928 Screw Hx hd 10-24 x 1/2
95169 Kit - Spark Arrester
91485 Wrench - Socket
85687 Wrench - Screwdriver
88755 Scrench
93284 Case - Carrying, 14"
92913 Bar Guard 14"
93090 Guide - Timing
90256 Kit - Tune-up
93285 Case - Carrying, 16"
92896 Bar Guard 16"
214215 Guide - File
93900 Kit - Pressure Test
90533 Tool - Pressure Test
501334 Tester - Ignition
214194 Lubri - Gun
85702 Lubricant - Custom, 6 oz. can
85703 Lubricant - Custom, 6 oz. cans 1-6 pack
67537 Loctite
69794 Locquic
110083 R.T.V. Sealant
214211 Kit - Tool maintenance
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 3 of 20
www.ktoutdoor.com
Bar & Chain Combinations
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 4 of 20
www.ktoutdoor.com
Bar & Chain Combinations
Ref # Part Number DescriptionQty
91663 Bar - 14" Mini Pro
92625N Chain - SM250GL
214345 Bar - 16" Mini Pro
214239N Chain - SM250GL
214236 Bar - 16" Mini Pro
214241 Chain - MP370G
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 5 of 20
www.ktoutdoor.com
Carburetor (Part 1)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 6 of 20
www.ktoutdoor.com

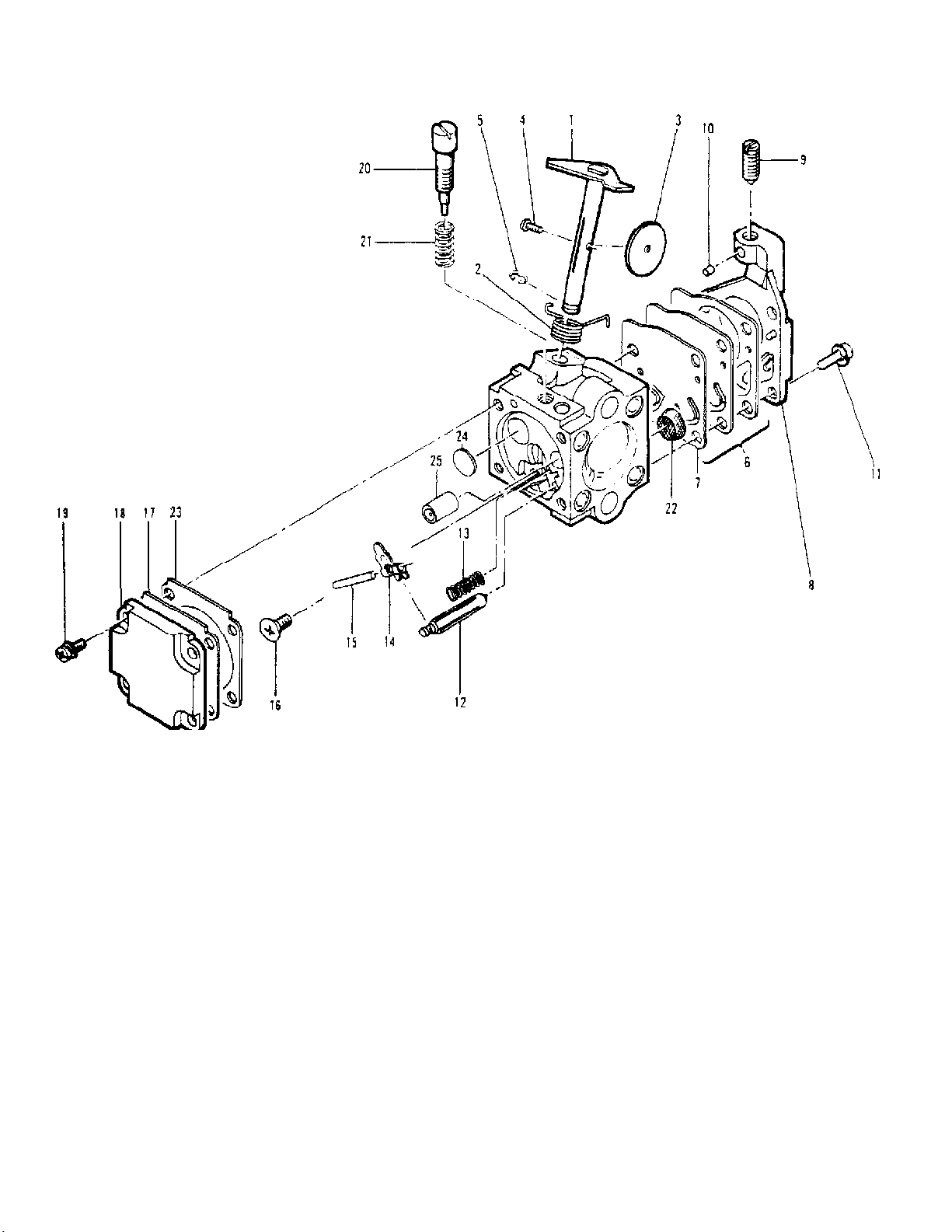

Carburetor (Part 1)
Ref # Part Number DescriptionQty
91571A Carburetor Asy (Zama)1
91571B Carburetor Asy (Zama)1
1 91801 Shaft Asy - Throttle1
2 91802 Spring - Throttle return1
3 91803 Plate - Throttle1
4 91804 Screw - Plate (m3)1
5 91805 "E" Ring1
6 91824 Kit - Diaphragm & Gaskets1
7 92093 Diaphragm - Fuel pump1
8 91806 Cover - Fuel pump1
9 91807 Screw - Idle speed1
10 91808 Insert - Friction1
11 91809 Screw - Pump cover (m4)4
12 91810 Needle - Inlet1
13 91817 Spring - Lever1
14 91812 Lever - Inlet needle1
15 91813 Pin - Lever1
16 91814 Screw - Lever pin (M3)1
17 91815 Diaphragm Asy - Metering1
18 91816 Cover - Diaphragm1
19 91817 Screw - Diaphragm cover (m3)4
20 91818 Needle - Idle mixture1
21 91819 Spring - Needle1
22 91820 Screen - Filter1
23 91821 Gasket - Metering diaphragm1
24 92097 Welch Plug1
25 91822 Orifice - Main fuel (press - in)1
25 93627 Orifice - Main fuel (screw - in)1
25 92751 Orifice - Main fuel (press - in)1
25 93628 Orifice - Main fuel (screw - in)1
91823 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 7 of 20
www.ktoutdoor.com
Carburetor (Part 2)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 8 of 20
www.ktoutdoor.com

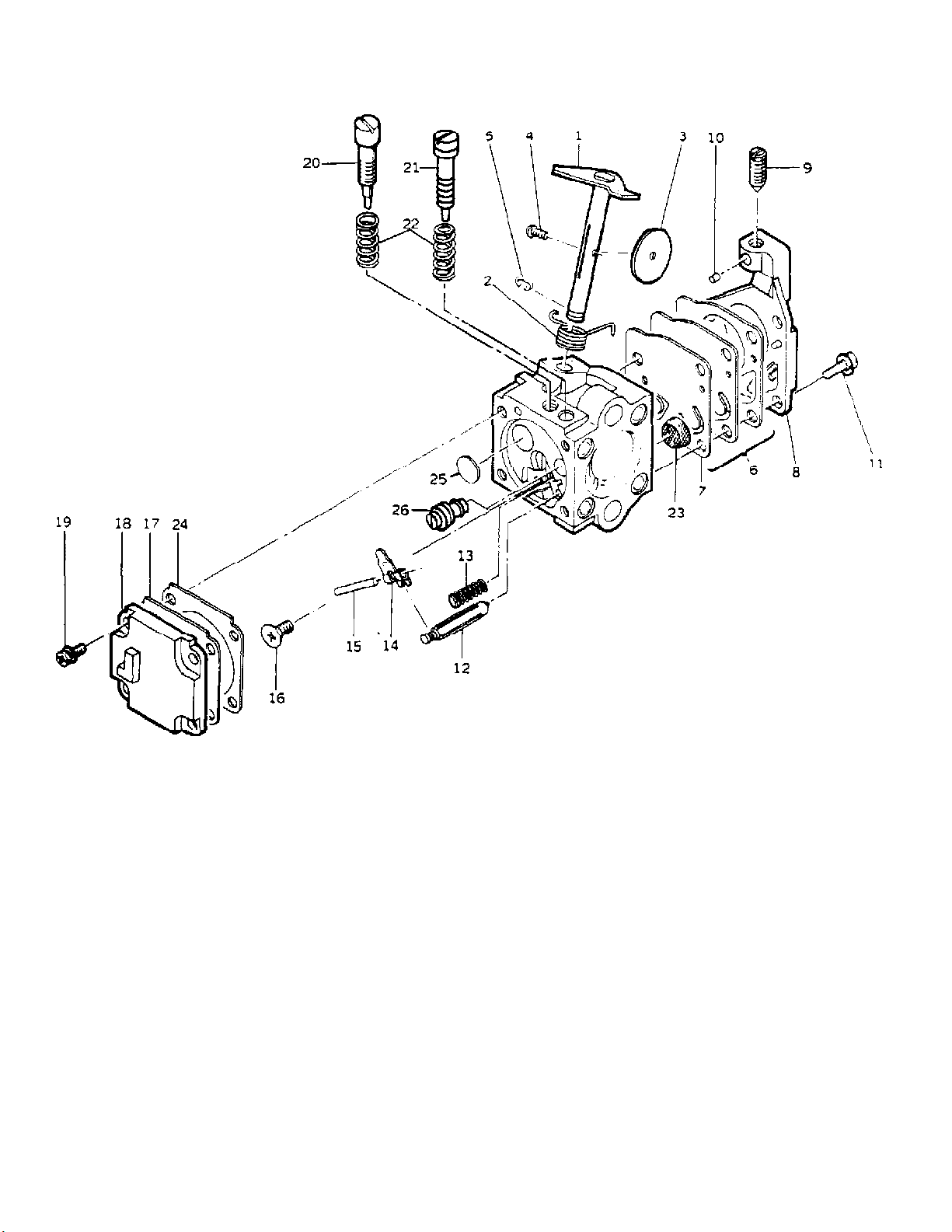

Carburetor (Part 2)
Ref # Part Number DescriptionQty
93766 Carburetor Asy (Zama)1
1 91801 Shaft Asy - Throttle1
2 91802 Spring - Throttle return1
3 91803 Plate - Throttle1
4 91804 Screw - Plate (m3)1
5 91805 "E" Ring1
6 91824 Kit - Diaphragm & Gaskets1
7 92093 Diaphragm - Fuel pump1
8 91806 Cover - Fuel pump1
9 91807 Screw - Idle speed1
10 91808 Insert - Friction1
11 91809 Screw - Pump cover (m4)4
12 91810 Needle - Inlet1
13 91811 Spring - Lever1
14 91812 Lever - Inlet needle1
15 91813 Pin - Lever1
16 91814 Screw - Lever pin (m3)1
17 91815 Diaphragm Asy - Metering1
18 91816 Cover - Diaphragm1
19 91817 Screw - Diaphragm cover (m3)4
20 91818 Needle -Idle mixture1
21 94033 Needle - High speed1
22 91819 Spring - Needle2
23 91820 Screen - Filter1
24 91821 Gasket - Metering diaphragm1
25 92097 Welch Plug1
26 93950 Orifice - Main fuel1
94141 Repair Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 9 of 20
www.ktoutdoor.com
Chain Brake Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 10 of 20
www.ktoutdoor.com

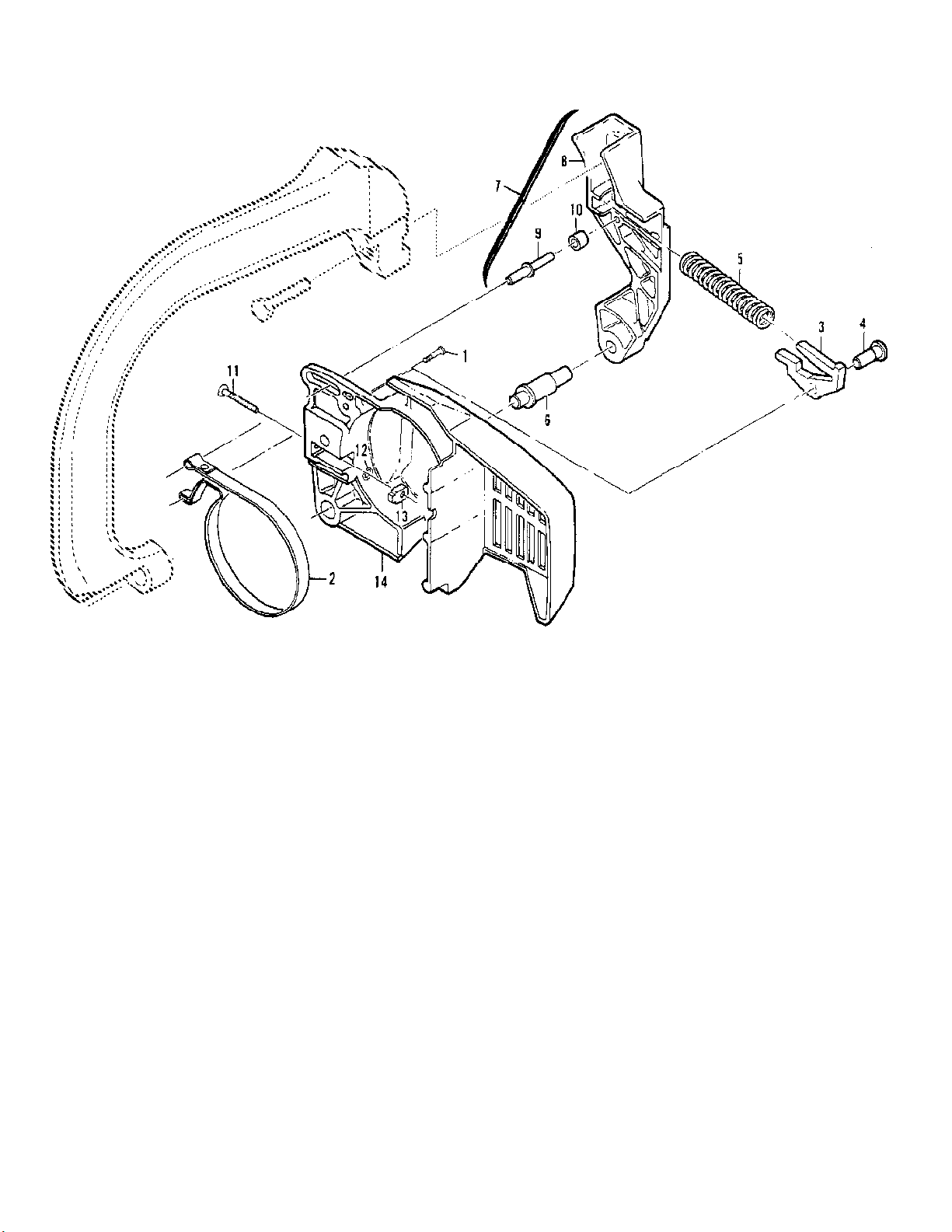

Chain Brake Assembly
Ref # Part Number DescriptionQty
214377 CHAIN BRAKE Asy1
1 111047 Screw - Fil 18-32 x 5/81
2 94709 Band - Brake1
2 92487 Band - Brake1
3 94006 Latch1
3 93092 Latch1
4 93602 Pivot - Latch1
5 94007 Spring - Compression1
5 93140 Spring - Compression1
6 92482 Pivot - Lever1
7 214375 Lever Asy - Actuating1
8 92867 Lever1
9 213907 Pin - Roller1
10 214368 Bearing - Roller1
11 90658 Screw - Adjusting1
12 110907 Ring - Retaining1
13 84929 Nut - Bar adj.1
14 94174 Housing - Brake1
14 92862 Housing - Brake1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 11 of 20
www.ktoutdoor.com
Handle & Frame Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 12 of 20
www.ktoutdoor.com

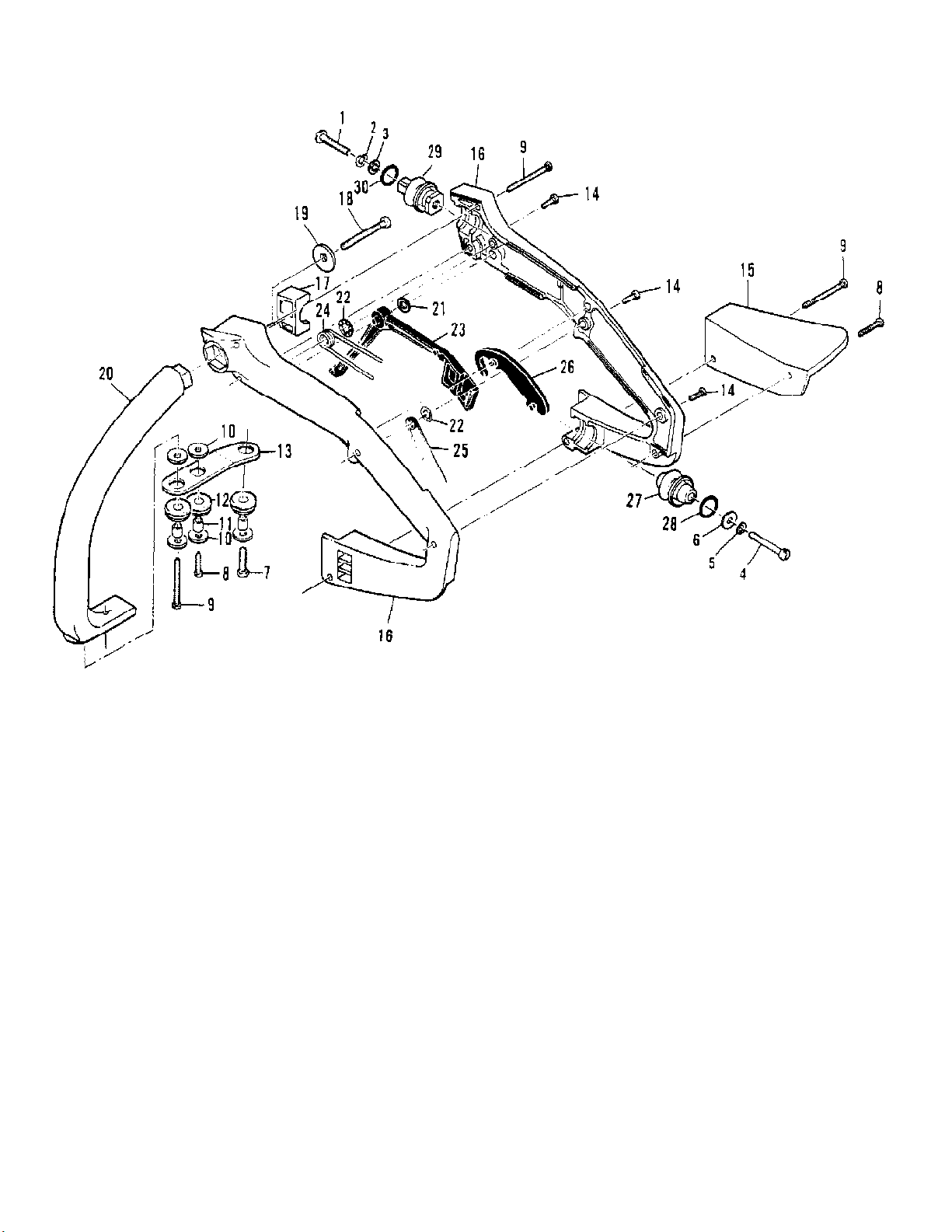

Handle & Frame Assembly
Ref # Part Number DescriptionQty
1 103270 Screw - Fil 1/4-20 x 1-1/21
2 105043 Washer - Spring lock1
3 100005 Washer1
4 102208 Screw - Fil 1/4-20 x 1-3/41
5 105043 Washer - Spring lock1
6 110870 Washer1
93060A Kit - Handle and Frame1
7 110981 Screw-Hx 12-24 x 13/161
8 111011 Screw - Pn 10-16 x 7/82
9 110977 Screw-Pn 10-16 x 1-5/83
10 110882 Washer5
11 93057 Spacer - Mount3
12 110989 Grommet3
13 93031 Link Mount1
14 110978 Screw-Pn 8-16 x 5/83
15 93026 Guard - Chain1
16 94054 Kit - Handle1
17 93030 Insert - Handle1
18 110976 Screw - Pn 1/4 - 14 x 1-3/41
19 110870 Washer1
20 94052 Frame1
21 110960 Washer - Wavey1
22 110936 Retainer - Spring2
23 91162A Trigger - Throttle1
24 90606 Spring - Trigger1
25 90615 Spring - Trigger release1
26 91504 Release - Trigger1
27 91171 Mount1
28 105615 "O" Ring1
29 91170 Mount Asy1
30 105615 "O" Ring1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 13 of 20
www.ktoutdoor.com
General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 14 of 20
www.ktoutdoor.com

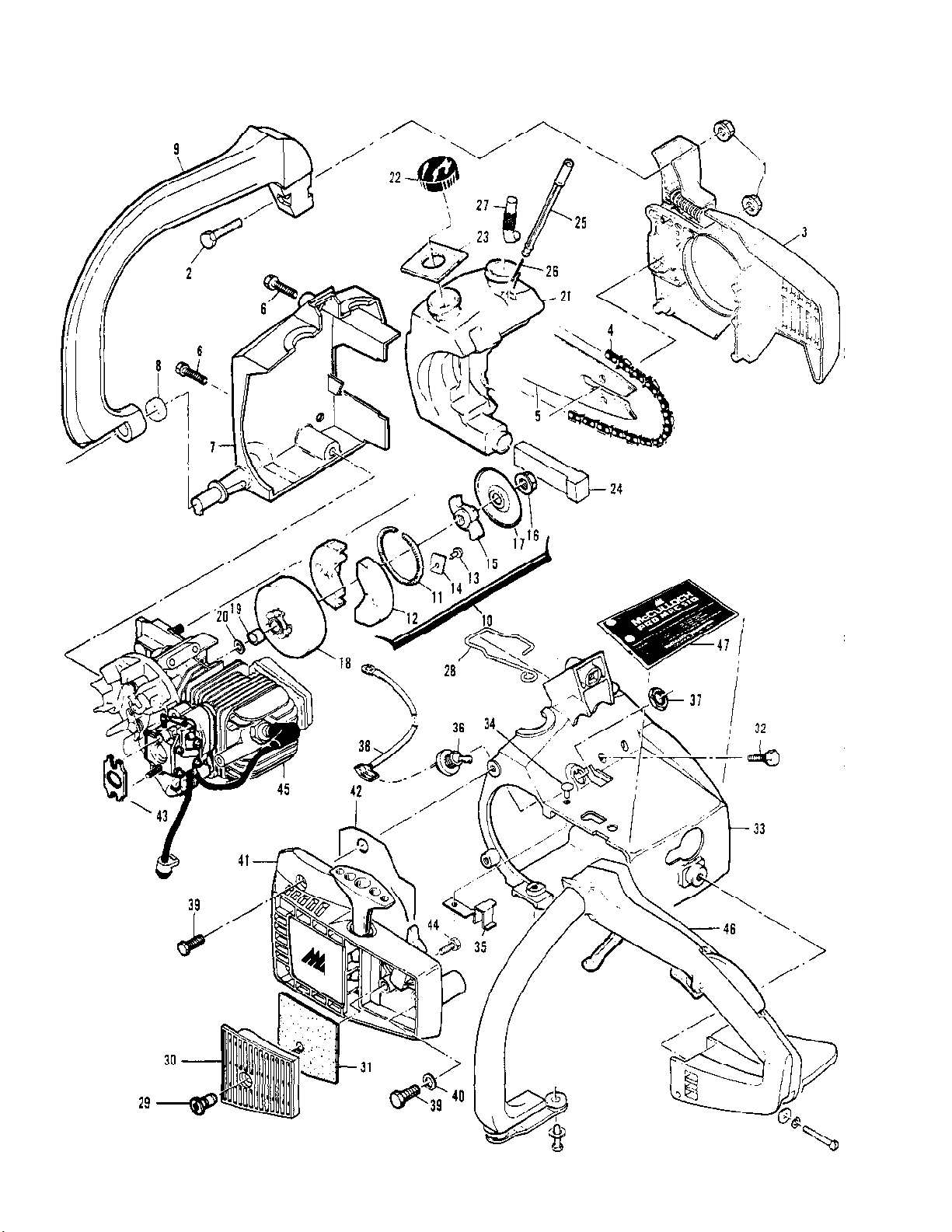

General
Ref # Part Number DescriptionQty
1 110676 Nut-Hx 1/4-282
2 110972 Screw-Hx 1/4-28 x 3/41
3 CHAIN BRAKE ASY See "Chain Brake Assembly"
illustration and parts list.
4 Chain Asy See Bar & Chain Combinations parts list.1
5 Bar See Bar & Chain Combinations parts list.1
6 110639 Screw-Hx hd 12-24 x 12
7 92863 Cover-Fuel & Oil tank
8 93194A Washer-Rubber1
9 92480 Lever-Handguard1
10 213278 Clutch Kit1
10 213277 Clutch Asy1
11 93608 Spring Asy1
12 Shoe-Clutch2
13 110957 Rivet2
14 85064 Plate2
15 94247 Rotor1
15 94247 Rotor Kit1
16 94244 Nut-Clutch1
17 94243 Plate-Dust1
18 85504 Drum & Spkt Asy - .250P1
19 67650 Bearing-Spkt1
18 95197 Drum/Spkt/Brng Asy - .375P1
19 91222 Kit-Needle brng1
20 67303 Washer-Sprocket1
21 91454A Tank Kit-Fuel & Oil1
22 91283 Cap-Fuel & Oil (unvented)2
23 91148 Seal-Fuel vent1
24 84956 Pickup-Fuel1
25 83900A Piston-Pulse Oiler1
26 83946 Spring-Piston1
27 85557 Body-Oiler1
28 93295 Rod-Oiler1
29 89070 Nut-Air cleaner cover1
30 89069 Cover-Air cleaner1
31 92410 Filter-Air1
32 110953 Screw-Hx hd 12-24 x 5/83
33 89051B Shroud1
33 213822 Shroud/Latch Asy1
34 111007 Rivet1
35 93912 Spring-Throttle latch1
36 92649 Kit-Ignition switch1
37 104810 Nut-Hx 15/32-321
38 69344 Wire Asy-Ignition1
39 110953 Screw-Hx hd 12-24 x 5/83
40 110882 Washer1
41 Starter Asy See "Starter Assembly" illustration and
parts list.
42 93236 Deflector-Air1
43 94142 Gasket-Starter housing1
44 102762 Screw-Hx hd 10-24 x 1/21
45 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 15 of 20
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
46 Handle & Frame Asy See "Handle & Frame
Assembly" illustration and parts list.
47 93383 Plate-Name1
47 95204 Plate-Name1
47 93908 Plate-Name, French1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 16 of 20
www.ktoutdoor.com

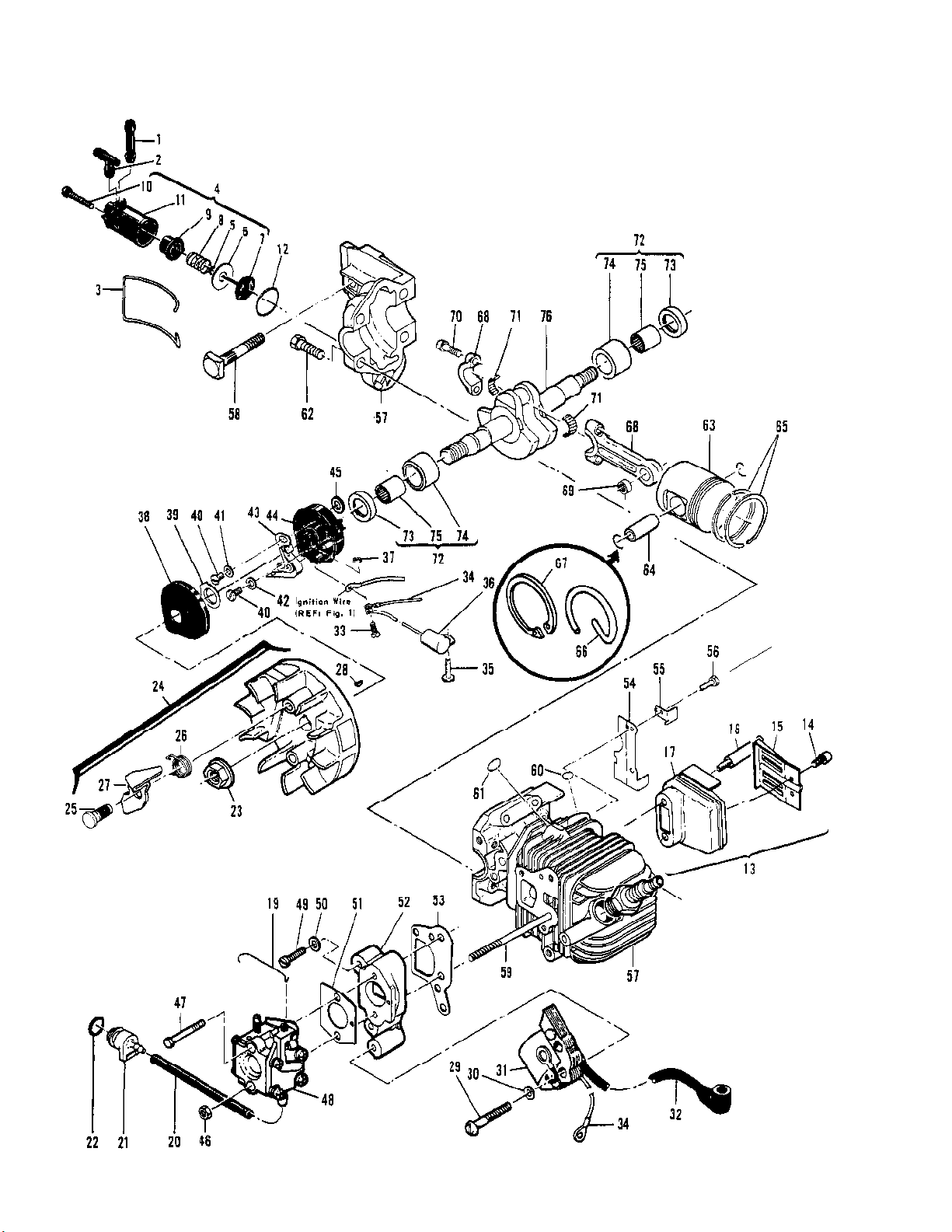

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 17 of 20
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 83898 Connector - Outlet1
2 84613 Connector - Pump1
3 83896 Bail - Mounting1
4 83886 Pump Assembly - Pulse1
5 105603 "O" Ring1
6 85769 Ring - Pump piston1
7 92204 Piston Assembly - Pump1
8 83891 Spring - Pump1
9 83890 Sleeve - Pump1
10 110651 Screw - Adjustment1
11 83887 Body Assembly - Pump1
12 110653 "O" Ring1
13 214746 Kit - Muffler1
14 110681 Screw - Skt hd 10-24 x 1/42
15 92961 Deflector - Exhaust1
16 213327 Screw - Special2
17 213346 Body - Cover1
13 92962 Kit - Muffler1
14 110681 Screw - Skt hd 10-24 x 1/42
15 92961 Deflector - Exhaust1
16 93036 Screw - Special2
17 93655 Body - Cover1
18 63432 Spark Plug1
18 93017 Spark Plug1
19 89060 Rod - Throttle1
20 89059 Hose - Fuel1
21 90660 Adapter - Fuel hose1
22 110908 "O" Ring1
23 110961 Nut - Hx 5/16-241
24 91961 Flywheel Pawl Assembly1
25 68796 Pin - Pawl2
26 67814 Spring - Pawl2
27 91872 Pawl - Starter2
24 94513 Flywheel/Pawl Assembly1
25 68796 Pin - Pawl2
26 67814 Spring - Pawl2
27 94493 Pawl - Starter2
28 102164 Key - Woodruff1
29 110586 Screw - Pan hd 8-32 x 1-3/42
30 100080 Washer - #82
31 84957 Coil & Lamination1
32 50120 Wire Assembly - Spark plug1
33 110617 Screw - Pan hd 6-32 x 3/41
34 69344 Wire Assembly - Coil1
35 110014 Screw - Pan hd 8-32 x 1/21
36 85358 Condenser1
37 100035 Nut - Hx 6-321
38 67841 Cover - Breaker box1
39 69323 Seal - Breaker box1
40 110969 Screw - Hx hd 8-32 x 1/22
41 69322 Washer - Special1
42 105976 Washer - #81
43 88811 Breaker Assembly1
44 84505A Kit - Breaker box1
45 92037 Washer1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 18 of 20
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
46 105367 Nut - Hx 10-241
47 110614 Screw - Hx hd 10-24 x 2-3/81
48 Carburetor Assembly See "Carburetor (Part 1)" and
"Carburetor (Part 2)" illustrations and parts lists.
49 110652 Screw - Pan hd 8-32 x 1-1/81
50 100080 Washer - #81
51 89057 Gasket - Carburetor1
52 89056 Insulator1
53 89054 Gasket - Insulator1
54 89648A Shield1
55 93353 Deflector - Sawdust1
56 110674 Screw - Hx hd 10-24 x 1/2 s/t2
57 93764 Cylinder/C'case Assembly1
58 83856 Bolt - Bar mounting1
59 94519 Stud1
59 94143 Stud1
57 214156 Cylinder/C'case Assembly1
58 83856 Bolt - Bar mounting1
59 94143 Stud1
60 110914 Plug - Cup2
61 111024 Plug - Cup2
62 110639 Screw - Hx hd 12-24 x 14
63 91704 Piston Assembly1
64 88126 Pin - Piston1
65 91703 Ring Set - Piston1
66 92023 Ring - Retaining2
63 94661 Piston Assembly1
64 92836 Pin - Piston1
65 91703 Ring Set - Piston1
66 92023 Ring - Retaining2
67 111026 Ring - Snap2
68 91705 Connecting Rod Assembly1
69 110933 Bearing - Caged1
70 66853 Screw - Special2
71 68095 Roller - Needle (set of 20)1
68 94135 Connecting Rod Assembly1
69 110984 Bearing - Needle1
70 94654 Screw - Connecting rod2
71 68095 Roller - Needle (set of 20)1
72 93763 Sleeve Assembly - Bearing2
73 83859 Seal - Oil2
72 91566 Sleeve Assembly - Bearing2
73 83859 Seal - Oil2
74 91422 Sleeve2
75 213282 Bearing - Needle2
76 91932 Crankshaft1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 19 of 20
www.ktoutdoor.com

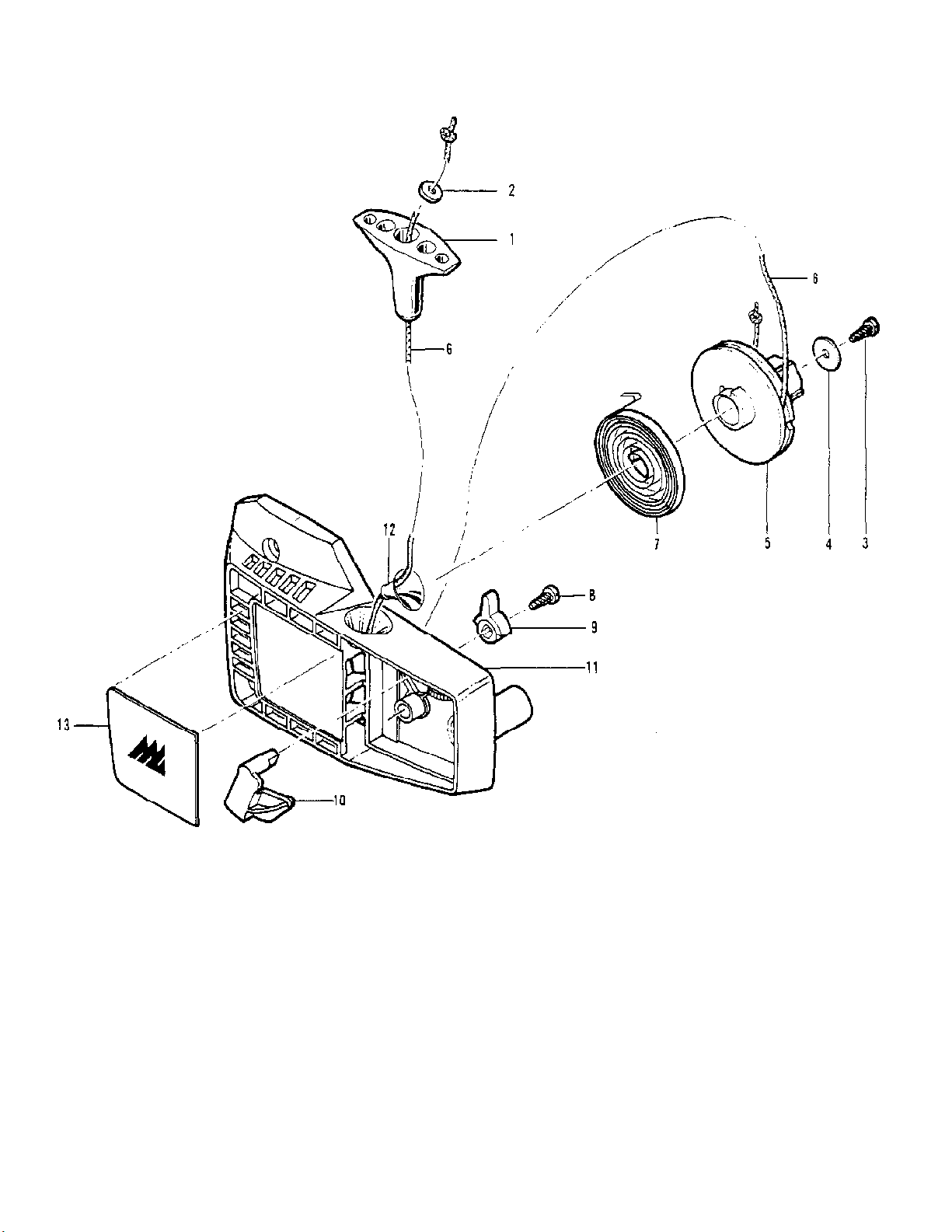

Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 20
11-600018U PRO MAC 510 02/77 to 04/82 IPL 215288 Page 20 of 20
www.ktoutdoor.com
Starter Assembly
Ref # Part Number DescriptionQty
213260 Starter Assembly1
1 91255 Kit - Starter handle1
2 105490 Washer1
3 110041 Screw - Pan hd 8-32 x 1/21
4 68497 Washer1
5 213261 Drum/Rope Assembly1
6 83203 Rope-Starter1
7 83078 Spring-Rewind1
8 110041 Screw-Pan hd 8-32 x 1/21
9 91182 Lever-Choke1
10 91183 Plate-Choke1
11 94148 Housing-Starter1
12 67571 Guide-Rope1
13 91570 Plate1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
