Page 1

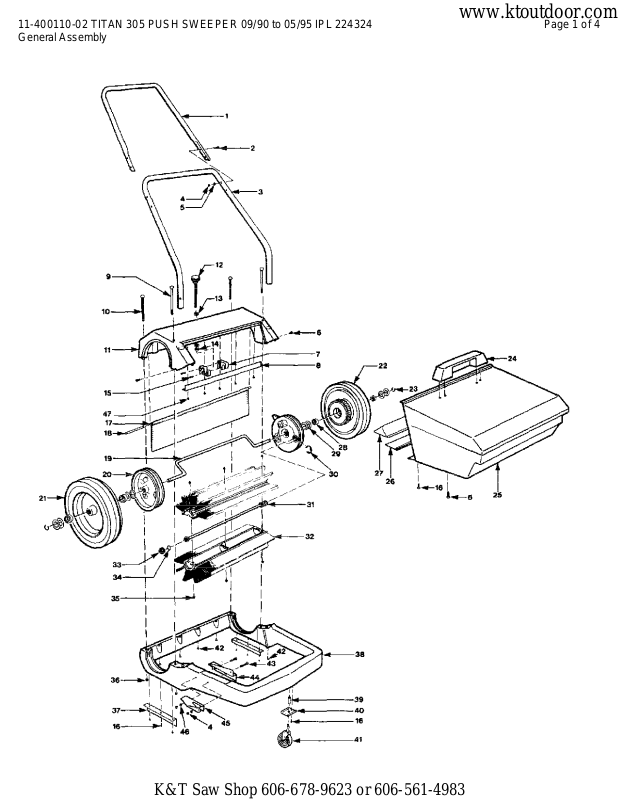

11-400110-02 TITAN 305 PUSH SWEEPER 09/90 to 05/95 IPL 224324 Page 1 of 4
www.ktoutdoor.com

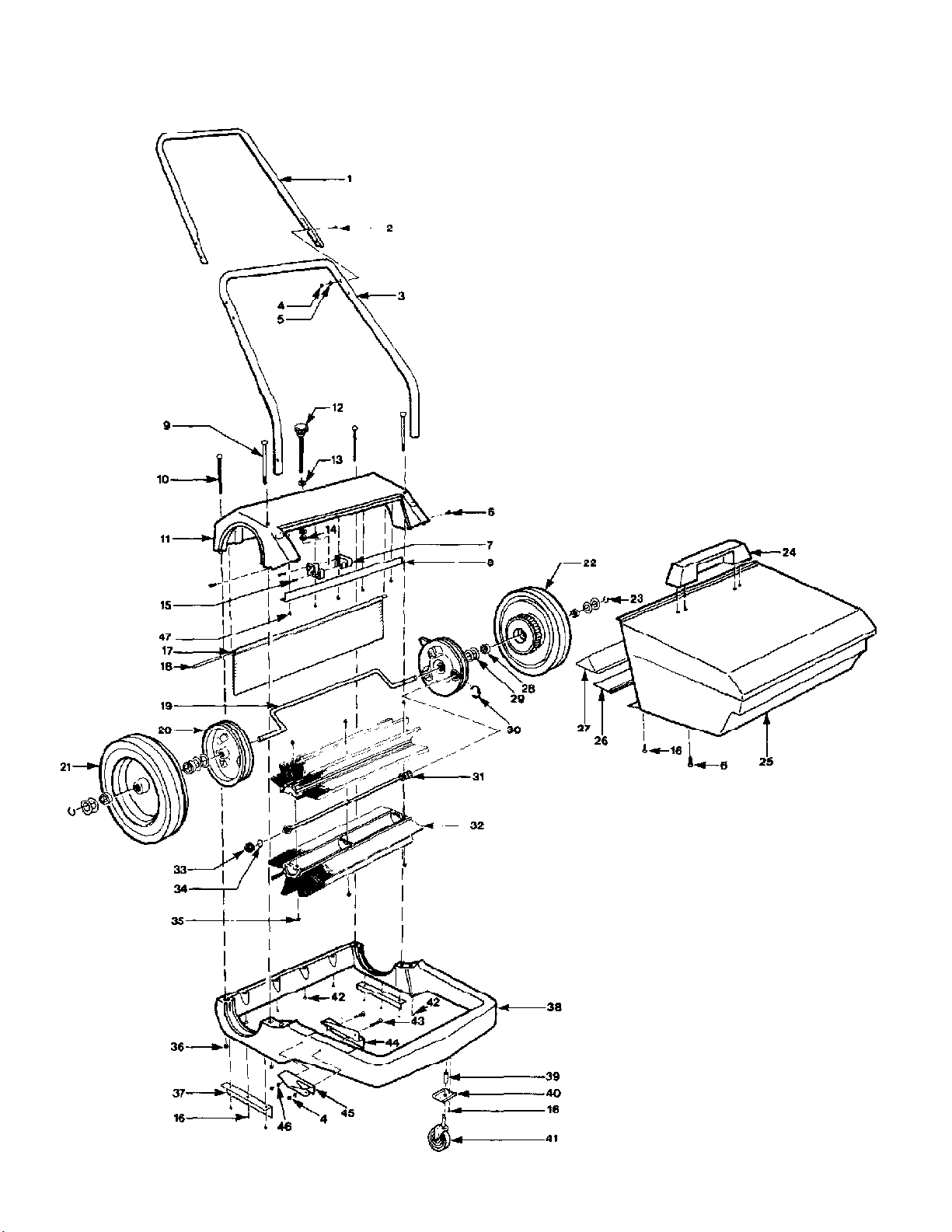

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400110-02 TITAN 305 PUSH SWEEPER 09/90 to 05/95 IPL 224324 Page 2 of 4
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 224591 Upper Handle1
2 224592 Screw 1/4-20 x 1-1/4" Slotted Truss Hd.4
3 224593 Lower Handle1
4 224508 Hex Nut 1/4 - 206
5 224634 Lockwasher 1/4" Internal Tooth4
6 224595 Screw 1/4" x 1" Slotted Truss Head Type BT6
7 224596 Height Adjustment Nut - Half2
8 224597 Seal - Hopper1
9 224598 Bolt 5/16 - 18 x 4-1/2 Round Head Sq. Neck2
10 224599 Bolt 5/16 - 18 x 5-1/2 Round Head Sq. Neck2
11 224600 Rear Housing1
12 224601 Main Broom Adjustment Knob1
13 224602 Flat Washer 3/8"2
14 224603 Setscrew Collar1
15 224604 Screw #10 x 1" Slotted Hex Head Type BF2
16 224502 Screw #10 x 3/4 PH, Pan Hd. Type BF15
17 224605 Floor Seal - Rear1
18 224606 Rear Seal Support Rod1
19 224607 Axle1
20 224608 Pivot Hub2
21 224609 Wheel & Bearing Assembly Includes 1-Wheel
1
35128-01-6 and 2-Bearings 35109-00-8
22 224610 Wheel & Clutch Assembly1
23 224611 Retaining Ring2
24 224612 Hopper Handle1
25 224613 Hopper1
26 224614 Floor Blade1
27 224615 Floor Blade Retainer1
28 224616 Bearing - Wheel4
29 224617 Flat Washer 1/2"A/R
30 224618 E-Ring External1
31 224619 Brush Shaft Assembly1
32 224620 Main Broom Half2
33 224621 Bearing1
34 224622 O-Ring1
35 224623 Screw #10 x 1-3/4" PH, Pan Head Type A6
36 224624 Serrated Hex Flange Nut 5/164
37 224625 Floor Seal - Sides2
38 224626 Main Frame1
39 224627 Caster Socket1
40 224628 Caster Support1
41 224629 Caster1
42 224630 Screw 1/4 x 1-1/2 Hex Head Type AB6
43 224631 Bolt 1/4-20 x 1-3/4 Round Head Sq. Neck2
44 224632 Sidearm Mounting Bracket - Inner1
45 224633 Sidearm Mounting Bracket - Outer1
46 224634 Lockwasher 1/4"2
47 224635 Screw #10 x 5/8" PH, Pan Head Type AB5
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400110-02 TITAN 305 PUSH SWEEPER 09/90 to 05/95 IPL 224324 Page 3 of 4
www.ktoutdoor.com

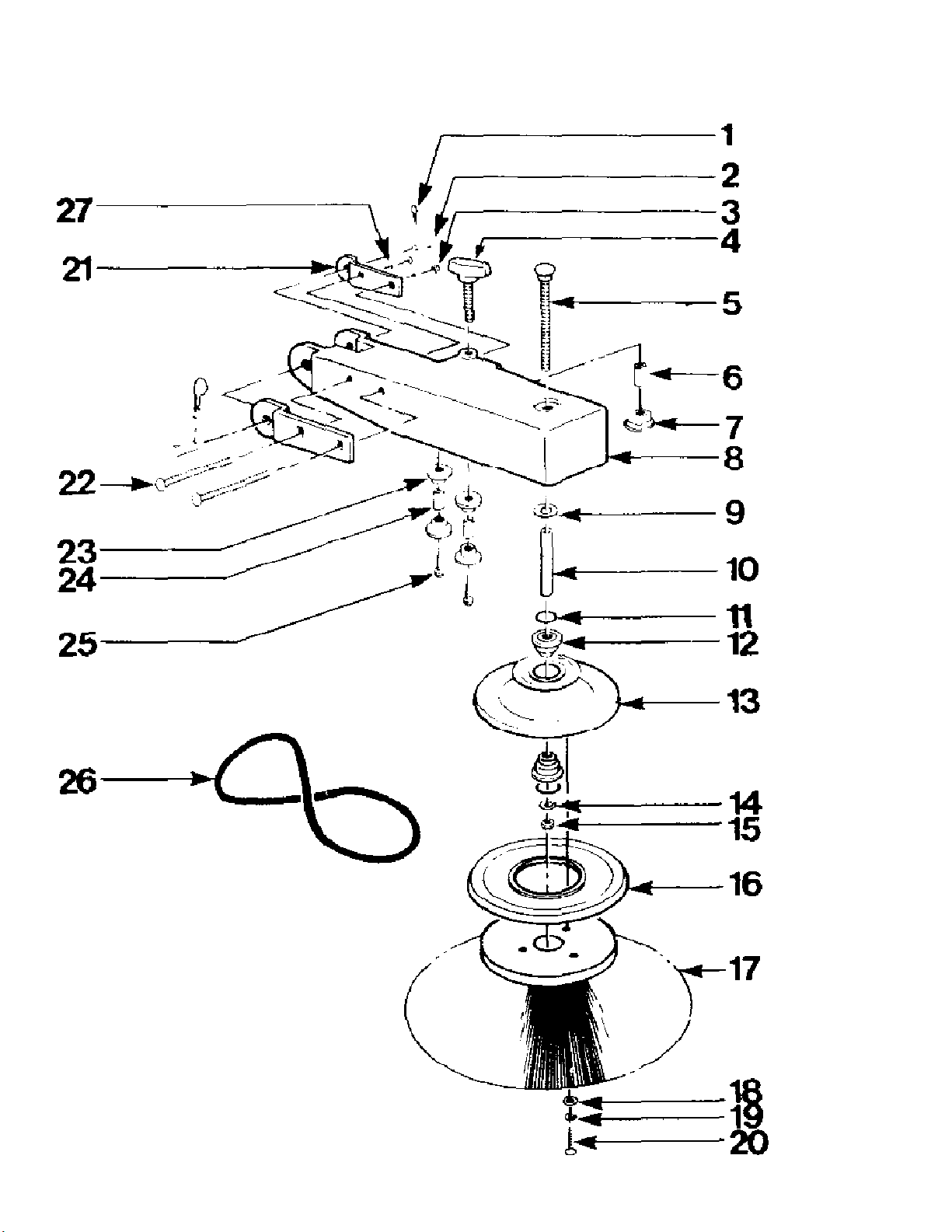

Side Broom
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400110-02 TITAN 305 PUSH SWEEPER 09/90 to 05/95 IPL 224324 Page 4 of 4
www.ktoutdoor.com
Side Broom
Ref # Part Number DescriptionQty
1 224636 Hairpin2
2 224637 Clevis Pin2
3 224508 Hex Nut 1/4 - 202
4 224638 Stop Adjustment Knob1
5 224639 Bolt 3/8 - 16 x 4" Round Head Sq. Neck1
6 224640 Threaded Insert 3/8"1
7 224641 Stop Adjustment Foot1
8 224642 Sidebroom Arm1
9 224643 Flat Washer 1/2"1
10 224644 Sidebroom Shaft1
11 224622 O-Ring2
12 224621 Bearing2
13 224645 Sidebroom Cover1
14 224646 Lock Washer 3/8"1
15 224647 Hex Nut 3/8 - 161
16 224648 Sidebroom Bumper1
17 224649 Sidebroom1
18 224589 Flat Washer 1/4"3
19 224634 Lock Washer 1/4"3
20 224650 Screw 1/4 x 1" Slotted Pan Head Type AB3
21 224651 Sidearm Bracket2
22 224652 Bolt 1/4 - 20 x 3" Round Head Sq. Neck2
23 224653 Belt Guide4
24 224654 Spacer2
25 224630 Screw 1/4 x 1-1/2 Hex Hd. Type AB2
26 224655 Belt1
27 224657 Lockwasher 1/4"2
K&T Saw Shop 606-678-9623 or 606-561-4983
