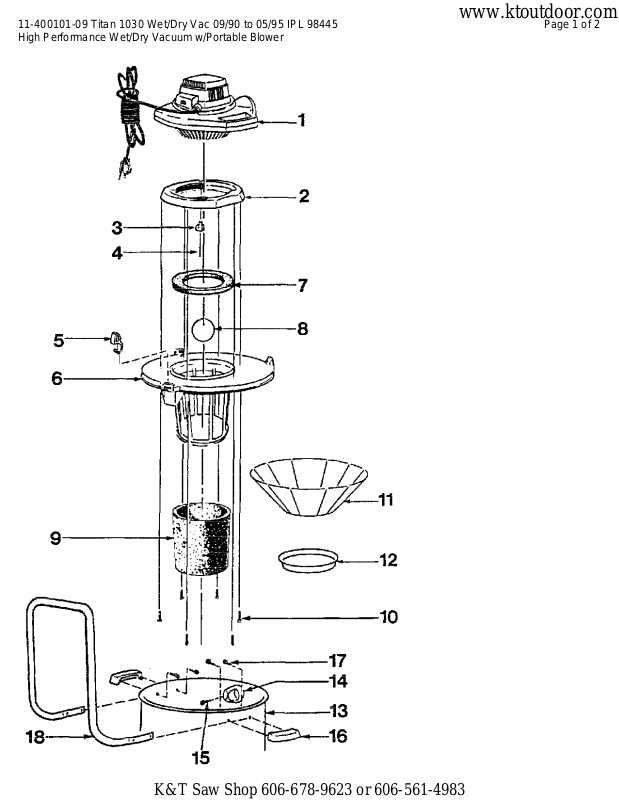

11-400101-09 Titan 1030 Wet/Dry Vac 09/90 to 05/95 IPL 98445 Page 1 of 2
www.ktoutdoor.com
High Performance Wet/Dry Vacuum w/Portable Blower
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400101-09 Titan 1030 Wet/Dry Vac 09/90 to 05/95 IPL 98445 Page 2 of 2
www.ktoutdoor.com
High Performance Wet/Dry Vacuum w/Portable Blower

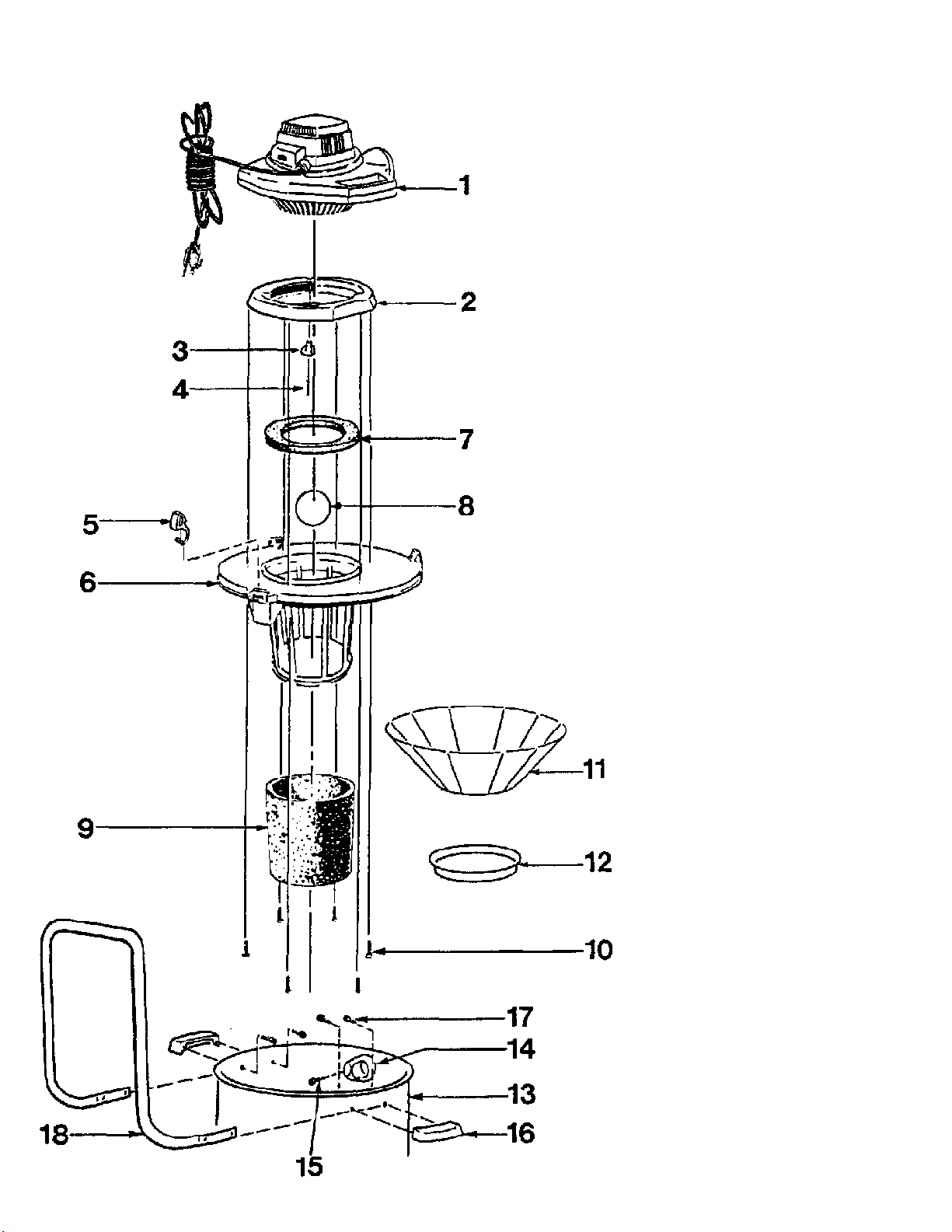

Ref # Part Number DescriptionQty
1 224570 Power Unit1
2 224541 Adapter1
3 224542 Release Lever1
4 224543 Spring1
5 224544 Latch3
6 224564 Lid Cage & Latches1
7 224546 Gasket1
8 224547 Ball Float1
9 224548 Foam Filter1
10 224549 Screw #10 x 3/4 Hex Head Type AB6
11 224667 Reusable Filter Disc, pkg. of 3 Includes mounting ring1
12 224551 Mounting Ring1
13 224567 Tank Assembly Includes Inlet1
14 224568 Inlet1
15 224635 Inlet Screw3
16 224572 Handle Ea.2
17 224549 Mounting Screw for Handle Ea.4
18 224573 Chrome Handle1
224554 2 1/2" Wand Not shown on schematic1
224555 Blower Nozzle Not shown on schematic1
224556 2 1/2" Connector Not shown on schematic1
224574 12' x 1 1/2" Hose Not shown on schematic1
224575 Squeegee Insert Not shown on schematic1
224576 14" Brush Not shown on schematic1
224577 Brush Holder Not shown on schematic1
224563 Exhaust Diffuser Not shown on schematic1
224578 1 1/2" Upper Metal Wand Not shown on schematic1
224579 1 1/2" Lower Metal Wand Not shown on schematic1
224580 14" Metal Nozzle Not shown on schematic1
