11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 1 of 8
www.ktoutdoor.com

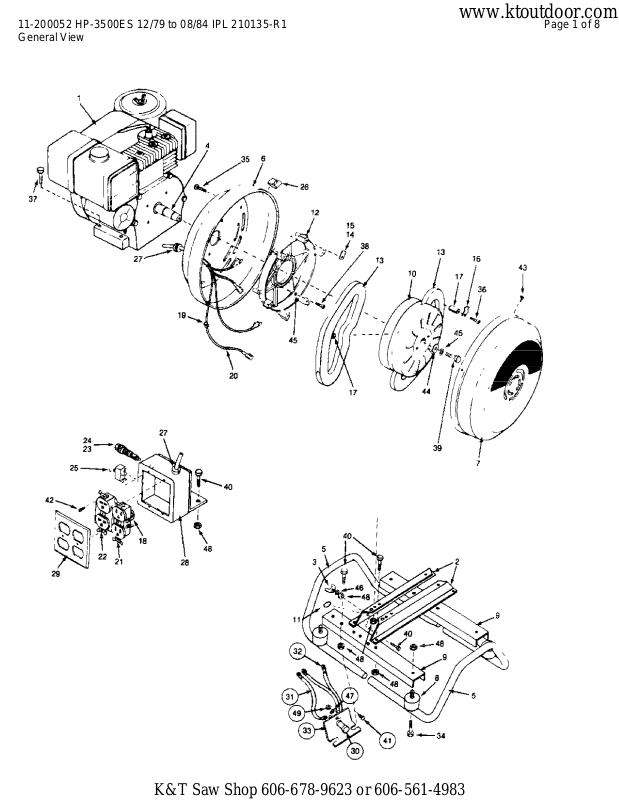

General View
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 2 of 8
www.ktoutdoor.com

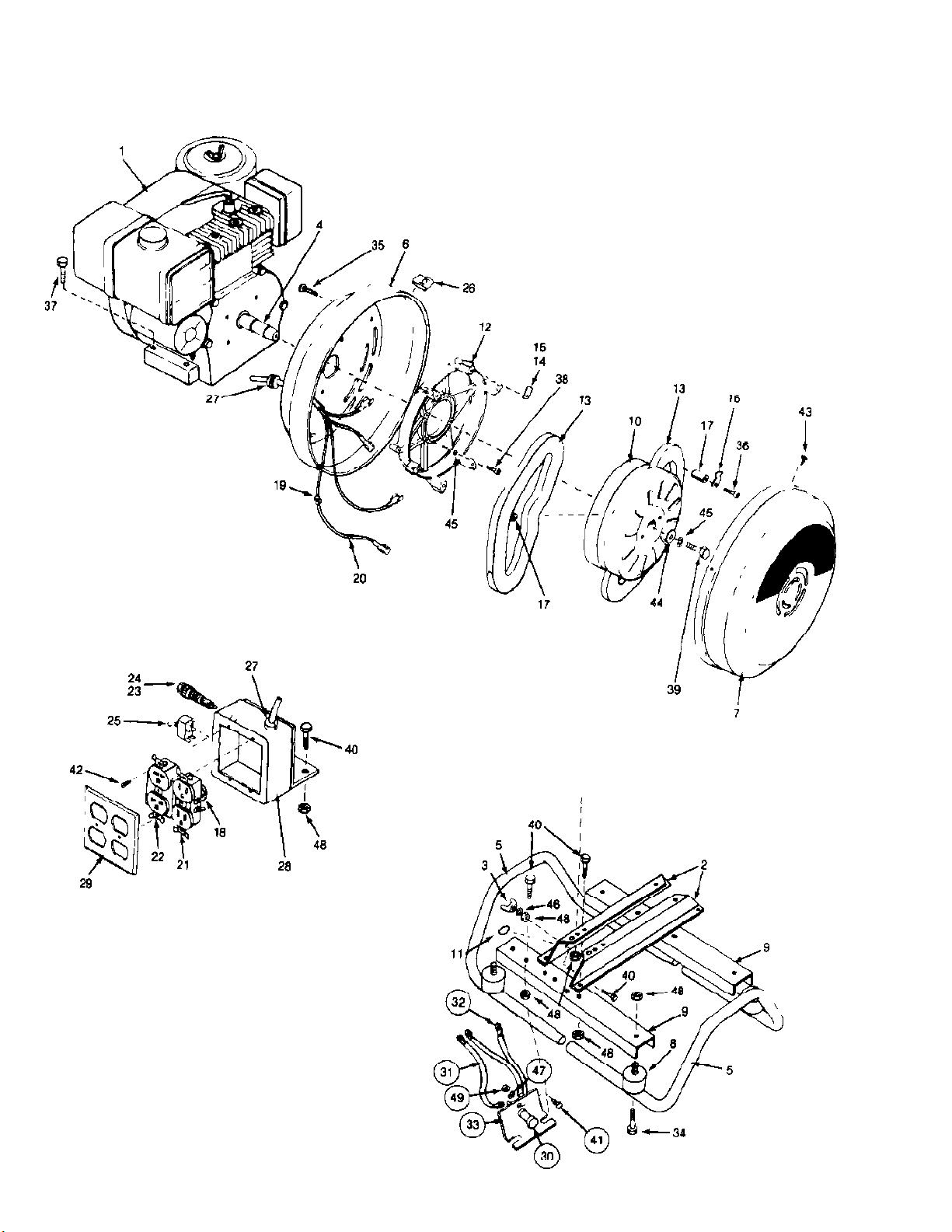

General View
Ref # Part Number DescriptionQty
1 21879 Engine1
2 21844 Rail - Engine2
3 21654 Nut - Wing 5/16-181
4 22120 Crankshaft1
5 21862 Cradle Half2
6 21681 Cover - Back1
7 210322 Cover - Front1
8 21804 Isolator4
9 21846 Channel - Isolator2
10 210317 Rotor1
11 22142 Label - Ground1
12 22093 Mount - Stator1
13 210243 Stator Half2
14 21884 Kit - Stator shim, 1/32 (pkg/3)1
210983 Stator shim, 1/32
22136 Stator shim, 3/64"
15 21885 Kit - Stator shim, 1/16 (pkg/3)1
210985 Stator shim, 1/16
22137 Stator shim, 5/64"
22138 Stator shim, 3/32"
22139 Stator shim, 7/64"
22140 Stator shim, 1/8"
22141 Stator shim, 9/64"
16 21850 Spring - Holding6
17 21860 Bushing6
18 21709 Wiring Harness (wires only)1
19 21643 Keeper - Wire6
20 21864 Cable - Wire1
21 21150 Receptacle, Duplex 110V1
22 21628 Receptacle, Duplex 220V1
23 21270 Holder - Fuse2
24 21281 Fuse2
25 21971 Switch - DPDT1
26 21726 Nut - Speed4
27 21769 Grommet - Strain relief2
28 21943 Box & Bracket Assembly1
29 21632 Cover - Receptacle1
30 21948 Switch - Starter1
31 21909 Cable - Battery1
32 21949 Starter Cable Assembly1
33 21947 Bracket - Starter switch1
34 21876 Bolt - Curved hd 5/16-18 x 1-1/24
35 22070 Screw - Thd forming 1/4-20 x 3/44
36 21950 Screw - Hx hd cap 1/4-20 x 1-1/46
37 21878 Screw - Hx hd cap 5/16-18 x 1-3/44
38 21003 Screw - Hx hd cap 3/8-16 x 14
38 Retaining Bolts, Engine to Back Cover HP-3500,
HP-3500ES Torque Value 216-240 in./lbs.
39 22090 Screw - Hx hd cap 3/8-24 x 3-3/41
39 Rotor Retaining Bolt HP-3500, HP-3500ES Torque
Value 360-420 in./lbs.
40 21647 Screw - Hx hd cap 5/16-18 x 18
41 21020 Screw - Hx hd cap 1/4-20 x 3/42
42 21703 Screw - Truss hd #84
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 3 of 8
www.ktoutdoor.com
General View
Ref # Part Number DescriptionQty
43 21650 Screw - Pan hd sheet metal #84
44 22092 Washer - Flat 3/8 x 1/41
45 21130 Washer - Lock 3/85
46 21657 Washer - Lock 5/161
47 21658 Washer - Lock 1/42
48 21653 Nut - Keps 5/16-1816
49 21203 Nut - Hx 1/4-202
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 4 of 8
www.ktoutdoor.com
Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 5 of 8
www.ktoutdoor.com
Propane Conversion Kit
Ref # Part Number DescriptionQty
21502 HP-3500 and HP-3500ES Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 6 of 8
www.ktoutdoor.com
Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 7 of 8
www.ktoutdoor.com
Special Tools
Ref # Part Number DescriptionQty
210118 Tool Kit Complete
21880 Rotor Holding Wrench
21925 Stator Clearance Gage
21877 Stator Shim Gage
21509 Rotor Gap Gage
21882 Rotor Puller Bolt (8" Rotor)
210117 Rotor Puller Bolt (9-1/2" Rotor)
22145 Puller Bolt Pilot
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-200052 HP-3500ES 12/79 to 08/84 IPL 210135-R1 Page 8 of 8
www.ktoutdoor.com

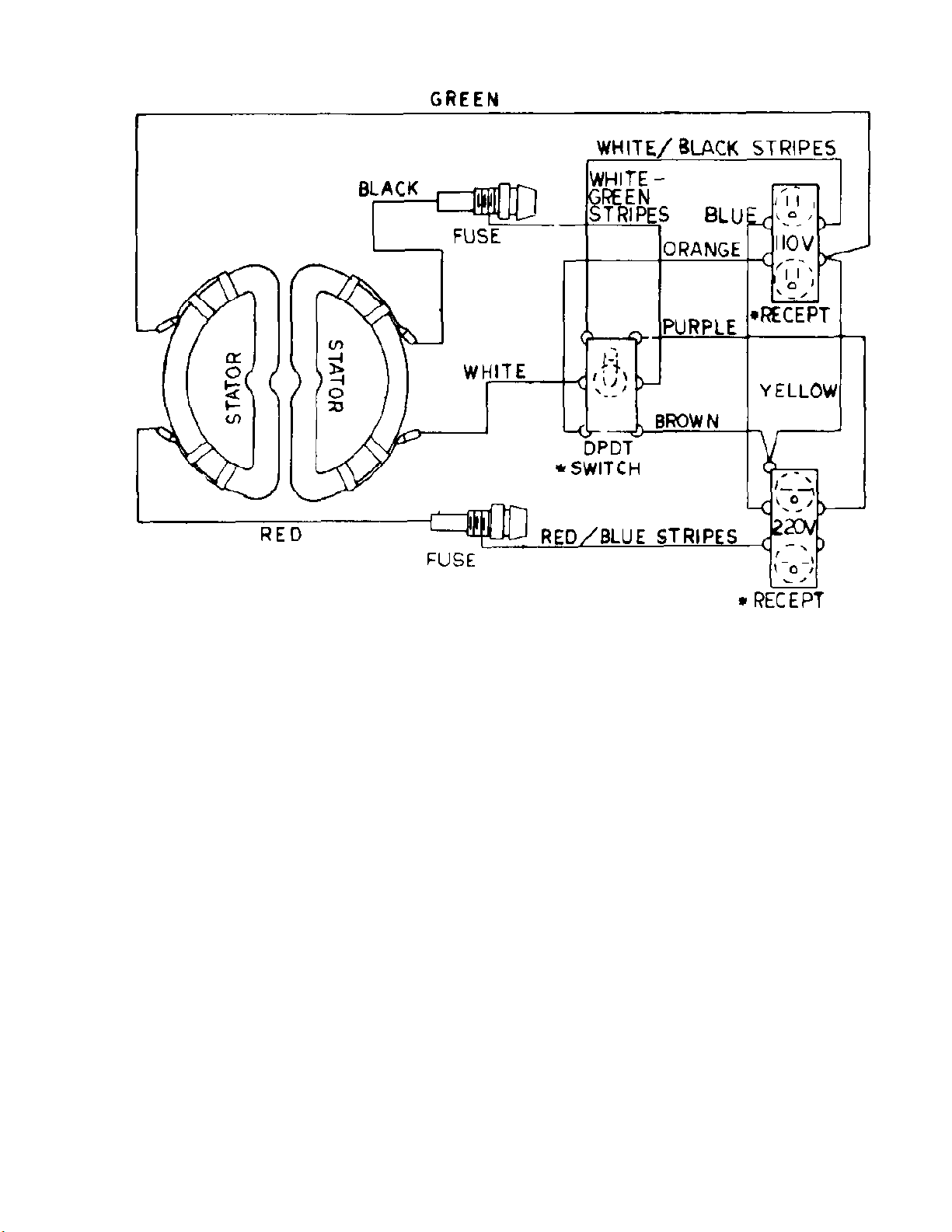

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
