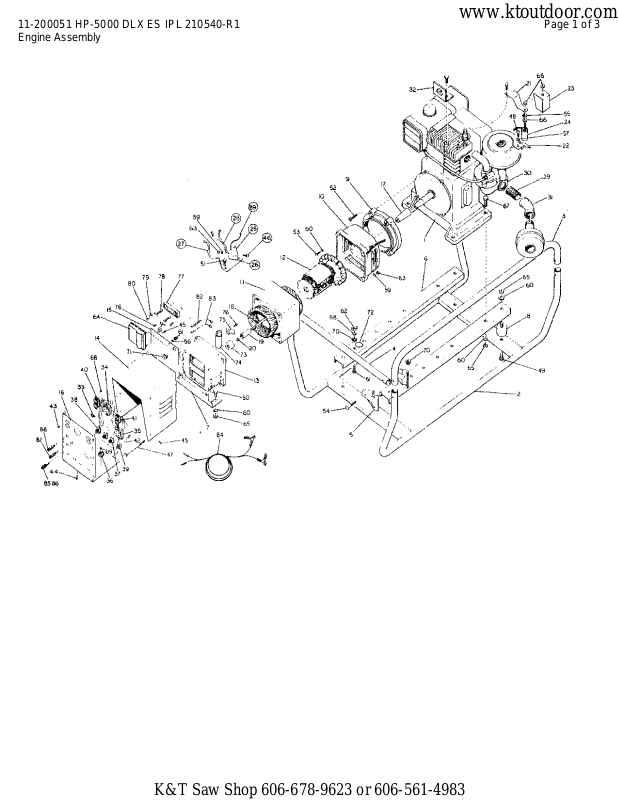

11-200051 HP-5000 DLX ES IPL 210540-R1 Page 1 of 3
www.ktoutdoor.com

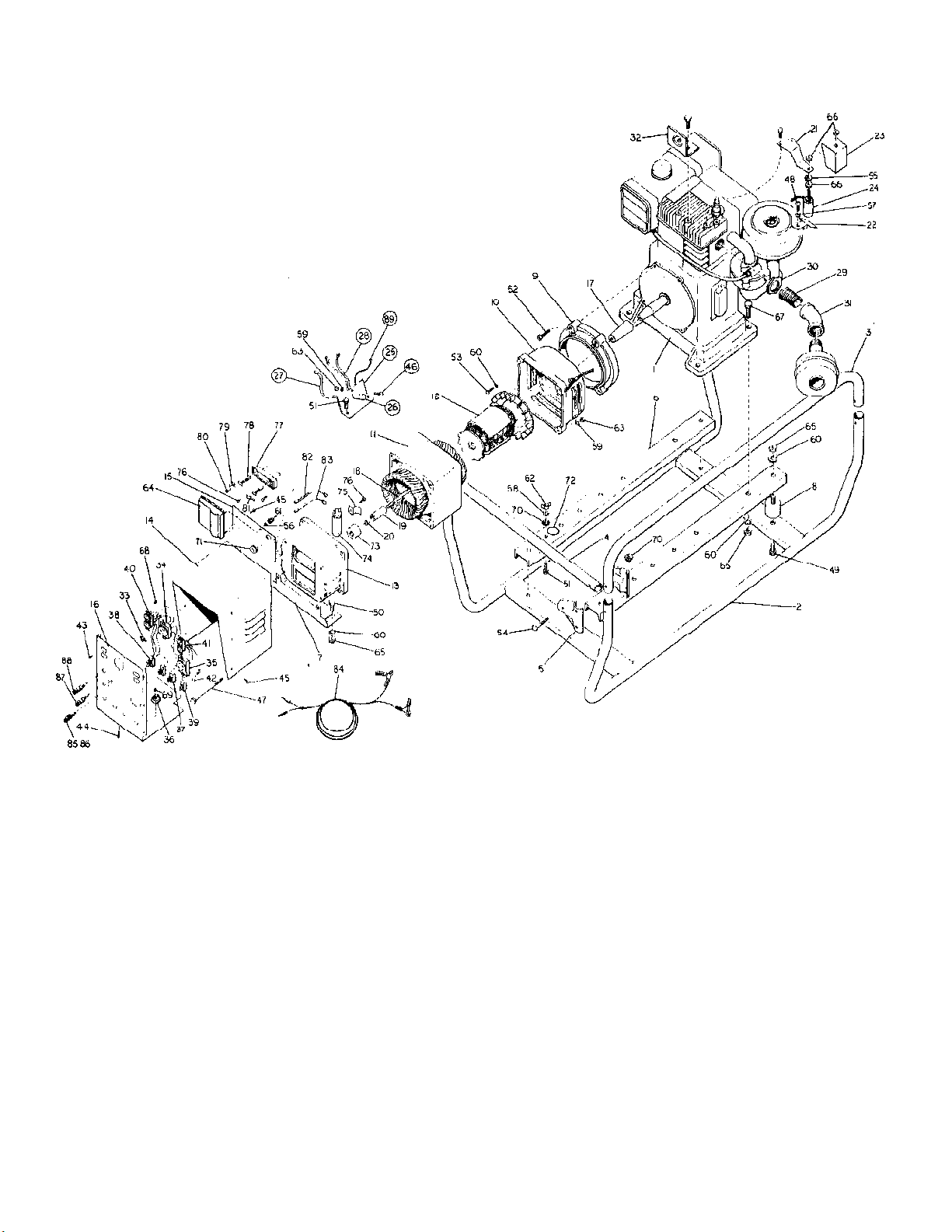

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200051 HP-5000 DLX ES IPL 210540-R1 Page 2 of 3
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 210170 Engine - 10 H.P.1
2 210109 Cradle - Lower Member Assembly1
3 210051 Cradle - Top Member2
4 210091 Cross Member - Upper2
5 210092 Gusset8
6 210014 Channel - Engine Mounting2
7 210026 Bracket - Generator Mounting1
8 210021 Isolator4
9 210175 Adapter - Engine1
10 210176 Generator Adapter Assembly1
11 210177 Stator Assembly - Wound1
12 210102 Rotor Assembly - Wound1
13 210265 End Bell Assembly1
13 Engine Adapter to Engine Torque Value 320-400
in./lbs.
14 210266 Hood - Receptacle Box1
15 210037 Backplate1
16 210542 Faceplate - Silkscreened1
17 210049 Adapter Shaft1
18 210050 Stud1
19 210095 Sleeve - Generator Shaft1
20 210096 Nut - Internal Wrenching1
21 210182 Bracket - Solenoid1
22 210142 Bracket - Throttle1
23 210538 Solenoid Cover1
24 210147 Solenoid Coil Assembly1
25 21947 Bracket - Starter Switch
26 21948 Starter Switch
27 21909 Battery Cable
27 Corner Stud Torque Value 55-65 in./lbs.
28 22115 Starter Cable
29 210163 Nipple - Close1
30 210166 Locknut 1" Conduit1
31 210164 Fitting - 45ΓΈ Elbow1
32 210215 Bracket - Lift1
33 210516 Silicon Rectifier1
34 21715 Receptacle - 3 Prong Twist Lock1
35 210063 Receptacle - 4 Prong Twist Lock1
36 210048 Bridge Rectifier1
37 210019 Circuit Breaker2
38 21971 Switch, DPDT1
39 22022 Switch, SPST1
40 21622 Receptacle - Duplex1
41 21628 Receptacle - Duplex1
41 Electrical Box Assembly Torque Value 18-20 in./lbs.
42 210541 Wire Kit1
43 21898 Screw, Phillips Head Machine No. 6-32 x 1/28
44 210056 Screw, Pan Head Machine No. 8-32 x 3/41
44 Generator Adapter to Engine Adapter Torque Value
85-95 in./lbs.
45 22049 Screw, Thread Forming No. 8-32 x 3/810
46 21020 Screw, Hex Head Cap - 1/4-20 x 3/4
47 210046 Screw, Hex Head Cap - 1/4-20 x 6-1/24
48 210128 Screw, Hex Head Cap - No. 8-32 x 3/81
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200051 HP-5000 DLX ES IPL 210540-R1 Page 3 of 3
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
49 210172 Screw, Hex Head Cap - 3/8-16 x 1/24
49 Rotor Assembly Bolt Torque Value 120-180 in./lbs.
Engine Cylinder Head Bolt Torque Value 175-200
in./lbs.
50 21003 Screw, Hex Head Cap - 3/8-16 x 12
51 21647 Screw, Hex Head Cap - 5/16-18 x 11
52 210020 Screw, Socket Head Cap - 7/16-14 x 14
53 210017 Bolt, Hex Tap - 3/8-16 x 7/84
54 210083 Bolt, Curved Head - 5/16-18 x 1-1/212
55 21657 Starwasher - 5/161
56 210087 Lockwasher - No. 64
57 210129 Lockwasher - No. 81
58 21657 Lockwasher - 5/161
59 21658 Lockwasher 1/44
60 21130 Lockwasher - 3/814
61 210088 Nut - Acorn - No. 6-324
62 21654 Wingnut - 5/16-181
63 21203 Nut - Hex - 1/4-204
64 22024 Idle Control Module1
65 210245 Nut - Hex - 3/8-1610
66 210279 Nut - Jam - 5/16-183
67 210084 Screw, Hex Head Cap - 3/8-16 x 1-1/24
68 21766 Nut - Keps - No. 6-328
69 21675 Nut - Keps - No. 8-321
70 21653 Nut - Keps - 5/16-1813
71 21851 Grommet - Strain Relief1
72 21997 Label Ground1
73 210297 Bearing, Roller1
74 210298 Capacitor1
75 210299 Bracket, Capacitor Mounting1
76 210300 Screw, Tapping - Hex Head - No. 6 x 3/84
77 210301 Guide, Brush1
78 210302 Brush2
79 210303 Terminal, Tab1
80 210304 Screw, Tapping - Hex Head - No. 6 x 5/81
81 210305 Terminal, Tab2
82 210306 Lead (3 1/4")1
83 210307 Lead (3")1
84 210544 Cord Set1
85 21280 Fuse1
86 21270 Fuseholder1
87 210515 Binding Post (Black)1
88 210514 Binding Post (Red)1
89 210462 Alternator Wire1
210006 Natural Gas Conversion Kit HP-5000 DLX ES
210007 Propane Conversion Kit HP-5000 DLX ES
210296 Generator HP-5000 DLX ES
