Page 1
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 1 of 8
www.ktoutdoor.com
Natural Gas Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 2 of 8
www.ktoutdoor.com
Natural Gas Conversion Kit
Ref # Part Number DescriptionQty
210005 HP 5000 Natural Gas Conversion Kit
210005 HP 5000 ES Natural Gas Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 3 of 8
www.ktoutdoor.com

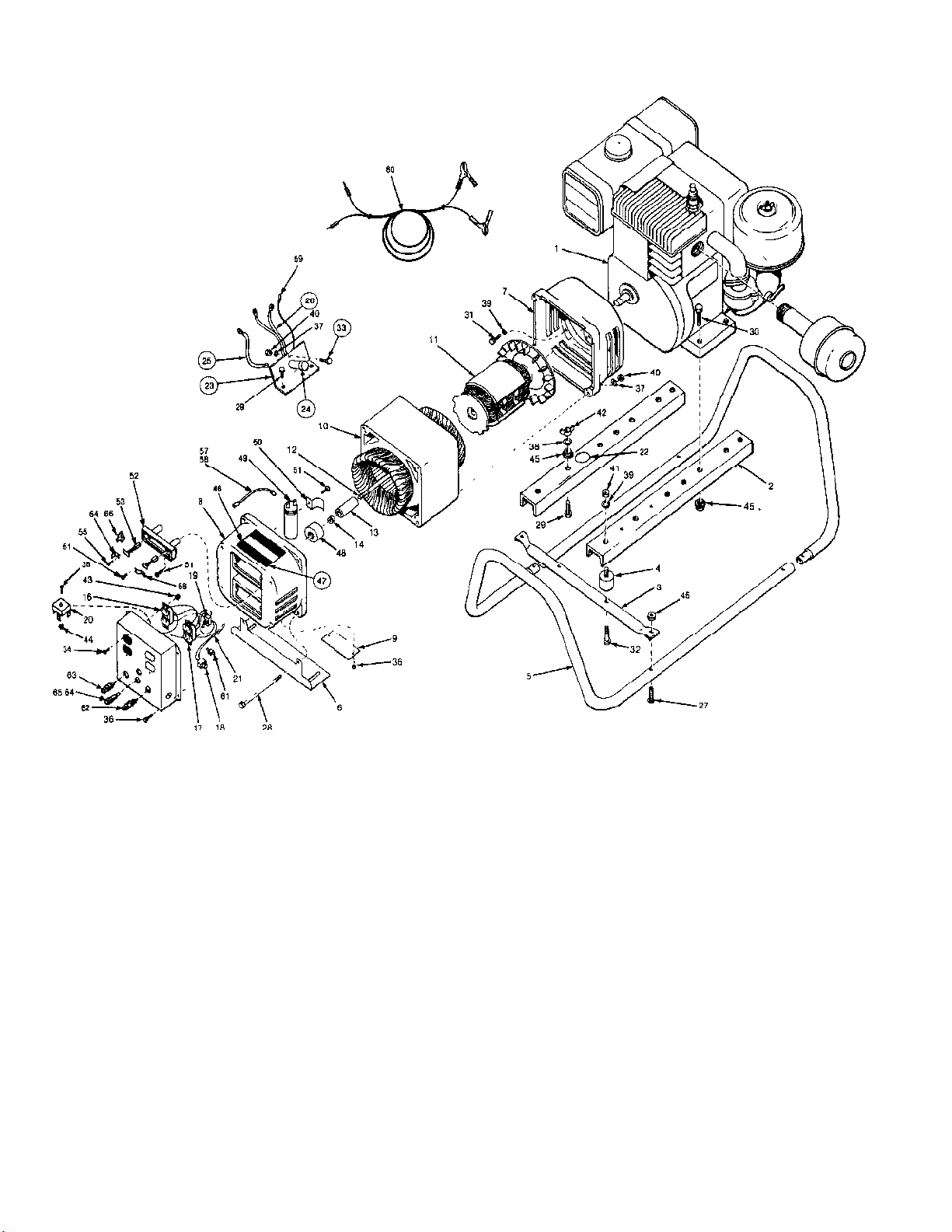

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 4 of 8
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
1 210168 Engine - 10 H.P1
2 210011 Channel - Engine Mounting2
3 210090 Cross Member2
4 210021 Isolator, Vibration4
5 210089 Cradle Half2
6 210022 Bracket - Generator Mounting1
7 210176 Generator Adapter Assembly1
8 210178 End Bell Assembly1
9 210034 Cover1
10 210177 Stator Assembly - Wound1
11 210102 Rotor Assembly - Wound1
12 210055 Stud1
13 210095 Sleeve - Gen. Shaft1
14 210091 Nut - Internal Wrenching1
15 210557 Faceplate - Silkscreened1
16 21628 Receptacle, Duplex1
17 21622 Receptacle, Duplex1
18 210019 Circuit Breaker2
19 21971 Switch, DPDT1
20 210048 Bridge Rectifier1
21 210555 Wire Kit1
22 21997 Label - Ground1
23 Starter Switch Bracket Not required
23 HHCS. Alum Adapt. to Engine Torque Value 190 -
215 in.lbs
24 Starter Switch Not required
24 HHCS. Corner Stud Torque Value 55 - 65 in.lbs
25 Battery Cable Not required
26 Starter Cable Not required
27 210083 Curved Head Bolt 5/16-18 x 1-1/2 Lg4
27 Screw. Thd. Forming, Bx. & Cover Pl. Torque Value
30 - 35 in.lbs
28 210046 Screw, Hex Head Cap 1/4-20 x 6-1/24
28 Wrench Nut & Stud. Rotor Torque Value 120 - 180
in.lbs
29 21647 Screw, Hex Head Cap 5/16-18 x 11
30 22159 Screw, Hex Head Cap 5/16-18 x 1-3/44
30 Wrench Nut & Stud. Rotor Torque Value 120 - 180
in.lbs
31 210017 Screw, Hex Head Cap 3/8-16 x 7/84
32 210084 Screw, Hex Head Cap 3/8-16 x 1-1/24
33 Screw, Hex Head Cap 1/4-20 x 3/4 Not required
34 21898 Screw, Round Hd. Mach. No. 6-32 x 1/24
35 210056 Screw, Pan Head No. 8-321
36 210016 Screw, Thread Forming6
37 21658 Lockwasher 1/4" Split4
38 21657 Lockwasher 5/16" Split1
39 21130 Lockwasher 3/8" Split8
40 21203 Nut, Hex 1/4-204
41 210245 Nut, Hex 3/8-164
42 21654 Nut, Wing 5/16-181
43 21766 Nut, Keps No. 6-324
44 21675 Nut, Keps No. 8-321
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 5 of 8
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
45 21653 Nut, Keps 5/16-185
46 210070 Label End Bell1
47 Label - Electric Start Not required
48 210297 Bearing, Roller1
49 210298 Capacitor1
50 210299 Bracket, Capacitor Mounting1
51 210300 Screw, Tapping - Hex Head No. 6 x 3/84
52 210301 Guide, Brush1
53 210302 Brush2
54 210303 Terminal, Tab1
55 210304 Screw, Tapping - Hex Head No. 6 x 5/81
56 210305 Terminal, Tab2
57 210306 Lead (3-1/4")1
58 210307 Lead (3")1
59 210462 Alternator Wire1
60 210544 Cord Set1
61 210516 Silicon Rectifier1
62 210514 Binding Post (Red)1
63 210515 Binding Post (Black)1
64 21280 Fuse1
65 21270 Fuseholder1
66 21874 Tab Adapter1
Engine Cylinder Head Bolts Torque Value 150 - 175
in.lbs
210296 Spark Arrester For Generator Model HP-5000ES
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 6 of 8
www.ktoutdoor.com
Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 7 of 8
www.ktoutdoor.com
Propane Conversion Kit
Ref # Part Number DescriptionQty
21502 HP 5000 Propane Conversion Kit
21502 HP 5000 ES Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-200049 HP-5000 12/79 to 08/84 IPL 210539 Page 8 of 8
www.ktoutdoor.com

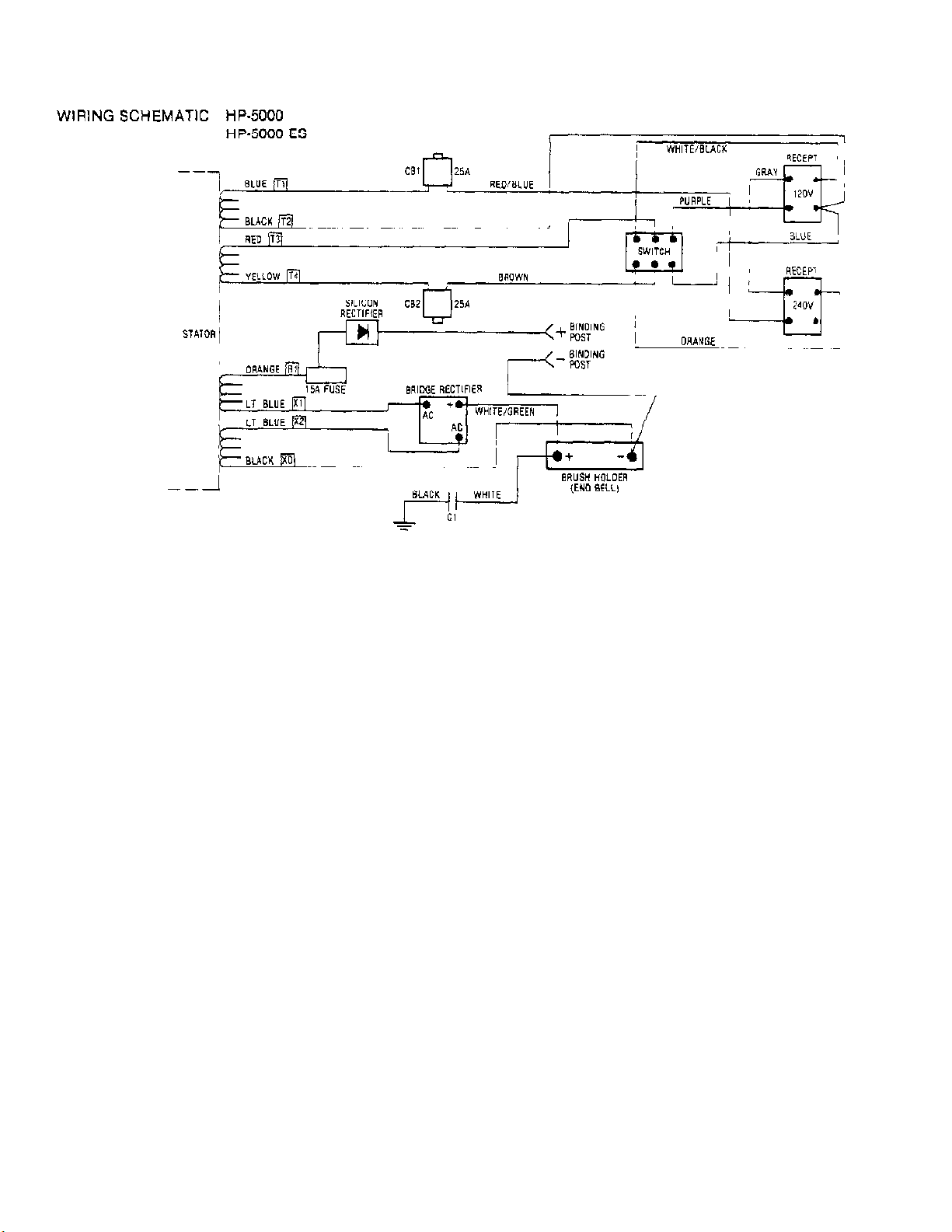

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
