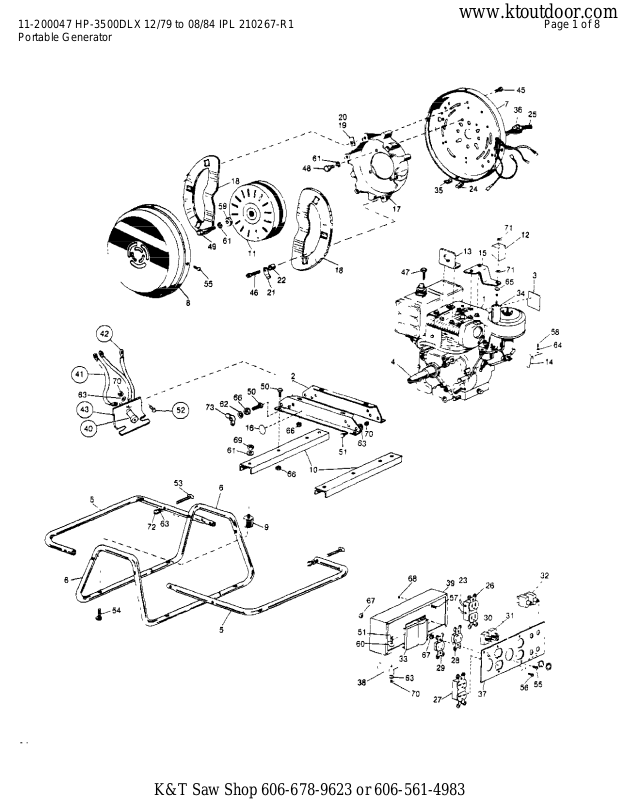

11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 1 of 8
www.ktoutdoor.com

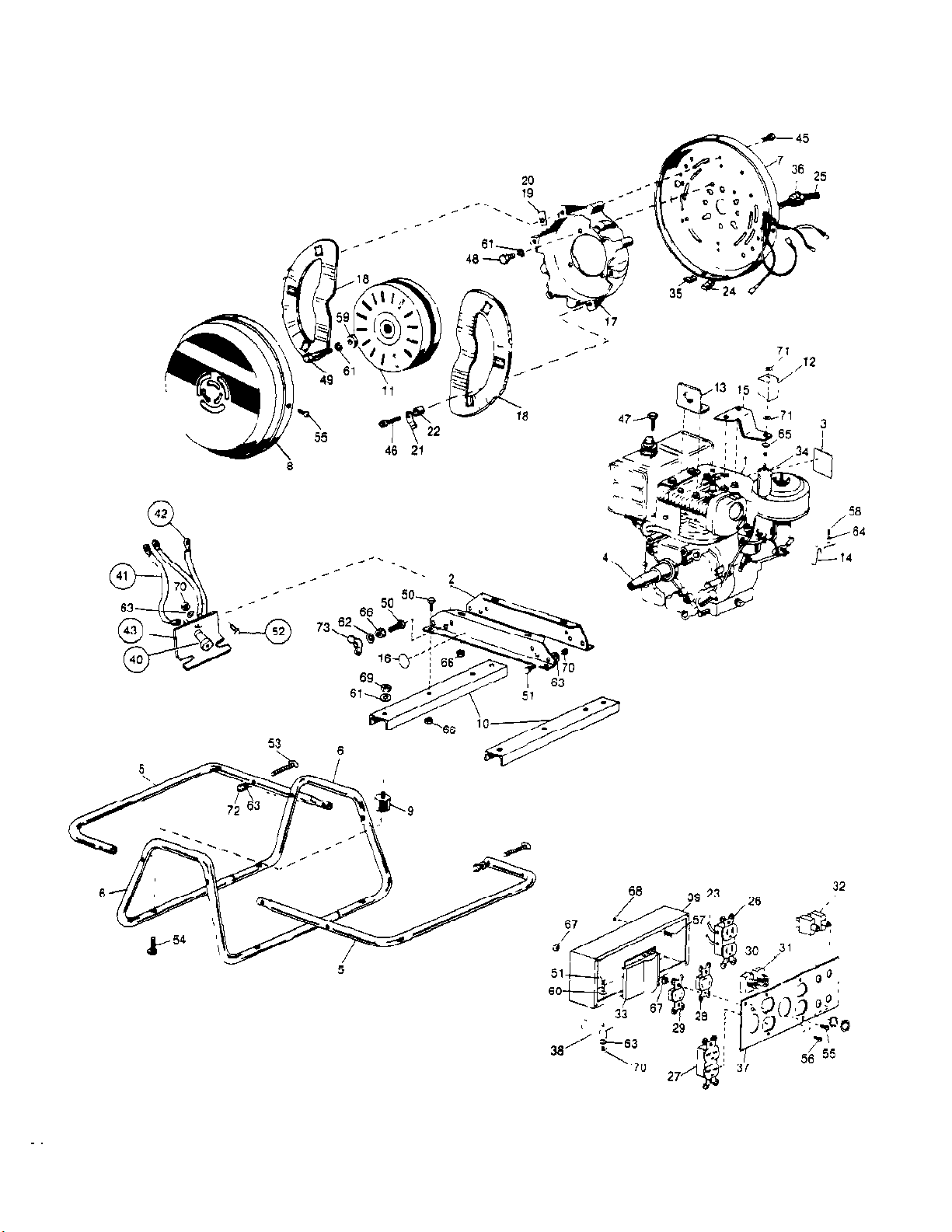

Portable Generator
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 2 of 8
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
392195 Portable Generator
1 210261 Engine1
2 21844 Rail - Engine2
3 21926 label - Engine1
4 22120 Crankshaft1
5 22017 Frame - Horizontal2
6 22016 Cradle Half2
7 21681 Cover - Back1
8 210284 Cover - Front1
9 21805 Isolator4
10 21846 Channel - Isolator2
11 210317 Rotor1
12 210258 Cover - Solenoid1
13 210215 Bracket - Lift1
14 210142 Bracket - Throttle1
15 210250 Bracket - Solenoid1
16 22142 Label - Ground1
17 22093 Mount - Stator1
18 210243 Stator Half2
19 21884 Kit - Stator shim, 1/32 (pkg/3)1
20 21885 Kit - Stator shim, 1/16 (pkg/3)1
21 21850 Spring - Holding6
22 21860 Bushing6
23 210146 Wiring Harness (wires only)1
24 21643 Wire Keeper5
25 210256 Cable - Wire1
26 21622 Receptacle - Duplex 110V1
27 21628 Recept.- Dplx 220V1
28 21715 Recept.- 3 prong Twistloc1
29 210063 Recept.- 4 prong Twistloc1
30 21971 Switch - DPDT1
31 22022 Switch - SPST1
32 210018 Circuit Breaker2
33 22024 Module - Idle control1
34 210318 Solenoid Coil Asy1
35 21726 Speed Nut4
36 21769 Grommet - Strain relief2
37 210254 Cover - Receptacle1
38 210255 Bracket - Box2
39 210259 Box - Receptacle1
40 Switch - Starter nr
41 Cable - Battery nr
42 Cable Asy - Starter nr
43 Bracket - Starter sw nr
45 22070 Screw - Thd forming, 1/4-20 x 3/44
45 Casting Retaining Bolts
46 21950 Screw - Hx hd cap, 1/4-20 x 1-1/46
46 Stator Retaining Screws
47 21878 Screw - Hx hd cap, 5/16-18 x 1-3/44
48 21003 Screw - Hx hd cap, 3/8-16 x 14
48 Retaining Bolts Engine to Back Cover
49 22090 Screw - Hx hd cap, 3/8-24 x 3-3/41
49 Rotor Retaining Bolts
50 21647 Screw - Hx hd cap, 5/16-18 x 15
51 21573 Screw - Hx hd cap, 1/4-20 x 5/88
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 3 of 8
www.ktoutdoor.com
Portable Generator
Ref # Part Number DescriptionQty
52 Screw - Hx hd cap, 1/4-20 x 3/4 nr
53 22019 Screw - Truss hd, 1/4-20 x 24
54 210253 Screw - Truss hd, 3/8-16 x 1-1/44
55 21650 Screw - Pan hd, Sheet metal, #810
56 21898 Screw - Rd hd mach, 6-32 x 1/28
57 21899 Screw - Rd hd mach, 8-32 x 1/21
58 210128 Screw - Rd hd mach, 8-32 x 3/81
59 22092 Washer - Flat 3/8 x 1/41
60 21956 Washer - Flat 1/44
61 21130 Washer - Lock, 3/89
62 21657 Washer - Lock, 5/161
63 21658 Washer - Lock, 1/414
64 210129 Washer - Lock, #81
65 210252 Washer - Star, 5/161
66 21653 Nut - Keps, 5/16-189
67 21766 Nut - Keps, 6-3212
68 21675 Nut - Keps, 8-321
69 210245 Nut - Hex, 3/8-164
70 21303 Nut - Hex, 1/4-208
71 210279 Nut - Hx jam, 5/16-182
72 22021 Nut - Acorn, 1/4-204
73 21654 Nut - Wing, 5/16-181
Engine Head Bolts
210983 Stator Shims 1/32" Additional Stator Shim Available
22136 Stator Shims 3/64" Additional Stator Shim Available
210985 Stator Shims 1/16" Additional Stator Shim Available
22137 Stator Shims 5/64" Additional Stator Shim Available
22138 Stator Shims 3/32" Additional Stator Shim Available
22139 Stator Shims 7/64" Additional Stator Shim Available
22140 Stator Shims 1/8" Additional Stator Shim Available
22141 Stator Shims 9/64" Additional Stator Shim Available
210118 Tool Kit Complete
21880 Rotor Holding Wrench Special Tools
21925 Stator Clearing Gage Special Tools
21509 Stator Shim Gage Special Tools
21896 Rotor Gap Gage Special Tools
21882 Rotor Puller Bolt (8" Rotor) Special Tools
210117 Rotor Puller Bolt (9 1/2" Rotor) Special Tools
22145 Puller Bolt Pilot Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 4 of 8
www.ktoutdoor.com
Propane Conversion Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 5 of 8
www.ktoutdoor.com
Propane Conversion Kit
Ref # Part Number DescriptionQty
21502 Propane Conversion Kit HP-3500 DLX
21502 Propane Conversion Kit HP-3500 DLX ES
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 6 of 8
www.ktoutdoor.com
Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 7 of 8
www.ktoutdoor.com
Special Tools
Ref # Part Number DescriptionQty
210118 Tool Kit Complete
21880 Rotor Holding Wrench
21925 Stator Clearing Gage
21509 Stator Shim Gage
21896 Rotor Gap Gage
21882 Rotor Puller Bolt (8" Rotor)
210117 Rotor Puller Bolt (9-1/2" Rotor)
22145 Puller Bolt Pilot
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-200047 HP-3500DLX 12/79 to 08/84 IPL 210267-R1 Page 8 of 8
www.ktoutdoor.com

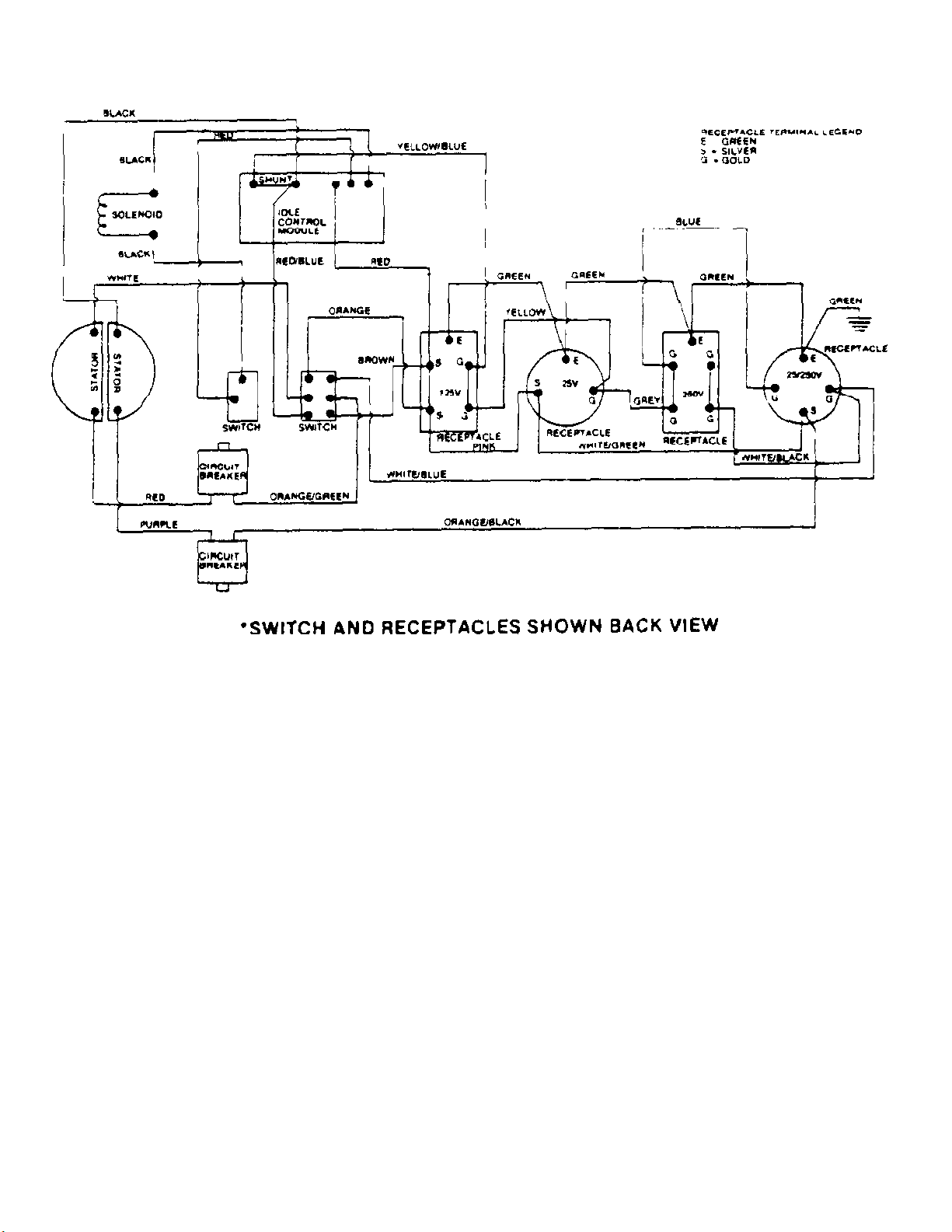

Wiring Schematic
K&T Saw Shop 606-678-9623 or 606-561-4983
